Acson ACM 28 ER User manual

Ceiling Convertible
Split Systems
ACM - E- 2007
ACM 15 E/ER
ACM 20 E/ER
ACM 25 E/ER
ACM 28 E/ER
A5CM 15 E/ER
A5CM 20 E/ER
A5CM 25 E/ER
A5CM 28 E/ER
Models:
Downloaded from AC-Manual.com Manuals

TABLE OF CONTENTS
1. NOMENECLATURE ................................................................................................... 1
2. PRODUCT LINE-UP .................................................................................................. 3
3. FEATURES ................................................................................................................ 6
4. APPLICATION INFORMATION
- OPERATING RANGE .......................................................................................... 7
- REFRIGERANT CIRCUIT DIAGRAMS ............................................................... 8
- CONTROLLERS ................................................................................................ 14
- INSTALLATION .................................................................................................. 18
5. ENGINEERING AND PHYSICAL DATA
- GENERAL DATA ................................................................................................ 31
- COMPONENTS DATA ........................................................................................ 45
- SAFETY DEVICES ............................................................................................. 59
6. PERFORMANCE DATA ............................................................................................ 63
- PERFORMANCE TABLES ................................................................................ 67
7. DIMENSIONAL DATA ............................................................................................... 87
8. ELECTRICAL DATA.................................................................................................. 89
9. WIRING DIAGRAMS................................................................................................. 97
10. SERVICING AND MAINTENANCE ........................................................................ 108
11. TROUBLESHOOTING ........................................................................................... 110
12. EXPLODED VIEW & PARTS LIST ........................................................................ 115
Downloaded from AC-Manual.com Manuals

1. NOMENCLATURE
1
ACM 20 ER
Brand
A : ACSON
Capacity
20 : 20,000 Btu/h
Series
E : E series
Model Type
R : heatpump
Omitted if Cooling Only
G IA C A-
Refrigerant
5 : R410A
Omitted if R22 model
Model Name
CM : Ceiling Convertible
Electrical
A : 220 - 240V/1Ph/50Hz
Others
A : First issue
Market Region
C : Export with CE mark
Indoor
Controller
Specifications
G : Wireless handset
S : SLM3
N : Netware III
Other Specifications
I : Ionizer Generator
N : Non Thermal Plasma
5
Downloaded from AC-Manual.com Manuals

2
ALC 20 C R
Brand
A : ACSON
Capacity
20 : 20,000 Btu/h
Series
C : C series
Model Type
R : heatpump
Omitted if Cooling
5 P OA C A-
Refrigerant
5 : R410A
Omitted if R22 model
Electrical
A : 220 - 240V/1Ph/50Hz
Others
A : First issue
Compressor
P : Matsushita Rotary T : Toshiba Rotary
M :Mitsubishi Rotary
Outdoor
Specifications Variation
O : Standard unit I : Gold Fin
B : With Contactor L : Long Piping Unit
G : Low Ambient Unit S : With H/L Pressure Switch
H : High ambient unit X :Oxygen Unit
Market Region
C : Export with CE marking
E : Export without marking
U : ETL Spec.
Model Name
LC : Single Split Condensing unit
Downloaded from AC-Manual.com Manuals

INDOOR UNIT
ACM-E SERIES PRODUCT LINE UP
A5CM-E SERIES PRODUCT LINE UP
3
2. PRODUCT LINE UP
Control Module
Fin
L2
SLM3
Netware III
G12 Handset
CE Mark
W/out Marking
Hydrophilic (SLIT)
Cap. Tube
W/out Cap. Tube
15E ACGIA X X X X X X
ACGIAX XX XX X
ACGNAX XXXXX
ACGIAX XX XX X
ACGNAX XXXXX
ACGIAX XX XX X
ACGNA X X X X X X
15ERACGIAX XX XX X
ACGIAX XX XX X
ACGNAX XXXXX
ACGIAX XX XX X
ACGNAX XXXXX
ACGIAX XX XX X
ACGNAX XXXXX
Classification
ACM
Nomenclature
Handset
Marking
Ionizer
NTP
Refrigerant
Control
20ER
25ER
28ER
20E
25E
28E
Cooling ModelHeat Pump Model
Control Module
Fin
L2
SLM3
Netware III
G12 Handset
CE Mark
W/out Marking
Hydrophilic (SLIT)
Cap. Tube
W/out Cap.Tube
15E ACGIA X X X X X X
ACGIA X X X X X X
ACGNAX XXXXX
ACGIA X X X X X X
ACGNAX XXXXX
ACGIA X X X X X X
ACGNAX XXXXX
15ER ACGIA X X X X X X
ACGIA X X X X X X
ACGNAX XXXXX
ACGIA X X X X X X
ACGNAX XXXXX
ACGIA X X X X X X
ACGNAX XXXXX
20E
Marking
Refrigerant
Control
Handset
NONMENCLATURE
Classification
Negative Ionizer
NTP
20ER
25ER
28ER
A5CM
25E
28E
Cooling ModelHeat Pump Model
Downloaded from AC-Manual.com Manuals

4
OUTDOOR UNIT
ALC-C SERIES PRODUCT LINE UP
Grille
Cap. Tube
TXV
Gold Fin
High Ambient Kit
Low Ambient Kit
Contactor
High Pressure Switch
Low Pressure Switch
Nantong Press. SW
Phase Sequencer
Drain Elbow
Copeland Scroll Comp.
Rotary
CE Marking
ETL
ACPOD X X X
ACPID X X X X
ACPBD X X X X
ACPYD X X X X X
ACPOD XXX
ACPID XX XX
ACPOD XXX
ACPID XX XX
ACPOD XXX
ACPID XX XX
ACPOA XX
ACPIA XXX
AFGE XXXX X X
AFGF X X X X X X X
AFGG X X X X X X X
FFGE XXXXX X X
FFGG X XXXXX X X
ACPOB X X X
ACPIB X X X X
ACPOD X X X
ACPID X X X X
ACPOD XXX
ACPID XX XX
ACPOD XXX
ACPID XX XX
ACPOA XXX
ACPIA XX XX
AFFB XX XX X XX X
AFFCXXXXXXXXX
AFFD XXX XX X XX X
FFFB XX XX XXXX X
FFFD XXX XX XXXX X
25C
28C
15CR
18CR
30CR
28CR
20CR
Safety Devices
Classification
Marking
Refrigerant
Ctrl + Fin
Compressor
25CR
Special
30C
Nomenclature
ALC
18C
20C
Cooling Model
15C
Heat Pump Model
Downloaded from AC-Manual.com Manuals

5
OUTDOOR UNIT
A5LC-C SERIES PRODUCT LINE UP
Grille
Cap. Tube
TXV
Gold Fin
High Ambient Kit
Low Ambient Kit
Contactor
High Pressure Switch
Low Pressure Switch
Nantong Press. SW
Phase Sequencer
Drain Elbow
Copeland Scroll Comp.
Rotary
CE Marking
ETL
15C ACPOC X X X
ACPIA X X X X
ACPOA X X X
FCPOC X X X X
FCPIC X X X X X
ACPIA X X X X
ACPOA X X X
FCPOC X X X X
PCPIC X X X X X
ACPOA X X X
ACPIA X X X X
FCPOA X X X X
FCPIA X X X X X
ACCOAXX XXX X X
ACCIAXXX XXX X X
FCCOAXX XXXXX X X
15CR ACPOC X X X
ACPIA X X X X
ACPOC X X X
FCPOC X X X X X
FCPIC X X X X X X
ACPIA X X X X
ACPOC X X X
FCPOC X X X X X
FCPIC X X X X X X
ACPOA X X X
ACPIA X X X X
FCPOA X X X X X
FCPIA X X X X X X
ACCOAXX XXX X X
ACCGAXXX XXX X X
FCCOAXX XXXXXXX X
FCCGAXXX XXX XXX X
20CR
25CR
28CR
Heat Pump Model
35CR
Classification
Marking
Refrigerant
Ctrl + Fin
Special
Compressor
Safety Devices
Nomenclature
A5LC
Cooling Model
20C
25C
28C
35C
Downloaded from AC-Manual.com Manuals

Ceiling And Floor Installation Option
The unit is uniquely designed with the option to install either below the ceiling or mounted at low wall position
without any modification needed. Furthermore, the unit is design adds a touch of elegance to suit any interior
design requirement
Excellent Air Distribution
The louver with automatic air swing function fully optimize the room comfort by enables the air flow to be
evenly distributed into the room from the front discharge area.
Negative Ion Generator
ACSON emphasis on provide indoor air quality solution. Therefore, the negative ionizer technology is being
brought in as an essential part of the unit. The negative ion generator increases the amount of negative ion in
the air-conditioning area, creating a refreshing and healthy living environment.
Easy Installation
The ceiling convertible fan coil unit is easily installed with a very economical and space saving installation. No
need renovation on wall or ceiling for installation. This easy to install and ready to operate unit ensure rapid
and low installation cost.
Magnificent Serviceability
The blower, fan motor assembly and electrical parts can be inspected and air filter can be accessed by pulling
down the air intake grille. During servicing or repairing, only the bottom panel needs to be removed in order to
access the fan motor, blower, control box piping connection and drain pan.
Wireless Remote Controller
The standard unit comes with a simple, user friendly and stylish wireless controller. The G12 controller offers
many features:
•The compact LCD transmitter is able to operate the indoor unit within 9 meters of distance.
•Fan speed can be set at low/medium/high or automatic.
•Sleep mode auto control will gradually increase or decrease the set temperature to provide a comfort-
able surrounding for sleeping.
•The real time timer allows the unit to be switched ON and OFF automatically based on user settings.
•Ionizer or non-thermal plasma is available to create better air quality.
•Turbo mode function is available to enables the required set temperature to be achieved in a short time.
•Personalized Setting allows user to preset and store 2 groups of personal settings (including timer
setting) in the handset.
Auto Random Restart
Auto random restart function allows the unit to automatic restart as the last setting condition when the power
supply is resumed after power failure. However, the compressor will restart randomly if more than one unit is
installed and sharing the same phase of power.
Self Diagnosis
The microprocessor provides the possibility to detect and diagnose any fault or malfunction that occurs in the
system. The error will be reflected by the blinking of the LED lights.
6
3. FEATURES
Downloaded from AC-Manual.com Manuals

4. APPLICATION INFORMATION
Ensure the operating temperature is in allowable range.
Cooling only
Heatpump
7
Caution :
The use of your air conditioner
outside the range of working
temperature and humidity can
result in serious failure.
Outdoor temp. (°CDB)
Indoor temp. (°CWB)
-5
19
35
15
46
24
54
Standard
point
High ambient
unit
Low ambient kit
Indoor temp. (°CDB)
Heating
Outdoor temp. (°CWB)
-9
15 21
6
27
18
Standard
point
Cooling
Outdoor temp. (°CDB)
Indoor temp. (°CWB)
-5
19
35
15
46
24
54 High ambient
unit
Low ambient kit
Standard
point
Standard operating range.
With High ambient unit. (Optional item)
Please refer to local dealer for unit of this specification.
With Low ambient kit. (Optional item)
Please refer to local dealer for unit of this specification.
Note :
Operating Range
Downloaded from AC-Manual.com Manuals

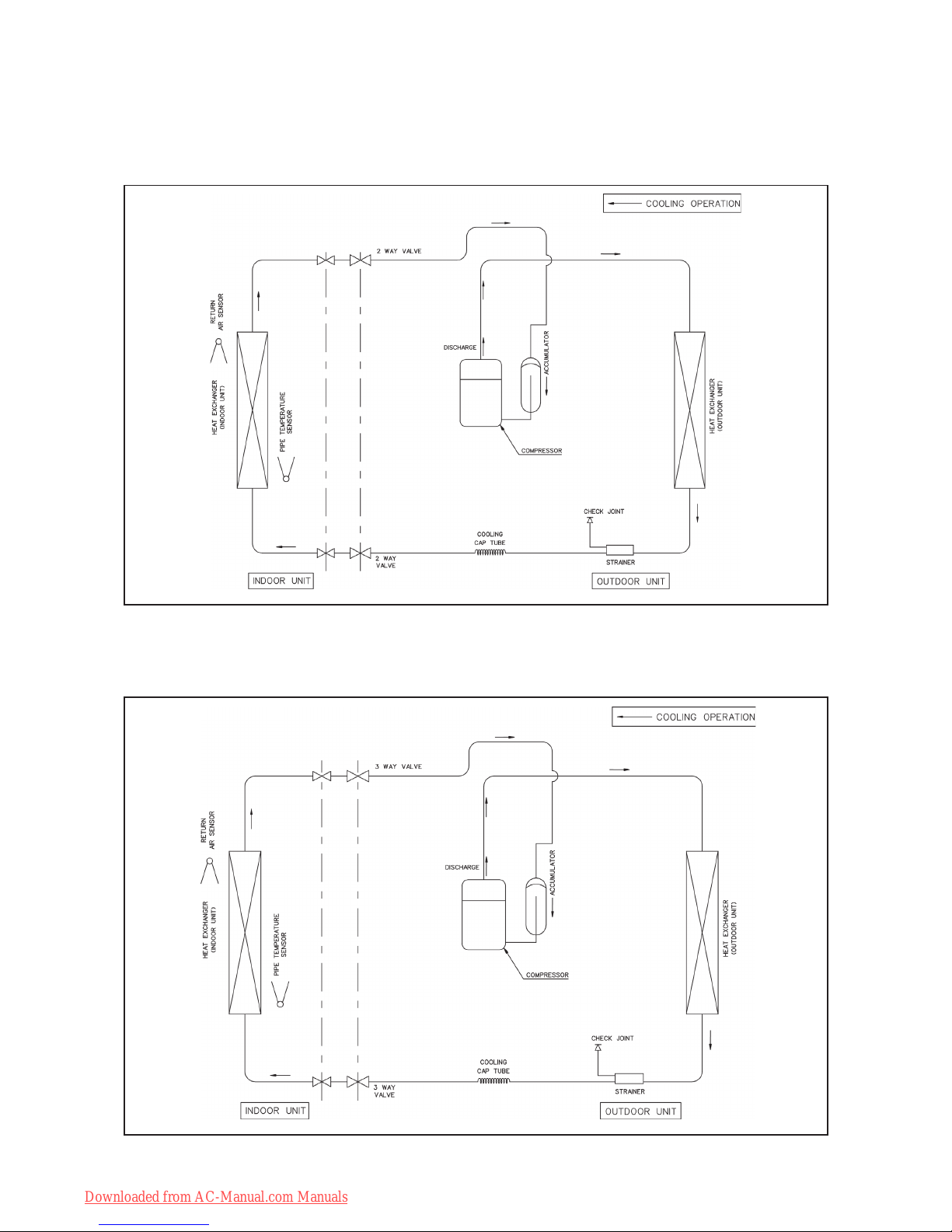

Refrigerant Circuit Diagrams
MODEL : ACM / A5CM 15E - ALC / A5LC 15C ACM 20E - ALC 18C
ACM / A5CM 20E - ALC / A5LC 20C A5CM 25E - A5LC 25C
MODEL : ACM 25E - ALC 25C
A5CM 28E - A5LC 28C
8
Downloaded from AC-Manual.com Manuals

9
MODEL : ACM 28E - ALC 28C
MODEL : ACM 28E - ALC 30C
Downloaded from AC-Manual.com Manuals

10
MODEL : A5CM 28E - A5LC 35C
MODEL : ACM / A5CM 15ER - ALC / A5LC 15CR
Downloaded from AC-Manual.com Manuals

11

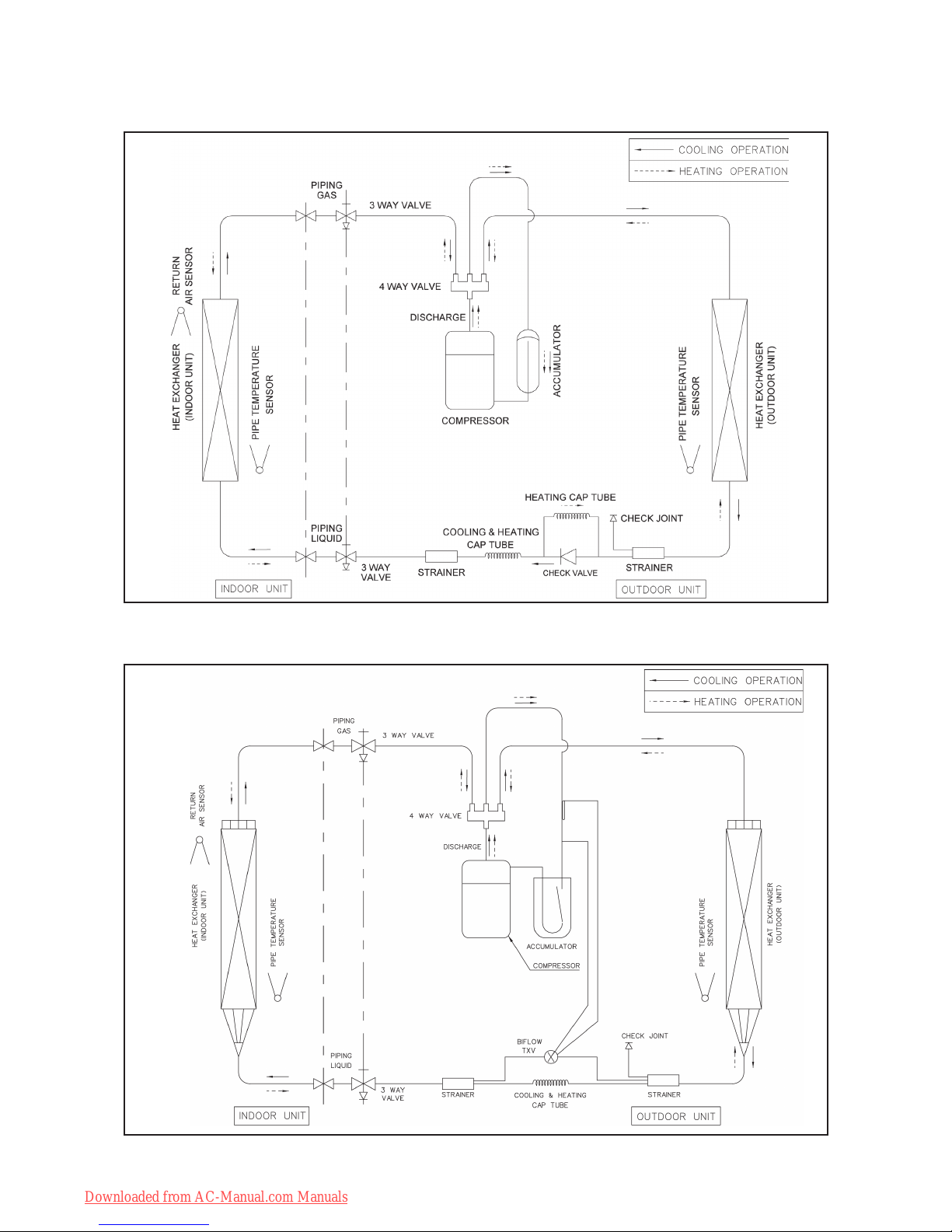

MODEL : ACM / A5CM 20ER - ALC / A5LC 20CR
A5CM 25ER - A5LC 25CR
MODEL : ACM 25ER - ALC 25CR ACM 28ER - ALC 28CR
Downloaded from AC-Manual.com Manuals

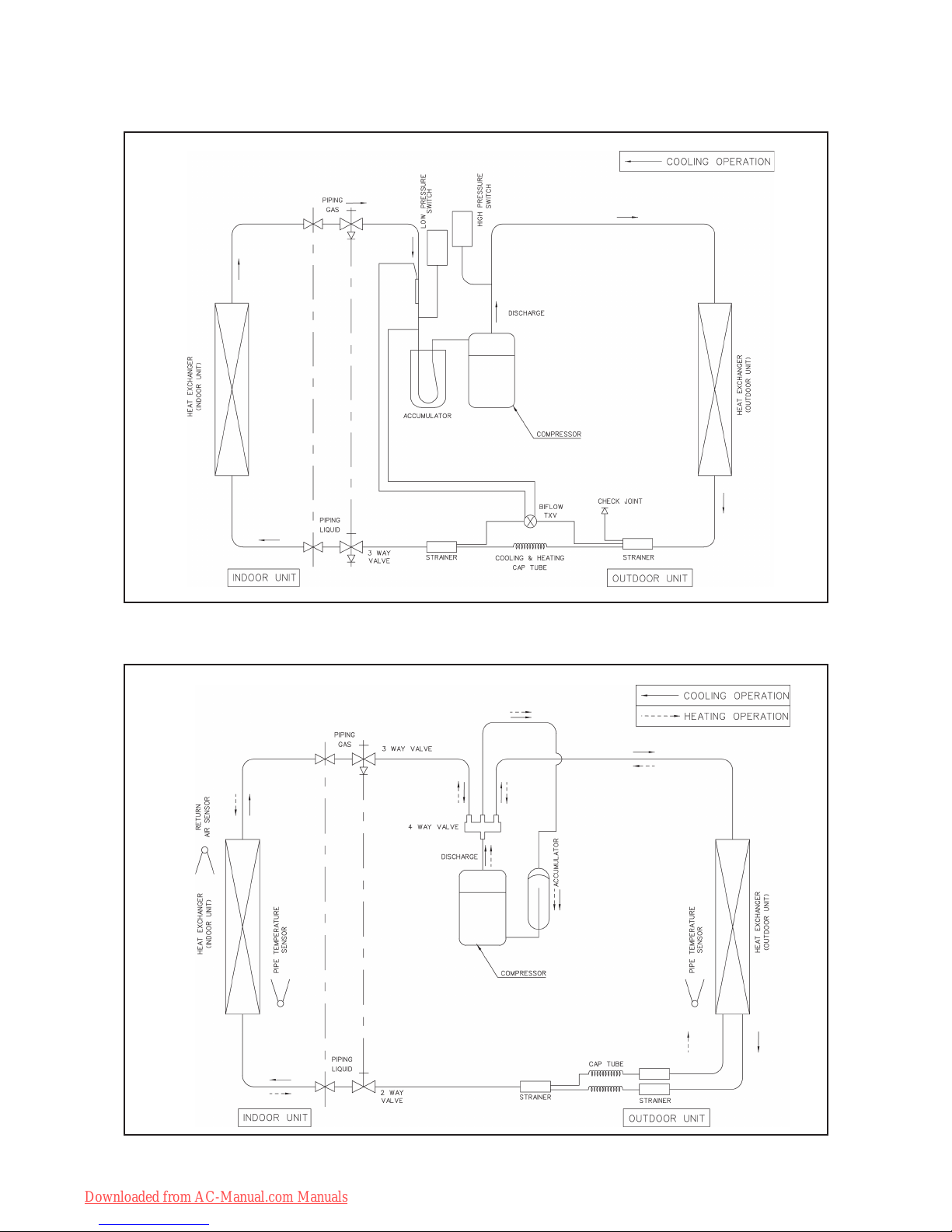

MODEL : A5CM 28ER - A5LC 28CR
12
MODEL : ACM 28ER - ALC 30CR
Downloaded from AC-Manual.com Manuals

MODEL : A5CM 28ER - A5LC 35CR
13
Downloaded from AC-Manual.com Manuals

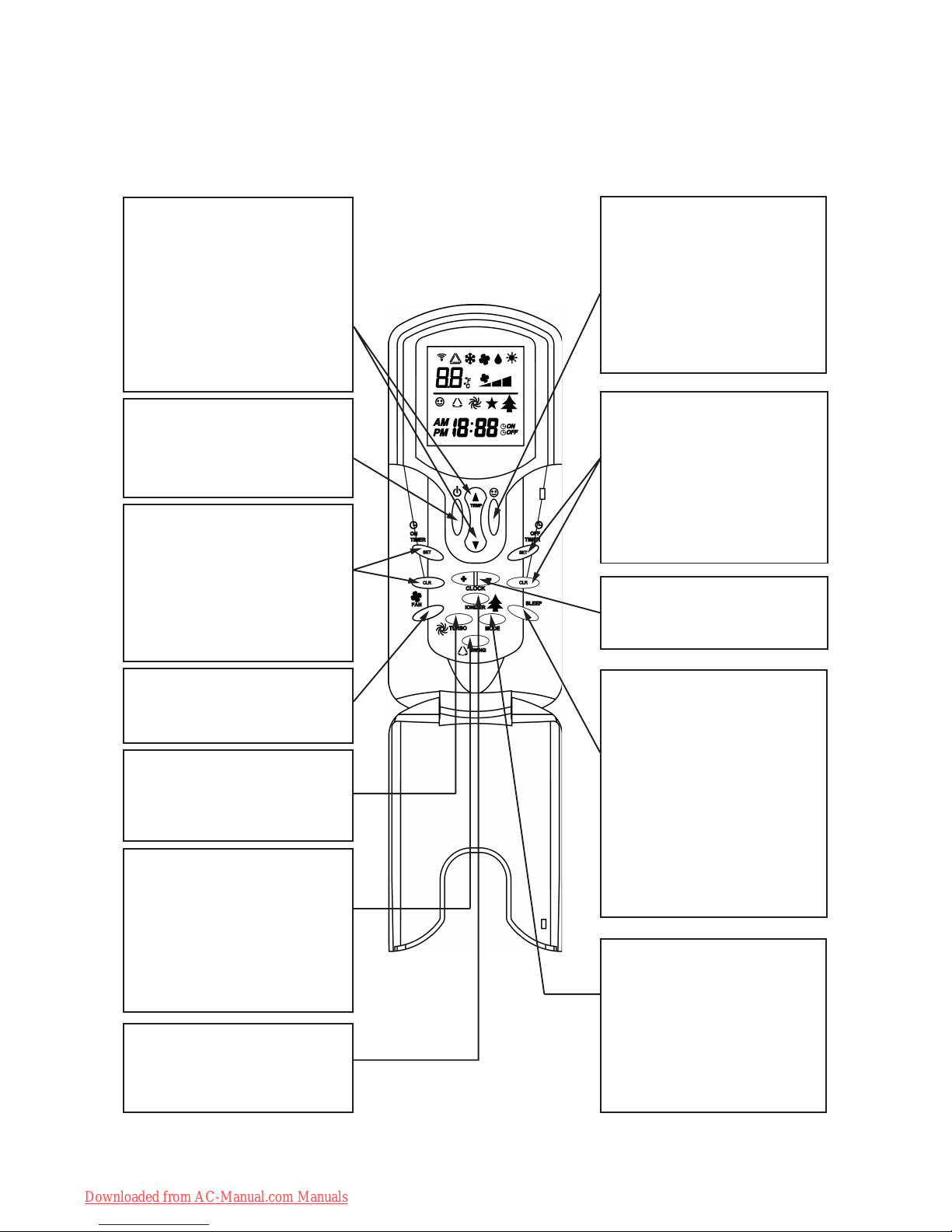

G12 Remote Controller
Temperature Setting
•To set the desired room
temperature, press the button to
increase or decrease the set
temperature.
•The temperature setting range is
from 16°C to 30°C
•Press both buttons simultaneously
to toggle the temperature setting
between °C and °F
Turbo Mode
•Press the TURBO button to
achieve the required set
temperature in a short time.
ON Timer Setting
•Press the SET button will activate
the on timer function.
•Set the desired on time by pressing
the SET button continuously.
•Press the CLR button to cancel the
off timer setting
Sleep Mode
•Press the button to activate sleep
mode. This function is available
under COOL, HEAT & AUTO
mode.
•When it is activated in COOL
mode, the set temperature will be
increased 0.5°C after 30mins, 1°C
after 1 hour and 2°C after 2 hours.
•When it is activated in HEAT
mode, the set temperature will be
decreased 1°C after 30mins, 2°C
after 1 hour and 3°C after 2 hours.
Personalised Setting
•Press and hold the button for 3s to
initiate personalized setting.
•Set the individual setting e.g.
MODE, SET TEMP or FAN SPEED
and leave for 4s to save
•2 groups of settings are allowed to
stored in the handset
Fan Speed Selection
•Press the button until the desired
fan speed is achieved.
Operating Mode
•Press the MODE button to select
the type of operating mode.
•For Cooling only unit, the available
modes are: COOL, DRY & FAN.
•For Heatpump unit, the available
modes are: AUTO, COOL, DRY,
FAN & HEAT.
OFF Timer Setting
•Press the SET button will activate
the off timer function.
•Set the desired off time by
pressing the SET button
continuously.
•Press the CLR button to cancel the
off timer setting
Automatic Air Awing
•Press the SWING button to activate
the automatic air swing function.
•To distribute the air to a specific
direction, press the SWING button
and wait until the louver move to
the desired direction and press the
button once again.
On/Off Button
•Press Once to start the air
conditioner
•Press again to stop the unit
Clock Time Setting
•Press button + or - to increase or
decrease the clock time.
Ionizer
•Press the button to activate the
negative Ion function, which will
refresh the indoor air effectively.
14
Controllers
Downloaded from AC-Manual.com Manuals

15
1. “ON/OFF” switch
•Press to start the air conditioner unit.
•Press again to stop the unit.
2. Temperature setting
•Set the desired room temperature.
•Press button to increase or decrease the set
temperature. Setting range are between 16°C
to 30°C (60°F to 80°F).
3. Operation Modes
•Press the “mode” button for select the type of
operating mode.
- Cooling Only :
COOL, DRY, FAN
- Heat Pump :
AUTO, COOL, DRY, HEAT, FAN
(AUTO mode is represented by bothCOOL and
HEAT LED light on)
4. Fan Speed selection
•Press the button until the desired fan speed is
achieved.
5. Timer
•Press the set button to select the switch timer
of the air conditioner unit (the setting range is
between 1 to 10 hours).
6. “Sleep” mode
•Press button to activate the sleep function can
only be activated under “cool” or heating mode
operation. When it is activated under “cool”
mode operation, the set temperature will
increase 0.5°C after 30 minutes, 1°C after 1 hour
and 2°C after 2 hours. If it is actiaved under
“HEAT” mode operation, the set temperature
will be descreased 0.5°C after 30 minutes, 1°C
after 1 hour and 2°C after 2 hours.
7. Air Swing
•Press button to activate the automatic air swing
function.
8. Sensor
•Infra red sensor to receive signals from wireless
controller.
9. LED Display
•To display the set temperature (in °C) and timer
delay setting (in hours).
10. Transmission source
•To transmit signals to the air conditioner.
SLM AC-5300 (OPTIONAL)
Downloaded from AC-Manual.com Manuals

COOL DRY FAN HEAT
16

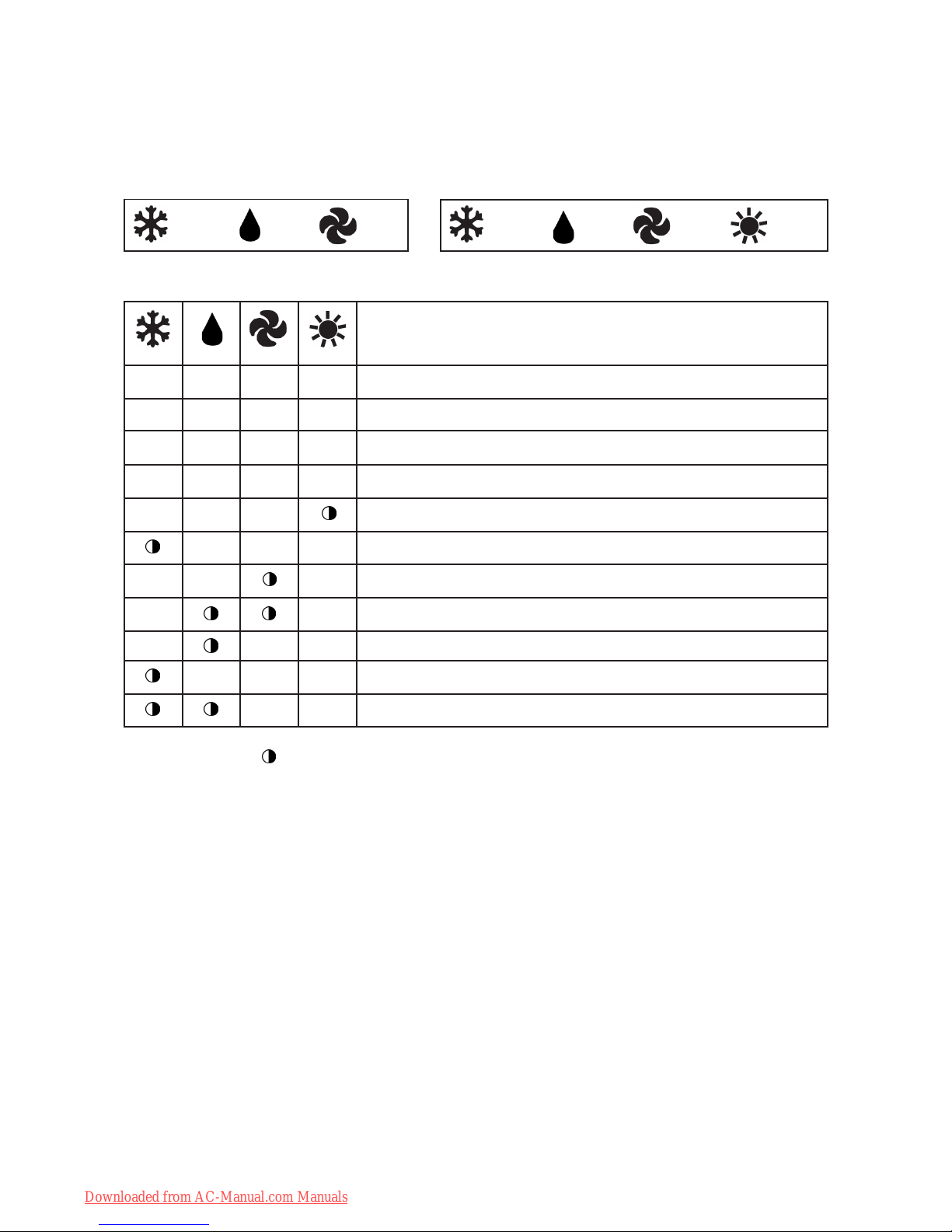

Normal Operation / Fault Indication
|Cool mode
Heat mode
Auto mode in heating operation
Auto mode in cooling operation
Dry mode
Outdoor coil sensor open or short
Fan mode
Room air sensor open or short
Gas leak
Compressor overload / indoor coil sensor short / outdoor coil sensor short
|- ON - Blinking
Operating State and Fault Table
Wireless Remote Control – Handset
LED Indicator Light Display
HEAT
FAN
COOL DRY
Cooling Only Heatpump
FAN
COOL DRY
Indoor coil sensor open or short
|
|
|
|
|
Downloaded from AC-Manual.com Manuals

17
Wired Remote Control – SLM
Cooling / Heatpump Model
Error Code at 7 Segment Display Operation / Faulty Indication
Blink E1 Room sensor open or short
Blink E2 Indoor coil sensor open
Blink E3 Outdoor coil sensor open
Compressor overload /
Indoor coil sensor short /
Outdoor coil sensor short
Blink E5 Gas leak
Blink E6 Water pump faulty
Blink E4
Phase Sequencer
LED_P LED_R LED_S LED_T
(Red) (Yellow) (Yellow) (Yellow)
Normal Operation On---
Reverse Phase Blink Blink Blink Blink
S & T Phase Missing Blink - Blink Blink
T Phase Missing Blink - - Blink
S Phase Missing Blink - Blink -
R Phase Missing ----
Overload Blink - - -
Sensor Missing BlinkOnOnOn
Notes: 1. “-” means LED off.
2. When R phase missing, no LED or buzzer will indicate the error, but relay 71 (Common) and 81
(NO) will cut off.
3. The unit will check the discharge sensor availability only during power up.
4. All errors can only recover through manually reset.
Downloaded from AC-Manual.com Manuals

Installation
Sharp edges and coil surfaces are potential injury hazard. Avoid from contact with them.
Caution
(1) Installation of Indoor Unit
Preliminary Site Survey
• Electrical supply and installation is to confirm to local authority's (e.g. National Electrical Board) codes and
regulations.
• Voltage supply fluctuation must not exceed ± 10% of rated voltage. Electricity supply lines must be indepen-
dent of welding transformers which can cause high supply fluctuation.
• Ensure that the location is convenient for wiring, piping and drainage.

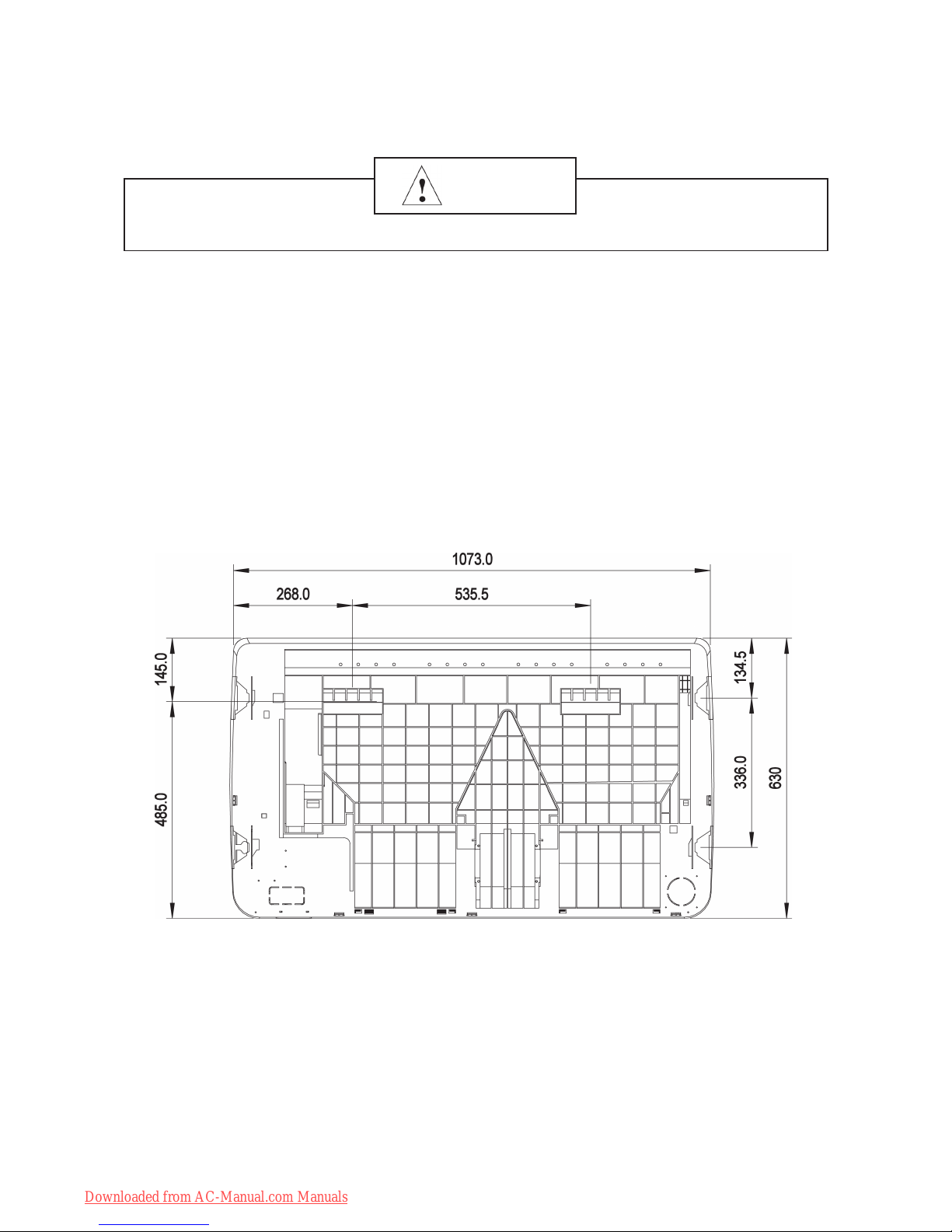

Standard Mounting
Ensure that the overhead supports are strong enough to hold the weight of the unit. Position the hanger rods
(wall mounting bracket for floor standing), and check for its alignment with the unit as shown in Figure A. Also,
check that the hangers are secured and the base of the fan coil unit is leveled in both horizontal directions,
taking into account the gradient for drainage flow as recommended in Figure B.
Figure A
18
Downloaded from AC-Manual.com Manuals
