Acson AWM 301 User manual

Wall Mounted Split Systems
AWM - G - 2007
AWM 07G/GR
AWM 09G/GR
AWM 10G/GR
AWM 15G/GR
AWM 20G/GR
AWM 25G/GR
AWM 301/301R
A5WM 07G/GR
A5WM 09G/GR
A5WM 10G/GR
A5WM 15G/GR
A5WM 20G/GR
A5WM 25G/GR
A5WM 311/301R
Models:
Downloaded from AC-Manual.com Manuals

TABLE OF CONTENTS
1. NOMENECLATURE ................................................................................................... 1
- PRODUCT LINE-UP ............................................................................................ 3
2. FEATURES ................................................................................................................ 7
3. APPLICATION INFORMATION
- OPERATING RANGE .......................................................................................... 9
- REFRIGERANT CIRCUIT DIAGRAMS .............................................................. 10
- CONTROLLERS ................................................................................................. 17
- INSTALLATION .................................................................................................. 25
4. SOUND DATA ........................................................................................................... 39
5. ENGINEERING AND PHYSICAL DATA
- GENERAL DATA ................................................................................................ 43
- COMPONENTS DATA ........................................................................................ 59
6. PERFORMANCE DATA ............................................................................................ 75
- PERFORMANCE TABLES ................................................................................. 79
7. DIMENSIONAL DATA ............................................................................................... 106
8. ELECTRICAL DATA ................................................................................................. 110
9. WIRING DIAGRAMS ................................................................................................ 118
10. SERVICING AND MAINTENANCE ........................................................................ 127
11. TROUBLESHOOTING ........................................................................................... 129
12. EXPLODED VIEW & PARTS LIST ........................................................................ 134
Downloaded from AC-Manual.com Manuals

1
1. NOMENCLATURE
AWM 10 GR
Brand
A : ACSON
Capacity
10 : 9,500 Btu/h
Series
G : G series
Model Type
R : Heatpump
Omitted if Cooling Only
I A
AC A-
Refrigerant
5 : R410A
Omitted if R22
Model Name
WM : Wall Mounted
Electrical
A : 220 - 240V/1Ph/50Hz
Others
A : First issue
Grille Type
A : Grille A
Market Region
C : Export with CE mark
U : UTL Spec.
Air Treatment Devices & Control
I : Negative Ion with wireless controller
N : NTP with wireless controller
X : Oxygen unit
Indoor
Downloaded from AC-Manual.com Manuals

2
ALC 10 CR
Brand
A : ACSON
Capacity
10 : 9,500 Btu/h
Series
C : C series
Model Type
R : Heatpump
Omitted if Cooling Only
5 P O
AC A-
Model Name
LC : Single Split Condensing Unit
Electrical
A : 220 - 240V/1Ph/50Hz
Others
A : First issue
Outdoor
Compressor
P : Matsushita Rotary T : Toshiba Rotary
M : Mitsubishi Rotary S : Samsung Rotary
Specification Variation
O : Standard Unit I : Gold Fins
B : With Contactor L : Long Piping Unit
G : Low Ambient Kit S : With H/L Pressure Switch
H : High Ambient Kit X : Oxygen Unit
Market Region
C : Export with CE marking
E : Export without marking
U : ETL Spec.
Refrigerant
5 : R410A
Omitted if R22 Model
Downloaded from AC-Manual.com Manuals

3
INDOOR UNIT
AWM-G SERIES PRODUCT LINE UP
Product Line Up
AWM
Marking
Grille
07GACIADX X XX XX
09GACIACX X XX XX
10GACIACX X XX XX
15GACIACX X XX XX
20GACIACX X XX XX
25GACIACX X XX XX
30FAFDBXXXX XX
07GRACIACX X XX XX
09GRACIACX X XX XX
10GRACIACX X XX XX
15GRACIACX X XX XX
20GRACIACX X XX XX
25GRACIACX X XX XX
30FR AFCA X X X X X
CE
O2 Theraphy
A
Cooling Model
Saranet Filter
Ionizer Filter
Heatpump Model
L2.0
G12
Nomenclature
PCB Air Purification
Nano Technology Air Filteration
Negative Ion
CLASSIFICATIONS
Orifice Kit
U1.5
Non-Thermal Plasma (NTP)
Handset
G12 (W/O Turbo mode)
D2.0
Downloaded from AC-Manual.com Manuals

4
INDOOR UNIT
A5WM-G SERIES PRODUCT LINE UP
A5WM
Marking
Grille
07G ACIAC X X X X X X
09G ACIAC X X X X X X
10G ACIAC X X X X X X
15G ACIAC X X X X X X
20G ACIAC X X X X X X
25G ACIAC X X X X X X
311 AFCA X X X X X X
07GR ACIAC X X X X X X
09GR ACIAC X X X X X X
10GR ACIAC X X X X X X
15GR ACIAC X X X X X X
20GR ACIAC X X X X X X
25GR ACIAC X X X X X X
301R AFCA X X X X X X
PCB Air Purification
Cooling ModelHeatpump Model
B
Nano Technology Air Filteration
Non-Thermal Plasma (NTP)
CE
Ionizer Filter
Saranet Filter
Negative Ion
CLASSIFICATIONS
Nomenclature
Handset
G12
G12 (W/O Turbo mode)
L2.0
D2.0
Downloaded from AC-Manual.com Manuals

5
OUTDOOR UNIT
ALC PRODUCT LINE UP
ALC
Compressor
Cap. Tube
7mm Coil
3/8" Coil
Gold Fin
W/O Contactor
Contactor
Rotary Comp.
W/O Marking
CE Marking
ETL
Thai
HK
Singapore
ACPOE X X X X X
ACPIEXXXXXX
ACPOD X X X X
ACPIDXXX XX
ACPOB X X X X
ACPIBXXX XX
ACPOD X X X X
ACPIDXXX XX
ATPOD X X X X X X
ACPOD X X X X
ACPIDXXX XX
ACPBD X X X X X X X
ACPOD X X X X
ACPIDXXX XX
ACPBD X X X X X X X
ATPOD X X X X X
ACPBD X X X X X
ACPOD X X X X
ACPIDXXX XX
ACPOD X X X X
ACPIDXXX XX
ACPBD X X X X X X X
ACPOD X X X X
ACPIDXXX XX
ACPBD X X X X X X X
ACPBD X X X X X
ACPOD X X X X
ACPIDXXX XX
20CR
25CR
Marking Market
Cooling Model
07C
09C
10C
15C
18C
20C
Nomenclature
Refrigerant Ctrl + Fin Safety
Devices
Heatpump Model
CLASSIFICATIONS
25C
18CR
Downloaded from AC-Manual.com Manuals

6
OUTDOOR UNIT
A5LC PRODUCT LINE UP
A5LC
Compressor Marking Others
Cap. Tube
Gold Fin
Contactor
HP
LP
Mat. Rotary
CE Marking
Drain Elbow
07C ACPOE X X X
10C ACPOB X X X
15C ACPOC X X X
20C ACPOC X X X
25C ACPOC X X X
28C ACPOA X X X
07CR ACPOE X X X X
10CR ACPOB X X X X
15CR ACPOC X X X X
20CR ACPOC X X X X
25CR ACPOC X X X X
28CR ACPOA X X X X
Heatpump Model
Safety Devices
Refri
g
erant
Ctrl + Fin
Nomenclature
CLASSIFICATIONS
Cooling Model
Downloaded from AC-Manual.com Manuals

7
2. FEATURES
•EASY INSTALLATION
-The wall mounted fan coil unit is easily installed because of its compact size, slimness and light weight.
- Slim and short outdoor unit can be easily installed even in a narrow balcony and passageway and yet
have a stable profile.
•SPACE SAVING
- No space is required on either floor or ceiling. This newly developed super slim design for wall mounting
maximizes floor space usage and enhances ceiling appearance where ceilings are low.
•QUIET OPERATION
- Cooling comfort is improved by whisper-quiet operation which is achieved by a tangential fan.
• EXCELLENT AIR DISTRIBUTION
- Air discharge direction can be adjusted in four directions, manually or automatically by using LCD
remote control.
- The new double louver design with automatic air swing function fully optimizes the room comfort by
distributing the air evenly to the room.
- The unique skew fan design with larger diameter creates better air flow to the operating environment.
•FACILITATED MAINTENANCE ENSURED
-The new design of air discharge housing whereby the fan blower can be easily accessed by just loosing
two screws on the unit to provides a flexible, faster and easier way to clean up the fan blower and
ionizer.
- Maintenance is easy for electrical components, piping and wiring as these are all easily accessible by
merely removing front plastic panel.
• WIRELESS REMOTE CONTROL
- The compact LCD transmitter is able to operate the air conditioner unit within the distance of 9 meters.
- Fan motor speed can be set at low/medium/high or automatic.
- Sleep mode auto control will gradually increase or decrease the setting temperature to provide a
comfortable surrounding for sleeping.
- Air flow direction can be controlled automatically.
- Room temperature is controlled by electronic thermostat.
- The real time timer allows the air conditioner to be switched On and Off automatically based on user
settings.
- Turbo mode function is available to enables the required set temperature to be achieved in a short time.
- Ionizer or non-thermal plasma is available to create better air quality.
- Personalized Setting allows user to preset and store 2 groups of personal settings (including timer
setting) in the handset.
- Auto random restart is a function whereby when there is power failure occurred during operation, the
unit will automatically restart as the last setting condition once the power is resumed.
••
••
•MOISTURE REMOVAL
-Dry mode with super low indoor fan speed can achieve more affective moisture removal.
-If the room temperature is lower than the set temperature (Cooling mode only), the compressor will cut
out and force on after 9 minutes to remove moisture effectively.
Downloaded from AC-Manual.com Manuals

8

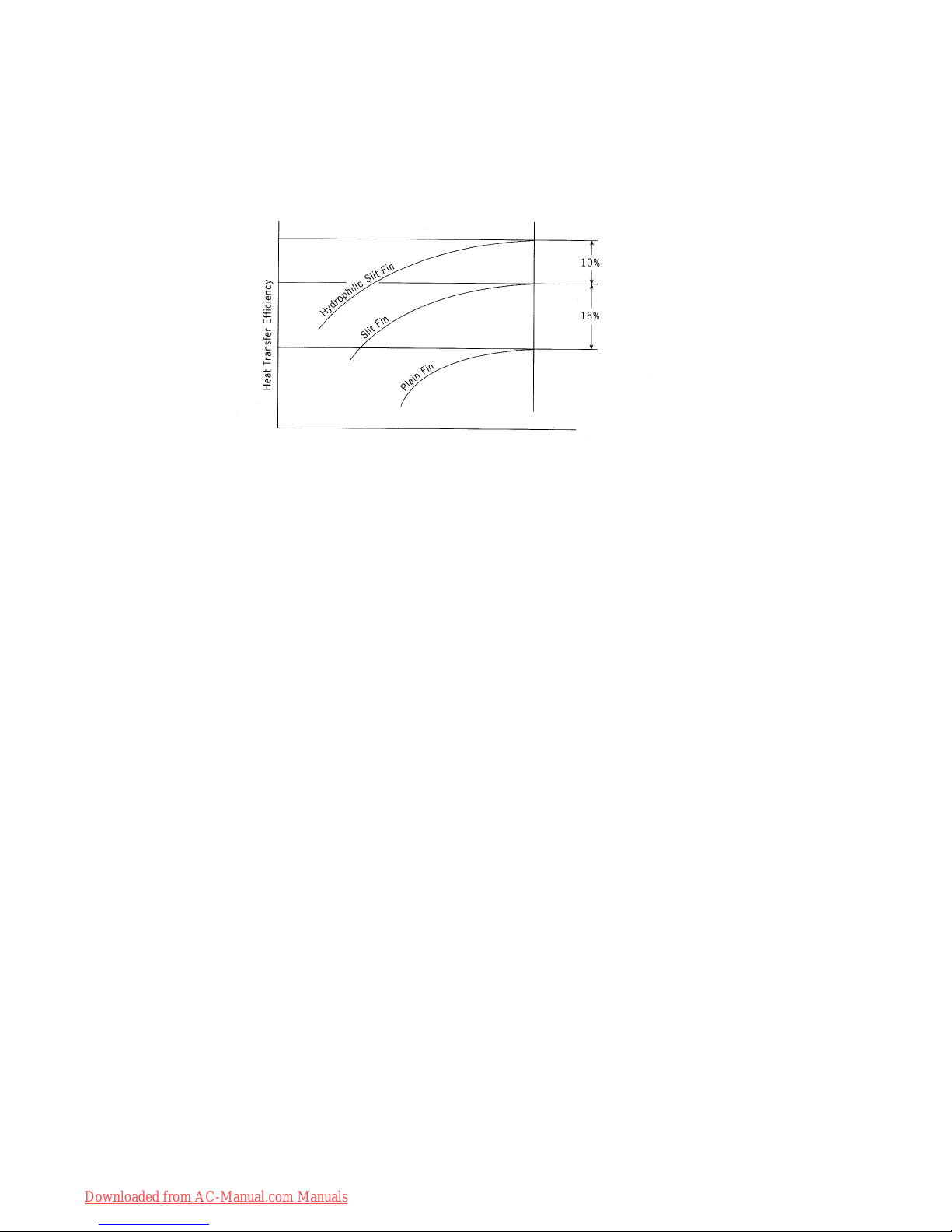

•HIGH EFFICIENCY HEAT EXCHANGER
- The compact design of the 3-fold structure heat exchanger provides a large surface are for better and
efficient heat exchange.
-The unique Hydrophilic slit fin has greatly improved the air flow and the contact surfaces with the air thus
to boost the cooling capacity.
•ROTARY COMPRESSOR
-The ever popular rotary compressor is more energy efficient and has a higher output to weight ratio.
•SELF DIAGNOSIS
-This function is able to detect and to diagnose any faults occurring in the system by blinking of the LED
lights.
-Simplify and ease for troubleshooting.
Downloaded from AC-Manual.com Manuals

9
3. APPLICATION INFORMATION
Operating Range
Ensure the operating temperature is in allowable range.
Cooling only
Heatpump
Caution :
The use of your air conditioner
outside the range of working
temperature and humidity can
result in serious failure.
Coolin
g
Outdoor temp. (°CDB)
Indoor temp.
(
°CWB
)
0
19
35
15
46
24
54
STD
HIGH AMBIENT
UNIT
LOW AMBIENT
KIT
Heatin
g
Outdoor temp. (°CWB)
Indoor temp.
(
°CDB
)
-9
15 21
6
27
18
STD
Coolin
g
Outdoor temp. (°CDB)
Indoor temp.
(
°CWB
)
0
19
35
15
46
24
54
STD
HIGH AMBIENT
UNIT
LOW AMBIENT
KIT
Downloaded from AC-Manual.com Manuals

10
Refrigerant Circuit Diagram

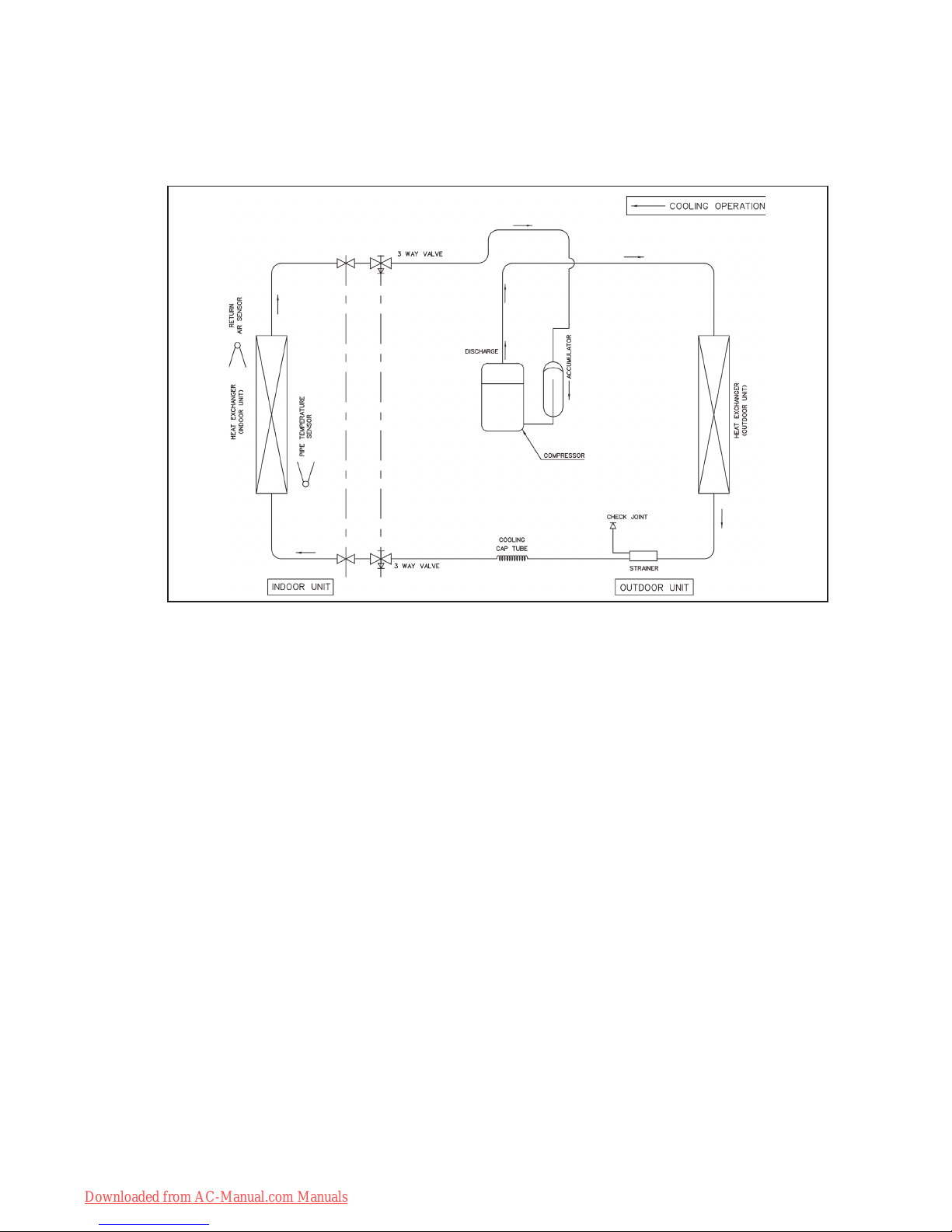

Cooling Only Models
MODEL : AWM 07G - ALC 07C A5WM 07G - A5LC 07C
AWM 09G - ALC 09C A5WM 09G - A5LC 10C
AWM 10G - ALC 10C A5WM 10G - A5LC 10C
AWM 15G - ALC 15C A5WM 15G - A5LC 15C
Downloaded from AC-Manual.com Manuals

11
Cooling Only Models
MODEL : AWM 20G - ALC 18C A5WM 20G - A5LC 20C
AWM 20G - ALC 20C A5WM 25G - A5LC 25C
MODEL : AWM 25G - ALC 25C A5WM 31F - A5LC 28C
Downloaded from AC-Manual.com Manuals

12

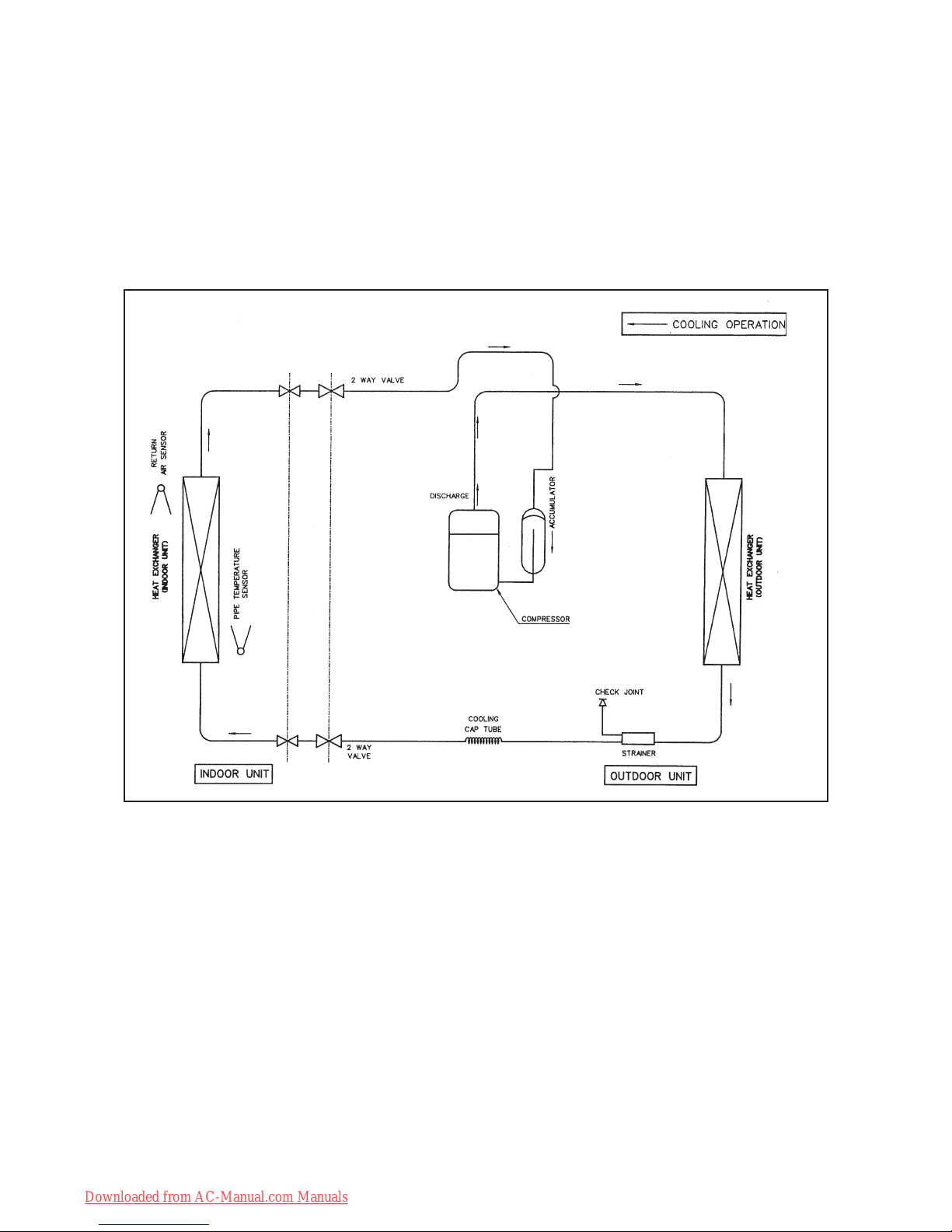

Cooling Only Models
MODEL : AWM 30F - ALC 28C
Downloaded from AC-Manual.com Manuals

13

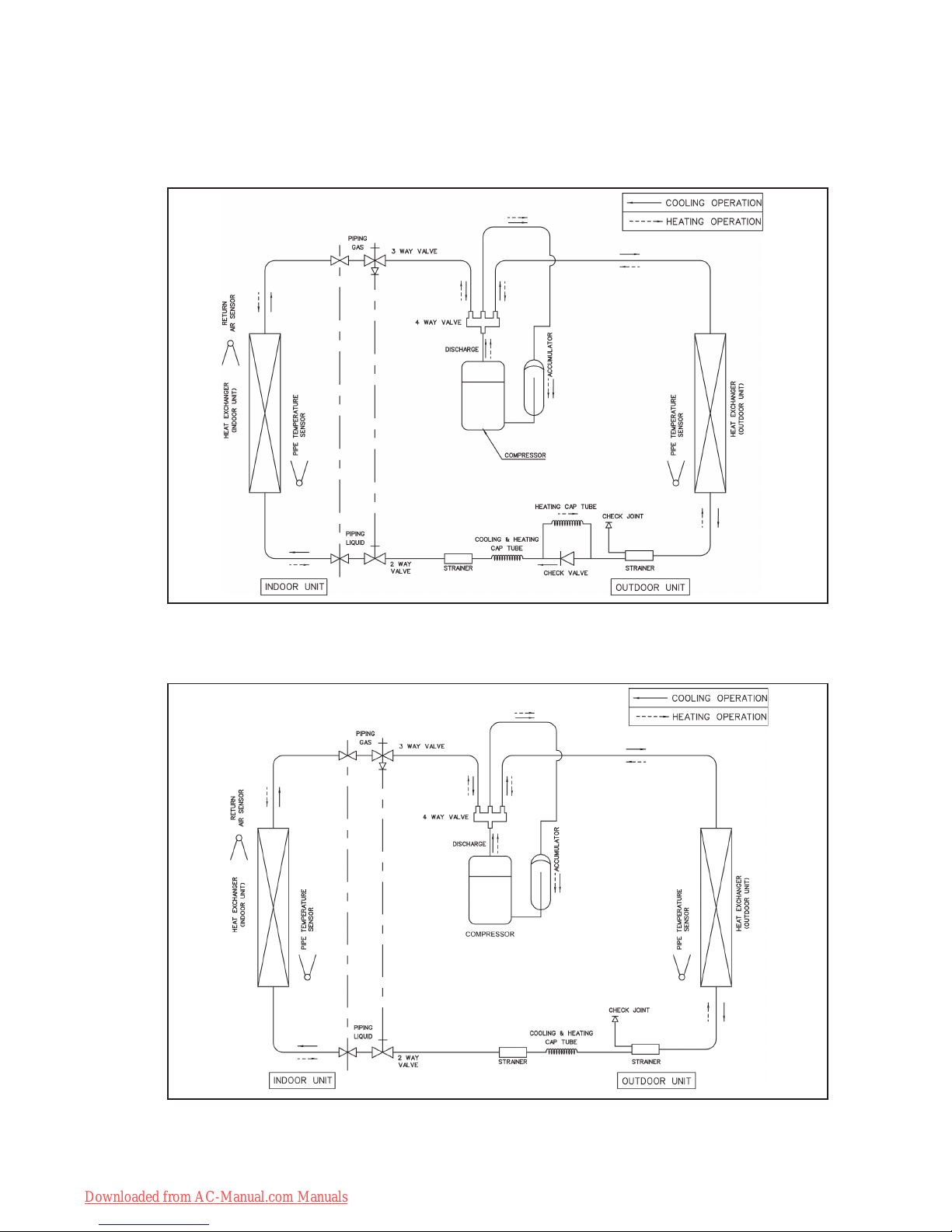

Heatpump Models
MODEL : AWM 09GR - ALC 09CR A5WM 07GR - A5LC 07CR
MODEL : AWM 10GR - ALC 10CR
A5WM 09GR - A5LC 10CR A5WM 10GR - A5LC 10CR
Downloaded from AC-Manual.com Manuals

14
Heatpump Models
MODEL : AWM 15GR - ALC 15CR A5WM 15GR - A5LC 15CR
Downloaded from AC-Manual.com Manuals

15

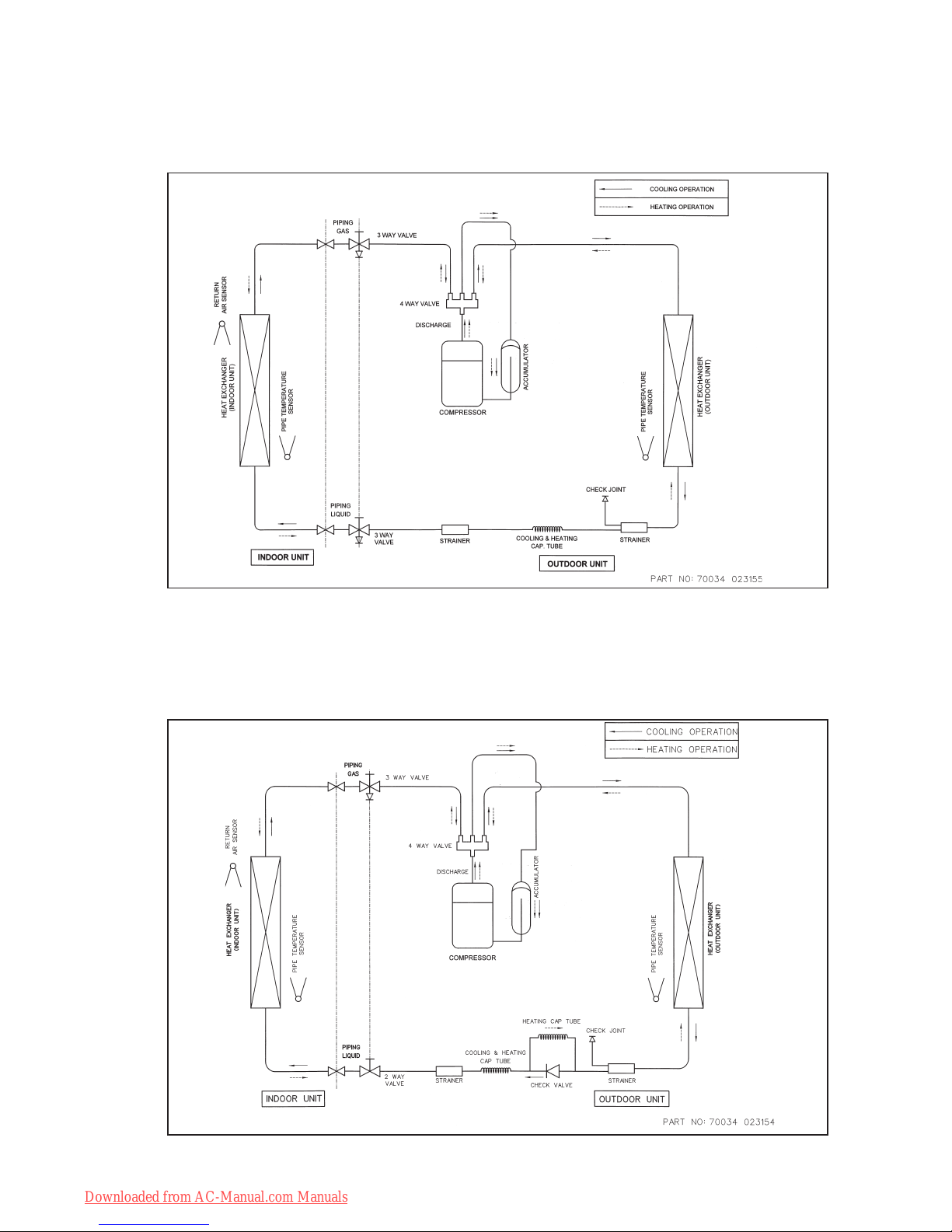

Heatpump Models
MODEL : AWM 20GR - ALC 20CR A5WM 20GR - A5LC 20CR
A5WM 25GR - A5LC 25CR
MODEL : AWM 25GR - ALC 25CR
Downloaded from AC-Manual.com Manuals

16
Heatpump Models
MODEL : AWM 30FR - ALC 28CR A5WM 30FR - A5LC 28CR
Downloaded from AC-Manual.com Manuals

17
Controllers
G12 Remote Controller
Temperature Setting
•To set the desired room
temperature, press the button to
increase or decrease the set
temperature.
•The temperature setting range is
from 16°C to 30°C
•Press both buttons simultaneously
to toggle the temperature setting
between °C and °F
Turbo Mode
•Press the TURBO button to
achieve the required set
temperature in a short time.
ON Timer Setting
•Press the SET button will activate
the on timer function.
•Set the desired on time by pressing
the SET button continuously.
•Press the CLR button to cancel the
off timer setting
Sleep Mode
•Press the button to activate sleep
mode. This function is available
under COOL, HEAT & AUTO
mode.
•When it is activated in COOL
mode, the set temperature will be
increased 0.5°C after 30mins, 1°C
after 1 hour and 2°C after 2 hours.
•When it is activated in HEAT
mode, the set temperature will be
decreased 1°C after 30mins, 2°C
after 1 hour and 3°C after 2 hours.
Personalised Setting
•Press and hold the button for 3s to
initiate personalized setting.
•Set the individual setting e.g.
MODE, SET TEMP or FAN SPEED
and leave for 4s to save
•2 groups of settings are allowed to
stored in the handset
Fan Speed Selection
•Press the button until the desired
fan speed is achieved.
Operating Mode
•Press the MODE button to select
the type of operating mode.
•For Cooling only unit, the available
modes are: COOL, DRY & FAN.
•For Heatpump unit, the available
modes are: AUTO, COOL, DRY,
FAN & HEAT.
OFF Timer Setting
•Press the SET button will activate
the off timer function.
•Set the desired off time by
pressing the SET button
continuously.
•Press the CLR button to cancel the
off timer setting
Automatic Air Awing
•Press the SWING button to activate
the automatic air swing function.
•To distribute the air to a specific
direction, press the SWING button
and wait until the louver move to
the desired direction and press the
button once again.
On/Off Button
•Press Once to start the air
conditioner
•Press again to stop the unit
Clock Time Setting
•Press button + or - to increase or
decrease the clock time.
Ionizer
•Press the button to activate the
negative Ion function, which will
refresh the indoor air effectively.
Downloaded from AC-Manual.com Manuals

18
Indicator Lights
AWM / A5WM - G SERIES
IR signal receiver
When there is infrared remote control operating
signal, the signal receiver on indoor unit will made a
(beep) for signal acceptance confirmation.
Cooling unit / Heatpump unit

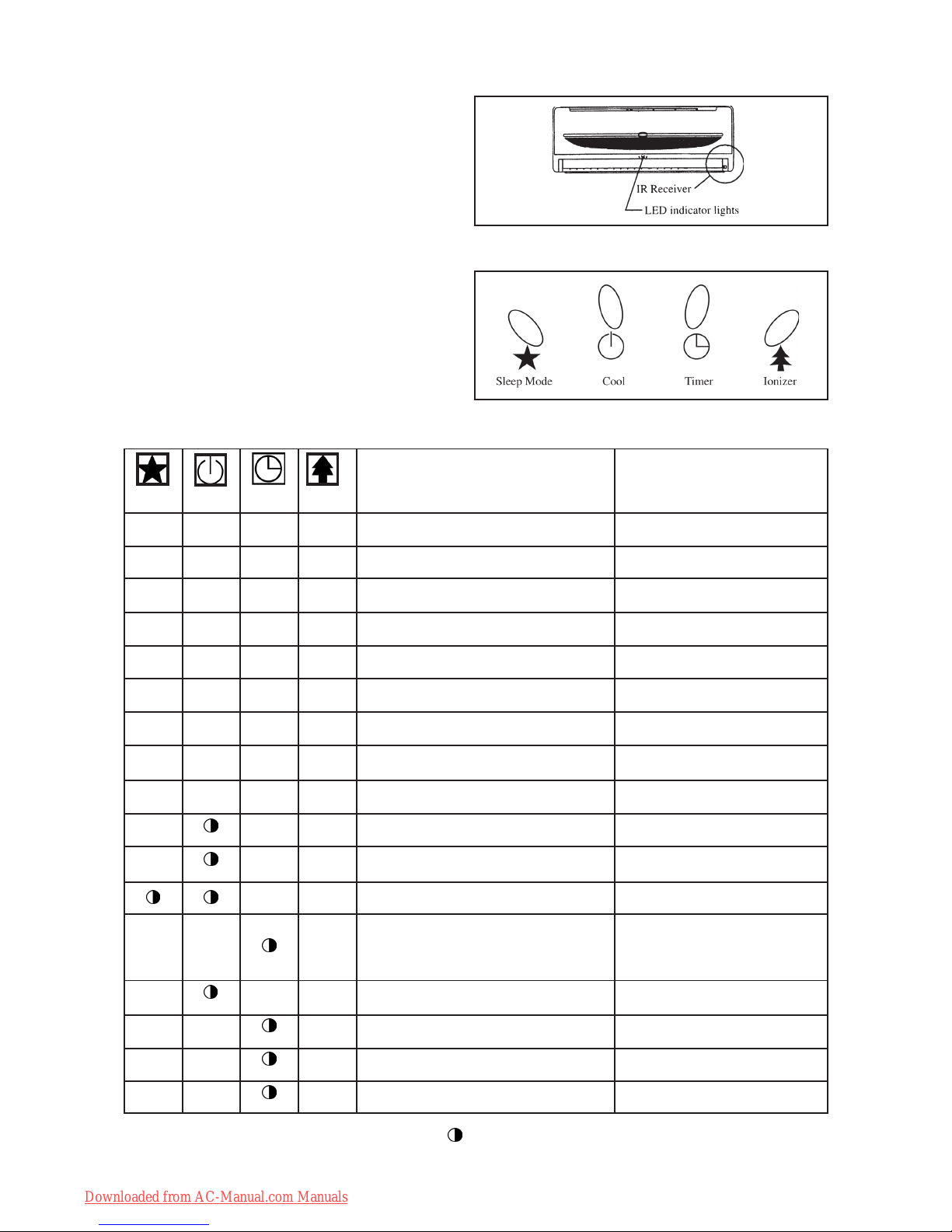

The table below shows the LED indicator light for air
conditioner unit under normal operation and fault
condition. The LED indicator lights are located at the
middle of the air conditioner unit.
The heat pump units is equipped with an “auto” mode,
whereby the unit will provide reasonable room
temperature by switching the unit automatically to
either “cool” mode or “heat” mode, according to the
temperature setting set by the user.
LED Indicator Lights : Normal Operation And Faulty Indication Table
COOL/HEAT
(GREEN/RED)
Normal Operation / Fault Indication Action
/
/
/

Red
/

Green
/

/



Red
Cool mode
Heat mode
Auto mode in Heating operation
Auto mode in Cooling operation
Timer on
Sleep mode on
Ionizer on
Fan mode on
Indoor coil sensor open
Outdoor coil sensor open
Room air sensor contact Loose / Short
Call your dealer
Call your dealer
-
-
-
-
-
-
-
-
- ON / - ON or OFF - Blinking
LED Indicator Lights for Cooling Unit / Heatpump
Unit

Red

Green
/
/

/

/
-
Dry mode on
1 time
3 times
1 time
Compressor overload /
Indoor coil sensor short /
Outdoor coil sensor short
3 times
5 times
6 times
Defrost operation
Gas leak
Outdoor coil sensor exist (MS mode)
Hardware error (tact switch pin short)
Call your dealer
Call your dealer
Call your dealer
Call your dealer
Call your dealer
Downloaded from AC-Manual.com Manuals
