ACV Prestige PVC User manual

2010-6 Prestige Vent Supl.
This document is intended to be used by a qualified heating contractor or service
technician. Read all instructions within this document and within the PRESTIGE
Boiler Installation and Maintenance Manual, before proceeding with the installa-
tion. It is recommended to follow the procedures in the steps given, skipping or
missing procedural steps could result in severe personal injury, death or sub-
stantial property damage.
The installation must conform to the requirements of the authority having juris-
diction or, in the absence of such requirements, to the ational Fuel Gas Code,
A SI Z223.1/ FPA 54, and/or atural Gas and Propane Installation Code,
CA /CSA B149.1.
Revised Date: 10/24/13
L
I
S
T
E
D
WAR I G
NOTICE
PVC, CPVC, PP & SS Vent Supplement

Table of Contents
i
PRODUCT A D SAFETY I FORMATIO
Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installer Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
omeowner Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SECTIO I - PRE-I STALLATIO REQUIREME TS
Removal of an Existing Boiler from a Common Vent System . . . . . . . . . . . . . . . . 2
Vent/Combustion Air Piping and Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
PVC and CPVC Vent and Combustion Air Piping and Fittings . . . . . . . . . 3
PVC and CPVC Pipe Cement and Primer. . . . . . . . . . . . . . . . . . . . . . . . . 3
AL29-4C® Stainless Steel Vent Piping and Fittings . . . . . . . . . . . . . . . . . 4
Polypropylene (PP) Vent Piping and Fittings. . . . . . . . . . . . . . . . . . . . . . . 4-7
Vent/Combustion Air Equivalent Lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 Inch Vent Systems Restrictions for the PRESTIGE 60, 110 & EXCELLENCE . . 8
3 Inch Vent Systems Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Rigid Polypropylene Vent System Restrictions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Flex Polypropylene Vent System Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Combustion Air Contamination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
SECTIO II - DIRECT VE T I STALLATIO OF VE T/AIR PIPI G
Direct Vent - Vertical - Through the Roof or Unused Chimney. . . . . . . . . . . . . . . . 11-13
Direct Vent - Vent Installation - Through the Roof . . . . . . . . . . . . . . . . . . . . . . . . . 13-14
Direct Vent - Multiple Boiler Installation - Through the Roof . . . . . . . . . . . . . . . . . 15
Direct Vent - orizontal - Sidewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-19
Direct Vent - Vent Installation - Sidewall. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
Direct Vent - Multiple Boiler Installation - Sidewall . . . . . . . . . . . . . . . . . . . . . . . . . 22
Direct Vent - Vertical Vent and Sidewall Combustion Air . . . . . . . . . . . . . . . . . . . . 23-25
Direct Vent - Vent Installation - Through the Roof . . . . . . . . . . . . . . . . . . . . . . . . . 24
Direct Vent - Combustion Air Installation - Sidewall . . . . . . . . . . . . . . . . . . . . . . . 24-25
Direct Vent - Multiple Boiler Installation -
Vertical Vent and Sidewall Combustion Air . . . . . . . . . . . . . 25
SECTIO III - CATEGORY IV (I DOOR AIR) I STALLATIO OF VE T/AIR PIPI G
Category IV - Vertical - Through the Roof or Unused Chimney . . . . . . . . . . . . . . . 26-27
Category IV - Vent Installation - Through the Roof. . . . . . . . . . . . . . . . . . . . . . . . . 27
Category IV - Multiple Boiler Installation - Through the Roof . . . . . . . . . . . . . . . . . 28
Category IV - orizontal - Sidewall. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-31
Category IV - Vent Installation - Sidewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Category IV - Multiple Boiler Installation - Sidewall . . . . . . . . . . . . . . . . . . . . . . . . 32
SECTIO IV - I STALLATIO REQUIREME TS
3” To 2” (60 mm) Vent/Combustion Air Transition. . . . . . . . . . . . . . . . . . . . . . . . . . 33
3” To 4” (100 mm) Vent/Combustion Air Transition. . . . . . . . . . . . . . . . . . . . . . . . . 34
Insert Piping to PRESTIGE Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Vent and Combustion Air Piping Installation Guidelines. . . . . . . . . . . . . . . . . . . . . 35

Table of Contents
ii
SECTIO V - MA IFOLD COMBUSTIO AIR
Manifold Combustion Air Option for Multiple Prestige Boilers . . . . . . . . . . . . . . . . 36
Equivalent Length of Combustion Air Manifold. . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
orizontal Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Installation Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Transition Boiler Air Piping to Manifold Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . 36
SECTIO VI - COMMO WEALTH OF MASSACHUSETTS
Commonwealth of Massachusetts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-38

1
Product and Safety Infor ation
I STALLER
Read all instructions as outlined in this manual
and in the boiler installation manual. Failure to
comply with these instructions in the order pre-
sented could result in personal injury or death.
This document is a supplement to the PRESTIGE boil-
er installation and maintenance manual. The purpose
of this supplement is for the proper installation of the
vent and combustion air piping to the boiler.
All PRESTIGE vent and combustion air piping
must be installed, terminated and joints sealed as
outlined in this manual. Failure to comply with
installation procedures outlined in this manual can
result in severe personal injury, death or substan-
tial property damage.
This vent supplement outlines Direct Vent and
Category IV (Indoor Air) installations using PVC,
CPVC, PP and SS materials, for other venting
options (materials, terminations, etc.) contact ACV-
Triangle Tube.
HOMEOW ER
• This manual is intended for use by a qualified heat-
ing contractor or service technician.
• Please reference the User Information manual for
additional information.
• Ensure this document and all pertaining documents
are kept near the boiler to be used by the qualified
heating contractor or service technician for future
reference.
WAR I G
WAR I G
NOTICE
The following terms are used throughout this manual to
bring attention to the presence of potential hazards or to
important information concerning the product.
Indicates the presence of a hazardous situation
which, if ignored, will result in death, serious injury
or substantial property damage.
Indicates a potentially hazardous situation which, if
ignored, can result in death, serious injury or sub-
stantial property damage.
Indicates a potentially hazardous situation which, if
ignored, may result in minor injury or substantial
property damage.
Indicates special instructions on installation, opera-
tion or maintenance, which are important to the
equipment but not related to personal injury hazards.
Indicates recommendations made by ACV-Triangle
Tube for the installers which will help to ensure opti-
mum operation and longevity of the equipment.
DA GER
WAR I G
NOTICE
CAUTIO
BEST PRACTICE
DEFI ITIO S
Triangle Tube reserves the right to modify the technical specifications and components of its products
without prior notice.
NOTICE

2
Pre-Installation Require ents
SECTIO I - PRE- I STALLATIO
REQUIREME TS
Removal of an Existing Boiler from a Common Vent
System
Do not install the PRESTIGE into a common vent
with any other gas or oil appliances. This will cause
flue gas spillage or appliance malfunction, resulting
in possible severe personal injury, death or sub-
stantial property damage.
When an existing boiler is removed from a common
venting system, the common venting system is likely to
be too large for proper venting of the remaining appli-
ances. At the time of removal of an existing boiler, the
following steps shall be followed with each appliance
remaining connected to the common venting system
placed in operation, while the other appliances remain-
ing connected to the common venting system are not in
operation.
1. Seal any unused openings in the common venting
system.
2. Visually inspect the venting system for proper size
and horizontal pitch and determine there is no
blockage or restriction, leakage, corrosion and other
deficiencies which could cause an unsafe condition.
3. Insofar as is practical close all building doors and
windows and all doors between the space in which
the appliances remaining connected to the common
venting system are located and other spaces of the
building. Turn on clothes dryers and any appliance
not connected to the common venting system. Turn
on any exhaust fans, such as range hoods and
bathroom exhausts, so they will operate at maxi-
mum speed. Do not operate a summer exhaust fan.
Close fireplace dampers.
DA GER
4. Place in operation the appliance being inspected.
Follow the lighting instructions. Adjust thermostat so
appliance will operate continuously.
5. Test for spillage at the draft hood relief opening after
5 minutes of main burner operation. Use the flame
of a match or candle, or smoke from a cigarette,
cigar or pipe.
6. After it has been determined that each appliance
remaining connected to the common venting system
properly vents when tested as outlined above,
return doors, windows, exhaust fans, fireplace
dampers and any other gas-burning appliance to
their previous condition of use.
7. Any improper operation of the common venting sys-
tem should be corrected so the installation conforms
with the National Fuel Gas Code, ANSI
Z223.1/NFPA 54 and/or CAN/CSA B149.1 ,
Installation Codes. When resizing any portion of the
common venting system, the common venting sys-
tem should be resized to approach the minimum
size as determined using the appropriate tables in
Part 11 of the National Fuel Gas Code, ANSI
Z223.1/NFPA 54 and/or CAN/CSA B149.1,
Installation Codes.

3
Pre-Installation Require ents
Vent/Combustion Air Piping and Materials
The installation must conform to the requirements of
the authority having jurisdiction or, in the absence of
such requirements, to the ational Fuel Gas Code,
A SI Z223.1/ FPA 54, and/or atural Gas and
Propane Installation Code, CA /CSA B149.1.
The PRESTIGE is certified per ANSI Z21.13 as a
Category IV (indoor air) or Direct Vent (sealed combus-
tion) appliance. A Category IV appliance utilizes uncon-
taminated indoor or outdoor air (surrounding the appli-
ance) for combustion. A Direct Vent appliance utilizes
uncontaminated outdoor air (piped directly to the appli-
ance) for combustion.
To reduce the potential risks associated with indoor
contaminates (listed on page 6), flammable vapors
and tight housing construction (little or no infiltra-
tion air), it is recommended to pipe uncontaminated
combustion air directly from the outdoors to the
appliance. This practice also promotes higher sys-
tem efficiency by reducing heated indoor air from
being exhausted from the building and replaced by
cold infiltration air.
The PRESTIGE requires a Category IV venting system
which is designed for pressurized venting and condensate.
The vent and combustion air materials (piping, fit-
tings and cement) must meet the listed require-
ments in this manual. Failure to comply with these
material requirements could result in severe per-
sonal injury, death or substantial property damage.
NOTICE
BEST PRACTICE
WAR I G
PVC and CPVC Vent and Combustion Air Piping and
Fittings:
PVC Schedule 40 - ANSI/ASTM D1785
PVC-DWV - ANSI/ASTM D2665
CPVC Schedule 40 - ANSI/ASTM F441
PVC and CPVC Pipe Cement and Primer
PVC - ANSI/ASTM D2564
CPVC - ANSI/ASTM F493
For installations in Canada, all piping, fittings and
cement/primer material must be certified and listed
to ULC-S636. Ipex Inc. is an approved manufacturer
of ULC S636 vent components.
Use of cellular core PVC (ASTM F891) cellular core
CPVC, or Radel® (polyphenolsulfone) in venting
systems is prohibited. Cellular core pipe may be
used for combustion air piping.
DO OT mix a PVC/CPVC vent system & components
with other vent system materials & components. Seal
all PVC and CPVC pipe and fittings with the appropri-
ate primer and cement. Failure to comply with this
requirement could cause the venting system to fail
resulting in leakage of flue products into the living
space.
NOTICE
NOTICE
WAR I G

4
Pre-Installation Require ents
AL29-4C® Stainless Steel Vent Piping and Fittings
The following is a list of approved vent manufacturers
and vent systems:
- eat-Fab
- ProTech Systems
- Z-FLEX
Reference Table 1 for a listing of approved stainless
steel vent adapters and terminations.
A specific vent adapter is required to transition from
the boiler vent outlet adapter to specific stainless steel
vent system. Contact the appropriate AL29-4C® vent
manufacturer for transition adapter information.
The stainless steel AL29-4C® vent system must be
installed per the vent manufacturer instructions.
Contact the vent manufacturer for appropriate vent
adapters, materials, terminations, clearance and
installation instructions.
NOTICE
NOTICE
Description
Approved Stain ess Stee Vent Adapters and Terminations
Heatfab
(Se Kirk Corp.)
Saf-T Vent, EZ Sea or
Saf-T Vent SC
ProTech Systems
(M&G/DuraVent)
FasNSea
or FasNSea CVS
Z-F ex
(Nova F ex Group)
Z-Vent
3” Vent Adapter 9301PVC FSA-UL 3 2SVS A03
3” Roof & Side Wall Straight ermination 9392 300186 2SVS PF03
3” Side Wall &45° Elbow ermination 9311 ERM 300130 & 300186 2SVS EX0345
3” Side Wall ee ermination 9390 EE 300311 2SVS F03
3” to 4” Vent Adapter 9401PVC3 FSA-UL 3* 2SVS A04
4” Vent Adapter 9401PVC FSA-UL 4 SVS A04.5
4” Roof & Side Wall Straight ermination 9492 300187 2SVS PF04
4” Side Wall & 45° Elbow ermination 9411 ERM 300131 & 300187 2SVS EX0445
4” Side Wall ee ermination 9490 EE 300312 2SVS F04
When using stainless steel for the vent system, PVC
or CPVC pipe meeting the listed requirements in this
manual may be utilized for the combustion air piping.
Polypropylene (PP) Vent Piping and Fittings
The following is a list of approved vent manufacturers
and vent systems:
- Centrotherm Eco Systems, LLC
- Muelink and Grol B.V./Dura Vent
Reference Table 2 through 7 pages 5 through 7 for a list-
ing of approved polypropylene vent adapters, termina-
tions and supports.
A specific vent adapter may be required to transi-
tion from the boiler vent outlet adapter to the spe-
cific polypropylene vent system. Contact the
appropriate PP vent manufacturer for transition
adapter information.
When using Polypropylene for the vent system, PVC
or CPVC pipe meeting the listed requirements in this
manual may be utilized for the combustion air piping.
NOTICE
NOTICE
NOTICE
TABLE 1

Pre-Installation Require ents
5
Description
Approved 2” (60 mm) Rigid Polypropylene Vent Adapters,
Terminations and Supports
Centrot erm Eco Systems, LLC Muelink and Grol B.V./Dura Vent
3" (80 mm) Appliance Vent Adapter ISAAL0303 3PPS-03PVCM-3PPF
3” (80 mm) to 2” (60 mm) educer IS D0302 3PPS- 2
2" (60 mm) oof Termination - UV
esistant
ISEP02 (20" or 51cm) or ISEP0239
(39" or 99cm)
2PPS-12B (12" or 30cm) or 2PPS-36B (36"
or 91cm)
2" (60 mm) Side Wall, 45° Elbow
Termination - UV esistant ISELL0245UV 2PPS-E45B
2" (60 mm) Side Wall, Tee Termination -
UV esistant ISTT0220 2PPS-TB
2" (60 mm) Side Wall Pipe Lengths - UV
esistant ISVL022UV (26.5" or 67cm) 2PPS-12B (12" or 30cm) or 2PPS-36B (36" or 91cm)
2" (60 mm) Side Wall, 90° Elbow - UV
esistant ISELL0287UV 2PPS-E90B or 2PPS-E90EB
2" (60 mm) Bird Guard Screen - UV
esistant IASPP02 2PPS-BG
2" (60 mm) Locking Band Clamp or
Connector ing IANS02 2PPS-LBC
2" (60 mm) Wall Strap or Support Clamp IASC02 2PPS-WSM (galvanized) & 2PPS-WSM-SS
(stainless steel)
2" (60mm) Wall Plate IAWP02B (black) 22" (60mm)PPS-WPB (black)
TABLE 2
Description
Approved 3” (80 mm) Rigid Polypropylene Vent Adapters,
Terminations and Supports
Centrot erm Eco Systems, LLC Muelink and Grol B.V./Dura Vent
3" (80mm) Appliance Vent Adapter ISAAL0303 3PPS-03PVCM-3PPF
3" (80mm) oof Termination - UV
esistant
ISEP03 (20" or 51cm) or ISEP0339
(39" or 99cm)
3PPS-12B (12" or 30cm) or 3PPS-36B (36"
or 91cm)
3" (80mm) Side Wall, 45° Elbow
Termination - UV esistant ISELL0345UV 3PPS-E45B
3" (80mm) Side Wall, Tee Termination -
UV esistant ISTT0320 3PPS-TB
3" (80mm) Side Wall Pipe Lengths - UV
esistant ISVL032UV (26.5" or 67cm) 3PPS-12B (12" or 30cm) or 3PPS-36B (36" or 91cm)
3" (80mm) Side Wall, 90° Elbow - UV
esistant ISELL0387UV 3PPS-E90B or 3PPS-E90EB
3" (80mm) Bird Guard Screen - UV
esistant IASPP03 3PPS-BG
3" (80mm) Locking Band Clamp or
Connector ing IANS03 3PPS-LBC
3" (80mm) Wall Strap or Support Clamp IASC03 3PPS-WSM (galvanized) & 3PPS-WSM-SS
(stainless steel)
3" (80mm) Wall Plate IAWP03B (black) or IAWP03W
(white) 3PPS-WPB (black)
TABLE 3

Pre-Installation Require ents
6
Description
Approved 4” (100 mm) Rigid Polypropylene Vent Adapters,
Terminations and Supports
Centrot erm Eco Systems, LLC Muelink and Grol B.V./Dura Vent
3" (80 mm) Appliance Vent Adapter ISAAL0303 3PPS-03PVCM-3PPF
3” (80 mm) to 4” (100 mm) Increaser ISIA0304 or ISEI0304 3PPS-X4
4" (100mm) Appliance Vent Adapter ISAAL0404 4PPS-04PVCM-4PPF
4" (100mm) oof Termination - UV
esistant
ISEP04 (20" or 51cm) or ISEP0439
(39" or 99cm)
4PPS-12B (12" or 30cm) or 4PPS-36B (36"
or 91cm)
4" (100mm) Side Wall, 45° Elbow
Termination - UV esistant ISELL0445UV 4PPS-E45B
4" (100mm) Side Wall, Tee Termination -
UV esistant ISTT0420 4PPS-TB
4" (100mm) Side Wall Pipe Lengths - UV
esistant ISVL042UV (26.5" or 67cm) 4PPS-12B (12" or 30cm) or 4PPS-36B (36" or 91cm)
4" (100mm) Side Wall, 90° Elbow - UV
esistant ISELL0487UV 4PPS-E90B or 4PPS-E90EB
4" (100mm) Bird Guard Screen - UV
esistant IASPP04 4PPS-BG
4" (100mm) Locking Band Clamp or
Connector ing IANS04 4PPS-LBC
4" (100mm) Wall Strap or Support Clamp IASC04 4PPS-WSM (galvanized) & 4PPS-WSM-SS
(stainless steel)
4" (100mm) Wall Plate IAWP04B (black) 4PPS-WPB (black)
TABLE 4
Description
Approved 2” (60 mm) Flex Polypropylene Vent Adapters,
Terminations and Supports
Centrot erm Eco Systems, LLC Muelink and Grol B.V./Dura Vent
3" (80mm) Appliance Vent Adapter ISAAL0303 3PPS-03PVCM-3PPF
3” (80 mm) to 2” (60 mm) educer IS D0302 3PPS- 2
2" (60mm) Wall Plate IAWP02B (black) 2PPS-WPB (black)
2" (60mm) Chimney Support Elbow
or Base Support ISBS0287 2PPS-SE90X
2" (60mm) Support Bracket -
Bottom of Chimney or Chase Included with Base Support PPS-SUP or 2PPS-SUP (Chimney)
2" (60mm) Flex Support Bracket -
Top of Chimney or Chase N/A 2PPS-FSB
2" (60mm) Spacer IASP02 2PPS-S
2" (60mm) Chimney Cap or Cover
& End Pipe - UV esistant ISCP02 & IFEP02 2PPS-FCT
TABLE 5

Pre-Installation Require ents
7
Description
Approved 3” (80 mm) Flex Polypropylene Vent Adapters,
Terminations and Supports
Centrot erm Eco Systems, LLC Muelink and Grol B.V./Dura Vent
3" (80mm) Appliance Vent Adapter ISAAL0303 3PPS-03PVCM-3PPF
3" (80mm) Wall Plate IAWP03B (black) or IAWP03W (white) 3PPS-WPB (black)
3" (80mm) Chimney Support Elbow
or Base Support ISBS0387 3PPS-SE90X
3" (80mm) Support Bracket -
Bottom of Chimney or Chase Included with Base Support PPS-SUP or 3PPS-SUP (Chimney)
3" (80mm) Flex Support Bracket -
Top of Chimney or Chase N/A 3PPS-FSB
3" (80mm) Spacer IASP03 3PPS-S
3" (80mm) Chimney Cap or Cover
& End Pipe - UV esistant ISCP03 & IFEP03 3PPS-FCT
TABLE 6
Description
Approved 4” (100 mm) Flex Polypropylene Vent Adapters,
Terminations and Supports
Centrot erm Eco Systems, LLC Muelink and Grol B.V./Dura Vent
3" (80mm) Appliance Vent Adapter ISAAL0303 3PPS-03PVCM-3PPF
3” (80 mm) to 4” (100 mm) Increaser ISIAO304 or ISEIO304 3PPS-X4
4" (100mm) Appliance Vent Adapter ISAAL0404 4PPS-04PVCM-4PPF
4" (100mm) Wall Plate IAWP04B (black) 4PPS-WPB (black)
4" (100mm) Chimney Support Elbow
or Base Support ISBS0487 4PPS-SE90X
4" (100mm) Support Bracket - Bottom
of Chimney or Chase Included with Base Support PPS-SUP or 4PPS-SUP (Chimney)
4" (100mm) Flex Support Bracket -
Top of Chimney or Chase N/A 4PPS-FSB
4" (100mm) Spacer IASP04 4PPS-S
4" (100mm) Chimney Cap or Cover &
End Pipe - UV esistant ISCP04 & IFEP04 4PPS-FCT
TABLE 7

8

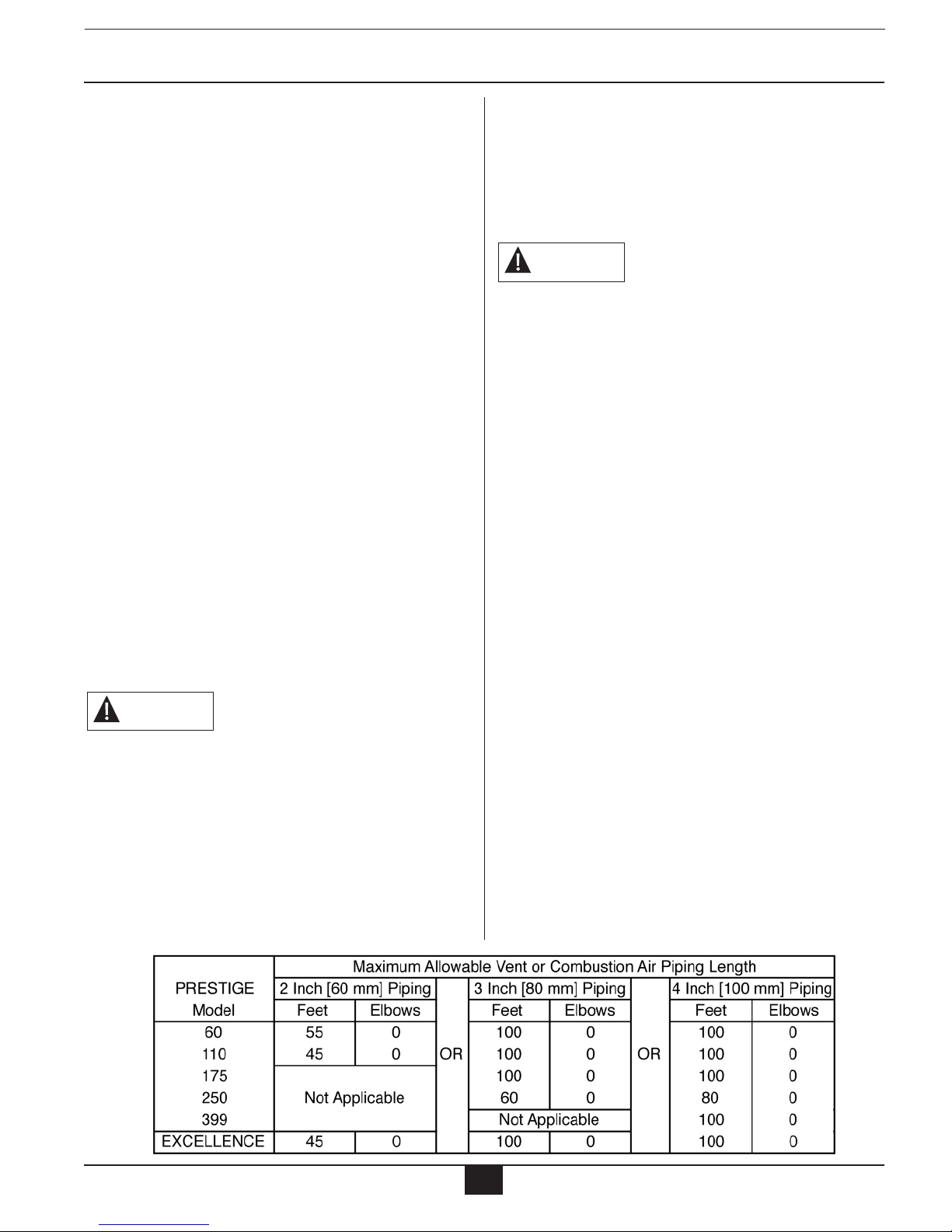

Vent/Combustion Air Equivalent Lengths
- For all venting applications, PVC/CPVC, AL29-4C®,
SS or Polypropylene, the maximum allowable length
should not exceed those lengths listed in Table 8.
- For PVC/CPVC or AL29-4C® vent systems reduce the
maximum allowable length for each elbow as follows:
- 3 Feet for every 45º elbow
- 5 feet for every 90º elbow
- For polypropylene vent systems reduce the maxi-
mum allowable length for each elbow as follows:
- 5 Feet for every 45º elbow
- 10 feet for every 90º elbow
2 Inch (60 mm) Vent Systems Restrictions for the
PRESTIGE 60, 110 & Excellence.
- Derate the maximum boiler input by 3% when using
the maximum equivalent length of 2 inch (60 mm)
vent piping on Solo 110 & Excellence 110.
- The 2 inch vent system requires a 1 inch clearance
to combustibles
- Use long sweep elbow to limit pressure drop and to
avoid excessive vent temperatures.
- In 2 inch PVC vent applications, the first 7 equivalent
feet of the vent system must utilize CPVC material.
To avoid vent failure the installer must use CPVC
vent material for the first 7 equivalent feet of a 2 inch
PVC vent system. The installer must also utilize
primer and glue that is certified for both PVC/CPVC
materials. Failure to properly install the vent system
can lead to carbon monoxide posoning or fire due to
joint separtion or pipe breakage.
WAR I G
3 Inch Vent System Restrictions
- Derate the maximum boiler input of the PRESTIGE
Solo 250 by 3% when using the maximum equiva-
lent length of 3 inch (80 mm) vent piping.
Rigid Polypropylene Vent System Restrictions
Contact approved polypropylene vent manufacturer
for a copy of their installation instructions. Read,
understand and follow all of the vent manufacturer’s
instructions before beginning the installation.
Contact vent manufacturer if you require any techni-
cal support. Failure to properly install and support
vent system can lead to carbon monoxide poisoning
or fire due to joint separation or pipe breakage.
- Rigid polypropylene vent pipe must be installed with
locking band clamps or connector rings and sup-
ports (wall strap or clamp, elbow or base, etc.).
Consult vent manufacturer for complete list of other
parts required.
- Maintain 5/8" per foot slope back toward appliance
on all horizontal runs.
- The use of a wall plate is required to seal rigid
polypropylene vent pipe at the entrance of the chim-
ney or chase to prevent mortar or cement from con-
tacting the polypropylene vent pipe.
- Any termination piping external to the building must
be UV resistant (black).
- Do not apply insulation directly to vent. Maintain
vent manufacturers clearances to combustibles.
- Plastic venting systems shall not pass through rated
fire separations without approved fire stopping
installed in accordance with fire stopping manufac-
turers instructions.
- Prior to assembly of any joints, ensure joint gasket is
present and properly installed. Contact vent manufac-
turer if gasket is missing or damaged. Verify the
integrity of joints upon completion of the vent system.
WAR I G
Pre-Installation Require ents
TABLE 8

9
-Maintain 5/8" per foot slope back toward appliance on
all horizontal runs of rigid polypropylene vent pipe.
- The use of a wall plate is required to seal rigid
polypropylene vent pipe at the entrance of the chim-
ney or chase to prevent mortar or cement from con-
tacting the polypropylene vent pipe.
- Requires supports (elbow or base, flex chimney and
bracket), spacers, chimney cap and end pipe.
Consult vent manufacturer for complete list of other
parts required.
- Any termination piping external to the building must
be UV resistant (black).
- Do not apply insulation directly to vent. Maintain
vent manufacturers clearances to combustibles.
- Flex plastic venting systems shall not pass through
rated fire separations.
- Prior to assembly of any joints, ensure joint gasket is
present and properly installed. Contact vent manufac-
turer if gasket is missing or damaged. Verify the
integrity of joints upon completion of the vent system.
Pre-Installation Require ents
Flex Polypropylene Vent System Restrictions
-3” Flex venting is limited up to the PRESTIGE Solo
175.
- 2” Flex venting is limited up to the PRESTIGE Solo
110 & Excellence 110.
Contact approved polypropylene vent manufacturer
for a copy of their installation instructions. Read,
understand and follow all of the vent manufacturer’s
instructions before beginning the installation.
Contact vent manufacturer if you require any techni-
cal support. Failure to properly install and support
vent system can lead to carbon monoxide poisoning
or fire due to joint separation or pipe breakage.
- Approved for vertical installations only, where a
clean, structurally sound unused chimney or chase
is used as a raceway.
- Vertical offsets must not exceed 45° and are limited
to a maximum number of 2.
- Requires rigid polypropylene vent pipe with locking
band clamps or connector rings and wall straps or
support clamps from the appliance to the entrance of
the chimney or chase.
WAR I G

Pre-Installation Require ents
10
Combustion Air Contamination
If the PRESTIGE combustion air inlet is located in an
area likely to cause or contain contamination, the
combustion air must be repiped and terminated at
another location. Contaminated combustion air will
damage the unit and its burner system, resulting in
possible severe personal injury, death or substantial
property damage.
Do not operate the PRESTIGE if it’s combustion air
inlet is located near a laundry room or pool facility.
These areas will always contain hazardous con-
taminants.
Pool and laundry products, common household and
hobby products often contain fluorine or chlorine
compounds. When these chemicals pass through
the burner and vent system, they can form strong
acids. These acids will corrode the heat exchanger,
burner components and vent system, causing seri-
ous damage and presenting possible flue gas
spillage or water leakage into the surrounding area.
Please read the information listed below. If contam-
inating chemicals are located near the area of the
combustion air inlet, the installer should pipe the
combustion air inlet to an outside area free of these
chemicals.
DA GER
WAR I G
Potential contaminating products
- Spray cans containing chloro/fluorocarbons
- Permanent Wave Solutions
- Chlorinated wax
- Chlorine - based swimming pool chemicals /
cleaners
- Calcium Chloride used for thawing ice
- Sodium Chloride used for water softening
- Refrigerant leaks
- Paint or varnish removers
- ydrochloric acid / muriatic acid
- Cements and glues
- Antistatic fabric softeners used in clothe dryers
- Chlorine-type bleaches, detergents, and clean-
ing solvents found in household laundry rooms
- Adhesives used to fasten building products and
other similar products
Areas likely to contain these products
- Dry cleaning / laundry areas and establishments
- Beauty salons
- Metal fabrication shops
- Swimming pools and health spas
- Refrigeration Repair shops
- Photo processing plants
- Auto body shops
- Plastic manufacturing plants
- Furniture refinishing areas and establishments
- New building construction
- Remodeling areas
- Garages with workshops

Direct Vent Installation of Vent/Air Piping
11
SECTIO II - DIRECT VE T I STALLATIO
OF VE T/AIR PIPI G
A Direct Vent appliance utilizes uncontaminated outdoor
air (piped directly to the appliance) for combustion.
Direct Vent - Vertical - Through the Roof or Unused
Chimney
The installation must conform to the requirements of
the authority having jurisdiction or, in the absence
of such requirements, to the ational Fuel Gas
Code, A SI Z223.1/ FPA 54, and/or atural Gas and
Propane Installation Code, CA /CSA B149.1.
When using an inoperative chimney as a means of a
chase for the vent, the surrounding space within the
chimney cannot be used to draw combustion air or
vent another appliance.
A gas vent extending through a roof should not ter-
minate near an adjacent wall or below any building
extensions such as roof eaves, balconies or decks.
Failure to comply with the required clearances in
this manual could result in severe personal injury,
death or substantial property damage.
The information and diagrams outlining the fittings
and method of terminating the vent/combustion air
are directly related to PVC/CPVC vent systems.
When utilizing and AL29-4C® or Polypropylene vent
system there may be some variations. Consult the
appropriate vent manufacturer for recommenda-
tions and clarifications.
Determine Termination Location
Locate the vent and combustion air termination using the
following guidelines:
1. The total length of the vent or combustion air piping
must not exceed the limits given in Table 8 on page 8.
NOTICE
NOTICE
WAR I G
NOTICE
Do not include the two 90ºelbows or tee used to ter-
minate the combustion air inlet exterior of the build-
ing when determining the total length of pipe.
2. The combustion air piping must terminate in an
upside down “U” shape fashion using two 90º
elbows as shown in Fig. 1 page 12 or with a tee as
shown in Fig. 2 page 12. The termination must be
installed 12” [30.5 cm] (18” [45.7 cm] Canada) above
the highest anticipated snow level.
3. The vent must terminate vertically with a coupling to
accept the bird screen and must be located 12” to 24”
[30.5 cm to 61 cm] above the combustion air inlet as
shown in Fig. 1 & Fig. 2 on page 12.
4. The vent and combustion air terminations must be
located a radial distance of 12” to 24” [30.5 cm to 61
cm] from centerline of vent termination to centerline
of air termination as shown in Figs. 1 & 2 on page
12.
5. The following should be considered when deter-
mining the location of the vent and combustion air
terminations:
a. Locate the vent termination where flue vapors
will not damage surrounding shrubs, plants or
air conditioning equipment or be objectionable
to the homeowner.
b. The flue products will form a noticeable plume of
water vapor as they condense in colder air.
Avoid terminating the vent in areas where the
plume could obstruct window views.
c. Prevailing winds could cause freezing of flue
gas condensation and a buildup of water / ice on
surrounding plants, building surfaces or com-
bustion air inlet.
d. Avoid locations where prevailing winds could
affect the performance of the boiler or cause
recirculation of the flue gases, such as inside
corners of buildings, near adjacent buildings,
vertical surfaces, window wells, stairwells,
alcoves, courtyards, or other recessed areas.
e. Do not terminate the vent above doors or win-
dows: flue condensate could freeze causing ice
formations.
f. Locate the vent termination to prevent possible
condensate damage to exterior finishes.
g. Avoid locations of possible accidental contact of
flue vapors with people or pets.
NOTICE

12
Direct Vent Installation of Vent/Air Piping
12" Min.[30.5 cm]
RadialDistance
12"[30.5cm](18”[45.7cm]Canada)
AbovetheHighest
AnticipatedSnowLevel
Vent Termination
[30.5 cm to 61 cm]
12" Min. - 24" Max
Above Combustion
Air Inlet
Combustion Air Termination

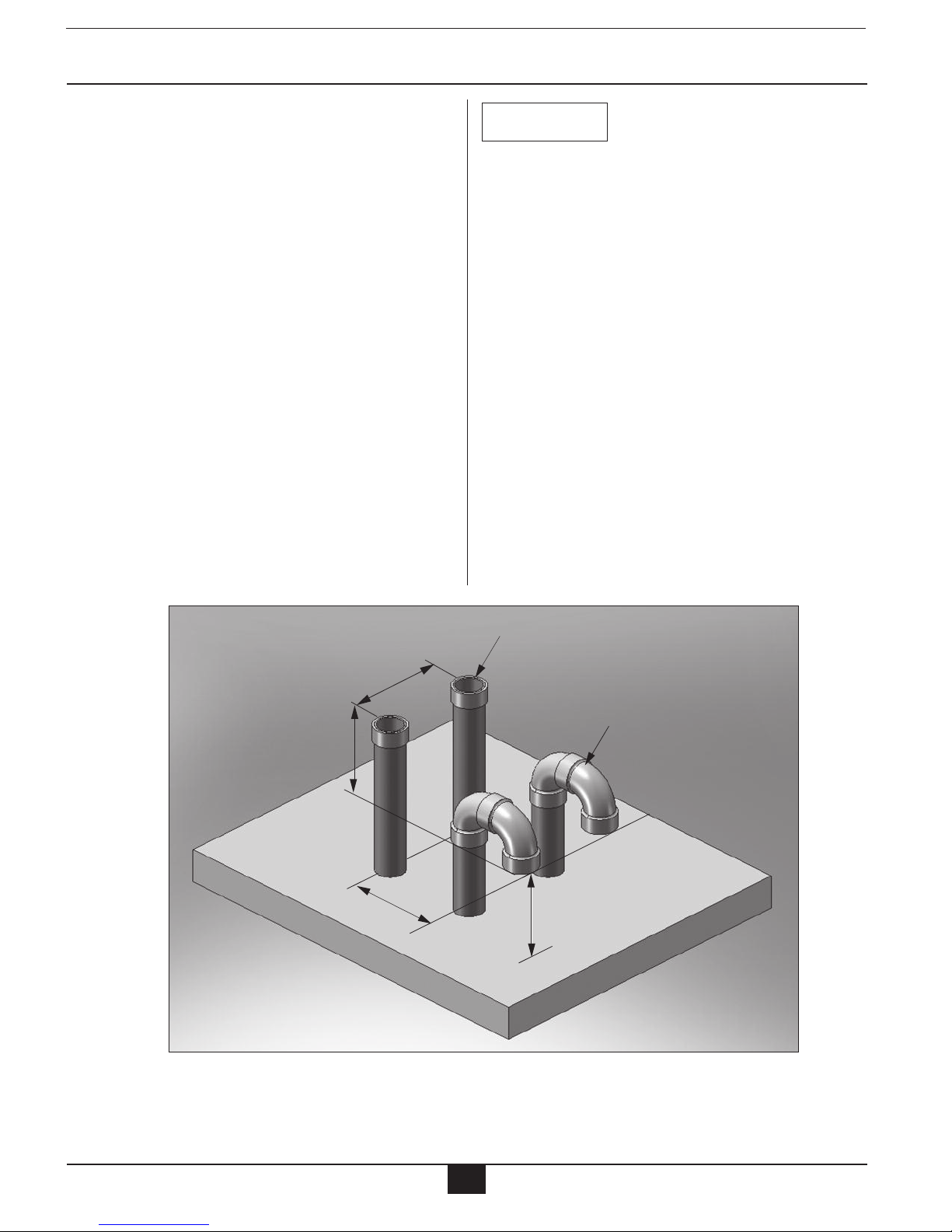

Direct Vent - Vertical Termination of Vent and Combustion Air Piping.
Fig. 1:
Vent Termination
Combustion Air Termination
12"Min.[30.5cm]
RadialDistance
12"[30.5cm](18"[45.7cm]Canada)
AbovetheHighest
AnticipatedSnowLevel
12" Min. - 24" Max
[30.5 cm - 61 cm]
Above Combustion
Air Inlet
Fig. 2: Direct Vent - Vertical Termination of Vent and Combustion Air Piping.

13
Direct Vent - Vent Installation - Through the Roof
1. Vent and Combustion Air Penetration
- Vent pipe penetration through combustible or
non-combustible wall material should maintain a
minimum 1/4” [6 mm] clearance for 3” and 4”
PVC/CPVC vent or 1” [2.5cm] for 2” PVC/CPVC
vents. The diameter of the penetration hole
should be 4” [10.2 cm] minimum for 2” and 3”
pipe or 5” [12.7 cm] minimum for 4” pipe. When
using Polypropylene or Stainless Steel Vent
refer to vent manufacture’s installation instruc-
tions, supplied with the vent for clearances.
- Combustion air pipe penetration can maintain
zero clearance. The diameter of the penetration
hole should be 2-3/8” [6 cm] minimum for 2” pipe
or 3-1/2” [8.9 cm] minimum for 3” pipe or 4-1/2”
[11.4 cm] minimum for 4” pipe.
2. The installer must use a galvanized metal thimble for
the vent pipe penetration.
3. Locate the vent and combustion air pipe penetra-
tions to provide clearances as described in Fig. 1 &
Fig. 2 on page 12.
4. The installer must comply with all local codes for iso-
lating the vent and combustion air pipes as they
pass through floors, ceilings and roofs.
5. The installer should provide adequate flashing and
sealing boots sized for the vent pipe and combustion
air pipe.
Termination Fittings - Through the Roof
1. The vent and combustion air terminations must include
a factory supplied “bird screen” installed as shown in
Figs. 4, 5 & 6 on page 14.
2. The combustion air piping must terminate in an
upside down “U” shape fashion using two 90º
elbows as shown in Fig. 1 page 12 or with a tee as
shown in Fig. 2 on page 12.
3. The vent piping must terminate vertically with a cou-
pling as shown in Figs. 1 & 2 page 12.
Do not extend the vent pipe above the roof beyond
the dimensions shown in Fig. 1 & Fig. 2 on page 12
Extended exposure of the vent pipe could cause
condensate to freeze and block the vent pipe.
WAR I G
6. The vent termination must also maintain the follow-
ing clearances; as shown in Fig.3.
a. At least 3 feet [0.9 m] from adjacent walls
b. At least 3 feet [0.9 m] below roof over hangs
c. At least 7 feet [2.1 m] above any public walk-
ways
d. At least 3 feet [0.9 m] above any forced air
intake within 10 feet [3 m] (does not apply to the
combustion air inlet of a direct vent appliance).
e. No closer than 12” [30.5 cm] below or horizon-
tally from any door or window or gravity air inlet.
f. Must be at least 4 feet [1.2 m] from any electric
meters, gas meters-regulators, relief valves or
other equipment. Never terminate the vent
above or below any of these items within 4 feet
[1.2 m] horizontally.
g. A minimum 12 inches [30.5 cm] horizontal spacing
from other fan assisted appliance vents such as
clothes dryer vent, kitchen exhaust vent etc. Never
terminate the vent above or below any fan assist-
ed vent within 12 inches [30.5 cm] horizontally.
7. Locate the vent and combustion air terminations in a
manner to protect from damage by foreign objects,
such as stones, balls, or buildup of leaves or sediment.
8. Do not connect any other appliance to the vent pipe
or multiple boilers to a common vent pipe.
Direct Vent Installation of Vent/Air Piping
Termination Clearances of Direct Vent
System
Fig. 3:

14
Direct Vent Installation of Vent/Air Piping
Vent Termination
Bird Screen
Vertical Vent Bird Screen Installation
Fig. 4:

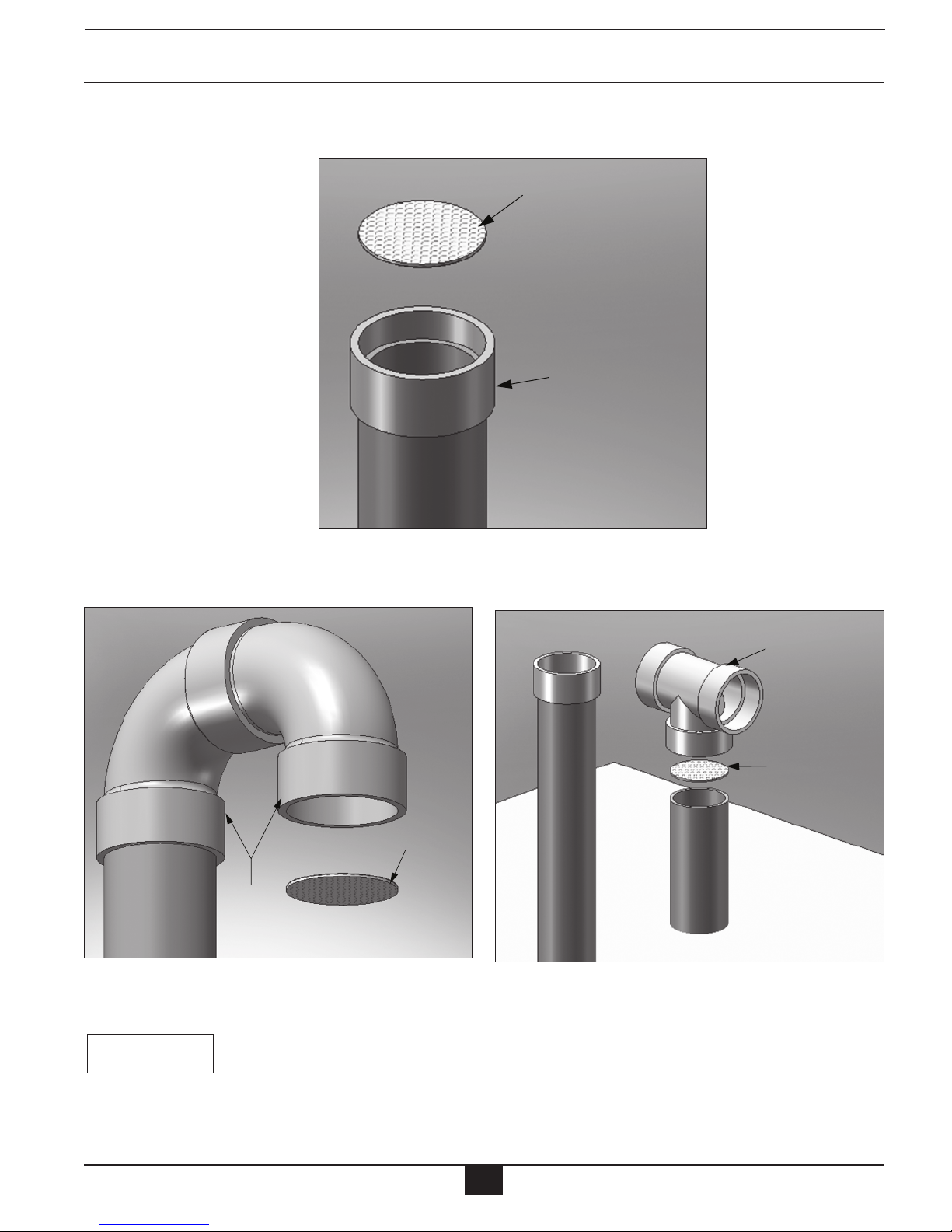

Installer must install the factory supplied “bird
screens” on the vent and combustion air termina-
tions.
NOTICE
Combustion
Air
Termination
Bird Screen
Vertical Combustion Air Bird Screen
Installation with 90º Elbow Termination
Fig. 5:
Combustion Air
Termination
Bird Screen
Vertical Combustion Air Bird Screen
Installation with Tee Termination
Fig. 6:

15
Direct Vent Installation of Vent/Air Piping
The combustion air inlet of the PRESTIGE is defined
as being part of a direct vent system. It is not con-
sidered as a forced air intake. The required clear-
ance of an adjacent boiler vent to a forced air inlet
does not apply in a multiple installation of PRES-
TIGE boilers.
NOTICE
Direct Vent - Multiple Boiler Installation - Through
the Roof
1. On installations of multiple PRESTIGE boilers, ter-
minate the vent and combustion air piping as
described in this manual.
2. The roof penetration of the vent and combustion air
piping should be such that the combustion air inlet is
a minimum 12” [30.5 cm] from the adjacent vent pipe
of the other boiler for installations in the U.S. as
shown in Fig. 7. For installations in Canada, provide
clearances as required by CAN/CSA B149.1.
Vent Termination Typ.
Combustion Air Termination Typ.
12" [30.5 cm](18”[45.7 cm] Canada)
AbovetheHighest
Anticipated SnowLevel
12"Min.[30.5cm]
Typ.
12"Min.[30.5cm]
RadialDistance
12"Min.-24”Max.
[30.5cm-61cm]
AboveCombustion
AirInletTyp.
Direct Vent - Vertical Termination of Multiple Boilers
Fig. 7:

16
Direct Vent - Horizontal - Sidewall
The installation must conform to the requirements of
the authority having jurisdiction or, in the absence
of such requirements, to the ational Fuel Gas
Code, A SI Z223.1/ FPA 54, and/or atural Gas and
Propane Installation Code, CA /CSA B149.1.
For direct vent (sidewall) installations in the
Commonwealth of Massachusetts, the installer must
comply with the additional requirements outlined on
page 37 and 38.
A gas vent extending through a sidewall should not
terminate near an adjacent wall or below any build-
ing extensions such as roof eaves, balconies or
decks. Failure to comply with the required clear-
ances in this manual could result in severe personal
injury, death or substantial property damage.
To reduce the potential of the combustion air inlet
freezing up it is recommended to separate the vent
and air terminations in both a horizontal and vertical
plain as shown in figures 8 through 12 on pages 17
and 18.
If the vent is terminated on a sidewall which is sub-
ject to high winds it is recommended to terminate
the vent using a 45º elbow or tee. A tee provides the
best protection against wind but can expose the
exterior of the house to condensate, while a 45º
elbow provides improved protection from both wind
and condensate.
The information and diagrams outlining the fittings
and method of terminating the vent/combustion air
are directly related to PVC/CPVC vent systems.
When utilizing and AL29-4C® or Polypropylene vent
system there may be some variations. Consult the
appropriate vent manufacturer for recommenda-
tions and clarifications.
WAR I G
NOTICE
BEST PRACTICE
BEST PRACTICE
NOTICE
NOTICE
Determine Termination Location
Locate the vent and combustion air termination using the
following guidelines:
1. The total length of the vent or combustion air piping
must not exceed the limits given in Table 8 on page 8.
DO OT include the 45º or 90º elbows or tee used to
terminate the combustion air inlet and vent exterior
of the building when determining the total length of
pipe.
2. The combustion air pipe must terminate using a 90º
elbow directed away from the vent termination. The
combustion air termination must be installed 12” [30.5
cm] minimum above grade / highest anticipated snow
level and as shown in Figs. 8 through 15 pages 17 &
18.
The combustion air termination can be placed on
either side of the vent termination. The vent and
combustion air terminations must be a minimum 12”
[30.5 cm] apart. The vent and combustion air termi-
nations are not required to be in the same pressure
zone. The combustion air termination must be
directed away from the vent see Figs. 10 through 15
pages 17 & 18. The combustion air termination must
be directed down for Figs. 8 and 9 page 17.
3. The vent pipe can terminate:
- Using a 90º elbow as shown in Figs. 8 or 10, page 17.
- Using coupling as shown in Figs. 9 or 13, pages 17
or 18.
- Using a tee as shown in Figs. 11 or 14, pages 17 or
18.
- Using a 45º elbow as shown in Figs. 12 or 15, page 18.
The vent termination must be installed 12” [30.5 cm]
minimum above grade / highest anticipated snow level.
Do not extend the vent pipe outside the sidewall
beyond the dimensions shown in Figs 8 through 15.
Extended exposure of the vent pipe could cause
condensate to freeze and block the vent pipe.
WAR I G
NOTICE
NOTICE
Direct Vent Installation of Vent/Air Piping

17
Direct Vent Installation of Vent/Air Piping
12”Min.-24”Max.
[30.5 cm- 61cm]
FromWallToVent
12" [30.5 cm] Min. Above Grade / Highest
Anticipated Snow Level
12"Max.
[30.5cm]
12"Min.
[30.5cm]
12"Min.24
"Max.
[30.5cm-61cm]
1"[2.5cm]
FromWallToEdge
ofCoupling-Air

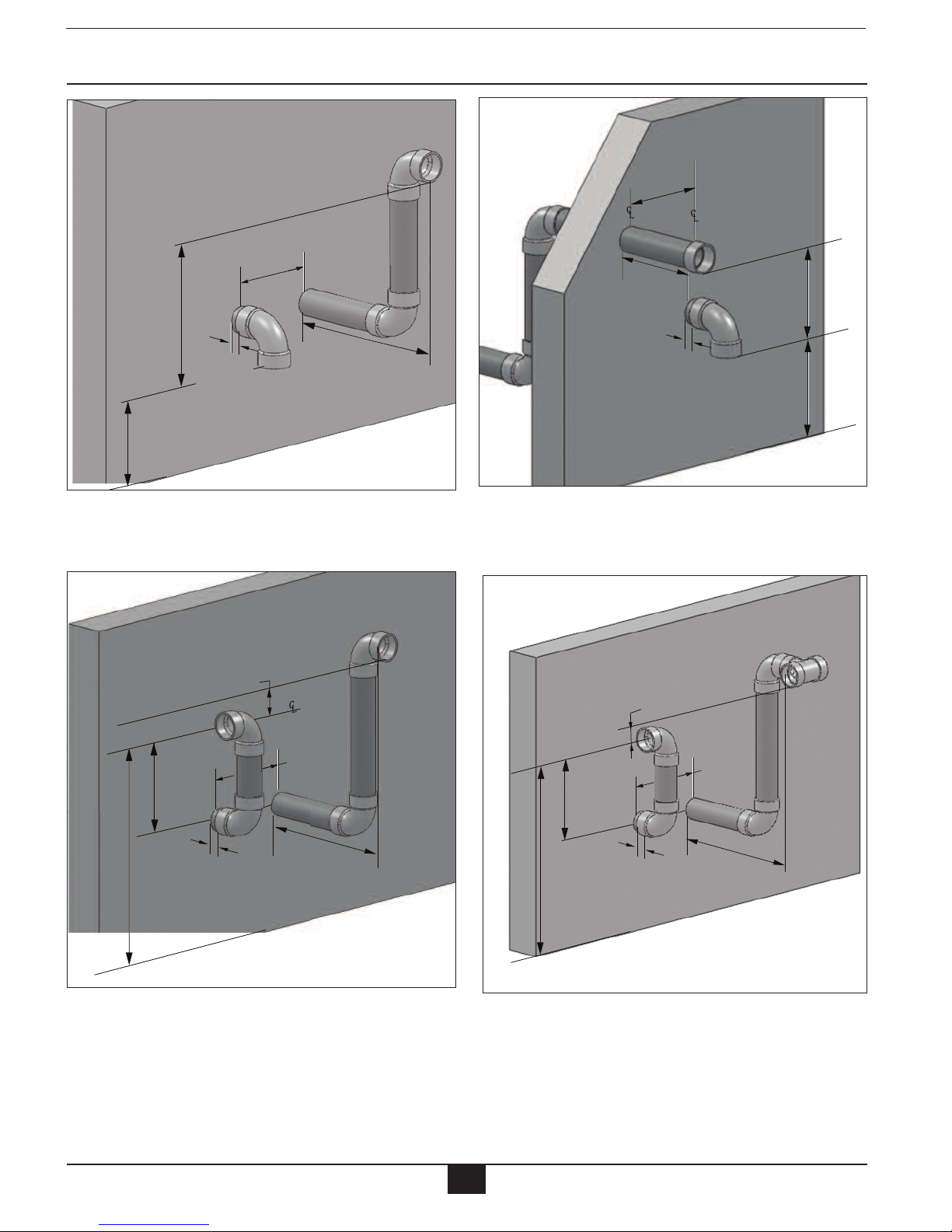

Direct Vent - Sidewall Snorkel
Termination of Vent and Combustion Air
Piping
Fig. 10:
12"Min.-24”Max.
[30.5-61cm]
FromWalltoVent
1"[2.5cm]
FromWallToEdge
ofCoupling-Air
12"[30.5cm]Min.
AboveGrade/Highest
AnticipatedSnowLevel
12" Min.
[30.5cm]Typ.
12" Min - 24” Max.
[30.5 cm - 61 cm]
Direct Vent - Sidewall Termination of Vent
and Combustion Air Piping
Fig. 8:
12”Min.-24”Max.
[ 30.5cm- 61cm]
FromWallToCenter-
lineofVent
12" [30.5 cm] Min. Above Grade / Highest
Anticipated Snow Level
12"Max.
[30.5cm]
12"Min.
[30.5cm]
12"Min.24
"Max.
[30.5cm-61cm]
1"[2.5 cm]
FromWallToEdge
ofCoupling- Air
Direct Vent - Sidewall Snorkel
Termination of Vent and Combustion Air
Piping with Tee Vent Termination
Fig. 11:
12"Min.[30.5cm]
Horizontally
fromVenttoAir
1"[2.5cm]
FromWallToEdge
ofCoupling-Air
12”Min.-24”Max.
[30.5cm-61cm]
FromWallToVent
12"Min.-24”Max.
[30.5cm-61cm]
12"Min.[30.5cm]
AboveGrade/Highest
AnticipatedSnowLevel
Direct Vent - Alternate Sidewall Termination
of Vent and Combustion Air Piping
Fig. 9:
