ACV Prestige Guide

2015-11 Prest ge ACVMax User’s Manual
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
FOR YOUR SAFETY
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
- If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
prestige
User s Information Manual
Date: 12/4/15
WARNING
WARNING
To maintain the safety & longevity
of your appliance read and follow
the maintenance schedule infor-
mation throughout this manual.

Tab e of Contents
i
Product & Safety Information
Homeowner .........................................................................................................1
Technician .........................................................................................................2
Service and Maintenance...........................................................................................2
PRESTIGE peration................................................................................................2
Boiler & System Water ..............................................................................................2
Section I - Combustion Air - Prevention of Contamination
1.1 Potential Contaminating Products.........................................................................4
Section II - Maintenance Schedule
2.1 Service Technician ................................................................................................5
2.1.1 General .........................................................................................................5
2.1.2 Poor Performance or Combustion .................................................................5
2.2 wner Maintenance ..............................................................................................5
2.2.1 Periodic .........................................................................................................5
2.2.2 Monthly .........................................................................................................5
2.2.3 Every 6 Months..............................................................................................5
Section III - Maintenance Procedures
3.1 Daily Maintenance ................................................................................................6
3.1.1 Check the Surrounding Area .......................................................................6
3.1.2 Check Combustion Air Inlets ........................................................................6
3.1.3 Check Temperature Display and Pressure Gauge .........................................6
3.2 Monthly Maintenance ...........................................................................................7
3.2.1 Check Vent Piping .........................................................................................7
3.2.2 Check Combustion Air Inlet Piping ..............................................................7
3.2.3 Check Pressure Relief Valve..........................................................................7

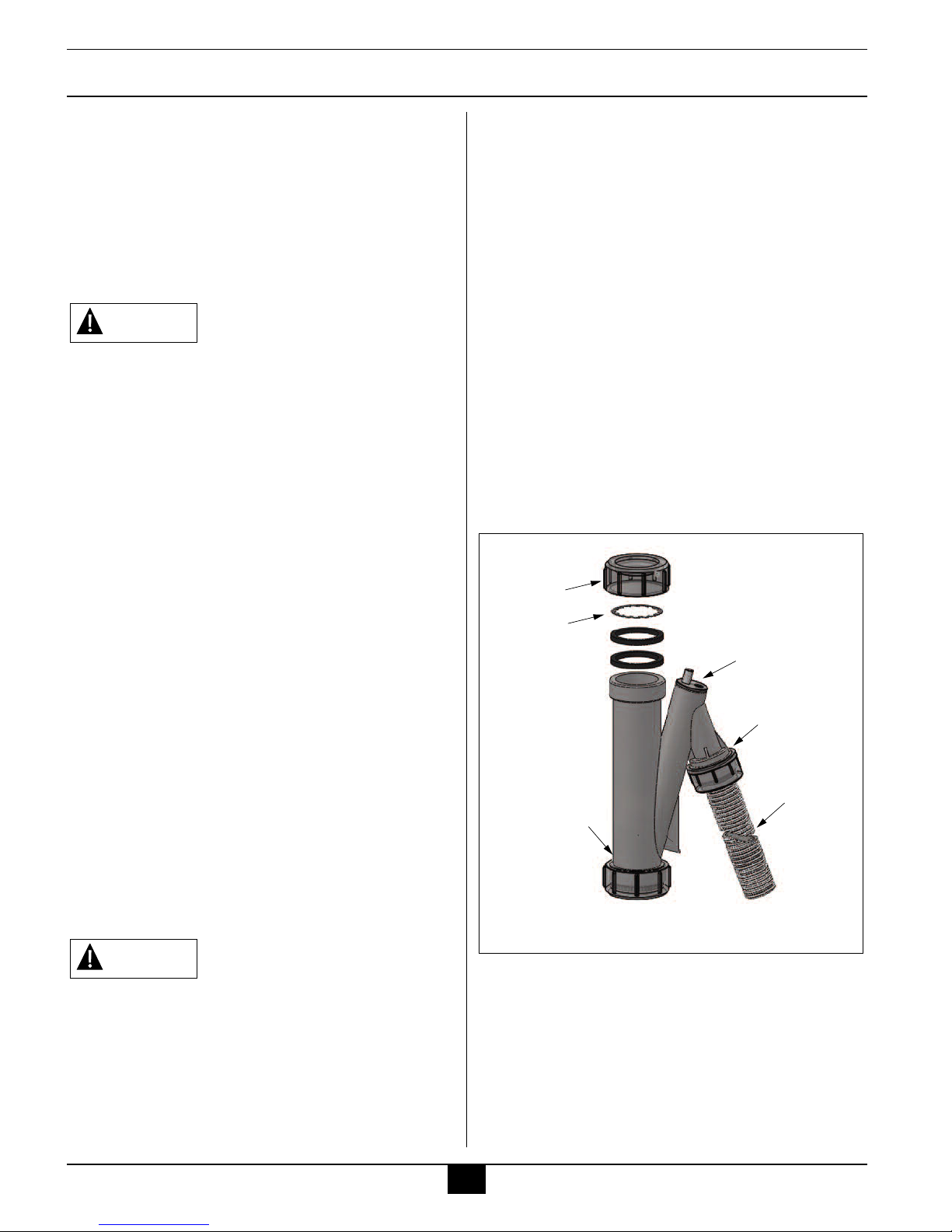

3.2.4 Check Condensate Drain System .................................................................7
3.2.5 Check Automatic Air Vents (If Used)............................................................7
3.3 6-Month Maintenance...........................................................................................8
3.3.1 Check Water and Gas Piping .........................................................................8
3.3.2 perate Pressure Relief Valve .......................................................................8
Section IV - Operating Instructions
perating Instructions......................................................................................................9
Section V - ACVMax Operation

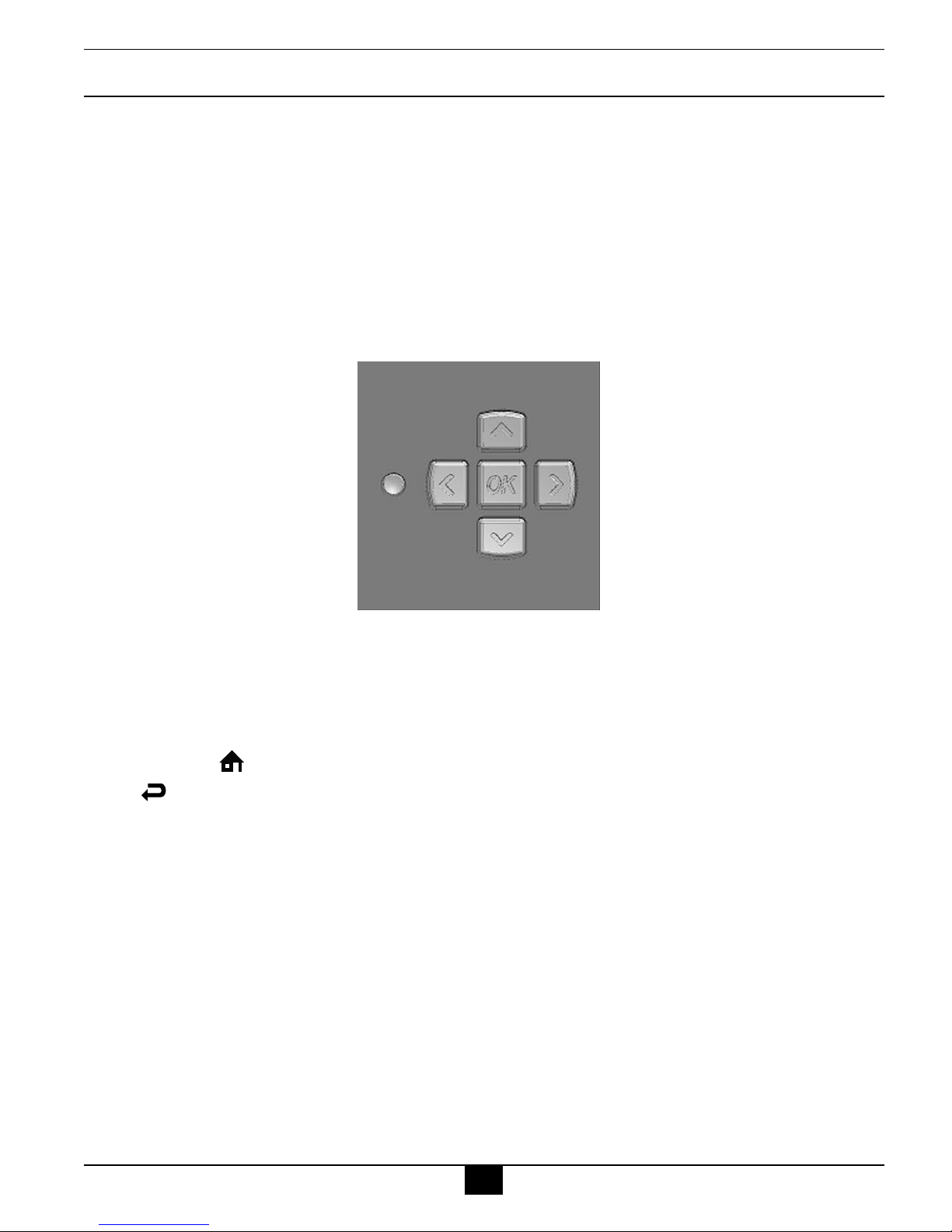

5.1 ACVMax Navigation ............................................................................................10
5.2 ACVMax Menu Structure.....................................................................................11

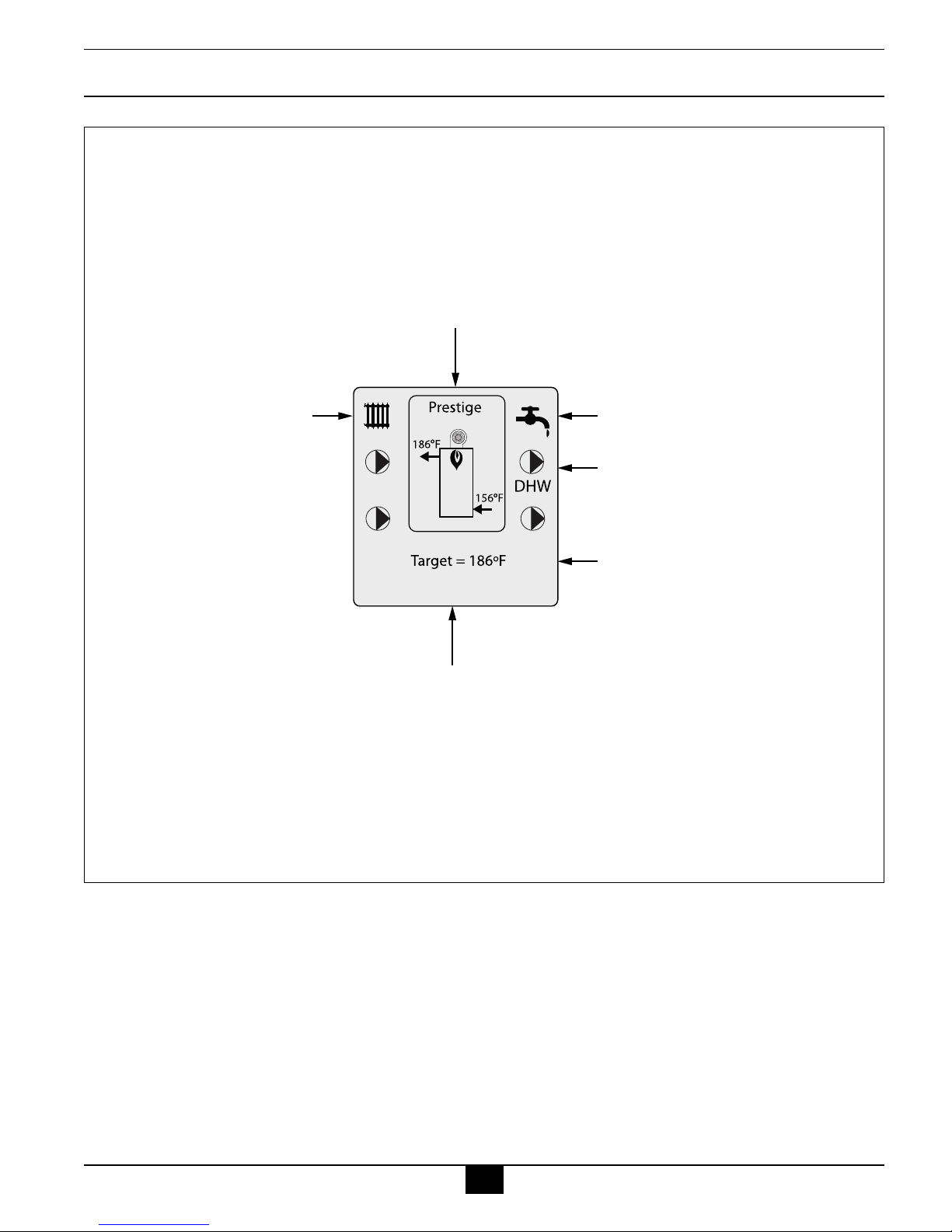

5.3 Home Screen.........................................................................................................12
5.4 Status Line Messages............................................................................................13
5.4 Main Menu .........................................................................................................14

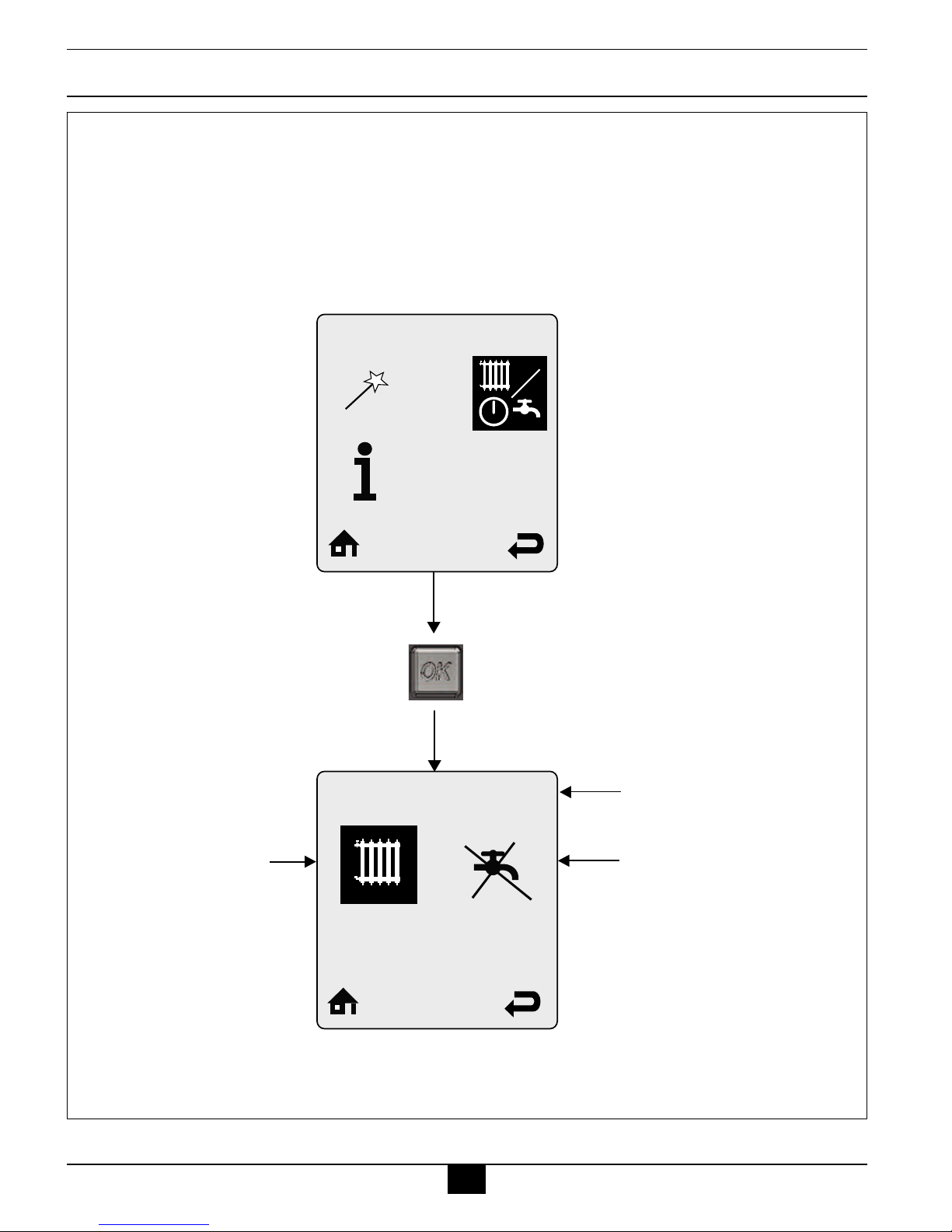

5.5 CH/DHW peration Menu ...................................................................................15
5.6 Boiler Information.................................................................................................16
5.7 Information Items..................................................................................................17
5.8 Lockout History ....................................................................................................18

Tab e of Contents
ii
5.9 Lockout Screen .....................................................................................................19
5.10 Manual Reset Hard Lockouts ...............................................................................20
5.11 Automatic Reset Soft Lockouts ............................................................................21
Section VI - Replacement Parts
Solo 80/110 Jacket Components......................................................................................23
Solo 155/175/250 Jacket Components ............................................................................24
Solo 299/399 Jacket Components....................................................................................25
Solo 80/110 Internal Components ...................................................................................27
Solo 155/175/250 Internal Components ..........................................................................28
Solo 299/399 Internal Components .................................................................................29
Solo 80/110 & Excellence Burner Components..............................................................31
Solo 155/175/250 Burner Components ...........................................................................32
Solo 299/399 Burner Components ..................................................................................33
Control Module Enclosure...............................................................................................34
Display Module Enclosure ..............................................................................................34
Section VII - Notes
Notes .........................................................................................................35

Product & Safety Information
1
PRODUCT & SAFETY INFORMATION Homeowner
The PRESTIGE installation manual is for use only by
a qualified heating installer / service technician.
Refer to this User’s Information Manual for your ref-
erence. Failure to comply could result in severe per-
sonal injury, death or substantial property damage.
A byproduct of any gas fired appliance (stove, fire-
place, clothes dryer, water heater, furnace, boiler,
etc.) is carbon monoxide. In the absence of any
state or local codes requiring the installation of
carbon monoxide detector and alarms, ACV-
Triangle Tube recommends the following:
- Installation of a carbon monoxide detector and
alarm that is wired on same electrical circuit as
the boiler.
- Installation of a carbon monoxide detector and
alarm on each level of the building where there
are bedrooms and in the living area outside the
bedrooms.
- Installation of a carbon monoxide detector and
alarm in the room that houses the appliance.
- Installation of a carbon monoxide detector and
alarm with battery back up.
- Installation of a carbon monoxide detector and
alarm that complies with NFPA 720.
ACV-Triangle Tube accepts no liability for any dam-
age, injury or loss of life resulting from incorrect
installtion, from alteration of any factory supplied
parts or from the use of parts or fittings not speci-
fied byACV-Triangle Tube. If there is a conflict or
doubt about the proper installation/operation of the
unit or any factory supplied or replacement parts
please contact a qualified heating installer/service
technician.
WARNING
WARNING
WARNING
The following terms are used throughout this manual to
bring attention to the presence of potential hazards or to
important information concerning the product.
Indicates a potentially hazardous situation, which if
ignored, can result in death, serious injury or sub-
stantial property damage.
Indicates a potentially hazardous situation which, if
ignored, may result in minor injury or property dam-
age.
Indicates special instructions on installation, opera-
tion or maintenance, which are important to equip-
ment but not related to personal injury hazards.
WARNING
CAUTION
NOTICE

Product & Safety Information
2
Technician
When calling or writting about the PRESTIGE, please
have the boiler model and serial number available.
STOP! READ BEFORE SERVICING
Failure to adhere to the guidelines on this page can
result in severe personal injury, death or substantial
property damage.
Service and Maintenance
• To avoid electric shock, disconnect electrical supply
before performing service or maintenance.
• Allow the unit to cool down prior to servicing to avoid
severe burns.
• The PRESTIGE must be maintained as outlined in
this manual and have at least annual service per-
formed by a qualified service technician to ensure
unit / system reliability.
PRESTIGE Operation
• Do not block flow of combustion air to the PRES-
TIGE. If the combustion air blockage is easily
accessible and removable, then remove it. If block-
age is not obvious or cannot be removed, have the
unit and system checked by a qualified service tech-
nician.
• Do not allow contaminated air to enter the unit’s
combustion air inlet. See page 4 for details.
• The PRESTIGE is equipped with a low water cutoff
device. The boiler and system piping must be filled
and pressurized to 12 psig prior to startup. The unit
will shut down if the pressure falls below 10 psig.
• Should overheating occur or the gas supply fail to
shut off, DO NOT turn OFF or disconnect the elec-
trical supply to the pump. Instead, shut off the gas
supply at a location external to the appliance.
• Do not use this unit if any part has been under water.
Immediately call a qualified service technician to
inspect the boiler and to replace any part of the con-
trol system and any gas control, which has been
under water.
WARNING
NOTICE
Boiler & System Water
• Have the boiler and system water chemistry
checked at least annually by a qualified service tech-
nician.
• Do not use petroleum-based cleaning or sealing
compounds in the boiler or system. Gaskets and
seals in the system may be damaged. This can
result in substantial property damage.
• Do not use any product not specifically designed for
boiler / hydronic heating systems. Serious damage
to the unit, piping system, personnel and / or prop-
erty may result.
• Continual fresh makeup water will reduce the life of
the PRESTIGE. Addition of oxygen can cause inter-
nal corrosion in the system components. All leaks in
the piping system must be repaired at once to pre-
vent makeup water.
• Do not add cold water to a hot unit. Thermal shock
can cause premature failure to the boiler heat
exchanger.

Product & Safety Information
3
(Page left intentionally blank)

1.0 Combustion Air - Prevention of Contamination
4
SECTION I - COMBUSTION AIR -
PREVENTION OF CONTAMINATION
If the PRESTIGE combustion air inlet is located in
any area likely to cause or contain contamination, or
if products, which would contaminate the air cannot
be removed, the combustion air must be re-piped
and terminated to another location. Contaminated
combustion air will damage the unit and its burner
system, resulting in possible severe personal injury,
death or substantial property damage.
Do not operate a PRESTIGE unit if its combustion air
inlet or the unit is located in or near a laundry room
or pool facility. These areas will always contain haz-
ardous contaminates.
Pool and laundry products and common household
and hobby products often contain fluorine or chlo-
rine compounds. When these chemicals pass
through the burner and vent system, they can form
strong acids. These acids can create corrosion of
the heat exchanger, burner components and vent
system, causing serious damage and presenting a
possible threat of flue gas spillage or water leakage
into the surrounding area.
Please read the following information. If contami-
nating chemicals will be present near the location of
the combustion air inlet, the installer should pipe the
combustion air inlet to another location per the
PRESTIGE installation manual.
WARNING
WARNING
1.1 Potential Contaminating Products
- Spray cans containing chloro/fluorocarbons
- Permanent Wave Solutions
- Chlorinated wax
- Chlorine - based swimming pool chemicals and
spa cleaners
- Calcium Chloride used for thawing ice
- Sodium Chloride used for water softening
- Refrigerant leaks
- Paint or varnish removers
- Hydrochloric acid / muriatic acid
- Cements and glues
- Antistatic fabric softeners used in clothes dryers
- Chlorine-type bleaches, detergents, and clean-
ing solvents found in household laundry rooms
- Adhesives used to fasten building products and
other similar products
Areas likely to find these products
- Dry cleaning / laundry areas and establishments
- Beauty salons
- etal fabrication shops
- Swimming pools and health spas
- Refrigeration Repair shops
- Photo processing plants
- Auto body shops
- Plastic manufacturing plants
- Furniture refinishing areas and establishments
- New building construction
- Remodeling areas
- Garages with workshops

5
2.0 Maintenance Schedu e
SECTION II - MAINTENANCE
SCHEDULE
2.1 Service Technician
At least on an annual basis the following maintenance
should be performed by a qualified service technician:
2.1.1 General
- Attend to any reported problems.
- Inspect the interior of the boiler jacket area; clean
and vacuum if necessary.
- Clean the condensate trap and fill with fresh water.
- Check boiler fluid pH on systems.
- Check for leaks: water, gas, flue and condensate;
check connections and piping inside and outside of
the casing.
- Verify flue vent piping/gaskets and air inlet piping are
in good condition, sealed tight and properly supported.
- Check internal flue pathways for condition and proper
sealing: condensate pan, vent pipe, and vent adapter.
- Check boiler water pressure, piping and expansion
tank.
- Check control settings.
- Check ignition electrode (sand off any white oxide;
clean and reposition).
- Check ignition wiring and ground wiring.
- Check all control wiring and connections.
- Check burner flame pattern (stable and uniform).
2.1.2 Poor Performance or Combustion
- Clean heat exchanger and flue ways.
- Remove burner assembly and clean burner head
using compressed air only.
Once the maintenance items are completed, review the
service with the owner.
2.2 Owner Maintenance
2.2.1 Periodic
- Check the area around the unit.
- Check and remove any blockage from the combus-
tion air inlet and ventilation openings.
- Check the temperature/pressure gauge.
2.2.2 Monthly
- Check vent piping.
- Check combustion air inlet piping.
- Check the pressure relief valve.
- Check the condensate drain system.
2.2.3 Every 6 Months
- Check boiler piping and gas supply piping for corro-
sion or potential signs of leakage.
- Operate the pressure relief valve.
Follow the maintenance procedures given
throughout this manual. Failure to perform the
service and maintenance or follow the directions
in this manual could result in damage to the
PRESTIGE or in system components, resulting
in severe personal injury, death or substantial
property damage.
WARNING

6
3.0 Maintenance Procedures
SECTION III - MAINTENANCE
PROCEDURES
The PRESTIGE must be inspected and serviced
annually, preferably at the start of the heating sea-
son, by a qualified service technician. In addition,
the maintenance and care of the boiler as outlined
on page 5 and further explained on pages 5 through
8 must be performed to assure maximum efficiency
and reliability of the unit. Failure to service and
maintain the PRESTIGE and the system components
could result in equipment failure, causing possible
severe personal injury, death or substantial property
damage.
The following information provides detailed instruc-
tion for completing the maintenance items outlined
in the maintenance schedule on page 5. In addition
to this maintenance, the PRESTIGE should be serv-
iced at the beginning of the heating season by a
qualified service technician.
3.1 Daily Maintenance
3.1.1 Check the Surrounding Area
To prevent potential of severe personal injury, death
or substantial property damage, eliminate all the
materials listed on page 4 from the area surrounding
the unit and from the vicinity of the combustion air
inlet. If contaminates are found:
Remove products immediately from the area. If they
have been there for an extended period, call a quali-
fied service technician to inspect the unit for possi-
ble damage from acid corrosion.
If products cannot be removed, immediately call a
qualified service technician to re-pipe the combus-
tion air inlet piping and locate the combustion air
intake away from the contaminated areas.
WARNING
NOTICE
WARNING
1. Combustible / flammable materials - Do not
store combustible materials, gasoline or other
flammable vapors or liquids near the unit.
Remove immediately if found.
2. Air contaminates - Products containing chlorine
or fluorine, if allowed to contaminate the com-
bustion air, will cause acidic condensate within
the unit. This will cause significant damage to
the unit. Read the list of potential materials list-
ed on page 4 of this manual. If any of these
products are in the room from which the unit
takes its combustion air, they must be removed
immediately or the combustion air intake must
be relocated to another area.
3.1.2 Check Combustion Air Inlets
1. Verify that ventilation air openings to the
mechanical room are open and unobstructed.
2. Verify that the unit’s vent termination and com-
bustion air intake are clean and free of obstruc-
tions. Remove any debris on the air intake or
flue exhaust openings. If removing the debris
does not allow the unit to operate correctly, con-
tact your qualified service technician to inspect
the unit and the vent / combustion air system.
3.1.3 Check Temperature Display and
Pressure Gauge
1. Ensure the pressure reading on the pressure
gauge does not exceed 25 psig. Higher pres-
sure readings may indicate a problem with the
expansion tank.
2. Ensure the temperature on the display panel
does not exceed 194ºF. Higher temperature
readings may indicate a problem with the oper-
ating thermostat controls.
3. Contact a qualified service technician if prob-
lem persists.

7
3.0 Maintenance Procedures
3.2 Monthly Maintenance
3.2.1 Check Vent Piping
1. Visually inspect the entire length of flue gas vent
piping including all joints and appliance adapter
for any signs of blockage, leakage or deteriora-
tion of gaskets. Notify a qualified service tech-
nician immediately if any problems are found.
Failure to inspect the venting system as noted and
have it repaired by a qualified service technician can
result in the vent system failure, causing severe per-
sonal injury or death.
3.2.2 Check Combustion Air Inlet Piping
1. Visually inspect the combustion air inlet piping for
any signs of blockage. Inspect the entire length
of the combustion air inlet piping to ensure piping
is intact and all joints are properly sealed.
2. Notify a qualified service technician if any prob-
lems are found.
3.2.3 Check Pressure Relief Valve
1. Visually inspect the primary pressure relief valve
and the relief valve discharge pipe for signs of
weeping or leakage.
2. If the pressure relief valve often weeps, the
expansion tank may not be operating properly.
Immediately contact a qualified service techni-
cian to inspect the unit and system.
3.2.4 Check Condensate Drain System
1. Ensure condensate drain assembly is firmly
secured to bottom of heat exchanger/unit. See
Fig.1.
Do not operate PRESTIGE without condensate drain
assembly firmly installed on unit and filled with
water. If the trap is not installed and full of water flue
gases can be emitted into the surrounding area
causing severe personal injury or death.
2. While the unit is running, check the discharge
end of the condensate drain tubing. Ensure no
WARNING
WARNING
flue gas is leaking from the condensate drain
tubing by holding your fingers near the opening.
3. If you notice flue gas leaking this indicates a dry
condensate drain assembly. Fill the condensate
drain assembly with water. Contact a qualified
service technician to inspect the unit and con-
densate line and refill the condensate drain
assembly if problem persists regularly.
4. Ensure the condensate drain line is not blocked
by pouring water through the fill plug port on the
condensate drain assembly. The water should
flow out of the end of the drain line. If water
does not appear at the end of the drain line, con-
tact a qualified service technician to inspect and
clean the condensate line.
5. To fill the condensate drain assembly, if neces-
sary, remove the fill plug from the condensate
assembly. Slowly pour water into the trap
assembly until water appears at the end of the
drain line. Stop filling and replace plug.
3.2.5 Check Automatic Air Vents (If Used)
1. Remove the cap “A” from any automatic air vent
in the system and check operation by depressing
valve “B” slightly with the tip of a screwdriver. See
Fig. 2 on page 8.
2. If the air vent valve appears to be working freely
and not leaking, replace cap “A”, screwing it on
fully.
Flexible Tubing
(or 3/4 PVC/
CPVC Piping
to Drain)
Compression
Nut with Rubber Seal
Fill Plug
with Vaccum
Break Port
Condensate
Drain Assembly
Plastic Ball
(Not shown)
Retaining Nut
Metal Washer
Fig. 1: Condensate Drain Assembly

8
3. Have the air vent replaced by a qualified service
technician if it does not operate correctly.
3.3 6-Month Maintenance
3.3.1 Check Water and Gas Piping
1. Remove the boiler front jacket panel and perform a
gas leak inspection per steps 1 through 6 of the
Operating Instructions on page 9. If gas odor or
leak is detected, immediately shut down the unit
following procedures on page 9. Call a qualified
service technician.
2. Visually inspect for leaks around the internal boiler
water connections and around the heat exchanger.
Visually inspect the external system piping, circula-
tors, and system components and fittings.
Immediately call a qualified service technician to
repair any leaks.
Have leaks fixed at once by a qualified service tech-
nician. Failure to comply could result in severe per-
sonal injury, death or substantial property damage.
3.3.2 Operate Pressure Relief Valve
1. Before proceeding, verify that the relief valve
outlet has been piped to a safe place of dis-
charge, avoiding any possibility of scalding from
hot water.
WARNING
To avoid water damage or scalding due to valve
operation, a discharge line must be connected to the
relief valve outlet and directed to a safe place of dis-
posal. This discharge line must be installed by a
qualified service technician or heating / plumbing
installer in accordance with the PRESTIGE installa-
tion manual. The discharge line must be terminated
so as to eliminate possibility of severe burns or
property damage should the valve discharge.
2. Read the temperature display and pressure
gauge to ensure the system is pressurized. Lift
the relief valve top lever slightly, allowing water to
relieve through the valve and discharge piping.
3. If water flows freely, release the lever and allow
the valve to seat. Watch the end of the relief
valve discharge pipe to ensure that the valve
does not weep after the line has had time to
drain. If the valve weeps, lift the lever again to
attempt to clean the valve seat. If the valve
does not properly seat and continues to weep
afterwards, contact a qualified service techni-
cian to inspect the valve and system.
4. If the water does not flow from the valve when
you lift the lever completely, the valve or dis-
charge line may be blocked. Immediately shut
the unit down per the instructions on page 8.
Call a qualified service technician to inspect the
valve and system.
WARNING
3.0 Maintenance Procedures
AScrew Cap
Completely ON
B
Fig. 2: Automatic Air Vent

9
4.0 Operating Instructions
SECTION IV - OPERATING INSTRUCTIONS
WARNING
FOR YOUR SAFETY READ BEFORE LIGHTING
OPERATING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
1.STOP! Read the safety information above. This appli-
ance is equipped with an ignition device which auto-
matically lights the burner. DO NOT try to light the burn-
er by hand.
2. Set room thermostat(s) to lowest setting. Turn the
external manual gas valve handle clockwise
“CLOSE” (valve handle shall be perpendicular to gas
piping).
3. Turn the service switch on the PRESTIGE control panel
OFF.
4. Remove the front jacket panel on the unit.
5. Turn the external manual gas valve handle counter
clockwise to “OPEN” gas supply (valve handle
shall be parallel to gas piping).
6. Wait five (5) minutes to clear out any gas. If you then
smell gas in the jacket enclosure or around the unit,
STOP! Follow “B” in the safety information above. If you
don’t smell gas, go to the next step.
7. Turn the service switch on the PRESTIGE control panel
“ON”.
8. Set room thermostat(s) to desired setting(s).
9. The PRESTIGE control panel display will show the cur-
rent operating status on the Status Line at the bottom of
the screen. “Standby” means there is no call for heat (all
thermostats are satisfied). “CH Demand” indicates a
space heating call has been received. “DHW Demand”
indicates a domestic hot water call has been received. A
flame icon will be displayed when the unit is fired.
10. If the unit will not operate with a call for heat and the sys-
tem piping is not hot, follow the instructions “To Turn Off
Gas to Appliance”, below and call your service technician
or gas supplier.
11. Replace the front jacket panel. ake sure the panel is seat-
ed firmly in place and all mounting screws are tightened.
If you do not follow these instructions exactly, a fire or explosion may result caus-
ing property damage, personal injury or loss of life.
1. Set the room thermostat to lowest setting.
2. Turn the service switch on the PRESTIGE control panel
to “OFF”
3. Turn the external manual gas valve handle clockwise
to “CLOSE”.
A. This appliance does not have a pilot. It is equipped with
an ignition device which automatically lights the burner.
DO NOT try to light the burner by hand.
B. BEFORE OPERATING, smell all around the appliance
area for gas. Be sure to smell next to the floor because
some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any
phone in your building
•Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to turn the external manual gas
valve. Never use tools. If the valve will not turn by hand,
don’t try to repair it; call a qualified service technician.
Force or attempted repair may result in a fire or explo-
sion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.

10
5.0 ACVMax Operation
SECTION V - ACVMAX OPERATION
5.1 ACVMax Navigation
The ACV ax Boiler anagement System is designed to be flexible yet easy to use. ACV ax monitors and controls
the Prestige to provide heat as efficiently as possible. All ACV ax features are easy to use through a graphical dis-
play where information is presented either graphically or in plain English, so code charts are not required.
Navigation is performed through four arrow buttons UP, DOWN, LEFT, RIGHT with a center O button for making
selections and entering information. The INSTALLER button (the small round button) provides the installing con-
tractor with full access to all available features after entering a password.
Figure 2 – ACVMax Navigation Buttons
The ain enu can be entered from the Home Screen by pressing the O button. The menu system utilizes icons
to represent each selection. The current selected menu is displayed as a reversed image with a text description
shown at the top of the display. enus can be entered by highlighting the desired icon and pressing the O button.
The Home Screen icon at the bottom of each screen returns to the Home Screen when selected. The Previous
Screen icon at the bottom of each screen returns to the previous screen when selected.

11
5.0 ACVMax Operation
5.2 ACVMax Menu Structure

5.0 ACVMax Operation
CH
P3 P4
Boiler Protection
1
2The faucet icon indicates that a
domestic hot water call has been
received.
Circulator icons indicate which
circulators are currently powered.
This line provides basic information.
The user can press the LEFT or RIGHT
arrow buttons to view Target, Supply,
Return, Domestic, Outdoor and System
Temperatures.
The radiator icon indicates that a
central heating call has been
received. A small number 1 or 2
indicates which CH calls are
active.
The Prestige is represented in the center of the Home Screen. Basic operating
information such as supply and return temperatures are displayed as well as
current burner status. A flame symbol is displayed when the unit is fired. The
flame size changes to indicate the current firing rate.
The status line displays the current operating state of the Prestige.
See page 13 for a list of all Status Line Messages.
5.3 Home Screen
The Home Screen presents status information in a very user friendly way so that the current state of the boiler
can be quickly accessed.
The screen backlight will illuminate when any button is pressed and remain illuminated for five minutes. Press
the UP or DOWN buttons to turn on the backlight while at the Home Screen without making any changes.
The screen contrast can be adjusted at the Home Screen by pressing and holding the O button then pressing
and holding the LEFT arrow along with the O button. The contrast can then be increased by pressing the UP
button or decreased by pressing the DOWN button while holding in the O button and LEFT arrow. All buttons
must be released and the procedure performed again to switch between increasing and decreasing contrast.
12

13
5.0 ACVMax Operation
5.4 Status Line Messages
Status Line Message Description
Standby Indicates that the Prestige is ready to respond when a demand is received.
CH Demand A central heating call has been received.
DHW Demand A domestic hot water call has been received.
CH / DHW Demand
Central heating and domestic hot water calls are being received simultaneously.
Both calls are being satisfied simultaneously because domestic hot water priority
has been disabled.
DHW Priority
Central heating and domestic hot water calls are being received simultaneously.
Domestic hot water call is being satisfied first because it has priority over central
heating calls.
Priority Timeout
Central heating and domestic hot water calls are being received simultaneously.
The domestic hot water priority time limit has been exceeded. Priority will now
switch back and forth between central heating and domestic hot water calls until
one call is satisfied.
External Demand An external modulation call has been received.
Slave Operation The Prestige is a slave in a cascade system.
Manual Operation The burner or circulators have manually been enabled in the Installer enu.
CH Burner Delay The burner will not fire until the call blocking time has elapsed.
DHW Burner Delay The burner will not fire until the call blocking time has elapsed.
CH Setpoint Reached
The burner is not fired because the supply/system water temperature exceeds
the setpoint. The central heating circulator continues to operate and the burner
will fire again once the supply/system water temperature drops below the set-
point.
DHW Setpoint Reached
The burner is not fired because the supply/system water temperature exceeds
the setpoint. The domestic circulator continues to operate and the burner will fire
again once the supply/system water temperature drops below the setpoint.
CH Post Pump The central heating circulator is running to remove heat from the Prestige at the
completion of a call.
DHW Post Pump The domestic hot water circulator is running to remove heat from the Prestige at
the completion of a call.
Freeze Protection
The burner is fired because the freeze protection feature has been activated.
Freeze protection will end once the supply/system water temperature is raised to
60ºF [16ºC].
Boiler Protection
The burner firing rate is being reduced because of an excessive difference
between the boiler supply and return temperatures. The firing rate will begin
increasing once the temperature difference is less than 45ºF [25ºC].
Lockout Description The lockout which currently has the Prestige shut down is displayed.

14
5.0 ACVMax Operation
5.4 Main Menu
The ain enu can be entered from the Home Screen by pressing the O button. The menu system utilizes
icons to represent each selection. The currently selected menu is displayed as a reversed image with a text
description shown at the top of the display. enus can be entered by highlighting the desired icon and pressing
the O button.

15
5.0 ACVMax Operation
Press OK Button
Heating Operation can be
enabled and disabled by
selecting the radiator icon
and pressing the OK button
to toggle operation between
enabled and disabled. A
radiator icon with an X
through it indicates that the
heating function is disabled.
This icon is also displayed
on the Home Screen when
disabled.
Domestic Hot Water Operation
can be enabled and disabled by
selecting the faucet icon and
pressing the OK button to toggle
operation between enabled and
disabled. A faucet icon with an
X through it indicates that the
domestic hot water function is
disabled. This icon is also
displayed on the Home Screen
when disabled.
Currently selected menu
Heating Enabled
CH/DHW Operation
5.5 CH/DHW OperationMenu
The CH / DHW Operation enu can be entered from the ain enu by selecting the CH / DHW Operation icon
and pressing the O button. The CH / DHW Operation enu provides a simple way to disable either the central
heating or domestic hot water functions of the Prestige.

16
5.0 ACVMax Operation
Press OK Button
Boiler Information displays
six boiler readings at a time.
Each line contains an
information item followed
by its current value. Press
the UP or DOWN buttons to
scroll through additional
information items.
The following information items
have a logging function:
-Boiler Firing Rate
-Ionization Current
-Boiler Setpoint
-Boiler Supply Temperature
-Boiler Return Temperature
-Boiler Flue Temperature
-Outdoor Temperature
-DHW Storage Temperature
-External Modulation Signal
-Pressure
Currently selected menu
Boiler Information
Boiler Status
Heating Call
DHW Call
Boiler Firing Rate
Ionization Current
Boiler Setpoint
Standby
No
No
__
µA
__
Boiler Information
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
a
b
c
d
e
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
a
b
c
d
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
a
b
c
d
e
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
f
b
g
a
b
c
d
Press OK Button
194
68
-24.00 -16.00 -8.00 0.00
Boiler Setpoint
Some information items
include a logging function.
Select the information item
then press the OK button to
view the graphical log. One
sample is recorded every 12
minutes to produce a graph
of the last 24 hours.
5.6 Boiler Information
Boiler Information can be viewed by selecting the Boiler Information icon and pressing the O button. Boiler
Information provides real time operating information of the Prestige.

17
5.0 ACVMax Operation
5.7 Information Items
Informa ion I em Descrip ion
Boiler S a us Displays the current operating state of the Prestige. This is the same as
the status line on the home screen.
Hea ing Call Displays if a central heating call is present.
DHW Call Displays if a domestic hot water call is present.
Boiler Firing Ra e Displays the current firing rate of the Prestige.
Ioniza ion Curren Displays the current flame ionization current from the ignitor.
Boiler Se poin Displays the current setpoint of the Prestige.
Supply Temp. Displays the current supply temperature of the Prestige.
Re urn Temp. Displays the current return temperature to the Prestige.
Boiler Flue Temp. Displays the current flue temperature of the Prestige.
Ou door Temp. Displays the current outdoor temperature.
DHW S orage Temp. Displays the current DHW storage temperature when Indirect Water
Heater Sensor PSRKIT22 is installed.
Ex ernal Modula ion Signal Displays the current external modulation signal being received from an
external controller.
Pressure Displays the current system pressure.
CH Igni ions Displays the number of central heating ignitions since the unit was
installed. This counter increases in increments of twenty.
CH Run ime Displays the number of hours the Prestige has run for a central heating
call since the unit was installed.
DHW Igni ions Displays the number of domestic hot water ignitions since the unit was
installed. This counter increases in increments of twenty.
DHW Run ime Displays the number of hours the Prestige has run for a domestic hot
water call since the unit was installed.
Mix Zone Tempera ure Displays the temperature of the low temperature mixed circuit.
