SANbloc S50 JBOD Enclosure Quick Start Guide
Using the SANbloc S50
JBOD Enclosure
Quick Install Guide
www.snapserver.com

COPYRIGHT
Copyright © 2007, Adaptec, Inc. All rights reserved worldwide.
Information in this document is subject to change without notice and does not
represent a commitment on the part of Adaptec or any of its subsidiaries. The
software described in this document is furnished under a license agreement. The
software may be used only in accordance with the terms of the license agreement.
It is against the law to copy the software on any medium. No part of this manual
may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose without the
express written permission of Adaptec, Inc.
TRADEMARKS
Adaptec, the Adaptec logo, Snap Server, the Snap Server logo, GuardianOS,
SnapOS, and Snap Disk are trademarks or registered trademarks of Adaptec, Inc.
in the U.S.A. and other countries.
Products mentioned herein are for identification purposes only and may be
registered trademarks or trademarks of their respective companies.
REVISIONS
Adaptec, Inc. provides this publication “as is” without warranty of any kind,
either express or implied, including but not limited to the implied warranties of
merchantability or fitness for a particular purpose. Adaptec and its subsidiaries
reserve the right to revise this publication and to make changes in the content
hereof without the obligation of Adaptec to notify any person of such revision or
changes.

1 SANbloc S50 SAS JBOD Quick Install Guide
SANbloc S50 SAS JBOD Quick
Install Guide
This Quick Installation Guide describes how to install and connect the
Adaptec SANbloc S50 SAS JBOD enclosure. This enclosure supports up
to 12 Serial Attached SCSI (SAS) or 12 Serial ATA (SATA) disk drives.
For more information, including supported enclosure configurations,
refer to the Adaptec SANbloc S50 SAS JBOD Enclosure User’s Guide on the
CD.
Kit Contents
• SANbloc S50 SAS JBOD enclosure
•Twopowercables
• Rackmount kit
• CD, including software and product documents
Installation Checklist
1Plan the installation (see “Preparing for Installation” on page 2).
2Optional—Install the enclosure in an equipment rack (see “Installing
Your Enclosure into a Rack” on page 2).
3Install the disk drives (see “Installing the Disk Drives” on page 5).
4Connect the enclosure (see “Connecting the Enclosure” on page 8).
5Power on (see “Powering On” on page 10).
6Register your enclosure (see “Registering Your SANbloc S50
Enclosure” on page 11).

SANbloc S50 SAS JBOD Quick Install Guide 2
Preparing for Installation
1Carefully read Safety Notices on page 14.
2Remove all the components from the packaging, inspect them for
shipping damage, then place them on an antistatic surface until you are
ready to use them.
If you are using new disk drives, allow them to acclimate to room
temperature before installing them.
3If you are installing the enclosure in a rack:
aEnsure that you have these tools available:
• Phillips screwdriver
• Wrench for tightening nuts (if your rack doesn’t have threaded
holes)
bArrange for someone to assist you during installation.
cEnsure ahead of time that you have chosen a suitable location for the
enclosure and the rack.
Installing Your Enclosure into a Rack
If you are not installing your enclosure into a rack, skip to Installing the
Disk Drives on page 4.
1Ensure that you have these rackmount kit components:
• Front rails (1 left, 1 right)
• Rear rails, two different lengths (2 left, 2 right)
• 20 nuts (10 each of two different types)
• 4 small screws and 10 large screws

3 SANbloc S50 SAS JBOD Quick Install Guide

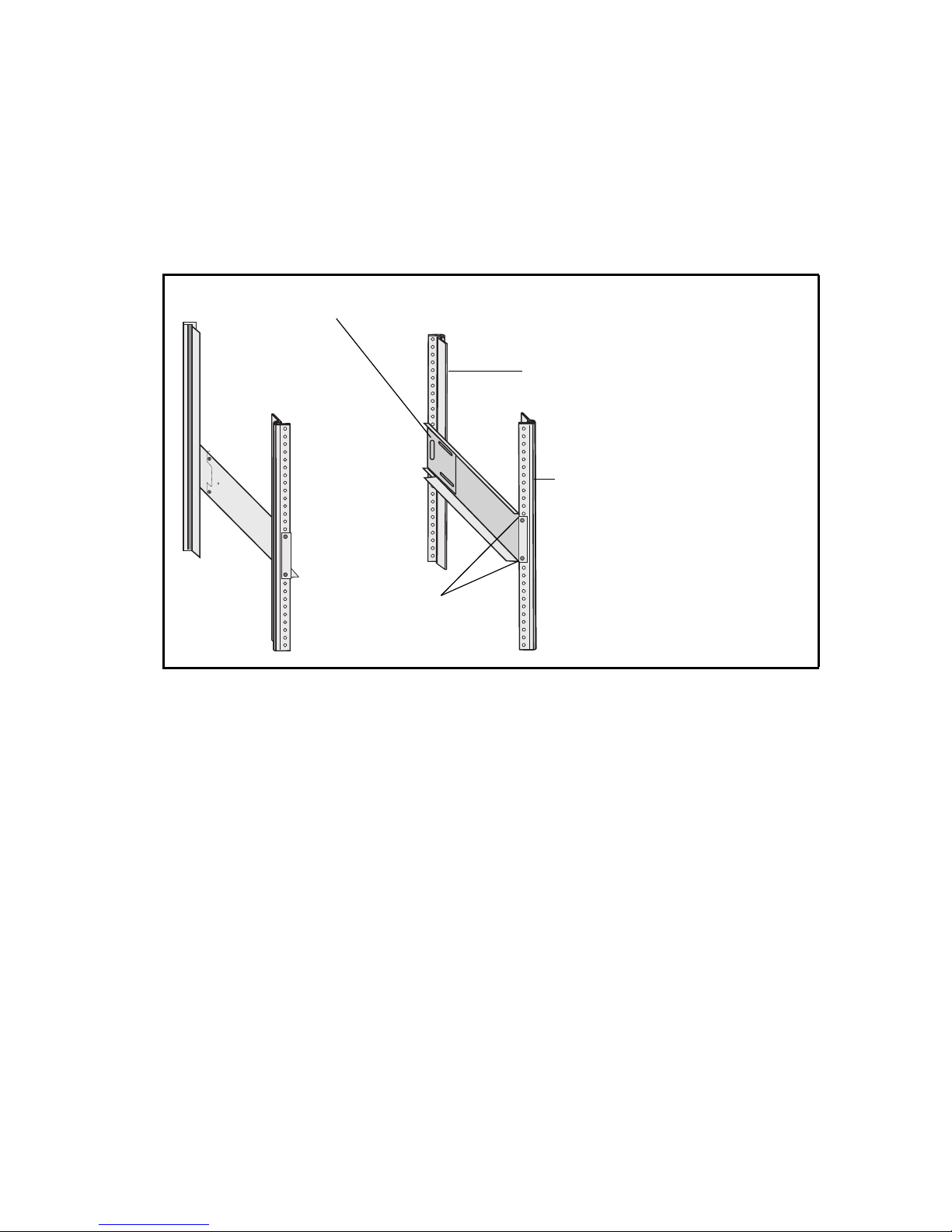

2Secure the front rails to the front supports of the rack, using the screws
or nuts included in the kit. (Use the nuts if your rack does not have
threaded holes.)
)
3Select the right length of rails for your rack, then secure them to the
rear supports of the rack, as shown above. Then secure the front rails to
the rear rails.
Ensure that all the rail connections are tightened and secure.
4Remove the plastic covers from the enclosure’s rackmount ears.
Caution
The enclosure is heavy. To avoid personal injury, have
someone help you lift it.
S
ecure rear ra
il
, us
i
ng ra
il
length suitable for your rack
Rear support
Front
support
Secure front rail

SANbloc S50 SAS JBOD Quick Install Guide 4
5Slide the enclosure onto the rails, then push it all the way back until the
rackmount ears are flush against the front vertical supports and the
enclosure rests completely on the rails.
6Secure both rackmount ears to the front vertical supports.
Rackmount ears
rest against vertical
Secure to the front vertical
supports

5 SANbloc S50 SAS JBOD Quick Install Guide
Installing the Disk Drives
Caution Acclimate new disk drives to room temperature before you
install them.
Before You Begin
If you are combining SAS and SATA disk drives in the same SANbloc S50
enclosure, use the figures below to plan where you will be placing the
disk drives.
These figures represent enclosures fully-loaded with disk drives.
However, the same guidelines apply even if you are filling some of the
drive slots with blank drive carriers.
Recommended Disk Drive Configurations
SAS Disk Drives
SATA Disk Drives

SANbloc S50 SAS JBOD Quick Install Guide 6

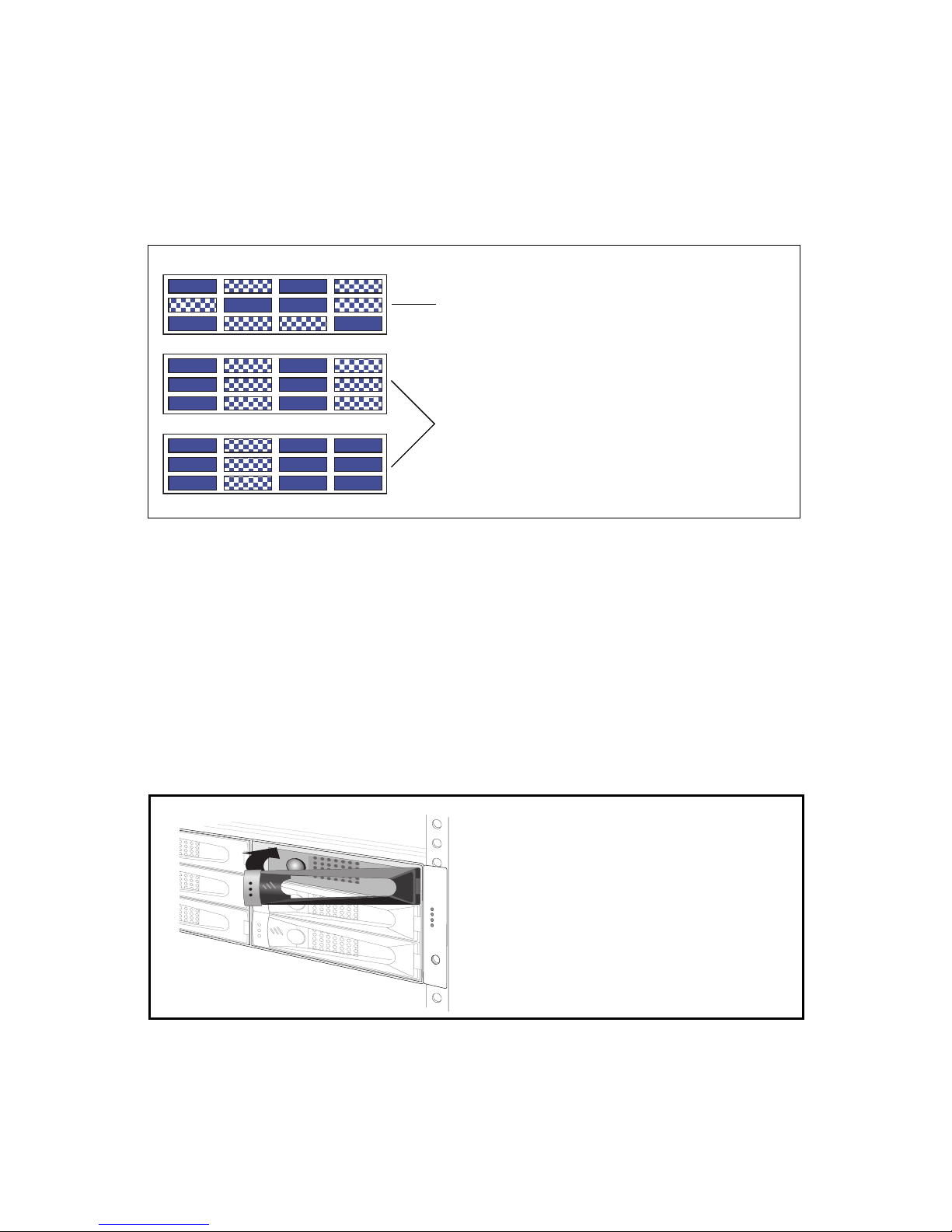

Unsupported Disk Drive Combinations
Installing the Disk Drives
Note Install the disk drives from left to right across the enclosure.
1On the front of the enclosure, select an open drive slot.
2Select the right type of disk drive for this drive slot (see
“Recommended Disk Drive Configurations” on page 5), then hold the
disk drive so that the LEDs are on the left and the lever is fully open.
3Slide the disk drive into the drive slot until the lever starts to close.
Do not include SAS and SATA disk
drives in the same column.
Do not place a column of SATA disk
drives between two columns of SAS
disk drives.

7 SANbloc S50 SAS JBOD Quick Install Guide
4Gently push the lever until it meets the latch on the left side of the
drive slot and clicks into place.
5Repeat for all remaining disk drives.
Note To maintain proper airflow and cooling, a disk drive or a blank
drive carrier must be installed in every slot of the enclosure.

SANbloc S50 SAS JBOD Quick Install Guide 8
Connecting the Enclosure
Follow the instructions appropriate for your configuration.

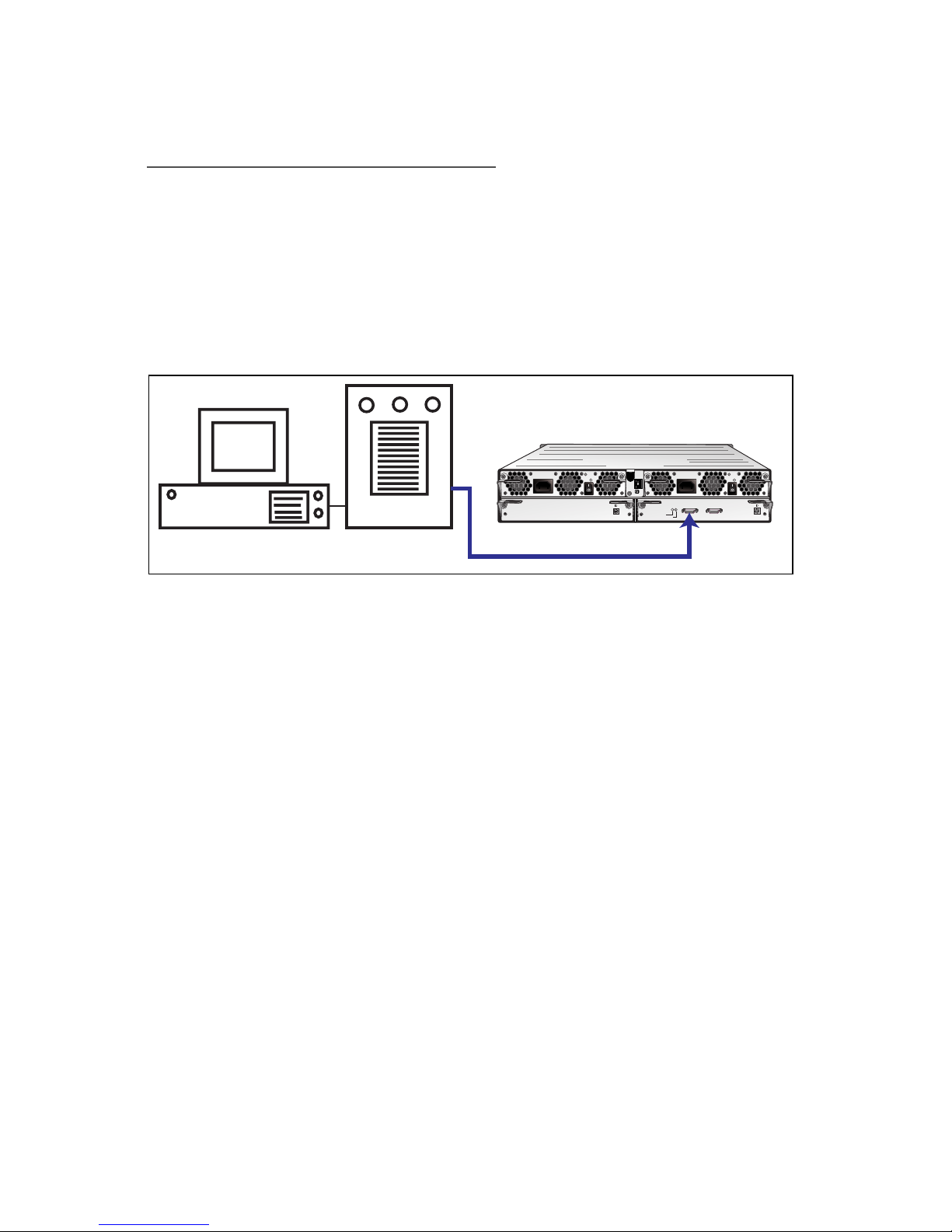

Connecting to the Host System
Use a 4x external SAS cable to connect the HOST port on your SANbloc
S50 enclosure to a SAS port on the host system.
To connect additional S50 enclosures, continue with the section below.
If you are not connecting additional enclosures, continue with “Powering
On” on page 10.
Connecting Additional Enclosures
You can connect up to 9 fully loaded SANbloc S50 enclosures to a single
host system. Refer to the User’s Guide on the CD for more information.
Enclosures installed with SAS disk drives and enclosures installed with
SATA disk drives can be included in the same daisy-chain. You can also
include enclosures installed with a combination of SAS and SATA disk
drives.
HOST EXP
FAULT !
SEP MASTER
SANbloc S50 Enclosure
Host
SAS Cable

9 SANbloc S50 SAS JBOD Quick Install Guide
1Use a 4x external SAS cable to connect the EXP port on the first
enclosure to the HOST port on a second SANbloc S50 enclosure.
2To expand your configuration with multiple SANbloc S50 enclosures,
continue to connect the EXP port of the previous enclosure to the
HOST port of the next enclosure.
3Continue with “Powering On”.
HOST EXP
FAULT !
SEP MASTER
HOST EXP
FAULT !
SEP MASTER
SANbloc S50 Enclosures
Host
SAS Cables
HOST EXP
FAULT !
SEP MASTER
HOST EXP
FAULT !
SEP MASTER
HOST EXP
FAULT !
SEP MASTER
SANbloc S50 Enclosures
Host
SAS Cables

SANbloc S50 SAS JBOD Quick Install Guide

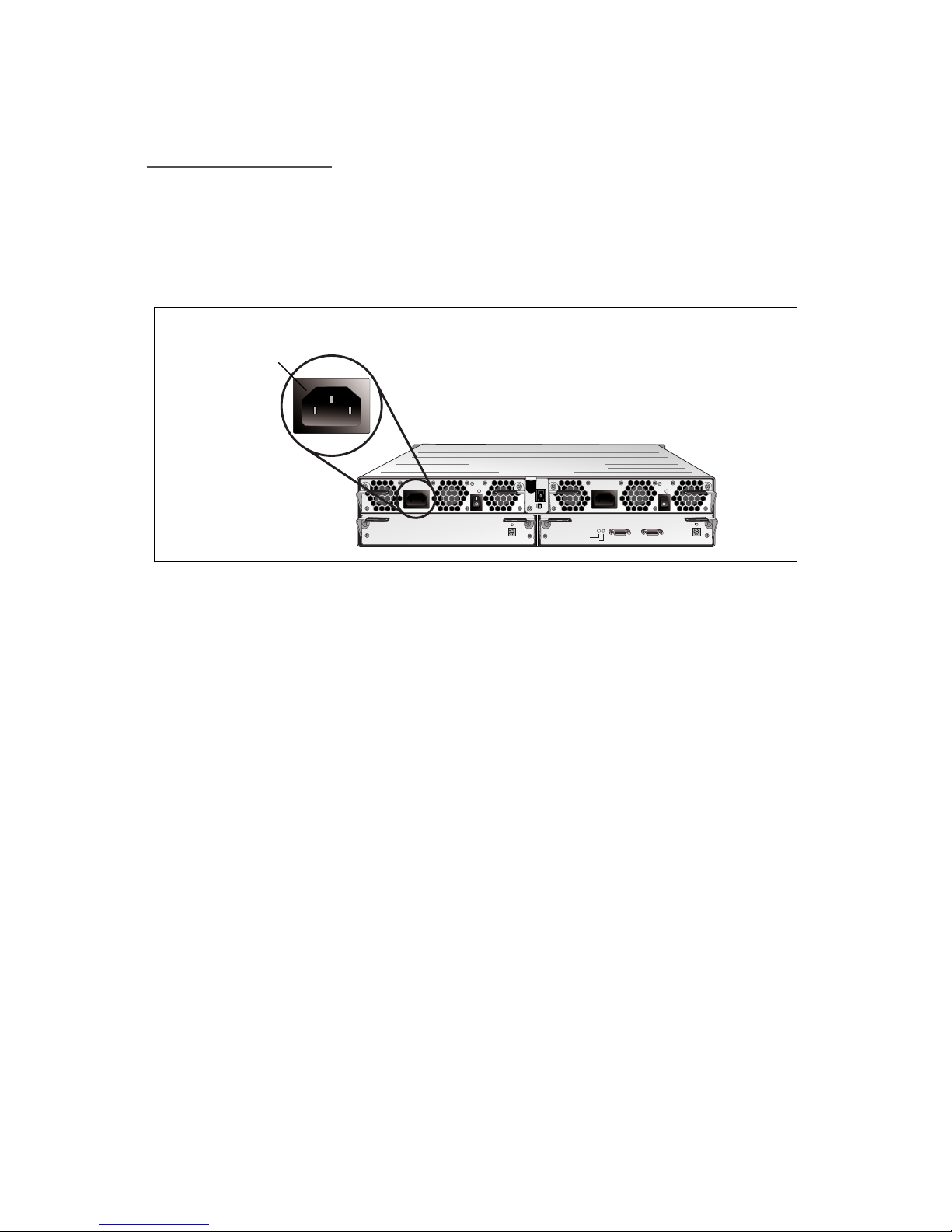

Powering On
1Using the included power cords, connect each Advanced Power and
Cooling (APC) unit to an AC power source. (Adaptec recommends that
you use an uninterruptible power supply to protect your enclosure.)
2Power on each APC unit.
The installation is complete. You can begin using your SANbloc S50
enclosure.
Continue with “Registering Your SANbloc S50 Enclosure”.
HOST EXP
FAULT !
SEP MASTER
APC Unit
Power Port

11 SANbloc S50 SAS JBOD Quick Install Guide
Registering Your SANbloc S50 Enclosure
Register your enclosure at http://register.adaptec.com.
Getting Help
For more information, refer to the User’s Guide on the CD.
For further assistance, visit http://ask.adaptec.com. Have your TSID
number ready. Your TSID number is included on a white, bar-coded
label, like the example below:
Affix your TSID label here for future reference.

SANbloc S50 SAS JBOD Quick Install Guide
Adaptec, Inc. Worldwide Limited Warranty
The Snap Server Storage Solution hardware carries a Limited Warranty
from the date of purchase as follows:
Subject to the conditions below and during the Hardware Warranty
Period, Adaptec will repair or replace Warranted Hardware, at Adaptec’s
election, with a new or refurbished equivalent if a Warranted Hardware
failure occurs due to defects in material and workmanship. The
Warranted Hardware and the applicable Hardware Warranty Period are
as follows:
SANbloc S50 Expansion Array: 3 Years parts and labor
This Limited Warranty is also subject to the following conditions:
• You must be the original end-user purchaser (this Limited Warranty is
non-transferable);
• You must be able to provide proof of purchase showing the date and
place of purchase with your Limited Warranty claim;
• You must contact Adaptec during the Hardware Warranty Period, and
upon request, ship the defective hardware with any additional
requested documentation to Adaptec or other address provided by
Adaptec at your expense;
• The warranty does not cover damage caused by abuse on your part,
such as dropping the Warranted Hardware, using incorrect electrical
current, misuse, accident, failure to follow instructions, negligence,
exposure to magnetic fields, external environmental causes, shock, or
unauthorized maintenance or repair;
• This Limited Warranty does not cover any software used with,
installed on, or accompanying the Warranted Hardware.
EXCEPT AS SET FORTH ABOVE, WITH RESPECT TO THE
WARRANTED HARDWARE AND THE ASSOCIATED SOFTWARE,
ADAPTEC MAKES NO WARRANTIES, EXPRESS, IMPLIED, OR
STATUTORY AND DISCLAIMS ANY IMPLIED WARRANTY OR
CONDITION OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

13 SANbloc S50 SAS JBOD Quick Install Guide
PURPOSE, OR NON-INFRINGEMENT, OR A WARRANTY THAT THE
PRODUCT WILL OPERATE ERROR FREE.
IN NO EVENT SHALL ADAPTEC, INC. BE LIABLE FOR THE COST OF
PROCUREMENT OF SUBSTITUTE HARDWARE, SOFTWARE, OR
SERVICES, LOST PROFITS, LOST DATA, OR ANY SPECIAL,
INDIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES,
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY ARISING
IN ANY WAY OUT OF THIS AGREEMENT OR THE SERVER. THIS
LIMITATION SHALL APPLY EVEN IF ADAPTEC, INC. HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND
NOTWITHSTANDING ANY FAILURE OF ESSENTIAL PURPOSE OF
ANY LIMITED REMEDY PROVIDED HEREIN.
Some jurisdictions do not allow warranty or liability exclusions or
limitations of liability for consequential or incidental damages, so the
above provisions may not apply to you.
This Limited Warranty will be governed in accordance with the laws of
the State of California, without reference to its choice of law rules, and the
United States of America.
New and reconditioned parts may be used to repair the hardware and
replace existing parts; except as provided above, these replacement parts
do not extend the Hardware Warranty Period. Adaptec will own all parts
removed from repaired products for which a replacement was provided.
Prior to any return of your hardware to Adaptec for warranty service,
back up all data and remove any confidential or personal information.
Adaptec, Inc. offers additional service and support, but makes no
guarantees about the availability of extended warranties, support, or
service beyond that set forth in this Limited Warranty. For information on
availability of service and warranty upgrades, please visit:
http://www.snapserver.com/support.

SANbloc S50 SAS JBOD Quick Install Guide
FCC Notification
Authorized Service
Only an authorized service representative can service the Server. Failure
to comply with this requirement will void the warranty.
WARNING to Service Personnel
The SANbloc S50 has been tested and found to comply with the limits for
a Class “A” digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the
interference at their own expense.
Changes or modifications not expressly approved by Adaptec could void
the user’s authority to operate the equipment.
Safety Precautions
Note The maximum current draw is printed on the label on the back of
the storage subsystem.
Caution Before touching any enclosure components, ground yourself and
take antistatic precautions. Adaptec recommends that you use an
antistatic wrist strap and a grounding wire as minimum precautions.
Environmental Conditions — Make sure the conditions of the environment
in which the server resides fall within the specifications for your model.
Installing the Server — During installation, make sure the server is always
placed on a surface capable of supporting its weight.

15 SANbloc S50 SAS JBOD Quick Install Guide
Connecting to the Main Power — Install the server near an easily accessible
power source. Make sure the power source is the proper voltage for your
model. Place the power cord out of the way of traffic; do not place any
object over the power cord. Each storage subsystem must have a good
electrical ground connection through each power cord, through the
building power grid to the point of origin for the building power source
entry.
If the server is taken offline for an extended period, disconnect it from the
power source to avoid possible damage from a power surge.
Enclosure Openings — Openings in the enclosure ensure proper airflow
and prevent overheating; do not cover these openings. Never place
liquids on or near the server to avoid spillage; liquid entering an
enclosure opening could cause fire or electrical shock.
Earthing — When installing the server in any location (including rack
mounting), the installer must validate that the AC input grounding is
adequate and that the AC circuit capacity is sufficient and does not create
a circuit overload situation. Reliable earthing of rack-mounted equipment
should be maintained. Particular attention should be given to supply
connections other than direct connections to the branch circuit (for
example, use of power strips).
Circuit Overloading—Consideration should be given to the connection of
the equipment to the supply circuit and the effect that overloading of
circuits might have on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be
used when addressing the concern.
Cleaning the Server — Before cleaning the server, be sure to disconnect all
cabling. Do not use any liquid or spray cleaning agents to clean the
server; use only a damp sheet or cloth.
Servicing the Server — Never open the Snap Server. For safety reasons,
the server should only be opened by qualified service personnel.
Do not attempt a remedy if one of the following situations arises; contact
Adaptec technical support for assistance:
• The power cord or plug is damaged.

SANbloc S50 SAS JBOD Quick Install Guide
• Liquid has penetrated the server.
• The server has been exposed to moisture.
• The server continues to operate in an unexpected manner even after
solutions suggested in the Administration Guide have been followed.
Installation Cautions and Notes
Caution To prevent personal injury and equipment damage, have
someone assist you during installation. Ensure the mounting hardware
and tools are easily accessible. If necessary, reduce the weight of the
storage subsystem by removing the drive carriers and APC modules.
Note
Remove all of the components from the packaging and place them
on an antistatic surface until you are ready to use them. If you are using
new disk drives, allow them to acclimate to room temperature before you
install them in the enclosure and power on the system. Before beginning
the installation, inspect the components for shipping damage
.
Note Ensure that your equipment rack is placed in a dust-free, well
ventilated area close to a UPS. Leave enough room behind the rack for
servicing and to allow for sufficient airflow.
Note For equipment racks with single or multiple storage subsystems
installed, the TMRA (manufacturers maximum recommended ambient
temperature) is 40 °C.
Note Elevated Operating Ambient Temperature—When installed in a
closed or multi-unit rack assembly, the operating ambient temperature of
the rack environment may be greater than the room ambient. Therefore,
consideration should be given to installing the equipment in an
environment compatible with the manufacturer's maximum
recommended ambient (TMRA).
Note Mechanical Loading—Prevent instability by installing heavier
items into the bottom of the equipment rack. Mounting of the equipment
in a rack should be such that a hazardous condition is not achieved due to
uneven mechanical loading.

691 Milpitas Blvd.
Milpitas, CA 95035 USA
408-957-2550
www.snapserver.com
©2007 Adaptec, Inc.
All rights reserved. SnapServer, Adaptec and the SnapServer
logo are trademarks of Adaptec, Inc. which may beregistered
in some jurisdictions.
Part Number: 70990916-001 Rev A
