Adaptec 335SAS User manual

ADAPTEC STORAGE ENCLOSURE
335SAS
QUICK INSTALLATION GUIDE

●2
Copyright
©2005 Adaptec, Inc. All rights reserved. No part of this publication may be
reproduced, stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or otherwise, without the
prior written consent of Adaptec, Inc., 691 South Milpitas Blvd., Milpitas, CA
95035.
Trademarks
Adaptec and the Adaptec logo are trademarks of Adaptec, Inc., which may be
registered in some jurisdictions.
Microsoft and Windows are trademarks of Microsoft Corporation in the US and
other countries, used under license.
All other trademarks are the property of their respective owners.
Changes
The material in this document is for information only and is subject to change
without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, Adaptec, Inc. assumes no liability resulting from
errors or omissions in this document, or from the use of the information
contained herein.
Adaptec reserves the right to make changes in the product design without
reservation and without notification to its users.
Disclaimer
IF THIS PRODUCT DIRECTS YOU TO COPY MATERIALS, YOU MUST HAVE
PERMISSION FROM THE COPYRIGHT OWNER OF THE MATERIALS TO
AVOID VIOLATING THE LAW WHICH COULD RESULT IN DAMAGES OR
OTHER REMEDIES.

●3
Adaptec Customer Support
If you have questions about installing or using your Adaptec product, check this
document first—you will find answers to most of your questions. If you need
further assistance, use the support options listed below. To expedite your service,
have your computer in front of you.
Technical Support Identification (TSID) Number
●Before contacting Technical Support, you need your unique 12-digit TSID
number. The TSID number identifies your product and support status.
●The TSID number is included on a white, bar-coded label, like this example:
North America
●Visit our Web site at www.adaptec.com.
●Search the Adaptec Support Knowledgebase (ASK) at ask.adaptec.com for
articles, troubleshooting tips, and frequently asked questions for your product.
●For information about Adaptec’s support options, call [phone],
24 hours per day, 7 days per week. To speak with a Technical Support
Specialist,
●For Hardware products call [phone],
Monday to Friday, 3:00 A.M. to 5:00 P.M., Pacific Time.
●For RAID and Fibre Channel products call [phone],
Monday to Friday, 3:00 A.M. to 5:00 P.M., Pacific Time.
●For support via e-mail, submit your question at ask.adaptec.com.
● You can order Adaptec products, including accessories and cables, by calling
[phone].
Or, you can order cables online at www.adaptec.com/buy-cables.
Europe
●Visit our Web site at www.adaptec-europe.com.
●German: Call [phone], Monday to Friday, 9:00 to 17:00, CET. For
support via e-mail, submit your question at ask-de.adaptec.com.
●French: Call [phone], Monday to Friday, 9:00 to 17:00, CET. For
support via e-mail, submit your question at ask-fr.adaptec.com.
●English: Call [phone], Monday to Friday, 9:00 to 17:00, GMT. For
support via e-mail, submit your question at ask.adaptec.com.
●You can order Adaptec cables online at www.adaptec.com/buy-cables .
Japan
●Visit our Web site at www.adaptec.co.jp.
●Call [phone], Monday–Friday, 9:00 A.M. to 12:00 P.Mand 1:00 P.M. to
6:00 P.M.

●4
Limited 3-Year Hardware Warranty
1. Adaptec, Inc. (“Adaptec”) warrants to the purchaser of this product that it will be
free from defects in material and workmanship for a period of three (3) years from
the date of purchase. If the product should become defective within the warranty
period, Adaptec, at its option, will repair or replace the product, or refund the
purchaser’s purchase price for the product, provided it is delivered at the
purchaser’s expense to an authorized Adaptec service facility or to Adaptec.
2. Repair or replacement parts or products will be furnished on an exchange basis and
will either be new or reconditioned. All replaced parts or products shall become the
property of Adaptec. This warranty shall not apply if the product has been damaged
by accident, misuse, abuse or as a result of unauthorized service or parts.
3. Warranty service is available to the purchaser by delivering the product during
the warranty period to an authorized Adaptec service facility or to Adaptec and
providing proof of purchase price and date. The purchaser shall bear all
shipping, packing and insurance costs and all other costs, excluding labor and
parts, necessary to effectuate repair, replacement or refund under this warranty
.
4. For more information on how to obtain warranty service, write or telephone
Adaptec at 691 South Milpitas Boulevard, Milpitas, CA 95035, [phone].
5. THIS LIMITED WARRANTY DOES NOT EXTEND TO ANY PRODUCT
WHICH HAS BEEN DAMAGED AS A RESULT OF ACCIDENT, MISUSE,
ABUSE, OR AS A RESULT OF UNAUTHORIZED SERVICE OR PARTS.
6.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES
WHICH NOW OR HEREAFTER MIGHT OTHERWISE ARISE RESPECT TO
THIS PRODUCT. IMPLIED WARRANTIES, INCLUDING THOSE OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-
INFRINGEMENT SHALL (A) HAVE NO GREATER DURATION THAN 3
YEARS FROM THE DATE OF PURCHASE, (B) TERMINATE
AUTOMATICALLY AT THE EXPIRATION OF SUCH PERIOD AND (C) TO
THE EXTENT PERMITTED BY LAW BE EXCLUDED. IN THE EVENT THIS
PRODUCT BECOMES DEFECTIVE DURING THE WARRANTY PERIOD,
THE PURCHASER’S EXCLUSIVE REMEDY SHALL BE REPAIR,
REPLACEMENT OR REFUND AS PROVIDED ABOVE. INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION LOSS
OF DATA, ARISING FROM BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY ARE NOT THE RESPONSIBILITY OF ADAPTEC AND, TO THE
EXTENT PERMITTED BY LAW, ARE HEREBY EXCLUDED BOTH FOR
PROPERTY DAMAGE, AND TO THE EXTENT NOT UNCONSCIONABLE,
FOR PERSONAL INJURY DAMAGE
.
7. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER
PRODUCTS, AND SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATION OR EXCLUSIONS MAY NOT APPLY TO YOU.
8. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.

●5
Regulatory Compliance Statements
Federal Communications Commission Radio Frequency Interference Statement
WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy, and if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. However, if this
equipment does cause interference to radio or television equipment reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
■Reorient or relocate the receiving antenna.
■Increase the separation between equipment and receiver.
■Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
■Consult the dealer or an experienced radio/television technician for help.
■Use a shielded and properly grounded I/O cable and power cable to ensure compliance of
this unit to the specified limits of the rules.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
European Union Compliance Statement
This Information Technology Equipment has been tested and found to comply with
EMC Directive 89/336/EEC, as amended by 92/31/EEC and 93/68/EEC, in
accordance with:
●EN55022 (1998) Emissions
●EN55024 (1998) Immunity:
– EN61000-4-2 (1998) Electrostatic discharge: ±4 kV contact, ±8 kV air
– EN61000-4-3 (1998) Radiated immunity
– EN61000-4-4 (1995) Electrical fast transients/burst: ±1 kV AC, ±0.5
kV I/O
– EN61000-4-5 (1995) Surges ±1 kV differential mode, ±2 kV common
mode
– EN61000-4-6 (1996) Conducted immunity: 3 V
– EN61000-4-11 (1994) Supply dips and variation: 30% and 100%
In addition, all equipment requiring U.L. listing has been found to comply with EMC Directive
73/23/EEC as amended by 93/68/EEC in accordance with EN60950 with amendments A1, A2,
A3, A4, A11.
Adaptec, Inc.
Tested to Comply
With FCC Standards
FOR HOME OR OFFICE USE
Adaptec 335SAS

●6
Australian/New Zealand Compliance Statement
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to the Australian/New Zealand standard AS/NZS 3548 set out by
the Spectrum Management Agency.
Canadian Compliance Statement
This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur
le matériel brouilleur du Canada.
Japanese Compliance (Voluntary Control Council Initiative)
This equipment complies to class B Information Technology equipment based on
VCCI (Voluntary Control Council for Interface). This equipment is designed for home
use but it may causes radio frequency interference problem if used too near to a
television or radio. Please handle it correctly per this documentation.

Adaptec Storage Enclosure
335SAS
In This Guide
About This Guide.................................................................................8
Kit Contents .........................................................................................8
Enclosure Features ...............................................................................9
Supported Disk Drives.........................................................................9
Installation Checklist .........................................................................10
Before You Begin................................................................................10

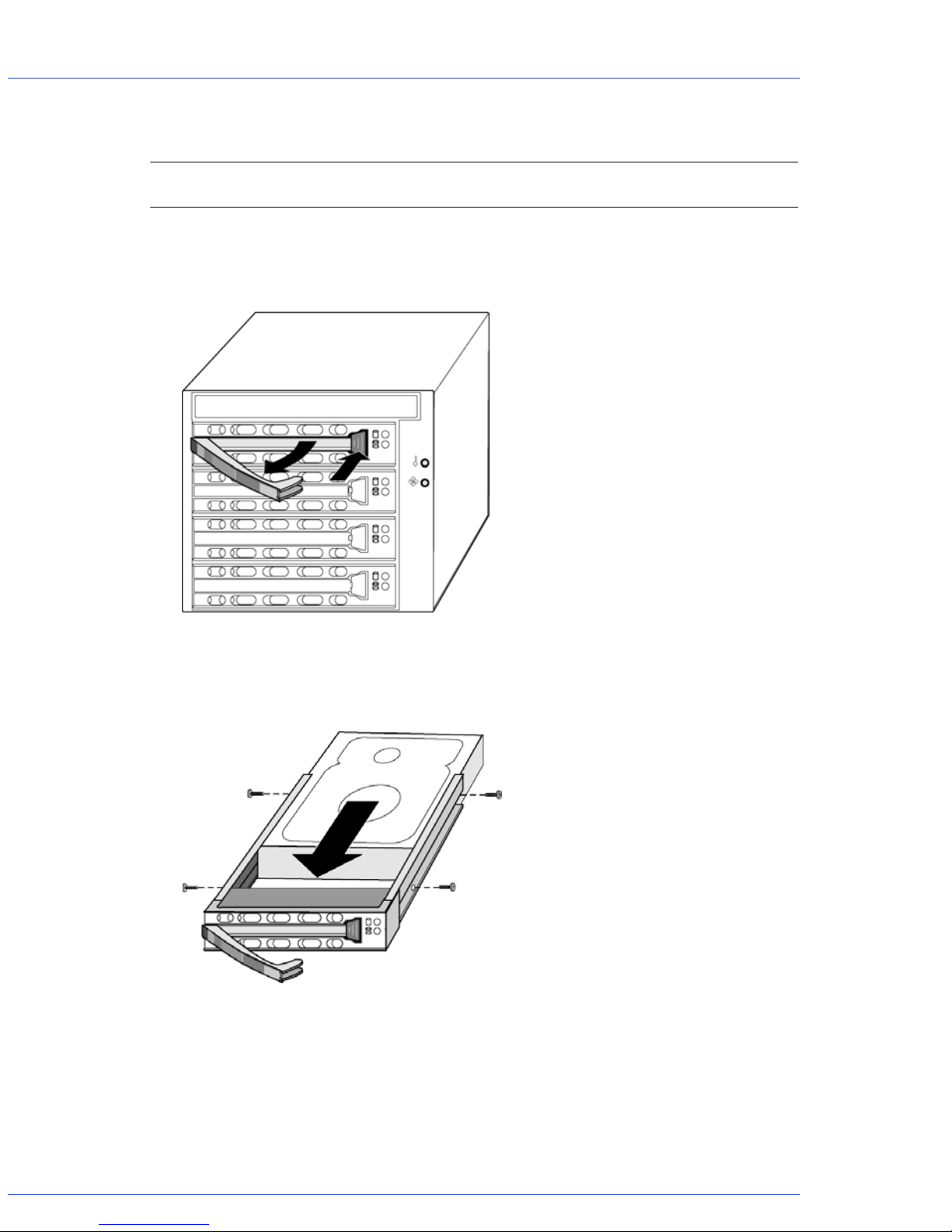

Installing Disk Drives ........................................................................11

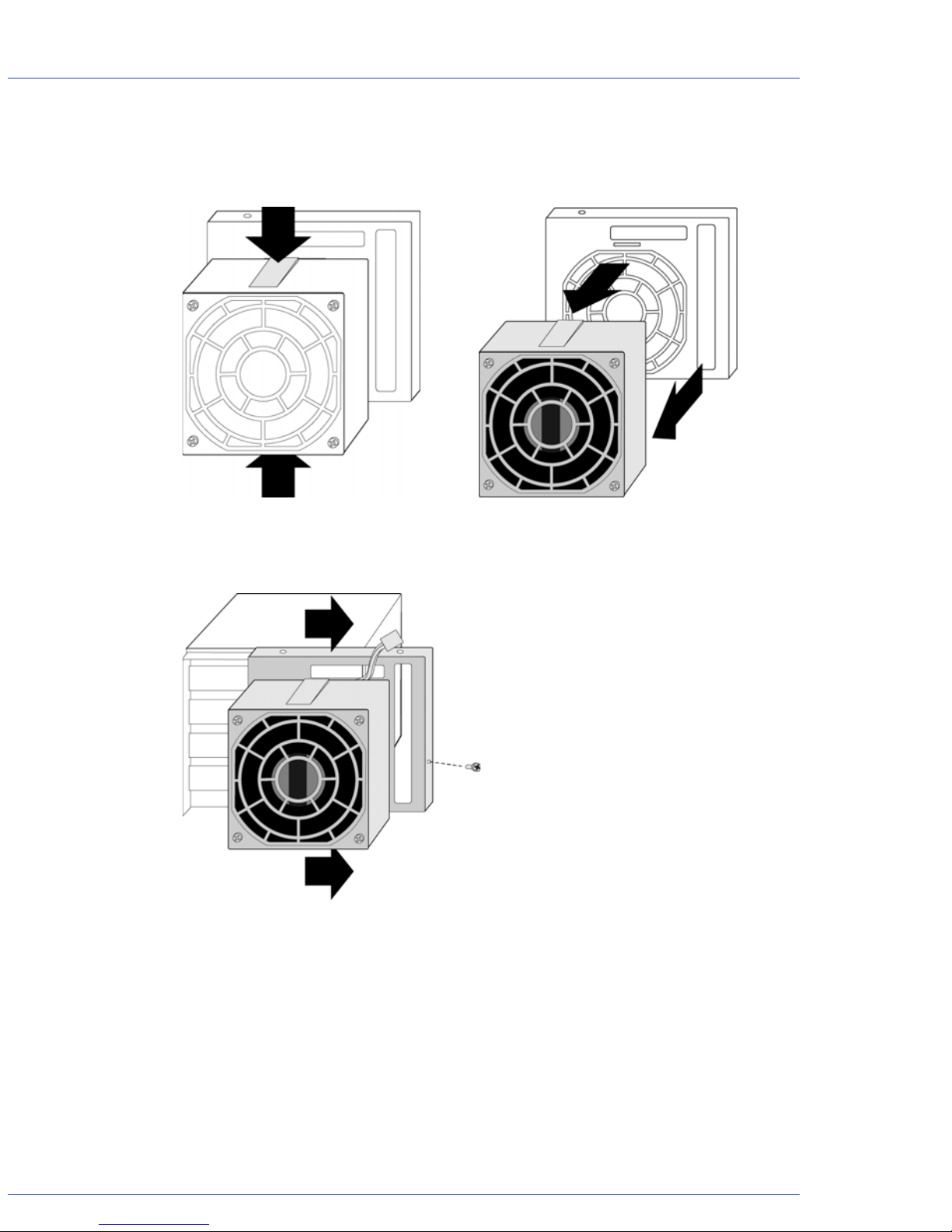

Removing the Fan (Optional)...........................................................12

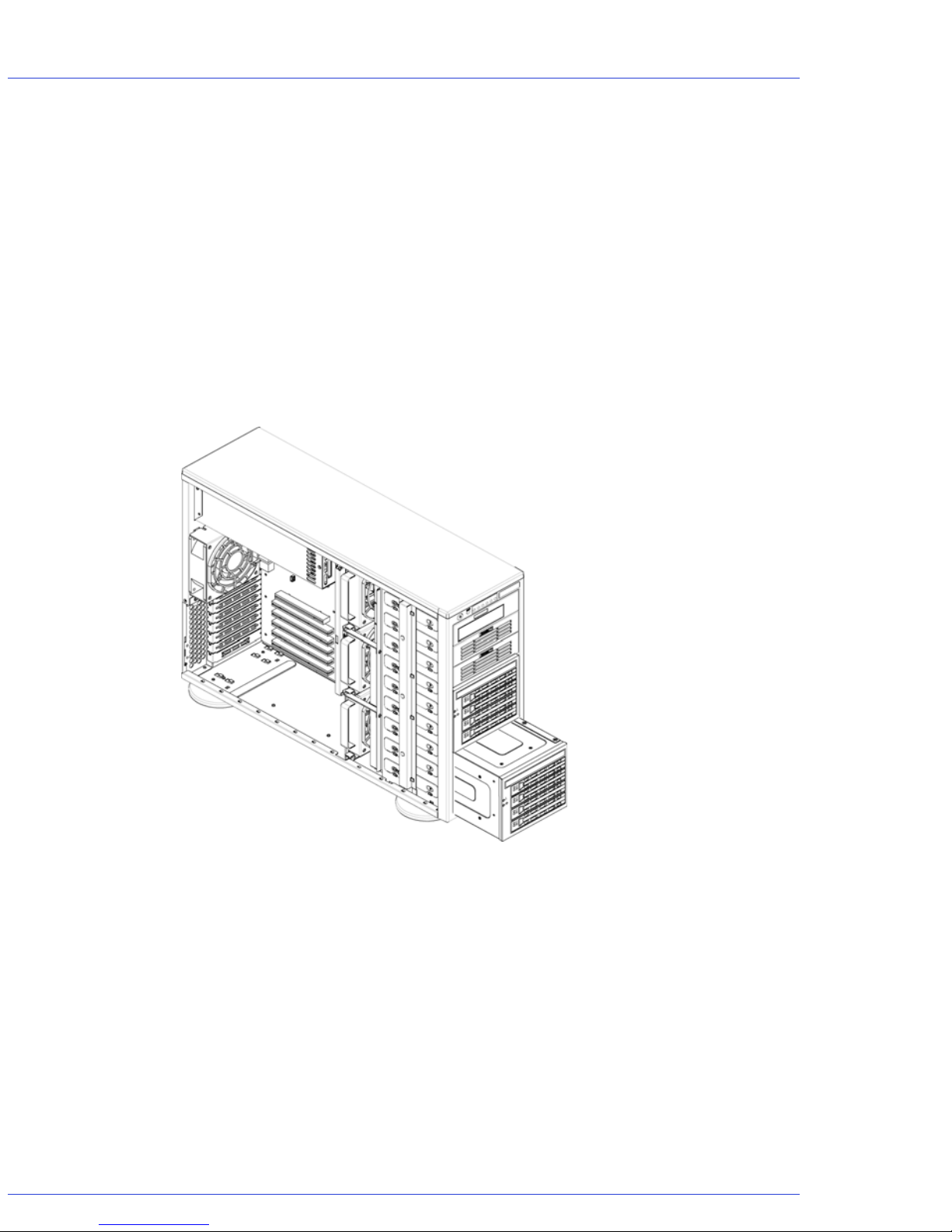

Installing the Enclosure .....................................................................14

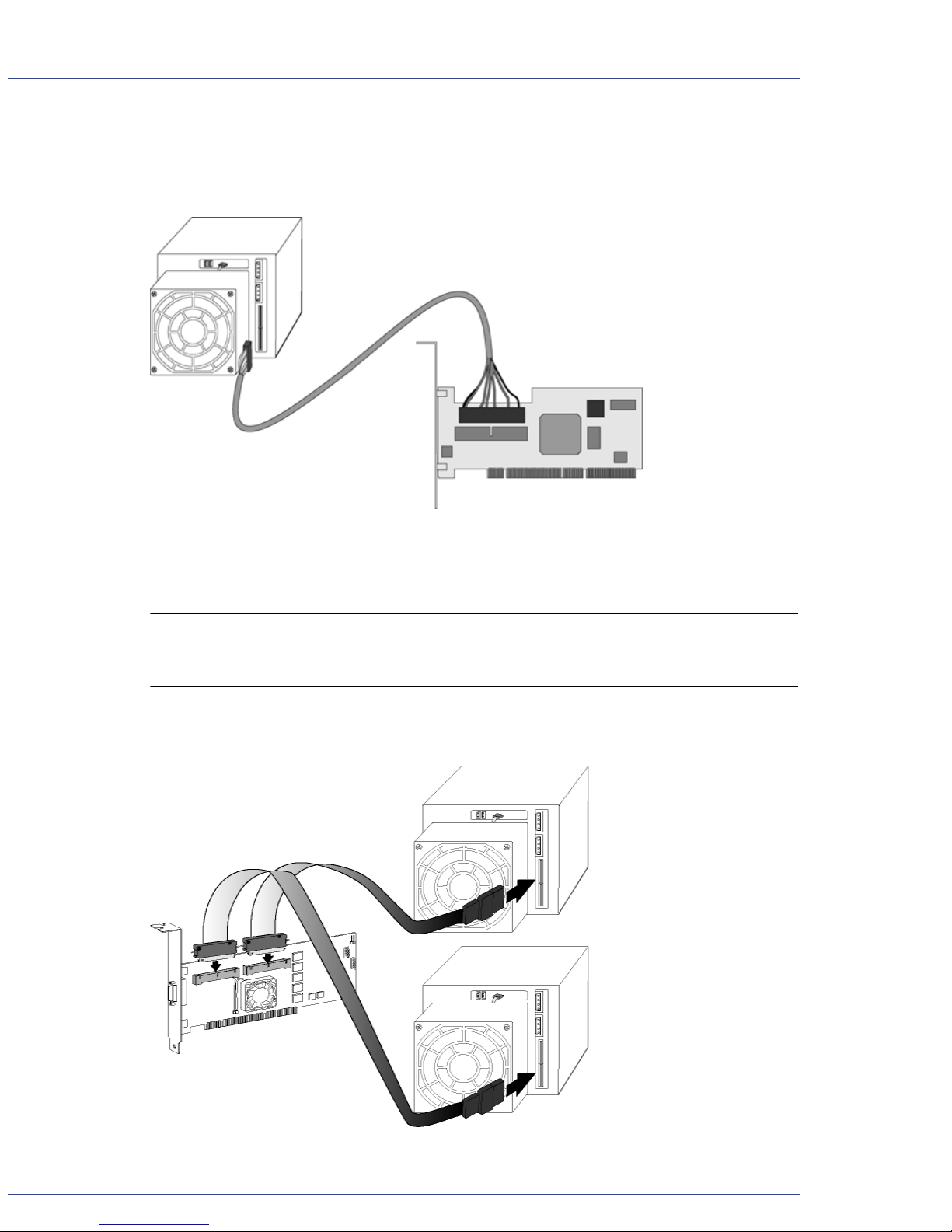

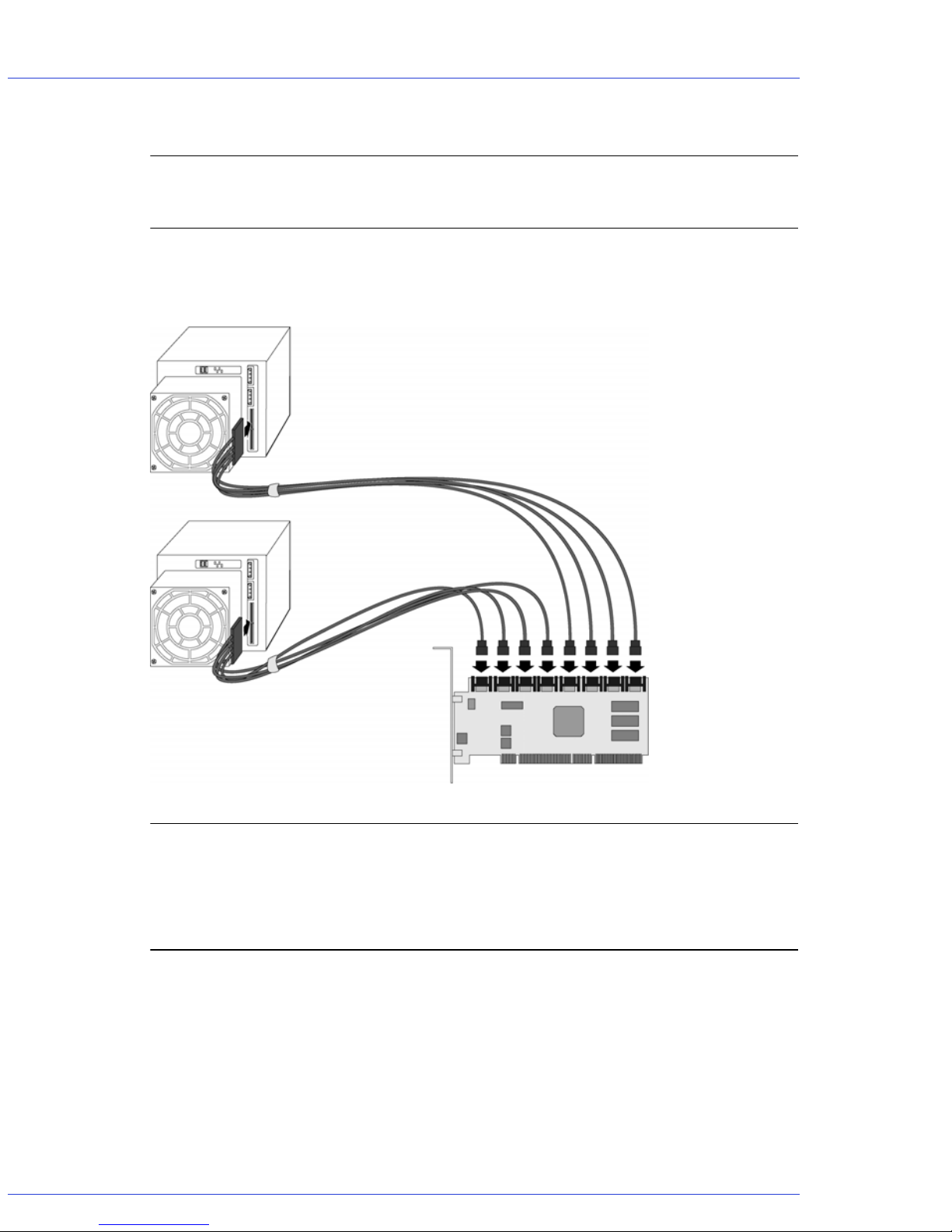

Connecting to a Controller ...............................................................15
Completing the Connections ............................................................18

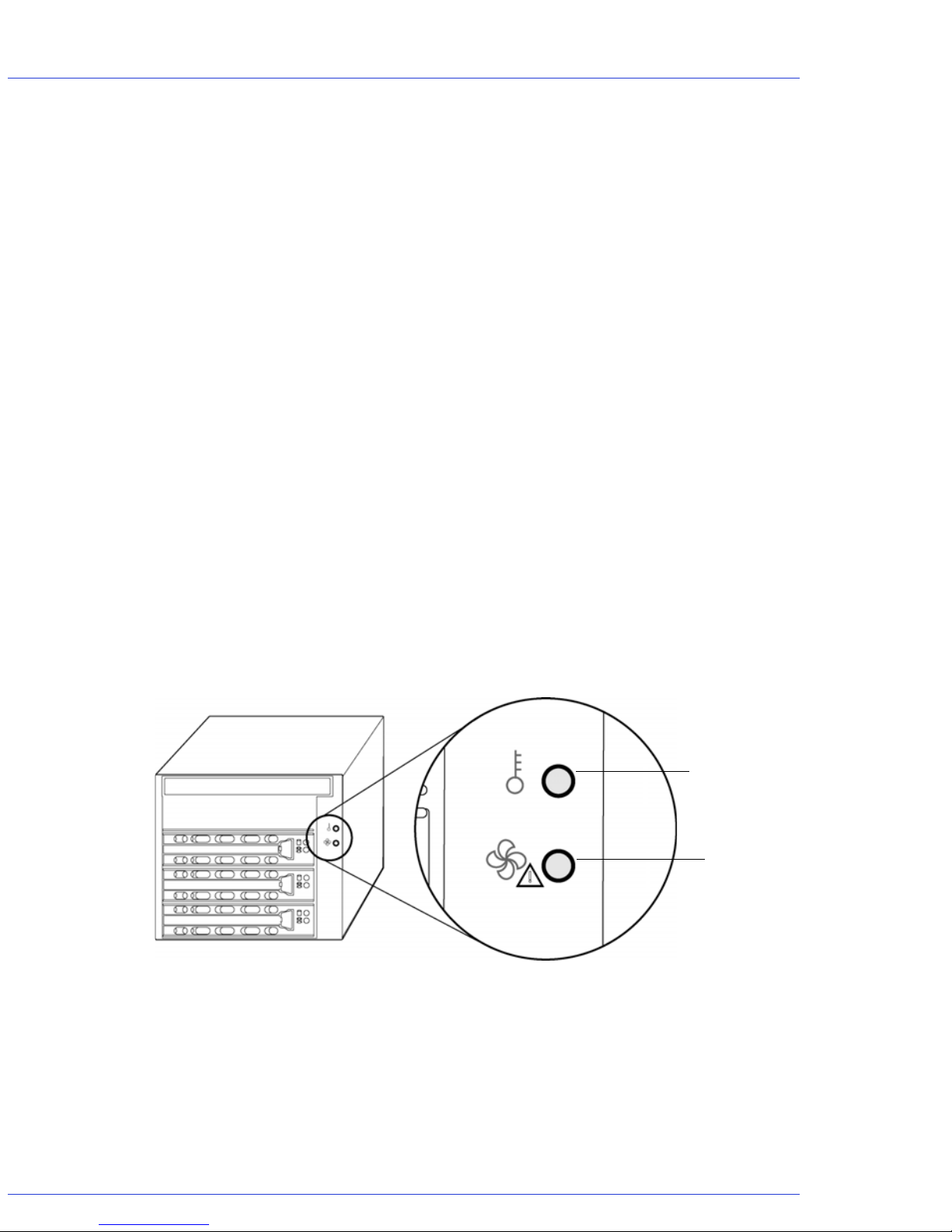

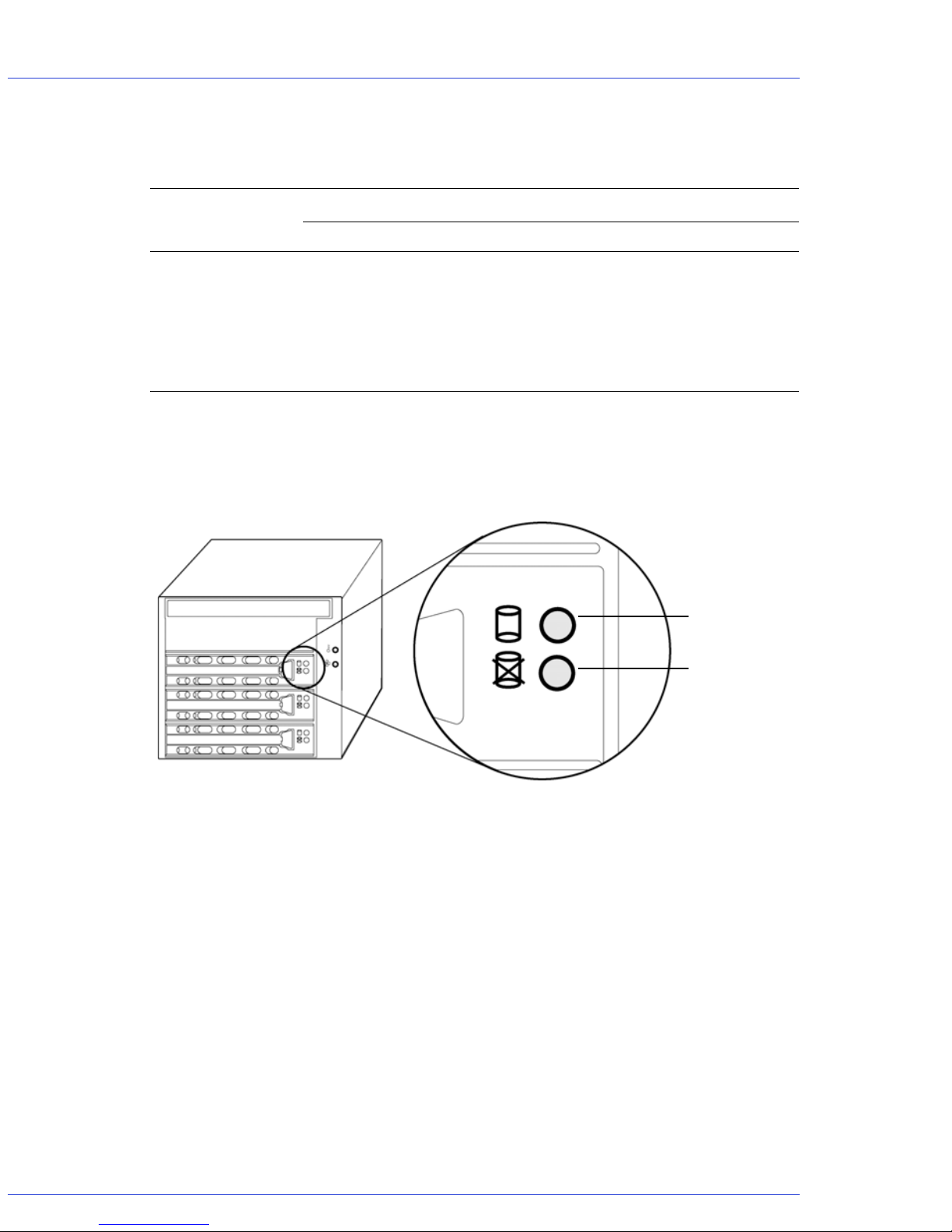

Monitoring the Enclosure .................................................................18
Solving Problems ...............................................................................20
Technical Specifications.....................................................................22
Environmental Specifications ...........................................................22

Adaptec Storage Enclosure 335SAS ●8
About This Guide
This Quick Install Guide provides installation instructions for the
Adaptec Storage Enclosure 335SAS (Adaptec 335SAS). It also describes
how to monitor enclosure status and maintain the enclosure’s
components.
The Adaptec 335SAS has been extensively tested with Adaptec’s line of
Serial Attached SCSI and SATA II RAID controllers and HBAs.
This Guide assumes that you have installed (or are simultaneously
installing) one or more controllers or HBAs and are familiar with
computer hardware and SATA and SAS terminology and technology.
Kit Contents
●Adaptec Storage Enclosure 335SAS
●Light-Emitting Diode (LED) cable
●Inter-Integrated Circuit (I2C) cable
●SATA (4) x1 to SAS x4 (SFF-8484) Internal Fan-Out Cable (SATA
controller to SAS enclosure)
●SAS x4 (SFF-8484) to SAS x4 (SFF-8484) Internal Cable (SAS
controller to SAS enclosure)
●CD bracket
●Bag of screws
●Quick Install Guide

Adaptec Storage Enclosure 335SAS ●9
Enclosure Features
The Adaptec 335SAS enclosure supports SAS and SATA II disk drives.
See page 9 for information on supported disk drives.
Other enclosure features are shown in the following figures:
Supported Disk Drives
When connected to a SAS controller or adapter, the enclosure supports
up to four 3.5 inch SAS and/or SATA disk drives. SAS and SATA disk
drives can be combined within the same enclosure.
When connected to a SATA controller, the enclosure supports SATA
disk drives only.
J43 - Backplane I/O
J35 - Backplane Controller Reset
J18 - Buzzer Reset
J42 - Fan

Adaptec Storage Enclosure 335SAS ●10
Installation Checklist
To install the Adaptec 335SAS enclosure, complete these tasks:
❏Work through the steps in Before You Begin (see page 10).
❏Install disk drives into the enclosure (see page 11).
❏Optional: Remove the fan (see page 12).
❏Install the enclosure into your computer (see page 14).
❏Connect the enclosure to a controller (see page 15).
❏Connect the power cables and the LED or I2C cable (see page 18).
Before You Begin
Before you begin, complete these preinstallation tasks:
1Install a SAS or SATA controller and device drivers into your
computer. For instructions, refer to the controller’s documentation.
2Remove all components from the packaging and inspect them. Place
on an antistatic surface until you are ready to use them.
3If you are using new disk drives, follow the manufacturer’s
installation instructions.
4Take appropriate safety precautions to protect yourself and your
equipment.
Caution: Before touching any of the enclosure components,
ground yourself and take ESD precautions. Use an antistatic
wrist strap and a grounding wire as a minimum precaution.
You will need a Phillips screwdriver to complete the installation.
!

Adaptec Storage Enclosure 335SAS ●11
Installing Disk Drives
Note: To hot-swap a disk drive, see page 21.
1Press the lever button on the drive carrier, then pull open the lever to
release the drive carrier from the enclosure.
2Place a SAS or SATA disk drive into the driver carrier, then secure it
in place with two screws on each side.

Adaptec Storage Enclosure 335SAS ●12
3Hold the drive carrier so that the LEDs are on the right and the lever
is fully open. Slide it into the drive slot until you can hook the lever
into place and click it closed.
4Repeat for all disk drives.
5To remove the fan before installation, see page 12. Otherwise,
continue with Installing the Enclosure on page 14.
Removing the Fan (Optional)
You can remove the enclosure’s cooling fan before installation if space
inside your server is limited and if your computer will provide sufficient
cooling without it.
Note: If you don’t disable the fan function before removing it, a loud
alarm will sound when the enclosure is turned on. To disable the alarm,
see Step 2 on page 13.
To r e m ove t h e f a n :
1Turn the enclosure so that the back is facing you. Gently press the
tabs on the sides of the fan and pull to remove it from the enclosure
(see figure on page 13).

Adaptec Storage Enclosure 335SAS ●13
2Place a jumper on J42 to disable the fan function. (See the figure on
page 9 for jumper location.)
You may want to remove and replace the back cover to gain access to
the jumper(s) or other components.
3Continue with Installing the Enclosure on page 14.

Adaptec Storage Enclosure 335SAS ●14
Installing the Enclosure
1Turn off your server and disconnect the power cord.
2Open the cabinet, following the manufacturer’s instructions.
3Discharge any static electricity build-up by touching a grounded
metal object, such as the exposed metal parts on the back of your
computer.
4Install the enclosure, using the screws provided in the kit. (Your
server cabinet may not look exactly the same as the one shown in the
figure below.)
5Continue with Connecting to a Controller on page 15.

Adaptec Storage Enclosure 335SAS ●15
Connecting to a Controller
To connect the Adaptec 335SAS enclosure, follow the instructions for
your Adaptec SAS or SATA controller.
Connecting One Enclosure to a SATA Controller
Using an internal SATA fan-out cable, connect the enclosure to the
SATA ports on the controller. It’s important to attach the correct
connector to each port. When connecting to the backplane, port 0 starts
at the bottom of the connector.
Continue with Completing the Connections on page 18.
3
2
1
0
0
1
2
AAR-1420SA
3
Notch at bottom
of connector
SATA
Ports

Adaptec Storage Enclosure 335SAS ●16
Connecting Two Enclosures to a SATA Controller
Note: This procedure is for SATA controllers that support more than 4
disk drives.
Using 2-internal SATA fan-out cables, connect each enclosure to the
SATA ports on the controller.
Note: If you are connecting two enclosures to your controller, ensure
that you select a different I2C address for each enclosure. This can be
done by populating the 3-pin jumper J43 differently for both
enclosures. (See jumper location on page 9.)
Continue with Completing the Connections on page 18.
3
2
1
04567
AAR-2820SA

Adaptec Storage Enclosure 335SAS ●17
Connecting One Enclosure to a SAS Controller
Using an internal SAS cable, connect the enclosure to a SAS port on the
controller.
Continue with Completing the Connections on page 18.
Connecting Two Enclosures to a SAS Controller
Note: This procedure is for SAS controllers that support more than 4
disk drives.
Using two internal SAS cables, connect each enclosure to a SAS port on
the controller.
Continue with Completing the Connections on page 18.

Adaptec Storage Enclosure 335SAS ●18
Completing the Connections
1Connect two internal power cables to the power connectors on the
enclosure.
2SATA controllers—Connect both the LED cable and the I2C cable to
the controller and enclosure. When connecting more than one
Adaptec 335SAS enclosure, the two I2C cables must be daisy chained
from one enclosure to the other.
For help locating connectors on the enclosure, see the figure on page 9.
For more information and to help locate connectors on your controller,
refer to the controller’s documentation.
Monitoring the Enclosure
This describes how the enclosure’s LEDs help you monitor enclosure
and drive status. It also explains how to silence the alarm when it
sounds.
Monitoring Enclosure Status
The Adaptec 335SAS enclosure has two LEDs.
Temperature
LED
Fan
LED

Adaptec Storage Enclosure 335SAS ●19
These LEDs are located on the front of the enclosure (see the figure on
page 9) and indicate enclosure status as described in the following table.
Monitoring Drive Status
Each disk drive in the Adaptec 335SAS enclosure has two LEDs.
Condition
LED Off On
Temperature Normal
operation Temperature exceeds 55 oC
(measured on the backplane)
Fan Normal
operation
Fan Failure - defect or the fan power
is not connected while
J42 is set.
Power/
Activity LED
Failure LED

Adaptec Storage Enclosure 335SAS ●20
These LEDs are located on the right-hand side of the disk drives (see the
figure on page 9) and indicate drive status as described in the following
table.
Failed disk drives can be hot-swapped. See page 21 for instructions.
Solving Problems
If you have trouble installing or using your Adaptec 335SAS enclosure,
work through this list of suggestions:
●Ensure that all internal cables are fully and properly connected.
●Ensure that the enclosure is properly installed in the server cabinet.
Refer to the server manufacturer’s instructions.
●Ensure that the disk drives are properly installed. See page 11 for
instructions.
●Try replacing the cables.
●Try replacing one or more disk drives. See Silencing the Alarm on
page 21 for instructions.
Condition
LED Off On Blinking
Power/
Activity
Disk drive
not ready*
Disk drive is
ready (Green)
Rapid - Activity on disk
drive
Slow - Rebuild on disk
drive
Failure Disk drive
operating
normally
Disk failure
(Red)
Slow - Disk drive failure
predicted
Rapid - Disk drive
identification (GUI)
*For SATA disk drives the LED Off status could also mean that the LED cable and/or
the I2C cable is missing, or there is no controller running which controls the LED
Power/Activity.
