Adkins Professional lighting COLOR BAR HEX User manual

☞DMX MODE
Channel Function Instruction
8CH MODE
CH1 Total Dimmer
R
、
G
、
B
、
W Total Dimmer-Linear Dimmer. Dark to
Bright
CH2 Total Strobe
R
、G、B 、W Total Flash Strobe. Slow to Fast
CH3 Function Choice
0~50: DMX 8CH Control.
51
~100: 7Colors Jump Change.
10
1~150: 7Colors Gradate.
151~200: 7Colors Pulse Change. 201—255 NC.
CH4 Function/Speed
Function/Speed. Slow to Fast
CH5 R Dimmer
R Dimmer
-Linear Dimmer. Dark to Bright
CH6
G Dimmer
G Dimmer-Linear Dimmer. Dark to Bright
CH7 B Dimmer
B Dimmer
-Linear Dimmer. Dark to Bright
CH8 W Dimmer
W
Dimmer-Linear Dimmer. Dark to Bright
4CH MODE
CH1 R Dimmer
R Dimmer
-Linear Dimmer. Dark to Bright
CH2 G Dimmer
G Dimmer
-Linear Dimmer. Dark to Bright
CH3 B Dimmer
B Dimmer
-Linear Dimmer. Dark to Bright
CH4 W Dimmer
W
Dimmer-Linear Dimmer. Dark to Bright
Technical:
Voltage: AC90-220V 50/60HZ
Power : 180W
Light Source: 18pcs*10w RGBW LED
Operation: DMX512, Auto, Sound, Master-slave
☞INSTRUCTION

Thank you for using our company’s products. For your own safety, please read this user
manual carefully before installing the device. This manual covers the important information of
installing and using. Please install and operate following the manual.
☞CAUTION
Please read this instruction carefully before installation:
1. Inspect the device carefully before installation.
2. Do not get wet. Indoor use only.
3. To guarantee the lifespan of product, please keep in dry and cool.
4. Disconnect the power before installation or removing.
☞MAINTAIN
1. The lamps should be kept dry to avoid working in wet environments
2. Intermittent use would effectively extend the lamp life.
3. Do not use alcohol and other organic solvents to clean the housing, so as to avoid injury.
☞SPECIFICATION
Voltage: AC100~240V/50~60Hz
Light-Source: 10W RGBW LED-18pcs
Channels: 4CH/8CH DMX
Power Consumption: 180W
Control Mode: Master-Slave. Auto Running. DMX512

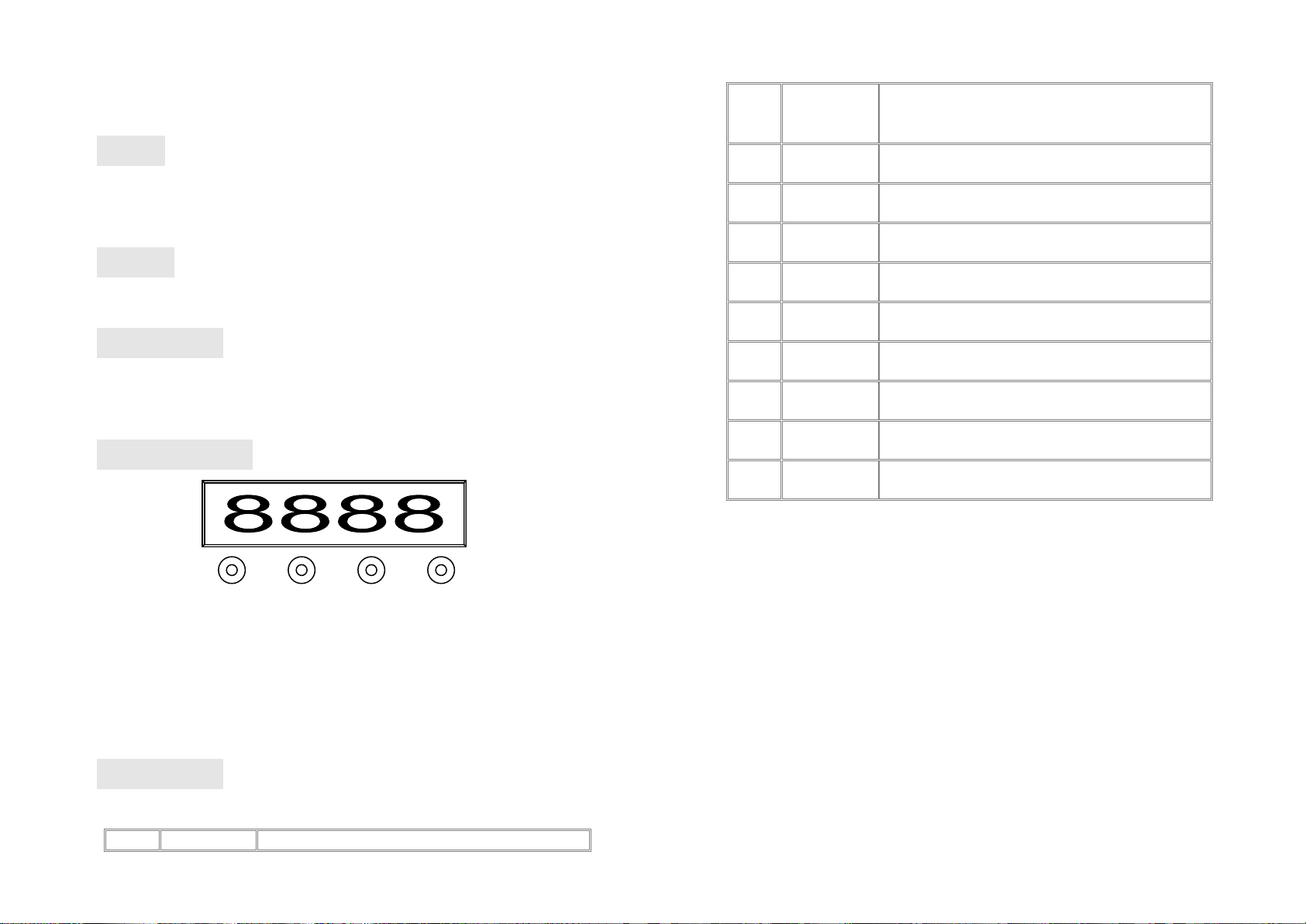

☞KEYS INSTRUCTION
MENU UP DOWN ENTER
1~Press MENU to select from 11 different functions. The front 2Digits mean the function it
has. (Please see the function form as follow.) And the last 2Digits mean the function’s Value,
speed or parameter. Press UP or DOWN can change the value. And press ENTER to
confirm.
2~Press MENU more than 2sec. The 2Digit number will flash. Then press UP or DOWN
can change the value quickly. Then press the ENTER to save the value you want. If you don’t
want to save the value, press MENU more than 2sec. is okay.
☞FUNCTION FORM
No
Show
Function Instruction
1 D001
8ch mode DMX Address
（
001—512
）
UP
、
DOWN increase or reduce the value
2 A001
4ch mode DMX Address（001—512）
UP
、
DOWN increase or reduce the value
3 CC01 7Colors Jump Change
（
01—99
）
UP、DOWN Change the speed
4 CP01
7Colors Gradate（01—99）
UP
、
DOWN Change the speed
5 DE01 7Colors Pulse Change
（
01—99
）
UP、DOWN Change the speed
6 FH01
Strobe flash（01—99）
UP
、
DOWN Change the speed
7 R255 Red
（
000—255
）
UP、DOWN Change brightness
8 G255
Green（000—255）
UP
、
DOWN Change brightness
9 B255 Blue
（
000—255
）
UP、DOWN Change brightness
10 O255
White（000—255）
UP
、
DOWN Change brightness
