HERA PROCOLOR 60 RGBW SERIES Installation and operating instructions

Congratulations on choosing a HERA product!
We thank you for your custom.
Please note that this product, as all the others in the rich HERA range, has been designed and made with total quality to ensure excellent performance and best meet your
expectations and requirements. Carefully read this instruction manual in its entirety and keep it safe for future reference. It is essential to know the information and comply
with the instructions given in this manual to ensure the fitting is installed, used and serviced correctly and safely. HERA disclaims all liability for damage to the fitting or to
other property or persons deriving from installation, use and maintenance that have not been carried out in conformity with this instruction manual, which must always
accompany the fitting. HERA reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
PROCOLOR 60 RGBW SERIES
User’s Manual & Installation Guide
Index V.1.0
www.heraled.comwww.heraled.com
Cover & Index
1
Safety Information / Warning / Warranty /Marking
2
Connection Diagram
7
Product Specifications
4
Standart DMX Wiring Diagram
5
Explanation / Dimension
3
RDM Monitoring Wiring Diagram
6
Installation Instruction
8
Ordering Information /Accessories
9
Back Cover
10

www.heraled.comwww.heraled.com 2
PROCOLOR 60 RGBW SERIES
Marking
DMX
RDM
67
Safety Information
Warranty
Caution – unplug the power supply from the main power before connecting any cables as this can damage the products.
Caution – avoid looking directly into the led light source at close range for your own safety.
Any people installing this product should comply with local standards and regulations and must be qualified for the handling of
electrical equipment.
• Do not attempt to install or use the product until installation instructions and safety labels are fully understood.
This product is designed for indoor and outdoor usage.
• Ensure product operates within the specified temperature range.
• Do not attempt to open the product.
• Do not use the product if the power cables are damaged.
• Only use product for specified voltage.
• Always maintain connection to ensure waterproofing.
• If the product has been subjected to drastic temperature variances, for example, following transportation,
do not connect the fixture until it has reached room temperature, as moisture condensation may cause electric
shock and product damages.
• When installing the products and system power supplies, please ensure they will not be exposed to moisture and extreme heat
(and direct sunlight for outdoor products). Besides, keep a clean operating environment for the fixtures and system power
supplies.
•
Any non-compliance of the Installation Guide will
void the Hera
warranty.
Hera warrants the products for a period of five (5) years from date of purchase, provided that
the purchased items are used under the conditions stated in this user manual.
Warning
Please study this Installation Guide throughly and check the latest Technical Specification Sheets available from the
our website www.heraled.com before setup.
Risk of
Electric
Shock
Do Not Open
Products
Warning!
Refer to User
Manual.
Not Suitable
for Household Room
Illumination
DIRECTIVE 2012/19/EU
Waste Electrical
and Electronic Equipment

www.heraled.comwww.heraled.com 3
Explanation

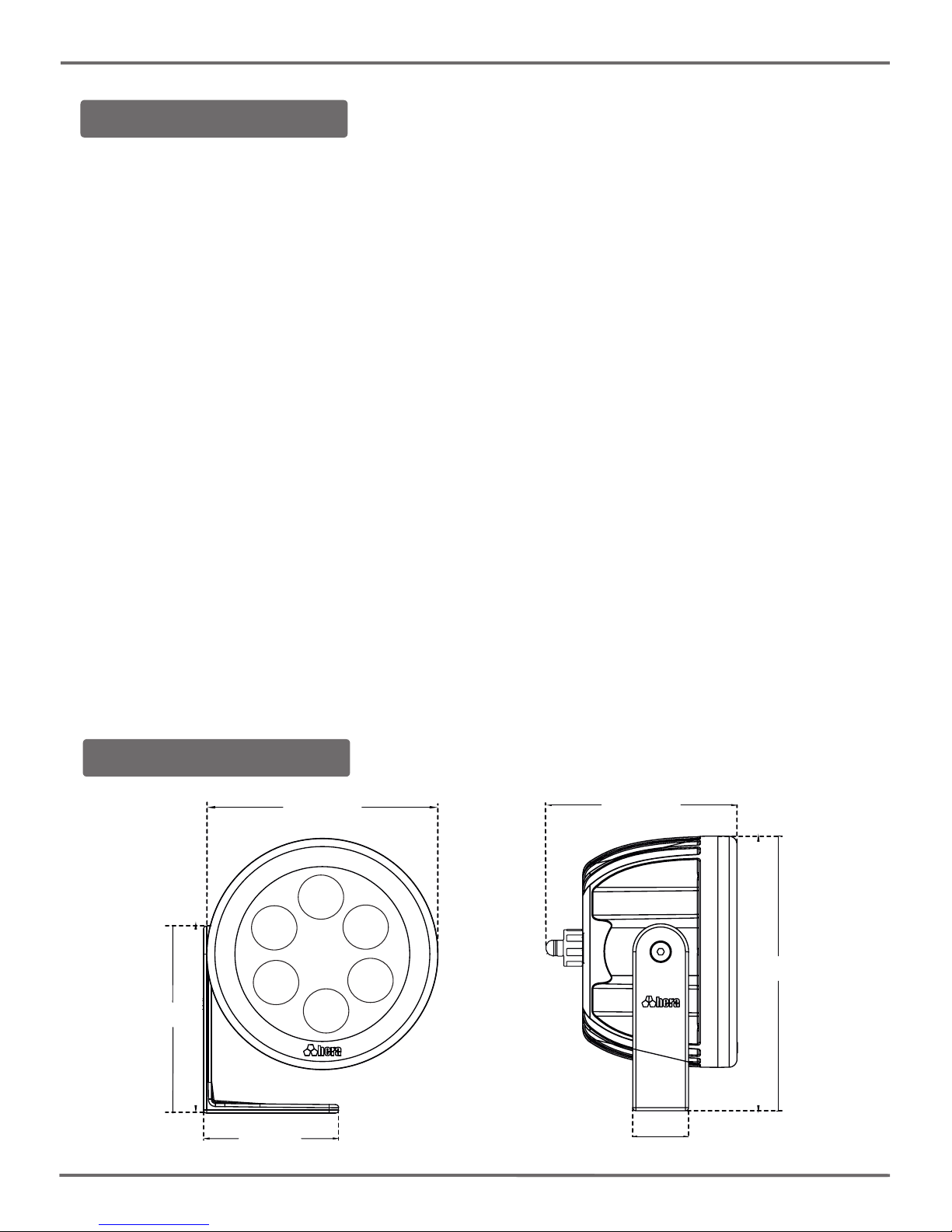

Dimension
145mm / 5,74"
118 mm
6.72"
120mm / 5"
35mm/1.37"
4.64"
172mm
85mm / 3.34"
Procolor 60RGBW consists of 6 Cree XML Color LEDs and provides excellent color combination with 3 different light beam
angles. Procolor 60RGBW has solid die cast aluminum body. It is used in flood lighting, spot lighting and wall washing
applications with excellent color consistency. 4 colors RGBW per pixel offer vivid color and white content in a single system
and intelligent “+White” algorithms allow systems using 3 channels signal to control 4 colors per pixel, this enhances the
display quality and improved efficiency. It can be used for constant lighting where long and linear appearance is needed and
give opportunity for special demands. Owe to its connector on both sides input and output can be done. Universal power input
90 ~ 264VAC is used for long range connection.
• RGBW can be used in 4 channels with DMX Personality. System can be controlled 4 colors per pixel with RGB and smart
white algorithm. All customizations options can be chosen remotely with DMX 512 protocol
• It communicates with other fixtures by standard DMX 512 and RDM protocols without requirements of any special
communication protocols or production identity. It can be addressed remotely as a group. By courtesy of this feature pixel
mapping and addressing are easier.
• It can be used with very long starting cables and jumper cables for flexible and easy application due to its 90 ~ 264VAC
50/60Hz universal voltage range.
• Working status of fixtures, local temperature values, voltage input and output, serial number and DMX address can be
monitored. User is informed by mail and system can response automatically according to data.
• Fixtures work compatibly with Madrix® software and hardware. You can choose fixtures in library in order to have easy
pixelmapping.
• It has 3 different light beam angles in 8° / 30° / 45°.
• Direction of fixture can be adjusted by movable mounting device on fixture in product of 6°. Device is moved and fastened up
by stabile gear system, by this means fixture holds its adjusted direction.
• Fixtures are designed for harsh outdoor condition and resistant against vibration, impact and thermal shock owe to their solid
die cast aluminum body and tempered glass cover and IP66 class protection markings.
• Power and data are transmitted by input and output cables IP68 connectors can be installed easily by rotating. Interspaces
between fixtures are enough. Therefore additional junction boxes are not needed.
• Fixtures are produced in RAL9005 black color but according to customers’ demand fixture can be painted to different RAL
colors.
PROCOLOR 60 RGBW SERIES

www.heraled.comwww.heraled.com 4
Light Source:
Lumen Maintenance:
Color Resolution:
Maximum in Chain:
Red Output:
Green Output:
Operating Voltage:
Power Consumption:
Control Interface:
Addressing:
Monitoring:
Housing:
Environment:
Operating Temperature:
Storage Temperature:
Voltage Monitoring,Temperature Monitoring, Status Monitoring,Power Cycle Monitoring, Lumen-Maintenance Life Monitoring
Die-Cast Aluminium Body
-40°C - 50°C - (-40° - 122° F)
-40°C - 85°C - (-40°C - 185° F)
6pcs High Power Color LEDs
60.000+ hours L70 @ 25° C (full output)
4 x 14-bit (Gamma correction)
Max 32pcs
90 ~ 264VAC 50/60Hz Universal AC input
60W max.
USITT DMX 512 A
RDM (Group of Remote Addressable Systems)
Color Range: 16.7 Million additive RGB colors, white CCT 6500K
Dimensions (H x W x D):
Total Luminous Output:
418 lm
Efficacy: 62lm/W
Blue Output:
PWM Frequency: 1,600Hz flicker free dimming to 0.1%
Product Specifications
3744 lm
524 lm
1332 lm
Weight:
172x145x118 mm (6.77x5.74x4.64 in)
1.7kg (3.74lb)
Certification:
EU safety: EN60598-2-5 (EN60598-1), EN62471, EN62493, EN60598-2-1
EU EMC: EN55015, EN61547, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-4,EN61000-4-5
US safety (pending): ANSI/UL 1598
US EMC: 47 CFR Part 15 Class A
1470 lm
White Output:
PROCOLOR 60 RGBW SERIES
I P67, IK10
Auto-White: Algorithms enable auto control of white LED by 3-channel RGB values

Connection DiagramConnection DiagramConnection Diagram

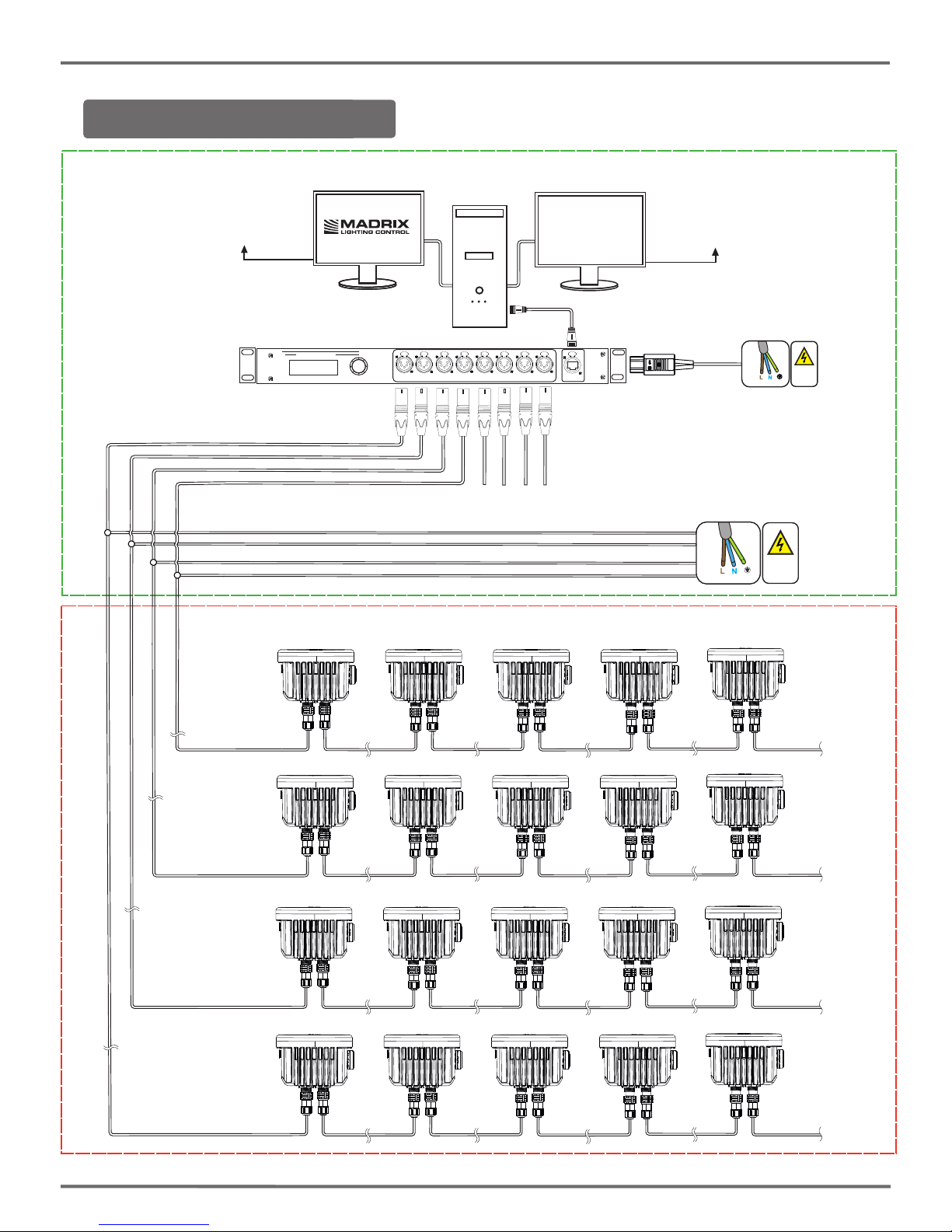

Standart DMX Wiring Diagram Indoor Zone Standart DMX Wiring Diagram
www.heraled.com 5
www.heraled.com
PROCOLOR 60 RGBW SERIES
Connection DiagramConnection DiagramConnection Diagram
Standart DMX Wiring Diagram
DMX 1 DMX 2 DMX 3 DMX 4 DMX 5 DMX 6 DMX 7 DMX 8 DMX IN USB Ethernet
8
5 Pole Male XLR Connector
RJ45
RJ45
Indoor Zone
Ethernet
DMX Signal
RISK OF
ELECTRIC
SHOCK
90~264VAC 50/60Hz
AC Input
3-Pin VDE
The MADRIX Software is the ultimate
control tool for LED lighting.
Use pixel mapping at its best in 2D or 3D
PC
Standart DMX Wiring Diagram
3+5 Pin Male
Connector
3+5 Pin Female
Connector
RISK OF
ELECTRIC
SHOCK
90~264VAC 50/60Hz
90~264VAC 50/60Hz
Max 32 pcs. in each chain
Outdoor Zone

www.heraled.com 6
www.heraled.com
PROCOLOR 60 RGBW SERIES
5 Pole Male XLR Connector
Indoor Zone
3+5 Pin Male
Connector
3+5 Pin Female
Connector
RISK OF
ELECTRIC
SHOCK
90~264VAC 50/60Hz
90~264VAC 50/60Hz
Voltage Monitoring,Temperature Monitoring,
Status Monitoring,Power Cycle Monitoring,
Lumen-Maintenance Life Monitoring
DMX Data Sending RDM Monitoring
Luminex Lighting Control Equipment ©
The MADRIX Software is the ultimate
control tool for LED lighting.
Use pixel mapping at its best in 2D or 3D
DMX / RDM Universes
Luminex
Luminex Lighting Control Equipment ©
1 2 3 4 5 6 7 8 Ethernet
Ethernet- DMX8 MK II
RISK OF
ELECTRIC
SHOCK
90~264VAC 50/60Hz
RJ45
RJ45 Ethernet
Luminex
AC Input
3-Pin VDE
PC
DMX Signal
Connection DiagramConnection DiagramConnection Diagram
RDM Monitoring Wiring Diagram
Max 32 pcs. in each chain
Outdoor Zone

7
www.heraled.com
PROCOLOR 60 RGBW SERIES
L
N
DMX(+) DMX(-)
RISK OF
ELECTRIC
SHOCK
TURN
22
21
Connection DiagramConnection Diagram
RISK OF
ELECTRIC
SHOCK

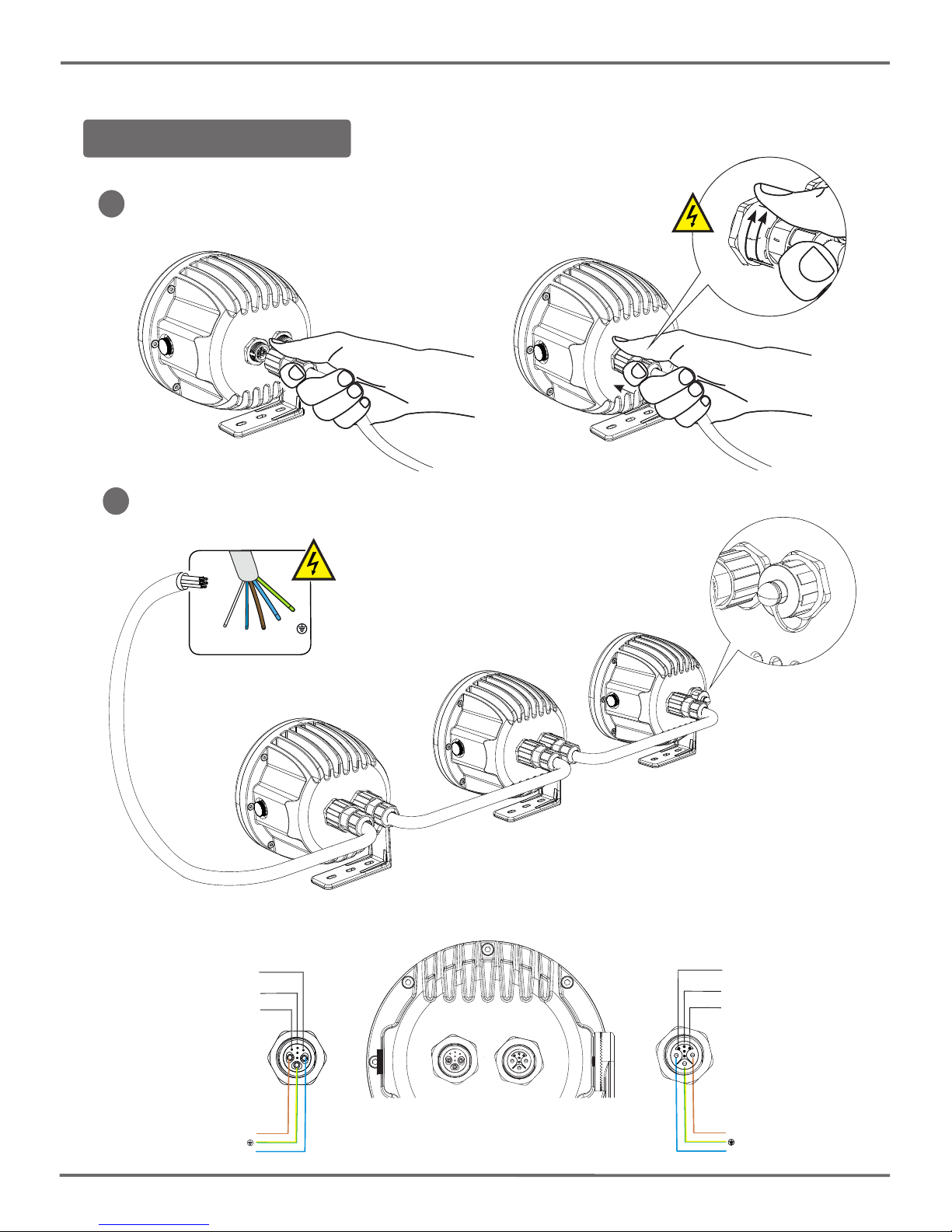

Insert the connector into the appropriate input and screw the connection
P20079 Waterproof
Cap For 3+5 Pin
N
L
N
L
White DMX (+)
Blue DMX (-)
GND
White DMX (+)
Blue DMX (-)
GND

www.heraled.comwww.heraled.com 8
PROCOLOR 60 RGBW SERIES
Installation Instruciton
Installation Instruction
12
345
Assemble leg of luminaries to wall or ground Synchronize the gear with surface of luminaries and leg
Finished installation
Tighten the screw
1
8
0
*Adjustable gear of luminaries with 6 angle
Turn the luminaries into
the suitable position

www.heraled.comwww.heraled.comwww.heraled.comwww.heraled.com
Ordering Information
9
P03002101 Procolor® 60RGBW Flood Light Spot Beam 13°
P03002102 Procolor® 60RGBW Flood Light Medium Beam 24°
P03002103 Procolor® 60RGBW Flood Light Flood Beam 40°
PROCOLOR 60 RGBW SERIES
*Standart product that we provided is above. Please contact us for special orders

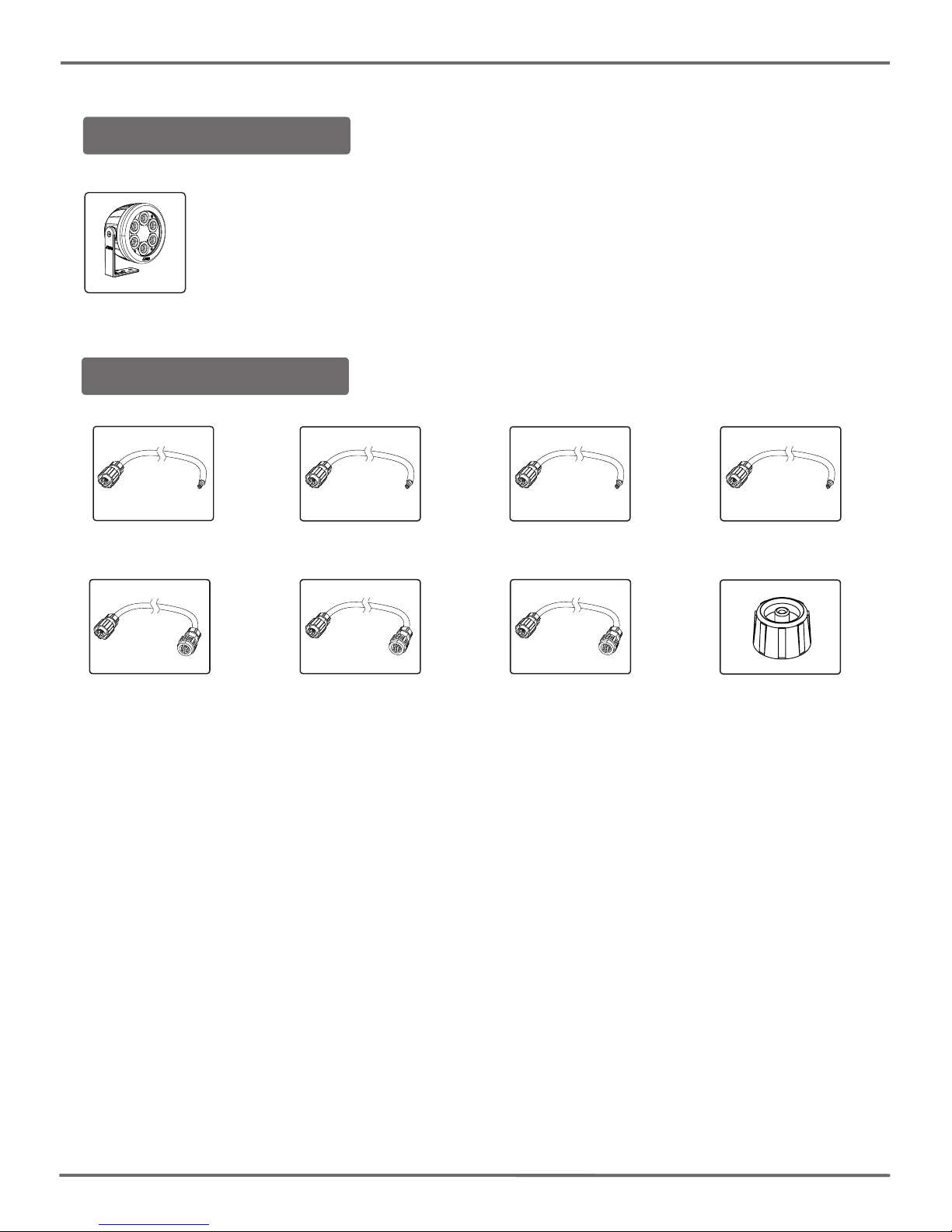

Accessories
P20060
3+5 Pin Leader Cable 5 Meter
P20070
3+5 Pin Jumper Cable 1 Meterr
P20079
Waterproof Cap For 3+5 Pin
P20071
3+5 Pin Jumper Cable 2 Meter
P20072
3+5 Pin Jumper Cable 5 Meter
P20061
3+5 Pin Leader Cable 10 Meter
P20062
3+5 Pin Leader Cable 15 Meter
P20063
3+5 Pin Leader Cable 20 Meter

www.heraled.com
