Adsys QR1-1600 User manual

i
Regional EMC Compliance Information
FCC Verification Notice (USA only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Class A
This equipment has been tested and found to comply with the limits for a
Class A digital device pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause
harmful interference with radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case you will be required
to correct the interference at your own expense.
INDUSTRY CANADA (Canada only)
This Class B (or Class A, if so indicated on the registration label) digital apparatus
meets the requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la Classe B (ou Classe A, si ainsi indiqué sur l’étiquette
d’enregistration) respecte toutes les exigences du Reglement sur le Materiel Brouilleur
du Canada.
CE Declaration of Conformity (Europe only)
This product has been tested in accordance to and complies with the
European Low Voltage Directive (73/23/EEC) and European EMC Directive
(89/336/EEC).
The product has been marked with the CE Mark to illustrate its compliance.

Preface
ii
VCCI (Japan only)
この装置は情報処理装置等電波障害自主規制協議会（VCCI）の基準に基づくクラス A
情報技術装置です。この装置を家庭環境で使用すると電波妨害を引き起こすことがあり
ます。この場合には使用者が適切な対策を講ずるよう要求されることがあります。
The English translation of the notice above is as follows:
This is a Class A product based on the standard of the Voluntary Control Council for
Interference (VCCI) for information technology equipment. If this equipment is used in a
domestic environment, radio disturbance may arise. When such trouble occurs, the user
may be required to take corrective actions.
CCC (China only)
The following CCC EMC Warning is marked on the product: The EMC
Warning is required for Class A products.
此为 A级产品，在生活环境中，该产品可能会造成无线电干扰，在这种情
况下，可能需要用户对其干扰采取可行的措施。
China RoHS Declaration Table
有毒有害物质或元素 (Hazardous Substance)
部件名称
(Parts) 铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr6+)
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
机箱子组件
Chassis
Subassembly
× ○○○○○
电源
Power Supply × ○○○○○
印刷板组件
Printed Board
Assemblies
(PBA)
× ○○○○○
○：表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 标准规定的
限量要求以下。
○：Indicates that this hazardous substance contained in all homogeneous materials of this
part is below the limit requirement in SJ/T 11363-2006.
×：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T 11363-2006 标准
规定的限量要求。
×：Indicates that this hazardous substance contained in at least one of the homogeneous
materials of this part is above the limit requirement in SJ/T 11363-2006.

Preface
iii
BSMI (Taiwan only)
The following BSMI EMC Warning is marked on the product: a BSMI ID No
and EMC Warning are required for Class A products.
这是甲类的信息产品，在居住的环境中使用时，可能会造成射频干扰, 在这种
情况下，使用者会被要求采取某些适当对策。
Copyright
This publication, including all photographs, illustrations and software, is protected under
international copyright laws, with all rights reserved. Neither this manual nor any of the
material contained herein may be reproduced without the express written consent of the
manufacturer.
Version 1.0, January, 2008
Disclaimer
The information in this document is subject to change without notice. The manufacturer
makes no representations or warranties with respect to the contents hereof and
specifically disclaims any implied warranties of merchantability or fitness for any
particular purpose. Furthermore, the manufacturer reserves the right to revise this
publication and to make changes from time to time in the content hereof without
obligation of the manufacturer to notify any person of such revision or changes.

Preface
iv
Safety Information
Read this important safety information section. Retain this manual for reference. Read
this section before servicing the product.
Caution
To reduce the risk of electric shock, this server should only be serviced
by qualified service personnel.
RTC Battery
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with
same or equivalent type recommended by the manufacturer. Discard
used batteries according to the manufacturer’s instructions.
Power Supply
Caution
The power supplies in your system may produce high voltage and energy
hazards, which can cause bodily harm. Unless you are instructed
otherwise, only trained service technicians are authorized to remove the
covers and access any of the components inside the system.
Power Supply Cord
Caution
This system may have more than one power supply cable. To reduce the
risk of electrical shock, a trained service technician may need to
disconnect all power supply cables before servicing the system.
Laser Drive Equipment
The optical transceiver module in this server is a laser Class 1 product.
Ambient Operation
This equipment cannot be operated in an environment with an ambient temperature
greater than 35 degrees centigrade.
Caution
Before working on the rack, make sure that the stabilizers are secured to
the rack, extended to the floor, and that the full weight of the rack rests
on the floor. Install front and side stabilizers on a single rack or front
stabilizers for joined multiple racks before working on the rack.

Preface
v
Caution
Always load the rack from the bottom up, and load the heaviest item in
the rack first. Make sure that the rack is level and stable before extending
a component from the rack.
Caution
Do not overload the AC supply branch circuit that provides power to the
rack. The total rack load should not exceed 80 percent of the branch
circuit rating.
Caution
Ensure that proper airflow is provided to components in the rack. Do not
step on or stand on any component when servicing other components in
a rack.
Equipment Location
Caution
In accordance with standards and regulations for workstations, do not
place the unit in the visual field of the user, because of the glossy front of
the case.
This equipment can only be accessed by SERVICE PERSONNEL or by USERS who
have been instructed on the reasons for the restrictions applied to the location. Access
is through the use of a TOOL or lock and key, or other means of security, and is
controlled by the authority responsible for the location.
Rack Mounting of Systems
Caution
Before installing systems in a rack, install front and side stabilizers on
stand-alone (single) racks or the front stabilizer on racks joined to other
racks. Failure to install stabilizers accordingly before installing systems in
a rack could cause the rack to tip over, potentially resulting in bodily
injury under certain circumstances. Therefore, always install the
stabilizer(s) before installing components in the rack.
Due to the height and weight of the rack, a minimum of two people
should accomplish this task.
Before working on the rack, make sure that the stabilizers are secured to
the rack, extended to the floor, and that the full weight of the rack rests
on the floor. Install front and side stabilizers on a single rack or front
stabilizers for joined multiple racks before working on the rack.

Preface
vi
Always load the rack from the bottom up, and load the heaviest item in
the rack first. Make sure that the rack is level and stable before extending
a component from the rack
Do not overload the AC supply branch circuit that provides power to the
rack. The total rack load should not exceed 80 percent of the branch
circuit rating.
Ensure that proper airflow is provided to components in the rack. Do not
step on or stand on any component when servicing other components in
a rack
Personal Inventory
This computer system is designed for years of productive use. Use this section to keep
notes about details of your purchase. Update this section when you add new options.
Date of Purchase:
Dealer’s Name:
Phone:
Address:
E-mail Address:
WWW Site:
Serial Number:
CPU Type:
Hard Disk Capacity:
Memory Capacity:
System Accessories
(check the accessories
that shipped with your
model):
Utility CD ROM with support software driver
and user’s manual x 1
Rail slide kit x 1 set
CPU heat sink x 1
Others __________________
Mainboard Accessories
(check the accessories
that shipped with your
model):
Utility CD ROM with support software driver
and user's manual x1
SAS cable x 2
IO shield x 1

Preface
vii
T
T
A
AB BL LE E O OF F
C
C
O
ON NT TE EN NT TS S
Chapter 1
introduction..........................................................................................1
Checklists................................................................................................................ 1
A Tour of the Motherboard ..................................................................................... 2
A Tour of the System................................................................................................ 4
Chapter 2
Motherboard Hardware Installation Guide........................................7
Installing the CPU Heatsink.................................................................................. 10
Chapter 3
System Installation Guide................................................................. 11
Safety Measures .................................................................................................... 11
QR1-1600S Mainboard Components..................................................................... 12
Installing an HDD................................................................................................. 14
Removing the Chassis Cover................................................................................. 17
Installing the CPU................................................................................................. 18
Installing the Heatsink .......................................................................................... 21
Replacing the Power Supply.................................................................................. 23
Installing a PCI Card............................................................................................ 26
Replacing the DVD-ROM Drive............................................................................ 29
Installing Memory................................................................................................. 32
Replacing the Chassis Cover................................................................................. 35
Chapter 4
BIOS ....................................................................................................37
Setup Menu............................................................................................................ 37
BIOS Setup Options at Boot.................................................................................. 37
Console Redirection.............................................................................................. 38
Configuring Special Keys...................................................................................... 39
The Legend Bar..................................................................................................... 40
General Help......................................................................................................... 40

Preface
viii
Main Menu............................................................................................................ 41
Advanced Menu..................................................................................................... 42
Boot Menu............................................................................................................. 55
Server Menu.......................................................................................................... 58
Security Menu ....................................................................................................... 62
Exit Menu.............................................................................................................. 63
Chapter 4
Using the Java Interface ...................................................................65
Setting the KVM TCP Port on Network................................................................. 65
Logging into the Web User Interface .................................................................... 65
System Information................................................................................................ 67
Session Time-Out .................................................................................................. 68
System Monitoring ................................................................................................ 70
Configuration........................................................................................................ 77
User Management................................................................................................. 83
Remote Control ..................................................................................................... 86
Maintenance.......................................................................................................... 92
Chapter 5
Using the Client .................................................................................95
Video Screen Redirection...................................................................................... 95
Video Quality Configuration................................................................................. 95
USB Keyboard and Mouse Emulation................................................................... 97
Mouse Synchronization on Console Side............................................................... 98
Hardware Cursor Mode........................................................................................ 99
Keyboard LED and Status Synchronization.......................................................... 99
Hotkey Simulation............................................................................................... 100
Full Screen Display on Console PC.................................................................... 102
Dynamic Scaling Video Resolution ..................................................................... 103
Color Text Adjust ................................................................................................ 104
Encryption Mode................................................................................................. 105
Virtual Storage.................................................................................................... 106

Preface
ix
Appendix A
Support .............................................................................................115
Before you Begin................................................................................................. 115
Installing the Rack Brackets................................................................................ 116
Troubleshooting Sequence .................................................................................. 118
Appendix B
Updating the BMC Firmware ..........................................................119
BMC Firmware Update Utility............................................................................ 119
Appendix C
Specifications ..................................................................................121
Motherboard Specification.................................................................................. 121
System Specification:........................................................................................... 123

Preface
x

1
Chapter 1
I
In nt tr ro od du uc ct ti io on n
The QR1-1600 server system features a motherboard with one J type CPU socket that
accommodates an Intel
®
Xeon™3000(Conroe) / 3200(Kentsfield), 3100(Wolfdale) /
3300(Yorkfield) processor with Bigby-P (Bigby-V)/ICH9R chipset.
Four DDR2 DIMM slots enable you to add memory up to 8GB. ECC support provides
extra security against system failure. 4 to 6 SATAII/4 SAS optional ports (depending
on different SKU) provide maximum flexibility for installing hard drives.
The QR1-1600 has a full range of I/O ports, including four USB ports, two Gigabit
Ethernet LAN ports, one 10/100M LAN port from the AST2000, one PS2 mouse port,
one PS2 keyboard port, one 9-pin serial port, and one 15-pin VGA port.
Intelligent Platform Management Bus (IPMB) provides an administrator access in
case of server failure. The IPMB connects externally through the Intelligent Chassis
Management Bus (ICMB). The ICMB is used to connect the QR1-1600 server to the
outside world, providing data such as temperature, voltage, or chassis intrusion to the
system administrator. ASPEED 2000 server management firmware enables the admin-
istrator to monitor the QR1-1600 status through a typical web browser.
Checklists
Carefully unpack the QR1-1600 or mainboard and check that the following items were
included.
Mainboard
•Utility CD ROM with support software driver and user's manual x1
•SAS cable x 2
•IO shield x 1
Contact your vendor if any items are missing or appear damaged.
System
•One QR1-1600 server chassis.
•One set of rack mount rails.
•One utility CD-ROM with a support software driver and this user’s manual.
•One CPU heat sink.

Error! Style not defined. - Introduction
2

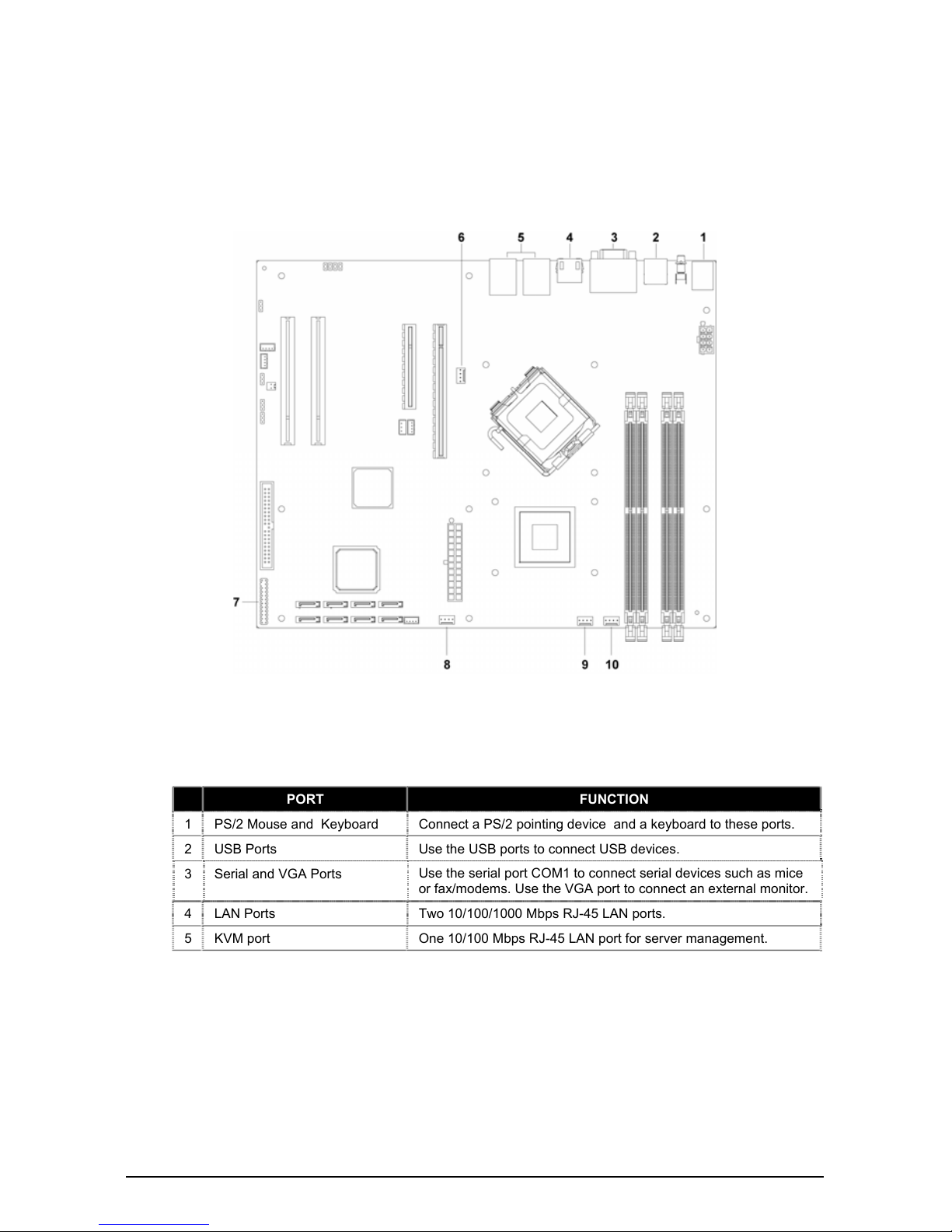

A Tour of the Motherboard
QMA-1000S
Figure 1 : I/O ports
Input/Output Ports
PORT FUNCTION
1 PS/2 Mouse and Keyboard Connect a PS/2 pointing device and a keyboard to these ports.
2 USB Ports Use the USB ports to connect USB devices.
3 Serial and VGA Ports Use the serial port COM1 to connect serial devices such as mice
or fax/modems. Use the VGA port to connect an external monitor.
4 LAN Ports Two 10/100/1000 Mbps RJ-45 LAN ports.
5 KVM port One 10/100 Mbps RJ-45 LAN port for server management.

Error! Style not defined. - Introduction
3

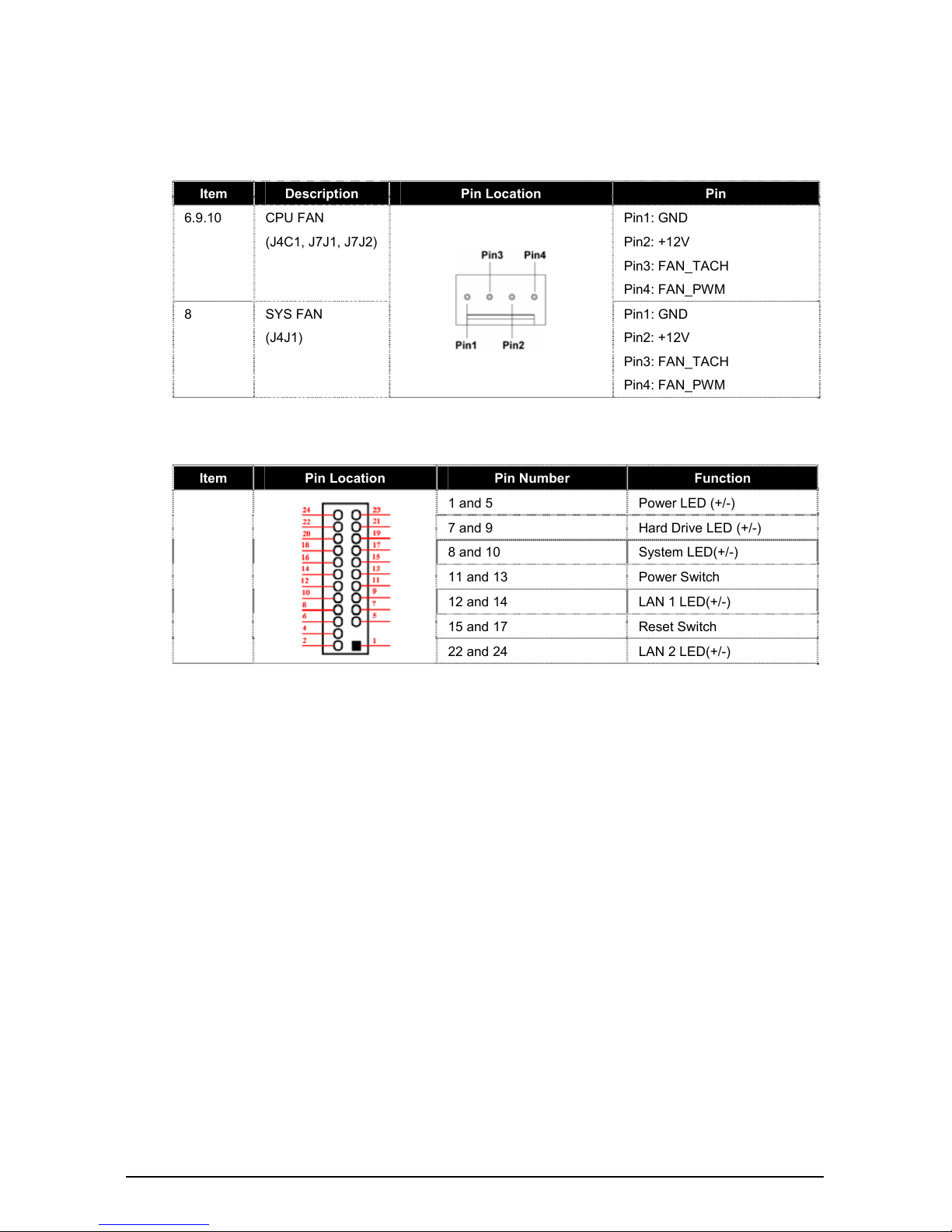

Fan Connector Pin Assignment
Item Description Pin Location Pin
6.9.10 CPU FAN
(J4C1, J7J1, J7J2)
Pin1: GND
Pin2: +12V
Pin3: FAN_TACH
Pin4: FAN_PWM
8 SYS FAN
(J4J1)
Pin1: GND
Pin2: +12V
Pin3: FAN_TACH
Pin4: FAN_PWM
Front Panel Connector Pin Assignment
Item Pin Location Pin Number Function
1 and 5 Power LED (+/-)
7 and 9 Hard Drive LED (+/-)
8 and 10 System LED(+/-)
11 and 13 Power Switch
12 and 14 LAN 1 LED(+/-)
15 and 17 Reset Switch
7
22 and 24 LAN 2 LED(+/-)

Error! Style not defined. - Introduction
4
A Tour of the System
The following sections describe the external features of the QR1-1600 server.

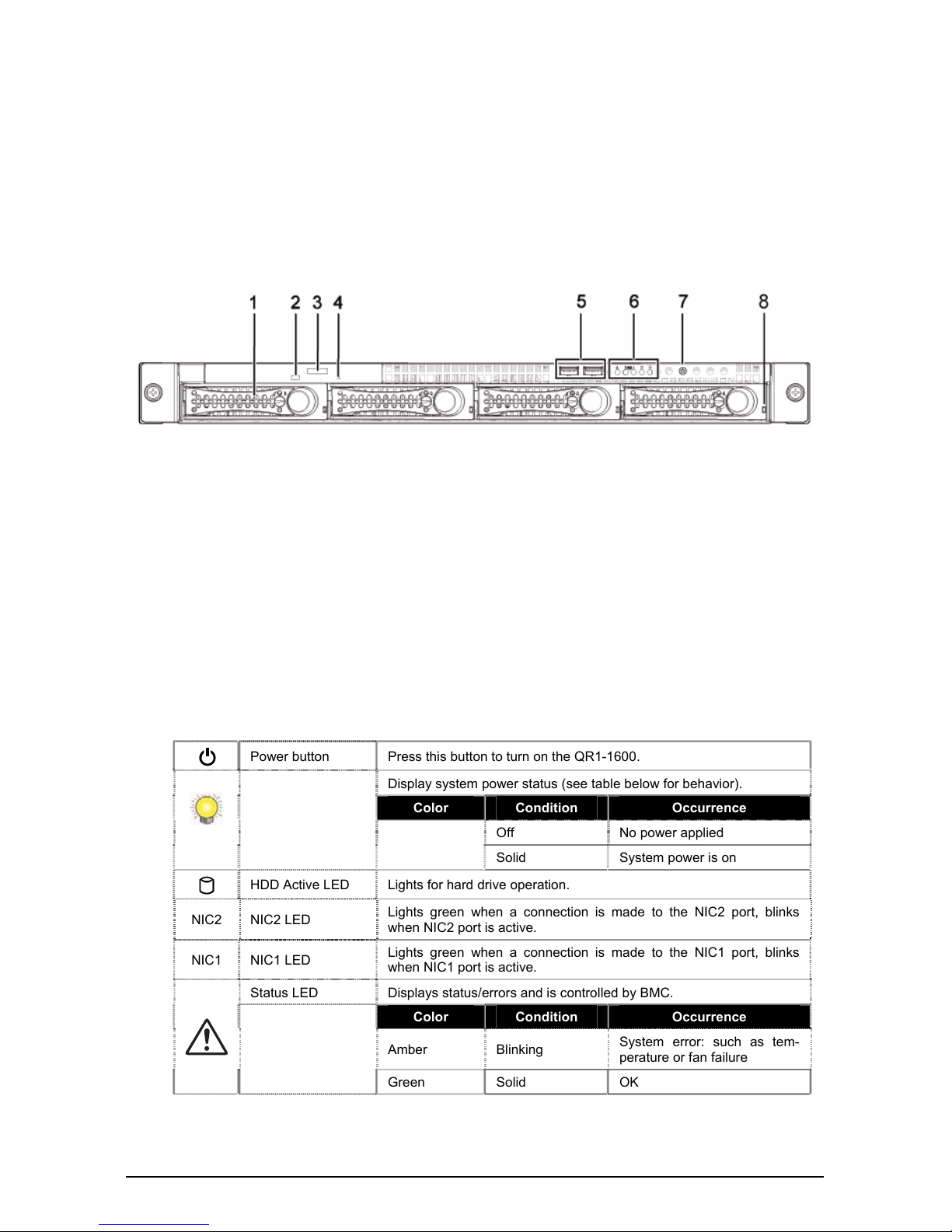

QR1-1600 Front View
Figure 2 : QR1-1600 Front View
1. HDD bay Open to install a hard drive.
2. DVD-ROM LED Lights when the DVD-ROM is being accessed.
3. DVD-ROM Eject Button Push to open the DVD-ROM.
4. DVD-ROM Manual Eject Insert a small blunt object to open the DVD-ROM when server is
powered off.
5. Front USB ports x2 Connect USB devices to these ports.
6. System LEDs System status LEDs – see below for more details.
7. Power Button Push to power up system.
8. Hard Disk Drive(HDD) bay LED Blinks if HDD is being accessed. When SATA HDD is present, the light
is off, while SAS HDD is present, the light is on.
Front panel buttons and LEDs The front panel buttons and LEDs are described as follows:
Power button Press this button to turn on the QR1-1600.
Display system power status (see table below for behavior).
Color Condition Occurrence
Off No power applied
Power
Power LED
Green
Solid System power is on
HDD Active LED Lights for hard drive operation.
NIC2 NIC2 LED Lights green when a connection is made to the NIC2 port, blinks
when NIC2 port is active.
NIC1 NIC1 LED Lights green when a connection is made to the NIC1 port, blinks
when NIC1 port is active.
Status LED Displays status/errors and is controlled by BMC.
Color Condition Occurrence
Amber Blinking System error: such as tem-
perature or fan failure
Status LED
Green Solid OK

Error! Style not defined. - Introduction
5
QR1-1600 Rear View*
Figure 3 : QR1-1600 Rear View
1. Power Module Connect the power cable to this socket.
2. PS/2 mouse Connect a PS/2 pointing device to this port.
3. Serial port Connect serial devices to this port.
4. Add-on Card Cover Remove this cover before installing a PCIE or PCIX card.
5. PS/2 keyboard Connect a PS/2 keyboard to this port.
6. ID button/ rear ID LED Press to light front and rear ID LEDs (see table below for behavior).
7. Status LED Behavior is controlled by BMC (see below for behavior).
LED Name Color Condition Occurrence
Off OK
ID LED Blue
Blinking ID Button pressed on chassis
(ID command executed)
Amber Blinking
System error, such as temperature state or
fan failure
Status LED
Green Solid OK
8. USB ports Connect USB devices to these two ports.
9. VGA port Connect a monitor to this port.
10. KVM over IP Connect a RJ-45 jack to this port to link to a 10/100M LAN from the
AST2000.
11. NIC1 Connect a RJ-45 jack to this port to link to a 10/100/1000 Megabit Ethernet
LAN. Top-left LED means linking, top-right LED means active.
12. NIC2 Connect a RJ-45 jack to this port to link to a 10/100/1000 Megabit Ethernet
LAN. Top-left LED means linking, top-right LED means active.

Error! Style not defined. - Introduction
6

7
Chapter 2
M
Mo ot th he er rb bo oa ar rd d H Ha ar rd dw wa ar re e I In ns st ta al ll la at ti io on n G Gu ui id de e
QMA-1000S
Item Label Components
1. CPU PWR 12V power connector for CPU VRM.
2. CPU CPU socket.
3. DIMM 1-4 DDR2-DIMM slots x 4.
4. CPU Fans 1, 2 & 3 CPU Fan headers.
5 MAIN_PWR Main power connector.
6 SYS_FAN 2 System Fan connector.
7 HDD LED SAS Backplane HDD LED Connector.
8 SATA_0-3 /SAS0-5 SAS/SATA connectors.
9. J1J1_Front Panel Front Panel Connector.
10. IDE CON IDE CD-ROM connector.
11 J1D4_PWD_CLR Password clear.
12 J1D3_CMOS_CLR CMOS clear.
13 J1D1_Intruder Intruder alarm connector.
14 J4C4_RCVRY_MODE Recovery Mode connector.
15 PCI_SLOT 1 & 2 PCI Connectors.
16 PCI-E x 8 slot PCI-E x 8 slot for PCI-E card, supporting full-length cards.
17 PCI-E x 16 slot PCI-E x 16 slot for PCI-E card, supporting half-length cards.
18 Heatsink holes Holes for CPU Heatsink mounting pins (4 per CPU).

Error! Style not defined. - Motherboard Hardware Installation Guide
8

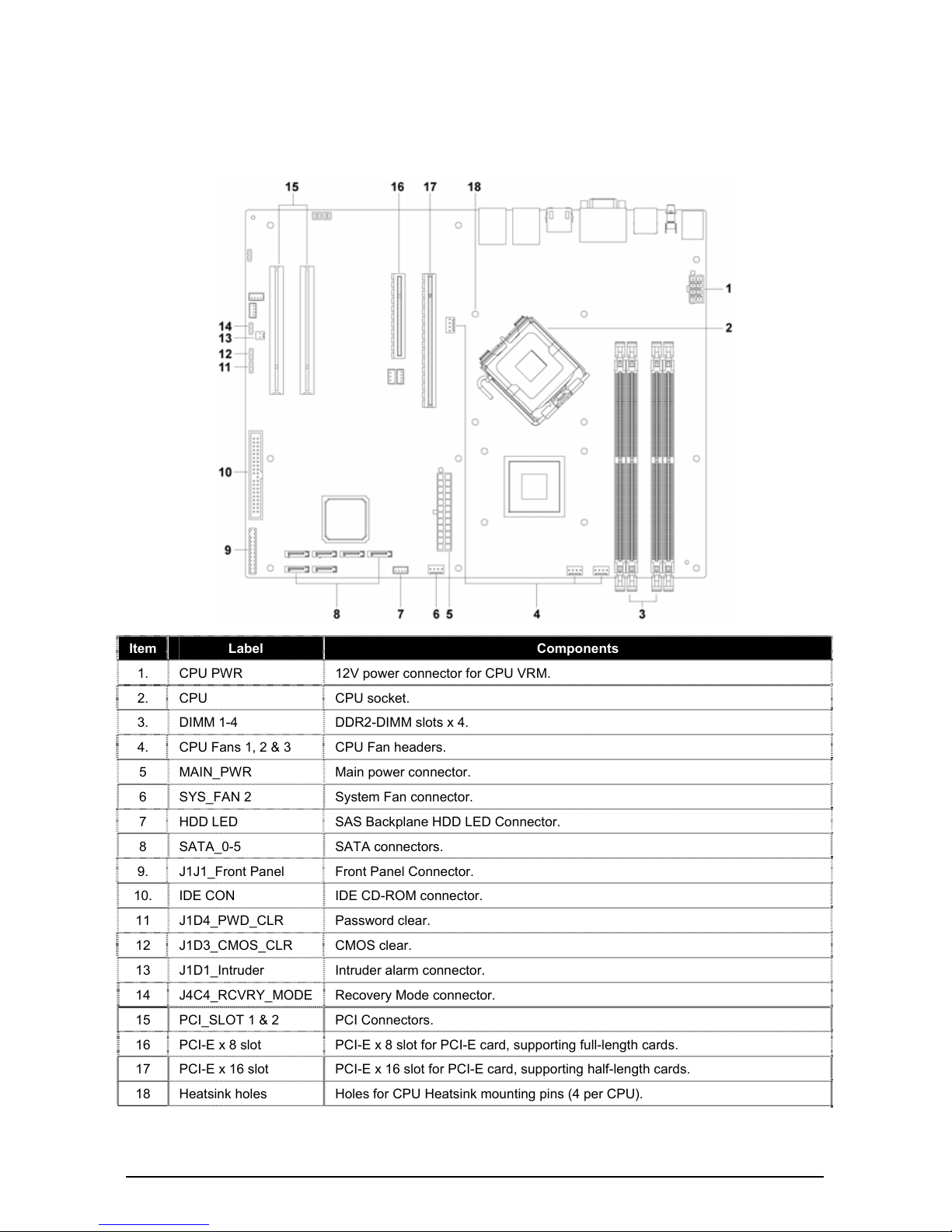

QMA-1000A
Item Label Components
1. CPU PWR 12V power connector for CPU VRM.
2. CPU CPU socket.
3. DIMM 1-4 DDR2-DIMM slots x 4.
4. CPU Fans 1, 2 & 3 CPU Fan headers.
5 MAIN_PWR Main power connector.
6 SYS_FAN 2 System Fan connector.
7 HDD LED SAS Backplane HDD LED Connector.
8 SATA_0-5 SATA connectors.
9. J1J1_Front Panel Front Panel Connector.
10. IDE CON IDE CD-ROM connector.
11 J1D4_PWD_CLR Password clear.
12 J1D3_CMOS_CLR CMOS clear.
13 J1D1_Intruder Intruder alarm connector.
14 J4C4_RCVRY_MODE Recovery Mode connector.
15 PCI_SLOT 1 & 2 PCI Connectors.
16 PCI-E x 8 slot PCI-E x 8 slot for PCI-E card, supporting full-length cards.
17 PCI-E x 16 slot PCI-E x 16 slot for PCI-E card, supporting half-length cards.
18 Heatsink holes Holes for CPU Heatsink mounting pins (4 per CPU).
