Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best
performance and control - indeed we are setting the highest standards of
excellence.
In addition to this you find environmental and energy saving aspects as an
integral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we
recommend you to keep it in a safe place. And please pass it to any future owner
of the appliance.
We wish you much joy with your new appliance.
2
The following symbols are used in this manual:
Important information concerning your personal safety and information on how to
avoid damaging the appliance
General information and tips
Environmental information
132960250.qxd 18/09/2008 14.29 Pagina 2

Contents
Instruction booklet 6
Safety information 6
Product Description 9
Detergent dispenser drawer 9
Control panel 10
Display 11
Indicator lights 11
First use 13
Personalization 13
Acoustic signal 13
Child safety lock 13
Daily use 14
Load the laundry 14
Measure out the detergent and the fabric softener 14
Select the required programme by turning the programme selector dial 15
Select the temperature 15
Select the Spin speed, RINSE HOLD option 15
Selected the desired option 16
PREWASH option 17
STAIN option 17
TIME SAVING option 17
Select an additional rinse 17
Press the START/PAUSE 17
Select the DELAY START 17
Altering an option or a running programme 18
Interrupting a programme 18
3
Contents
132960250.qxd 18/09/2008 14.29 Pagina 3

Cancelling a programme 18
Opening the door after the programme has started 18
At the end of the programme 19
Washing programmes 20
Programme information 23
Preparing the wash cycle 25
Sorting the laundry 25
Temperatures 25
Before loading the laundry 25
Maximum loads 26
Laundry weights 26
Removing stains 26
Detergents and additives 27
Quantity of detergent to be used 28
Degrees of water hardness 28
Care and cleaning 29
Descaling 29
After each wash 29
External cleaning 29
Detergent dispenser drawer 29
Washing drum 30
Door seal 30
Drain pump 30
Water inlet filter 31
Frost precautions 32
Emergency emptying out 32
4Contents
132960250.qxd 18/09/2008 14.29 Pagina 4

What to do if... 33
Technical Data 36
Consumption value 37
Installation 38
Unpacking 38
Positioning and levelling 39
Water inlet 40
Water-stop device 41
Water drainage 41
Electrical connection 42
Permanent connection 42
Enviroment concerns 43
Packaging materials 43
Old machine 43
Ecological hints 43
5
Contents
132960250.qxd 18/09/2008 14.29 Pagina 5

6
Instruction booklet
Safety information
Prior to using for the first time
• The safety of AEG/ELECTROLUX appliances complies with the industry
standards and with legal requirements on the safety of appliances. However,
as manufacturers, we feel it is our duty to provide the following safety notes.
You MUST read them carefully before installing or using the appliance.
• It is most important that this instruction book should be retained with the
appliance for future reference. Should the appliance be sold or transferred to
another owner, or should you move house and leave the appliance, always
ensure that the book is supplied with the appliance in order that the new
owner can get to know the functioning of the appliance and the relevant
warnings.
• You MUST read them carefully before installing or using the appliance.
• Before first starting up, check the machine for any damage incurred during
transport. Never connect up a damaged machine. If parts are damaged,
contact your supplier.
• If the appliance is delivered in the winter months when there are minus
temperatures: Store the washing machine at room temperature for 24 hours
before using for the first time.
General safety
• It is dangerous to alter the specifications or attempt to modify this product in
any way.
• During high temperature wash programmes the door glass may get hot. Do
not touch it!
• Make sure that small pets do not climb into the drum. To avoid this, please
check into the drum before using.
• Any objects such as coins, safety pins, nails, screws, stones or any other hard,
sharp material can cause extensive damage and must not be placed into the
machine.
• Only use the advised quantities of fabric softener and detergent. Damage to
the fabric can ensue if you over-fill. Refer to the manufacturer’s
recommendations of quantities.
• Wash small items such as socks, laces, washable belts etc in a washing bag or
pillow case as it is possible for such items to slip down between the tub and
the inner drum.
Safety information
132960250.qxd 18/09/2008 14.29 Pagina 6

7
• Do not use your washing machine to wash articles with whalebones, material
without hems or torn material.
• Always unplug the appliance and turn off the water supply after use, clean
and maintenance.
• Under no circumstances should you attempt to repair the machine yourself.
Repairs carried out by inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Centre. Always insist on genuine
spare parts.
Installation
• When unpacking the appliance, check that it is not damaged. If in doubt, do
not use it and contact the Service Centre.
• All packing and transit bolts must be removed before use. Serious damage can
occur to the product and to property if this is not adhered to. See relevant
section in the user manual.
• After having installed the appliance, check that it is not pressing or standing
on its electrical supply cable, inlet hose and drain hose.
• If the machine is situated on a carpeted floor, please adjust the feet in order
to allow air to circulate freely
• Always be sure, that there is no water leakage from hoses and their
connections after the installation.
• If the appliance is installed in a location subject to frost, please read the
“dangers of freezing” chapter.
• Any plumbing work required to install this appliance should be carried out by
a qualified plumber or competent person.
• Any electrical work required to install this appliance should be carried out by
a qualified electrician or competent person.
Use
• This appliance is designed for domestic use. It must not be used for purposes
other than those for which it was designed.
• Only wash fabrics which are designed to be machine washed. Follow the
instructions on each garment label.
• Do not overload the appliance. See the relevant section in the user manual.
• Before washing, ensure that all pockets are empty and buttons and zips are
fastened. Avoid washing frayed or torn articles and treat stains such as paint,
Safety information
132960250.qxd 18/09/2008 14.29 Pagina 7

ink, rust, and grass before washing. Underwired bras must NOT be machine
washed.
• Garments which have been in contact with volatile petroleum products should
not be machine washed. If volatile cleaning fluids are used, care should be
taken to ensure that the fluid is removed from the garment before placing in
the machine.
• Never pull the power supply cable to remove the plug from the socket; always
take hold of the plug itself.
• Never use the washing machine if the power supply cable, the control panel,
the working surface or the base are damaged so that the inside of the washing
machine is accessible.
Child Safety
• This appliance is not intended for use by person (including children) with
reduced physical sensory or mental capabilities or lack of experience and
knowledge unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• This washing machine is not intended for use by young children or infirm
persons without supervision.
• Young children should be supervised to ensure that they do not play with the
appliance.
• The packaging components (e.g. plastic film, polystyrene) can be dangerous to
children - danger of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s reach.
• Make sure that children or pets do not climb into the drum. To prevent children
or pets from becoming trapped inside the machine incorporates a special
feature. To activate this device, rotate the button (without pressing it) inside the
door clockwise until the groove is
horizontal. If necessary use a coin. To
disable this device and restore the
possibility of closing the door, rotate the
button anti-clockwise until the groove is
vertical.
8Safety information
132960250.qxd 18/09/2008 14.29 Pagina 8

9
Product description
Product description
Your new appliance meets all modern requirements for effective treatment of
laundry with low water, energy and detergent consumption.
The EEccoosystem allows total use of detergent and reduces water consumption so
saving energy.

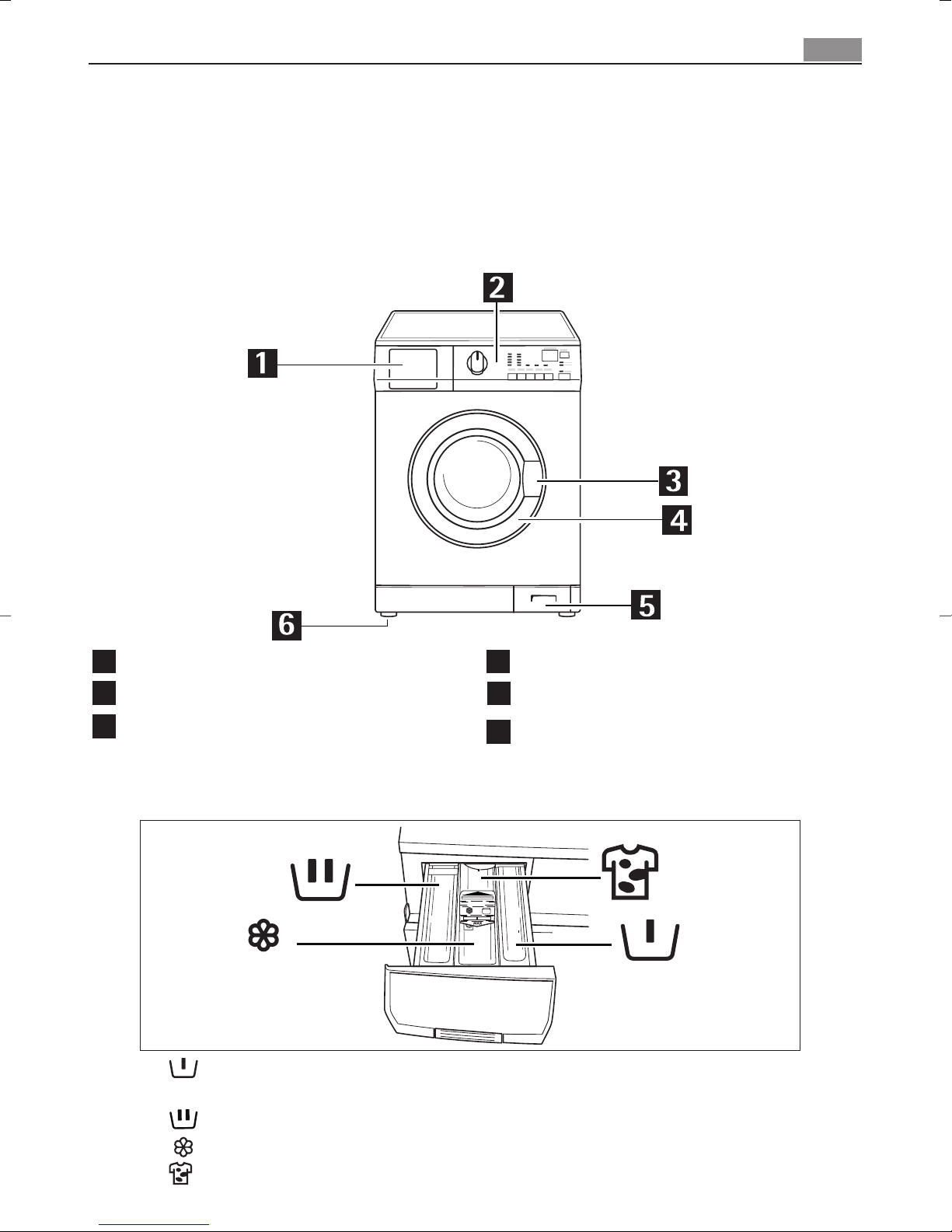

Detergent dispenser drawer
Compartment for detergent used for prewash. The prewash detergent is
added at the beginning of the wash programme.
Compartment for powder or liquid detergent used for main wash.
Compartment for liquid additives (fabric softener, starch).
Compartment for stain remover used for main wash with STAIN-option.
Rating plate
Drain pump
Three adjustable feet; The rear foot
on the left-hand side is automatic
Detergent dispenser drawer
Control panel
Door opening handle
1
2
36
4
5
132960250.qxd 18/09/2008 14.29 Pagina 9

Control panel
Henceforth the programme selector dial, the buttons and the display will be
indicated with the numbers given in this table.
Programme selector dial
TEMPERATURE button (TEMP.)
SPIN REDUCTION button (TPM ESSORAGE)
PRE WASH button (VOORWAS PRELAVAGE)
STAIN button (VLEKKEN TACHES)
TIME SAVING button (TIJD TEMPS)
DISPLAY (LOOPTIJD TEMPS RESTANT)
START/PAUSE button (START/PAUZE DEPART/PAUSE)
DELAY START button (STARTUITSTEL DEPART DIFFERE)
Indicator pilot lights
1 2 3 4 5 6 7 8 9 10
10 Control panel
1
2
3
4
5
6
7
8
9
10
Symbolentoets:
= Handwash, = Cold, = Rinse hold, = Child safety lock
132960250.qxd 18/09/2008 14.29 Pagina 10

Display (7)
Child safety lock symbol
Duration of the selected programme
After selecting a programme, the duration is displayed in hours and minutes (for
example 2.05). The duration is calculated automatically on the basis of the
maximum recommended load for each type of fabric.
After the programme has started, the time remaining is updated every minute.
Delay start
The selected delay (20 hours max) set by pressing the relevant button appears on
the display for about 3 seconds (for example 90’), then the duration of the
previously selected programme is displayed. The symbol 7.3 will appear on the
display.
The delay time value decreases by one unit every hour and then, when remains 1
hour, the time decreases every minute.
Incorrect option selection
If an option which is not compatible with the set wash programme is selected,
the message Err is displayed for a few seconds and the yellow light of button 8
starts blinking.
Alarm codes
In the event of operating problems, some alarm codes can be displayed, for
example E20 (see chapter «What to do if...»).
End of the programme
When the programme has finished a blinking zero «0» is displayed, the 7.5
symbol (Door) disappears from the display and the door can be opened.
7.1 7.2
7.3
7.4
7.5
11
Display
7.1
7.2
132960250.qxd 18/09/2008 14.29 Pagina 11

If your laundry is not removed within 10 minutes after the programme is finished,
the backlight of the display switches off and the energy saving system will be
enabled.
Only the button 8pilot light is blinking to indicate that the appliance has to be
switched off.
By pressing any buttons the appliance will come out from the energy saving status
and you could set another washing programme or swich off the appliance.
DELAY START symbol
WASHING PASES symbols
The display shows the washing phases of the selected programme. After the
programme starts operating, the display shows the relevant symbol of the
washing phase which is running: WASHING , RINSING , SPINNING ,
DRAININIG
DOOR locked symbol
This symbol indicates if the door can be opened:
●the symbol is on: the door cannot be opened. The appliance is performing a
washing programme or has stopped with water left in the tub.
●the symbol is off: the door can be opened. The washing programme is
finished.
Indicator pilot lights (10)
If the OVERDOSAGE (OVERDOSERING SURDOSAGE) 10.1 illuminates at the end
of the programme, it indicates that too much detergent has been used.
When the appliance is performing additional rinses the pilot
light EXTRA RINSE (EXTRA SPOELEN RINÇAGE PLUS) 10.2
illuminates.
12 Display
7.3
7.4
7.5
10.1
10.2
132960250.qxd 18/09/2008 14.29 Pagina 12

13
Use
First Use
Ensure that the electrical and water connections comply with the installation
instructions.
Remove the polystyrene block and any material from the drum.
Pour 2 litres of water into the main wash compartment of the detergent drawer
in order to activate the ECO valve. Then run a cotton cycle at 95°C, without any
laundry in the machine, to remove any manufacturing residue from the drum and
tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the
machine.
Personalization
Acoustic signals
The machine is provided with the acoustic device, which sounds in the following
cases:
●at the end of the cycle
●in the event of operating problems
By pressing the 3and 4buttons simultaneously for about 6 seconds, the
acoustic signal is deactivated (except for the events of operating problems).
By pressing these 2buttons again, the acoustic signal is reactivated.
Child safety lock
This device permits you to leave the appliance unsupervised without having the
worry that children might be injured by or cause damage to the appliance.
This function remains able also when the washing machine is not working.
There are two different ways to set this option:
●before pressing the button 8: it will be impossible to start the machine.
●after pressing the button 8it will be impossible to change any other
programme or option.
To enable (disable) this option press simoultaneously for about 6 seconds 4and 5
buttons until the symbol 7.1 appears (disappears) on (from) the display.
132960250.qxd 18/09/2008 14.29 Pagina 13

14 Use
Daily Use

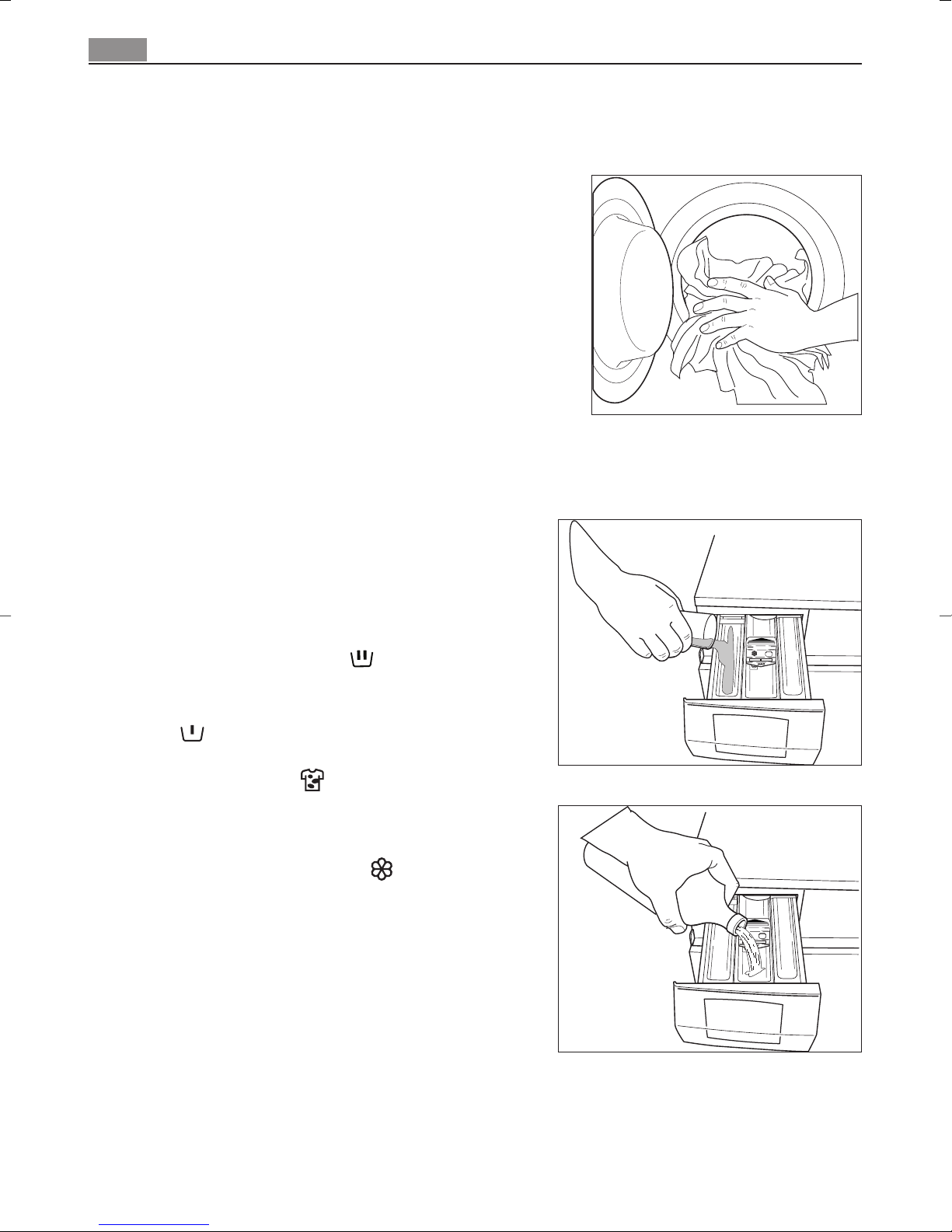

Load the laundry
1. Open the door by carefully pulling the door
handle outwards. Place the laundry in the drum,
one item at a time, shaking them out as much
as possible.
2. Close firmly the door. You must hear a click
during closing.
Attention! Do not embed the laundry
between the door and the rubber joint.
Measure out the detergent and the fabric softener
Your new appliance was designed to reduce
water, energy and detergent consumption.
1. Pull out the dispenser drawer until it
stops. Measure out the amount of
detergent required, pour it into the main
wash compartment and, if you wish
to carry out the prewash phase, pour the
detergent into the compartment marked
. If you wish to perform the stain
function , pour the stain remover into the
compartment .
2. If required, pour fabric softener into the
compartment marked (the amount
used must not exceed the MAX mark in
the drawer). Close the drawer gently.
132960250.qxd 18/09/2008 14.29 Pagina 14

15
Use
Select the required programme by means of programme selector
dial (1)
You can choose the right programme for any type of laundry following the
descriptions on the washing programme tables (see «Washing Programmes»).
Turn the programme selector dial to the required programme. The programme
selector determines the type of washing cycle (e.g. water level, drum movement,
number of rinses) and the washing temperature according to the type of laundry.
The pilot light of button 8starts blinking and the display shows the duration of
the selected programme.
The selector dial can be turned either clockwise or anticlockwise.
Position O= Reset programme/Switching OFF of the machine.
At the end of the programme the selector dial must be turned to position
O, to switch the machine off.
For the description of each washing programmes of the selector dial, consult the
chapter «Washing programmes».
Attention!
If you turn the programme selector dial to another programme when the machine
is working, the yellow pilot light of button 8will blink 3 times and the message
Err is displayed on the display to indicate a wrong selection. The machine will not
perform the new selected programme.
Select the temperature (button 2)
When selecting a programme, your appliance automatically proposes the default
temperature provided for that programme.
Press this button repeatedly to increase or decrease the temperature, if you want
your laundry to be washed at a different temperature.
By selecting the position (Cold) the machine will wash with cold watwer.
The maximum temperatures for each washing programme can be checked in the
paragraph «Washing programmes».
Select the spin speed or the RINSE HOLD option (button 3)
When the required programme has been selected, your appliance automatically
proposes the maximum spin speed provided for that programme.
Press this button repeatedly to change the spin speed, if you want your laundry
to be spun at a speed different from the one proposed by the washing machine.
RINSE HOLD: by selecting this option the water of the last rinse is not emptied out
132960250.qxd 18/09/2008 14.29 Pagina 15

16 Use
to prevent the fabrics from creasing. At the end of the programme, the display
shows a blinking «0» and the symbol 7.5 (door locked) remains lit, the pilot light of
button 8goes off and the door is locked to indicate that the water must be
emptied out.
To empty out the water, please read chapter «At the end of the
programme».
Programme option buttons
Depending on the programme, different functions can be combined. These must
be selected after choosing the desired programme and before pressing button 8.
When these buttons are pressed, the corresponding pilot lights come on. When
they are pressed again, the pilot lights go out.
If an incorrect option is selected, the yellow pilot light of the button 8flashes
for 3 times and the Err message appears on the display for a few seconds.
For the compatibility between this option and washing programmes consult the
chapter «Washing programmes».
PREWASH option (button 4)
Select this option if you wish your laundry to be prewashed at 30°C before the
main wash.
The Prewash ends with a short spin in programmes for cotton and synthetic
fabrics, whereas in the programmes for delicate fabrics the water is only drained.
The relevant light button illuminates.
STAIN option (button 5)
Select this option to treat heavily soiled or stained laundry with stain remover
(extended main wash with time optimised stain action phase).
This option is not available with a temperature lower than 40°C.
Attention! If you wish to perform a programme with the stain option, pour stain
remover into compartment .
TIME SAVING option (button 6)
The washing machine proposes by default the washing cycle for «Normally soiled
laundry». By pressing this button the washing cycle can be shorted as follows:
DAILY: by pressing this button once, the corresponding symbol appears on the
display and you will be able to short the washing duration for «Daily soiled
laundry». The display will show the shorted washing time. To be used for daily
soiled laundry.
132960250.qxd 18/09/2008 14.29 Pagina 16

17
Use
SUPER QUICK: by pressing this button twice, the corresponding symbol remains
alight on the display and you will be able to short the washing duration for
«lightly soiled laundry».
The display will show the shorted washing time. To be used for very lightly soiled
laundry only.
Select an additional rinse (EXTRA RINSE)
This appliance is designed for saving water. However, for people with a very
delicate skin (allergic to detergents) it may be necessary to rinse the laundry
using an extra quantity of water (extra rinse).
If you wish to activate this option permanently for every washing cycle, press
simoultaneously 2and 3buttons for about 6 seconds: the pilot light 10.2
illuminates. This option remains active permanently.
If you wish to cancel it depress the same buttons untill the light goes off.
Press the START/PAUSE (button 8)
To start the selected programme, press the button 8; the corresponding red pilot
light stops blinking.
The symbols 7.4 and 7.5 appear on the display to indicate that the appliance
has started operating and the door is locked. If you have chosen a delayed start,
the machine will begin the countdown.
To interrupt a programme which is running, press the button 8:the
corresponding red pilot light starts blinking.
To restart the programme from the point at which it was interrupted, press the
button 8again.
If an incorrect option is selected, the yellow pilot light of the button 8 blinks 3
times, the message Err is displayed for about 2 seconds.
Select the DELAY START by pressing the button 9
The washing programme can be delayed from 30 min - 60 min - 90 min, 2 hours
and then by 1 hour up to a maximum of 20 hours by means of this button.
Before you start the programme, if you wish to delay the start, press the
button 9repeatedly, to select the desired delay. The corresponding symbol will
appear on the display
The selected delay time value (up to 20 hours) will appear on the display for
quelques seconds, then the duration of the programme will appear again.
You must select this option after you have set the programme and before you
press the button 8.
132960250.qxd 18/09/2008 14.29 Pagina 17

18 Use
You can modify or cancel the delay time at any moment, before you press the
button 8.
If you wish to add laundry in the machine during the delay time, press the
button 8to set the machine to pause. When the symbol 7.5 disappears, the door
can be opened. After you have closed the door, press the button 8 again.
Selecting the delayed start:
●Select the programme and the required options;
●Select the delay start;
●Press button 8: the machine starts its hourly countdown. The programme will
start after the selected delay has expired.
Cancelling the delayed start:
●set the washing machine to PAUSE by pressing the button 8;
●press the button 9 until the symbol «0’» is displayed;
●press the button 8again to start the programme.
The Delay Start cannot be selected with DRAIN programme.
Altering an option or a running programme
It is possible to change any option before the programme carries it out. Before
you make any change, you must pause the washing machine by pressing the
button 8.
Changing a running programme is possible only by resetting it. Turn the
programme selector dial to Oand then to the new programme position. Start
the new programme by depressing the button 8again. The washing water in the
tub will be not emptied out.
Interrupting a programme
Press the button 8to interrupt a programme which is running, the
corresponding light starts blinking. Press the button again to restart the
programme.
Cancelling a programme
Turn the selector dial to Oto cancel a programme which is running. Now you
can select a new programme.
Opening the door after the programme has started
First set the machine to pause by pressing the button 8.
If the symbol 7.5 disappears, the door can be opened.
132960250.qxd 18/09/2008 14.29 Pagina 18

19
Use
if the symbol 7.5 doesn’t go off, it means that the machine is already heating, or
that the water level is too high. In this case the door cannot be opened.
If you cannot open the door but you need to open it, you have to switch the
machine off by turning the selector dial to O. After some minutes the door can
be opened (pay attention to the water level and temperature!).
After closing the door, it is necessary to select the programme again and to press
button 8.
At the end of the programme
The machine stops automatically, the pilot light of button 8pilot light goes off,
a blinking «0» appears on the display and the acoustic signal sounds for some
minutes. The symbol 7.5 disappears from the display.
If you have choosen a programme or an option that ends with water in the tub,
the symbol 7.5 is still visible on the display and the door remains locked.
Follow the below instruction to empty the water out:
●turn the programme selector dial to O
●select the Draining or Spinning programme
●reduce the spin speed if needed, by pressing the relevant button
●press the button 8
●when the programme has finished the display shows a blinking «0». On the
display the symbol 7.5 disappears and the door can be opened.
Turn the programme selector dial to Oto switch the machine off. Remove the
laundry from the drum and carefully check that the drum is empty.
If you do not intend to carry out another wash, close the water tap. Leave the
door open to prevent the formation of mildew and unpleasant smells.
132960250.qxd 18/09/2008 14.29 Pagina 19

20 Washing programmes
Washing programmes
Programme/
Temperature TTyyppeeooffllaauunnddrryyOptions Description of the programme
COTTONS
(KATOEN
BLANC
COULEURS)
95° - COLD
White and coloured
cotton (normally soiled
cotton items)
SPIN REDUCTION/
RINSE HOLD/
PREWASH - STAIN(*)-
EXTRA RINSE
TIME SAVING
Main wash, Rinses
Long spin at 1400 rpm
Max Load: Kg 7
**Reduced load: Kg 3.5
HYGIENE
60°
Special programme for
white cottons
SPIN REDUCTION/
RINSE HOLD
PREWASH - STAIN
Main wash, Rinses,
Long spin at 1400 rpm
Max Load: Kg 7
SYNTHETICS
(SYNTHETICA
SYNTHETIQUES)
60°-COLD
Synthetic or mixed
fabrics
SPIN REDUCTION/
RINSE HOLD/
PREWASH - STAIN(*) -
EXTRA RINSE
TIME SAVING
Main wash
Rinses
Short spin at 1200 rpm
Max Load: Kg 3.5
**Reduced load: Kg 1.5
EASY IRON
(STRIJKVRIJ PLUS
REPASSAGE
FACILE PLUS)
60°-COLD
Synthetic or mixed
fabrics: underwear,
coloured garments, non-
shrink shirts, blouses
SPIN REDUCTION/
RINSE HOLD
PREWASH - EXTRA RINSE
Main wash
Rinses
Short spin at 1200 rpm
Max Load Kg 1.5
JEANS
60°-COLD
Special programme for
jeans, denim items
SPIN REDUCTION /
RINSE HOLD /
PREWASH
Main wash
Rinses
Long spin at 1200 rpm
Max Load Kg 3.5
DELICATES
(FIJNE WAS
DELICATS)
40°-COLD
Delicate fabrics: for
example curtains
SPIN REDUCTION/
RINSE HOLD/
PREWASH - STAIN(*) -
EXTRA RINSE
TIME SAVING
Main wash
Rinses
Short spin at 1200 rpm
Max Load: Kg 3.5
**Reduced load: Kg 1.5
40-60 MIX
40° Mixed fabrics
SPIN REDUCTION /
RINSE HOLD /
PREWASH - STAIN -
EXTRA RINSE
Main wash, Rinses
Long spin at 1400 rpm
Max Load: Kg 7
132960250.qxd 18/09/2008 14.29 Pagina 20
