6
Instruction for the user
Safety information
Prior to using for the first time
●The safety of AEG/ELECTROLUX appliances complies with the industry
standards and with legal requirements on the safety of appliances. However,
as manufacturers, we feel it is our duty to provide the following safety notes.
You MUST read them carefully before installing or using the appliance.
●It is most important that this instruction book should be retained with the
appliance for future reference. Should the appliance be sold or transferred to
another owner, or should you move house and leave the appliance, always
ensure that the book is supplied with the appliance in order that the new
owner can get to know the functioning of the appliance and the relevant
warnings.
●You MUST read them carefully before installing or using the appliance.
●Before first starting up, check the machine for any damage incurred during
transport. Never connect up a damaged machine. If parts are damaged,
contact your supplier.
●If the appliance is delivered in the winter months when there are minus
temperatures: Store the washing machine at room temperature for 24 hours
before using for the first time.
General safety
●It is dangerous to alter the specifications or attempt to modify this product in
any way.
●During high temperature wash programmes the door glass may get hot. Do
not touch it!
●Make sure that small pets do not climb into the drum. To avoid this, please
check into the drum before using.
●Any objects such as coins, safety pins, nails, screws, stones or any other hard,
sharp material can cause extensive damage and must not be placed into the
machine.
●Only use the advised quantities of fabric softener and detergent. Damage to
the fabric can ensue if you over-fill. Refer to the manufacturer’s
recommendations of quantities.
●Wash small items such as socks, laces, washable belts etc in a washing bag or
pillow case as it is possible for such items to slip down between the tub and
the inner drum.
Safety information
132971880 gb.qxd 31/08/2007 12:51 Pagina 6
Ofrecido por www.electromanuales.com

7
●Do not use your washing machine to wash articles with whalebones, material
without hems or torn material.
●Always unplug the appliance and turn off the water supply after use, clean
and maintenance.
●Under no circumstances should you attempt to repair the machine yourself.
Repairs carried out by inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Centre. Always insist on genuine
spare parts.
Installation
●This appliance is designed for domestic use. It must not be used for purposes
other than those for which it was designed.
●When unpacking the appliance, check that it is not damaged. If in doubt, do
not use it and contact the Service Centre.
●All packing and transit bolts must be removed before use. Serious damage can
occur to the product and to property if this is not adhered to. See relevant
section in the user manual.
●After having installed the appliance, check that it is not pressing or standing on
its electrical supply cable, inlet hose and drain hose.
●If the machine is situated on a carpeted floor, please adjust the feet in order to
allow air to circulate freely
●Always be sure, that there is no water leakage from hoses and their connections
after the installation.
●If the appliance is installed in a location subject to frost, please read the
«dangers of freezing» chapter.
●Any plumbing work required to install this appliance should be carried out by a
qualified plumber or competent person.
●Any electrical work required to install this appliance should be carried out by a
qualified electrician or competent person.
Use
●This appliance is designed for domestic use. It must not be used for purposes
other than those for which it was designed.
●Only wash fabrics which are designed to be machine washed. Follow the
instructions on each garment label.
●Do not overload the appliance. See the relevant section in the user manual.
Safety information
132971880 gb.qxd 31/08/2007 12:51 Pagina 7
Ofrecido por www.electromanuales.com

●Before washing, ensure that all pockets are empty and buttons and zips are
fastened. Avoid washing frayed or torn articles and treat stains such as paint,
ink, rust, and grass before washing. Underwired bras must NOT be machine
washed.
●Garments which have been in contact with volatile petroleum products should
not be machine washed. If volatile cleaning fluids are used, care should be
taken to ensure that the fluid is removed from the garment before placing in
the machine.
●Never pull the power supply cable to remove the plug from the socket; always
take hold of the plug itself.
●Never use the washing machine if the power supply cable, the control panel,
the working surface or the base are damaged so that the inside of the washing
machine is accessible.
Child Safety
●This appliance is not intended for use by person (including children) with
reduced physical sensory or mental capabilities or lack of experience and
knowledge unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
●Young children should be supervised to ensure that they do not play with the
appliance.
●The packaging components (e.g. plastic film, polystyrene) can be dangerous to
children - danger of suffocation! Keep them out of children’s reach.
●Keep all detergents in a safe place out of children’s reach.

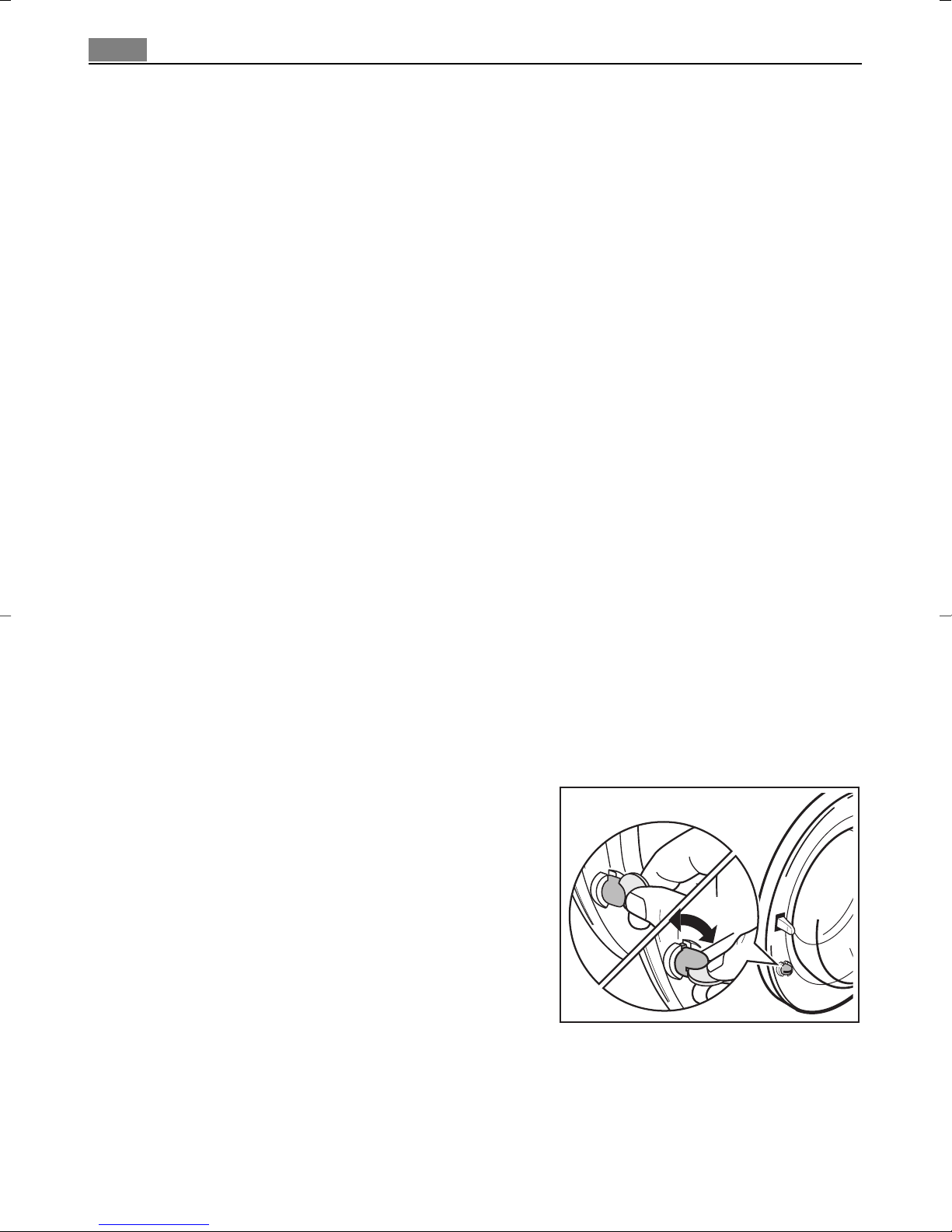

●Make sure that children or pets do not
climb into the drum. To avoid this the
machine incorporates special feature. To
activate this device, rotate the button
(without pressing it) inside the door
clockwise until the groove is horizontal.
If necessary use a coin. To disable this
device and restore the possibility of
closing the door, rotate the button anti-
clockwise until the groove is vertical.
8Safety information
132971880 gb.qxd 31/08/2007 12:51 Pagina 8
Ofrecido por www.electromanuales.com

9
Product description
Your new appliance meets all modern requirements for effective treatment of
laundry with low water, energy and detergent consumption.

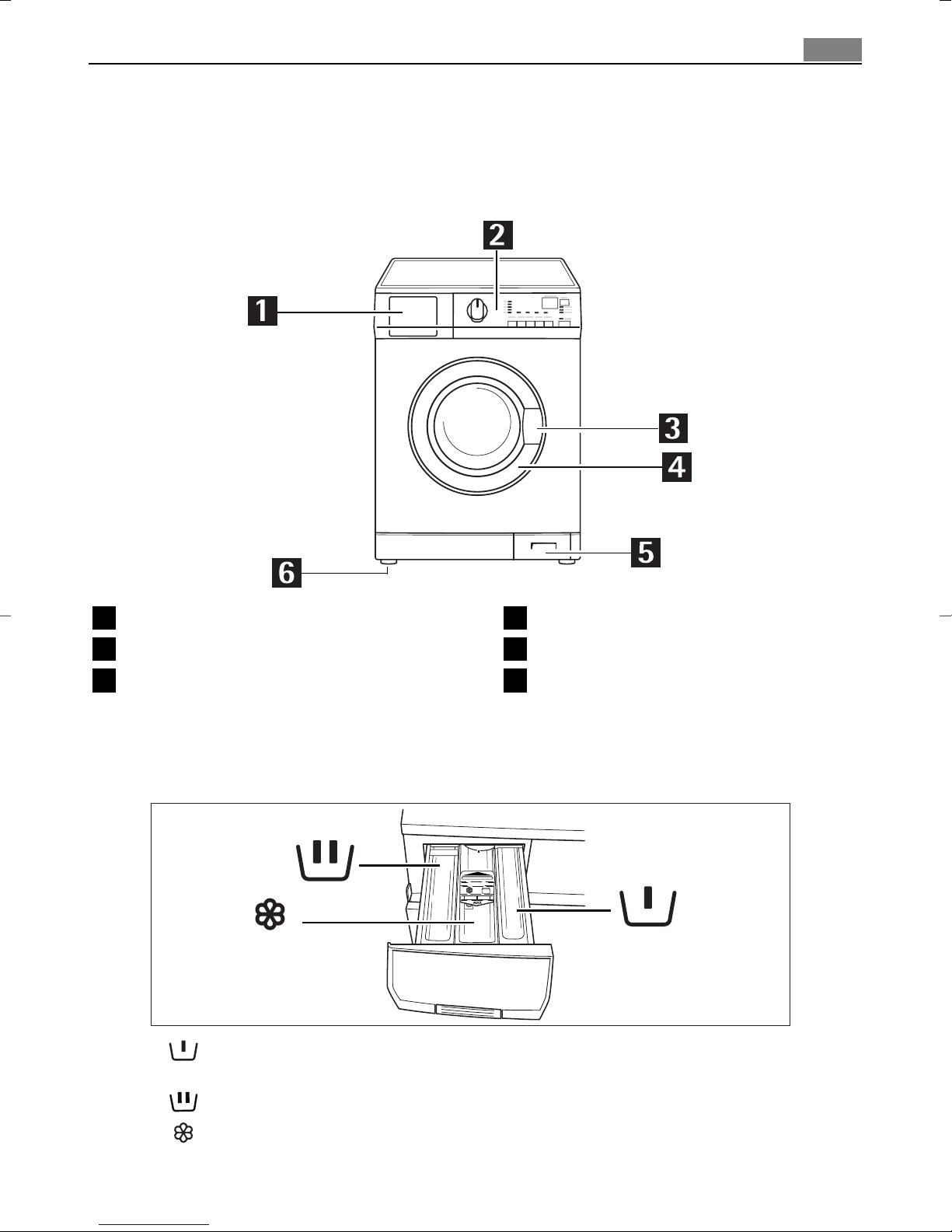

Detergent dispenser drawer
The prewash detergent is added at the beginning of the wash programme. The
stain remover is added during the STAIN-Action phase in the main wash.
Compartment for powder or liquid detergent used for main wash.
Compartment for liquid additives (fabric softener, starch).
Rating plate
Drain pump
Adjustable feet
Detergent dispenser drawer
Control panel
Door opening handle
Product description
1
2
3
4
5
6
132971880 gb.qxd 31/08/2007 12:51 Pagina 9
Ofrecido por www.electromanuales.com

10 Control panel
Control panel
First Use
Ensure that the electrical and water connections comply with the installation
instructions.
Remove the polystyrene block and any material from the drum.
Pour 2 litres of water into the main wash compartment of the detergent drawer
in order to activate the ECO valve. Then run a cotton cycle at maximum
temperature, without any laundry in the machine, to remove any manufacturing
residue from the drum and tub. Pour 1/2 a measure of detergent into the dispenser
drawer and start the machine.
«Quick» button
Display
«Start/Pause» button
«Delay Start» button
Programme progress display
Programme selector dial
Spin reduction button
«Prewash» button
«Stain» button
«Sensitive» button
1 2 3 4 5 6 7 8 9 10
1200
900
700
500
PLANCHA
FÁCIL PLUS
OFF
95 60
40
30
ALGODÓN
60
40
30
40
40
30
DELICADOS
30
LANA PLUS
CENTRIFUGAR
DESCARGA
ACLARADO
ALGODÓN ECO
20 MIN - 3 G
SILENT SYSTEM PLUS
SINTÉ-
TICOS
CENTRIFUG. PRE-
LAVADO MANCHAS
SENSIBLE TIEMPO
START/PAUSA
AQUACARE
SOBRE DOSIF.
INICIO DIFERIDO
TIEMPO RESTANTE
1
2
3
4
5
6
7
8
9
10
