AEG Electrolux LAVAMAT 64819 Operation manual

LAVAMAT 64819
Washing machine
User information

2
Dear Customer,
Please read this user information carefully and keep it to refer to later.
Please pass the user information on to any future owner of the appli-
ance.
The following symbols are used in the text:
1Safety instructions
Warning! Information that affects your personal safety.
Important! Information that prevents damage to the appliance.
3Useful tips and hints
2Environmental information

3
Contents
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Programme overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before the first wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Preparing and sorting washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Running a wash cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Opening the door/loading washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Adding detergent /conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching on the appliance/selecting a programme . . . . . . . . . . . . . . . . . . . 12
Changing the spin speed/selecting rinse hold . . . . . . . . . . . . . . . . . . . . . . . . 13
Selecting additional programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
RINSE + . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
TIME SAVER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
PRE WASH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
STAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting the delay timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Interrupting a programme/adding washing . . . . . . . . . . . . . . . . . . . . . . . . . . 15
End of the wash cycle/removing the washing . . . . . . . . . . . . . . . . . . . . . . . . 16
Child safety device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
What to do if.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Remedying small faults yourself . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
If the wash result is not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Carrying out an emergency drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Drain pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4
Installation and connection instructions. . . . . . . . . . . . . . . . . 27
Safety information concerning installation . . . . . . . . . . . . . . . . . . . . . . . . 27
Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Transporting the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Where to install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Making the appliance level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Connecting to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Water Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Guarantee/Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

5
Operating Instructions
1Safety
Prior to using the appliance for the first time
•Follow the “Installation and connection instructions”.
•If the appliance is delivered in the winter months when there are mi-
nus temperatures: store the washing machine at room temperature
for 24 hours before using for the first time.
Correct use
•The washing machine is only designed for the washing of normal do-
mestic laundry at home.
•Additions or modifications to the washing machine are not permit-
ted.
•Only use detergents/conditioners that are suitable for use in domestic
washing machines.
•The washing must not contain any flammable solvent. The risk of ex-
plosion exists.
•Do not use the washing machine for dry cleaning.
•Dyes/colour removers may only be used in the washing machine, if
the manufacturer of these products expressly permits this. We cannot
accept liability for any damage arising.
Child safety
•Keep packaging away from children. There is a risk of suffocation.
•Children often do not recognise the hazards associated with electrical
appliances. Don’t allow children to use the washing machine unsu-
pervised.
•Make sure that children and pets don’t climb into the drum of the
washing machine. The risk of death exists.
General safety
•Repairs to the washing machine may only be carried out by qualified/
authorised service engineers.
•Never use the appliance when the electrical cable is damaged or the
control panel, worktop or plinth area are damaged to such an extent
that the inside of the appliance is openly accessible.

6
•Switch off the washing machine prior to cleaning it and carrying out
maintenance. In addition, remove the power plug from the power
point or – if the appliance has been hard-wired – switch off the cut-
out in the fuse box or completely remove the fuse.
•If operation is stopped, disconnect the appliance from the mains sup-
ply and turn off the tap.
•Never remove the power plug from the power point by pulling on the
cable. Always pull the plug.
•Multiway-plugs, connectors and extension cables must not be used.
Resulting overheating may constitute a fire hazard.
•Never wash the washing machine down with a water jet. Danger of
electric shock.
•When using wash programmes with high temperatures the glass in
the door will become hot. Do not touch it!
•Before emergency emptying of the appliance, before cleaning the
drain pump or opening the door in an emergency, let the water cool
down.
•Small animals can nibble on electrical cables and water hoses. This
can constitute a risk of electrocution and water damage. Keep small
animals away from the washing machine.

7

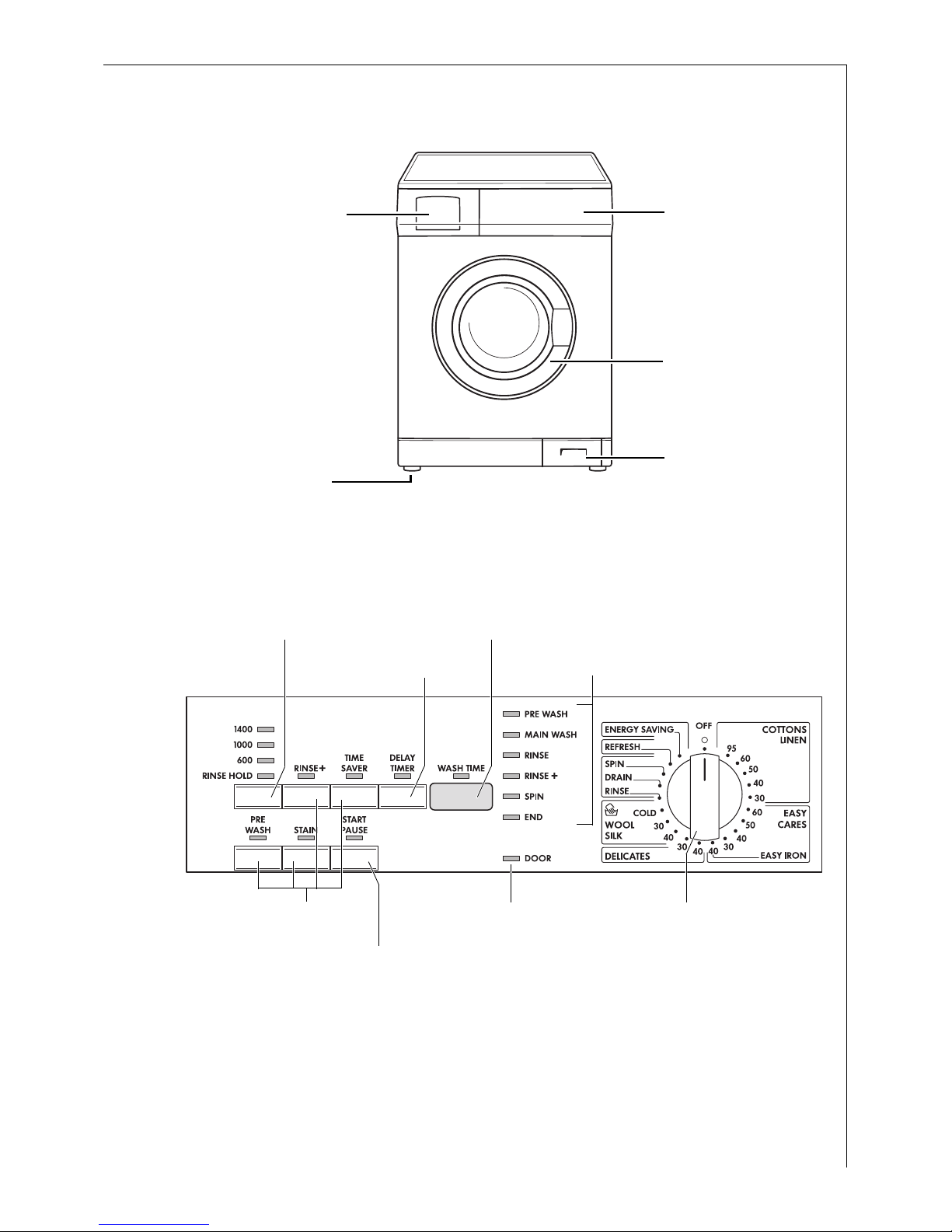

Description of the appliance
Control panel
Detergent dispenser
drawer
Screw feet
(height adjustable)
Plinth flap/
Drain pump
Rating plate
(behind door)
Control panel
DELAY TIMER button
Spin/RINSE HOLD button
Programme progress display
Multi-display
Programme selector
DOOR indicator
A
dditional programme
buttons
START/PAUSE button

8
Programme overview
Programme
max. load 1)
(dry washing)
1) A 10 litre bucket contains approx. 2.5 kg dry washing (cotton)
Additional programmes Spin speed
RINSE + TIME SAVER PRE WASH STAIN 1400 1000/ 600 RINSE HOLD
ENERGY SAVING2)
2) Programme settings for tests in accordance with or in the style of EN 60 456 and IEC 60 456 are de-
scribed in the chapter “Consumption values”.
6kg • • • • • •
COTTONS/LINEN
95, 60, 50, 40, 30 6kg • •3)
3) Recommended load for short progammes is 3kg; full loading is possible however with somewhat re-
duced cleaning results.
• •4)
4) STAIN can only be set from 40° upwards, as stain removal agent only becomes effective at higher tem-
peratures.
•••
EASY-CARES
60, 50, 40, 30 3kg • • • •4) • •
EASY IRON 40 1kg • • • • • •
DELICATES
40, 30 3kg • • • • •
WOOL/SILK H(Hand-washing)
40, 30, COLD 2kg • •
RINSE 3kg • •
DRAIN
SPIN 6kg • •
REFRESH 3kg • •

9
Application/Features Care
symbols1)
1) The figures in the care symbols indicate the maximum temperatures.
Energy-saving programme which washes at 60 °C for lightly to normally
soiled whites or coloureds made of cotton/linen. M O
Programme for normally to heavily soiled whites/coloureds made of cotton/
linen. J M O
Programme for easy-care mixed fibres and synthetics. I K N
Special programme which washes at 40 °C for easy-care fabrics which after
being washed using this programme need to be ironed only lightly or not at K N
Gentle programme for delicate textiles such as bonded fibres, micro-fibres,
synthetics, net curtains (load max. 20 to 25m2curtains). If used together
with RINSE HOLD, also suitable for fabrics with climatic membranes, e.g.
I K
Specially gentle programme for machine and hand-washable wool/silk. Q L H
Separate gentle rinse (3 rinse cycles, liquid conditioner is washed in from the
compartment &, gentle spin).
I K N
Q L H
Draining following a rinse hold.
Draining and spinning, e.g. following a rinse hold, or separate spinning of
hand-washed cottons/linen. J M O
Special programme which washes at 30 °C, approx. 30 minutes, for brief
washing of e.g. worn-once, lightly soiled sports clothing or new clothes. J M O
I K N

10
Before the first wash
1. Open the detergent drawer.
2. Pour approx. 1 litre of water through the detergent drawer into the
washing machine.
This closes the water container when the next programme is started
and the economy valve can function properly
3. To remove any production-related residues from the drum and water
tank, perform the first wash cycle without a load. Programme: COT-
TONS/LINEN 95, press the TIME SAVER button, add approx. 1/4 measur-
ing cup of detergent.
Preparing and sorting washing
Preparing washing
•Empty the pockets. Remove foreign bodies (e.g. coins, paper clips,
nails, etc.).
•Do up zips, button up covers to prevent damage to washing.
•Remove the runners from net curtains or cover them with a net or a
bag.
•Wash delicate and small items in a net/pillowcase, e. g. net curtains,
tights, small socks, handkerchiefs, bras.
Important: Bras and other items containing wires should only be
washed in a net bag. The wires can work loose and damage the appli-
ance.
Sorting washing
•By colour: Wash white and coloured washing separately. Washing can
run.
•By temperature, type of washing and care symbol.
Important: Do not wash fabrics with the Gcare symbol (= do not
wash!) in the washing machine.

11
Running a wash cycle
Opening the door/loading washing
1. Open the door: pull the handle on the door.
When the appliance is switched on, the DOOR and START/PAUSE indica-
tors show whether the door can be opened:

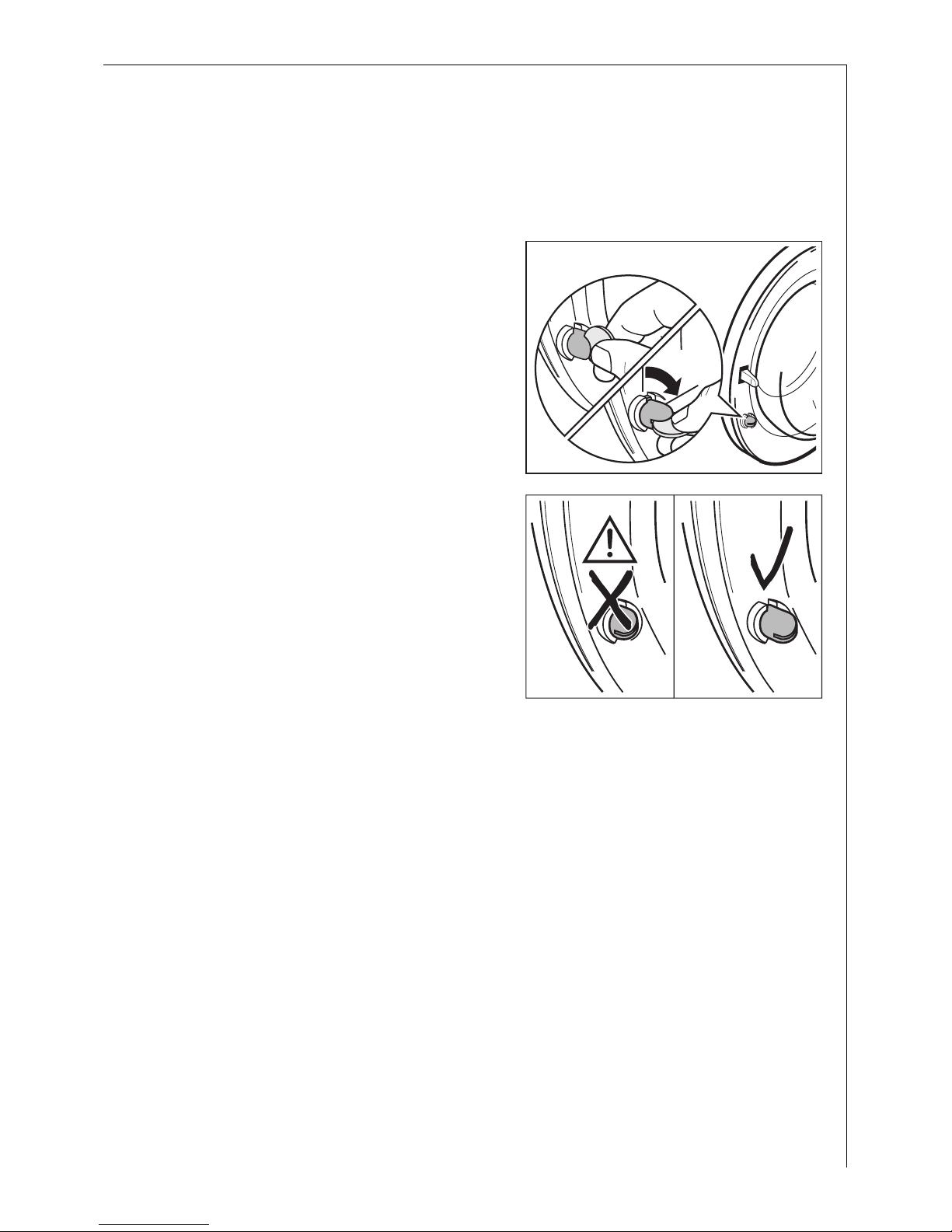

2. Separate washing and load it loose-
ly. Mix large and small items.
Important: Do not get any washing
caught between the door and the
rubber seal.
3. Firmly push the door shut. Door
catch must audibly click shut.
Adding detergent /conditioner
Important: Only use detergents/conditioners that are suitable for use
in household washing machines.
Add detergent/conditioner in accordance with the detergent/condi-
tioner manufacturer’s instructions. Observe instructions on the packag-
ing.
The amount of detergent used depends on:
–the degree of soiling,
–the load size
–the hardness of the tap water.
•If the manufacturer does not make any recommendations with re-
gard to small volumes of washing: For a half-load use a third less, and
for a very small load use only the half the amount of detergent that
is recommended for a full load.
•Water softener should be used from water hardness range 2 (=medi-
um). The amount of detergent used can then always be that as for
DOOR indicator START/PAUSE indicator Can the door be opened?
illuminated green flashing red or not illumi-
nated yes
illuminated green illuminated red yes, after pressing the
START/PAUSE button
illuminated red
or not illuminated
flashing red
or illuminated red
no, water level and/or
temperature too high

12
hardness range 1 (=soft). Your local water company will provide you
with information about water hardness in your area.
1. Pull out the detergent drawer as far as it will go.
2. Add the detergent/conditioner.
3. Push the detergent drawer in fully.
Washing powder/tablets for the main wash cycle
If you are using water softener and require the right compartment for
detergent for the pre-wash cycle, add the water softener on top of the
detergent for the main wash cycle in the left compartment.
Softener, wash-care products to preserve the shape of garments,
starch
Fill the compartment to no more than the MAX indicator. Add water to
thick liquid concentrates in accordance with the manufacturer’s in-
structions before using them. Dissolve powder starch.
If you are using liquid detergent:
Add liquid detergent using measuring containers provided by the de-
tergent manufacturer.
Switching on the appliance/selecting a programme
Set the programme and tempera-
ture using the programme selector.
3The appliance is switched on by se-
lecting a programme.
–The programme progress display
shows the programme steps that
the selected programme will car-
ry out.
–The estimated programme dura-
tion (in minutes) appears in the
multi-display.
Stain removal agent/
stain removal tablets
Washing powder/tablets
for the main wash cycle
Conditioner/Wash-care
products to preserve the
shape of garments/Starch
Washing powder/tablets
for the pre wash cycle
or water softener

13
Changing the spin speed/selecting rinse hold
The washing machine suggests the
maximum permitted spin speed
suitable for the selected pro-
gramme. You can reduce this spin
speed:
To do this, press the Spin/RINSE
HOLD button repeatedly until the
required indicator is illuminated.
3The spin speed for the final spin can be changed even during the pro-
gramme. To do this:
1. Press the START/PAUSE button.
2. Change the spin speed.
3. Press the START/PAUSE button again.
RINSE HOLD
With RINSE HOLD the washing is left to soak in the final rinse water. No
final spin takes place, only the intermediate spin. The intermediate spin
depends on the programme and cannot be changed.
Selecting additional programmes
If required, press additional pro-
gramme button(s). The correspond-
ing indicator will illuminate.
3If “Err” flashes in the multi-display,
the selected additional programme
cannot be used together with the
wash programme set.
RINSE +
Two additional rinse cycles are carried out for the programmes ENERGY
SAVING, COTTONS/LINEN, DELICATES, EASY-CARES and EASY IRON (for
example in cases of over-sensitive skin).
TIME SAVER
Shortened wash programme for lightly soiled items.

14
PRE WASH
Warm pre-wash before the main wash that follows automatically; with
intermediate spin for COTTONS/LINEN and EASY-CARES, without inter-
mediate spin for DELICATES.
STAIN
For heavily soiled or stained washing. Stain removal agent will be rinsed
into the wash at the optimum point in the programme.
Can only be set for wash temperatures of 40°C and upwards as stain re-
movers only become effective at higher temperatures.
Setting the delay timer
3Using the DELAY TIMER button you can delay the start of a programme
by 30 minutes (30') to a maximum of 23 hours (23h).
1. Select the programme.
2. Press the DELAY TIMER button repeatedly until the desired start delay is
shown in the multi-display, e.g. 12h to delay the start of the pro-
gramme by 12 hours. The DELAY TIMER indicator will illuminate.
3If the display is showing 23h and you press the button again, the time
delay will be cancelled. 0’ will appear followed by the length of the
wash programme that has been set.
3. To activate the delay timer, press the START/PAUSE button. The time re-
maining to the start of the programme will be continuously shown (e.g.
12h, 11h, 10h,... 30'etc.).
Starting a programme
1. Check that the tap is turned on.
2. Select a programme.
3. Press the START/PAUSE button. The programme is started, or will start
after the delay timer has counted down.
3If after pressing the START/PAUSE button E40 flashes in the multi-dis-
play, the END indicator flashes 4 times and at the same time an acous-
tic signal sounds 4 times, the door has not been correctly shut. Push the
door firmly closed and press the START/PAUSE button again.

15
Programme sequence
•The programme progress display shows the programme step that is
currently being carried out.
•The multi-display shows the estimated time remaining (in minutes)
until the end of the programme.
3The time remaining can increase or stay the same for a while during the
course of the cycle as the programme adjusts itself to various condi-
tions (e.g. type of washing and quantity, out of balance spin detection,
special rinse cycle, etc.).
Interrupting a programme/adding washing
Interrupting a programme
•A programme can at any time be interrupted by pressing the START/
PAUSE button and resumed by pressing START/PAUSE again.
•To cancel a programme before it has ended, turn the programme se-
lector to OFF. Important: Be careful of water in the appliance.
Adding washing
Washing can be added, as long as the DOOR indicator is illuminated
green.
1. Press the START/PAUSE button. The door can be opened.
2. Close the door and press the START/PAUSE button again. The pro-
gramme will continue.

16
End of the wash cycle/removing the washing
At the end of the programme, END lights up on the programme
progress display. The door can be opened as soon as the DOOR indicator
is lit green.
1. Open the loading door and remove the washing.
2. Turn the programme knob to OFF.
3. Close the water valve.
4. After washing, pull out the detergent drawer a little to enable it to dry
out. Keep the loading door very slightly open so that the washing ma-
chine can air.
If RINSE HOLD has been selected:
After the rinse hold, END lights up on the programme progress display.
The water must first be drained:
–Either turn the programme knob to OFF, then to DRAIN and press the
START/PAUSE button (the water is drained without spinning),
–or turn the programme knob to OFF and then to SPIN. Change the
spin speed if necessary and press the START/PAUSE button (the water
is drained and the washing spun).

17
Child safety device
If the child safety device has been activated, the door can no longer be
shut.
Activating the child safety device:
Use a coin to turn the knob (on the
inside of the door) in a clockwise di-
rection as far as it will go.
1Warning! The knob must not be de-
pressed after being set, otherwise
the child safety device is not acti-
vated. The knob must stand out as
shown in the illustration.
Deactivating the child safety device:
Turn the knob in an anti-clockwise direction as far as it will go.

18
Cleaning and maintenance
Important! Do not use furniture care products or aggressive cleaners to
clean the appliance.
Wipe control panel and body with a damp cloth.
Cleaning procedure
If you plan to wash mainly at low temperature, you should run a hot
programme from time to time. This will reduce any deposits and clean
the appliance from the inside.
Detergent dispenser drawer
The detergent dispenser drawer should be cleaned regularly.
1. Remove the detergent dispenser drawer by pulling it firmly.
2. Remove the conditioner insert from
the middle compartment.
3. Clean all parts with water.
4. Put the conditioner insert in as far as
it will go, so that it is firmly in place.
5. Clean all parts of the washing ma-
chine, especially the nozzles in the
top of the washing-in chamber, with
a brush.
6. Insert the detergent dispenser draw-
er in the guide rails and push it in.
Washing drum
Rust deposits in the drum may occur due to rusting foreign bodies in
the washing or tap water containing iron.
Important! Do not clean the drum with acidic descaling agents, scour-
ing agents containing chlorine or iron or steel wool.
1. Remove any rust deposits on the drum with a cleaning agent for stain-
less steel.
2. Run a washing cycle without any washing to clean off any cleaning
agent residues. Programme: COTTONS/LINEN 95, press the TIME SAVER
button, add approx. 1/4 measuring cup of detergent.

19
Door and rubber collar
Regularly check whether deposits or foreign bodies are present in the
folds of the rubber collar or on the inside of the glass door.
Clean the glass in the door and the rubber collar regularly.
What to do if...
Remedying small faults yourself
If during use of the appliance one of the following error codes is shown
in the multi-display:
–E10 (Problems with the water inflow),
–E20 (Problems with the water outflow),
–E40 (door open),
please consult the following table.
After the error has been remedied, press the START/PAUSE button.
In the event of other errors (Eand a number or letter): Switch the ap-
pliance off and then on again. Set the programme again. Press the
START/PAUSE button.
If the error appears again, please contact your local Service Force Cen-
tre, stating the error code.
Problem Possible cause Remedy
Washing machine does
not work.
Power plug not plugged in
or problem with the fuse.
Connect the plug to a mains
socket. Check the fuse.
The door is not shut proper-
ly.
Close the door until the lock
audibly clicks into place.
The START/PAUSE button
was not pressed for long
enough.
Press the START/PAUSE but-
ton for a longer period of
time.
The door cannot be
closed.
The child safety device is ac-
tivated.
Deactivate the child safety
device:
When you press a but-
ton Err appears in the
multi-display.
The selected function can-
not be used together with
the wash programme set.
Select another function.
E40 appears.
The END indicator is
flashing 4 times, and si-
multaneously an acous-
tic signal is sounding 4
times.
The door is not closed prop-
erly.
Close the door properly. Re-
start the programme.

20
E10 appears.
The END indicator is
flashing once, and si-
multaneously an acous-
tic signal is sounding
once.
(Problems with the wa-
ter inflow.)
The tap is shut off. Turn on the tap.
The filter in the inlet hose
screw connection is blocked.
Turn off the tap. Unscrew the
hose, remove the filter and
clean it.
The tap is blocked by limes-
cale or faulty.
Check the tap and have it re-
paired, if necessary.
The washing machine
vibrates when operating
or is not stable.
The transport lock has not
been removed. Removing the transport lock.
The screw feet not correctly
adjusted.
Adjust the feet as described
in the installation and con-
nection instructions.
Washing has not been
spun.
Only a few large items of
washing in the drum.
Always load the drum as full
as possible. Mix large and
small items.
Water is running out
from under the washing
machine.
The inlet hose screw con-
nection is leaking. Tighten the inlet hose.
The outlet hose is leaking. Replace outlet hose.
The drain pump lid has not
been closed properly. Close the cover properly.
Washing was caught in the
door.
Load carefully next time you
wash.
The emergency drain hose is
leaking.
Screw on the emergency
drain hose firmly.
The wash water is
foaming a lot. At the
end of the wash cycle
the spinning stops.
Probably too much deter-
gent has been used.
Follow the manufacturer's
instructions exactly when
measuring out detergent.
E20 appears.
The END indicator is
flashing twice, and si-
multaneously an acous-
tic signal is sounding
twice.
(Problems with the wa-
ter outflow.)
There is a kink in the outlet
hose. Straighten the hose.
The maximum pump height
of 1m has been exceeded.
Please contact your local
Service Force Centre
The drain pipe is blocked.
Switch off the appliance.
Disconnect the power plug.
Clean the drain pump. Re-
move foreign bodies from
the pump housing.
For sink spigot connections:
The spigot is blocked. Clean the spigot.
Problem Possible cause Remedy
