Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best
performance and control - indeed we are setting the highest standards of
excellence.
In addition to this you find environmental and energy saving aspects as an
integral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we
recommend you to keep it in a safe place. And please pass it to any future owner
of the appliance.
We wish you much joy with your new appliance.
2
The following symbols are used in this manual:
Important information concerning your personal safety and information on how to
avoid damaging the appliance
General information and tips
Environmental information
132963641.qxd 14/10/2008 8.59 Pagina 2

Contents
Instructions for the user 6
Safety information 6
Product description 9
Detergent dispenser drawer 9
Control panel 10
Display 11
Indicator pilot lights 12
First use 13
Personalization 13
Acoustic signals 13
Child safety lock 13
Daily use 14
Load the laundry 14
Measure out the detergent and the fabric softener 14
Select the required programme by means of programme selector dial 15
Select the spin speed reduction or the RINSE HOLD option 15
Programme option button 16
Select the PREWASH option 16
Select the STAIN option 16
Select the SENSITIVE option 16
Select the TIME option 16
Select the START/PAUSE 17
Select the DELAY START 17
Select an additional rinse 18
Altering an option or a running programme 18
Interrupting a programme 18
Cancelling a programme 18
3
Contents
132963641.qxd 14/10/2008 8.59 Pagina 3

Opening the door after the programme has started 19
At the end of the programme 19
Washing programmes 20
Programme information 22
Preparing the wash cycle 23
Sorting out the laundry 23
Temperatures 23
Before loading the laundry 23
Maximum loads 24
Laundry weights 24
Removing stains 25
Detergents and additives 25
Quantity of detergent to be used 26
Degrees of water hardness 26
Care and cleaning 27
Descaling 27
After each wash 27
Maintenance wash 27
External cleaning 27
Detergent dispenser drawer 27
Washing drum 28
Door seal 28
Drain pump 29
Water inlet filter 30
Emergency emptying out 30
Frost precautions 31
What to do if... 32
Technical Data 35
Consumption value 36
4Contents
132963641.qxd 14/10/2008 8.59 Pagina 4

Installation 37
Unpacking 37
Positioning and levelling 39
Water inlet 39
Water-stop device 40
Water drainage 40
In the interest of the environment 42
Electrical connection 42
Permanent connection 43
Environmental concerns 44
Packaging materials 44
Old machine 44
Ecological hints 44
5
Contents
132963641.qxd 14/10/2008 8.59 Pagina 5

6
Instructions for the user
Safety information
Prior to using for the first time
●The safety of AEG/ELECTROLUX appliances complies with the industry
standards and with legal requirements on the safety of appliances. However,
as manufacturers, we feel it is our duty to provide the following safety notes.
You MUST read them carefully before installing or using the appliance.
●It is most important that this instruction book should be retained with the
appliance for future reference. Should the appliance be sold or transferred to
another owner, or should you move house and leave the appliance, always
ensure that the book is supplied with the appliance in order that the new
owner can get to know the functioning of the appliance and the relevant
warnings.
●You MUST read them carefully before installing or using the appliance.
●Before first starting up, check the machine for any damage incurred during
transport. Never connect up a damaged machine. If parts are damaged,
contact your supplier.
●If the appliance is delivered in the winter months when there are minus
temperatures: Store the washing machine at room temperature for 24 hours
before using for the first time.
General safety
●It is dangerous to alter the specifications or attempt to modify this product in
any way.
●During high temperature wash programmes the door glass may get hot. Do
not touch it!
●Make sure that small pets do not climb into the drum. To avoid this, please
check inside the drum before using.
●Any objects such as coins, safety pins, nails, screws, stones or any other hard,
sharp material can cause extensive damage and must not be placed into the
machine.
●Only use the advised quantities of fabric softener and detergent. Damage to
the fabric can ensue if you over-fill. Refer to the manufacturer’s
recommendations of quantities.
●Wash small items such as socks, laces, washable belts etc in a washing bag or
pillow case as it is possible for such items to slip down between the tub and
the inner drum.
Safety information
132963641.qxd 14/10/2008 8.59 Pagina 6

7
●Do not use your washing machine to wash articles with whalebones, material
without hems or torn material.
●Always unplug the appliance and turn off the water supply after use,
cleaning and maintenance.
●Under no circumstances should you attempt to repair the machine yourself.
Repairs carried out by inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Centre. Always insist on genuine
spare parts.
Installation
●When unpacking the appliance, check that it is not damaged. If in doubt, do
not use it and contact the Service Centre.
●All packing and transit bolts must be removed before use. Serious damage can
occur to the product and to property if this is not adhered to. See relevant
section in the user manual.
●After having installed the appliance, check that it is not pressing or standing on
its electrical supply cable, inlet hose and drain hose.
●If the machine is situated on a carpeted floor, please adjust the feet in order to
allow air to circulate freely under the appliance.
●Always be sure, that there is no water leakage from hoses and their connections
after the installation.
●If the appliance is installed in a location subject to frost, please read the
«dangers of freezing» chapter.
●Any plumbing work required to install this appliance should be carried out by a
qualified plumber or competent person.
●Any electrical work required to install this appliance should be carried out by a
qualified electrician or competent person.
Use
●This appliance is designed for domestic use. It must not be used for purposes
other than those for which it was designed.
●Only wash fabrics which are designed to be machine washed. Follow the
instructions on each garment label.
●Do not overload the appliance. See the relevant section in the user manual.
●Before washing, ensure that all pockets are empty and buttons and zips are
fastened. Avoid washing frayed or torn articles and treat stains such as paint,
ink, rust, and grass before washing. Underwired bras must NOT be machine
washed.
Safety information
132963641.qxd 14/10/2008 9.00 Pagina 7

●Garments which have been in contact with volatile petroleum products should
not be machine washed. If volatile cleaning fluids are used, care should be
taken to ensure that the fluid is removed from the garment before placing in
the machine.
●Never pull the power supply cable to remove the plug from the socket; always
take hold of the plug itself.
●Never use the washing machine if the power supply cable, the control panel,
the working surface or the base are damaged so that the inside of the washing
machine is accessible.
Child Safety
●This appliance is not intended for use by person (including children) with
reduced physical sensory or mental capabilities or lack of experience and
knowledge unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
●Young children should be supervised to ensure that they do not play with the
appliance.
●The packaging components (e.g. plastic film, polystyrene) can be dangerous to
children - danger of suffocation! Keep them out of children’s reach.
●Keep all detergents in a safe place out of children’s reach.

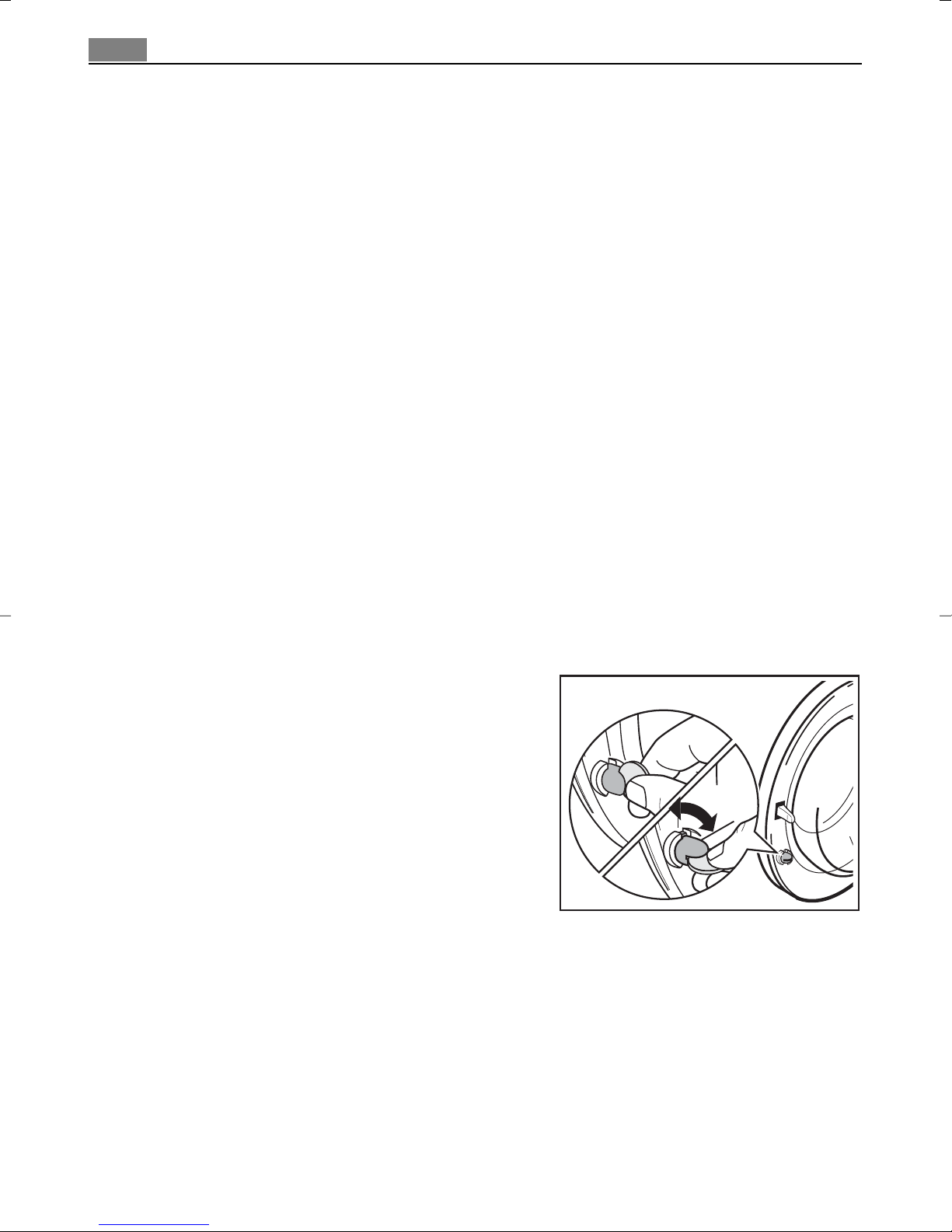

●Make sure that children or pets do not
climb into the drum. To prevent children
or pets becoming trapped inside the
drum the machine incorporates special
feature. To activate this device, rotate
the button (without pressing it) inside
the door clockwise until the groove is
horizontal. If necessary use a coin. To
disable this device and restore the
possibility of closing the door, rotate the
button anti-clockwise until the groove is
vertical.
8Safety information
132963641.qxd 14/10/2008 9.00 Pagina 8

9

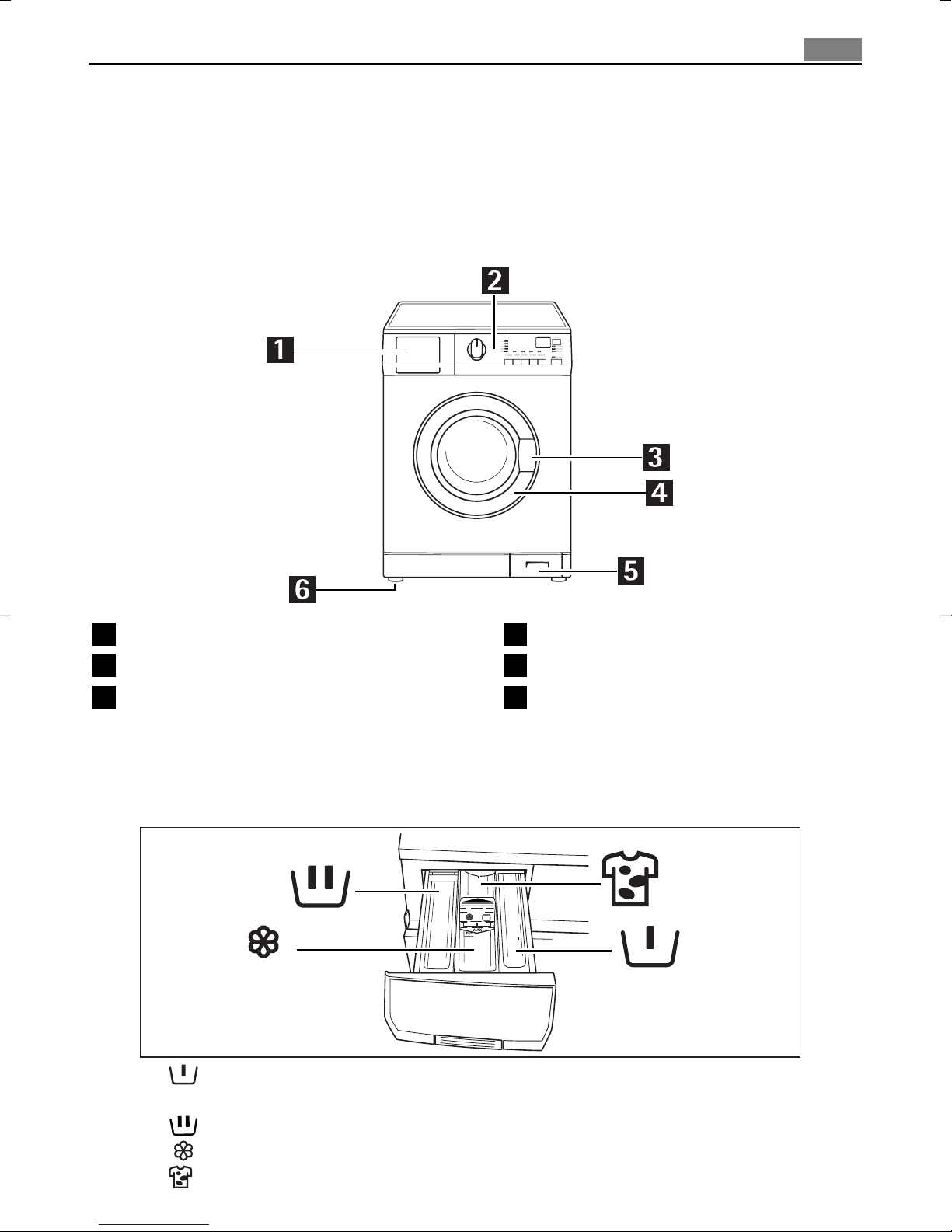

Product description
Your new appliance meets all modern requirements for effective treatment of
laundry with low water, energy and detergent consumption.
The EECCOOvvaallvveesystem allows total use of detergent and reduces water
consumption therefore saving energy.
Detergent dispenser drawer
Compartment for detergent used for prewash. The prewash detergent is
added at the beginning of the wash programme.
Compartment for powder or liquid detergent used for main wash.
Compartment for liquid additives (fabric softener, starch).
Compartment for stain remover used for main wash with STAIN-option.
Rating plate
Drain pump
Three adjustable feet; The rear
foot on the left-hand side is
automatic
Detergent dispenser drawer
Control panel
Door opening handle
Product description
1
2
3
4
5
6
132963641.qxd 14/10/2008 9.00 Pagina 9

10 Control panel
Control panel
Below is a picture of the programme selector dial, the buttons and the display will
be indicated with the numbers given in this table.
Programme selector dial
SPIN button
PREWASH button
STAIN button
SENSITIVE button
TIME button
Display
START/PAUSE button
DELAY START button
Indicator pilot lights
1 2 3 4 5 6 7 8 9 10
1
2
3
4
5
6
7
8
9
10
132963641.qxd 14/10/2008 9.00 Pagina 10

11
Control panel

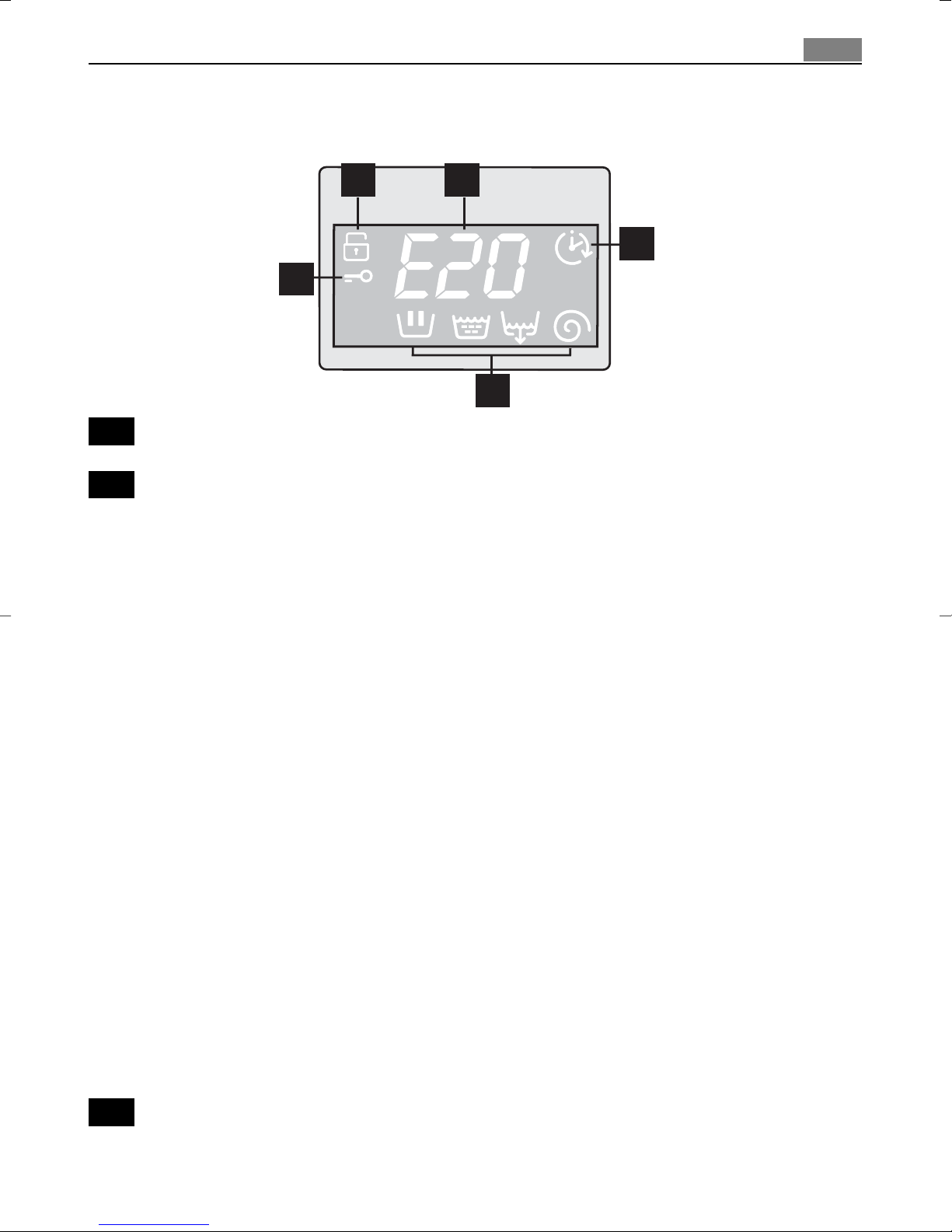

Display (7)
Child safety lock - symbol
Duration of selected programme
After selecting a programme, the duration is displayed in hours and minutes (for
example 2.05). The duration is calculated automatically on the basis of the
maximum recommended load for each type of fabric. After the programme has
started, the time remaining is updated every minute.
Alarm codes
In the event of operating problems, some alarm codes can be displayed, for
example E20 (see chapter «What to do if...»).
End of programme
When the programme has finished a flashing zero 0is displayed, the symbol 7.5
disappears from the display, the pilot light of button 8goes out and the door
can be opened.
Incorrect option selection
If an option which is not compatible with the set wash programme is selected,
the message Err is displayed for about 2 seconds and the yellow pilot light of
button 8light starts flashing.
Delay Start
The selected delay (20 hours max) set by means of the relevant button appears
on the display for about 3 seconds, then the duration of the previously selected
programme is displayed.
The symbol 7.3 will appear on the display. The delay time value decreases by one
unit every hour. When only 1 hour remains, the time decreases every minute.
Delay Start - symbol
7.1 7.2
7.3
7.4
7.5
7.1
7.3
7.2
132963641.qxd 14/10/2008 9.00 Pagina 11

Programme progress display
The display shows the different washing programme phases.
After the appliance starts operating, the display show the relevant symbol of the
washing phase which is running: WASHING, RINSING, DRAINING,
SPINNING.
Door symbol
This symbol indicates if the door can be opened:
●symbol on: the door cannot be opened. The appliance is running or the
machine has stopped with water in the tub.
●symbol off: the door can be opened. The washing programme is finished.
Indicator pilot lights (10)
If the OVERDOSAGE pilot light 10.1 goes on at the end of
the programme, it indicates that too much detergent has been
used.
When the appliance is performing additional rinses, the
EXTRA RINSE pilot light 10.2 comes on. To add an additional rinse, please see
chapter «Select an additional rinse».
If your laundry is not removed during 10 minutes after the programme is finished,
the backlight of the display switches off and the energy saving system will be
enabled.
Only the button 8pilot light flashes to indicate that the appliance has to be
switched off.
By pressing any buttons the appliance will come out from the energy saving status
and you could set another washing programme or switch off the appliance.
12 Control panel
10.1
10.2
7.4
7.5
132963641.qxd 14/10/2008 9.00 Pagina 12

13
Use
First Use
Ensure that the electrical and water connections comply with the installation
instructions.
Remove the polystyrene block and any material from the drum.
Pour 2 litres of water into the main wash compartment of the detergent drawer
in order to activate the ECO valve. Then run a cotton cycle at 90° or 95°C, without
any laundry in the machine, to remove any manufacturing residue from the drum
and tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the
machine.
Personalization
Acoustic signals
The machine is provided with an acoustic device, which sounds in the following
cases:
●at the end of the cycle
●in the event of operating problems
By pressing the 3and 4buttons simultaneously for about 6 seconds, the
acoustic signal is deactivated (except for the events of operating problems). By
pressing these 2 buttons again, the acoustic signal is reactivated.
Child safety lock (7.1)
This device permits you to leave the appliance unsupervised without having the
worry that children might be injured by or cause damage to the appliance.
This function remains able also when the washing machine is not working.
There are two different ways to set this option:
●before pressing the button 8: it will be impossible to start the machine.
●after pressing the button 8it will be impossible to change any other
programme or option.
To enable (disable) this option press simultaneously for about 6 seconds 4and 5
buttons until the symbol 7.1 appears (disappears) on the display.
132963641.qxd 14/10/2008 9.00 Pagina 13

14 Use
Daily Use
Load the laundry
1. Open the door by carefully pulling the door
handle outwards. Place the laundry in the drum,
one item at a time, shaking them out as much
as possible.
2. Close the door firmly. You must hear a click
during closing.
Attention! Do not embed the laundry between the door and the rubber
joint.
Measure out the detergent and the
fabric softener
Your new appliance was designed to reduce
water, energy and detergent consumption.
1. Pull out the dispenser drawer until it
stops. Measure out the amount of
detergent required, pour it into the main
wash compartment . If you wish to
carry out the prewash phase, pour the
detergent into the compartment marked
. If you wish to perform the stain
function, pour the stain remover into the
compartment marked with blue arrow .
2. If required, pour fabric softener into the
compartment marked (the amount
used must not exceed the MAX mark in
the drawer). Close the drawer gently.
132963641.qxd 14/10/2008 9.00 Pagina 14

Select the required programme by means of programme selector
dial (1)
You can choose the right programme for any type of laundry following the
descriptions on the washing programme tables (see «Washing Programmes»).
Turn the programme selector dial to the required programme. The programme
selector determines the type of washing cycle (e.g. water level, drum movement,
number of rinses) and the washing temperature according to the type of laundry.
The pilot light of button 8starts flashing and the display shows the duration of
the selected programme.
The selector dial can be turned either clockwise or anticlockwise. Turn to position O
to Reset programme/Switch OFF the machine.
At the end of the programme the selector dial must be turned to position
O, to switch the machine off.
For the description of each washing programmes of the selector dial, consult the
chapter «Washing programmes».
Attention!
If you turn the programme selector dial to another programme when the machine
is working, the yellow pilot light of button 8will flash 3 times and the message
Err is displayed on the display to indicate a wrong selection. The machine will not
perform the new selected programme.
Select the SPIN speed or the RINSE HOLD option (Button 2 )
When the required programme has been selected, your appliance automatically
proposes the maximum spin speed provided for that programme.
Press the button 2repeatedly to change the spin speed, if you want your laundry
to be spun at a speed different from the one proposed by the washing machine.
The relevant light will light up.
RINSE HOLD: by selecting this option the water of the last rinse is not emptied out
to prevent the fabrics from creasing.
When the programme has finished the display shows a flashing 0, the symbol 7.5
appears on the display, the pilot light of button 8is off and the door is locked to
indicate that the water must be emptied out.
To empty the water out please read chapter «At the end of the
programme».
15
Use
132963641.qxd 14/10/2008 9.00 Pagina 15

16 Use
Programme option buttons
Depending on the programme, different functions can be combined. These must
be selected after choosing the desired programme and before depressing the
button 8.
When these buttons are pressed, the corresponding pilot lights come on. When
they are pressed again, the pilot lights go out.
If an incorrect option is selected, the in yellow pilot light of the button 8flashes
3 times and the Err message appears on the display for some seconds.
For the compatibility among the washing programmes and the options see
chapter «Washing Programmes».
Select the PREWASH option (Button 3)
Select this option if you wish your laundry to be prewashed at 30°C before the
main wash. The prewash ends with a short spin in programmes for cotton and
synthetic fabrics, whereas in the programmes for delicate fabrics the water is
only drained.
The relevant light will light up.
Select the STAIN option (Button 4)
Select this option to treat heavily soiled or stained laundry with stain remover
(extended main wash with time optimised stain action phase). The relevant light
will light up.
This option is not available with a temperature lower than 40°C.
Attention! If you wish to perform a programme with the stain option, pour
stain remover into compartment .
Select the SENSITIVE option (Button 5)
By depressing this button the washing intensity will be reduced. The appliance
adds one rinse in the programmes for COTTON and SYNTHETICS.
This option is recommended for non fast coloureds items and for frequently
washed items.
Select the TIME SAVING option (Button 6)
This option allows you to modify the washing time, automatically proposed by
the appliance.
DAILY: by pressing this button once, the relative pilot light comes on and the
washing duration will be reduced to wash daily soiled laundry.
132963641.qxd 14/10/2008 9.00 Pagina 16

17
Use
SUPER QUICK: by pressing this button twice, the relative pilot light remains lit,
the washing duration will be reduced to wash lightly soiled laundry or items that
have been used or worn for a short time. The display will show the decreased
washing time.
Select the START/PAUSE (Button 8)
To start the selected programme, press the button 8, the corresponding red pilot
light stops flashing.
The WASHING symbol 7.4 appears on the display to indicate that the
appliance starts operating.
The symbol 7.5 appears on the display to indicate the door is locked.
To interrupt a programme which is running, press the button 8: the corresponding
red pilot light starts flashing.
To restart the programme from the point at which it was interrupted, press the
button 8again. If you have chosen a delayed start with button 9, the machine
will begin the countdown. If an incorrect option is selected, the yellow pilot light
of the button 8flashes for 3 times the message Err is displayed for about 2
seconds.
Select the DELAY START (Button 9)
Before you start the programme, if you wish to delay the start, press the
button 9repeatedly, to select the desired delay.
The selected delay time value (up to 20 hours) will appear on the display for
about 3 seconds, then the duration of the programme will appear again.
You must select this option after you have set the programme and before you
press the button 8.
The wash programme can be delayed from 30 min - 60 min - 90 min, 2 hours
and then by 1 hour up to a maximum of 20 hours by means of this button.
If you wish to add laundry in the machine during the delay time you will press
button 8to put the machine in pause. Add the laundry, close the door and press
button 8again.
Selecting the delayed start.
●Select the programme and the required options.
●Select the delay start.
●Press button 8: the machine starts its hourly countdown. The programme will
start after the selected delay has expired.
132963641.qxd 14/10/2008 9.00 Pagina 17

18 Use
Cancelling the delayed start
●set the washing machine to PAUSE by pressing the button 8;
●press button 9once until the symbol 0’ is displayed;
●press the button 8again to start the programme.
Important!
●The selected delay can be changed only after selecting the washing programme
again.
●The door will be locked throughout the delay time. If you need to open the
door, you must first set the washing machine to PAUSE by pressing the button
8. After you have closed the door, press the button 8again.
The button 9can not be selected with DRAIN programme.
Select an additional rinse
This appliance is designed for saving water. However, for people with a very
delicate skin (allergic to detergents) it may be necessary to rinse the laundry
using an extra quantity of water (extra rinse).
Press simultaneously the buttons 2and 3for some seconds: the pilot light
10.2 comes on.
This function stays permanently on. To disable it press the same buttons again
until the pilot light 10.2 goes off.
Altering an option or a running programme
It is possible to change some options before the programme carries it out. Before
you make any change, you must pause the washing machine by pressing the
button 8. Changing a running programme is possible only by resetting it. Turn
the programme selector dial to Oand then to the new programme position.
Start the new programme by depressing the button 8again. The washing water
in the tub will not be emptied out.
Interrupting a programme
Depress the button 8to interrupt a programme which is running, the
corresponding light starts flashing. Depress the button again to restart the
programme.
Cancelling a programme
Turn the selector dial to Oto cancel a programme which is running. Now you
can select a new programme.
132963641.qxd 14/10/2008 9.00 Pagina 18

19
Use
Opening the door after the programme has started
First set the machine to pause by pressing the button 8. After a few minutes the
symbol 7.5 goes off and the door can be opened.
If the symbol 7.5 is still lit and the door remains locked, this means that the
machine is already heating or that the water level is too high. In this case the
door can not be opened. If you cannot open the door but you need to open it,
you have to switch the machine off by turning the selector dial to O. After some
minutes the door can be opened (pay attention to the water level and
temperature!).
After closing the door, it is necessary to select the programme and options again
and to press button 8.
At the end of the programme
The machine stops automatically, the pilot light of button 8 and the symbol 7.5
goes off and a flashing 0will appear on the display.
If a programme or an option that ends with water still in the tub has been
selected, the symbol 7.5 remains on, a flashing 0will appear on the display, the
pilot light of button 8goes off and the door remains locked to indicate that the
water must be emptied out before opening the door.
Follow the below instructions to empty out the water:
●turn the programme selector dial to O
●select the DRAINING or SPINNING programme
●reduce the spin speed if needed, by means of the relevant button
●depress button 8
●when the programme has finished the display shows a flashing 0. The symbol
7.5 disappears and the door can be opened.
Turn the programme selector dial to O to switch the machine off. Remove the
laundry from the drum and carefully check that the drum is empty. If you do not
intend to carry out another wash, close the water tap. Leave the door open to
prevent the formation of mildew and unpleasant smells.
132963641.qxd 14/10/2008 9.00 Pagina 19

20 Washing programmes
* STAIN option can be selected only at the temperature of 40°C or higher.
** If you select the SUPER QUICK option by means of TIME button, we recommend
that you reduce the maximum load as indicated. (Red. load = reduced load). Full loading
is possible however with somewhat reduced cleaning results.
Washing programmes
PPrrooggrraammmmee//
TTeemmppeerraattuurreeTTyyppeeooffllaauunnddrryyOOppttiioonnssDDeessccrriippttiioonnooff pprrooggrraammmmee
COTTONS
95°-30°
White and coloured
cotton (normally soiled
items)
SPIN, RINSE HOLD,
PREWASH, STAIN*,
SENSITIVE, TIME**,
EXTRA RINSE
Main wash
Rinses
Long spin at maximum
spin speed
Max. load kg 7
** Red. load kg 3,5
40-60 MIX
40°
Coloured cotton: work
garments, sheets,
household linen,
underwear, towels
SPIN, RINSE HOLD,
PREWASH, STAIN,
SENSITIVE, EXTRA
RINSE
Main wash
Rinses
Long spin at maximum
spin speed
Max. load kg 7
EASY IRON PLUS
40°
Synthetics to be gently
washed and spun
SPIN, RINSE HOLD,
PREWASH, EXTRA
RINSE
Main wash
Rinses
Short spin
Max. load kg 1,5
DELICATES
40°-30°
Delicate fabrics: for
example curtains
SPIN, RINSE HOLD,
PREWASH, STAIN*,
TIME**, EXTRA RINSE
Main wash
Rinses
Short spin
Max. load kg 3,5
** Red. load kg 1,5
SYNTHETICS
60°-30°
Synthetic or mixed
fabrics: underwear,
coloured garments,
non-shrink shirts,
blouses
SPIN, RINSE HOLD,
PREWASH, STAIN*,
SENSITIVE, TIME**,
EXTRA RINSE
Main wash
Rinses
Short spin
Max. load kg 3,5
** Red. load kg 1,5
WOOL PLUS
HANDWASH
30°-COLD
Special programme for
hand washing fabrics
and special programme
for wool garments
bearing the «Pure new
wool, non-shrink,
machine washable» label
SPIN, RINSE HOLD
Main wash
Rinses
Short spin
Max. load kg 2
132963641.qxd 14/10/2008 9.00 Pagina 20
