AEG FAVORIT 54850 S User manual

FAVORIT 54850 S
Dishwasher
Instruction book
PERFEKT IN FORM UND FUNKTION

2
Dear customer,
Please read this User Information carefully and keep it to refer to at a
later date.
Pass it on to any subsequent owner of the appliance.
The following symbols are used in the text:
Safety instructions
Warning! Notes that concern your personal safety.
Attention! Notes that show how to avoid damage to the appliance.
Useful tips and hints
Environmental information
Your dishwasher has the new washing system ”IMPULSE WASHING”.
With this dishwashing system the motor speed and spray pressure
are varied during the wash cycle to achieve better cleaning of the
dishes. It is for this reason that the noise level varies during the
dishwashing cycle.
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly...

CONTENTS
Operating instructions 4
Safety instructions 4
Disposal 6
Economical and ecological dishwashing 6
Description of the appliance 7
The control panel 8
Prior to using for the first time 11
Setting the water softener 11
Filling with salt 13
Rinse aid 14
In daily use 17
Loading cutlery and dishes 17
The lower basket 18
The cutlery basket 19
The upper basket 20
Adjusting the height of the upper basket 21
Use of detergent 22
Different kinds of detergent 23
Washing programmes 25
Starting a washing programme 26
Maintenance and cleaning 29
Cleaning the filters 29
What to do, when... 32
Service 35
Guarantee terms 36
Technical specifications 38
Installation instructions 39
Fitting under a counter 39
Levelling 39
Water supply connections 40
Water inlet hose with safety valve 41
Water outlet hose connection 42
Electrical connection 43
Hints for test centres 44
Contents
3

OPERATING INSTRUCTIONS
Safety instructions
The safety of AEG electrical appliances conforms to accepted rules of
technology and the Appliance Safety Act. We as manufacturers,
however, see ourselves as being obliged to familiarise you with the
following safety instructions.
It is most important that this instruction book should be retained
with the appliance for future reference. Should the appliance be
sold or transferred to another owner, or should you move house
and leave the appliance, always ensure that the book is left with
the appliance in order that the new owner can get to know the
functioning of the appliance and the relevant safety information.
This information has been provided in the interest of your safety.
You MUST read it carefully before installing or using the
appliance.
Installation
●Check your dishwasher for any transport damage. Never connect a
damaged machine. If your dishwasher is damaged, you should
contact your supplier.
●For safety reasons it is dangerous to alter the specifications or
attempt to modify this product in any way.
●Any electrical and plumbing work required to install this appliance
should be carried out by a qualified and competent person.
●Care must be taken to ensure that the appliance does not stand on
the electrical supply cable.
●The sides of the dishwasher must never be drilled to prevent
damage to hydraulic components.
Child safety
●This appliance is designed to be operated by adults.
●Children should not be allowed to tamper with the controls or play
with the product.
●Packaging parts may be dangerous for children, who could even be
suffocated! You should therefore keep all packaging well away
from children.
Operating instructions
4

●The water in your dishwasher is not for drinking. Detergent residues
may still be present in your machine. Keep children well away from
your dishwasher when the door is open.
●Keep all detergents in a safe place out of children’s reach.
Your dishwasher in day-to-day use
●Items that are contaminated by petrol, paint, steel or iron debris,
corrosive, acidic or alkaline chemicals must not be washed in this
dishwasher.
●Under no circumstances should you open the door whilst the
appliance is in operation, especially during the washing phase, hot
water may escape. However, if the door is opened, a safety device
ensures that the machine stops.
●Only use products (detergent, salt and rinse aid) specifically
designed for use in dishwashers.
●Long bladed knives stored in an upright position are a potential
hazard.
●Long and/or sharp items of cutlery such as carving knives must be
positioned horizontally in the upper basket.
●When finishing loading or unloading close the door, as an open
door can be a hazard.
●Do not sit or stand on the open door.
●Isolate the appliance from the power supply and turn off the water
supply after use.
●This product should be serviced by an authorised service engineer,
and only genuine spare parts should be used.
●Under no circumstances should you attempt to repair the machine
yourself. Repairs carried out by inexperienced persons may cause
injury or serious malfunctioning. Contact your local Service Force
Centre. Always insist on genuine spare parts.
Operating instructions
5

Disposal
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with standard international abbreviations:
>PE< for polyethylene, e.g. sheet wrapping material.
>PS< for polystyrene, e.g. padding material (always CFC-free).
>POM< for polyoxymethylene, e.g. plastic clips.
Cardboard packaging is manufactured from recycled paper and should
be deposited in the waste paper collection for recycling.
As and when you cease to use your dishwasher and withdraw it from
service, your should render it unserviceable before having it disposed
of.
Warning! Children at play could lock themselves in your dishwasher or
otherwise endanger their lives. Therefore cut off the power supply
cable and make the door closing device unusable to prevent children
from being trapped inside.
To dispose of the appliance please take it to a recycling centre or to
your dealer who may, for a small contribution to the costs, dispose of
it for you.
Economical and ecological dishwashing
●Ensure that the water softener is correctly adjusted.
●Do not pre-wash under running water.
●Select the wash programme to suit the nature and degree of the
soiling on the dishes.
●Do not use more detergent, dishwasher salt and rinse aid than is
recommended in these operating instructions and by the
manufacturer of the respective product.
Operating instructions
6

Operating instructions
7

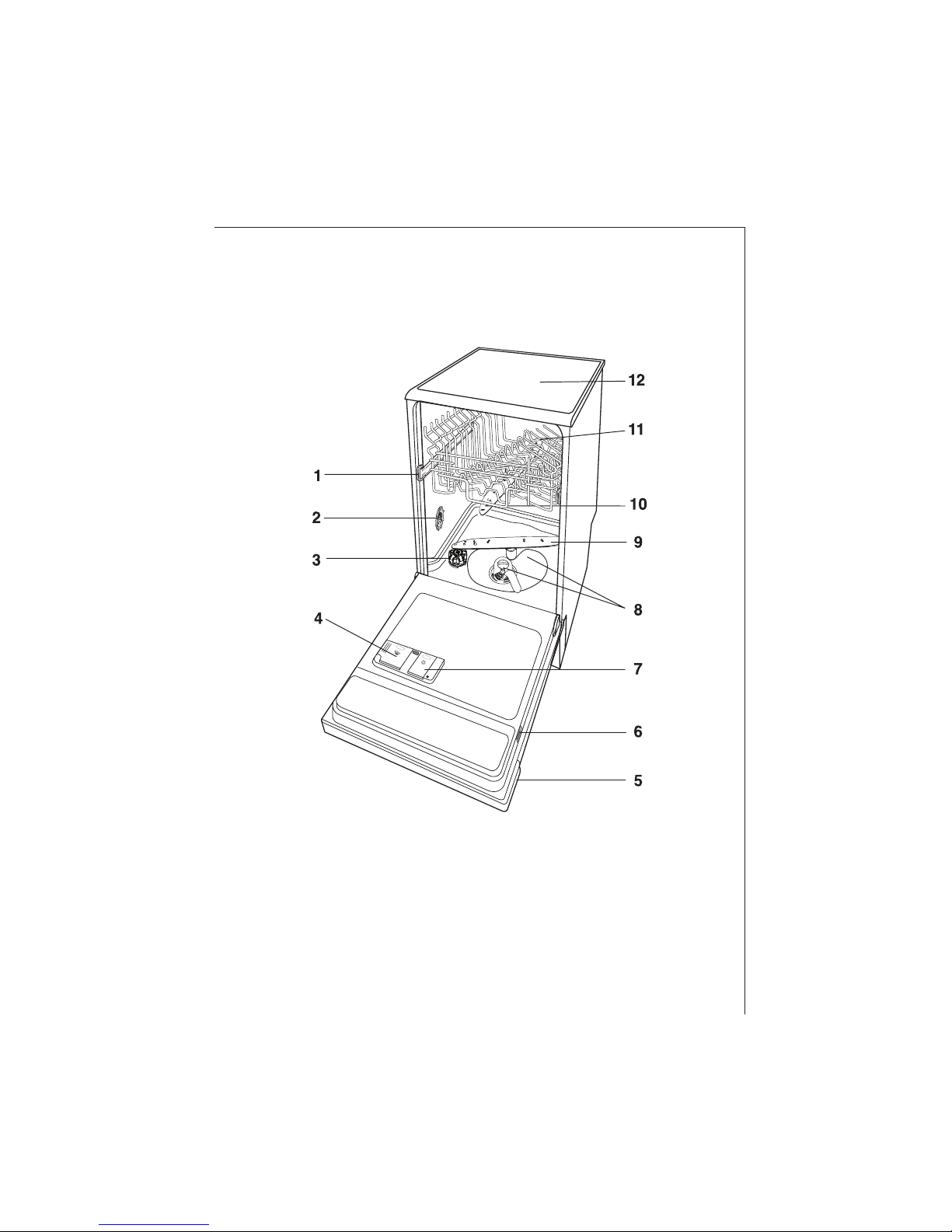

Description of the appliance
1. Upper basket stop
2. Water hardness dial
3. Salt container
4. Detergent dispenser
5. Control panel
6. Rating plate
7. Rinse aid dispenser
8. Filters
9. Lower spray arm
10. Upper spray arm
11. Upper basket
12. Worktop
IN154

Operating instructions
8
Function buttons: in addition to the dishwashing programme
selected, the following functions can also be set with the help of these
buttons:
- the setting of the water softener,
- deactivation/activation of the rinse aid dispenser,
- deactivation/activation of the “3 in 1” function
- the cancelling of a programme in progress.
Programme selection buttons: the selection of a washing
programme occurs by pressing one of these push buttons (see
"Washing programmes" chart).
"Delay start" option button: this option allows the start of the
programme to be delayed from 1 to 19 hours.
Indicator lights: have the following meanings:
The salt and rinse aid indicator lights are never illuminated while a
washing programme is running even if filling with salt and rinse aid is
necessary.
On/Off
button
Programme selection
buttons
Function
buttons
Indicator
lights
“Delay start”
option button
123
On/Off
indicator light
“3 in 1”
indicator light
Salt refilling indicator light: illuminates when the salt has
run out
Rinse aid refilling indicator light: illuminates when the rinse
aid has run out
The control panel
Digital
display
4

Operating instructions
9
The digital display indicates:
- the level of hardness to which the water softener is set,
- if the rinse aid inflow is activated/deactivated
- the approximative remaining time of the running programme
- the countdown of the delay start
- fault codes concerning malfunction of the dishwasher
"3 in 1" function: this appliance is equipped with the option "3 in 1",
that allows the use of the "3 in 1" combi detergent tablets.
This function can be selected with all washing programmes.
With the selection of this function the inflow of rinse aid and salt
from each respective supply container is automatically deactivated and
also the indicator lights for salt and rinse aid are deactivated.
Once selected this option (button indicator light illuminated ) it will
remain active also for the following washing programmes, to
deactivate the function, press the button (button indicator light off).
Once the programme is running, the "3 in 1" function can no longer
be changed. If you want to exclude the "3 in 1" function you have to
cancel the programme setting (see chapter "Starting a washing
programme" - "To cancel a washing programme in progress") and then
deactivate the "3 in 1" function.
In this case you have to set a washing programme again.
With the use of "3 in 1" combi detergent tablets, the cycle durations
given in the "Washing programmes" chart may change.

Deactivation/activation of the 3 in 1 function
(The dishwasher must be switched off)
1.Press the On/Off button. The On/Off indicator light illuminates
(setting mode).
If other indicator lights are on, this means that a wash programme
has been selected. The programme must be cancelled: press
simultaneously the function buttons 2and 3for about 2 seconds.
All the indicator lights will turn off (except for the On/Off
indicator light and eventually salt and rinse aid indicator lights)
indicating that the set programme has been cancelled and the
machine is now in setting mode.
2.Press simultaneously function buttons 2and 3, until the indicator
lights of the function push buttons 1, 2, 3 and 4start flashing.
3.Press the function push button 4, the indicator lights of function
push buttons 1, 2and 3turn off while the indicator light of the
function push button 4goes on flashing.
4.Press the function button 4again, the "3 in 1" indicator light
illuminates, indicating that the 3 in 1 funcion is active.
To deactivate the function press the function button 4again,
the indicator light turns off.
5. To memorise the operation, switch off the dishwasher by pressing
the On/Off button or wait about 60 seconds after which the
dishwasher will automatically return to setting mode.
Operating instructions
10
3 in1 function active indicator light on
3 in 1 function not active indicator light off
