Dear customer,
Please read this User Information carefully and keep it to refer to at a
later date.
Pass it on to any subsequent owner of the appliance.
The following symbols are used in the text:
Safety instructions
Warning! Notes that concern your personal safety.
Attention! Notes that show how to avoid damage to the appliance.
Useful tips and hints
Environmental information
Your dishwasher has the new washing system ”IMPULSE WASHING”.
With this dishwashing system the motor speed and spray pressure
are varied during the wash cycle to achieve better cleaning of the
dishes. It is for this reason that the noise level varies during the
dishwashing cycle.
2
152967 84/1en 1-12-2003 12:04 Pagina 2

CONTENTS
Operating instructions 4
Safety 4
Appliance features 5
Control panel 6
Prior to using for the first time 8
Setting the water softener 8
Adding special salt 10
Adding rinse aid 11
Activating/deactivating the inflow of rinse aid 12
In daily use 13
Loading cutlery and dishes 13
Adjusting the height of the upper basket 16
Adding detergent 17
Using 3 in 1 detergent tablets 18
Selecting the programme (Programme Table) 19
Starting a programme 20
Setting or changing the Start Delay 21
Switching off the dishwasher 21
Care and cleaning 23
What to do when... 24
Technical data 27
Notes for Test Institutes 28
Installation and connection instructions 29
Safety information for the installation 29
Fitting under a counter 30
Connecting the dishwasher 31
Electrical connection 33
Service 34
Contents
3
152967 84/1en 1-12-2003 12:04 Pagina 3

OPERATING INSTRUCTIONS
Safety
Prior to using for the first time
•Follow the ”Instructions for installation and connection”.
Correct use
•The dishwasher is only meant for washing domestic dishes.
•Additions or modifications to the dishwasher are not permitted.
•Use only special salt, detergent and rinse aid suitable for domestic
dishwashers.
•Do not put any solvents in the dishwasher. This could cause an
explosion.
Child safety
•Keep packaging away from children. There is a risk of suffocation.
•Children often do not recognise the hazards associated with
electrical appliances. Don’t allow children to use the dishwasher
unsupervised.
•Make sure that children and pets don’t climb into the dishwasher.
Could endanger life!
•Dishwasher detergents can cause chemical burns to the eyes, mouth
and throat. Could endanger life! Comply with the safety instructions of
the dishwasher detergent manufacturer.
•The water in the dishwater is not for drinking. There is a risk of
chemical burns.
General safety
•Repairs to the dishwasher are only to be carried out by qualified
service engineers.
•When the dishwasher is not being used, switch it off and close off
the water tap.
•Never unplug the appliance by pulling on the cable. Always pull the
plug.
•Never sit or stand on the open door.
• If the dishwasher is located in a room where there may be a frost,
remove the connection hose from the tap after each use of the
dishwasher.
Operating instructions
4
152967 84/1en 1-12-2003 12:04 Pagina 4

Appliance features
Operating instructions
5
IN156
Water hardness switch
Dispenser for
detergent
Filters
Upper spray arm
Lower spray arm
Rating plate
Dispenser for
rinse aid
Container for
special salt
152967 84/1en 1-12-2003 12:04 Pagina 5

The ON/OFF button is used to turn the dishwasher on and off.
The Programme buttons are used to select the desired dishwashing
cycle.
Function buttons: In addition to the dishwashing cycle and/or start
delay selected, the following functions can also be set with the help of
these buttons:
The multi-display can indicate:
– the level of hardness to which the water softener is set.
– whether the rinse aid inflow has been activated/deactivated.
- the start delay that has been set.
– the estimated time remaining for the current dishwashing cycle.
– what type of error has occurred with the dishwasher.
Operating instructions
6
Function button 1
Function button 2
Function button 3
Set the water softener
Activate/deactivate rinse aid inflow
- not programmed -
ON / OFF
button
Programme
buttons
Function
buttons
Multidisplay
Control
indicators
Set start
delay Select 3 in 1
function
1 2 3
Programme
sequence indicators
Control panel
152967 84/1en 1-12-2003 12:04 Pagina 6

The Programme Sequence Indicator always indicates the current part
of the sequence.
The Control Indicators have the following meanings:
1)The indicators are never illuminated while a dishwashing cycle is
running.
The indicator is intended to remind you to check the filters in the
dishwasher from time to time and, if necessary, to clean it. The
indicator illuminates at regular intervals, indipendent of the amount
of soiling of the filters.
Operating instructions
7
Prewash / Rinse and hold
Wash
Rinse
Drying
End of programme
1
1
Refill with special salt
Refill with rinse aid
Turn on the tap
Clean the dishwasher’s filter system
The door of the dishwasher is open.
152967 84/1en 1-12-2003 12:04 Pagina 7

Operating instructions
8
Prior to using for the first time
1. Set the water softener
2. Fill up with special salt for water softener
3. Fill up with rinse aid
If you use 3 in 1 detergent, do the following:
– Switch on the dishwasher, press the 3 in 1 button. The indicator
lamp illuminates, the 3 in 1 function is selected. As a result
– there is no need to fill up with special salt or rinse aid.
– there is no need to set the water softener.
– there is no need to activate/deactivate the rinse aid inflow.
– Before the start of the dishwashing cycle put 3 in 1 detergent in
the detergent dispenser.
– Read the section “Using 3 in 1 detergent”.
Setting the water softener
To avoid scale deposits on the dishes and in the dishwasher, the
dishes must be washed with soft water, i.e. water with a low lime
content. The water softener must be set according to the table to
the water hardness in the area where you live. Your local water
company will be able to give you information about the water
hardness in your area.
The dishwasher must be switched off. The water softener must be
set manually and electronically:

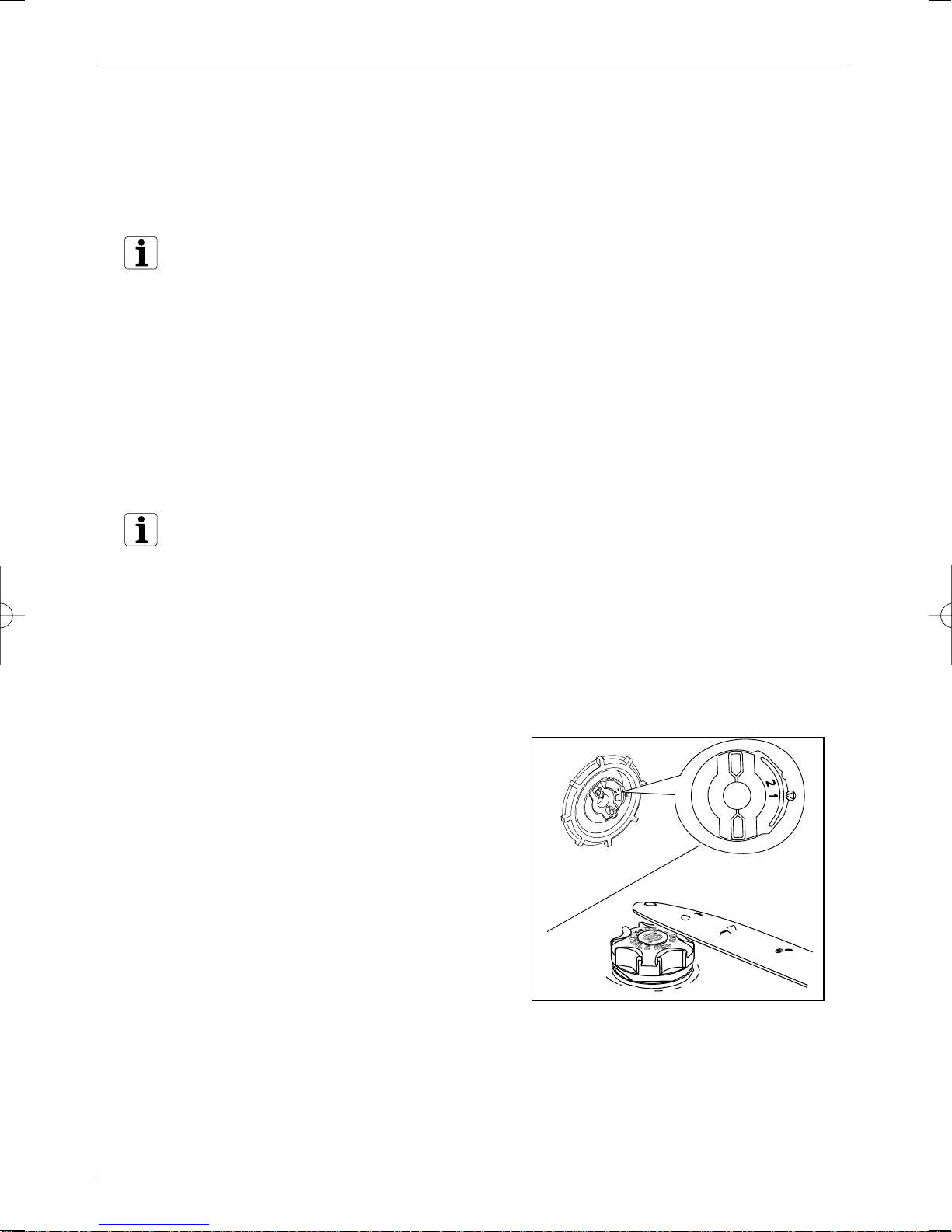

Setting manually:
1.Open the dishwasher door.
2.Remove the lower basket from
the dishwasher.

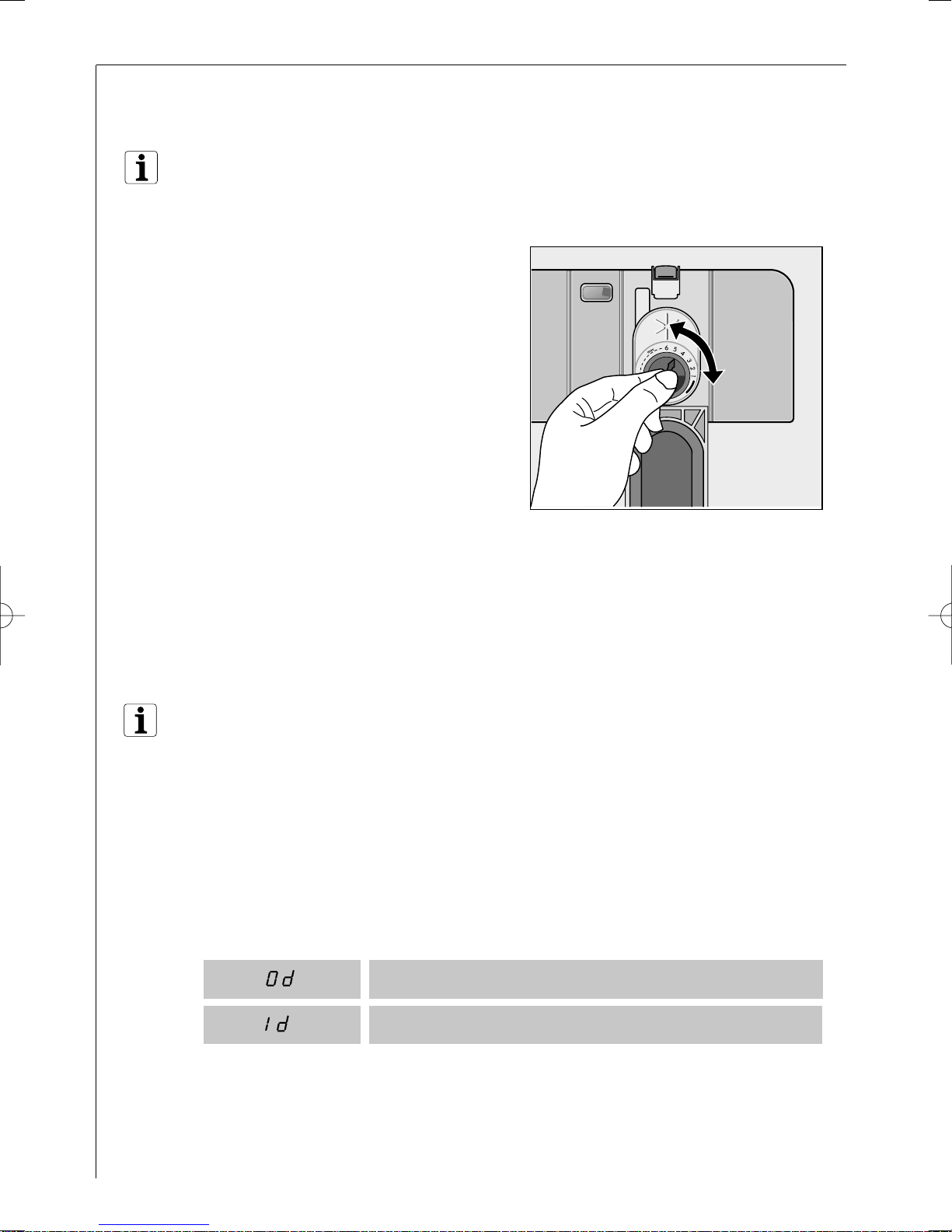

3.Turn the hardness range switch to 1
or 2 (see table).
AA07
152967 84/1en 1-12-2003 12:04 Pagina 8

Operating instructions
9
Setting electronically:
1. Press the ON/OFF button.
If indicators other than the ON/OFF button are lit, a programme has
been selected. The programme must be cancelled:
Press function buttons 1and 2simultaneously for approx. 2 seconds.
All other indicators will go out.
2. Press function buttons 1and 2simultaneously and keep them
pressed. The LED indicators for function buttons 1 to 3 will flash.
3. Press function button 1again.
The LED indicator for function button 1will flash.
The multi-display will indicate the hardness setting.
4. Pressing function button 1increases the hardness setting by 1.
(Exception: hardness setting 1 follows hardness setting 10).
5. When the hardness setting is correct, press the ON/OFF button.
The hardness setting is now saved.
If the water softener is set electronically to “1”, this switches off the
control indicator for special salt.
Adjusting the hardness
setting
10
9
8
7
6
3
1
no salt
necessary
Manual Electronic
*2
1
Indication on
the
multidisplay
2
Water hardness
51 - 70
43 - 50
37 - 42
29 - 36
23 - 28
9,0 - 12,5
7,6 - 8,9
6,5 - 7,5
5,1 - 6,4
4,0 - 5,0
IV
11 - 14 1,9 - 2,5 II
unter 4 unter 0,7 I
4 - 10 0,7 - 1,8 I/II
19 - 22
15 - 18 3,3 - 3,9
2,6 - 3,2 III *5
4
in °d 1in mmol/l 2Range
1) (°d) German degree, measure of water hardness
2) (mmol/l) millimol per litre, international unit for water hardness
*) factory setting
152967 84/1en 1-12-2003 12:04 Pagina 9

Operating instructions
10
Adding special salt
Only use special salt suitable for domestic dishwashers.
If you don’t use 3 in 1 detergent add special salt:
-Before using the dishwasher for the first time.
-When the indicator for special salt is illuminated on the control panel.
1. Open the door and remove the lower
basket.
2. Screw open the lid on the salt
dispenser by turning it anti-
clockwise.
3. Only when using the dishwasher
for the first time:
Fill the salt dispenser with water.

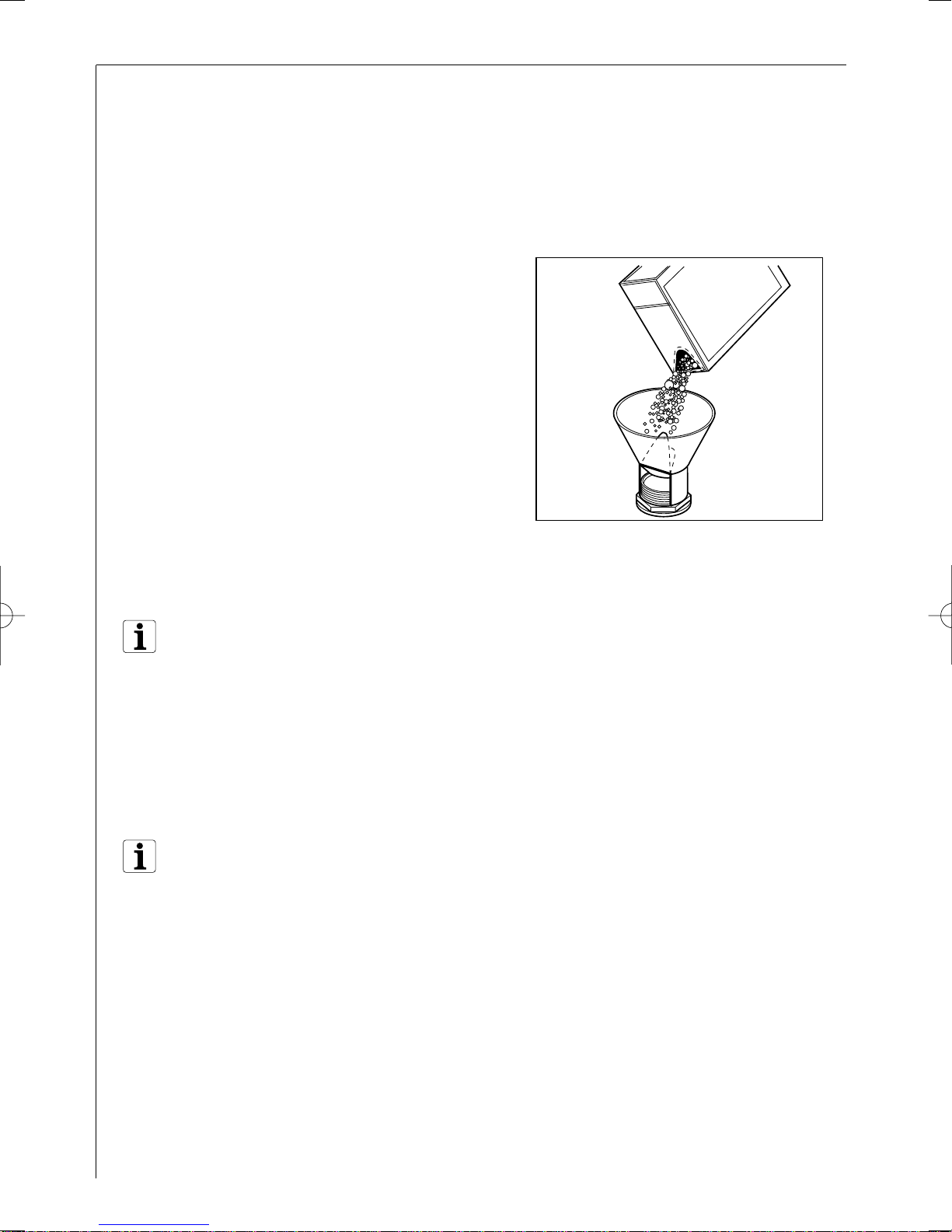

4. Place the funnel (supplied) over the
dispenser opening.
Fill the dispenser with special salt;
the capacity of the dispenser is
approx. 1.0-1.5 kg, depending on the size of the grains. Do not
overfill the dispenser.
If water overflows when filling up with special salt, this is completely
harmless.
5. Clean away any salt remnants from the dispenser opening.
6. Screw the lid back on in a clockwise direction.
7. Run a dishwashing cycle after filling the salt dispenser with
special salt. This will wash away salt water and any salt crystals that
have been spilt.
Depending on the size of the salt grains, it can take several hours
for the salt to dissolve in the water and for the salt indicator to go
out.
SALE
ZOUT
SALT
SALZ
SEL
SR14
152967 84/1en 1-12-2003 12:04 Pagina 10
