AEG S83420CTX2 User manual

EN User Manual
Fridge Freezer S83420CTX2

CONTENTS
1. SAFETY INFORMATION.................................................................................................3
2. SAFETY INSTRUCTIONS................................................................................................ 4
3. OPERATION.................................................................................................................... 5
4. DAILY USE........................................................................................................................8
5. CARE AND CLEANING.................................................................................................. 9
6. TROUBLESHOOTING...................................................................................................11
7. INSTALLATION............................................................................................................. 13
8. TECHNICAL INFORMATION.......................................................................................14
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler
features you might not find on ordinary appliances. Please spend a few minutes
reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.aeg.com
2

1. SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible if an incorrect
installation and use causes injuries and damages. Always
keep the instructions with the appliance for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Keep all packaging away from children.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–Farm houses; staff kitchen areas in shops, offices
and other working environments
–By clients in hotels, motels, bed and breakfast and
other residential type environments
•Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
ENGLISH 3

•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before
connecting the appliance to the
power supply. This is to allow the oil
to flow back in the compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices,
garages or wine cellars.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Service or an electrician
to change the electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns,
electrical shock or fire.
www.aeg.com4

• Do not change the specification of
this appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to
the refrigerant circuit. It contains
isobutane (R600a), a natural gas with a
high level of environmental
compatibility. This gas is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
• Do not store flammable gas and
liquid in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
• Do not freeze again food that has
been thawed.
• Obey the storage instructions on the
packaging of frozen food.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. OPERATION
3.1 Control panel
1 2 3 4 5 6 7 8
1ON/OFF button
ENGLISH 5

2Top compartment temperature
colder button
3Top compartment temperature
warmer button
4Mode button
5OK button
6Bottom compartment temperature
colder button
7Bottom compartment temperature
warmer button
8Display
It is possible to change predefined
sound of buttons by pressing together
Mode button and Temperature colder
button for some seconds. Change is
reversible.

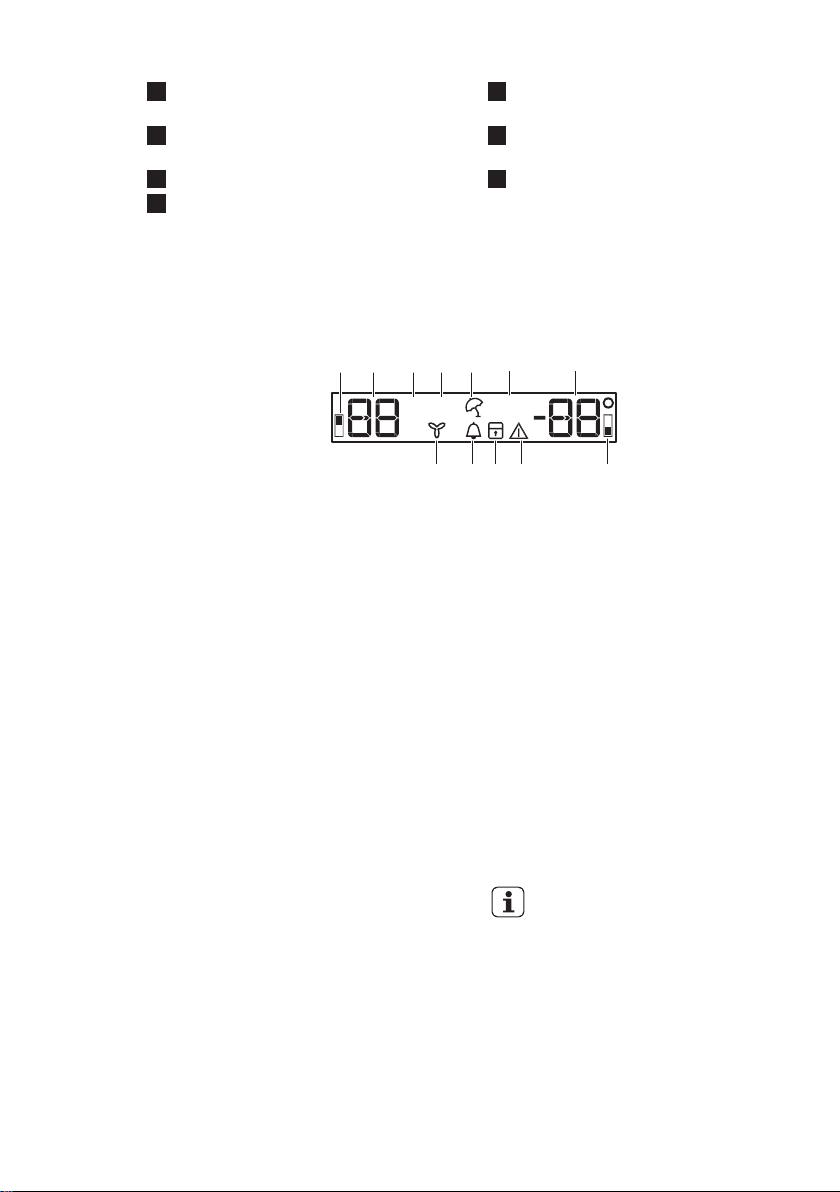

Display
Off COOL FROST
MATICMATIC
min
A B C D E F G
HIJKL
A) Fridge compartment indicator
B) Fridge temperature indicator and
timer indicator
C) Fridge OFF indicator
D) COOLMATIC function
E) Holiday function
F) FROSTMATIC function
G) Freezer temperature indicator
H) Freezer compartment indicator
I) Alarm indicator
J) ChildLock function
K) MinuteMinder function
L) DYNAMICAIR function
3.2 Switching on
1. Connect the mains plug to the power
socket.
2. Press the appliance ON/OFF if the
display is off.
The alarm buzzer could operate after few
seconds.
The temperature indicators show the set
default temperature.
To reset the alarm refer to "High
temperature alarm".
To select a different set temperature
refer to "Temperature regulation".
If "dEMo" appears on the display, refer
to "What to do if..." chapter.
3.3 Switching off
1. Press ON/OFF for a few seconds.
The display switches off.
2. Disconnect the mains plug from the
power socket.
3.4 Switching on the fridge
To switch on the fridge it is enough to
press the fridge temperature regulator.
To switch on the fridge in the other way:
1. Press Mode until the corresponding
icon appears.
The Fridge OFF indicator flashes.
2. Press OK to confirm.
The fridge OFF indicator goes off.
To select a different set
temperature refer to
"Temperature regulation".
3.5 Switching off the fridge
1. Press Mode until the corresponding
icon appears.
The fridge OFF indicator and the fridge
compartment indicator flash.
www.aeg.com
6

The fridge temperature indicator shows
dashes.
2. Press OK to confirm.
The fridge OFF indicator is shown.
3.6 Temperature regulation
Set temperature of the fridge and of the
freezer by pressing the temperature
buttons.
Default temperatures:
• +5°C for the fridge
• -18°C for the freezer
The temperature indicators show the set
temperature.
After a power failure the set
temperature remains stored.
The set temperature will be
reached within 24 hours.
3.7 High temperature alarm
An increase in the temperature in the
freezer compartment (for example due to
an earlier power failure) is indicated by:
• flashing of the alarm and freezer
temperature indicators;
• sounding of the buzzer.
Press any button to reset the alarm.
The buzzer switches off.
The freezer temperature indicator shows
the highest temperature reached for a
few seconds. Then show again the set
temperature.
The alarm indicator continues to flash
until the normal conditions are restored.
3.8 COOLMATIC function
If you need to insert a large amount of
warm food, for example after doing
grocery shopping, we suggest activating
the COOLMATIC function to chill the
products more rapidly and to avoid
warming the other food which is already
in the refrigerator.
1. Press Mode until the corresponding
icon appears.
The COOLMATIC indicator flashes.
2. Press OK to confirm.
The COOLMATIC indicator is shown.
The COOLMATIC function
shuts off automatically after
52 hours.
To switch off the function
before its automatic end,
repeat the steps until the
COOLMATIC indicator goes
off.
3.9 FROSTMATIC function
The FROSTMATIC function accelerates
the freezing of fresh food and, at the
same time, protects foodstuffs already
stored from undesirable warming.
1. Press Mode button until the
corresponding icon appears.
The FROSTMATIC indicator flashes.
2. Press OK button to confirm.
The FROSTMATIC indicator is shown.
The FROSTMATIC function
shuts off automatically after
52 hours.
To switch off the function
before its automatic end,
repeat the steps until the
FROSTMATIC indicator goes
off.
3.10 DYNAMICAIR function
1. Press Mode until the corresponding
icon appears.
The DYNAMICAIR indicator flashes.
2. Press OK to confirm.
The DYNAMICAIR indicator is shown.
The activation of the
DYNAMICAIR function
increases energy
consumption.
If the function is activated
automatically, the
DYNAMICAIR indicator is
not shown (refer to "Daily
use").
To switch off the function, repeat the
steps until the DYNAMICAIR indicator
goes off.
ENGLISH 7

3.11 MinuteMinder function
The MinuteMinder function is to be used
to set an acoustic alarm at the preferred
time, useful for example when a recipe
requires to cool down food products for
a certain length of time.
It is also useful when a reminder is
needed in order not to forget the bottles
placed in the freezer for fast cooling.
1. Press Mode until the corresponding
icon appears.
The MinuteMinder indicator flashes.
The Timer shows the set value (30
minutes) for a few seconds.
2. Press the Temperature colder or
Temperature warmer button to
change the Timer set value from 1 to
90 minutes.
3. Press OK to confirm.
The MinuteMinder indicator is shown.
The Timer starts to flash (min).
It is possible to change the time at any
time during the countdown and at the
end by pressing the Temperature colder
button and the Temperature warmer
button.
At the end of the countdown, the
MinuteMinder indicator flashes and an
audible alarm sounds. Press OK to switch
off the sound and terminate the function.
It is possible to deactivate the function at
any time during the countdown by
repeating the function steps, until the
indicator turns off.
3.12 Holiday mode
This function allows you to keep the
refrigerator closed and empty during a
long holiday period without the
formation of a bad smell.
Empty the fridge
compartment before turning
the Holiday mode on.
1. Press the Mode until the Holiday
indicator icon appears.
The Holiday icon flashes.
The fridge temperature indicator shows
the set temperature.
2. Press the OK to confirm.
The Holiday icon appears.
To turn off the Holiday mode, repeat the
procedure until the Holiday indicator
icon goes off.
3.13 ChildLock function
Activate the ChildLock function to lock
the buttons from unintentional
operation.
1. Press Mode until the corresponding
icon appears.
The ChildLock indicator flashes.
2. Press OK to confirm.
The ChildLock indicator is shown.
To deactivate the ChildLock function,
repeat the procedure until the ChildLock
indicator goes off.
4. DAILY USE
WARNING!
Refer to Safety chapters.
4.1 Initial power on
CAUTION!
Before inserting the power
plug in to the outlet and
switching on the cabinet for
the first time, leave the
appliance standing upright
for at least 4 hours. This will
assure a sufficient amount of
time for the oil to return to
the compressor. Otherwise
the compressor or electronic
components may sustain
damage.
www.aeg.com8

4.2 Storage of frozen food
When first starting-up or after a period
out of use, before putting the products
in the compartment let the appliance run
at least 2 hours with the FROSTMATIC
function turned on. The freezer drawers
ensure that it is quick and easy to find
the food package you want. If large
quantities of food are to be stored,
remove all drawers except for the
bottom drawer which needs to be in
place to provide good air circulation. On
all shelves it is possible to place food
that protrude until 15 mm from the door.
4.3 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
To freeze small amount of fresh foods it
is not necessary to change the present
setting.
To freeze fresh food activate the
FROSTMATIC function at least 24 hours
before placing the food to be frozen in
the freezer compartment.
Place the food to be frozen in the top
compartment.
The maximum amount of food that can
be frozen in 24 hours is specified on the
rating plate, a label located on the inside
of the appliance.
The freezing process lasts 24 hours:
during this period do not add other food
to be frozen.
When the freezing process is completed,
return to the required temperature (see
"FROSTMATIC Function").
In this condition, the
refrigerator compartment
temperature might drop
below 0°C. If this occurs
reset the temperature
regulator to a warmer
setting.
4.4 FreshBox module
The drawer inside the module is suitable
for storing fresh food like fish, meat,
seafood, because the temperature is
lower here than in the rest of the fridge.
CAUTION!
Before placing or removing
the FreshBox module inside
the appliance, pull out the
MaxiBox drawer and glass
cover.
The FreshBox module is equipped with
runners. At the time of its removal from
the fridge compartment pull the module
towards yourself and remove the basket
by tilting its front downwards.
4.5 DYNAMICAIR
The refrigerator compartment is
equipped with an automatic device that
allows for rapid cooling of foods and
more uniform temperature in the
compartment.
It is possible to switch on the device
manually when needed (refer to
"DYNAMICAIR function").
5. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
ENGLISH 9

5.1 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap
to remove the typical smell of a brand-
new product, then dried thoroughly.
CAUTION!
Do not use detergents or
abrasive powders, as these
will damage the finish.
5.2 Periodic cleaning
CAUTION!
Do not pull, move or
damage any pipes and/or
cables inside the cabinet.
CAUTION!
Take care of not to damage
the cooling system.
CAUTION!
When moving the cabinet,
lift it by the front edge to
avoid scratching the floor.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral
soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser
and the compressor at the back of
the appliance with a brush.
This operation will improve the
performance of the appliance and
save electricity consumption.
The lowest shelf, dividing the cooler
compartment from the compartment can
be removed only for cleaning. To remove
pull out the shelf straight.
To make sure fully
functionality of the FreshBox
compartment the lowest
shelf and cover plates must
be put back in their original
position after cleaning.
The cover plates above the drawers in
the compartment can be taken out for
cleaning.
5.3 Defrosting
Your appliance is frost free. This means
that there is no build up of frost when it
is in operation, neither on the internal
walls nor on the foods. The absence of
frost is due to the continuous circulation
of cold air inside the compartment,
driven by an automatically controlled fan.
The defrost water drains out through a
trough into a special container at the
back of the appliance, over the motor
compressor, where it evaporates.
It is important to periodically clean the
defrost water drain hole in the middle of
the refrigerator compartment channel to
prevent the water overflowing and
dripping onto the food inside.
5.4 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the door/doors open to
prevent unpleasant smells.
www.aeg.com
10

6. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
6.1 What to do if...
Problem Possible cause Solution
The appliance is noisy. The appliance is not sup-
ported properly.
Check if the appliance stands
stable.
Audible or visual alarm is
on.
The cabinet has been re-
cently switched on or the
temperature is still too
high.
Refer to "Door Open
Alarm"or "High Temperature
Alarm".
The temperature in the ap-
pliance is too high.
Refer to "Door Open
Alarm"or "High Temperature
Alarm".
A square symbol is shown
instead of numbers on the
Temperature Display.
Temperature sensor prob-
lem.
Contact the nearest Author-
ised Service Centre (the cool-
ing system will continue to
keep food products cold, but
temperature adjustment will
not be possible).
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp does not work. The lamp is defective. Contact the nearest Author-
ised Service Centre.
The compressor operates
continually.
Temperature is set incor-
rectly.
Refer to "Operation" chapter.
Many food products were
put in at the same time.
Wait some hours and then
check the temperature again.
The room temperature is
too high.
Refer to climate class chart on
the rating plate.
Food products placed in
the appliance were too
warm.
Allow food products to cool to
room temperature before stor-
ing.
The FROSTMATIC function
is switched on.
Refer to "FROSTMATIC func-
tion".
The COOLMATIC function
is switched on.
Refer to "COOLMATIC func-
tion".
ENGLISH 11

Problem Possible cause Solution
The compressor does not
start immediately after
pressing the FROSTMATIC,
or after changing the tem-
perature.
This is normal, no error has
occurred.
The compressor starts after a
period of time.
The compressor does not
start immediately after
pressing the COOLMATIC,
or after changing the tem-
perature.
This is normal, no error has
occurred.
The compressor starts after a
period of time.
Water flows inside the re-
frigerator.
The water outlet is clog-
ged.
Clean the water outlet.
Food products prevent that
water flows into the water
collector.
Make sure that food products
do not touch the rear plate.
Water flows on the floor. The melting water outlet is
not connected to the evap-
orative tray above the com-
pressor.
Attach the melting water out-
let to the evaporative tray.
Temperature cannot be set. The FROSTMATIC or
COOLMATIC function is
switched on.
Switch off FROSTMATIC or
COOLMATIC manually, or wait
until the function resets auto-
matically to set the tempera-
ture. Refer to "FROSTMATIC
or COOLMATIC function".
DEMO appears on the dis-
play.
The appliance is in demon-
stration mode.
Keep the OK pressed for ap-
proximately 10 seconds until a
long sound is heard and dis-
play shuts off for a short time.
The temperature in the ap-
pliance is too low/too high.
The temperature regulator
is not set correctly.
Set a higher/lower tempera-
ture.
The food products' temper-
ature is too high.
Let the food products temper-
ature decrease to room tem-
perature before storage.
Many food products are
stored at the same time.
Store less food products at the
same time.
The FROSTMATIC function
is switched on.
Refer to "FROSTMATIC func-
tion".
The COOLMATIC function
is switched on.
Refer to "COOLMATIC func-
tion".
www.aeg.com12

If the advice does not lead
to the desired result, contact
the nearest Authorised
Service Centre.
6.2 Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the
lighting device. Contact your Authorised
Service Centre.
7. INSTALLATION
WARNING!
Refer to Safety chapters.
7.1 Positioning
This appliance can be installed in a dry,
well ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:
Climate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
7.2 Electrical Connection
CAUTION!
Any electrical work required
to install this appliance
should be carried out by a
qualified electrician or
competent person.
WARNING!
This appliance must be
earthed.
The manufacturer declines
any liability should these
safety measures not be
observed.

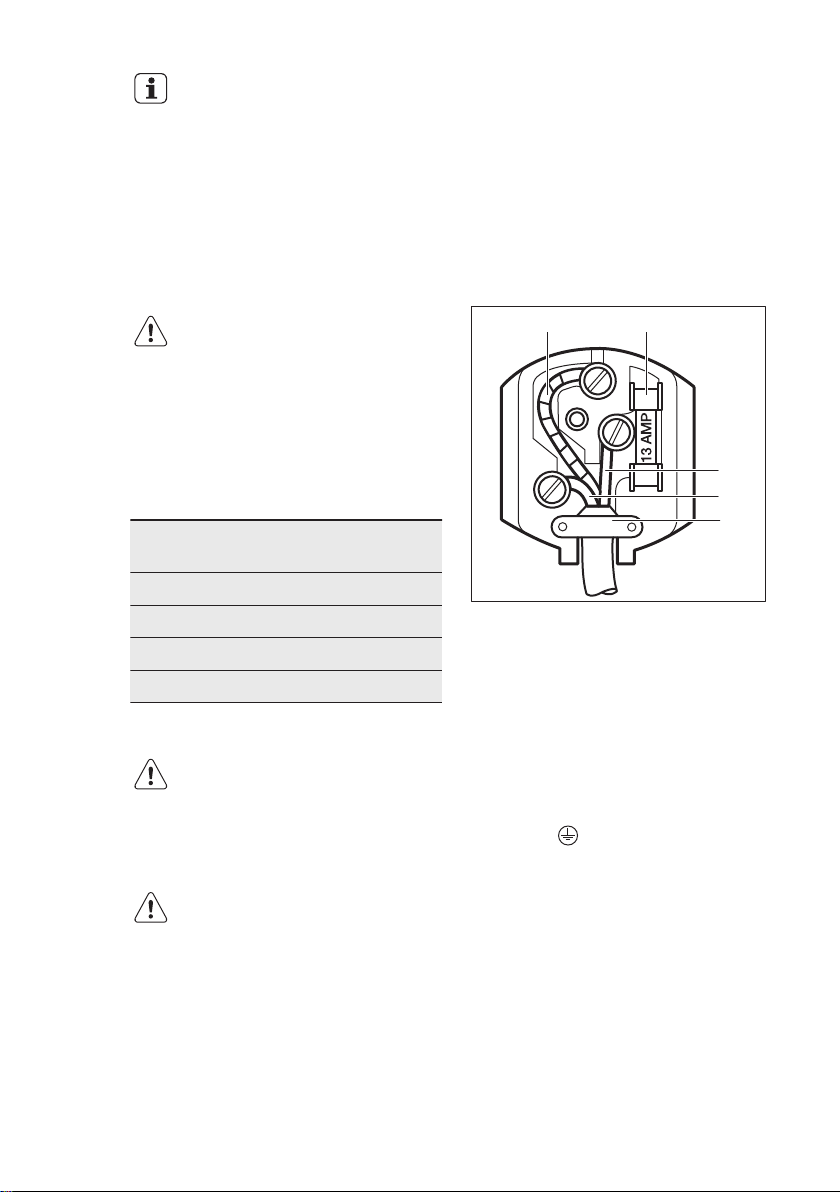

The wires in the mains lead are coloured
in accordance with the following code:
A B
C
D
E
•A- green and yellow: Earth
•C- brown: Live
•D- blue: Neutral
As the colours of the wires in the mains
lead of this appliance may not
correspond with the coloured markings
identifying the terminals in your plug,
proceed as follows:
1. Connect the wire coloured green and
yellow to the terminal marked either
with the letter “E“ or by the earth
symbol or coloured green and
yellow.
2. Connect the wire coloured blue to
the terminal either marked with the
letter “N“ or coloured black.
3. Connect the wire coloured brown to
the terminal either marked with the
“L“ or coloured red.
4. Check that no cut, or stray strands of
wire is present and the cord clamp
(E) is secure over the outer sheath.
Make sure the electricity supply
voltage is the same as that indicated
on the appliance rating plate.
5. Switch on the appliance.
ENGLISH 13

The appliance is supplied with a 13 amp
fuse (B). In the event of having to change
the fuse in the plug supplied, a 13 amp
ASTA approved (BS 1362) fuse must be
used.
WARNING!
A cut off plug inserted into a
13 amp socket is a serious
safety (shock) hazard. Ensure
that it is disposed of safely.
7.3 Installation of the
appliance and door reversal
Please refer to separate
instructions on installation
(ventilation requirements,
levelling) and door reversal.
7.4 Installation and replacing
of the CLEANAIR CONTROL
filter
On delivery the carbon filter is in a plastic
bag to preserve performance. The filter
should be placed in the drawer before
the appliance is turned on.
1. Open the drawer.
2. Take the filter out of the plastic bag.
3. Insert the filter in the drawer.
4. Close the drawer.
To get the best performance the carbon
air filter should be changed once every
year.
New active air filters can be purchased
from your local dealer.
The air filter is a consumable
accessory and as such is not
covered by the guarantee.
8. TECHNICAL INFORMATION
8.1 Technical data
Height 1840 mm
Width 595 mm
Depth 642 mm
Rising time 17 h
Voltage 230 - 240 V
Frequency 50 Hz
The technical information are situated in
the rating plate, on the external or
internal side of the appliance and in the
energy label.
9. ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable
containers to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
marked with the symbol with the
household waste. Return the product to
your local recycling facility or contact
your municipal office.
*
www.aeg.com
14

ENGLISH 15

www.aeg.com/shop
280154235-A-302014
