AEG COMBIQUICK 7000 Series User manual

USER
MANUAL
EN User Manual
Microwave combi-oven
KMK565000M

CONTENTS
1. SAFETY INFORMATION.............................................................................................2
2. SAFETY INSTRUCTIONS.............................................................................................5
3. PRODUCT DESCRIPTION...........................................................................................7
4. CONTROL PANEL....................................................................................................... 8
5. BEFORE FIRST USE..................................................................................................... 8
6. DAILY USE....................................................................................................................9
7. CLOCK FUNCTIONS.................................................................................................11
8. USING THE ACCESSORIES...................................................................................... 12
9. ADDITIONAL FUNCTIONS...................................................................................... 13
10. HINTS AND TIPS..................................................................................................... 14
11. CARE AND CLEANING.......................................................................................... 31
12. TROUBLESHOOTING.............................................................................................31
13. ENERGY EFFICIENCY.............................................................................................33
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com/webselfservice
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
www.aeg.com
2

manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away unless continuously supervised.
•Children of less than 3 years of age should be kept
away unless continuously supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements.
•Always use oven gloves to remove or put in
accessories or ovenware.
•Before carrying out any maintenance, disconnect the
appliance from the power supply.
ENGLISH 3

•Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Do not activate the appliance when it is empty. Metal
parts inside the cavity can create electric arcing.
•Metallic containers for food and beverages are not
allowed during microwave cooking. This requirement
is not applicable if the manufacturer specifies size and
shape of metallic containers suitable for microwave
cooking.
•If the door or door seals are damaged, the appliance
must not be operated until it has been repaired by a
qualified person.
•Only a qualified person can carry out any service or
repair operation that involves the removal of a cover
which gives protection against exposure to microwave
energy.
•Do not heat liquids and other foods in sealed
containers. They are liable to explode.
•Only use utensils that are suitable for use in
microwave ovens.
•When heating food in plastic or paper containers,
keep an eye on the appliance due to the possibility of
ignition.
•The appliance is intended for heating food and
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition or fire.
•If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
www.aeg.com
4

•Microwave heating of beverages can result in delayed
eruptive boiling. Care must be taken when handling
the container.
•The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature
checked before consumption, in order to avoid burns.
•Eggs in their shell and whole hard-boiled eggs should
not be heated in the appliance since they may
explode, even after microwave heating has ended.
•The appliance should be cleaned regularly and any
food deposits removed.
•Failure to maintain the appliance in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from
other appliances and units.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
• The sides of the appliance must stay
adjacent to appliances or units with
the same height.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need
to be replaced, this must be carried
out by our Authorised Service Centre.
• Do not let mains cables touch or
come near the appliance door,
especially when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
ENGLISH 5

installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electric shock or explosion.
• This appliance is for household use
only.
• Do not change the specification of
this appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with
wet hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not use microwave function to
preheat the oven.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration
to the enamel:
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
moisture can build up behind a
closed furniture panel and cause
subsequent damage to the appliance,
the housing unit or the floor. Do not
close the furniture panel until the
appliance has cooled down
completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
www.aeg.com
6

Contact the Authorised Service
Centre.
• Make sure the cavity and the door are
wiped dry after each use. Steam
produced during the operation of the
appliance condensates on cavity walls
and can cause corrosion.
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Fat and food remaining in the
appliance can cause fire and electric
arcing when the microwave function
operates.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• If you use an oven spray, follow the
safety instruction on it's packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of
detergent.
2.5 Internal lighting
WARNING!
Risk of electric shock.
• The type of light bulb or halogen
lamp used for this appliance is for
household appliances only. Do not
use it for house lighting.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.6 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
3. PRODUCT DESCRIPTION
3.1 General overview
1 2 43
11
4
3
1
28
10
5
6
7
9
1Control panel
2Knob for the heating functions
3Display
4Control knob
5Heating element
6Microwave generator
7Lamp
8Fan
9Rating plate
10 Shelf support, removable
11 Shelf positions
ENGLISH 7

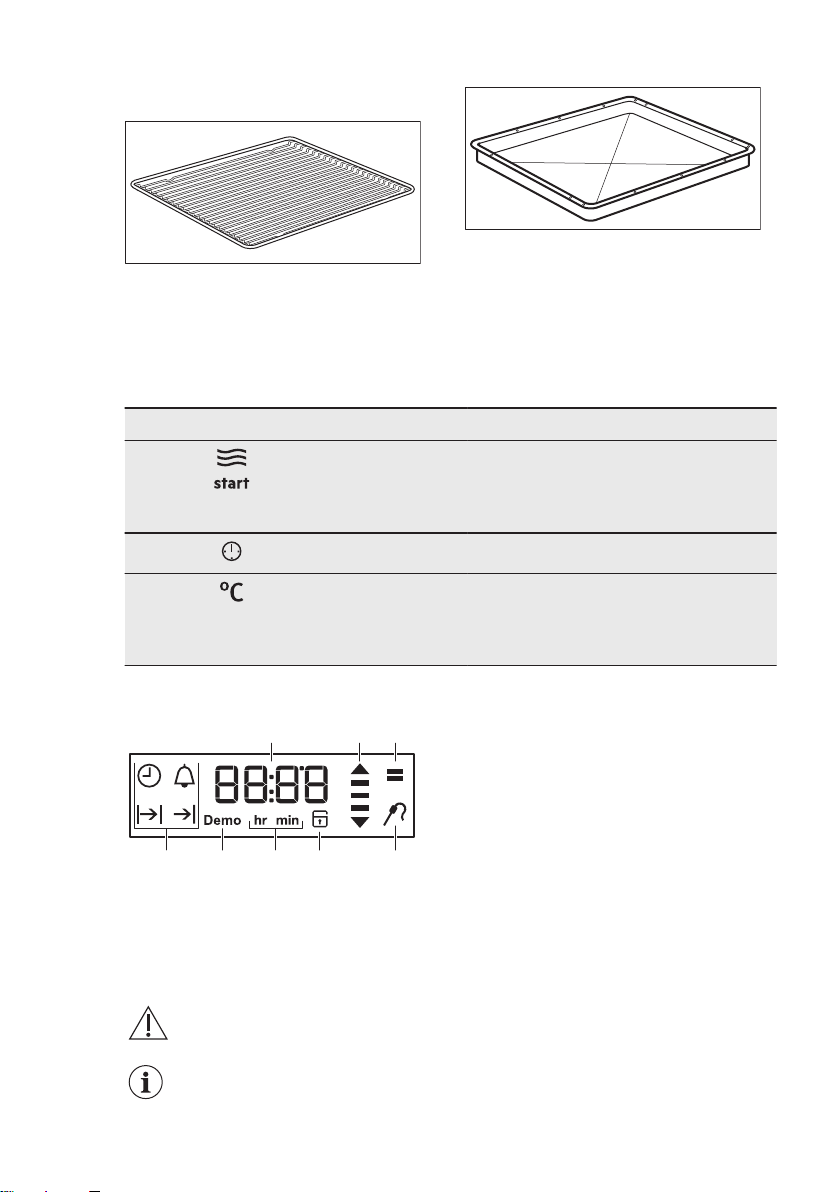

3.2 Accessories
Wire shelf
For cookware, cake tins, roasts.
Baking tray
For cakes and biscuits.
4. CONTROL PANEL
4.1 Buttons
Sensor field / Button Function Description
MICROWAVE To set the microwave function. Hold it for
more than 3 seconds to turn on or turn off
the oven lamp. You can turn on the light
also when the oven is turned off.
CLOCK To set a clock function.
TEMPERATURE To check the oven temperature or the
temperature of the core temperature sen-
sor (if applicable). Use only while the
heating function operates.
4.2 Display
A B C
EH FG D
A. Timer / Temperature / Microwave
power
B. Heat-up and residual heat indicator
C. Microwave mode
D. Core temperature sensor (selected
models only)
E. Door lock (selected models only)
F. Hours / minutes
G. Demo mode (selected models only)
H. Clock functions
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
To set the Time of day refer
to "Clock functions"
chapter.
5.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the oven.
www.aeg.com8

Refer to "Care and
cleaning" chapter.
Clean the oven and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial
position.
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Retractable knobs
To use the appliance press the knob. The
knob comes out.

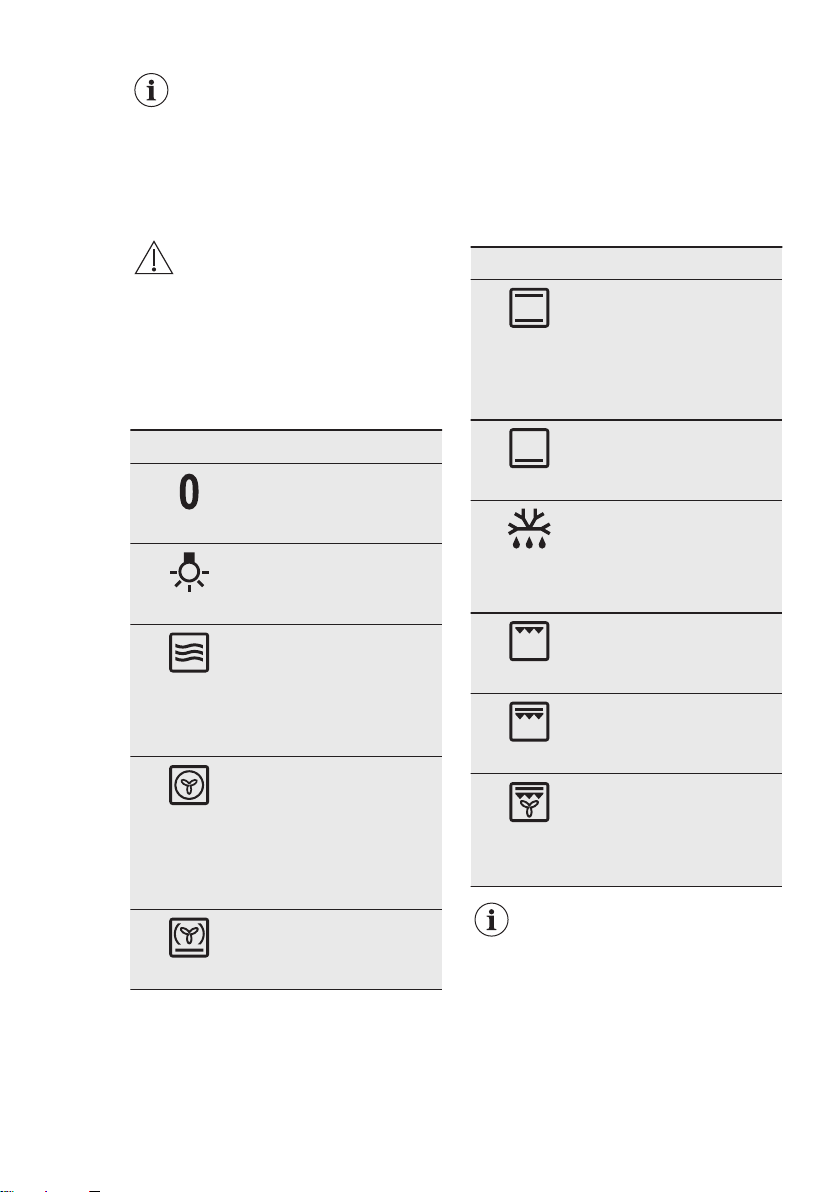

6.2 Heating functions
Oven function Application
Off position
The oven is off.
Light
To turn on the lamp with-
out a cooking function.
Microwave
Creates the heat directly
in the food. Use it to heat
pre-prepared meals and
drinks, to defrost meat or
fruit, and to cook vegeta-
bles and fish.
True Fan
Cooking
To bake on up to two
shelf positions at the
same time and to dry
food. Set the tempera-
ture 20 - 40 °C lower than
for Conventional Cook-
ing.
Pizza Setting
To bake pizza. To make
intensive browning and a
crispy bottom.
Oven function Application
Conventional
Cooking
(Top / Bottom
Heat)
To bake and roast food
on one shelf position.
Bottom Heat
To bake cakes with crispy
bottom and to preserve
food.
Defrost
To defrost food (vegeta-
bles and fruit). The de-
frosting time depends on
the amount and size of
the frozen food.
Grilling
To grill flat food and to
toast bread.
Fast Grilling
To grill flat food in large
quantities and to toast
bread.
Turbo Grilling
To roast larger meat
joints or poultry with
bones on one shelf posi-
tion. To make gratins and
to brown.
The lamp may turn off
automatically at a
temperature below 60 °C
during some oven functions.
6.3 Setting a heating function
1. Turn the knob for the heating
functions to select a heating function.
2. Turn the control knob to select the
temperature / the microwave power.
ENGLISH 9

The lamp turns on when the oven
operates.
3. To turn off the oven, turn the knobs
to the off position.
6.4 Setting the function:
Microwave
Remove all accessories.
1. Turn the knob for the oven functions
to select the function: Microwave .
The display shows first a default
microwave power and then a default
time for: Duration.
Press to start with the default values
for microwave power and for: Duration.
2. Turn the knob for the temperature /
microwave power to change the
microwave power. The power setting
changes in 100 Watt steps.
3. Press and then turn the knob for
the temperature / microwave power
right or left to change:Duration.
4. Press: .
When the time set for Duration ends, the
signal sounds and the function
Microwave stops.
5. Turn the knob for the oven functions
to the off position.
When you open the oven
door, the function
Microwave stops. To start it
again, close the door and
press .
6.5 Setting the function:
Microwave Combi
You can combine the microwave function
with any of the heating functions.
1. Turn the knob for the heating
functions to select the function.
The display shows a default temperature.
2. Turn the control knob to change the
temperature.
3. Press to combine heating function
with the microwave mode.
4. Turn the control knob to change the
microwave power settings. The
power setting changes in 100 Watt
steps.
Around 5 degrees before the set
temperature is reached the signal
sounds. When the set time for Duration
ends the signal sounds again and the
oven stops.
5. Turn the knob for the heating
functions to the off position.
While using Microwave
Combi function the oven
can make various noises.
They are normal for this
function.
6.6 Heat-up indicator
When the oven function operates, the
bars in the display appear one by one
when the temperature in the oven
increases, and disappear when it
decreases.
www.aeg.com
10
