AEG KO_SANTO 4085 User manual

ÖKO_SANTO 4085-6KG
Electronic Refrigerator/Freezer
Operating Instructions
818 16 35 - 00/7

2818 16 35-00/7
Dear customer,
Before placing your new refrigerator/freezer into operation please read
these operating instructions carefully. They contain important
information for safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them
on to possible new owners of the appliance.
1Notes which are important for your safety or for the proper
functioning of the appliance are stressed with a warning triangle and/
or with signal words (Warning!, Caution!, Important!). Please observe
the following carefully.
0This symbol guides you step by step in the operation of the appliance.
3Supplementary information regarding operation and practical
applications of the appliance appear after this symbol.
2Tips and notes concerning economical and environmentally sound use
of the appliance are marked with the cloverleaf.
Explanations of the technical terminology used in the operating
instructions can be found at the end in the section "Technical
Terminology".
The operating instructions contain instructions for the correction of
possible malfunctions by the user in the section "Something not
working". If these instructions should not be sufficient, please contact
your local AEG Service Force Centre.
P
r
i
nte
d
on paper manu
f
acture
d
w
i
t
h
env
i
ronmenta
ll
y soun
d
processes.
he who thinks ecologically acts accordingly ...

818 16 35-00/7 3
Contents
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Environmental Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Appliance Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Fitting the Door Handles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
The refrigerator/freezer needs air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Appliance Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Reversing The Door . . . ........ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Appliance Description . . . . . . . . . . ....... . . . . . . . . . . . . . . . . . . . . . . . . . . 17
View of Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Freezer tray with "Cold Accumulation Block" . . . . . . . . . . . . . . . . . . . . . . . . . 18
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Temperature Regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Temperature Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Prior to Initial Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Initial Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Temperature Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Freezer Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
FAST CHILL/FAST FREEZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
FAST CHILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
FAST FREEZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Switching the Appliance Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Stand-by Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Contents
4818 16 35-00/7
Control and Information Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Temperature Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Partial/Complete Thaw Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Function Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Opening the Freezer Compartment Door . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Storage Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Bottle rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Variable Inner Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Trays and Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Bottle Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Correct storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Freezing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Frozen Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Storage Goods Symbols/Freezing Calendar . . . . . . . . . . . . . . . . . . . . . . . . . 34
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
The refrigerator is defrosted automatically . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Freezer Compartment Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Hints and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Normal Operating Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Food Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Energy Saving Advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Maintenance and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Internal Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
External Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Replace light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Something not Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Technical Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
European Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Service & Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

818 16 35-00/7 5
1Important Safety Instructions
These warnings are provided in the interests of your safety. Ensure
that you understand them all before installing or using this
appliance. Your safety is of paramount importance. If you are unsure
about any of the meanings of these warnings contact the Customer
Care Department.
Prior to Installation
• Check the refrigerator/freezer for transport damage. Under no circum-
stances should a damaged appliance be installed! In the event of damage,
please contact your retailer.
Installation
• This appliance is heavy. Care should be taken when moving it.
• It is dangerous to alter the specifications or attempt to modify this pro-
duct in any way.
• Ensure that the appliance does not stand on the electrical supply cable. If
the supply cable is damaged, it must be replaced by a cable available
from your local Service Force Centre.
• Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
• Parts which heat up should not be exposed. Whenever possible, the back
of the appliance should be close to a wall, but leaving the required
distance for ventilation, as stated in the installation instructions.
• The appliance should be left for 4 hours after installation before it is tur-
ned on, in order to allow the refrigerant to settle.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of environmen-
tal compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.

Important Safety Instructions
6818 16 35-00/7
Child Safety
•Do not allow children to tamper with the controls or play with the pro-
duct.
•Keep packaging material away from children! (There is a risk of suffoca-
tion!)
During Use
•This appliance is designed for domestic use only, specifically for the
storage of edible foodstuffs only. It is not intended for commercial or
industrial use
•Containers with flammable gases or liquids can leak at low temperatures.
Do not store any containers with flammable materials such as, spray cans,
fire extinguisher refill cartridges etc in the freezer.
•Frozen food should not be refrozen once it has thawed out.
•Do not place carbonated or fizzy drinks in the freezer.
•Ice lollies can cause ’frost/freezer burns’if consumed straight from the
freezer compartment.
•Do not remove items from the freezer compartment if your hands are
damp/wet, as this could cause skin abrasions or frost/freezer burns.
•Bottles and cans must not be placed in the freezer. They can burst when
the contents freeze.
•Manufacturers´recommended storage times should be adhered to. Refer
to relevant instructions.
Maintenance and Cleaning
•Before cleaning, always switch off the appliance and disconnect from the
electrical supply.
•When unplugging always pull the plug from the mains socket, do not pull
on the cable.
Servicing
•This product should be serviced by an authorised engineer and only
genuine spare parts should be used.
•Under no circumstances should you attempt to repair the appliance
yourself. Repairs carried out by inexperienced persons may cause injury or
serious malfunctioning.
Contact your local AEG Service Force Centre.

818 16 35-00/7 7
Environmental Information
Packaging
All transit packaging materials are environmentally compatible and can
be reused. Wood is un-treated. The plastics can be recycled and are
identified as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the inte-
rior.
>PS< for polystyrene foam, e.g. the pads, which are pure hydrocarbon
compounds and can be recycled.
The carton parts are made from recycled paper. Please dispose of the
packaging with due care for the environment.
Old Appliances
When disposing of your old appliance:
Make the appliance unusable by cutting off the cable and remove any
door catches to ensure small children cannot be trapped inside.
Help to keep your country tidy - use an authorised disposal site.
Appliance Transport
Two persons are required for transport of the appliance. There are two
recessed handles at the front of the base and at the back of the appli-
ance at the top for improved gripping.
0Grip the appliance with the recessed handles positioned as in the dra-
wing, and transport the appliance.

8818 16 35-00/7
0In order to push the appliance into its final position, press carefully at
the top of the door and tip the appliance back slightly. The weight is
thus transferred to the back casters and the appliance can be easily
pushed.
Before Use
Packaging
0Remove all adhesive tape and packaging from the interior of the
appliance.
3Any remnants of adhesive can be removed with white spirit.
0Remove the transport protection pieces and pull off the adhesive tape.
0Wash the inside of the appliance with lukewarm water with a little
bicarbonate of soda added (5 ml to 0.5 litre of water). Do not use soap
or detergent as the smell may linger. Dry the appliance thoroughly.

818 16 35-00/7 9

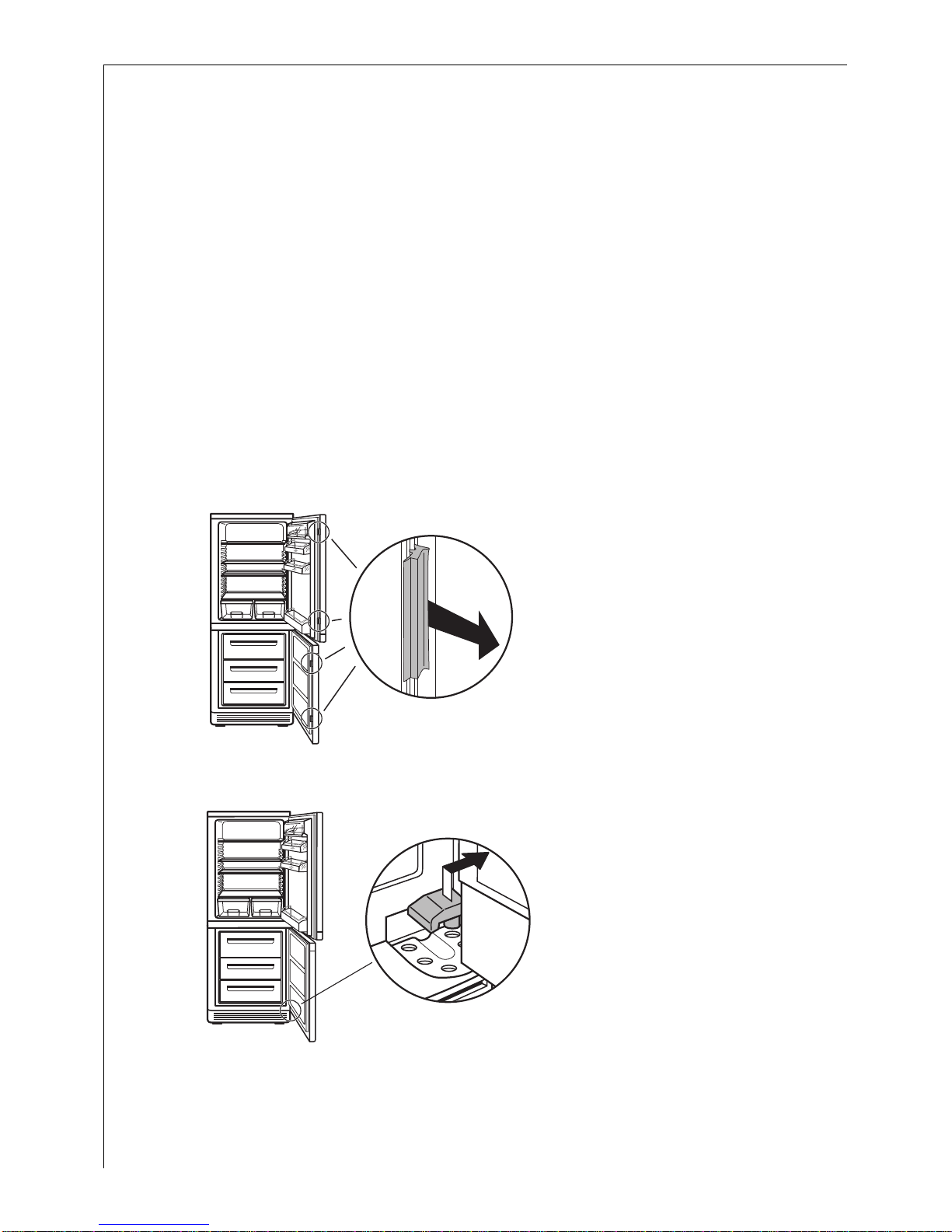

Remove the transport fittings from
the storage shelves:
0Slide the fittings securing the shelf
forward to the thicker section on
the edge of the storage shelf.
0Slide the storage shelf far enough
forward so that it can be hinged
downwards and the fittings can be
removed from the guides.

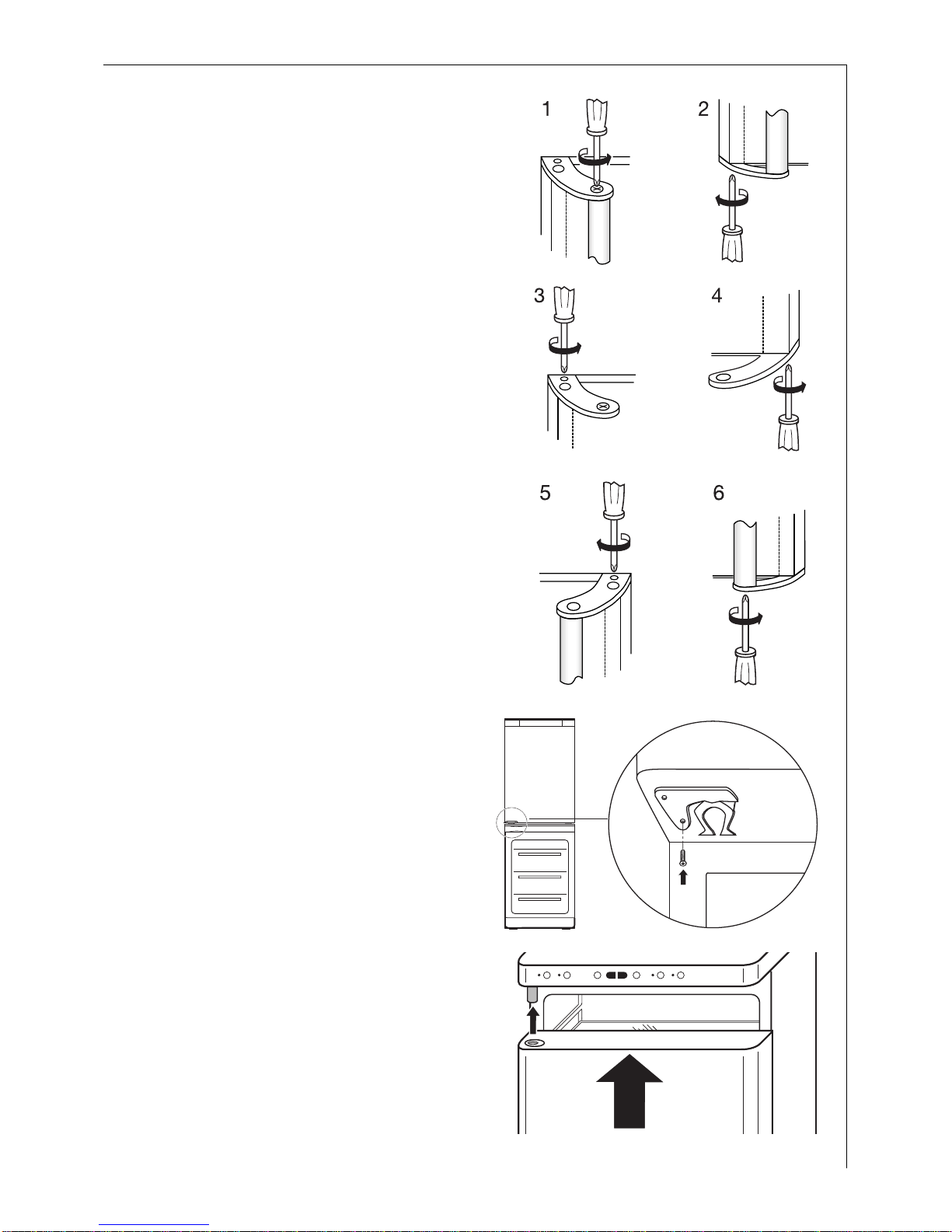

Fitting the Door Handles
1Caution! Do not overtighten the screws (max. 2 Nm) as you may
damage the door handles.
0Screw the top handle bracket to the
handle rod (1). Fit the bottom
handle bracket on the lower left-
hand side of the door (2).
0Fit the top handle bracket on the
top left-hand side of the door (3)
and screw the handle rod to the
bottom handle bracket (4).

10 818 16 35-00/7
Installation
Installation Location
The appliance should be installed in a well ventilated, dry room.
Energy use is affected by the ambient temperature.
The appliance should therefore
–not be exposed to direct sunlight;
–not be installed next to radiators, cookers or other sources of heat;
–only be installed at a location whose ambient temperature corre-
sponds to the climate classification, for which the appliance is desi-
gned.
The climate classification can be found on the rating plate, which is
located at the left on the inside of the appliance.
The following table shows which ambient temperature is correct for
each climate classification:
Climate classification for an ambient temperature of
SN +10 to +32 °C
N+16 to +32 °C
ST +18 to +38 °C
T+18 to +43 °C

Installation
818 16 35-00/7 11
The refrigerator/freezer needs air
Air is fed under the door through the
vent slots in the base and is exhausted
upwards along the back wall. To ensure
proper air circulation never cover or
alter the vent openings.
Important! If the appliance is installed
under a hanging cabinet, a clearance of
at least 10 cm between the top of the
appliance and the cabinet above it must
be maintained.
Please check whether, after installing
your appliance and especially after
rehingeing the door, the door seal seals
tightly. A badly fitting door seal may
lead to heavy frosting and a higher
power consumption (see also "Something not working“).
Appliance Alignment
0The appliance must be level.Please compensate for unevenness in the
floor by turning the two adjustable feet at the front.

Installation
12 818 16 35-00/7
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
1WARNING – THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety measures
not be observed.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate. The rating plate is
inside, on the left.
The appliance is supplied with a 13 amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13 amp ASTA appro-
ved (BS 1362) fuse must be used.
Important
The wires in the mains lead are coloured in accordance with the follow-
ing code:
Green and Yellow Earth
Blue Neutral
Brown Live
As the colours of the wires in the
mains lead of this appliance may
notcorrespondwiththecoloured
markings indentifying the termi-
nals in your plug, proceed as fol-
lows:
1. The wire coloured green and
yellow must be connected to
the terminal marked with the
letter "E“or by the earth sym-
bol or coloured green and yellow.
2. The wire coloured blue must be connected to the terminal "N“or
coloured black.
3. The wire coloured brown must be connected to the terminal marked
"L“or coloured red.
4. Upon completion there must be not cut, or stray strands of wire
present and the cord clamp must be secure over the outer sheat.
1Warning! A cut-off plug inserted into a 13 amp socket is a serious
safety (shock) hazard. Ensure that the cut-off plug is disposed of safely.

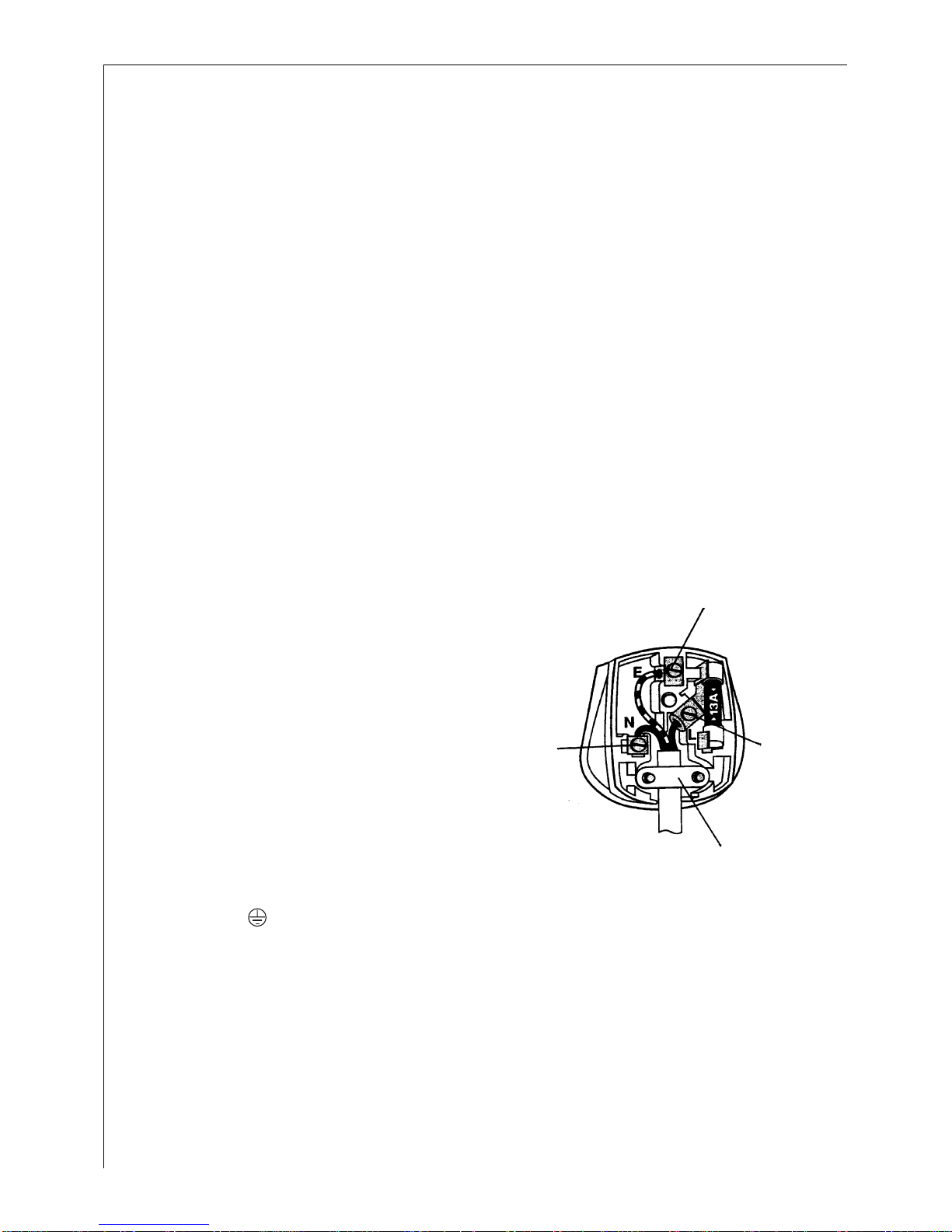

Blue
Green
& Yellow
Brown
Cord Clamp

818 16 35-00/7 13
Reversing The Door
The door hinges can be changed from right (as supplied) to left if requi-
red to suit the location where the appliance is installed.
1Warning! Unplug from the mains, before reversing the door.

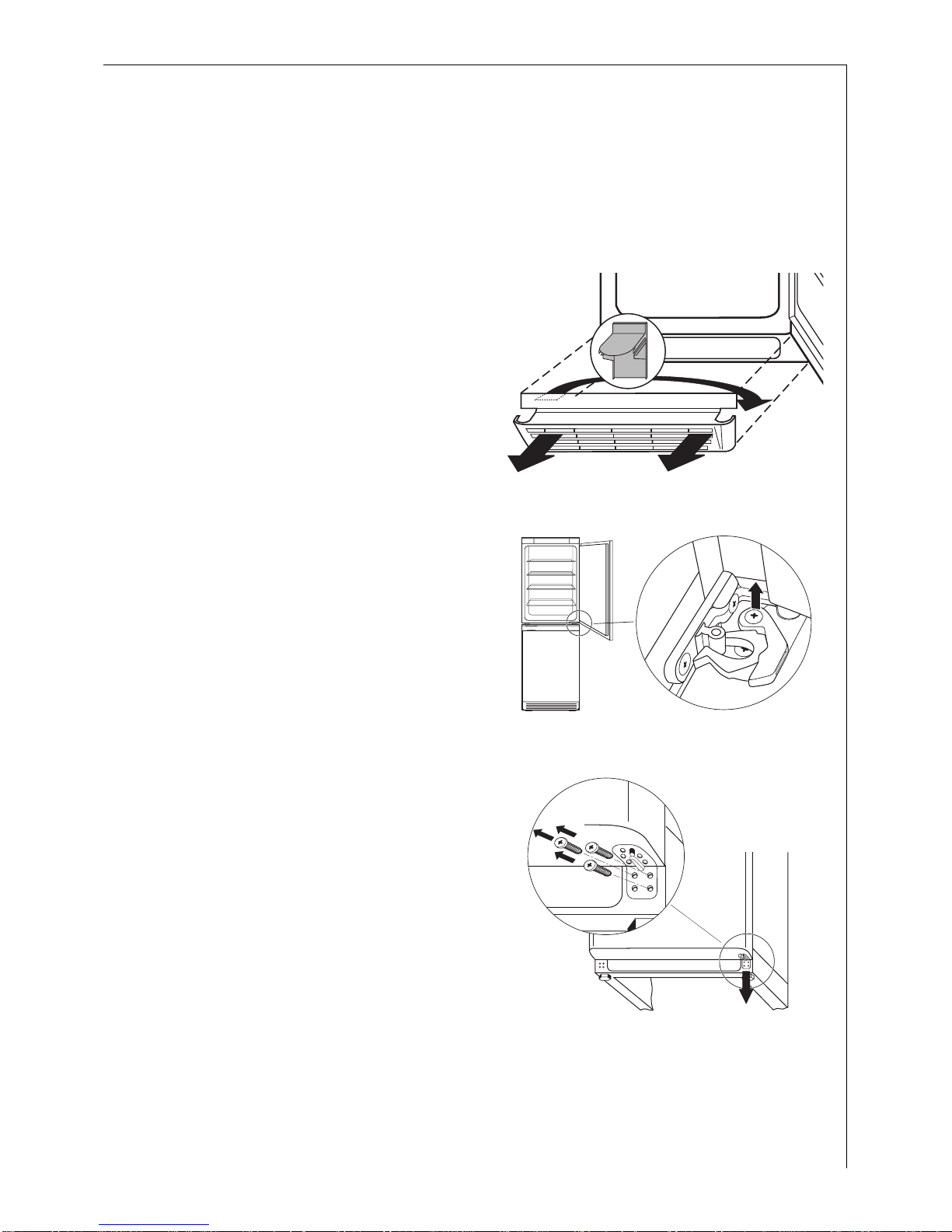

0Open the freezer compartment
door and remove the plinth to
the front. Move the door bearing
cover on the plinth from the left
to the right.
0Close the freezer compartment
door. Open the fridge compart-
ment door and unscrew the retai-
ning screw for the self-closing
mechanism on the top of the
freezer compartment door.
0With the freezer compartment
door closed, remove the cross-
head screws from the lower door
bearing and remove the door bea-
ring downwards.

Changing Over The Door Hinges
14 818 16 35-00/7
0Move the bearing pivot from the
right to the left hand hole.
Remove the freezer compartment
door carefully to the front and
place on one side.
0Unscrew the centre door bearing.
0Remove the fridge compartment
door carefully to the front and
place on one side.
0Unscrew the retaining screw for
theself-closingmechanismonthe
bottom of the fridge compart-
ment door.
0Move the upper bearing pivot to
the left.

Changing Over The Door Hinges
818 16 35-00/7 15
0Unscrew the top handle bracket
from the handle rod (1). Unscrew
the bottom handle bracket from
the door (2).
0Unscrew the top handle bracket
from the door (3) and screw onto
the bottom right-hand side of the
door (4).
1Caution! Do not overtighten the
screws (max. 2 Nm) as you may
damage the door handles.
0Turn the handle bracket with the
handle rod 180°and screw them
to the door (5) and the fitted
handle bracket (6).
1Caution! Do not overtighten the
screws (max. 2 Nm) as you may
damage the door handles.
0Fastentheself-closingmechanism
to the bottom left of the fridge
compartment door.
0Carefully slide the fridge com-
partment door onto the top bea-
ring pivot and close.

Changing Over The Door Hinges
16 818 16 35-00/7
0Slide the centre door bearing into
the bottom left of the fridge com-
partment door and fasten to the
housing.
0Fastentheself-closingmechanism
on the top left of the freezer
compartment door,
0Carefully slide the freezer com-
partment door onto the centre
bearing pivot and close.
0Place the lower door bearing with
the bearing pivot in the lower left
of the freezer compartment door
and fasten.
0Open the freezer compartment
door and fit the plinth.

818 16 35-00/7 17
Appliance Description
View of Appliance
 Control panel and elements
 Butter and cheese compartment with lid
 Door storage compartments
 Variable storage box
 Bottle compartment/bottle rack
 Fruit and vegetable drawers
 Shelves
 Freezer drawer (only for storage)
When defrosting the bottom drawer also serves as a water
collecting vessel.
 Freezer drawer (for storage and freezing)
 Freezer tray
Rating plate (depending on model upper or lower left)

Appliance Description
18 818 16 35-00/7

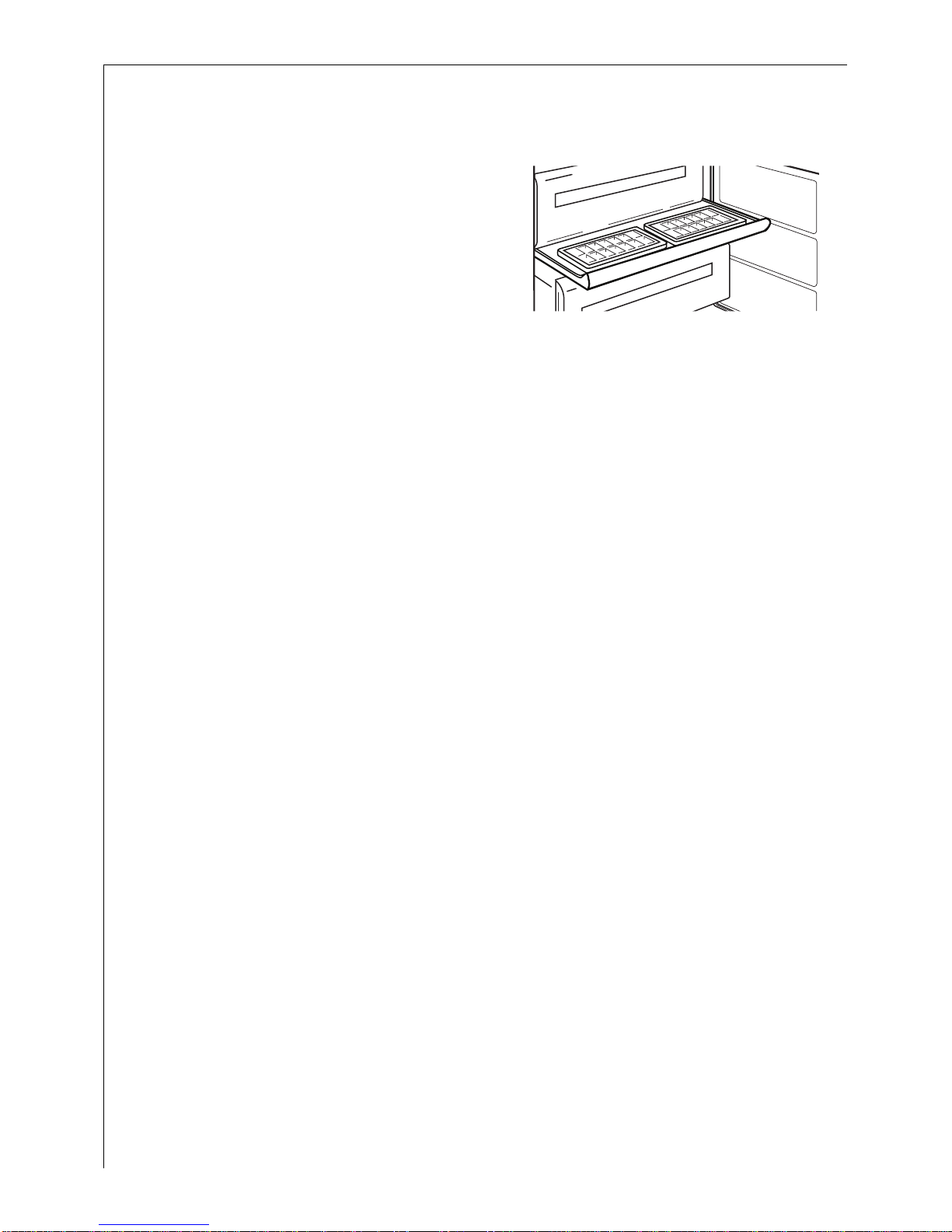

Freezer tray with "Cold Accumulation Block"
A freezer tray with a cold accumula-
tion block and two ice trays is
included below the upper drawer in
the freezer compartment.
Refer to the section "Prior to Initial
Start-Up" regarding the freezing of
the cold accumulation block.
3In the event of power failure or a malfunction of the appliance, the
cold accumulation block will increase the hold over period by several
hours.
The block may also be used in a cool bag to keep the temperature of
food down during transportation.
Berries, for example, can be pre-frozen on the freezer tray. Advantage:
The berries are not squeezed and maintain their natural form. The fro-
zen berries can then be stored in compartments or drawers packaged in
individual portions.

Appliance Description
818 16 35-00/7 19

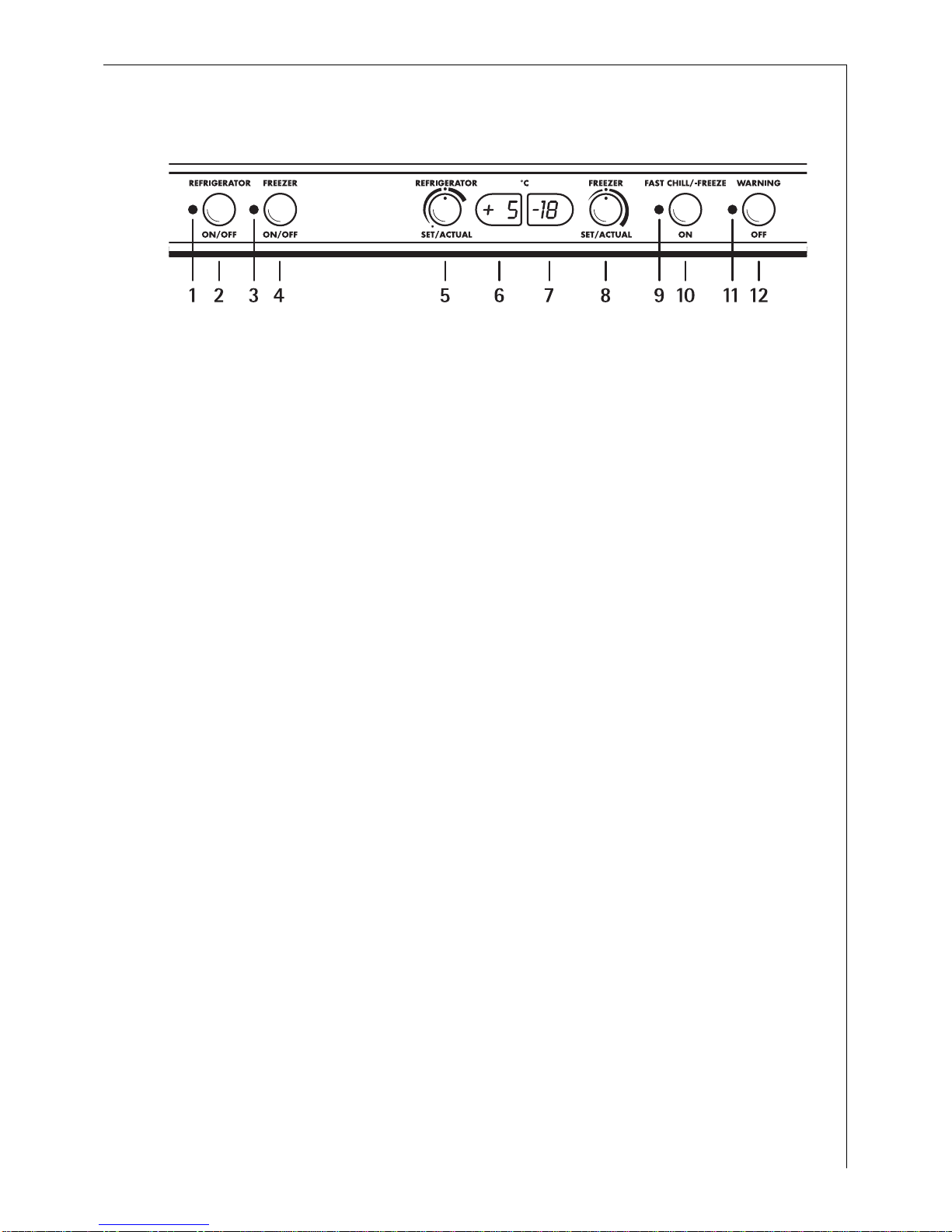

Control Panel
1ON/OFF indicator light for refrigerator (green)
2ON/OFF button for refrigerator
3ON/OFF indicator light for freezer compartment (green)
4ON/OFF button for freezer compartment
5Temperature regulator for refrigerator
6Temperature display for refrigerator
7Temperature display for freezer compartment
8Temperature regulator for freezer compartment
9FAST FREEZE indicator light (yellow)
10 FAST CHILL/-FREEZE button
•FAST CHILL for intensive cooling in the refrigerator
•FAST FREEZE for fast freezing in the freezer compartment
11 Warning indicator light (red)
12 WARNING OFF button
(see section: "Control and Information Systems")

Appliance Description
20 818 16 35-00/7

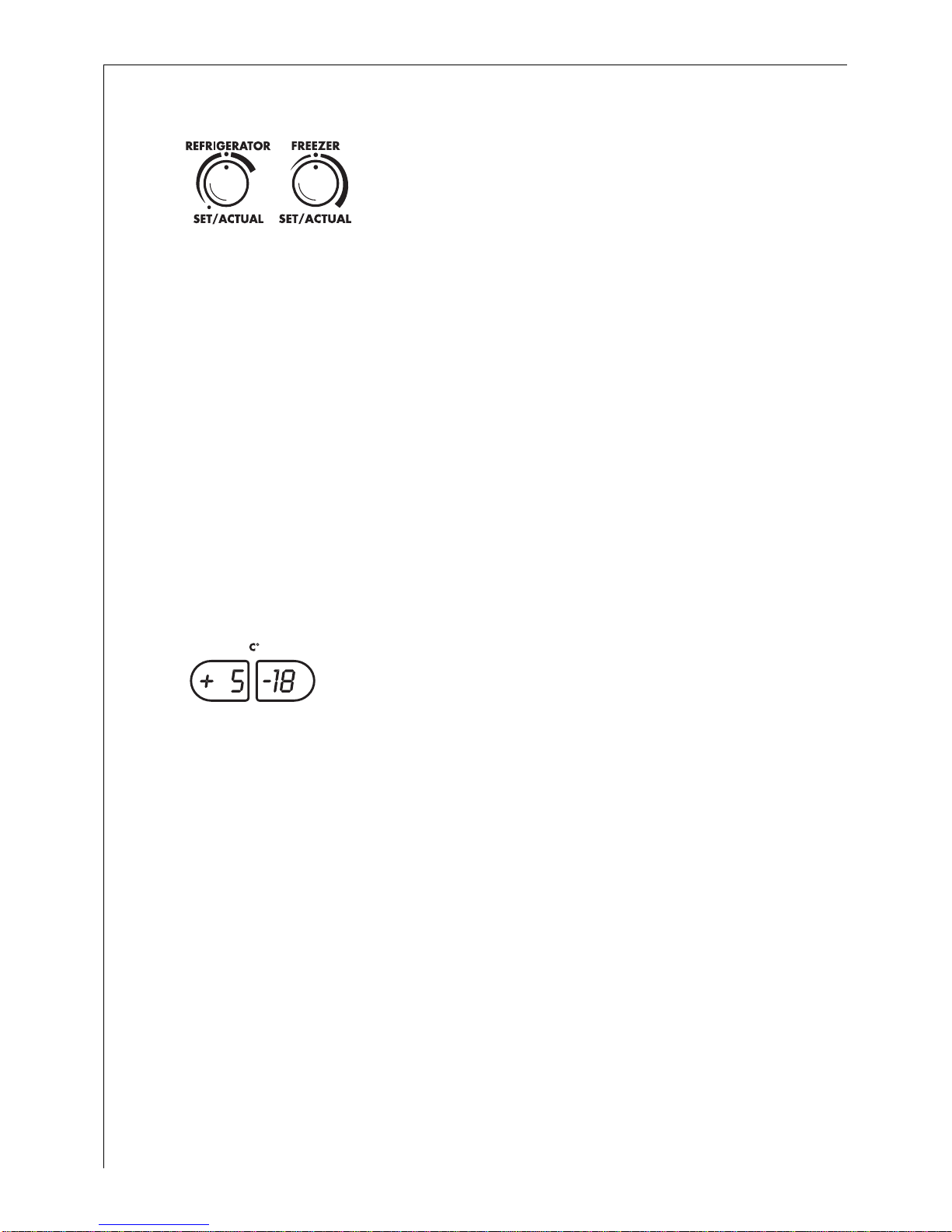

Temperature Regulator
To adjust the temperature of the refrigerator or
freezer compartment the regulator button must
be freed from its recessed position.
•Briefly pressing on the respective temperature regulator button frees
it from its recessed position.
•Pressing on the respective temperature regulator button returns it to
its recessed position.
SET means:
With temperature regulator button freed from the recessed position;
the required temperature (SET temperature) can be adjusted in incre-
ments of 1°C.
ACTUAL means:
With temperature regulator button in recessed position; temperature
display indicates the refrigerator or freezer compartment temperature
(ACTUAL temperature).
Temperature Displays
The temperature displays shows several types of
information.
•In normal operation the refrigerator or freezer compartment tempe-
rature is displayed (ACTUAL temperature). The temperature regulator
must be in its recessed position.
•During temperature adjustment, the temperature selected will flash
in the display (SET temperature).
•If a malfunction has occurred the temperature display alternately
indicates:
–the current refrigerator or freezer compartment temperature
(ACTUAL temperature) as well as
–an error message.
The error message is coded (e.g. F1, F2, etc.) and assists the service
technician in diagnosing the fault. If the temperature can no longer
be registered, only the error code is displayed.
