AEG S75348KG18 User manual

S75348KG18
S75388KG18
User manual Fridge-Freezer
 

-

Manual de instrucciones Frigorífico-congelador

Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Contents
Safety information 2
Children and vulnerable people safety 3
General safety 3
Daily Use 4
Care and cleaning 4
Installation 4
Service 5
Control panel 5
Switching on 6
Switching off 6
Temperature indicators 6
Temperature regulation 6
COOLMATIC function 7
Holiday function 7
FROSTMATIC function 7
High temperature alarm 8
First use 8
Cleaning the interior 8
Daily use 8
Freezing fresh food 8
Storage of frozen food 8
Thawing 9
Movable shelves 9
Bottle rack 9
Vegetable Drawer 10
Positioning the door shelves 10
Air cooling 11
Chiller Zone 11
Removal of freezing baskets from the
freezer 12
Helpful hints and tips 12
Normal Operating Sounds 12
Hints for energy saving 12
Hints for fresh food refrigeration 12
Hints for refrigeration 13
Hints for freezing 13
Hints for storage of frozen food 13
Care and cleaning 13
Periodic cleaning 14
Defrosting of the refrigerator 14
Defrosting of the freezer 15
What to do if… 15
Replacing the lamp 17
Closing the door 17
Technical data 17
Installation 17
Positioning 17
Location 18
Electrical connection 18
Rear spacers 18
Levelling 19
Removing the shelf holders 19
Door reversibility 19
Environmental concerns 21
Subject to change without notice
Safety information
In the interest of your safety and to ensure the correct use, before installing and first using
the appliance, read this user manual carefully, including its hints and warnings. To avoid
unnecessary mistakes and accidents, it is important to ensure that all people using the
2Contents

appliance are thoroughly familiar with its operation and safety features. Save these in-
structions and make sure that they remain with the appliance if it is moved or sold, so that
everyone using it through its life will be properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these user's instructions as the
manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection
cable (as close to the appliance as you can) and remove the door to prevent playing
children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a
spring lock (latch) on the door or lid, be sure to make that spring lock unusable before
you discard the old appliance. This will prevent it from becoming a death trap for a child.
General safety
CAUTION!
Keep ventilation openings clear of obstruction.
• The appliance is intended for keeping foodstuff and/or beverages in a normal household
as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating
appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the ap-
pliance, a natural gas with a high level of environmental compatibility, which is never-
theless flammable.
During transportation and installation of the appliance, be certain that none of the
components of the refrigerant circuit become damaged.
If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition
– thoroughly ventilate the room in which the appliance is situated
Safety information 3

• It is dangerous to alter the specifications or modify this product in any way. Any damage
to the cord may cause a short-circuit, fire and/or electric shock.
WARNING!
Any electrical component (power cord, plug, compressor) must be replaced by a certified
service agent or qualified service personnel.
1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the
appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of
electric shock or fire.
6. You must not operate the appliance without the lamp cover
1)
of interior lighting.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/
wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
Daily Use
• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
•Do not place food products directly against the air outlet on the rear wall.
2)
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's in-
structions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer
to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure
on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug from the
mains socket. If you cannot come to the mains socket, interrupt the power supply.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean
the drain. If the drain is blocked, water will collect in the bottom of the appliance.
Installation
For electrical connection carefully follow the instructions given in specific paragraphs.
1) If the lamp cover is foreseen
2) If the appliance is Frost Free
4Safety information

• Unpack the appliance and check if there are damages on it. Do not connect the appliance
if it is damaged. Report possible damages immediately to the place you bought it. In that
case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the
oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheat-
ing. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching
or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
•Connect to potable water supply only.
3)
Service
• Any electrical work required to do the servicing of the appliance should be carried out
by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare
parts must be used.
Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The appliance shall not be discarded together
with the urban refuse and rubbish. The insulation foam contains flammable gases: the
appliance shall be disposed according to the applicable regulations to obtain from your
local authorities. Avoid damaging the cooling unit, especially at the rear near the heat
exchanger. The materials used on this appliance marked by the symbol are recyclable.
Control panel
65 7 84321 1514131211910
1ON/OFF switch
2Fridge temperature regulator, + button
3Fridge temperature indicator
4Fridge temperature regulator, - button
5COOLMATIC button
6COOLMATIC indicator
7Fridge compartment indicator
3) If a water connection is foreseen
Control panel 5

8Freezer compartment indicator
9FROSTMATIC indicator
10 FROSTMATIC button
11 Freezer temperature regulator, + button
12 Freezer temperature indicator
13 Freezer temperature regulator, - button
14 Alarm reset button
15 Alarm indicator
Switching on
1. Insert the plug into the mains socket.
2. Set ON/OFF switch to ON.
3. The alarm indicator light flashes since the temperature is reached.
The acoustic alarm sounds.
4. Press the alarm reset button to reset the alarm.
Switching off
To switch the entire appliance off:
1. Set ON/OFF switch to OFF.
2. Disconnect the mains plug from the mains socket.
Temperature indicators
The temperature indicators show several information:
• During normal operation, the temperature currently present in the fridge (ACTUAL tem-
perature) is displayed.
• In the freezer the warmest temperature is displayed (ACTUAL temperature). When fully
filled, the warmest zone is normally located at the top in the front area of the freezer.
Depending upon how the section is filled, the temperatures are lower in other areas of
the freezer.
• When the temperature is being adjusted a flashing display indicates the fridge temper-
ature currently set (DESIRED temperature).
When changing the temperature setting wait about 24 hours until the temperature display
has stabilised.
If there is a fault in the appliance the temperature indicator shows:
• a square or a letter in the temperature indicator of the fridge for a fault in the fridge
• a square or a letter in the temperature indicator of the freezer for a fault in the freezer.
Temperature regulation
To operate the appliance, proceed as follows:
1. Set the required temperature by pressing the corresponding temperature regulator. The
temperature indicator will immediately show the changed setting (DESIRED tempera-
ture) and the temperature indicator flashes.
2. Each time the temperature regulator is pressed the DESIRED temperature is adjusted
by 1 °C. The DESIRED temperature must be reached within 24 hours.
3. Once the required temperature has been set, after a short period (approx. 5 sec.) the
temperature indicator will show again the current ACTUAL temperature inside the cor-
6Control panel

responding compartment. The temperature indicator will change from flashing to con-
tinuous illumination.
For a correct storage of the food the following temperatures should be set:
• +5 °C in the fridge
• -18 °C in the freezer.
When the setting is changed, the compressor does not start immediately if automatic
defrosting is currently taking place. As the storage temperature within the fridge is reached
quickly you can store food immediately after switching on.
COOLMATIC function
The COOLMATIC function is suited for quick cooling of large quantities of goods in the
refrigerator.
To activate the function, do these steps:
1. Press the COOLMATIC button.
2. The COOLMATIC indicator switches on.
The COOLMATIC function now provides for intensive cooling. A DESIRED temperature of
+2°C is automatically selected.
The COOLMATIC function is ended automatically after a period of 6 hours.
You can deactivate the function at any time:
1. Press the COOLMATIC button.
2. The COOLMATIC indicator switches off.
Holiday function
This function allows you to keep the refrigerator shut and empty during a long holiday
period (e.g. the summer holidays) without the formation of a bad smell.
The fridge compartment must be empty when the holiday function is on.
To activate the function:
1. press continuously the temperature regulator (+ button) until the letter "H" (Holiday)
appears on the temperature indicator. The Holiday function sets the temperature ap-
prox +15°C. The refrigerator is in the energy-saving mode.
To deactivate the function:
1. set the required temperature by pressing the fridge temperature regulator.
FROSTMATIC function
The FROSTMATIC function accelerates the freezing of fresh food and, at the same time,
protects foodstuffs already stored from undesirable warming.
To activate the function, do these steps:
1. Press the FROSTMATIC button.
2. The FROSTMATIC indicator switches on.
The FROSTMATIC function is ended automatically after a period of 52 hours.
You can deactivate the function at any time:
1. Press the FROSTMATIC button.
2. The FROSTMATIC indicator switches off.
Control panel 7

High temperature alarm
In the event of an abnormal temperature rise inside the freezer (e.g. power cut) alarm
indicator light will start to flash and a buzzer will sound.
Push the alarm reset button to stop the buzzer sound, while the alarm indicator light will
continue to flash.
The buzzer will stop automatically when the temperature has returned to normal while the
alarm indicator light will continue to flash.
Press the alarm reset button. The alarm indicator light goes out and at the same time the
freezer temperature indicator show for about 5 seconds the warmest temperature reached
in the freezer compartment.
First use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories
with lukewarm water and some neutral soap so as to remove the typical smell of a brand-
new product, then dry thoroughly.
Do not use detergents or abrasive powders, as these will damage the finish.
Daily use
Freezing fresh food
The freezer compartment is suitable for freezing fresh food and storing frozen and deep-
frozen food for a long time.
To freeze fresh foods it is not necessary to change the medium setting.
However, for a faster freezing operation, turn the temperature regulator toward higher
settings to obtain the maximum coldness.
In this condition, the refrigerator compartment temperature might drop below 0°C. If this
occurs reset the temperature regulator to a warmer setting.
Place the fresh food to be frozen on the top compartment.
Storage of frozen food
When first starting-up or after a period out of use, before putting the products in the
compartment let the appliance run at least 2 hours on the higher settings.
In the event of accidental defrosting, for example due to a power failure, if the power has
been off for longer than the value shown in the technical characteristics chart under "rising
time", the defrosted food must be consumed quickly or cooked immediately and then re-
frozen (after cooling).
8First use

Thawing
Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator com-
partment or at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking
will take longer.

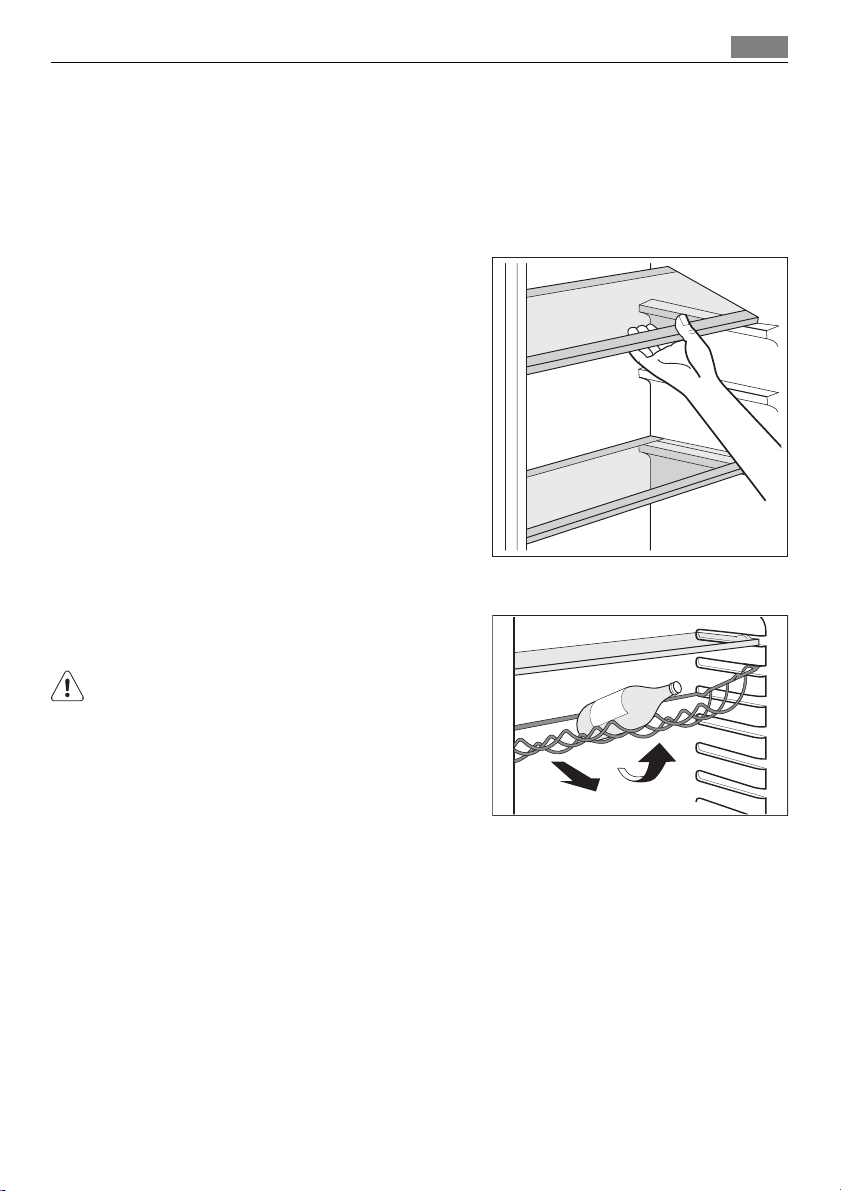

Movable shelves
The walls of the refrigerator are equipped with a
series of runners so that the shelves can be posi-
tioned as desired.
Bottle rack
Place the bottles (with the opening facing front)
in the pre-positioned shelf.
If the shelf is positioned horizontally, place only
closed bottles.
This bottle holder shelf can be tilted in order to
store previously opened bottles. To obtain this re-
sult, pull the shelf up so it can rotate upwards and
be placed on the next higher level.
Daily use 9

Vegetable Drawer
The drawer is suitable for storing fruit and vege-
tables.
There is a separator inside the drawer that can be
placed in different positions to allow for the sub-
division best suited to personal needs.
There is a grille (if foreseen) on the bottom of the
drawer to separate the fruit and vegetables from
any humidity that may form on the bottom sur-
face.
All parts inside the drawer can be removed for
cleaning purposes
Positioning the door shelves
To permit storage of food packages of vari-
ous sizes, the door shelves can be placed at
different heights.
To make these adjustments proceed as fol-
lows:
gradually pull the shelf in the direction of the
arrows until it comes free, then reposition as
required.
1
2
10 Daily use

Air cooling
The Dynamic Air Cooling (DAC) fan let food cool
quickly and a more uniform temperature in the
compartment.
1. You can switch on the fan by pressing the
switch (1). The green light (2) comes on.
2. Adjust the Temperature regulator to the FAN
position.
This device allows for rapid cooling of foods and
a more uniform temperature in the compartment.
Switch on the fan when the ambient temperature
exceeds 25°C.
Chiller Zone
The Chiller Zone compartment is suitable for storing fresh food like fish, meat, seafood,
because the temperature is lower here than in the rest of the fridge. It is placed in the lower
part of the refrigerator, directly above of the vegetable drawer.

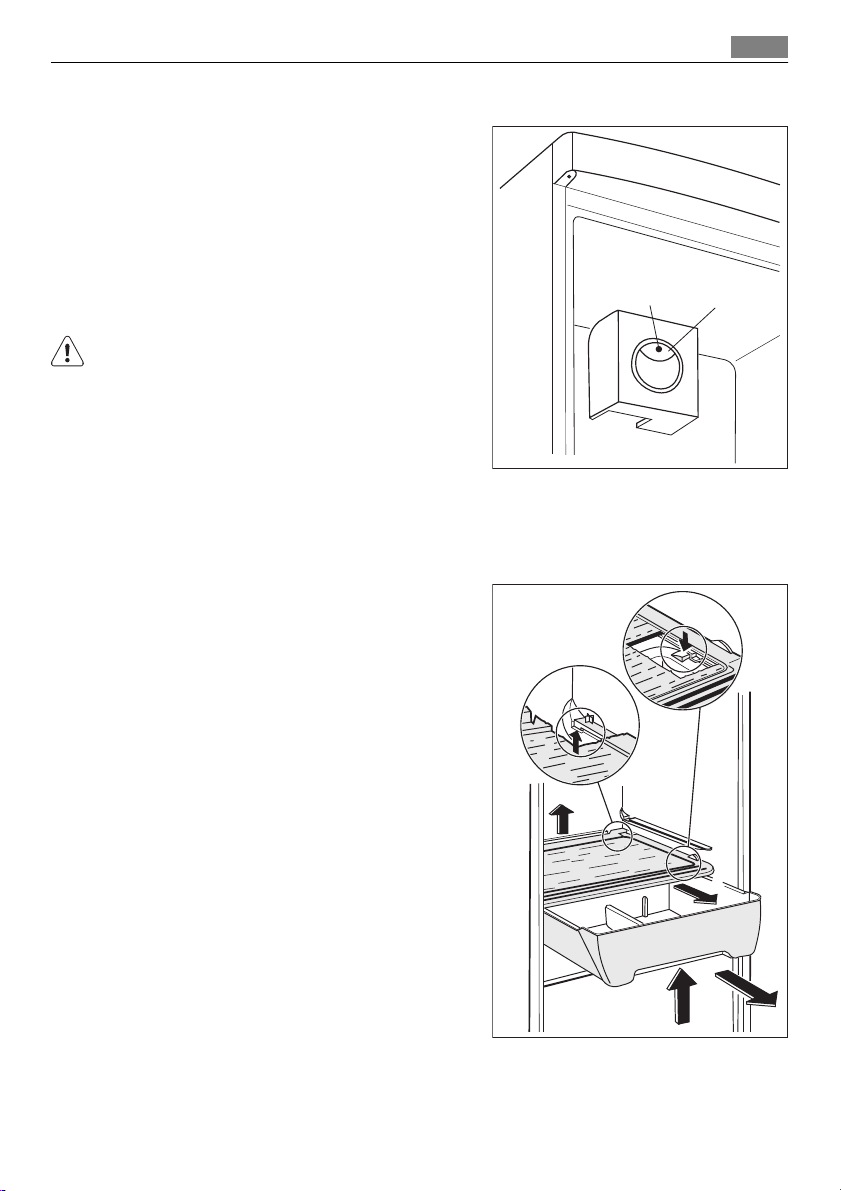

If you wish to remove the Chiller Zone compart-
ment, do these steps:
1. Open the door of the refrigerator as wide as
possible. If you cannot open the door at an
angle of 180° because of a limit stop or any
other objects , remove the bottle shelf from
the door.
2. Pull the drawer towards yourself to the end
point.
3. Slightly lift the front part of the drawer.
4. Remove the drawer from its support.
5. Lift the back of the support from its nest.
6. Pull the frame towards yourself.
7. Remove the support frame.
To put the Chiller Zone compartment to its initial
position, do above steps in opposite sequence.
1
2
3
2
5
6
Daily use 11

Removal of freezing baskets from the freezer
1
2
2
1
The freezing baskets have a limit stop to prevent their accidental removal or falling out.
At the time of its removal from the freezer, pull the basket towards yourself and, upon
reaching the end point, remove the basket by tilting its front upwards.
At the time of putting it back, slightly lift the front of the basket to insert it into the
freezer. Once you are over the end points, push the baskets back in their position.
Helpful hints and tips
Normal Operating Sounds
• You may hear a faint gurgling and a bubbling sound when the refrigerant is pumped
through the coils or tubing. This is correct.
• When the compressor is on, the refrigerant is being pumped around and you will hear
a whirring sound and a pulsating noise from the compressor. This is correct.
• The thermic dilatation might cause a sudden cracking noise. It is natural, not dangerous
physical phenomenon. This is correct.
Hints for energy saving
• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low tem-
perature and the appliance is fully loaded, the compressor may run continuously, causing
frost or ice on the evaporator. If this happens, set the Temperature Regulator toward
warmer settings to allow automatic defrosting and so a saving in electricity consumption.
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour
• position food so that air can circulate freely around it
12 Helpful hints and tips

Hints for refrigeration
Useful hints:
Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable
drawer.
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc..: these should be covered and may be placed on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s)
provided.
Butter and cheese: these should be placed in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be stored in the bottle rack on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.
Hints for freezing
To help you make the most of the freezing process, here are some important hints:
• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating
plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during
this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to
make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are
airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding
a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can
possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep
tab of the storage time.
Hints for storage of frozen food
To obtain the best performance from this appliance, you should:
• make sure that the commercially frozen foodstuffs were adequately stored by the re-
tailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the
shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.
Care and cleaning
CAUTION!
Unplug the appliance before carrying out any maintenance operation.
Care and cleaning 13

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must
therefore only be carried out by authorized technicians.
Periodic cleaning
The equipment has to be cleaned regularly:
• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from
debris.
• rinse and dry thoroughly.
Do not pull, move or damage any pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes
to clean the interior as this will damage the surface and leave a strong odour.
Clean the condenser (black grill) and the compressor at the back of the appliance with a
brush or a vacuum cleaner. This operation will improve the performance of the appliance
and save electricity consumption.
Take care of not to damage the cooling system.
Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the
plastics used in this appliance. For this reason it is recommended that the outer casing of
this appliance is only cleaned with warm water with a little washing-up liquid added.
After cleaning, reconnect the equipment to the mains supply.
Defrosting of the refrigerator
Frost is automatically eliminated from the evaporator of the refrigerator compartment
every time the motor compressor stops, during normal use. The defrost water drains out
through a trough into a special container at the back of the appliance, over the motor
compressor, where it evaporates.
It is important to periodically clean the defrost
water drain hole in the middle of the refrigerator
compartment channel to prevent the water over-
flowing and dripping onto the food inside. Use the
special cleaner provided, which you will find al-
ready inserted into the drain hole.
14 Care and cleaning

Defrosting of the freezer
The freezer compartment of this model, on the other hand, is a "no frost" type. This means
that there is no buildup of frost when it is in operation, neither on the internal walls nor
on the foods.
The absence of frost is due to the continuous circulation of cold air inside the compartment,
driven by an automatically controlled fan.
What to do if…
CAUTION!
Before troubleshooting, disconnect the power supply.
Only a qualified electrician or competent person must do the troubleshooting that is not
in this manual.
There are some sounds during normal use (compressor, refrigerant circulation).
Problem Possible cause Solution
The appliance is noisy. The appliance is not supported
properly. Check if the appliance stands sta- ble (all the four feet should be on
the floor).
The compressor operates
continually. The Temperature regulator may
be set incorrectly. Set a warmer temperature.
The door is not closed correctly. Refer to "Closing the door".
The door has been opened too
frequently. Do not keep the door open longer than necessary.
The product temperature is too
high. Let the product temperature de- crease to room temperature be-
fore storage.
The room temperature is too
high. Decrease the room temperature.
The FROSTMATIC function is
switched on. Refer to "FROSTMATIC function".
The COOLMATIC function is
switched on. Refer to "COOLMATIC function".
Water flows on the rear
plate of the refrigerator. During the automatic defrosting
process, frost defrosts on the
rear plate.
This is correct.
Water flows into the re-
frigerator. The water outlet is clogged. Clean the water outlet.
Products prevent that water
flows into the water collector. Make sure that products do not touch the rear plate.
What to do if… 15

Problem Possible cause Solution
Water flows on the
ground. The melting water outlet does
not flow in the evaporative tray
above the compressor.
Attach the melting water outlet
to the evaporative tray.
There is too much frost
and ice. Products are not wrapped prop-
erly. Wrap the products better.
The door is not closed correctly. Refer to "Closing the door".
The Temperature regulator may
be set incorrectly. Set a higher temperature.
The temperature in the
appliance is too high. The door is not closed correctly. Refer to "Closing the door".
The product temperature is too
high. Let the product temperature de- crease to room temperature be-
fore storage.
Many products are stored at the
same time. Store less products at the same time.
The temperature in the
refrigeration is too high. There is no cold air circulation in
the appliance. Make sure that there is cold air circulation in the appliance.
The temperature in the
freezer is too high. Products are too near to each
other. Store products so that there is cold air circulation.
The appliance does not
operate. The appliance is switched off. Switch on the appliance.
The mains plug is not connected
to the mains socket correctly. Connect the mains plug to the mains socket correctly.
The appliance has no power.
There is no voltage in the mains
socket.
Connect a different electrical ap-
pliance to the mains socket. Con-
tact a qualified electrician.
The lamp does not work. The lamp is defective. Refer to "Replacing the lamp".
As much as the advice does not lead to result, call the nearest brand-mark service.
16 What to do if…

Replacing the lamp
CAUTION!
Disconnect the plug from the mains socket.
1. Remove the screw from the lamp cover.
2. Pull outwards the hook of the lamp cov-
er.
3. Remove the lamp cover.
4. Replace the lamp with one of the same
power (the maximum power is shown on
the light bulb cover).
5. Install the lamp cover.
6. Tighten the screw to the lamp cover.
7. Connect the plug to the mains socket.
8. Open the door. Make sure that the light
comes on.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Service Force Center.
Technical data
S75348KG18 S75388KG18
Dimension
Height 1850 mm 2010 mm
Width 595 mm 595 mm
Depth 632 mm 632 mm
Rising Time 18 h 18 h
The technical information are situated in the rating plate on the internal left side of the
appliance and in the energy label.
Installation
WARNING!
Read the "Safety Information" carefully for your safety and correct operation of the ap-
pliance before installing the appliance.
Positioning
Install this appliance at a location where the ambient temperature corresponds to the
climate class indicated on the rating plate of the appliance:
1
2
3
Technical data 17

Climate class Ambient temperature
SN +10°C to + 32°C
N+16°C to + 32°C
ST +16°C to + 38°C
T+16°C to + 43°C
Location

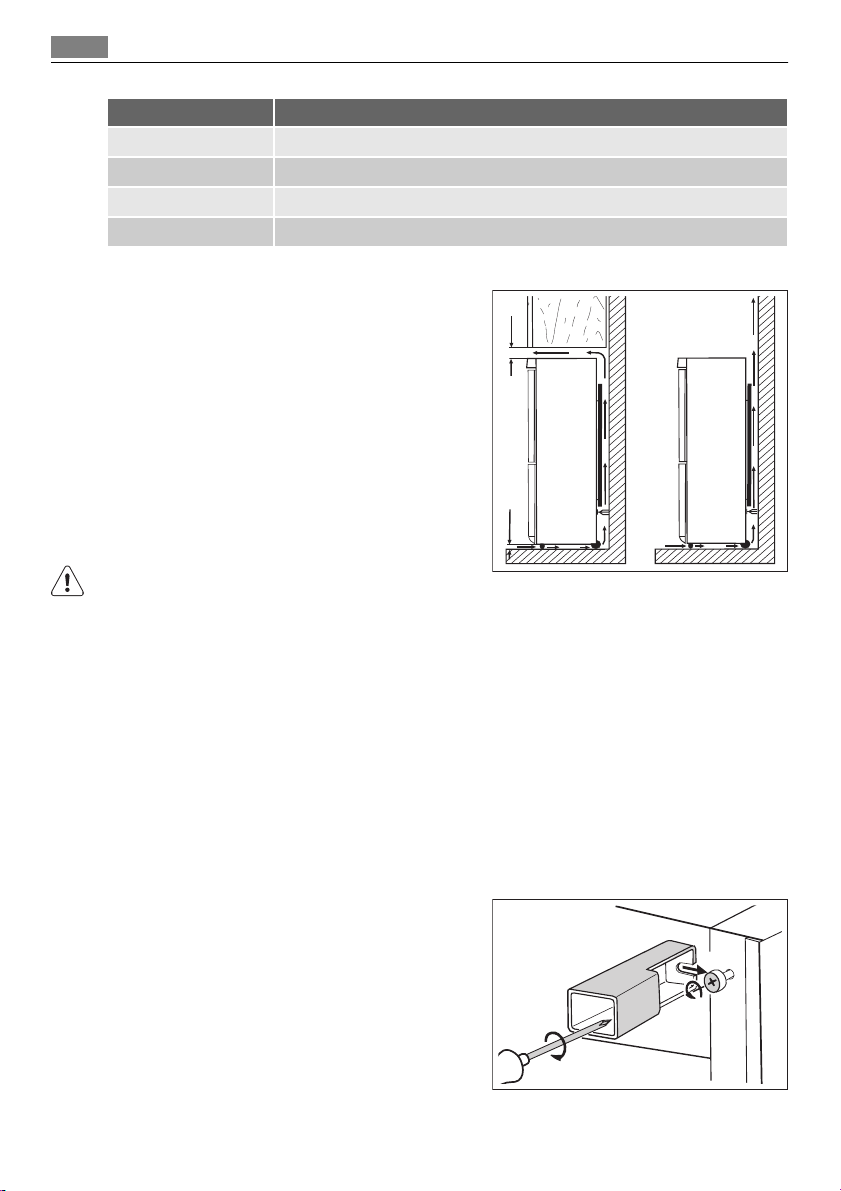

The appliance should be installed well away from
sources of heat such as radiators, boilers, direct
sunlight etc. Ensure that air can circulate freely
around the back of the cabinet. To ensure best
performance, if the appliance is positioned below
an overhanging wall unit, the minimum distance
between the top of the cabinet and the wall unit
must be at least 100 mm . Ideally, however, the
appliance should not be positioned below over-
hanging wall units. Accurate levelling is ensured
by one or more adjustable feet at the base of the
cabinet.
WARNING!
It must be possible to disconnect the appliance
from the mains power supply; the plug must therefore be easily accessible after installation.
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate cor-
respond to your domestic power supply.
The appliance must be earthed. The power supply cable plug is provided with a contact for
this purpose. If the domestic power supply socket is not earthed, connect the appliance to
a separate earth in compliance with current regulations, consulting a qualified electrician.
The manufacturer declines all responsibility if the above safety precautions are not ob-
served.
This appliance complies with the E.E.C. Directives.
Rear spacers
In the bag with the documentation, there are
two spacers which must be fitted as shown in
the figure.
Slacken the screws and insert the spacer under the
screw head, then tighten again the screws.
AB
mm mm
min
100
20
1
2
3
18 Installation

Levelling

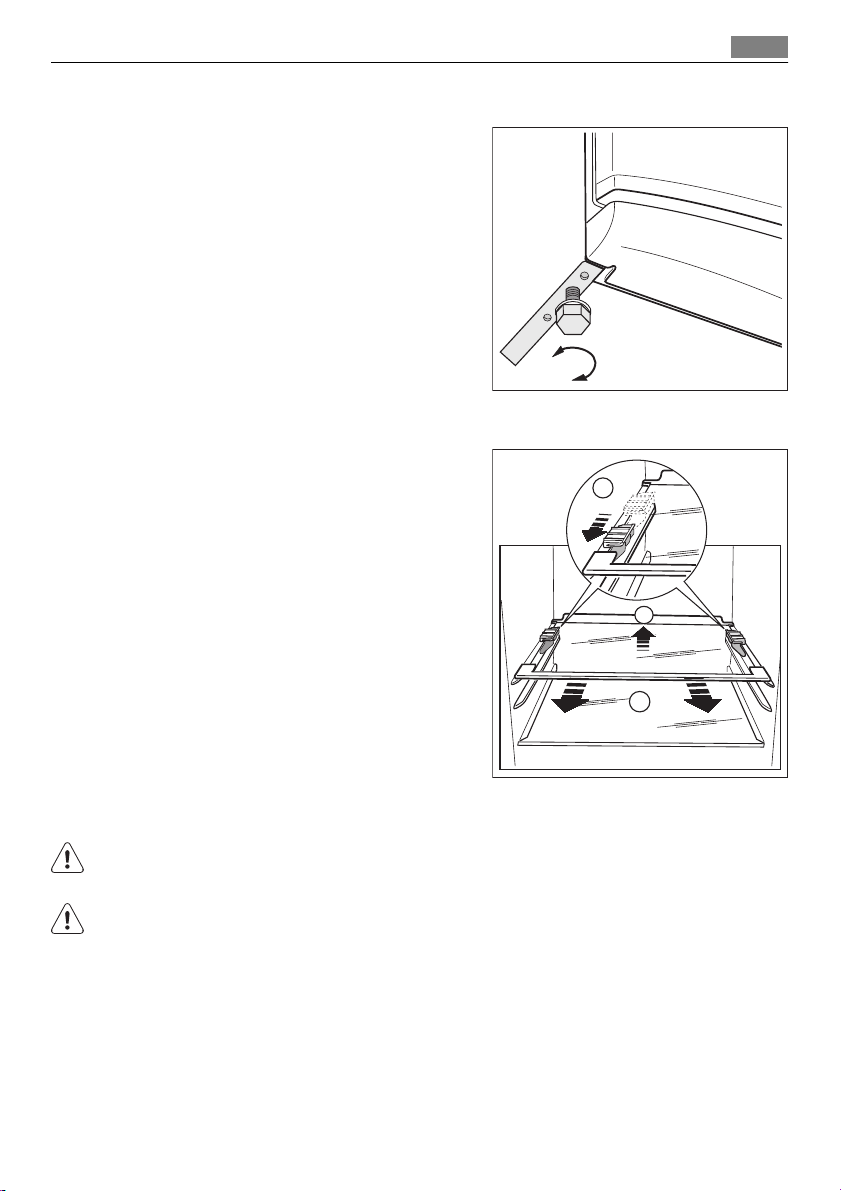

When placing the appliance ensure that it stands
level. This can be achieved by two adjustable feet
at the bottom in front.
Removing the shelf holders
Your appliance is equipped with shelf retainers
that make it possible to secure the shelves during
transportation.
To remove them proceed as follows:
1. Move the shelf holders in the direction of the
arrow (A).
2. Raise the shelf from the rear and push it for-
ward until it is freed (B).
3. Remove the retainers (C).
Door reversibility
WARNING!
Before carrying out any operations, remove the plug from the power socket.
To carry out the following operations, we suggest that this be made with another person
that will keep a firm hold on the doors of the appliance during the operations.
A
B
C
Installation 19

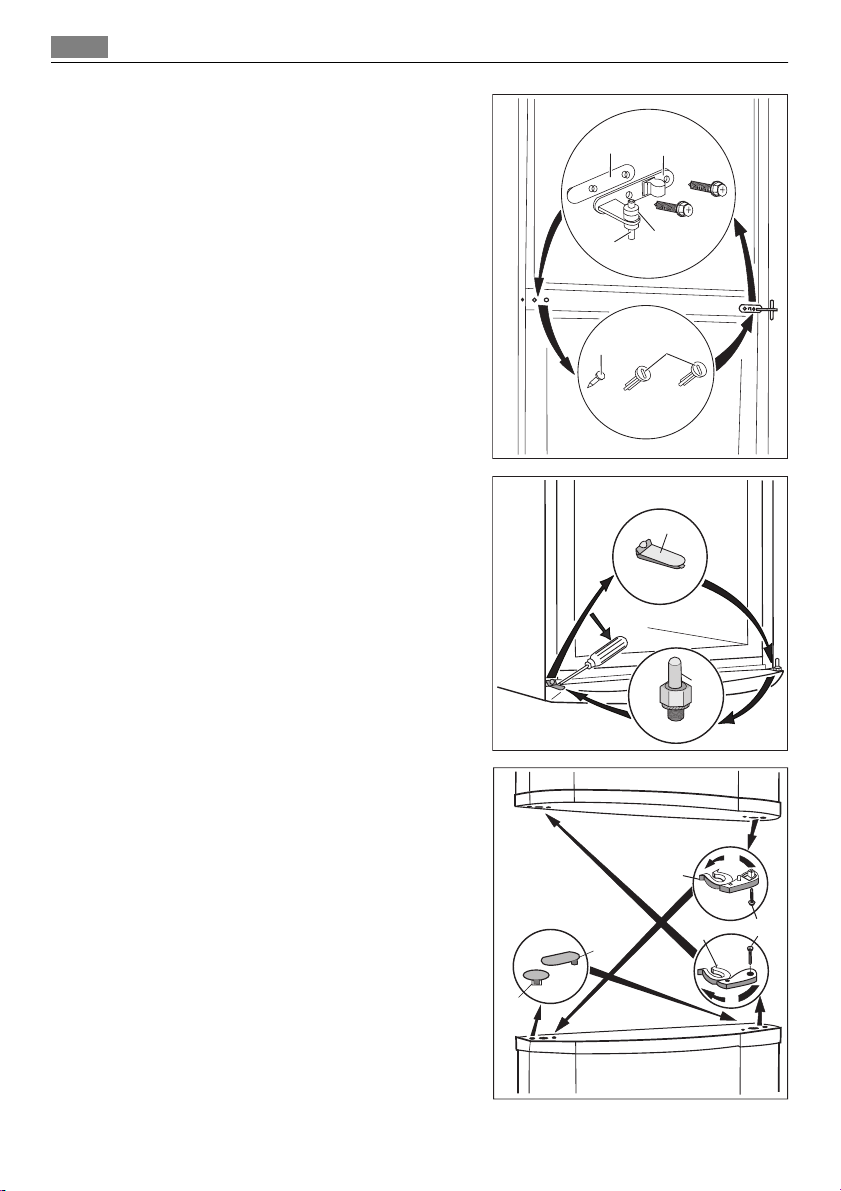

1. Open the doors. Unscrew the middle
hinge (m2). Remove the plastic spacer
(m1).
2. Remove the spacer (m6) and move to the
other side of the hinge pivot (m5).
3. Remove the doors.
4. Remove the left-hand cover pin of the
middle hinge (m3,m4) and move to the
other side.
5. Fit the pin of the middle hinge (m5) into
the left-hand hole of the lower door.
6. Remove using a tool the cover (b1). Un-
screw the lower hinge pivot (b2) and the
spacer (b3) and place them on the op-
posite side.
7. Re-insert the cover (b1) on the opposite
side.
8. Reverse the door locking elements
(d2,d3), move to the other side of the
other door and fix by screwing in the
screw (d4).
9. Re-insert the stoppers (d5,d6) on the
other side of the doors.
m1 m2
m3 m4
m5 m6
b1
b2
b3
d2
d4
d3
d5
d6
20 Installation
