TECHNICAL MANUAL
VEC
COANDA EFFECT FAN COIL
IVECTY
0906
5074502_01
Replace : 5074502_00 / 0904


3
English
DECLARATION OF CONFORMITY
Transport • Safety symbols
Important information
Description • Versions
Description of components • Selection criteria
System configuration
Technical data
Operating limits
Cooling capacity
Heating capacity (3R)
Heating capacity BV (1R)
Coil pressure drops
Correction factors in operation using glycol water
Capacity and sound pressure
Accessories
Installation
Size data
Wiring diagrams
Troubleshooting • Maintenance
INDEX
Store the manuals in a dry location to avoid deterioration, as
they must be kept for at least 10 years for any future reference.
Carefully and thoroughly read all the information referred to
in this manual. Pay particular attention to the instructions for
use accompanied by the words “DANGER” or “WARNING”
because, if they are not complied with, the machine/property
can damaged and/or people can be injured.
If any kind of malfunction is not included in this manual, con-
tact the local After Sales Service immediately.
The device must be installed in such a way that maintenance
and/or repair operations are possible.
The device warranty does not in any case cover costs due to
automatic ladders, scaffolding or other lifting systems necessa-
ry for carrying out repairs under guarantee.
The normal wear of the components and filter is not covered
by the warranty.
AERMEC S.p.A. declines all liability for any damage due to
improper use of the machine, or the partial or superficial rea-
ding of the information contained in this manual.
This manual contains the following number of pages: 40
REMARKS
4
5
6
7
8
9
10
11
12
16
17
18
19
20
21
26
27
28
38

4
VEC
Bevilacqua, 02/03/2009 La Direzione Commerciale – Sales and Marketing Director
Luigi Zucchi
AERMEC S.p.A.
I-37040 Bevilacqua (VR) Italia – Via Roma, 996
Tel. (+39) 0442 633111
Telefax (+39) 0442 93730 – (+39) 0442 93566
www .aermec. com - info @aermec. com
DICHIARAZIONE DI CONFORMITÀ
Noi, firmatari della presente, dichiariamo sotto la nostra esclusiva
responsabilità, che il prodotto:
VENTILCONVETTORE
serie VEC
al quale questa dichiarazione si riferisce è conforme alle seguenti norme
armonizzate:
- CEI EN 60335-2-40
- CEI EN 55014-1
- CEI EN 55014-2
- CEI EN 61000-6-1
- CEI EN 61000-6-3
soddisfando così i requisiti essenziali delle seguenti direttive:
- Direttiva LVD 2006/95/CE
- Direttiva compatibilità elettromagnetica 2004/108/CE
VEC APC CON ACCESSORI
E’ fatto divieto di mettere in servizio il prodotto dotato di accessori
non di fornitura Aermec.
CONFORMITY DECLARATION
We the undersigned declare, under our own exclusive responsibility,
that the product:
FAN COIL
VEC series
to which this declaration refers, complies with the following standardised
regulations:
- EN 60335-2-40
- EN 55014-1
- EN 55014-2
- EN 61000-6-1
- EN 61000-6-3
thus meeting the essential requisites of the following directives:
- Directive LVD 2006/95/CE
- EMC Electromagnetic Compatibility Directive 2004/108/CE
VEC APC WITH ACCESSORIES
It is not allowed to use the unit equipped with accessories not sup-
plied by Aermec.
CERTIFICAT DE CONFORMITÉ
Nous soussignés déclarons sous notre exclusive responsabilité que le
produit:
VENTILO-CONVECTEURS
série VEC
auquel cette déclaration fait référence, est conforme aux normes
harmonisées suivantes:
- EN 60335-2-40
- EN 55014-1
- EN 55014-2
- EN 61000-6-1
- EN 61000-6-3
satisfaisant ainsi aux conditions essentielles des directives suivantes:
- Directive LVD 2006/95/CE
- Directive compatibilité électromagnétique 2004/108/CE
VEC APC PLUS ACCESSOIRES
Il est interdit de faire fonctionner l'appareil avec des accessoires qui ne
sont pas fournis de Aermec.
KONFORMITÄTSERKLÄRUNG
Wir, die hier Unterzeichnenden, erklären auf unsere ausschließlich
Verantwortung, dass das Produkt:
GEBLÄSEKONVEKTOR
der Serie VEC
auf das sich diese Erklärung bezieht, den folgenden harmonisierten
Normen entspricht:
- EN 60335-2-40
- EN 55014-1
- EN 55014-2
- EN 61000-6-1
- EN 61000-6-3
womit die grundlegenden Anforderungen folgender Richtlinien erfüllt
werden:
- Richtlinie LVD 2006/95/CE
- Richtlinie zur elektromagnetischen Verträglichkeit 2004/108/CE
VEC APC + ZUBEHÖR
Falls das Gerät mit Zubehörteilen ausgerüstet wird, die nicht von
Aermec geliefert werden, ist dessen Inbetriebnahme solange untersagt.
DECLARACIÓN DE CONFORMIDAD
Los que suscriben la presente declaran bajo la propia y exclusiva
responsabilidad que el conjunto en objeto, definido como sigue:
FAN COIL
serie VEC
al que esta declaración se refiere, está en conformidad a las siguientes
normas armonizadas:
- EN 60335-2-40
- EN 55014-1
- EN 55014-2
- EN 61000-6-1
- EN 61000-6-3
al que esta declaración se refiere, está en conformidad a las siguientes
normas armonizadas:
- Directiva LVD 2006/95/CE
- Directiva compatibilidad electromagnétic 2004/108/CE
VEC APC CON ACCESORIOS
Está prohibido poner en marcha el producto con accesorios
no suministrados por Aermec.

5
1
2
3
4
5
6
35Kg

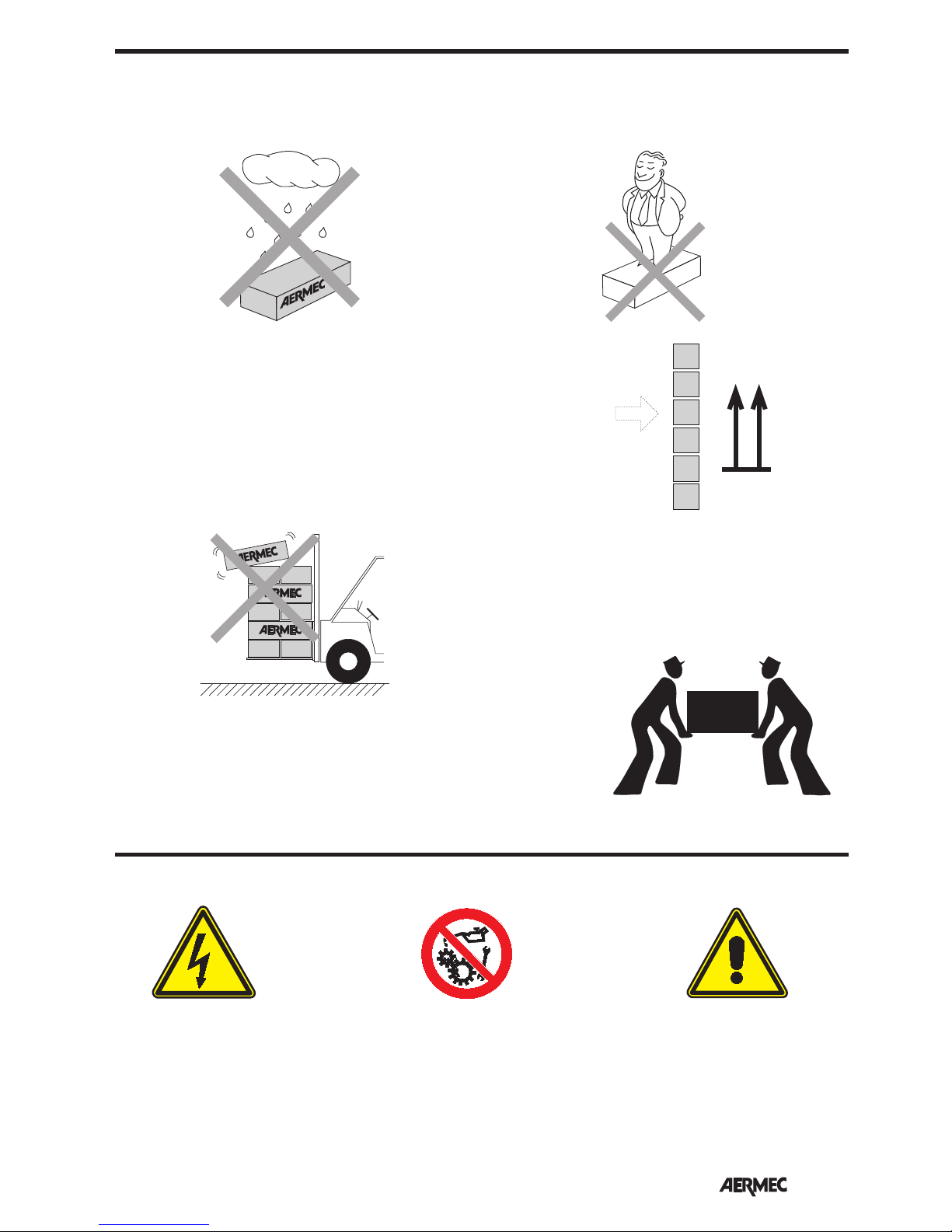

NON bagnare • Do NOT wet
CRAINT l’humidité • Vor Nässe schützen
NO mojar
NON lasciare gli imballi sciolti durante il trasporto.
Do NOT leave loose packages during transport.
ATTACHER les emballages pendant le transport.
Die Verpackungen nicht ungesichert transportieren.
NO lleve las cajas sueltas durante el transporte.
Sovrapponibilità: controllare sull’imballo la posizione della freccia per
conoscere il numero di macchine impilabili.
Stacking: control the packing for the arrow position to know the num-
ber of machines that can be stacked.
Empilement: vérifier sur l’emballage la position de la flèche pour con-
naître le nombre d’appareils pouvant être empilés.
Stapelung: Anhand der Position des Pfeiles an der Verpackung kontrol-
lieren, wieviele Geräte stapelbar sind.
Apilamiento: observe en el embalaje la posición de la flecha para saber
cuántos equipos pueden apilarse.
NON calpestare • Do NOT trample
NE PAS marcher sur cet emballage • Nicht betreten
NO pisar
NON trasportare la macchina da soli se il suo peso supera i 35 Kg.
DO NOT handle the machine alone if its weight is over 35 Kg.
NE PAS transporter tout seul l’appareil si son poids dépasse 35 Kg.
Das Gerät NICHT alleine tragen, wenn sein Gewicht 35 Kg überschreitet.
NO maneje los equipos en solitario si pesan más de 35 kg.
Pericolo: Pericolo: Pericolo!!!
Tensione Organi in movimento
Danger: Danger: Danger!!!
Power supply Movings parts
Danger: Danger: Danger!!!
Tension Organes en mouvement
Gefahr ! Gefahr ! Gefahr!!!
Spannung Rotierende Teile
Peligro: Peligro: Peligro!!!
Tensión Elementos en movimiento
TRASPORTO • CARRIAGE • TRANSPORT •TRANSPORT • TRANSPORTE
SIMBOLI DI SICUREZZA • SAFETY SYMBOL • SIMBOLES DE SECURITE
SICHERHEITSSYMBOLE • SÍMBOLOS DE SEGURIDAD

6
English
The fan coils are shipped in standard package which consists of expanded polystyrene foam and cardboard shells.
PACKAGING
Consult control panel manual for installation and use instructions.
USE
WARNING: electrical wirings, installa-
tion of the fan coils and relevant acces-
sories should be performed by a tech-
nician who has the necessary technical
and professional expertise to install,
modify, extend and maintain systems,
and who is able to check the systems
for the purposes of safety and correct
operation.
WARNING: the fan coil is connected to
the power supply and a water circuit.
Any operation by persons who do not
possess the required technical skills can
lead to personal injury to the operator
or damage to the unit and surrounding
objects.
WARNING:before carrying out any
work, wear the proper personal protec-
tive equipment.
WARNING: the appliance must be fitted
according to the national regulations on
process plant engineering.
WARNING: check that the power sup-
ply is disconnected before carrying out
any procedures on the unit.
WARNING: install a device, main
switch or plug which allows to comple-
tely cut off the power supply from the
unit.
WARNING! DANGER! Any use of the
unit not expressly indicated by Aermec
is strictly prohibited.
MALFUNCTIONS
In the event of a malfunction, cut off
power supply to the unit, then restore
the power and start the unit again. If
the problem occurs again, call the local
After-Sales Service immediately.
POWER THE FAN COIL ONLY WITH
230 VOLT, SINGLE PHASE, 50 Hz
Any other type of power supply could
permanently damage the fan coil.
DO NOT TUG THE ELECTRIC CABLE
It is very dangerous to pull, tread on or
crush the electric power cable, or fix it
with nails or drawing pins.
A damaged power cable can cause short
circuits and injure people.
DO NOT OBSTRUCT THE AIR
OUTLETS BY PLACING OBJECTS INTO
THEM
Do not put anything in the air outlet
slots.
This could injure people and damage
the fan.
DO NOT USE THE FAN COIL
IMPROPERLY
Do not use the fan coil for animal
husbandry applications (e.g. incubation).
AIR THE ROOM
Periodically air the room in which
the fan coil has been installed. This is
particularly important if the room is
occupied by many people, or if gas
appliances or sources of odours are
present.
ADJUST TEMPERATURE ADEQUATELY
The room temperature should be
adjusted in order to provide maximum
comfort to the people in the room,
especially if they are elderly, children
or sick people; avoid differences over
7°C between the outdoor temperature
and the temperature inside the room in
summer.
Carefully choose the room temperature
so as to save energy.
CORRECT AIR JET AIMING
ADJUSTMENT
Air coming out from the fan coil must
not reach people directly; in fact, even
if the air is warmer than the room
temperature, it could cause a cold
sensation and result in discomfort.
DO NOT USE EXCESSIVELY HOT
WATER
To clean the indoor unit, use soft cloths
or sponges dampened with water at a
maximum of 40°C. Do not use chemical
products or solvents to clean any part of
the fan coil. Do not spray water on the
outer or inner surfaces of the fan coil (it
might cause short circuits).
CLEAN THE FILTER FREQUENTLY
Cleaning the filter frequently guarantees
enhanced operating efficiency.
Check whether the filter is very dirty: if it
is, clean it more often.
Clean frequently; remove the accumula-
ted dust with a vacuum cleaner.
Once the filter is clean, refit it to the fan
coil following the removal instructions
but in reverse order.
The normal wear and tear of germicidal
lamps and filter is not covered by the
warranty.
SUPPLEMENTARY CLEANING
The possibility to remove the basin and
the shrouds of the examinable fans (done
only by suitably trained and qualified
personnel) allows to thoroughly clean
even the internal parts - an essential con-
dition when the unit is installed in very
crowded areas or places requiring high
standards of hygiene.
WHAT IS NORMAL
In the cooling function, water vapour
may be present in the air delivery of the
fan coil.
In the heating function, a slight hiss
might be heard close to the fan coil.
Sometimes the fan coil might give off
unpleasant smells due to the accumu-
lation of substances present in the air
of the room (clean the filter more often,
especially if the room is not ventilated
regularly).
While the unit is functioning, there
could be noises and creaks inside
the device due to the various thermal
expansions of the elements (plastic and
metal), but this does not indicate any
malfunction and does not damage the
unit unless the maximum input water
temperature is exceeded.
IMPORTANT INFORMATION

7
English
Fan coil for treating air both in winter and summer.
The air is distributed throughout the room via outlets which, thanks to the COANDA effect, draw the air jet towards the ceiling.
Install the unit on the suspended ceiling.
AVAILABLE VERSIONS AND SIZES
VEC fan coils are available in:
4 sizes with a 3 -row coil compulsory accessory
VEC 20 VEC 20 GL
VEC 30 VEC 30 GL
VEC 40 VEC 40 GL
VEC 50 VEC 40 GL

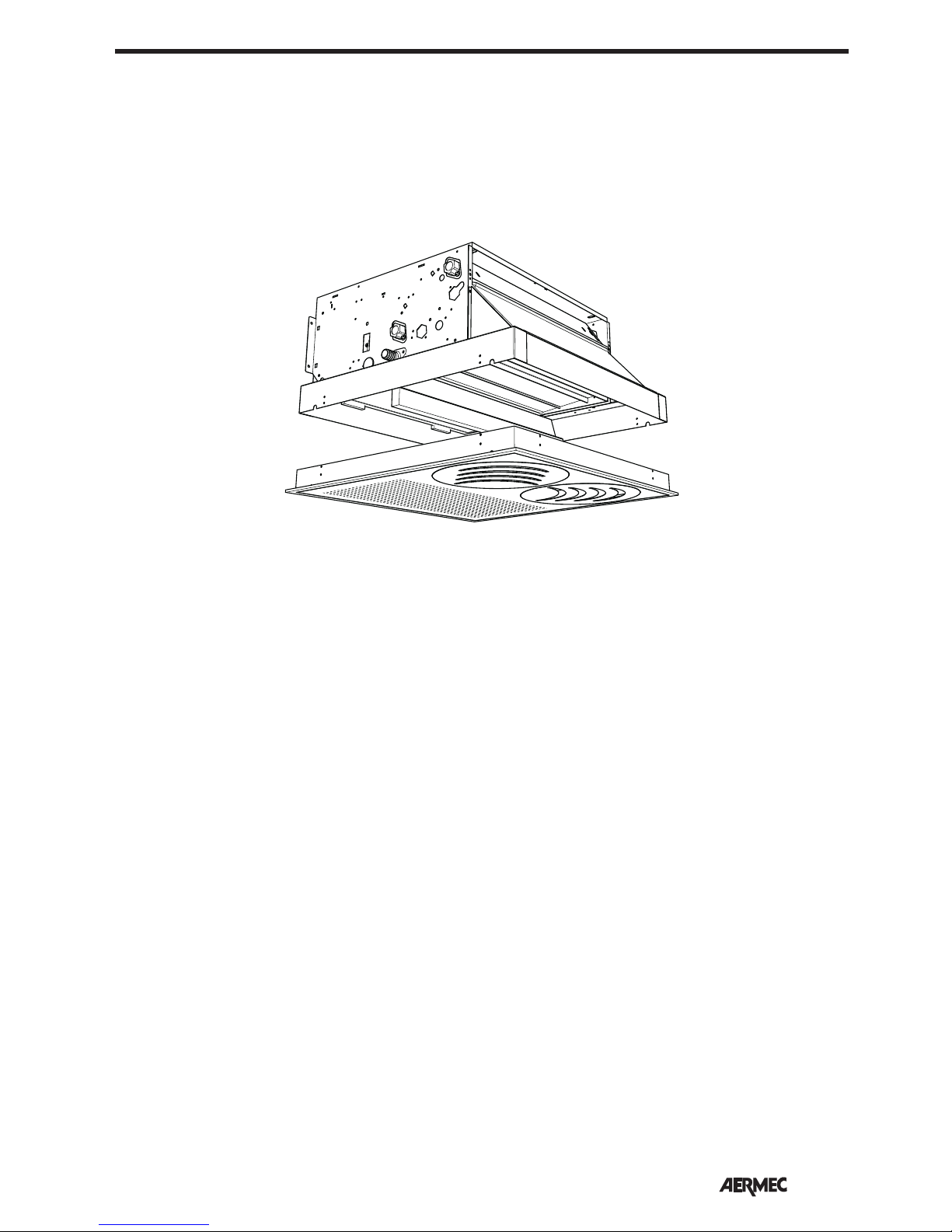

DESCRIPTION OF THE UNIT
VEC 20
VEC 20 GL
System types
The VEC fan coils are designed for systems with 2 and 4 pipes, in the versions:
- without valve;
- with 3-way water valve (VCF);
- with 2-way water valve for variable flow rate systems (VCFD);
-with electric heater (RX);
- with electric heater (RX) and valve (VCF/VCFD);
- with hot water coil for systems with 4 pipes (BV) and 2 valves (VCF/VCFD).
Each configuration requires a control panel that manages the functions and accessories installed.

8
English
CONTROL PANEL
The control panel (accessory) can only
be installed on the wall.
The AERMEC fan coil versions without
a control panel can all be combined
with the HSH AERDOMUS centralised
control system, using wired or wireless
connections.
Consult the control panel characteristi-
cs before selecting a panel.
ELECTRIC FAN ASSEMBLY
This consists of double suction cen-
trifugal fans with lengthways blades to
obtain a high air flow with a low num-
ber of revs. The electrical motor, protec-
ted against overloading, has three spe-
eds with the running capacitor always
on, directly coupled with the fans and
cushioned with flexible supports.
BEARING STRUCTURE
Made of galvanised sheet metal of an
adequate thickness. Hole in the back
for wall mounting. A fan cover panel is
available for front-mounted ceiling units.
Each unit is equipped with a condensate
collection tray.
CONDENSATE DRAIN
Every device is fitted with a tray for col-
lecting condensation, with a connection
for draining condensation produced by
the unit in cooling mode. When there
are differences in levels, it is possible
to apply the accessory (DSC4) outside
the unit, complete with pump and water
level control device.
PLUMBING CONNECTIONS
The connections, located on the left
hand side, are female. The coil may also
be rotated.
DESCRIPTION OF COMPONENTS
SELECTION CRITERIA
The Coanda effect fan coil of the VEC
range must be installed in suspended
ceilings and is completed with the obli-
gatory accessory VEC20GL.
The accessory VEC20GL consists of
the panel with suction from below and
delivery with adjustable diffusers that
allow the air to be distributed throu-
ghout the room, taking advantage of the
COANDA effect.
VEC must be combined with a con-
trol panel to be mounted on the wall.
Consult the characteristics and compa-
tibility of the control panels supplied as
an accessory.
Some control panels can control a
network of fan coils if they are used in
combination with the interface cards
SIT3 and SIT5 supplied as accessories.
The AERMEC fan coil versions without
a control panel can all be combined
with the HSH AERDOMUS centralised
control system, using wired or wireless
connections.
The main technical data of the VEC fan
coils are summarised in the tables.
The table shows the sensible and total
refrigerating yield at maximum speed,
on the basis of the inlet water tempe-
rature, its temperature change, and the
dry bulb and wet bulb air temperature,
for sensitive yield and total yield respec-
tively, for versions with a 3-row coil.
Performance levels at average and mini-
mum speed are obtained by multiplying
the values by the correction factors indi-
cated.

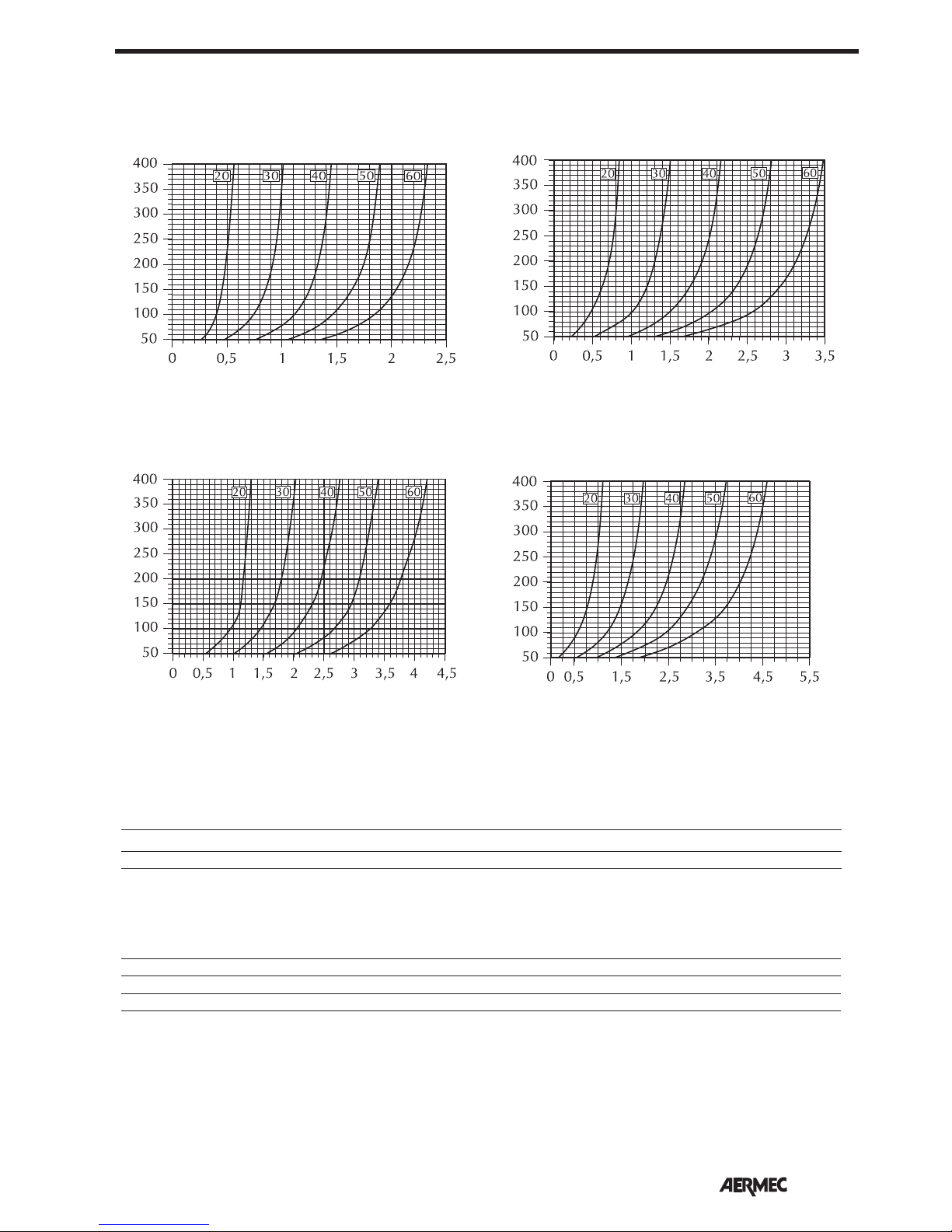

The water side pressure drops are
shown in the diagrams.

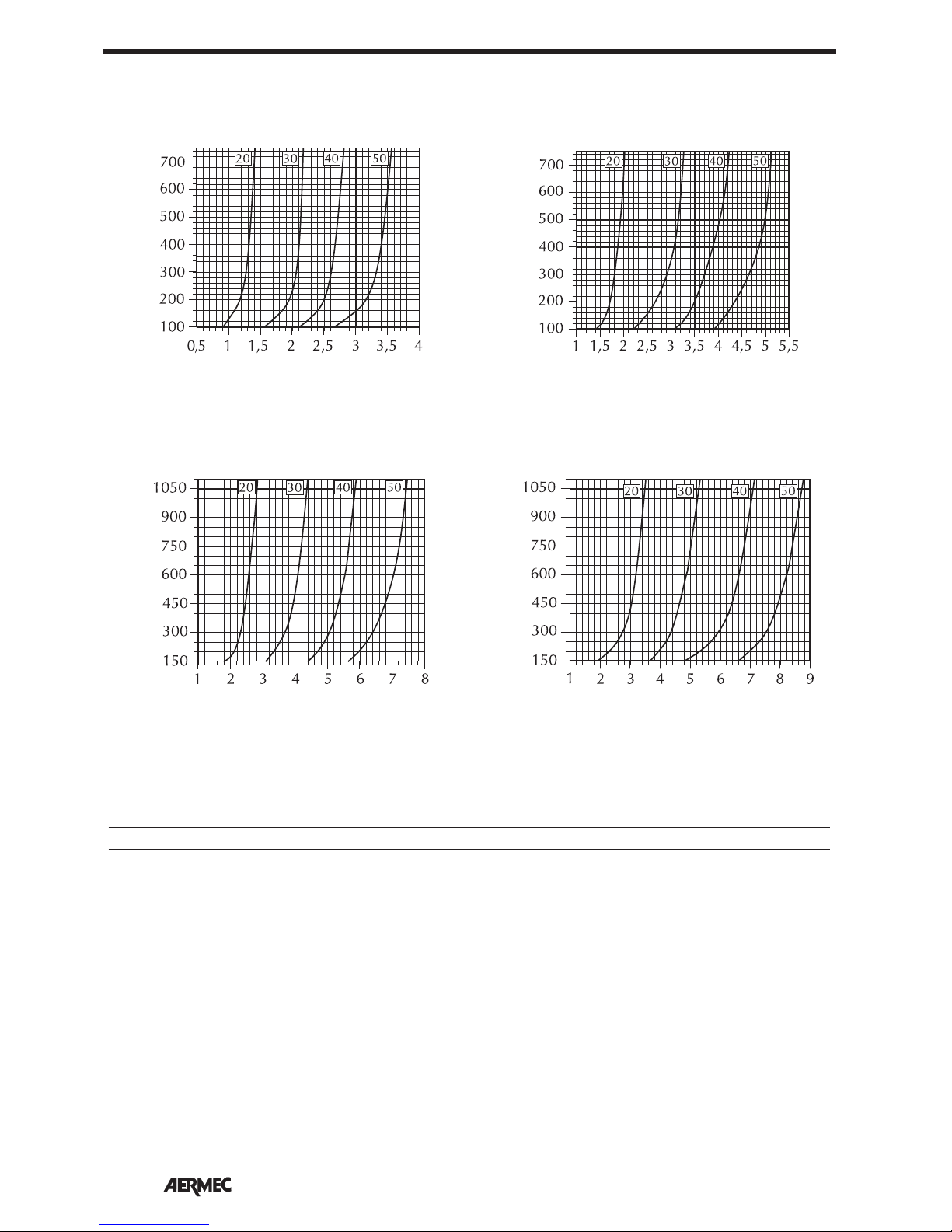

The correction factors when the unit
operates with glycol water for cooling
and heating function modes are shown
in the graphs in percentages of glycol of
10%, 20% and 35%.
The heating capacity yield, on the
basis of the water flow rate and the
difference in temperature between the
incoming water and the incoming air, is
represented in a graph and refers to the
maximum speed. Performance levels at
average and minimum speed are obtai-
ned by multiplying the values shown on
the graph (at maximum speed) by the
correction factors indicated.
The pressure level and sound output
of the fan coils at the various speeds are
shown in the tables.
The installation information is inclu-
ded in the manuals supplied together
with each fan coil or its accessory. This
manual is limited to provide general
information in order to obtain a correct
installation; it also contains drawings
with fan coil dimensions and the wiring
diagrams with the connections to con-
trol panels.

9
English
System with 2 pipes, with water sensor
SW Water temperature sensor
VCF Solenoid valve (Heating / Cooling)
VC Solenoid valve (Heating)
VF Solenoid valve (Cooling)
SA Room temperature sensor
V3,V2,V1 Maximum, Average or Minimum fan speed
RX Electric heater
CONFIGURATIONS FOR SYSTEMS WITH VEC
System with 2 pipes, without water sensor
System with 4 pipes, with water sensor System with 4 pipes, without water sensor
Key:

10
English
TECHNICAL DATA
Performance values refer to the following conditions:
Sound pressure measured in semi-reverberating chamber, 85m3,
and with reverberation time Tr = 0.5s.
Cooling:
- room air temperature 27°C D.B., 19°C W.B.;
• maximum speed:
- water inlet temperature 7°C; Δt water 5°C.
• average and minimum speed:
- water inlet temperature 7°C;
- water flow rate as at maximum speed.
Heating:
room air temperature 20°C D.B.;
• maximum speed:
- water inlet temperature 50°C; Δt water 10°C.
- water flow rate as for cooling operation.
• average and minimum speed:
- water inlet temperature 50°C;
- water flow rate as at maximum speed.
Mod.
Heating
Heating capacity
Electric heater heating capacity
Cooling
Total cooling capacity
Sensible cooling capacity
Water flow rate
Water pressure drop
air flow rate
Number of fans
Sound pressure
Sound power
Water contents
Max. motor power
Max. input current
Max. motor power
with electric heater
Input current
with electric heater
Coil connections 3R
Coil connections 1R
Power supply
VEC with a 3-row coil
VEC 20 VEC 30 VEC 40 VEC 50
W (max) 1835 2770 3745 4285
W (med) 1505 2340 3105 3785
W (min) 1105 1950 2505 2840
W 950 1300 1650 1950
W (max) 1320 1950 2985 3610
W (med) 1085 1645 2470 3170
W (min) 805 1370 1985 2350
W (max) 1085 1535 2410 2595
W (med) 885 1285 1980 2275
W (min) 640 1055 1580 1680
l/h 227 335 514 621
kPa 4,6 13,3 11,3 14,8
m
3/h (max) 247 383 511 613
m
3/h (med) 194 309 406 529
m
3/h (min) 130 241 306 371
n. 1 2 2 2
dB (A) (max) 39,5 36,5 40,0 44,5
dB (A) (med) 33,5 31,5 34,5 41,5
dB (A) (min) 26,5 26,5 29,5 34,5
dB (A) (max) 48,0 45,0 48,5 53,0
dB (A) (med) 42,0 40,0 43,0 50,0
dB (A) (min) 35,0 35,0 38,0 43,0
l 0,79 1,11 1,48 1,48
W 25 44 57 67
A 0,12 0,21 0,28 0,35
W975 1344 1707 2017
A4,25 5,86 7,45 8,83
ø 1/2" 1/2" 3/4" 3/4"
ø 1/2" 1/2" 1/2" 1/2"
230V ~ 50Hz

11
English
MINIMUM AVERAGE WATER TEMPERATURE Temperature of the air in the room with dry bulb °C
21 23 25 27 29 31
15 3 3 3 3 3 3
Temperature of the air in the room 17 3 3 3 3 3 3
with wet bulb °C 19 3 3 3 3 3 3
21 6 5 4 3 3 3
23 - 8 7 6 5 5
If the fan coil is working in cold
continuous mode inside an environment
where the relative humidity is high,
condensate might form on the air
delivery. This condensate might be
deposited on any objects underneath
and on the floor.
To avoid condensate on the external
structure of the device while the fan is
functioning, the average temperature of
the water must not be lower than the
limits shown in the table below, that
depend on the thermo-hygrometric con-
ditions of the air in the room.
The limits mentioned above refer to
operation while the fan is set
to its minimum speed level.
In the event of prolonged fan inactivity
and with cold water passing through the
coil, condensate may form on the exter-
nal case of the unit. As a result, we rec-
ommend including the three-way valve
accessory.
OPERATING LIMITS
In order to prevent air stratification
in the room, and therefore to achieve
improved mixing, it is obligatory not
to supply the fan coil with water at a
temperature over 65°C.
The use of water at high temperatures
could cause squeaking due to the
different thermal expansions of the
elements (plastic and metal), this does
not however cause damage to the unit if
the maximum operating temperature is
not exceeded.
Maximum water input temperature ........................... 65°C
Maximum operating pressure..................................... 8 bar
Operating voltage ..............................230V(±10%) ~ 50Hz
Room temperature .................................................. 0-40°C
Air humidity .....................................................<85% U.R.
Output limits (3-row coil):
MOD. VEC 20 30 40 50
Minimum output [l/h] 100 100 150 150
Maximum output [l/h] 750 750 1100 1100
Minimum average water temperature
Water temperature

12
English
COOLING CAPACITY
The cooling capacities yielded shown in the table must be multiplied by the following factors:
MOD. VEC 20
Maximum speed
total power
1.00
sensible power
1.00
Average speed
total power
0.82
sensible power
0.82
Minimum speed
total power
0.61
sensible power
0.59
VEC20 TOTAL COOLING CAPACITY [W] SENSIBLE COOLING CAPACITY [W]
Water temp. °C Wet bulb air temperature [°C] Dry bulb air temperature [°C]
Inlet t15 17 19 21 23 21 23 25 27 29 31
5
3 1089 1523 1984 – – 932 1096 1255 1391 1525 1655
4 977 1390 1839 2299 2783 851 1017 1181 1323 1460 1595
5 834 1207 1666 2147 2643 756 917 1082 1251 1395 1532
6 762 1027 1476 1980 2487 712 836 984 1157 1322 1464
7 – 923 1264 1785 2315 672 794 904 1056 1231 1392
6
3 955 1368 1836 2299 – 858 1019 1183 1322 1459 1587
4 847 1221 1687 2147 2635 766 935 1096 1253 1392 1527
5 737 1054 1497 1987 2487 688 836 1000 1167 1325 1463
6 686 893 1301 1815 2323 649 772 908 1075 1244 1395
7 – 832 1097 1594 2144 611 735 848 979 1150 1321
7
3 834 1207 1666 2147 – 774 933 1104 1253 1390 1519
4 740 1062 1513 1987 2479 685 855 1019 1181 1324 1458
5 660 909 1320 1823 2323 629 760 924 1085 1253 1396
6 622 799 1126 1620 2152 589 712 834 997 1160 1324
7 – 745 974 1405 1964 549 670 792 907 1070 1242
8
3 737 1054 1497 1987 – 695 860 1019 1180 1320 1454
4 658 920 1331 1823 2315 613 780 939 1103 1251 1391
5 601 793 1154 1639 2155 568 688 850 1005 1173 1325
6 – 719 985 1430 1976 528 649 772 918 1081 1251
7 – – 875 1223 1757 488 609 734 846 988 1161
9
3 660 909 1344 1823 – 625 779 944 1103 1250 1384
4 590 798 1156 1653 2147 547 694 861 1020 1181 1322
5 542 689 1001 1443 1980 508 627 768 928 1094 1255
6 – 649 850 1250 1777 467 589 711 845 1004 1170
7 – – 782 1054 1551 426 549 670 791 916 1076
10
3 601 793 1154 1639 2155 554 699 863 1018 1179 1317
4 522 700 998 1454 1972 485 622 785 939 1103 1252
5 – 627 860 1261 1793 446 567 691 857 1014 1177
6 – – 755 1075 1566 406 528 648 774 929 1089
7 – – – 926 1357 363 488 609 735 847 1000
11
3 – 688 1001 1443 1980 482 629 781 943 1100 1246
4 – 630 861 1261 1788 425 550 701 863 1021 1180
5 – 568 752 1089 1580 386 507 627 777 934 1096
6 – – 675 934 1368 344 467 589 711 853 1007
7 – – – 821 1170 299 426 549 669 791 926
12
3 – 627 860 1261 1793 409 558 704 865 1017 1175
4 – 561 752 1097 1585 364 485 630 788 941 1102
5 – – 663 944 1376 324 446 567 699 862 1016
6 – – 617 808 1188 282 406 528 648 778 936
7 – – – 739 1006 233 363 488 609 732 852
13
3 – 568 752 1089 1580 343 487 633 784 943 1096
4 – – 671 931 1374 303 424 558 708 865 1019
5 – – 597 810 1188 262 385 506 630 784 936
6 – – – 709 1016 215 344 467 587 711 860
7 – – – – 869 158 299 426 549 669 789

13
English
COOLING CAPACITY
The cooling capacities yielded shown in the table must be multiplied by the following factors:
MOD. VEC 30
Maximum speed
total power
1.00
sensible power
1.00
Average speed
total power
0.84
sensible power
0.82
Minimum speed
total power
0.70
sensible power
0.69
VEC30 TOTAL COOLING CAPACITY [W] SENSIBLE COOLING CAPACITY [W]
Water temp. °C Wet bulb air temperature [°C] Dry bulb air temperature [°C]
Inlet t15 17 19 21 23 21 23 25 27 29 31
5
3 1150 1646 2216 2778 – 995 1200 1414 1594 1758 1916
4 1428 2013 2577 – – 1185 1407 1624 1803 1976 2138
5 1249 1788 2407 3017 – 1080 1303 1535 1731 1909 2080
6 1086 1582 2208 2848 3501 954 1193 1424 1650 1833 2010
7 939 1373 1982 2656 3326 875 1072 1310 1538 1755 1938
6
3 1400 1977 – – – 1182 1397 1606 1780 1947 2113
4 1241 1776 2376 – – 1079 1296 1520 1714 1888 2053
5 1091 1571 2198 2814 3462 967 1198 1424 1638 1821 1993
6 932 1369 1958 2633 3293 854 1084 1310 1539 1745 1924
7 847 1175 1733 2434 3113 795 968 1200 1430 1662 1847
7
3 1203 1755 – – – 1069 1297 1514 1691 1860 2029
4 1063 1551 2167 2769 – 960 1189 1407 1622 1802 1970
5 943 1369 1950 2600 3248 866 1088 1305 1535 1731 1907
6 829 1183 1726 2411 3079 770 977 1208 1430 1653 1833
7 769 1016 1504 2167 2887 717 875 1095 1317 1543 1758
8
3 1036 1520 2120 – – 951 1183 1397 1603 1774 1940
4 932 1344 1935 2554 – 868 1082 1295 1530 1710 1885
5 831 1180 1710 2376 3034 770 977 1203 1425 1639 1817
6 742 1024 1509 2160 2848 689 868 1101 1317 1539 1745
7 – 893 1315 1915 2644 638 795 982 1212 1435 1663
9
3 919 1301 1908 – – 860 1071 1296 1510 1685 1855
4 840 1165 1687 2337 – 773 977 1190 1417 1621 1795
5 744 1016 1489 2129 2808 670 878 1095 1309 1537 1728
6 – 890 1299 1904 2611 610 773 989 1216 1431 1651
7 – 804 1125 1660 2376 557 717 880 1108 1106 1553
10
3 831 1115 1652 – – 767 955 1182 1396 1596 1766
4 747 998 1459 2105 2746 679 875 1088 1308 1529 1709
5 – 895 1277 1864 2571 582 782 995 1207 1424 1635
6 – 794 1121 1645 2365 546 689 884 1110 1327 1539
7 – – 974 1432 2098 475 638 795 1004 1218 1437
11
3 740 966 1412 2047 – 675 862 1074 1293 1505 1679
4 – 889 1253 1834 2516 580 782 973 1192 1417 1617
5 – 802 1110 1616 2326 503 682 886 1100 1318 1534
6 – – 972 1428 2078 449 610 785 1007 1221 1433
7 – – 850 1234 1834 393 557 717 890 1117 1337
12
3 – 875 1203 1796 – 580 772 957 1183 1392 1590
4 – 798 1069 1582 2276 479 687 880 1089 1308 1524
5 – – 959 1397 2044 424 585 791 1001 1210 1423
6 – – 857 1226 1791 368 531 691 896 1117 1331
7 – – – 1067 1579 304 475 638 799 1017 1232
13
3 – 786 1034 1534 – 484 679 866 1061 1291 1499
4 – – 938 1354 2000 396 589 788 977 1192 1412
5 – – 857 1193 1760 343 503 695 894 1105 1318
6 – – – 1057 1548 282 449 610 799 1016 1223
7 – – – 919 1354 209 393 557 717 906 1132

14
English
COOLING CAPACITY
The cooling capacities yielded shown in the table must be multiplied by the following factors:
MOD. VEC 40
Maximum speed
total power
1.00
sensible power
1.00
Average speed
total power
0.83
sensible power
0.82
Minimum speed
total power
0.66
sensible power
0.66
VEC40 TOTAL COOLING CAPACITY [W] SENSIBLE COOLING CAPACITY [W]
Water temp. °C Wet bulb air temperature [°C] Dry bulb air temperature [°C]
Inlet t15 17 19 21 23 21 23 25 27 29 31
5
3 2521 – – – – 2040 2384 2696 2970 3244 –
4 2187 3087 3996 – – 1876 2227 2569 2863 3145 3412
5 1893 2730 3723 4679 – 1677 2036 2403 2737 3028 3310
6 1587 2385 3358 4398 5435 1439 1845 2209 2580 2899 3190
7 1406 2000 2957 4069 5139 1348 1615 2007 2390 2755 3062
6
3 2187 3070 – – – 1861 2220 2548 2829 3102 –
4 1902 2724 3682 – – 1693 2051 2406 2717 3001 3274
5 1650 2397 3364 4357 5378 1490 1871 2230 2586 2884 3168
6 1372 2057 3008 4061 5106 1306 1666 2041 2405 2751 3047
7 1279 1689 2600 3691 4794 1224 1471 1828 2207 2577 2916
7
3 1884 2696 – – – 1684 2040 2384 2686 2963 3233
4 1652 2407 3358 4300 – 1519 1886 2229 2568 2860 3136
5 1423 2085 2985 4020 5049 1330 1697 2046 2410 2736 3026
6 1242 1768 2622 3708 4761 1183 1466 1867 2234 2585 2901
7 1160 1483 2244 3047 4432 1100 1348 1640 2042 2405 2762
8
3 1624 2374 3302 – – 1519 1865 2217 2540 2819 3091
4 1446 2091 2968 3971 – 1366 1701 2058 2405 2714 2994
5 1301 1791 2645 3674 4703 1165 1529 1886 2236 2583 2880
6 1123 1525 2284 3291 4398 1062 1316 1694 2055 2411 2751
7 – 1333 1927 2895 4053 976 1224 1480 1869 2234 2598
9
3 1443 2040 2934 – – 1372 1689 2038 2392 2675 2951
4 1301 1785 2622 3624 – 1212 1531 1891 2230 2564 2853
5 1111 1564 2272 3284 4349 1021 1360 1713 2069 2408 2734
6 – 1330 1960 2895 4028 938 1183 1513 1897 2240 2588
7 – 1217 1632 2499 3607 852 1100 1345 1687 2062 2410
10
3 1301 1751 2578 – – 1221 1525 1864 2214 2531 2807
4 1152 1553 2266 3233 4275 1050 1381 1712 2058 2401 2707
5 – 1372 1972 2883 3979 897 1195 1547 1894 2235 2581
6 – 1185 1689 2499 3607 814 1060 1339 1726 2078 2412
7 – – 1418 2147 3177 726 976 1224 1500 1894 2247
11
3 1159 1516 2210 3183 – 1069 1377 1692 2037 2386 2665
4 – 1386 1927 2849 3905 882 1227 1543 1893 2224 2558
5 – 1222 1692 2504 3585 773 1029 1383 1738 2072 2407
6 – – 1446 2164 3172 688 938 1188 1546 1909 2244
7 – – 1273 1842 2770 597 852 1100 1351 1717 2072
12
3 – 1375 1887 2765 – 914 1229 1531 1865 2208 2517
4 – 1240 1669 2458 3522 734 1071 1395 1732 2057 2393
5 – – 1465 2136 3143 650 897 1224 1567 1901 2236
6 – – 1287 1859 2758 561 814 1059 1374 1746 2083
7 – – – 1571 2379 462 726 976 1224 1544 1911
13
3 – 1234 1624 2397 – 754 1077 1383 1698 2034 2372
4 – – 1465 2085 3104 609 905 1242 1554 1897 2222
5 – – 1319 1847 2724 524 773 1053 1401 1749 2073
6 – – – 1601 2363 429 688 936 1207 1579 1917
7 – – – 1356 2034 313 597 852 1100 1366 1750

15
English
COOLING CAPACITY
The cooling capacities yielded shown in the table must be multiplied by the following factors:
MOD. VEC 50
Maximum speed
total power
1.00
sensible power
1.00
Average speed
total power
0.88
sensible power
0.88
Minimum speed
total power
0.65
sensible power
0.65
VEC50 TOTAL COOLING CAPACITY [W] SENSIBLE COOLING CAPACITY [W]
Water temp. °C Wet bulb air temperature [°C] Dry bulb air temperature [°C]
Inlet t15 17 19 21 23 21 23 25 27 29 31
5
3 3052 ––––2270 2553 2851 3142 – –
4 2780 3670 4711 – – 2129 2431 2720 3028 3318 3602
5 2509 3353 4379 5519 – 1976 2286 2594 2892 3204 3494
6 2230 3029 4018 5179 6420 1785 2134 2449 2755 3066 3370
7 1935 2697 3648 4795 6068 1518 1947 2289 2608 2914 3235
6
3 2731 ––––2118 2412 2693 2991 3279 –
4 2486 3315 4335 – – 1981 2285 2578 2877 3168 3450
5 2244 3014 3987 5135 – 1813 2137 2447 2740 3047 3340
6 1988 2704 3640 4772 6013 1599 1981 2297 2606 2903 3218
7 1709 2403 3285 4379 5640 1330 1776 2137 2457 2763 3076
7
3 2441 3255 – – – 1970 2269 2544 2837 3130 –
4 2222 2976 3942 – – 1821 2138 2430 2715 3015 3303
5 2007 2697 3610 4727 – 1637 1990 2298 2595 2892 3192
6 1777 2418 3271 4341 5596 1400 1820 2148 2455 2752 3063
7 1483 2132 2931 3957 5201 1172 1580 1983 2310 2612 2915
8
3 2184 2909 – – – 1808 2118 2410 2678 2978 3263
4 2003 2652 3557 4644 – 1644 1988 2285 2573 2861 3155
5 1788 2403 3266 4304 5519 1449 1833 2148 2447 2738 3041
6 1565 2150 2923 3927 5157 1182 1637 1996 2306 2600 2904
7 – 1886 2614 3564 4741 – 1368 1818 2159 2469 2764
9
3 1981 2592 3467 – – 1630 1974 2259 2535 2822 3112
4 1807 2365 3188 4229 – 1462 1836 2143 2429 2707 3000
5 1603 2146 2893 3881 5091 1253 1658 2005 2300 2590 2880
6 – 1920 2599 3527 4711 992 1441 1840 2164 2461 2744
7 – 1671 2320 3188 4297 – 1182 1630 2007 2321 2616
10
3 1788 2305 3104 – – 1451 1810 2118 2400 2663 2959
4 1615 2116 2825 3821 – 1277 1658 1996 2287 2566 2847
5 – 1927 2569 3474 4651 1047 1472 1849 2156 2446 2717
6 – 1716 2312 3158 4244 – 1235 1669 2016 2314 2599
7 – – 2056 2825 3859 – – 1427 1849 2175 2468
11
3 1596 2078 2750 – – 1271 1637 1979 2254 2522 2803
4 – 1916 2516 3414 4538 1086 1476 1846 2143 2425 2691
5 – 1732 2286 3104 4176 823 1281 1679 2017 2303 2577
6 – – 2063 2803 3806 – 1016 1476 1863 2174 2453
7 – – 1829 2509 3444 – – 1211 1671 2026 2329
12
3 – 1889 2441 3301 – 1088 1459 1818 2118 2389 2648
4 – 1724 2244 3022 4078 887 1291 1669 2003 2284 2556
5 – – 2048 2750 3738 – 1082 1494 1866 2163 2442
6 – – 1852 2486 3383 – – 1277 1693 2028 2317
7 – – – 2222 3059 – – – 1476 1877 2186
13
3 – 1697 2181 2928 – 904 1281 1640 1979 2259 2506
4 – – 2026 2682 3656 662 1103 1486 1856 2145 2419
5 – – 1852 2441 3315 – 858 1305 1693 2027 2301
6 – – – 2206 3006 – – 1057 1504 1881 2176
7 – – – 1981 2704 – – – 1260 1706 2046

16
English
Water flow rate [l/h]
Δt °C (water inlet temperature - air inlet temperature)
Heating capacity [kW]
VEC 20
HEATING CAPACITY YIELDED WITH A 3-ROW COIL
Δt °C (water inlet temperature - air inlet temperature)
Heating capacity [kW]
VEC 30
Water flow rate [l/h]
Δt °C (water inlet temperature - air inlet temperature)
Heating capacity [kW]
VEC 40
Δt °C (water inlet temperature - air inlet temperature)
Heating capacity [kW]
VEC 50
Water flow rate [l/h]Water flow rate [l/h]
HEATING CAPACITY CORRECTION FACTORS
The heat yields refer to the maximum speed. For the rest of the speeds the values must be multiplied by the following factors:
MOD. VEC20 VEC30 VEC40 VEC50
Average speed 0,82 0,85 0,83 0,88
Minimum speed 0,60 0,70 0,67 0,66

17
English
Water flow rate [l/h]
Δt °C (water inlet temperature - air inlet temperature)
Heating capacity [kW]
VEC 20 (BV122)
HEATING CAPACITY YIELD FROM 1-ROW COIL (ACCESSORY BV)
Water flow rate [l/h]
Δt °C (water inlet temperature - air inlet temperature)
Heating capacity [kW]
VEC 30 (BV132)
Water flow rate [l/h]
Δt °C (water inlet temperature - air inlet temperature)
Heating capacity [kW]
VEC 40 (BV142)
Water flow rate [l/h]
Δt °C (water inlet temperature - air inlet temperature)
Heating capacity [kW]
VEC 50 (BV142)
HEATING CAPACITY CORRECTION FACTORS
The heat yields refer to the maximum speed. For the rest of the speeds the values must be multiplied by the following factors:
MOD. VEC20 VEC30 VEC40 VEC50
Average speed 0,86 0,87 0,90 0,93
Minimum speed 0,69 0,76 0,81 0,80
The heat yield of the 3-row coil in fan coils fitted with the BV coil accessory (configuration 3R+1R) is indicated in the diagrams
relating to the 3-row standard coils, applying the coefficients shown below.
Total cooling capacity = 0,99
Total perceived cooling capacity = 0,98
Heating = 0,99

18
English
VEC20
VEC30 VEC40
VEC50
Water flow rate [l/h]
Coil pressure drops [kPa]
3R COIL PRESSURE DROPS
The pressure drops in the previous diagram refer to an average water temperature of 10°C. The following table shows the correc-
tion to apply to the pressure drop when the average water temperature varies.
Average water temperature °C 5 10 15 20 50 60 70
Multiplication coefficient 1.03 1 0.96 0.91 0.78 0.75 0.72
The pressure drops in the previous diagram refer to an average water temperature of 65°C. The following table shows the correc-
tion to apply to the pressure drop when the average water temperature varies.
Average water temperature °C 5 10 15 20 50 60 70
Multiplication coefficient 1.4 1.36 1.31 1.24 1.06 1.02 0.98

19
English
Average glycol water temperature
Correction factor
Pressure drop
Air flow rate
Yield
GLYCOL WATER AT 10%
CORRECTION FACTORS WHEN OPERATING USING GLYCOL WATER
COOLING FUNCTION MODE HEATING FUNCTION MODE
Key:
0,8
0,9
1,0
1,1
1,2
6 7 8 9 10 11 12 13 14 15 16 17 °C
GLYCOL WATER AT 35%
GLYCOL WATER AT 20%
0,6
0,7
0,8
0,9
1,0
1,1
1,2
6 7 8 9 10 11 12 13 14 15 16 17 °C
Average glycol water temperature
Correction factor
0,5
0,6
0,7
0,8
0,9
1,0
1,1
1,2
1,3
1,4
1,5
1,6
6 7 8 9 10 11 12 13 14 15 16 17 18 °C
Average glycol water temperature
Correction factor
30 40 50 60 70 80 90 °C
0,8
0,9
1,0
1,1
1,2
1,3
1,4
Average glycol water temperature
Correction factor
0,8
0,9
1,0
1,1
1,2
1,3
1,4
30 40 50 60 70 80 90 °C
Average glycol water temperature
Correction factor
0,8
0,9
1,0
1,1
1,2
1,3
1,4
30 40 50 60 70 80 90 °C
Average glycol water temperature
Correction factor

20
English
Level of sound pressure (A-weighted) measured in the room with volume V = 85 m3; reverberation time t = 0.5 s; direction factor
Q = 2; distance r = 2.5 m.
(E) = Eurovent certified performances.
SOUND PRESSURE LEVEL expressed in dB (A)
SOUND POWER LEVEL expressed in dB
Speed Central band frequency [Hz] Overall
Mod. 125 250 500 1000 2000 4000 8000 dB dB(A)
Max 43.3 48.6 46.4 42.7 39.3 31.3 17.7 52.2 48 (E)
VEC20 Med 38.2 43.9 40.8 36.4 31 24.9 6.5 49.9 42 (E)
Min 29.8 37 33.1 30.2 23.9 20.2 6.6 39.7 35 (E)
Max 40.6 45.8 43.4 39.7 36 28.3 14.7 49.3 45 (E)
VEC30 Med 36 42 38.7 34.7 28.9 23 4.4 44.9 40 (E)
Min 29.9 37.1 33.2 30 23.9 20.2 4.1 39.8 35 (E)
Max 44.1 49.3 46.9 43.2 39.5 31.8 18.2 52.8 48.5 (E)
VEC40 Med 38.6 43.8 41.4 37.7 34 26.3 12.7 47.3 43 (E)
Min 32.9 40.1 36.2 33 26.9 23.2 7.1 42.8 38 (E)
Max 48.6 53.8 51.4 47.7 44 36.3 22.7 57.3 53 (E)
VEC50 Med 45.6 50.8 48.4 44.7 41 33.3 19.7 54.3 50
(E)
Min 38.6 43.8 41.4 37.7 34 26.3 12.7 47.3 43 (E)
Velocità Mod. VEC 20 30 40 50
Max 39,5 36,5 40,0 44,5
Med 33,5 31,5 34,5 41,5
Min 26,5 26,5 29,5 34,5
Table of contents
Other AERMEC Ventilation Hood manuals
Popular Ventilation Hood manuals by other brands

KitchenAid
KitchenAid KVWC908JSS Installation Instructions and Use & Care Guide

KitchenAid
KitchenAid KWCU320JSS0 parts list

Electrolux
Electrolux EFT611 user manual

Sirius Satellite Radio
Sirius Satellite Radio SLTC 111 Installation, Use and Maintenance Instruction

Nederman
Nederman SYSTEM 920 user manual

Prestige
Prestige AKH 600CB-PLUS Series manual
