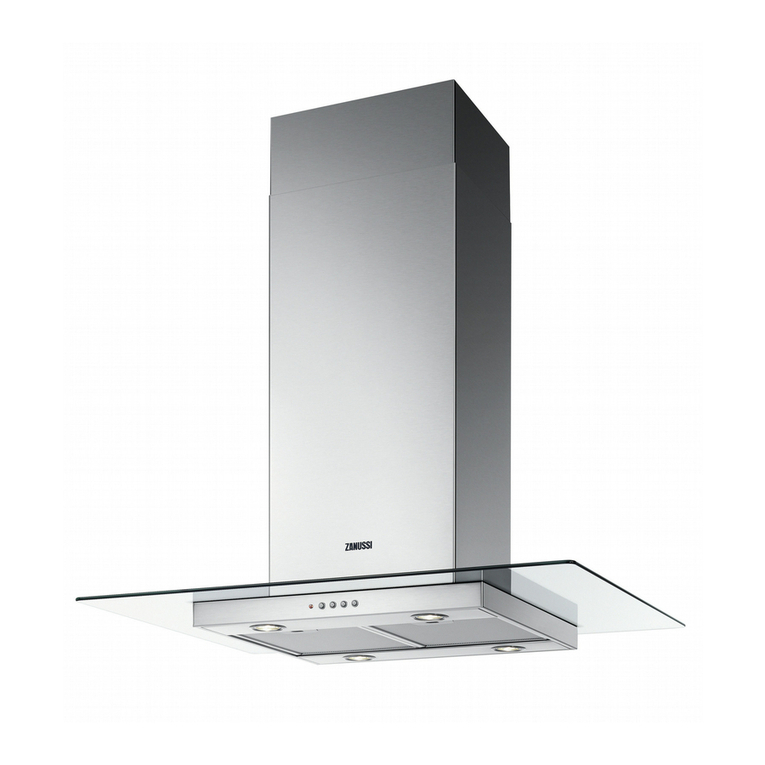

Zanussi ZHC4284 User manual

ZHC4284
User manual
Manual de instrucciones
Manual de Instruções
Benutzerinformation
Gebruiksaanwijzing
3
22
35
48
61
Cooker hood
Campana
Exaustor
Dunstabzugshaube
Dampkap
EN
ES
PT
DE
NL

GB 3
For the User
Important Safety Information
Your Appliance
Operating Instructions
Cooker Hood Controls
To Operate
Recirculation
Extraction
Maintenance and Cleaning
External Cleaning
Metal Grease Filters
Charcoal Filters
To Remove/Replace Charcoal Filter
Changing the Halogen Light
Something Not Working
Service and Spare Parts
Guarantee Conditions
For the Installer
Technical Information
Electrical Connections
Electrical Requirements
Electrical Connection
Installing the Cooker Hood
Installation Requirements
Unpacking
Fitting the Wall Brackets
Fitting the Canopy Hood
Venting
Recirculation
Fitting the Chimney Stack
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions Step by step instructions
Welcome to the world of Electro-
lux
Thank you for choosing a first class product from
Electrolux, which hopefully will provide you with lots of
pleasure in the future. The Electrolux ambition is to offer
a wide variety of quality products that make your life
PRUHFRPIRUWDEOH<RX¿QGVRPHH[DPSOHVRQWKHFRYHU
in this manual. Please take a few minutes to study this
PDQXDOVRWKDW\RXFDQWDNHDGYDQWDJHRIWKHEHQH¿WV
of your new machine. We promise that it will provide
a superior User Experience delivering Ease-of-Mind.
Good luck!

GB 4
RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance.
Accordingly, you may find descriptions of individual features that do not
apply to your specific appliance.
INSTALLATION
•The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
• The minimum safety distance between the cooker top
and the extractor hood is 650 mm (some models can
be installed at a lower height, please refer to the
paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that
indicated on the rating plate fixed to the inside of the
hood.
• For Class I appliances, check that the domestic
power supply guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion
fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-
electrical appliances (e.g. gas burning
appliances), a sufficient degree of aeration must
be guaranteed in the room in order to prevent the
backflow of exhaust gas. The kitchen must have
an opening communicating directly with the open
air in order to guarantee the entry of clean air.
When the cooker hood is used in conjunction with
appliances supplied with energy other than electric, the negative pressure in
the room must not exceed 0,04 mbar to prevent fumes being drawn back
into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the
manufacturer or by the technical service department, in order to prevent any
risks.
2°

GB 5
• If the instructions for installation for the gas hob specify a greater distance
specified above, this has to be taken into account. Regulations concerning
the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.
Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact
gap of at least 3 mm.
USE
•The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making
sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored
during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

GB 6
•“CAUTION: Accessible parts may become hot when used with cooking
appliances.”
MAINTENANCE
•Switch off or unplug the appliance from the mains supply before carrying out
any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more
frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated,
and must be replaced approximately every 4 months of operation, or more
frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or
the shop where you purchased the product.

GB 7
YOUR APPLIANCE
Min.
550mm
Min.
550mm

GB 8
L
S1
T1 T2 T3 T4
OPERATING INSTRUCTIONS
The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.
The appliance can be installed to recirculate or extract contaminated air.
Control Panel
7KHKRRGFDQEHVZLWFKHGRQSXVKLQJGLUHFWO\RQWRWKHUHTXHVWHGVSHHGZLWKRXW¿UVWO\KDYLQJWRVHOHFWEXWWRQ
Button Led Function
L-
Turns the lights on/off at maximum strength.
T1 Fixed
Turns the motor on/off at speed one.
T2 Fixed
Turns the Motor on at speed two..
Press and hold the button for approximately 3 seconds, with all the loads tur-
ned off (Motor and Lights), to turn theActivated Charcoal Filter alarm on. The
UHOHYDQW/('ÀDVKHVWZLFHWRFRQ¿UP
To turn the alarm off, press the button again and hold for at least 3 seconds.
7KHUHOHYDQW/('ÀDVKHVRQFH
T3 Fixed
Turns the Motor on at speed three..
Press and hold the button for approximately 3 seconds, with all the loads tur-
ned off (Motor and Lights), to perform a reset of Filter saturation alarm.
The LED S1ÀDVKHVWKUHHWLPHV
T4 Fixed
Turns the Motor on at INTENSIVE Speed.
This speed is timed to run for 6 minutes.
At the end of this time, the system returns automatically to the speed that was
set before.
If it is activated with the motor turned off, the hood will switch to OFF at the end
of the time.
Press and hold for 3 seconds to enable the remote control, indicated by the
/('ÀDVKLQJWZLFH
Press and hold for 3 seconds to disable the remote control, indicated by the
/('ÀDVKLQJMXVWRQFH
S1 Fixed
Signals the Metal Grease Filter saturation alarm, indicating that it is necessary
WRZDVKWKH¿OWHUV7KHDODUPLVWULJJHUHGDIWHUWKH+RRGKDVEHHQLQRSHUDWLRQ
IRUZRUNLQJKRXUV
Flashing When this is activated, it signals the Activated Charcoal Filter saturation alarm,
LQGLFDWLQJWKDWWKH¿OWHUPXVWEHFKDQJHGWKH0HWDO*UHDVH)LOWHUVPXVWDOVREH
washed.
The Activated Charcoal Filter saturation alarm comes into operation after the
+RRGKDVEHHQZRUNLQJIRUKRXUV

GB 9
To Operate
Select the required fan speed and light if required.
Recirculation
In the recirculation mode the contaminated air enters the
FRRNHUKRRGWKURXJKWKHJUHDVH¿OWHUV7KHDLULVFOHDQHG
E\SDVVLQJWKURXJKWKHFKDUFRDO¿OWHUVEHIRUHEHLQJ
passed back into the kitchen through the grilles in either
side of the chimney stack.
Extraction
In the extraction mode the contaminated air enters the
FRRNHUKRRGSDVVLQJWKURXJKWKHJUHDVH¿OWHUVDQGLV
passed out through the ducting into the atmosphere.
To obtain the best performance when cooking it is
advisable to switch the cooker hood on for a few minutes
EHIRUH\RXVWDUWFRRNLQJDQGOHDYHLWUXQQLQJIRUDERXW
PLQXWHVDIWHU¿QLVKLQJ
 :KHQXVHGLQWKHGXFWLQJPRGHWKHFKDUFRDO¿OWHUV
are not required.
 1HYHUGRÀDPEpFRRNLQJXQGHUWKLVFRRNHUKRRG
Never leave frying pans unattended during use, as
RYHUKHDWHGIDWVDQGRLOVFDQFDWFK¿UH
 'RQRWOHDYHQDNHGÀDPHVXQGHUWKHFRRNHUKRRG
 (QVXUHKHDWLQJDUHDVRQ\RXUKREDUHFRYHUHG
ZLWKSRWVDQGSDQVZKHQXVLQJWKHKREDQG
FRRNHUKRRGVLPXOWDQHRXVO\
OPERATING INSTRUCTIONS

GB 10
Before carrying out any maintenance or clean-
LQJLVRODWHWKHFRRNHUKRRGIURPWKHPDLQV
supply.
 7KHFRRNHUKRRGPXVWEHNHSWFOHDQDVDEXLOG
XSRIJUHDVHRUIDWFDQEHD¿UHKD]DUG
External Cleaning
Wipe the cooker hood frequently with warm
soapy water using a mild detergent.
 1HYHUXVHVFRXULQJSDGVRUDEUDVLYHFOHDQHUV
Never use excessive amounts of water when
cleaning particularly around the control panel.
Metal Grease Filters
7KH¿OWHUVDUHZDVKDEOHDQGPXVWEHFOHDQHGZKHQWKH
Led S1 lights up or at least every 2 months of opera-
tion, or more frequently for particularly heavy usage.
5HPRYHWKHPHWDOJUHDVH¿OWHUV
one at a time by:
• Pull the Comfort Panel to open it.
 5HOHDVLQJ WKH FDWFKHV RQ WKH ¿OWHUV WKH ¿OWHUV FDQ
be removed.
7KHPHWDOJUHDVH¿OWHUVVKRXOGEHZDVKHGE\
hand, in mild soapy water or in a dishwasher. Allow
to dry completely before replacing.
Alarm signal reset
Switch off the lights and extractor motor.
Press T3 and hold for at least 3 seconds, until
/('ÀDVKHVWKUHHWLPHVLQFRQ¿UPDWLRQ
MAINTENANCE AND CLEANING

GB 11
%HIRUHFDUU\LQJRXWDQ\PDLQWHQDQFHRUFOHDQLQJLVRODWHWKHFRRNHUKRRGIURPWKHPDLQVVXSSO\
Charcoal Filters
,QWKHUHFLUFXODWLRQPRGHWKHFKDUFRDO¿OWHUVDEVRUEVPHOOVDQGXQZDQWHGRGRXUV
Enabling the alarm signal
• In Recirculation version Hoods, the Filter saturation alarm can be enabled on installation or at a later date.
• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
• Turn the Lights and the Suction Motor off.
• Press button T2 DQG KROG LW IRU  VHFRQGV XQWLO WKH /(' ÀDVKHV WZLFH LQ FRQ¿UPDWLRQ
7KH¿OWHULVQRWZDVKDEOHDQGFDQQRWEHUHJHQHUDWHG,WPXVWEH UHSODFHG ZKHQ OHG S1 ÀDVKHVRU DW OHDVW HYHU\
4 months. The alarm signal will only light up when the extractor motor is switched on.
To Remove/Replace the Charcoal Filters
• Open the lighting unit by pulling on the notch.
 5HPRYH WKH PHWDO JUHDVH ¿OWHUV
 5HPRYH WKH VDWXUDWHG DFWLYDWHG FDUERQ ¿OWHU E\
UHOHDVLQJ WKH ¿[LQJ KRRNV
 )LW WKH QHZ ¿OWHU E\ KRRNLQJ LW LQWR LWV VHDWLQJ
 5HSODFH WKH PHWDO JUHDVH ¿OWHUV
 7KLVDSSOLDQFHFDQEHDSRVVLEOH¿UH
 KD]DUGLIWKHJUHDVHDQGFKDUFRDO¿OWHUV
are not cleaned and replaced as recommended.
Alarm signal reset
• Switch off the lights and extractor motor.
• Press T3 and hold for at least 3 seconds, until LED
ÀDVKHV WKUHH WLPHV LQ FRQ¿UPDWLRQ
Changing the halogen light
 5HPRYH WKH  VFUHZV ¿[LQJ WKH /LJKWLQJ VXSSRUW
and pull it out of from the Hood.
• Extract the lamp from the Support.
• Replace with another of the same type, making sure
that the two pins are properly inserted in the lamp
holder socket holes.
 5HSODFHWKH6XSSRUW¿[LQJLW LQ SODFH ZLWK WKH WZR
screws removed as above.
Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code
 GU4  [ +5*6*8
 *8  [ +5*6*8
5HSODFHPHQW¿OWHUVDQGKDORJHQOLJKWFDQEHREWDLQHGIURP\RXUORFDO6HUYLFH)RUFH&HQWUH
MAINTENANCE AND CLEANING

GB 12
SOMETHING NOT WORKING
If, having followed these instructions carefully, your cooker hood fails to work properly please carry out
the following checks.
Symptom
The cooker hood will not start
The cooker hood is not working effectively
The cooker hood has switched off during opera-
tion
If after all these checks, the fault persists, contact your
local Service Force Centre, quoting the model and
serial number.
Please note that it will be necessary to provide proof of
purchase for any in-guarantee service calls.
Solution
• Check the hood is connected to the electricity
supply.
• Make sure the switch is in the ‘ON’ position.
• The fan speed is set high enough for the task
  7KHJUHDVH¿OWHULVFOHDQ
• The kitchen is adequately vented to allow the
entry of fresh air.
• If set up for recirculation, check that the charcoal
¿OWHULVVWLOOHIIHFWLYH
• If set up for extraction, check that the ducting and
outlets are not blocked.
• The safety cut-out device has been tripped.
• Tum off the hob and then wait for the device to
reset.
In-guarantee customers should ensure that the
above checks have been made as the engineer will
make a charge if the fault is not a mechanical or
HOHFWULFDOEUHDNGRZQ

GB 13
GUARANTEE / CUSTOMER SERVICE
Standard guarantee conditions
We, Electrolux, undertake that if within
 PRQWKV RI WKH GDWH RI WKH SXUFKDVH
this Electrolux appliance or any part thereof is proved
to be defective by reason only of faulty workmanship
or materials, we will, at our option repair or replace
the same FREE OF CHARGE for labour, materials or
FDUULDJH RQ FRQGLWLRQ WKDW
• The appliance has been correctly installed and used
only on the electricity supply stated on the rating
plate.
• The appliance has been used for normal domestic
purposes only, and in accordance with the manufac-
turer’s instructions.
• The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any person
not authorised by us.
• Electrolux Service Force Centre must undertake all
service work under this guarantee
• Any appliance or defective part replaced shall become
the Company’s property.
• This guarantee is in addition to your statutory and
other legal rights.
Exclusions
• Damage or calls resulting from transportation, im-
proper use or neglect, the replacement of any light
bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliances
outside the United Kingdom.
• Appliances found to be in use within a commercial
HQYLURQPHQW SOXV WKRVH ZKLFK DUH VXEMHFW WR UHQWDO
agreements.
• Products of Electrolux manufacturer that are not
marketed by Electrolux
Service and Spare Parts
In the event of your appliance requiring
service, or if you wish to purchase spare parts, please
contact your local Service
Force Centre by telephoning
0870 5 929 929
Your telephone call will be automatically routed to the
Service Force Centre covering your postcode area.
For the address of your local Service Force Centre
and further information about Service Force, please
visit the website at
ZZZVHUYLFHIRUFHFRXN
Before calling out an engineer, please ensure you
have read the details under the heading “Something
not working”
When you contact the Service Force Centre you will
QHHG WR JLYH WKH IROORZLQJ GHWDLOV
<RXU QDPH DGGUHVV DQG SRVWFRGH
2. Your telephone number.
3. Clear concise details of the fault.
4. The model and Serial number of the appliance (found
on the rating plate).
7KH SXUFKDVH GDWH
Please note a valid purchase receipt or
guarantee documentation is required for in guarantee
service calls.

GB 14
Customer Care
For general enquiries concerning your
Electrolux appliance, or for further information on
Electrolux products please contact our Customer Care
Department by letter or telephone at the address below
or visit our website at www.electrolux.co.uk
Customer Care Department
(OHFWUROX[ 0DMRU$SSOLDQFHV
Addington Way
Luton
Bedfordshire, LU4 9QQ
7HO    
 &DOOV PD\ EH UHFRUGHG IRU WUDLQLQJ
purposes
European Guarantee
This appliance is guaranteed by Electrolux in each of
the countries listed at the back of this user manual,
IRU WKH SHULRG VSHFL¿HG LQ WKH DSSOLDQFH JXDUDQWHH
or otherwise by law. If you move from one of these
countries to another of the countries listed below the
DSSOLDQFHJXDUDQWHHZLOOPRYHZLWK\RXVXEMHFWWRWKH
IROORZLQJ TXDOL¿FDWLRQV
• The appliance guarantee starts from the date you
¿UVWSXUFKDVHGWKHDSSOLDQFHZKLFKZLOOEHHYLGHQ-
ced by production of a valid purchase document
issued by the seller of the appliance.
• The appliance guarantee is for the same period
and to the same extent for labour and parts as
exists in your new country of residence for this
particular model or range of appliances.
• The appliance guarantee is personal to the ori-
ginal purchaser of the appliance and cannot be
transferred to another user.
• The appliance is installed and used in accordance
with instructions issued by Electrolux and is only
used within the home, i.e. is not used for com-
mercial purposes.
• The appliance is installed in accordance with all
relevant regulations in force within your new country
of residence.
The provisions of this European Guarantee do not
affect any of the rights granted to you by law.
GUARANTEE CONDITIONS

GB 15
www.electrolux.com
à
Albania [phone] Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/Belgien [phone] Bergensesteenweg 719, 1502 Lembeek
ýHVNiUHSXEOLND [phone] %XGČMRYLFNi3UDKD
Danmark [phone]MOODQGVJDGH)UHGHULFLD
'HXWVFKODQG [phone]XJJHQKRIHU6WU1UQEHUJ
Eesti [phone] Mustamäe tee 24, 10621 Tallinn
(VSDxD [phone] &DUUHWHUD0.P$OFDOiGH+HQDUHV0DGULG
)UDQFH ZZZHOHFWUROX[IU
Great Britain [phone] $GGLQJWRQ:D\/XWRQ%HGIRUGVKLUH/844
+HOODV [phone] /LPQRX6WU7KHVVDORQLNL
+UYDWVND [phone]ODYRQVNDDYHQLMD=DJUHE
Ireland [phone] Long Mile Road Dublin 12
Italia [phone] &VR/LQR=DQXVVL3RUFLD31
/DWYLMD [phone] Kr. Barona iela 130/2, LV-1012, Riga
/LHWXYD [phone]HUNLǐ/79LOQLXV
/X[HPERXUJ [phone]XHGH%LWERXUJ/+DPP
0DJ\DURUV]iJ [phone] +%XGDSHVW;,9(U]VpEHWNLUiO\Qp~WMD
Nederland [phone]HQQRRWVZHJ&*$OSKHQDDQGHQ5LMQ
Norge [phone]LVO¡NNYQ2VOR
gVWHUUHLFK [phone] +HU]LJJDVVH:LHQ
Polska [phone] ul. Kolejowa 5/7, Warsaw
Portugal [phone]XLQWDGD)RQWH(GL¿FLR*RQoDOYHV=DUFR4
3DoRGH$UFRV
Romania [phone]WU*DULL3URJUHVXOXL652
6FKZHL]6XLVVH6YL]]HUD [phone] ,QGXVWULHVWUDVVH&+0lJHQZLO
6ORYHQLMD [phone]UåDãND/MXEOMDQD
6ORYHQVNR [phone] (OHFWUROX[6ORYDNLDVUR(OHFWUROX['RPiFHVSRWUHELþH6.
6HEHUtQLKR%UDWLVODYD
Suomi [phone] .RQHSDMDQUDQWD3RUL
6YHULJH [phone] (OHFWUROX[6HUYLFH6W*|UDQVJDWDQ6
6WRFNKROP
7UNL\H [phone]DUODEDúÕFDGGHVLQR7DNVLPøVWDQEXO
Ɋɨɫɫɢɹ [phone] ɆɨɫɤɜɚɈɥɢɦɩɢɣɫɤɢɣɩɪɨɫɩɟɤɬȻɐ
³Ɉɥɢɦɩɢɤ´

GB 16
INSTALLATION INSTRUCTIONS
,WLVGDQJHURXVWRDOWHUWKHVSHFL¿FDWLRQVRUDWWHPSWWRPRGLI\WKLVSURGXFWLQDQ\ZD\
Technical Information
DIMENSIONS     +(,*+72)&$123<   PP
         +(,*+72)&+,01(< 833(56(&7,21 PP
/2:(56(&7,21 PP
         :,'7+2)&$123<   PP
         '(37+2)&$123<   PP
ELECTRICAL SUPPLY:    92/7$*(   9+]
32:(5&2168037,21   :
)$102725    :
/$036 [:   :
1RWH&(0DUNLQJFHUWL¿HVWKDWWKLVDSSOLDQFHFRPSOLHVZLWKWKHUHTXLUHPHQWV
ODLGGRZQLQ((&GLUHFWLYH(OHFWURPDJQHWLFFRPSDWLELOLW\DQG
VXEVHTXHQWPRGL¿FDWLRQVDQG/RZ9ROWDJHGLUHFWLYH(
ELECTRICAL CONNECTIONS
THIS APPLIANCE MUST BE EARTHED
(OHFWULFDO 5HTXLUHPHQWV
Any permanent electrical installation must comply with
the latest I.E.E. Regulations and local Electricity Board
regulations. For your own safety this should be under-
WDNHQE\DTXDOL¿HGHOHFWULFLDQHJ\RXUORFDO(OHFWULFLW\
Board, or a contractor who is on the roll of the National
Inspection Council for Electrical Installation Contracting
(NICEIC).
Electrical Connection
Before connecting to the mains supply ensure that the
mains voltage corresponds to the voltage on the rating
plate inside the cooker hood.
7KLVDSSOLDQFHLV¿WWHGZLWKDFRUHPDLQVFDEOHDQG
must be permanently connected to the electricity supply
via a double-pole switch having 3mm minimum contact
gap on each pole. A Switched Fuse Connection Unit to
%63DUW¿WWHGZLWKD$PSIXVHLVDUHFRP-
mended mains supply connection accessory to ensure
compliance with the Safety Requirements applicable to
¿[HGZLULQJLQVWUXFWLRQV
7KLVDSSOLDQFHFRQIRUPVWR%6DQG((&
'LUHFWLYH1RUHJDUGLQJVXSSUHVVLRQRIUDGLRDQG
television interference.

GB 17
INSTALLING THE COOKER HOOD
Please ensure that when the appliance is installed it is easily accessible to an engineer in the event of a
EUHDNGRZQ
All installations must comply with the local authorities requirements for the discharge of exhaust air.
 ,QFRUUHFWLQVWDOODWLRQPD\DIIHFWWKHVDIHW\RIWKLVFRRNHUKRRG
Installation Requirements
 %HIRUHLQVWDOODWLRQFKHFNWKHZDOOWRZKLFKWKHFRRNHUKRRGLVWREH¿WWHGIRUHOHFWULFFDEOHVZDWHUSLSHVRU
gas.
7KLV FRRNHU KRRG LV GHVLJQHG WR EH ¿[HG WR DQ\ RUL]RQWDO VXUIDFH RYHU D FRRNLQJ DUHD DQG FDQ EH XVHG LQ WKH
extraction (ducted to the outside) or recirculation mode.
7KH LQVWDOODWLRQ ZRUN PXVW EH XQGHUWDNHQ E\ D TXDOL¿HG DQG FRPSHWHQW SHUVRQ
The manufacturer disclaims any responsibility for damage due to incorrect installation of the cooker hood or if the
hood is not installed in compliance with relevant regulations controlling this type of installation.
Unpacking
Before unpacking the cooker hood position the carton
with the arrows pointing upwards as illustrated on the
carton.
The cooker hood is made up of the following com-
SRQHQWV
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light,
Blower, Filters
21 Upper Chimney
7.1 1 Telescopic frame complete with extractor,
consisting of:
7.1a 1 Upper frame
7.1b 1 Lower frame
91 Reducer Flange ø 150-120 mm
10 1
Ø120-125mm collar
13 1 Gasket
14 1 Hood BodyAir Outlet Extension Piece
15 1 Air Outlet Connection
25 Pipe clamps (not included)
26 1 Fixing Part of the upper Chimney
29 1 Air outlet connection tube
Ref. Q.ty Installation Components
12c 4 Screws 2,9 x 9,5
12f 2 Screws M6 x 15
12q 4 Screws 3,5 x 9,5
12w 2 Screws M3 x 8
21 1 Drilling template
22 4 6.4 mm int. dia washers
24 2 Fixing knobs for the air outlet connection piece
Q.ty Documentation
1 Instruction Manual
15
24
1
2
7.1
7.1b
7.1a
21
12w
14
29
26
12c
13
10
9
25
12f
12q
22

GB 18
INSTALLING THE COOKER HOOD
 7KHFOHUHDQFHKHLJKWEHWZHHQWKHLQIHULRUSDUW
RIWKHFRRNHUKRRGDQGWKHKREPXVWEH
PPVRPHPRGHOVFDQEH¿WWHGDWDORZHU
KHLJKWIURPWKHKRESOHDVHUHIHUWRWKHLQVWDOOD-
tion paragraph).
Drilling the Ceiling/Support Shelf
• Use a plumb line to mark the centre of the hob on
the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/
support shelf, making sure that the template is in the
correct position by lining up the axes of the template
with those of the hob.
• Mark the centres of the holes in the template.
 'ULOO WKH KROHV DW WKH SRLQWV PDUNHG
• For concrete ceilings, drill for plugs appropriate to
WKH VFUHZ VL]H
  )RUKROORZEULFNFHLOLQJVZLWKZDOOWKLFNQHVVRI
PPGULOO¡PPLPPHGLDWHO\LQVHUWWKH'RZHOV
not provided).
• For wooden beam ceilings, drill according to the
wood screws used.
 )RU ZRRGHQ VKHOI GULOO ¡  PP
 )RU WKH SRZHU VXSSO\ FDEOH IHHG GULOO ¡  PP
• For the air outlet (Ducted Version), drill according
to the diameter of the external air exhaust duct
connection.
• Insert two screws of the following type, crossing them
DQG OHDYLQJ  PP IURP WKH FHLOLQJ
• For concrete ceilings, use the appropriate plugs
IRU WKH VFUHZ VL]H QRW SURYLGHG
• For Cavity ceiling with inner space, with wall thi-
FNQHVV RI DSSUR[  PP 6FUHZV QRW SURYLGHG
• For wooden beam ceilings, use 4 wood screws
(not provided).
• For wooden shelf, use 4 screws with washers and
nuts (not provided)

GB 19
INSTALLING THE COOKER HOOD
Fixing the Frame
,I\RX ZLVKWRDGMXVW WKHKHLJKWRI WKHIUDPH SURFHHG
DV IROORZV
 8QIDVWHQ WKH PHWULF VFUHZV MRLQLQJ WKH WZR FROXPQV
located at the sides of the frame.
 $GMXVW WKH IUDPH WR WKH KHLJKW UHTXLUHG WKHQ UHSODFH
all the screws removed as above.
• Fix the Fixing Part of the Upper Chimney 26 to the
hanging kit using the 2 screws 12w 0 [ 
 /LIW XS WKH IUDPH ¿W WKH IUDPH VORWV RQWR WKH VFUHZV
up to the slot end positions.
• Tighten the two screws and fasten the other two
 VFUHZVSURYLGHGEHIRUHORFNLQJWKHVFUHZVFRPSOHWHO\
LWLVSRVVLEOHWRDGMXVWWKHIUDPHE\WXUQLQJLWPDNLQJ
sure that the screws do not come out of their housing
LQ WKH DGMXVWPHQW VORW
• It is now possible to place and tighten the 4 safety
VFUHZV 3URFHHG DV IROORZV
 GULOO WKH FHLOLQJ ZLWK D  PP ¡ ELW WDNLQJ DV UHIH-
rence the holes of the side parts of the
XSSHU FKLPQH\ ¿[LQJ SDUW
• insert the 4 dowels (provided).
• insert the washers (provided) to the screws and
tighten the screws
• The Frame must be securely fastened so as to support
both the weight of the Hood and the stress caused by
RFFDVLRQDOD[LDOSUHVVXUHDJDLQVWWKH¿WWHG$SSOLDQFH
$IWHU ¿[LQJ PDNH VXUH WKDW WKH EDVH LV VWDEOH HYHQ
ZKHQ WKH )UDPH LV VXEMHFWHG WR ODWHUDO VWUHVV
• If the Ceiling is not strong enough in the area where
WKHKRRGLVWREH¿[HGWKH,QVWDOOHUPXVWVWUHQJWKHQWKH
area using suitable plates and counterplates anchored
to resistant structures.
• Lift the frame up, making sure that the index over the
frame plate is turned backwards.
• Fit the frame slots onto the two screws inserted in the
ceiling as above, and turn until reaching the centre of
WKH DGMXVWPHQW VORW
• Tighten the two screws and fasten the other two screws
SURYLGHG EHIRUH ORFNLQJ WKH VFUHZV FRPSOHWHO\ LW LV
SRVVLEOHWRDGMXVWWKHIUDPHE\WXUQLQJLWPDNLQJVXUH
that the screws do not come out of their housing in
WKH DGMXVWPHQW VORW
• The Frame must be securely fastened so as to support
both the weight of the Hood and the stress caused by
RFFDVLRQDOD[LDOSUHVVXUHDJDLQVWWKH¿WWHG$SSOLDQFH
$IWHU ¿[LQJ PDNH VXUH WKDW WKH EDVH LV VWDEOH HYHQ
ZKHQ WKH )UDPH LV VXEMHFWHG WR ODWHUDO VWUHVV
• If the Ceiling is not strong enough in the area where
WKHKRRGLVWREH¿[HGWKH,QVWDOOHUPXVWVWUHQJWKHQ
the area using suitable plates and counterplates an-
FKRUHG WR UHVLVWDQW VWUXFWXUHV
22
11
12w
26

GB 20
24
15
INSTALLING THE COOKER HOOD
Ducting Connection
&RQQHFW WKH GXFWLQJ FKRVHQ WR
 WKHPPGXFWLQJVSLJRWRQWRSRIWKHPRWRUKRXVLQJ
RUWKHPPGXFWLQJVSLJRWitem 9 and secure
XVLQJ WKH MXELOHH FOLSV item 25 (not provided).
 $ PP FROODU item 10 LV SURYLGHG WR ¿W RYHU
WKH PP GXFWLQJ VSLJRW ZKHQ PP GXFWLQJ LV
¿WWHG
,IWKHURRPZKHUHWKHFRRNHUKRRGLVWREHXVHG
FRQWDLQVDIXHOEXUQLQJDSSOLDQFHVXFKDVDFHQWUDO
KHDWLQJ ERLOHU WKHQ LWV ÀXH PXVW EH RI WKH URRP
VHDOHGRUEDODQFHGÀXHW\SH
 ,IRWKHUW\SHVRIÀXHRUDSSOLDQFHVDUH¿WWHGVXUHWKDW
there is an adequate supply of air to the room.
 7KHFRRNHUGXFWLQJH[WUDFWLRQPRGHPXVWQHYHU
EHFRQQHFWHGWRFHQWUDOKHDWLQJÀXHVUDGLDWRUVRU
water heaters etc.
Recirculation
7KHFRRNHU KRRGLVVXSSOLHG VSHFL¿HGIRUXVHLQ WKHUHFLU-
FXODWLRQ PRGH ZLWK WKH FKDUFRDO ¿OWHU ¿WWHG
In the recirculation mode contaminated air is passed
WKURXJK WKH FKDUFRDO ¿OWHU WR EH SXUL¿HG DQG UHFLUFXODWHG
into the kitchen through the grille outlets on either side
of the chimney.
Recirculation Connection
 ,QVHUW WKH UHGXFHU ÀDQJH 9on the air outlet of the
extractor.
• Attach the adhesive Novastik gasket 13 to the air outlet
connection 15 DQG¿[ this to the upper frame using the
2 knobs 24.
• Fix the air outlet connection extension piece 14 to the
air outlet connection 15.
• Place the air outlet connection tube 29 between the
two air outlets.
14
15
9
29
9
ø 150 ø 125
25
25 9.1
10
Extraction
The cooker hood is more effective when used in the extraction mode (ducted to the outside).
9HQWLQJ NLWV PD\ EH SXUFKDVHG WKURXJK \RXU UHWDLOHU RU ',< VWRUH DQG PXVW EH GXFWHG WR DQ RXWVLGH YHQW RI
ØPP ´ RU ØPP ´
For the best performance use the shortest possible duct run and the minimum number of bends.
:KHUH ÀH[LEOH GXFWLQJ LV ¿WWHG LW VKRXOG QRW EH WXUQHG WKURXJK YHU\ WLJKW EHQGV DV WKLV PD\ LPSDLU WKH SHUIRUPDQFH RI WKH
hood.
,W LV UHFRPPHQGHG D PD[LPXP OHQJWK RI  PHWUHV ZLWK RQH EHQG WR EH LQVWDOOHG WR EH UHGXFHG PHWUH IRU HDFK R EHQG
,I D GLVWDQFH LV JUHDWHU WKDQ  PHWUHV WKH HI¿FLHQF\ RI WKH KRRG FRXOG EH LPSDLUHG 
7KH GXFWLQJ XVHG PXVW EH PDQXIDFWXUHG IURP ¿UH UHWDUGHQW PDWHULDO FRQIRUPLQJ WR WKH UHOHYDQW %ULWLVK 6WDQGDUG RU ',1
%
:KHQ WKH FRRNHU KRRG LV GXFWHG WR WKH RXWVLGH WKH FKDUFRDO ¿OWHU PXVW EH UHPRYHG
