AeroAudio MOS - UNO - IP User manual

MOS - UNO - IP
MANUAL
STEENWEG 148C - 9810 NAZARETH - BELGIUM - T [phone] - [e-mail]

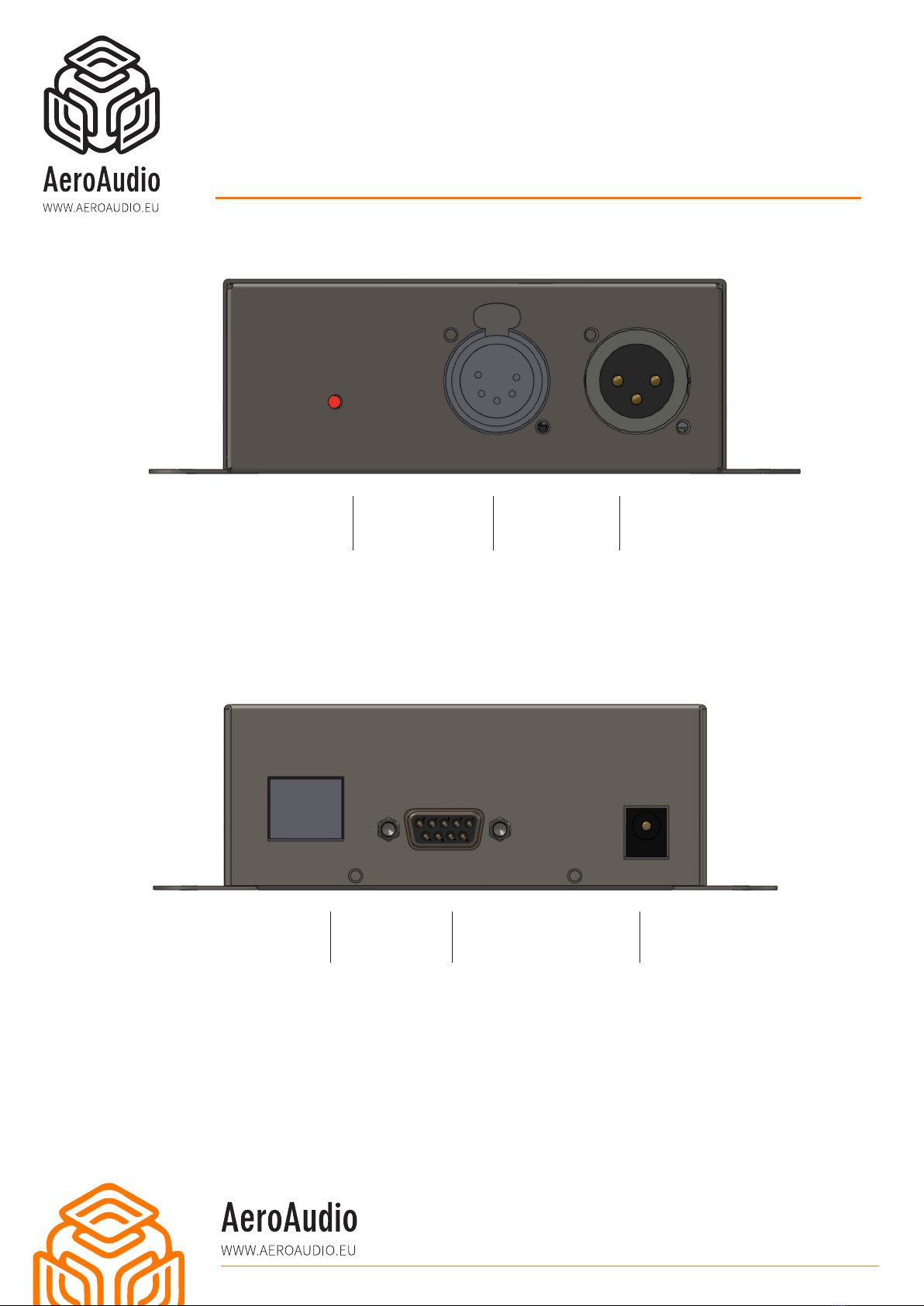

Status indication, white or red Mika microphone input Microphone output
Ethernet network connection SUB-D 9 GPI input Power supply: 12 till 24 volt DC,
polarity is not important.
Power consumption at 12 volts:
100mA, at 24 volts 70mA

MOS - UNO - IP
MANUAL
STEENWEG 148C - 9810 NAZARETH - BELGIUM - T [phone] - [e-mail]
GPI control:
Settings: through internal webpage, default IP address 192.168.0.101
Reset settings to factory default:
- Power off the MOS-UNO-IP
- Connect Pin 5 to pin 7,8 or 9
- Power on the MOS-UNO-IP and wait for 5 seconds, during boot the status LED will blink
fast in red.After the reset boot the satus LED will turn white and facory default settings are
restored.The MOS-UNO-IP can be reached at 192.168.0.101 again.
GPI schematic:
Pin Function Signal
1 GPI voltage control +5 till +15 volt DC
2 GPI close contact to GND Contact to pin 7,8 of 9
3
4
5 RESET settings Contact to pin 7,8 of 9
6 GND GPI voltage vontrol
7 GND switch contact
8 GND switch contact
9 GND switch contact

MOS - UNO - IP
MANUAL
STEENWEG 148C - 9810 NAZARETH - BELGIUM - T [phone] - [e-mail]

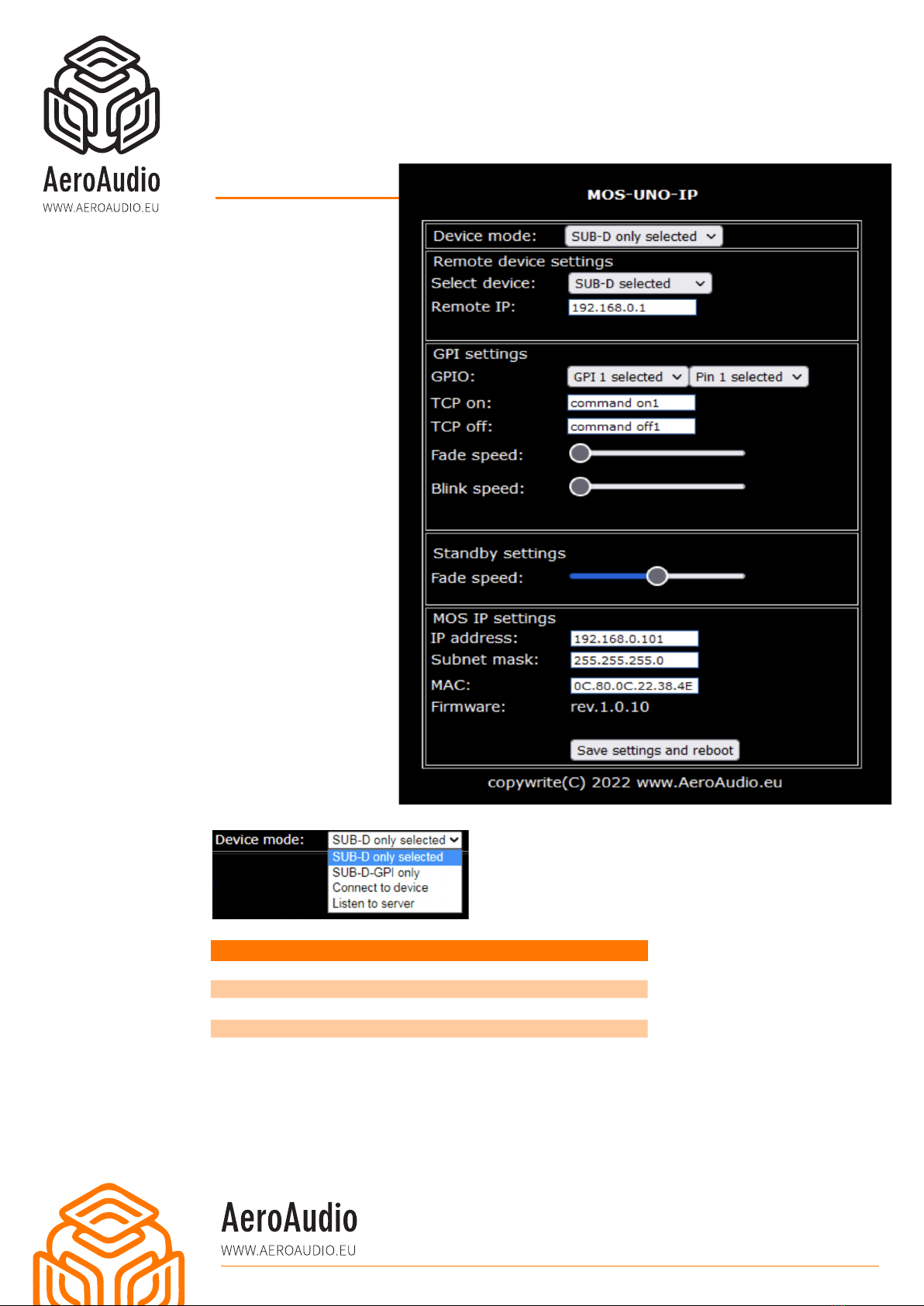

Netwerk access
The MOS-UNO-IP settings
can be adjusted using a
standard webbrowser.
The factory default
IP address is set to:
192.168.0.101
using subnetmask:
255.255.255.0
Enter the IP address in
your browser and the
MOS-UNO-IP will display
the following settings page:
Mode: Discription:
“” selected Current settings
SUB-D-GPI only Triggers only on SUB-D GPI
Connect to device Connects to an Axia node or QOR
Listen to server Triggers on TCP commands
Connect to device connects directly to an Axia node or QOR.
Listen to server listens to TCP commands send from an external TCP server like Axia pathnder to
the MOS-UNO-IP on port 93.
Device mode

MOS - UNO - IP
MANUAL
STEENWEG 148C - 9810 NAZARETH - BELGIUM - T [phone] - [e-mail]
Device: Discription:
“” selected Current setting
SUB-D only Triggers only on SUB-D GPI
Axia Node Connects to an Axia node
Axia QOR (16-32) Connects to an Axia QOR-16 or QOR-32
DHD global logic Listens to DHD global logics
Axia node:
Connects directly to the remote IP of an Axia node.
Axia QOR (16-32):
Connects directly to the remote IP of an Axia QOR-16 or QOR-32
On using GPI or GPO contacts on the QOR to trigger the MOS-UNO-IP, select Node as device.
On using the Axia livewire software driver the Node needs to be selected as device.
DHD global logics:
Listens to DHD global logics. Enter the DHD Toolbox project ID in the eld of TCP command 1.
Enter the used global logic number (1 – 200) in the eld of TCP command 2. See GPI settings for
details.
The webpage of the MOS-UNO-IP shows the connection status:
When a connection to a node or QOR has been disconnected the MOS-UNO-IP will try to
reconnect. On a longer connection timeout the webpage will show the link has been disconnected.
To restore the connection the MOS-UNO-IP has to be rebooted.
Remote device settings

MOS - UNO - IP
MANUAL
STEENWEG 148C - 9810 NAZARETH - BELGIUM - T [phone] - [e-mail]
Here the default GPI settings can be adjusted. For GPI only, the TCP commands are not used.
For an Axia node the GPI or GPO can be selected with the corresponding pin where the color RED
will be activated. GPI1 – 8, GPO1 – 8 and Pin 1-5.
For an Axia QOR the name of the fader channel needs to be entered in the TCP 1 eld. For example
Mic-DJ or Mic 1.The name entered here has to correspond exactly to the name used in the QOR
and is case sensitive.
On change of a show prole on the Axia desk from example fader 1 to fader 3 the MOS-UNO-IP
will follow the change.
On rst installation or reboot of the MOS-UNO-IP a show prole has to be loaded to let the MOS-
UNO-IP know the corresponding fader channel.
GPIO, Pin and TCP off settings are not used when the QOR has been selected.
On choosing listen to server the MOS-UNO-IP will only listen on TCP port93 to commands
directly send to the IP address of the MOS-UNO-IP.To activate or deactivate the red light, the send
command has to exactly match the commands in TCP on and TCP off.These commands are case
sensitive.
The MOS-UNO-IP uses standard ASCII charracters for the TCP commands.To test a command a
simple freeware program like packet sender can be used.
On the use of DHD global logics the name of TCP on and off will change After saving settings.
GPI settings

MOS - UNO - IP
MANUAL
STEENWEG 148C - 9810 NAZARETH - BELGIUM - T [phone] - [e-mail]

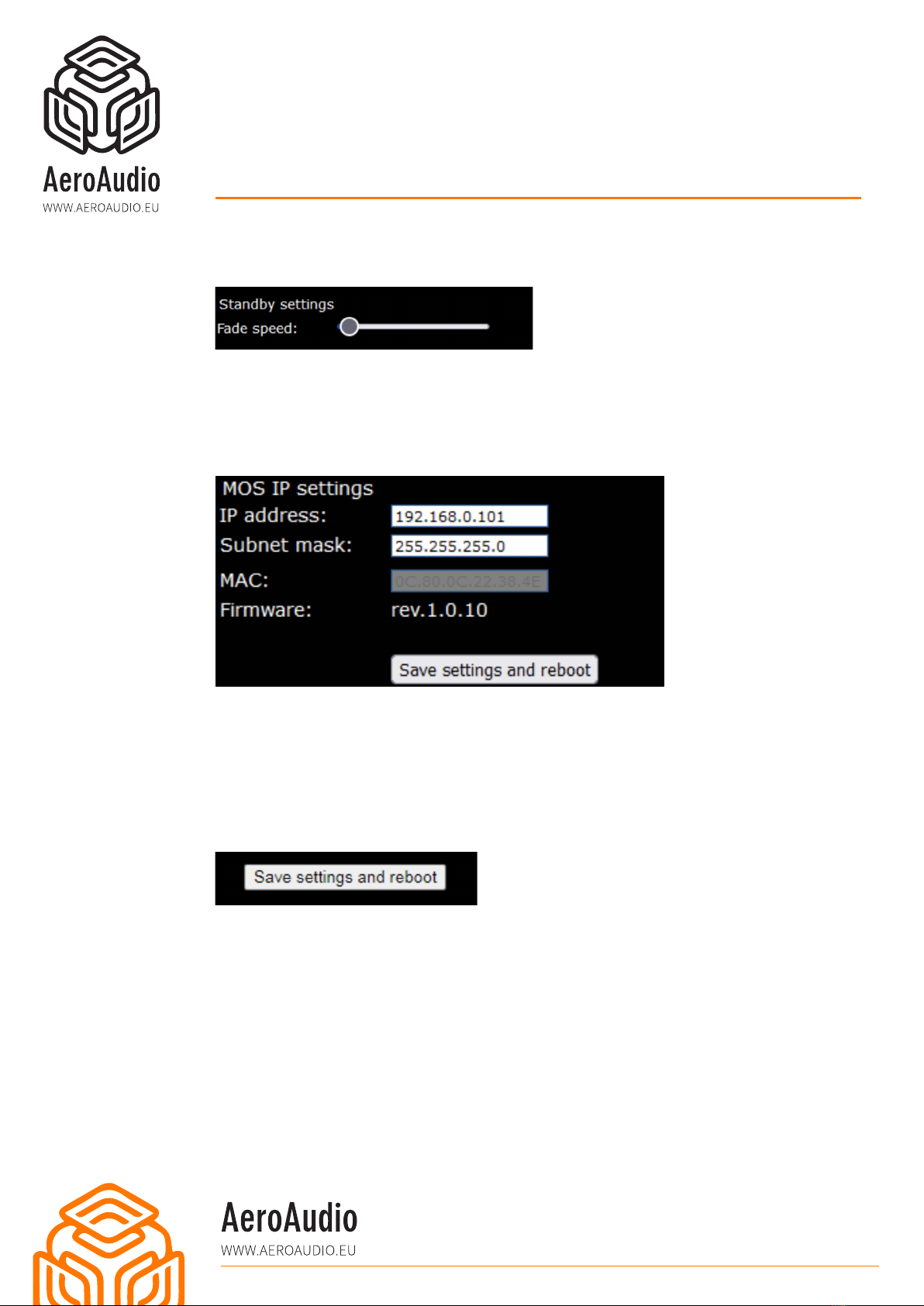

When there is no GPI active, the Mika arm LED will turn white. By default it is set to fade slowly.To
deactivate fading put the fade speed fully to the left.
IP settings
Here the IP address with the corresponding subnet mask can be set.The MAC address is unique for
each device and can not be changed. The rmware shows the currently running rmware version of
the device.
Save settings
After setting all system parameters these settings have to be saved.To save all settings click save
and reboot.The MOS-UNO-IP will store all settings and reboot.After approximately 5 seconds the
webpage can be reloaded.
Standby settings

MOS - UNO - IP
MANUAL
Dimensions
STEENWEG 148C - 9810 NAZARETH - BELGIUM - T [phone] - [e-mail]
Dimensions:140 * 81,9 * 41,6 mm
Weight 0,35 Kg

MOS - UNO - IP
MANUAL
Safety First!
- Caution: hot and sharp surfaces ! This professional device should only be installed by qualied personnel.
- Check the cardboard box for any damage upon receipt of the goods. In case of a damaged box, please contact your distributor
contact your distributor before opening the box.
- Read all documentation before using the unit.
- Keep all documentation for future use.
- Keep the box and packing materials even if the equipment has arrived in good condition.
- Should you ever need to ship the equipment, use only the original factory packaging.
- Do not spill water or other liquids in or on the unit.
- Always use the power supply provided.
- Make sure the outlets match the power requirements listed on the back of the power supply.
- Do not use the unit if the power cord is frayed or broken.
- Turn off and disconnect the devices from the power supply before making any connections.
- Do not use the unit near heaters, heating vents, radiators, or other devices that produce heat.
- Do not use the unit on a surface or in an environment that may interfere with the normal ow of air around the unit.
If the unit is used in an extremely dusty or smoky environment, the unit should be “dusted” periodically.
- Do not remove the cover. Removing the cover will expose you to potentially dangerous volt voltages.
- In case of malfunction, this unit should only be serviced by qualied service personnel.
- Always follow the instructions of the supplier and manufacturer - Use only manufacturer specied accessories, spare and replacement parts.
- Use the device only for the application the manufacturer intended.
