AeroWorks 30cc BRAVATA ARF-QB User manual

30cc Laser 200 ARF-QB
(Quick Build)
ASSEMBLY MANUAL
AEROWORKS
4903 Nome Street, Denver, CO. 80239 - Phone [phone] - Fax [phone]
E-mail - [email protected]

2Aeroworks 30cc Laser 200 Assembly Manual
4903 Nome Street
Denver, CO 80239
Phone: [phone]
Fax: [phone]
Website: www.aero-works.net
E-mail: [email protected]
Tech Support: [email protected]
CONTACT INFORMATION
TABLE OF CONTENTS
INTRODUCTION
Thank you for choosing the Aeroworks
30cc Laser 200. We put great effort into making
this plane the best model you will ever build and
fly. Aeroworks has provided you with the high-
est quality kit and performance possible. We
wish you great success in the assembly and fly-
ing of your new Aeroworks 30cc Laser 200
ARF-QB.
Great care has been taken in both the
design and manufacturing of the 30cc Laser
200 ARF-QB to allow for the strongest and
lightest construction possible. Only the
highest quality materials from the covering,
paint, wood and hardware have been used in
the construction of this model.
The 30cc Laser 200 ARF-QB has
been individually hand built, covered and
painted by trained and experienced crafts-
men with over 25 years of manufacturing
experience. Using CAD design, laser cut
technology and jig-built assures accuracy
in all stages of production.
WARRANTY
Aeroworks manufacturing guarantees this kit to
be free from defects in both material and work-
manship at the date of purchase. This warranty
does not cover any component parts damaged by
use or modification. In no case shall Aeroworks
liability exceed the original cost of the pur-
chased kit. Further, Aeroworks reserves the right
to change or modify this warranty without no-
tice.
In that Aeroworks has no control over the final
assembly or materials used for final assembly,
No liability shall be assumed nor accepted for
any damage resulting from the use by the user of
the final user-assembled product. By the act of
using the user-assembled product, the user ac-
cepts all resulting liability. Aeroworks does not
accept any responsibility for structural failure.
Warranty Period
It is important to notify Aeroworks of any
damage or problems with the model within
30 days of receiving your airplane to be cov-
ered under warranty. All returned parts must
be shipped in their original shipping boxes
and insured for full replacement value. If
you wish to return this aircraft for any rea-
son a 15% restock fee will be charged to the
customer. In addition the customer is re-
sponsible for all return shipping cost and all
prior shipping cost will not be refunded.
Parts will be fixed or replaced once the
original item is returned at the owner’s ex-
pense. It is the decision of Aeroworks if the
item is to be replaced or repaired.
Aeroworks cannot insure the skill of the
modeler and can not influence the builder
during the construction or use of this air-
craft, and therefore, will not be accountable
for any property damage, bodily injury or
death caused by this aircraft.
Aeroworks Contact Information …………………… 2
Introduction ……………………………………….… 2
Warranty Information …………………………….... 2
Kit Contents …………………………...………….…. 3
Items Needed To Complete …………………….…… 4
Tightening and Re-shrinking Covering ………….… 6
Checking Glue Joints ….…………………….………. 7
Aileron Servo Installation ……………………….…... 8
Horizontal Stab Installation………..……………... 10
Vertical Stab Installation ...……………….…..…… 12
Elevator Control Horn Installation …………...…….14
Rudder Control Horn Installation …………...……. 15
Elevator/Rudder Hinge Installation …………...……15
Elevator Servo Installation ……………….………… 16
Rudder Servo Installation……………….…...……… 18
Tail Wire Installation ……………………………….. 21
Main Landing Gear and Wheel Pant Installation.... 22
Tail Wheel Installation ……………..…..…………... 26
Engine Installation …………………………………. 29
Throttle Servo Installation ..………………...……... 30
Ignition Installation ……….………………………… 33
Fuel Tank Assembly ……………….…………….…. 36
Fuel Tank Installation ………………………………. 37
Radio Installation …………………….………....…. 41
Cowl Installation …………………………………….. 43
Manual Choke Installation …………………...….… 46
Preflight Preparations ………….…………..……... 47
Decal Installation …………………………….……... 48
Checking CG (CG Buddy) …………………………. 49
Control Throws …………. …………………..……... 50
Materials List ………………………………………. 55
Optional Accessories ………………………………. 57

Aeroworks 30cc Laser 200 Assembly Manual 3
KIT CONTENTS MAIN
ASSEMBLY
Item
Number
1
2
3
4
5
6
7
8
9
10
Item Description
Fuse
Cowl w Mounting Bolts
Canopy/Hatch Assembly
Stab w/Elevators
Vertical Fin w/Rudder
Right Wing w/Aileron
Left Wing w/Aileron
Aluminum Landing Gear
Wheel Pant Set w/Mounting Bolts
Landing Gear Cuff Set
Part Number
AL200R30FO
AL200R30CM
AL200R30CH
AL200R30SE
AL200R30VR
AL200R30RW
AL200R30LW
AL200R30AL
AL200R30WP
AL200R30GC
SPARE PARTS
Spare parts can be ordered directly through Aeroworks.
Please use the part numbers and item descriptions listed in
the kit contents list above to order.
KIT CONTENTS SUB
ASSEMBLY
Item
Number
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Item Description
Landing Gear Mounting Hardware
Main Wheel Set
Pull Pull Assembly
Replacement Covering
Axle Set
Aluminum Control Horn Set
CG Buddy
15oz Fuel Tank w/ hardware
Ball Link Set
Tail Wire Set
Throttle/Choke Pushrod Set
Rubber Grommet Set
Foam/Velcro Mounting Pack
Throttle Servo Mount
Carbon Fiber Wing Tube
Laser Cut Engine Mounting Templates
Wing Mounting Hardware
Pushrod Set
Aluminum Tail Wheel
Part Number
AL200R30GH
AL200R30MW
AL200R30PP
AL200R30RC
AL200R30AX
AL200R30AC
AL200R30CG
AL200R30FT
AL200R30BS
AL200R30TS
AL200R30TP
AL200R30RG
AL200R30FV
AL200R30TM
AL200R30WT
AL200R30LC
AL200R30MW
AL200R30PS
AL200R30TW
Your model is covered with Ultracote™ covering.
In case of repairs, the colors are:
Red/White Scheme
True Red #866
Gold #879
White #870
Midnight Blue #885
ULTRACOTE™ COLORS

4Aeroworks 30cc Laser 200 Assembly Manual
HARDWARE NEEDED TO
COMPLETE
Engine Option 1: DLE 30
◊ 1 - DLE 30 Rear Carb w/ 60mm Standoffs
◊ 1 - J’Tec Wrap Around Pitts Muffler
◊ 8 - Fender Washers
◊ 8 - Engine mounting bolts
◊ 1 - 18x8 Propeller
Servo Option 1 : Sport Performance
Hitec 7985MG Servos may be used for sport flying.
If flying more aggressive aerobatics please see
Servo Option Two below.
Note: Servos available through Aeroworks
◊ 5 - Hitec 7985MG Servos for flight surfaces
◊ 1 - Hitec 635HB Servo for throttle
Servo Option 2: Unlimited Performance
Hitec 7954SH Servos are recommended for unlim-
ited flying. These servos will provide the best per-
formance possible.
Note: Servos available through Aeroworks
◊ 5 - Hitec 7954SH Servos for flight surfaces
◊ 1 - Hitec 635HB Servo for throttle
Recommended Spinner:
◊ 1 - 3.5” Custom Spinner-Aluminum
Note: Spinner available from Aeroworks
Electronic Accessories : Receiver
A 6 or 8 channel receiver is recommended, using a
receiver with 6-8 channels will allow the builder to
mix both the aileron and elevator servo together in
the radio. Mixing these functions will result in a great
flying, well trimmed airplane.
◊ 1 - 6-8 Channel 2.4 GHz or PCM Receiver
Engine Option 2: DLE 35RA
◊ 1 - DLE 35RA w/ 60mm Standoffs
◊ 1 - Stock DLE 35RA Muffler
◊ 8 - Fender Washers
◊ 8 - Engine mounting bolts
◊ 1 - 19x8 Propeller

Aeroworks 30cc Laser 200 Assembly Manual 5

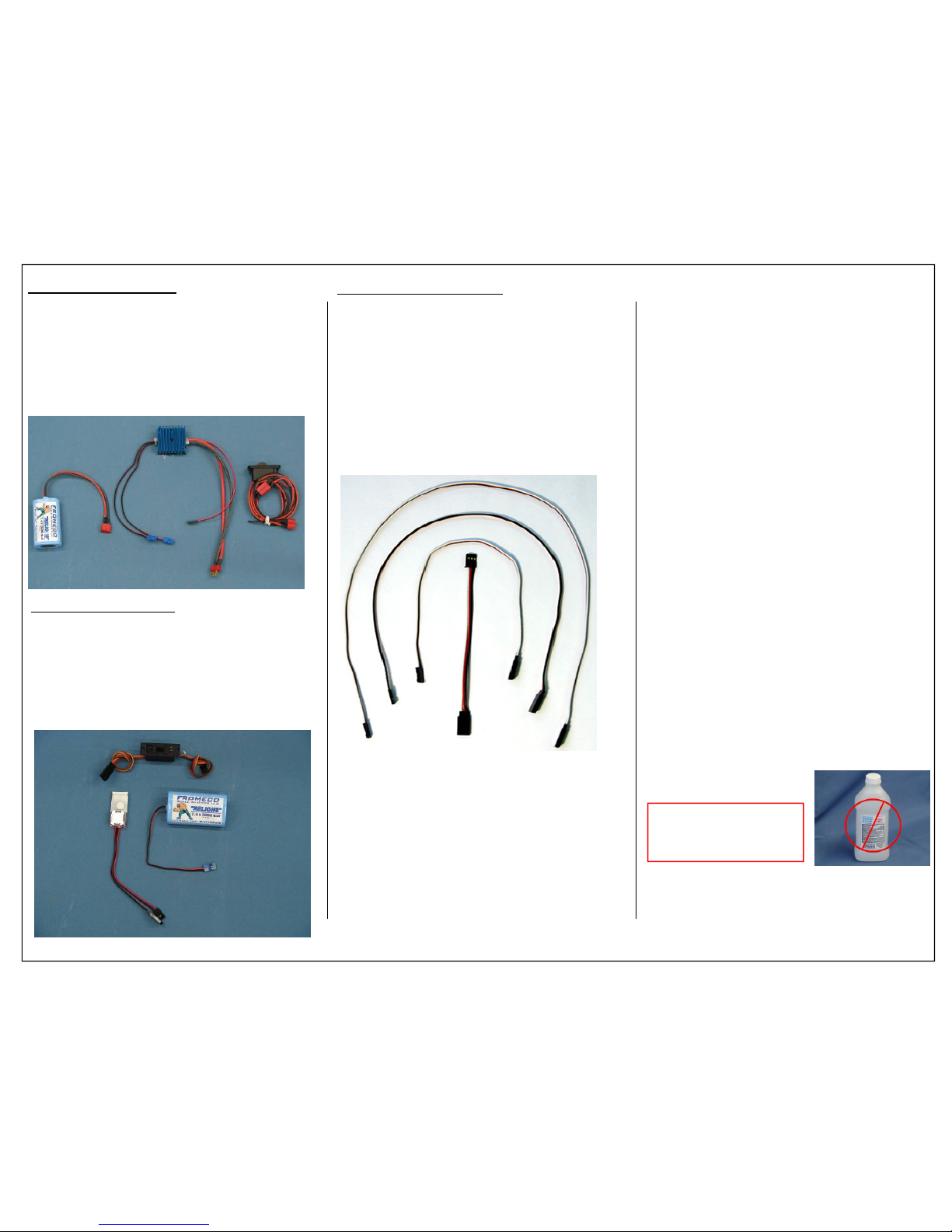

Receiver Power System:
The Aeroworks 20cc-30cc Power Package is recom-
mended. The package consists of the following
items:
◊ 1 - Fromeco Sahara Regulator w/Deans in 2 JR out
◊ 1 - Fromeco 2600mah Li-Ion Battery w/ Deans
◊ 1 - Smart-Fly Super Switch HD w/ Deans
Ignition Power System:
If using the DLE 30 or any other gas engine the
Aeroworks Ignition Power System is recommended
◊ 1 - Fromeco 2600mah Li-Ion Battery w/
Universal Connector
◊ 1 - Smart-Fly Ignition Regulator
◊ 1 - MPI charge switch
Recommended Extensions:
22 AWG extensions are recommended throughout
the 30cc Laser 200. The following sizes will be
used:
◊ 2 - 3” Extensions For Receiver to Ailerons
◊ 2 - 6” Extensions For Ailerons
◊ 2 - 24” Extensions For Elevators
TOOLS &ADHESIVES NEEDED
TO COMPLETE
• Allen wrenches US and Metric.
• Electric drill and selection of bits
• Razor saw
• Flat head screwdriver
• Hobby heat gun
• Hobby iron and covering sock
• Masking tape
• Modeling knife
• Needle nose pliers or crimping tool
• Paper towels
• Pen, pencil or felt tipped marker
• Phillips screwdriver
• Ruler and tape measure
• Scissors
• T pins
• Wire Cutters
• Blue Loctite
• CA kicker (optional)
• Thick, Thin and Medium CA
• Rubbing alcohol
• Wipes
WARNING
Some rubbing alcohols
may attack painted parts.

6Aeroworks 30cc Laser 200 Assembly Manual

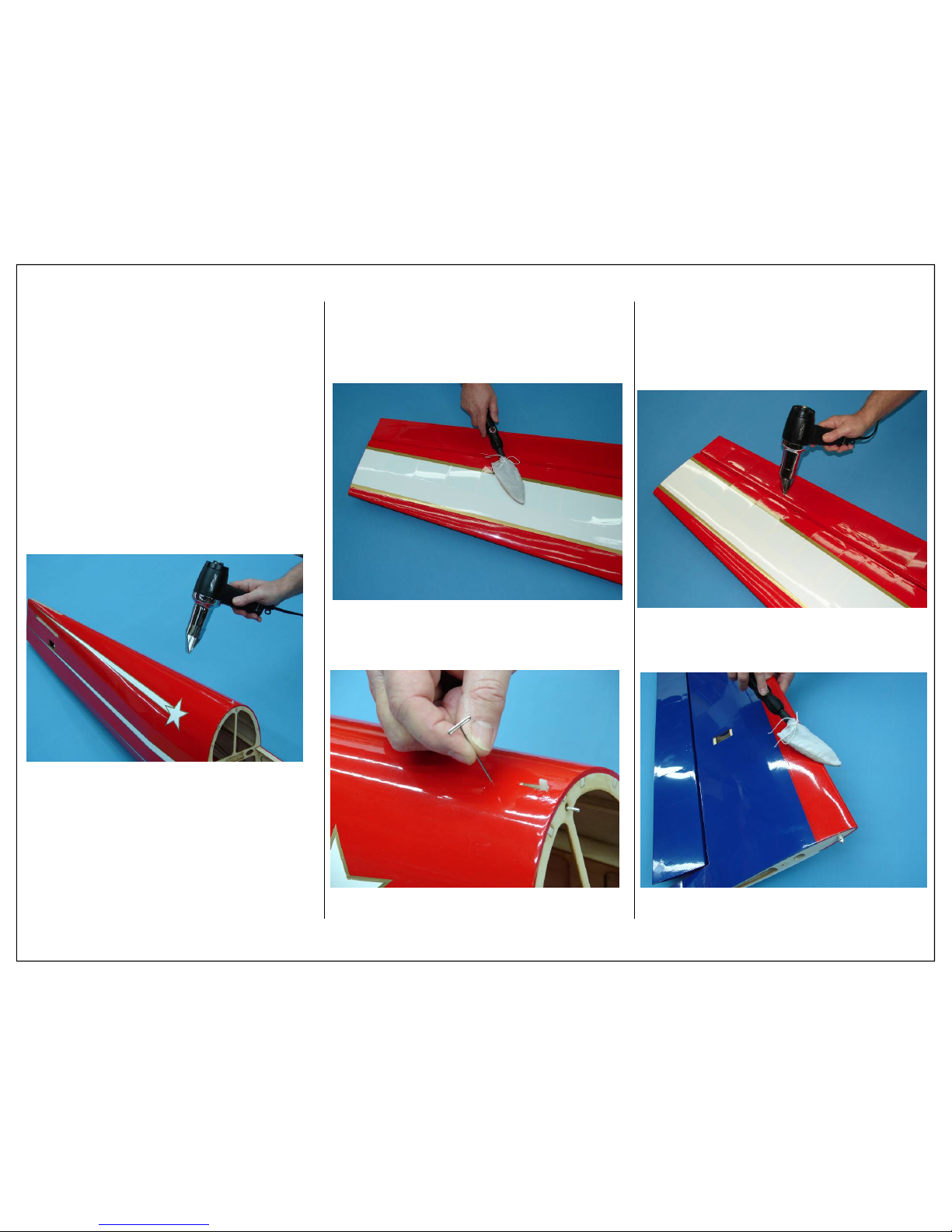

1. Open your kit slowly and take care not to dam-
age any parts of the kit. Remove all parts from
their plastic protective covers for inspection.
Before doing any assembly or installation of any
decals it is very important to re-shrink or re-
tighten the already applied covering. Due to the
shipping process, heat and humidity changes
from different climates, the covering may be-
come lose and wrinkle in the sun. If you take the
time to re-tighten the covering, you will be re-
warded with a long lasting beautifully covered
model.
TIGHTENINGAND
RESHRINKING THE
COVERING
2. Using your covering iron with a soft sock, gently
apply pressure and rub in the covering. If any
bubbles occur, your iron may be to hot. Reduce
heat and work slowly.
3. If bubbles persist, use a small pin to punch holes
in the bubble to relieve trapped air and reheat.
4. Use your heat gun with extreme caution. Take
care not to apply too much heat to one area for
long periods of time. This may cause the trim
colors to over shrink and pull away leaving un-
sightly gaps on the color lines. The trim stripes
are especially vulnerable to over shrinking.
5. Go over all seams and color overlaps with your
sealing iron.

Aeroworks 30cc Laser 200 Assembly Manual 7
6. Go over all hinge gaps and control surface to
ensure that wrinkled covering does not cause
excessive binding.
CHECKING GLUE JOINTS
1. Go over all seams and glue joints with thin CA,
this will ensure your model lasts for many sea-
sons to come.
Note: Even if you can visibly see glue on all glue
joints it is still recommended that the joints be
reglued. Due to changes in humidity during
the life of the aircraft glue joints can separate,
it is always recommended that the glue joints
be checked before each flying session.
2. Apply Thin CA to all firewall joints. The firewall
has already been fuel proofed and any additional
fuel proofing is not necessary.
IMPORTANT:
It is the responsibility of the purchaser /
operator to check the covering seams and
overlaps for security and a good seal.
Aeroworks is not responsible for failure of
covering seams or overlaps during flight.
Note: If covering continues to lift apply a small
amount of thin CA underneath the covering.
Then using a clean rag apply pressure to secure.
One of the most important tools in your
flight box is a roll of clear tape. This can be
used at the field for fast and easy repairs of
the covering. Then once you have finished
flying the covering can be permanently
repaired.
3. Apply a drop of thin CA to the alignment tabs on
the canopy as sown. Use extreme caution while
applying CA to ensure no CA runs onto the can-
opy.
4. Apply Thin CA to front canopy alignment pins as
shown. Allow CA to fully cure before reinstalling
canopy.

8Aeroworks 30cc Laser 200 Assembly Manual
1. The ailerons have been pre-hinged and glued
to the wing panels and are ready for flight. No
other steps are necessary for hinging.
Required Parts
◊ 1 - 3” Pushrod
◊ 2 - 4-40 Ball Link Assemblies
◊ 2 - Lock Nuts
◊ 1 - Brass Spacers
◊ 1 - 4-40 Flat Washers
◊ 1 - Left Control Horn
◊ 1 - Right Control Horn
◊ 6 - T2.6x12mm Wood screws
Required Parts-Not Included
◊ 1 - Aileron Servo
◊ 4 - Servo Mounting Screws (Micro Fastener
Part number STW0209 recommended)
◊ 1 - 1 1/4” Servo Arm
◊ 1 - 6” Servo Extensions
◊ 1 - Aeroworks Safety Clip
Required Tools and Adhesives
◊ 5/64” Ball Driver
◊ 3/32” Ball Driver
◊ Pushrod Adjustment Wrench
◊ Phillips Screw Driver
◊ 1oz Bottle Gap Filling CA Glue
◊ .34oz Bottle Blue IC-Loc Thread Locker

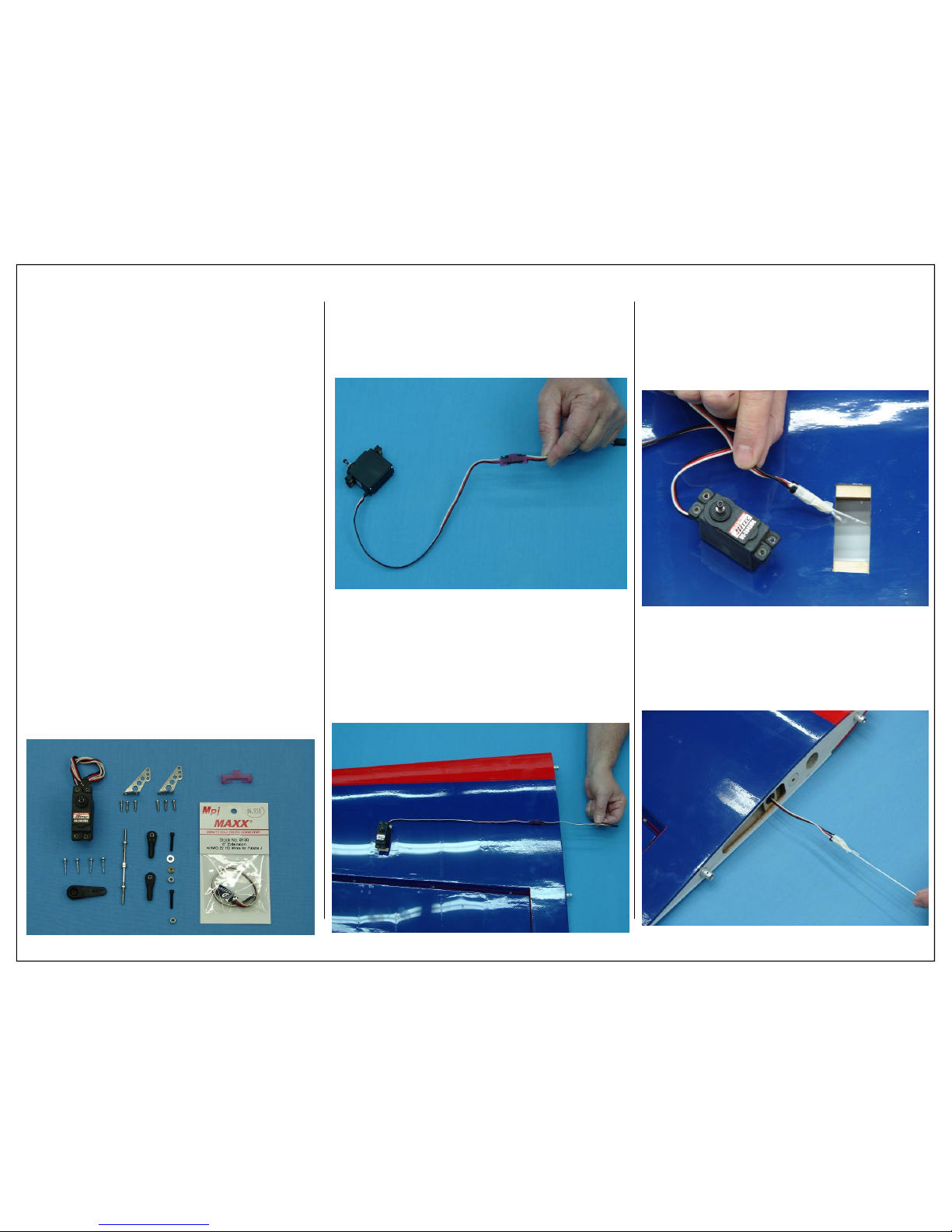

AILERON SERVO
INSTALLATION 2. Attach the 6” extension to the servo lead and
secure with an Aeroworks Safety Clip. Ensure
the plugs will not come apart from vibration or
light tension.
3. Layout the servo and extension on the wing to
test fit the installation and ensure servo lead is the
correct length.
4. Remove the balsa stick with the pull string from
the servo well and tie the pull string to the servo
lead as shown.
5. Secure servo pull string with tape so that the
string pulls from the front end of the plug. Taper
the tape to avoid hang-ups inside the wing.
6. Allow servo lead to pass through the preinstalled
rubber grommet as shown. This will prevent the
aileron extension from falling back into the
wing.

Aeroworks 30cc Laser 200 Assembly Manual 9
9. Install servo with servo mounting screws.
8. Install servo in servo well with the output arm
toward the leading edge of the wing. Drill holes
for servo mounting screws.
7. Remove servo extension pull sting as shown.
10. Assemble the pushrod and control horn assem-
bly as shown. The ball link goes between the
left and right sides of the control horn sides and
is secured with a nylon lock nut. Brass spacer
goes between servo arm and ball link and is not
installed between the right and left control horns.
11. Align the control horns over the factory drilled
holes.
12. Use a drop of thick CA glue on each screw to
prevent screws from loosening due to vibration
as shown.
Note: CA glues have a fast drying time.
Remember to work quickly.

10 Aeroworks 30cc Laser 200 Assembly Manual
13. Align the left and right sides of the control horns
to the mounting holes and mount using six wood
screws as shown.
14. A pushrod adjustment wrench has been in-
cluded, this will allow the pushrod length to be
extended or shortened with out removing the
servo arm. Adjust the pushrod length so the con-
trol surface is neutral when the servo arm is 90
degrees to the servo case.
Note: Tape aileron in place to help keep aileron
centered during pushrod adjustment.
15. Finished aileron servo installation shown below.
Repeat all previous steps for the remaining ai-
leron servo. HORIZONTAL STAB
INSTALLATION
1. Gather the items shown below for the
installation of the Horizontal Stabilizer. The
elevator has been pre-hinged but not glued to the
Stab. Elevator installation will be done in a later
step.
Required Parts
◊ 1 - Horizontal Stabilizer w/ Elevator
Required Tools and Adhesives
◊ 30 Minute Epoxy
◊ Ball Point Pen
◊ Pencil
◊ Hobby Knife
◊ Ruler
◊ Tape Measure
◊ “T” Pins
◊ Masking Tape

Aeroworks 30cc Laser 200 Assembly Manual 11

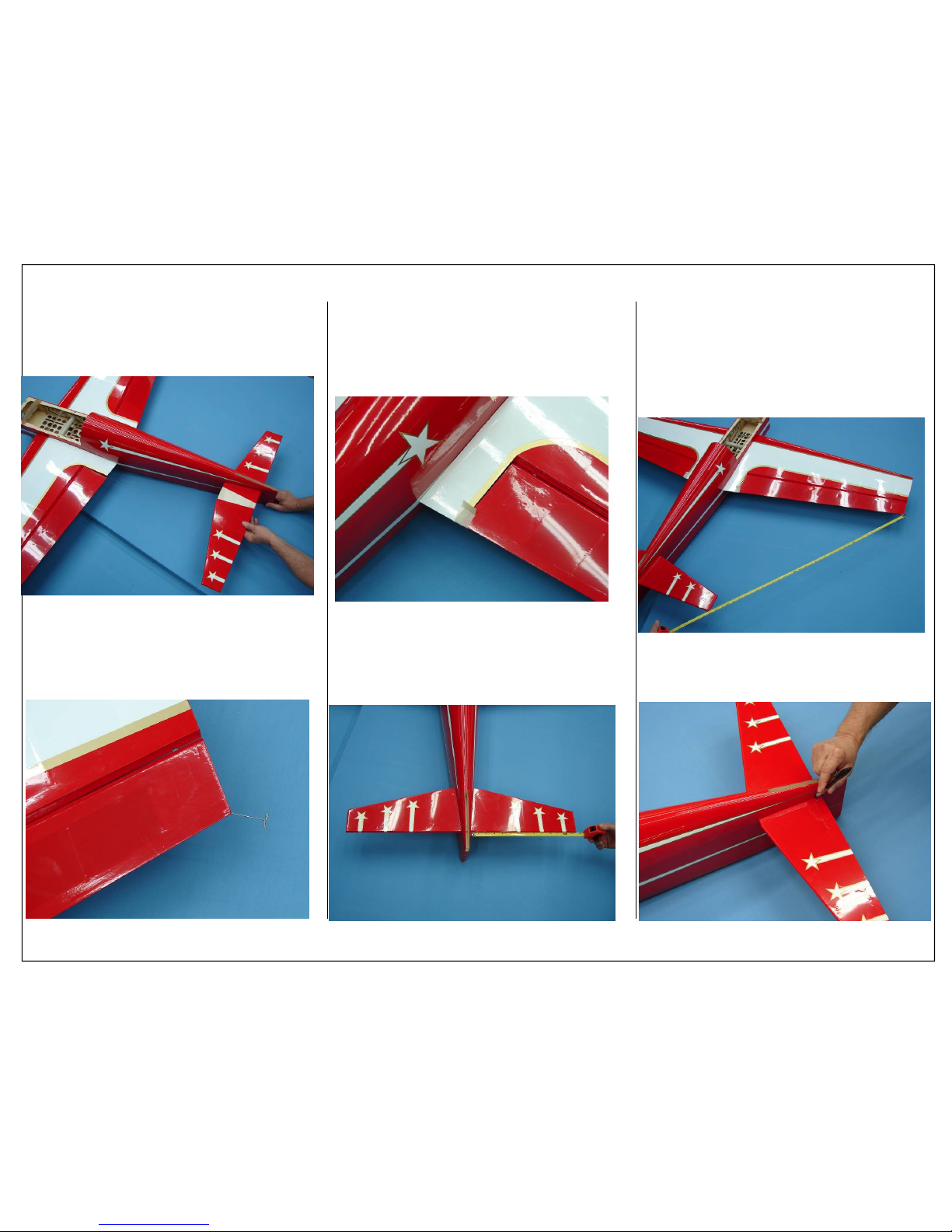

2. Slide horizontal stab through the precut stab cut-
out in the fuse. Install wing and bolt wing in
place.
3. Attach a “T” pin at the corner of each aileron at
the wing tip. Make sure the “T” pins are placed
in the exact corner of each aileron.
4. Tape aileron in place using masking tape. This
will prevent the aileron from moving resulting in
an accurate wing to tail measurement.
5. Measure the trailing edge of the stab from the
fuse side to the stab tip. These distances must be
equal before gluing the stab in place.
6. Using a tape measure, attach the end hook to the
“T” pin in the aileron and measure to the trailing
edge of the stab at the tip as shown. Repeat this
step for the other side of the stab. Ensure that the
measurement is identical on each side. If the stab
is not straight as compared to the wing some
adjustment may be necessary.
7. Mark the location of the stab at the fuse at this
time.

12 Aeroworks 30cc Laser 200 Assembly Manual
8. Apply 30 minute epoxy to top and bottom of
stab between the pencil marks made in step 7.
Take care not to get any epoxy outside of the
lines.
9. Slide stab into fuse aligning the marks made in
step 7 with the fuse sides.
10. Before the 30 minute epoxy cures, re-measure
the distance between fuse side and stab tip to
ensure it is installed correctly. Make any adjust-
ments to its alignment at this time.
11. Before the epoxy fully cures double check the
stab alignment between the wing tip and stab tip
using the same method as shown in step 6. Make
any adjustments to the stab’s position to ensure
it is properly aligned with the wing.
12. Allow 30 minute epoxy to fully cure, checking
stab alignment periodically as the epoxy dries.

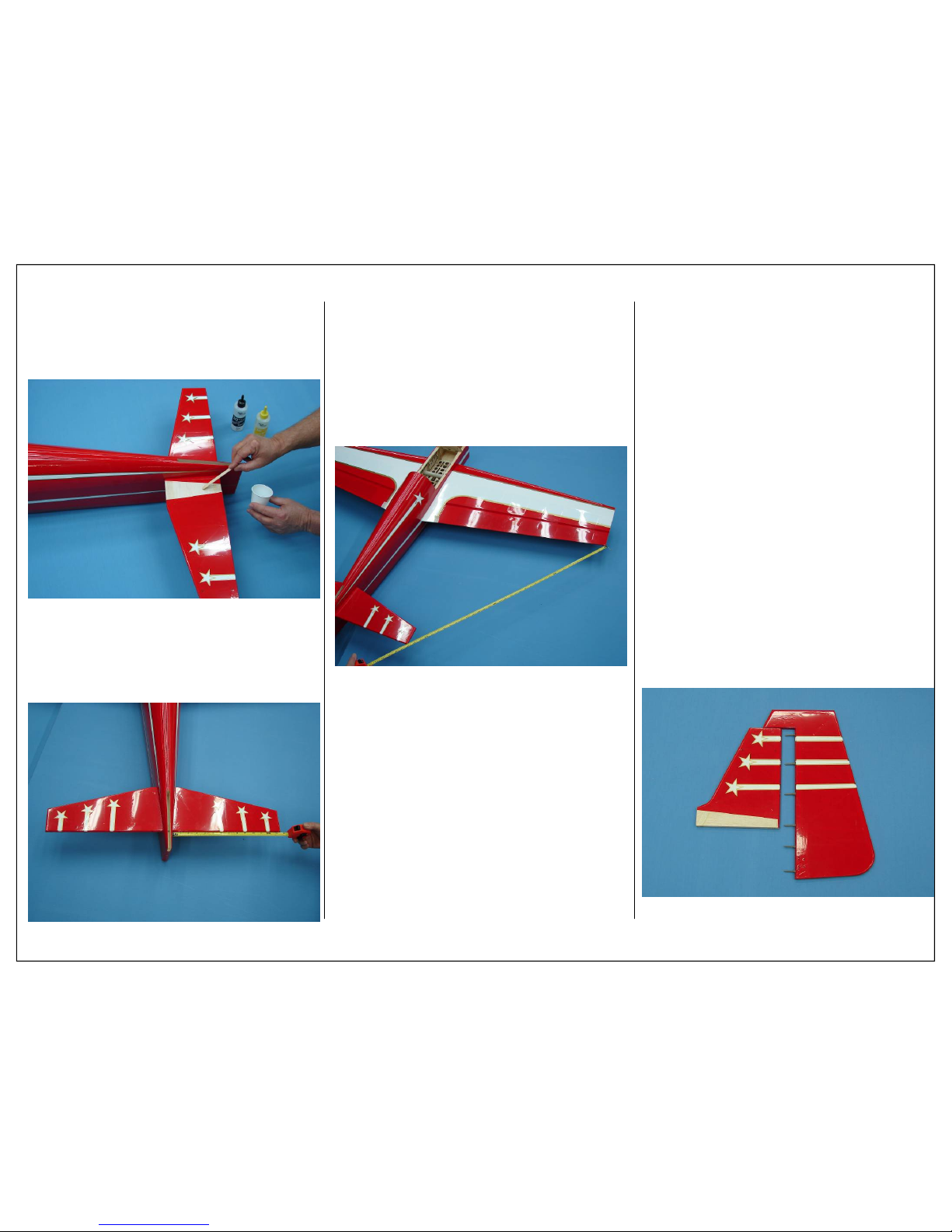

1. Gather the items shown below for the
installation of the Vertical Stabilizer. The
rudder has been pre-hinged but not glued to the
Stab. Rudder installation will be done in a later
step.
Required Parts
◊ 1 - Vertical Stabilizer w/ Rudder
Required Tools and Adhesives
◊ 30 Minute Epoxy
◊ Ball Point Pen
◊ Pencil
◊ Hobby Knife
◊ Ruler
◊ Tape Measure
◊ Paper Towels
◊ Denatured Alcohol
VERTICALSTAB & RUDDER
INSTALLATION

Aeroworks 30cc Laser 200 Assembly Manual 13

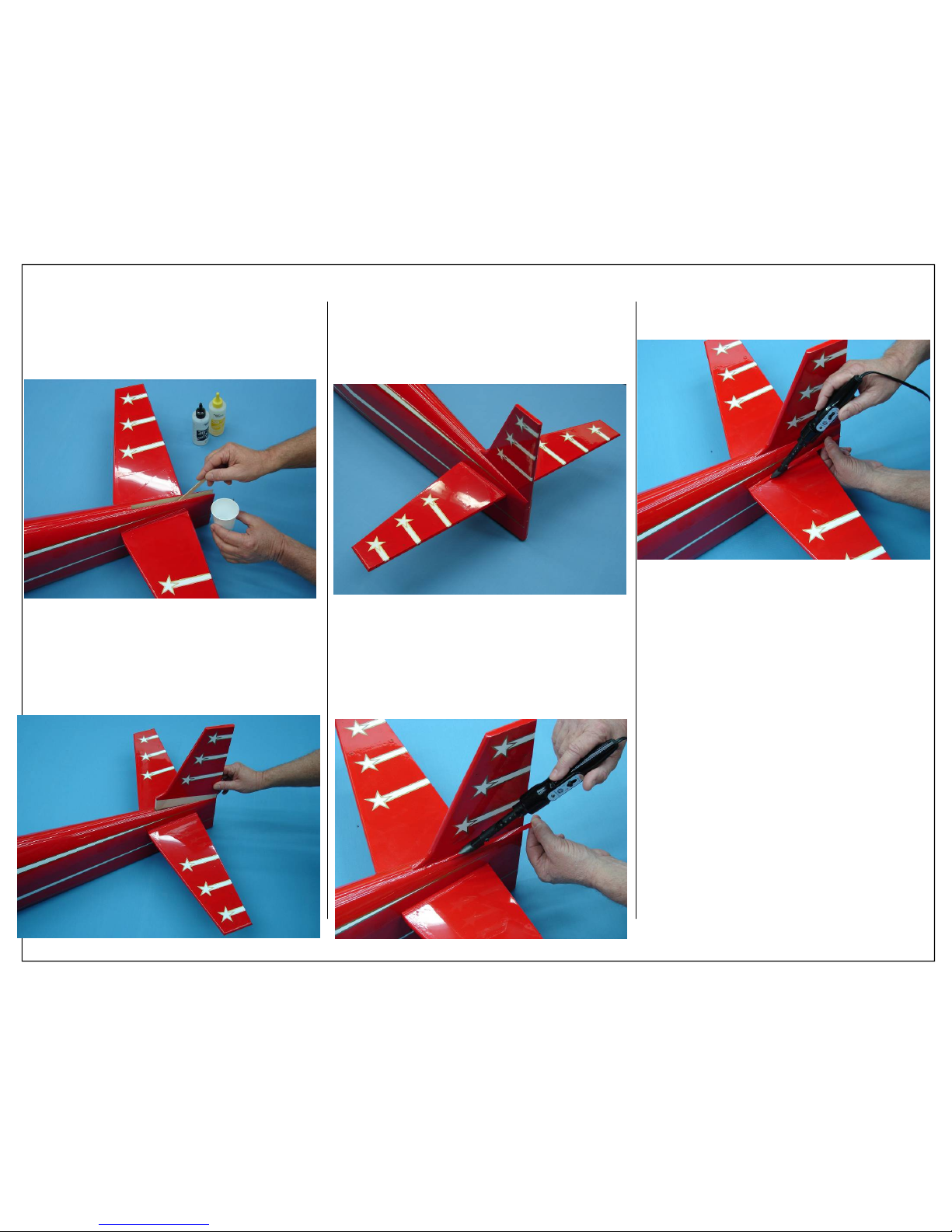

2. Apply 30 minute epoxy into vertical stab post
slot as shown below.
3. Slide vertical stab into fuse as shown. Use paper
towels and denatured alcohol to wipe away any
excess epoxy.
4. Allow epoxy to fully cure before continuing
with assembly. While the epoxy cures ensure
that the vertical stab is sitting flat to the top of
the fuse. Masking tape may be used to hold ver-
tical stab in place until epoxy cures.
5. Cut 8mm strip of covering from the supplied
spare covering sheets. Use a trim iron to seal
covering over the vertical stab and fuse joint as
shown. This will completely hide the vertical
stab/fuse seam.
6. Repeat for remaining colors and both sides of
vertical stab.
7. Repeat steps 5 and 6 for horizontal stab as
shown below.

14 Aeroworks 30cc Laser 200 Assembly Manual

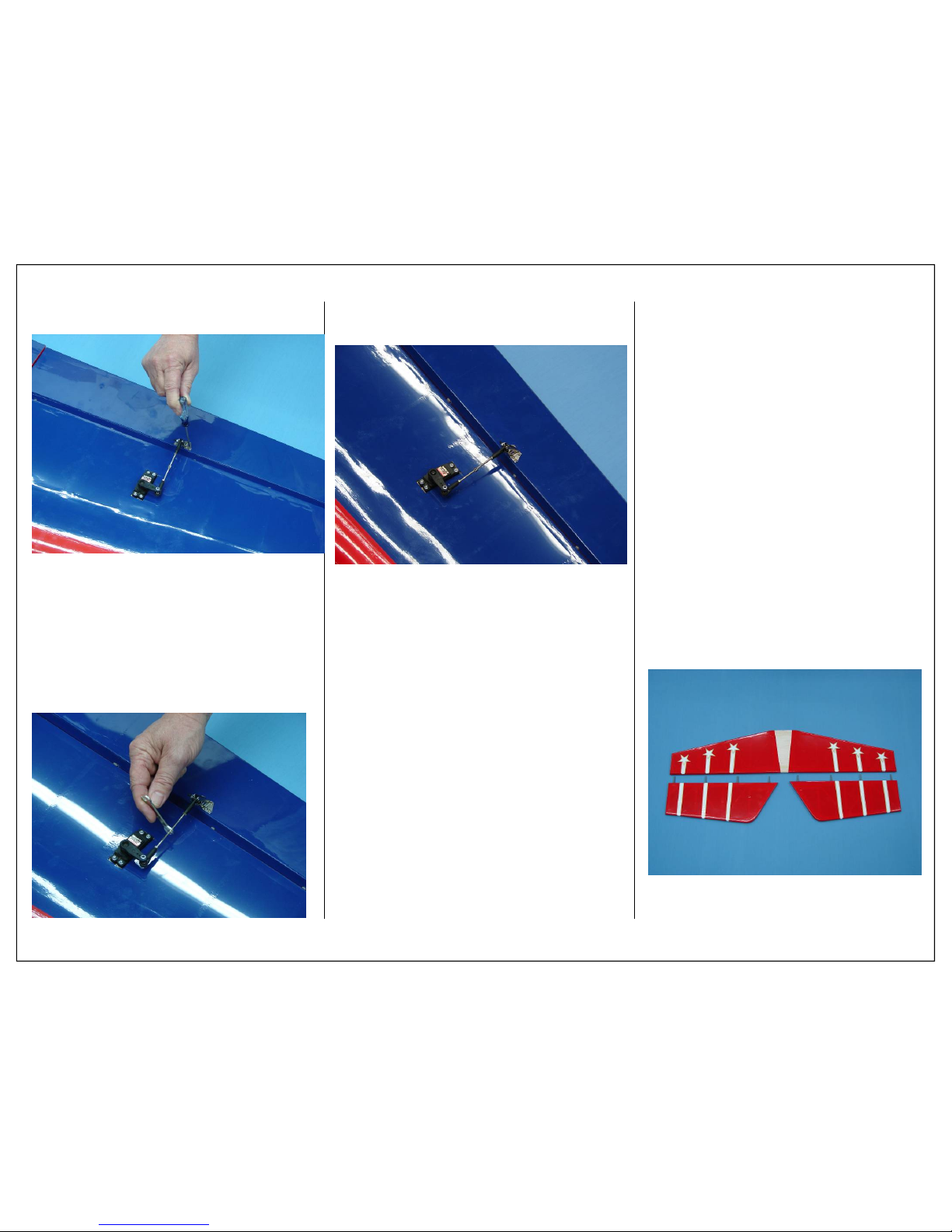

2. Assemble the ball links between the control
horns as shown. Secure with nylon lock nut.
ELEVATOR CONTROL HORN
INSTALLATION
1. Gather the elevator control horn parts as shown
below.
Required Parts
◊ 2 - 4-40 ball link assemblies
◊ 2 - Lock nuts
◊ 2 - Left control horns
◊ 2 - Right control horns
◊ 12 - T2.6x12mm Wood screws
Required Tools and Adhesives
◊ 1 - 5/64” Ball Driver
◊ 1 - 3/32” Ball Driver
◊ 1 - Pushrod Adjustment Wrench
◊ 1 - Phillips Screw Driver
◊ 1 - 1oz Bottle Gap Filling CA Glue
3. Align the control horns over the factory drilled
holes.
4. Use thick CA on each screw prior to installing to
lock screws in place.
Note: CA glues have a fast drying time.
Remember to work quickly.
5. Align the left and right sides of the control horns
to the mounting holes and mount using six wood
screws as shown.
6. Repeat previous steps for remaining elevator
assembly.

Aeroworks 30cc Laser 200 Assembly Manual 15
2. Assemble the ball links between the control
horns as shown. Secure with nylon lock nut.
RUDDER CONTROL HORN
INSTALLATION
1. Gather the rudder control horn parts as shown
below.
Required Parts
◊ 2 - 4-40 ball link assemblies
◊ 2 - Lock nuts
◊ 2 - Left control horns
◊ 2 - Right control horns
◊ 6 - 2.6x16mm Phillip head bolts
◊ 6 - 2mm Nuts
Required Tools and Adhesives
◊ 1 - 5/64” Ball Driver
◊ 1 - 3/32” Ball Driver
◊ 1 - Pushrod Adjustment Wrench
◊ 1 - Phillips Screw Driver
◊ 1 - 1oz Bottle Gap Filling CA Glue
3. Align the control horns over the factory drilled
holes.
4. Pass the 2x16mm Phillips head bolts through
one control horn and then through the pre-drilled
holes in the rudder.
5. Install the remaining control horn and secure in
place with six 2mm nuts
6. Secure nuts with a drop of thick CA. This will
prevent them from coming loose in flight.
2. Prep all hinges for installation by applying Vase-
line petroleum jelly or light oil to the hinge joint.
This ensures no epoxy gets into the hinge during
assembly.
ELEVATOR/RUDDER HINGE
INSTALLATION
1. Gather elevator and rudder hinge installation
items listed below:
Required Parts
◊ 1 - Rudder
◊ 2 - Elevator Halves
◊ 14 - Pin Point Hinges (Not Glued)
Required Tools and Adhesives
◊ 30 Minute Epoxy
◊ Mixing Sticks
◊ Mixing Cups
◊ Rubbing Alcohol
◊ Petroleum Jelly or Light Oil

16 Aeroworks 30cc Laser 200 Assembly Manual
3. Mix epoxy in mixing cup and use a tapered stick
to apply the epoxy inside the pre-drilled holes in
the trailing edge of the stabilizer. Apply epoxy
to one side of each hinge and insert the hinge
completely into the hole. Ensure the hinge axis
is horizontal and parallel to the trailing edge of
the stab before epoxy cures. Wipe away excess
epoxy with alcohol wetted wipes.
4. Mix epoxy in mixing cup and use a tapered stick
to apply the epoxy inside the pre-drilled holes in
the leading edge of the elevators. Apply epoxy
to trailing edge of each hinge.
5. Mix epoxy in mixing cup and use a tapered stick
to apply the epoxy inside the pre-drilled holes in
the trailing edge of the fin. Apply epoxy to one
side of each hinge and insert the hinge
Completely into the hole. Ensure the hinge axis
is vertical and parallel to the trailing edge of the
fin before epoxy cures. Wipe away excess epoxy
with alcohol wetted wipes.
6. Mix epoxy in mixing cup and use a tapered stick
to apply the epoxy inside the pre-drilled holes in
the leading edge of the rudder. Apply epoxy to
trailing edge of each hinge.
7. Carefully slide the rudder onto each hinge and
against the trailing edge of the fin. Wipe away
excess epoxy with alcohol wetted wipes.

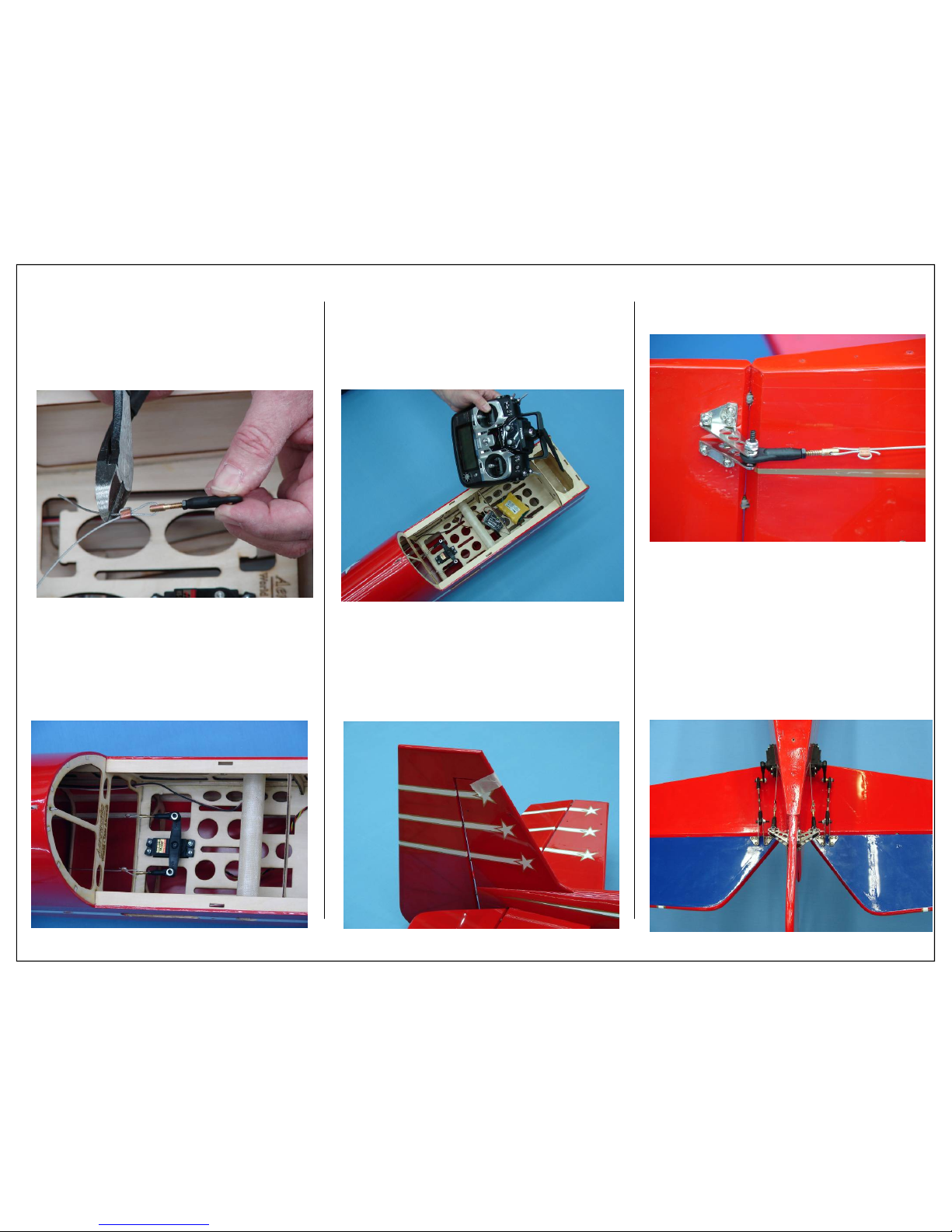

ELEVATOR SERVO
INSTALLATION
1. Gather the items shown below for the elevator
servo installation.
Required Parts
◊ 1 - 3” Pushrod
◊ 1 - 4-40 Ball Link Assembly
◊ 1 - Brass Spacer
◊ 1 - Flat Washer
◊ 1 - Lock Nut
◊ 1 - 4-40 Lock Bolt
Required Parts-Not Supplied
◊ 1 - Elevator Servo
◊ 1 - 1 1/4” Servo arm
◊ 1 - 24” servo extension
◊ 1 - Aeroworks safety clip
◊ 4 - Servo mounting screws (Micro Fastener
Part number STW0209 recommended)
Required Tools and Adhesives
◊ 1 - 5/64” Ball Driver

Aeroworks 30cc Laser 200 Assembly Manual 17
2. Attach 24” servo extension to servo. Use an
Aeroworks Safety Clip to ensure the plugs will
not come apart from vibration or light tension.
3. Attach elevator servo extension to pre-installed
pull string as shown.
4. Pull extension through fuse and into radio com-
partment.
5. Install servo in servo well with the output shaft
towards the rear of fuse as shown below.
6. Using a 1/16” drill bit, drill holes for servo
screws.
7. Install servo with servo mounting screws.
8. Correct installation of ball link to servo arm
shown below.
Note: Flat washer will prevent ball link from
coming loose from brass ball.
9. Assemble pushrod to servo arm assembly as
shown.
10. Attach pushrod to ball link and control horn.
11. A pushrod adjustment wrench has been in-
cluded, this will allow the pushrod length to be
extended or shortened with out removing the
servo arm. Adjust the pushrod length so the con-
trol surface is neutral when the servo arm is 90
degrees to the servo case.
12. Finished elevator servo assembly shown below.
Repeat all previous steps for the remaining ele-
vator linkage assembly.
Servo
Output
Shaft
Lock Nut
Brass
Spacer
4-40 Bolt
Flat Washer
Note: Flat washer prevents ball link from coming off
brass ball

18 Aeroworks 30cc Laser 200 Assembly Manual
RUDDER SERVO
INSTALLATION
1. Gather the items shown below for the rudder
servo installation.
Required Parts
◊ 2 - 1x1000mm Pull-Pull cable
◊ 2 - 4-40 ball link assemblies
◊ 2 - 4-40 Bolts
◊ 2 - Brass spacers
◊ 2 - Flat washer
◊ 2 - Lock nuts
◊ 4 - 3.5x5mm Brass swage tubes
◊ 4 - 4-40 Coupler with nuts for cable
Required Parts-Not Included
◊ 1 - Rudder Servo
◊ 1 - 2 3/4” Servo arm (Double)
◊ 4 - Servo mounting screws (Micro Fastener
Part number STW0209 recommended)
Required Tools and Adhesives
◊ 1 - 5/64” Ball Driver
◊ 1 - 3/32” Ball Driver
◊ 1 - Electric Drill
◊ 1 - 1/16” Drill Bit
◊ Pliers
◊ 1oz Bottle Thin CA Glue
2. Install servo in servo well with the output shaft
towards the front of fuse as shown below.
3. Using a 1/16” drill bit, drill holes for servo
screws.
4. Install servo with servo mounting screws. 7. Pull the rudder cables from the fuse tail to the
rudder servo tray. Take care not to cross the ca-
bles.
5. Feed the rudder cable through the pre installed
cable exit tube in the tail of the fuse toward the
front. Repeat for other side.
6. Loop or tape cable to fuse to prevent cable from
being pulled into fuse

Aeroworks 30cc Laser 200 Assembly Manual 19
9. Thread the brass swag tube onto the pull pull
cable followed by the threaded coupler.
10. Thread cable back through the brass swage tube
as shown.
8. Thread brass coupler half way into ball link.
Note: There are two types of 4-40 couplers supplied,
two are for the throttle and choke pushrods
and four are for the pull
pull system. The couplers
with the solid base are to
be used for the pull pull
assembly.
14. A drop of thin CA may be applied to the swage
tube to help secure the cable.
13. Crimp the brass tube with a crimping tool or
pliers.
12. Use pliers to pull looped cable tight as shown
below.
11. Loop the cable back through the brass swage tube
as shown.

20 Aeroworks 30cc Laser 200 Assembly Manual
17. Using 4-40 bolt, flat washer and lock nut, install
the ball links onto servo arm as shown below.
15. Cut off excess cable with wire cutters.
16. Repeat all previous step for remaining pull pull
cable.
21. Adjust the tension of the pull pull cables until
they are tight. Overly tightening cables can bind
or slow servo movement. Adjust cables to allow
for some slack.
Note: Due to temperature change and normal wear,
it may be necessary to tighten the cables over
time.
22. Finished pull pull installation shown below.
20. Pull cable snug and attach pull pull cable to rear
ball links.
19. Tape the rudder in the neutral position as shown.
This ensures the rudder is straight when the ca-
bles are attached.
18. Plug the rudder servo into the rudder channel of
the receiver and power up. Turn on transmitter to
center rudder servo.
