AIR SOURCE HEAT PUMP WATER HEATER UNIT
Installation & Instruction Manual
A p p l i c a b l e M o d e l :
YASBP-38HL YASBP-56HL YASBP-78HL
YASBP-95HL YASA-135HS YASA-195HS
YASA-270HS YASA-500HS YASA-750HS

AIR SOURCE HEAT PUMP WATER HEATER
Product Introduction 2
LCD Controller Display
To our customers
Fitting instruction
4
9
Debugging and preoperation
11
Maintenance
13
14
3
1
Technical data 3
Contents
1
1
Operation data setting table
15

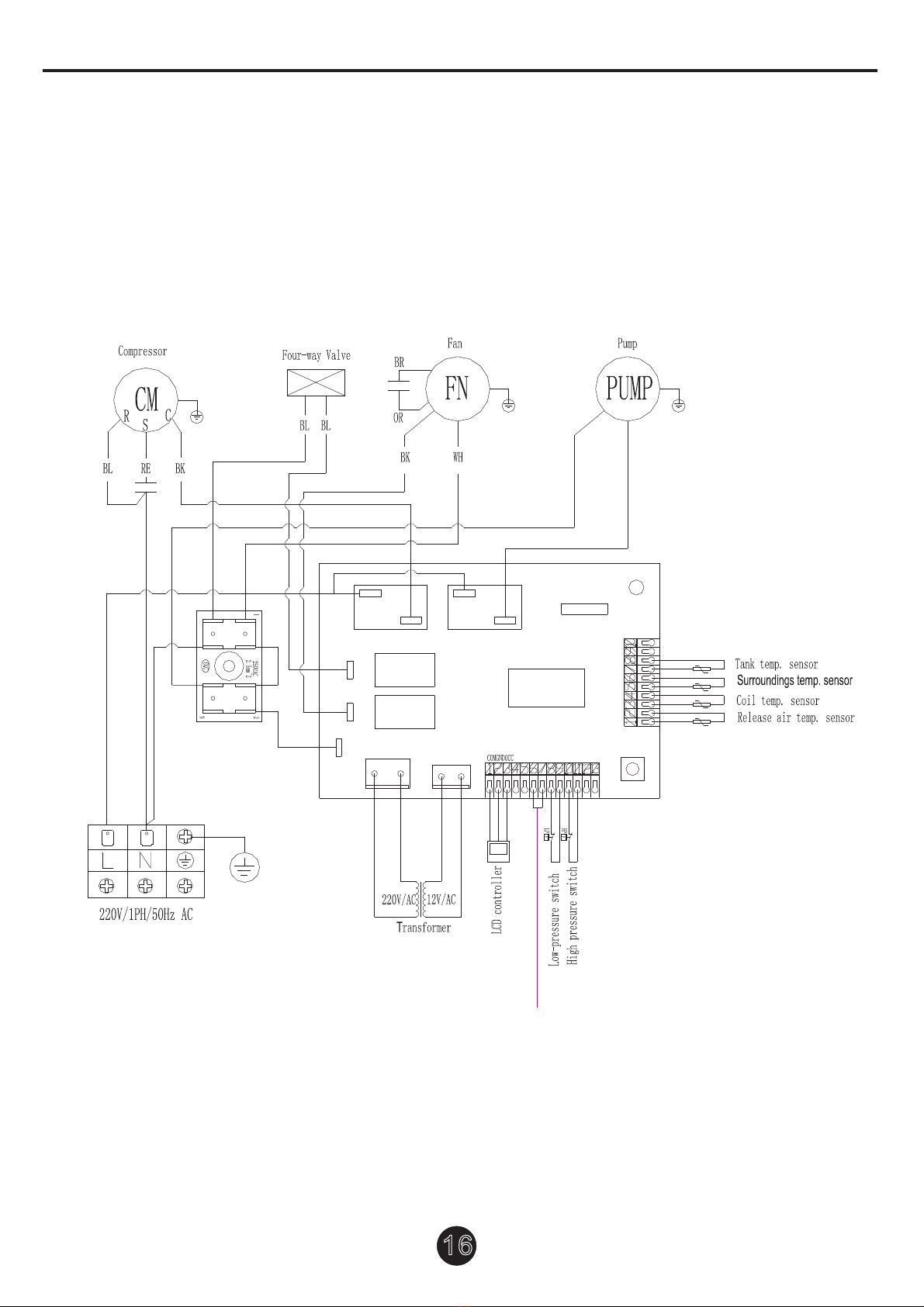

Wiring Diagram
Pipe connection
7
16
Trouble shooting guide

To valued customers
1. Dear customer, please read the instruction carefully before you install this product,otherwise
it may lead to damage to the instrument or may injure operators as well as cause financial loss
.
2. With the gradual advancement of science and technology, the product series and specifications
will change as well, so you are invited to keep up with the latest products.
3. If you need any additional information, please contact our local distributors.
4. Attention:
4.1 Before installing the heat pump, check whether the power supply corresponds with the
specifications for your heat pump. For details, refer to the label on the unit or this manual.
4.2 Install the recommended electrical protection devices, according to the local regulations.
4.3 Grounding the heat pump is required to protect you against electrical shock caused by an
eventual short circuit inside the unit.
4.4 An electrical wiring diagram is provided inside this manual.
4.5 For safety reasons, do not change or repair the heat pump without Permission.
4.6 Do not insert any objects inside the heat pump when running. It may touch the fan and
damage it or lead to accidents(especially with children).
4.7 Do not use the heat pump without the grid or plate work since it may lead to accidents or
abnormal operation of the unit.
4.8 If the unit is soaked by water, contact immediately our factory or our local representative.
The unit can only be reused after a completed check by our technical staff.
4.9 Unqualified technicians are not allowed to adjust the switches, valves or controllers in the
unit.
3
1
AIR SOURCE HEAT PUMP WATER HEATER

Product Introduction:
Safe and Reliable
Heat pump water heater is a equipment which use electricity but doesn't be used for heating
water directly. Water and electricity is separated to ensure use safe, to avoid electric shock,
burning, explosion and intoxication etc, these problem is apt to happen when use electric or gas
water heater. It is really a safe and reliable heating equipment.
High-efficient and Energy-Saving
Heat pump water heater absorbs heat from air, which power consumption be used only for
compressor transfer air or sunshine. So supplying same heat water, it's power consumption is
only about25% compared with traditional heater. This will save much for customter's power bill.
Green Environment Protective
Environmental protective refrigerant is used instead of fuels such as coal, oil and liquid
petroleum gas, so that no pollutant is emitted to produce gas pollution during use.
Easy to Use
Round-the-clock operation is enabled without being influenced by bad weathers such as
overcast, rain or snow, thus overcoming the defect of normal solar energy water heater which is
unable to provide hot water all day long due to weather impact. In addition, a precise water
temperature controlling system is installed to ensure stable water temperature.
Durable for Long Period
The product is equipped with compressor, 4-way valve and heat expansion valve of world famous
and high quality products. The housing is made of steel plate with enough thickness, anti-
corrosion coating, thus ensuring product quality and a service life of up to 10 years.
Easy to Install
Easy installation in places with good ventilation, such as the roof, balcony, garage, store room
and basement.
Widely Application
A full series of products of different capacity are available for use in various places that requires
daily use of water, such as villa, factory, school, guesthouse, hotel, hospital, beauty salon,
laundry shop and so on.
3
2
AIR SOURCE HEAT PUMP WATER HEATER

3
3
1. Performance data of air source heat pump water heater
AIR SOURCE HEAT PUMP WATER HEATER
YA S A -1 3 5 HS YA S A -1 9 5 HS YA S A -2 7 0 HS YA S A -5 0 0 HS YA S A -7 5 0 HS
W 13500 25000 27000 52000 75000
BTU 46000 87500 94500 18200 262500
V/PH/HZ
KW 4.4 8.1 8.6 17 24.6
A7.6 13.6 14.5 29 44
L/h 580 838 1460 2200 3500
°C
°C
mm/inch
1″1″1.5″2″2″
12 2 3 3
dB(A) 53 54 54 55 55
660 1448 1448 2150 2150
660 730 730 764 764
960 1060 1060 1286 1286
700 1630 1630 2270 2270
740 810 810 830 830
1110 1180 1180 1423 1423
168 260 280 500 530
177 290 310 558 588
Wet Bulb Inlet Temp.
6°C 30°C
380V/3Ph/50Hz
Model
Heating Capacity
Power Supply
Thermostat Factory Setting
Input Po wer
Running Current
Hot Water Generated (circulating unit)
Maximum water outlet temp.
55
60
Water Connections
Compressor Quantity
Pump Quantity
Noise
NO
Net Dimension
L
mm
W
H
Packing Size
L
mm
W
H
Weight Net Weight kg
Gross Weight
Measuring
Conditions
Ambient Temperature
Dry Bulb
7°C
Water Inlet/Outlet Temperature (circulating unit)
Outlet Temp.
35°C
YA S B P -2 5 HL YA S B P -3 8HL YA S B P -5 6 HL YA S B P -7 8 HL YA S B P - 95 HL
W 3300 4200 6100 7800 9500
BTU 11260 14330 20813 26000 32000
V/PH/HZ
KW 0.82 1.5 2.03 2.5 3.1
A3.73 6.9110.23 12.5 15.6
L/h 107 160 240 335 408
°C
°C
mm/inch
3/4″3/4″3/4″1″1″
1 1111
1 1111
dB(A) 48 48 48 51 52
770 940 940 1010 1110
300 360 360 370 470
490 550 550 615 680
820 985 985 1140 1230
325 390 390 400 490
520 590 590 670 740
38 51 58 65 75
43 56 63 70 80
220V/1/50HZ
Input Power
Running Current
Hot Water Generated (circulating unit)
Model
Heating Capacity
Power Supply
Thermostat Factory Setting 55°C
Maximum water outlet temp. 60°C
Water Connections
Compressor Quantity
Pump Quantity
Noise
Net Dimension
L
mm
W
H
Packing Size
L
mm
W
H
Weight Net Weight kg
Gross Weight
Technical Data

3
4
2. LCD Controller Display
3
4
AIR SOURCE HEAT PUMP WATER HEATER
ON/OFF
TEMP
ON
OFF
C
C
IN SET
NO.
HUM
M
Mode
Up
ON OFF Timing/
Setting
Down
Heating mode
Temp Setting.
TheCurrent Water Temp
Temp Display.
Locked Display
Time Display
Timing-on
Timing- off
Cooling mode
/
：.
△▽： ，
“△▽”，
“△▽”
： ， “△▽”
：，“△▽”/
ON OFF: To turn on and turn off the unit.
MODE To change modes
To check the setting parameters of system.Usually state press and
hold can lock and unlock the keys. In standby mode parameter query
press and hold can enter the parameter setting.
SET Enter hours and minute setting status and hold can set time.
Set turn on or turn off timing and hold can set ON OFF
timming’s hour and minutes( memory after the power-down)timer can be
2.1Key function

AIR SOURCE HEAT PUMP WATER HEATER
3
5
Status Inquiry
When shutdown remote control displays the current temperature When ture
on the unit Remote control displays the current temperature and set
temperature On the press or can check from
0-11 parameter. Under status quiry If for 5 seconds without key operation, the
automatic exit status query Interface, return to the main interface
Query and set parameters
Under standby status, press and hold and for 3 seconds it will
ring then will entering the required parameter setting interface and hold
or can set the parameter hold or for 3 seconds in the same
time it will ring then confirm the parameter.On the parameter settingsor query
interface if for 5 seconds without key operation,
On press SET”will enter the timing setting interface. In
and then press SET” the HOUR will twinkling
press ot can set the hour.After set the part of hour press
SET” the MINUTE will twinkling and press or can set the
minute.after set the minute press SET”again then can confirm the time and
return to the main interface
On the main interface Press enter timing setting interface: and press
ageain,that the number of hour(ture on the unit) will twinkling,and press
or that can set the hour to turn on the unit.then press it again, the
number of minute will twinkling.then press or then
, ,
,
；, “▲” “ ▼”,
，
；
,“▲”“▼”,
,“▲”
“▼” ; “▲” “▼”
,
，
，“；
，“， ，
“▲” “▼”，，
“， ， “▲”“▼”，
,“ , ,
；
；
，
“▲”
“▼”，
“▲” “▼”，
the main interface
the automatic exit status
query Interface, return to the main interface
the main interface
the timing setting interface
if for 5 seconds without key operation, the
automatic exit timing setting Interface, return to the main interface
；
Time Setting
Set turn on/off timing
set the minute
to turn on the unit. Press it again to set the timing of ture off the unit.After set the
timing,press it again to confirm the time, and return the main interface. On the
timing setting interface,if for 5 seconds without key operation, the automatic
exit timing setting Interface, return to the main interface；
2 2How to set operation paramrer.

3
6
AIR SOURCE HEAT PUMP WATER HEATER
Lock and unlock the keys
On the main interface，， “▲” “▼”，
，；，“▲”“▼”
，，
press and hold or for 3 second after
ring press it and will lock During locking press and hold or for
3 seconds after ring it will lift lock
Under running status press ON OFF”and“MODE”can defrost，“/forced.
2 3The principle of the electronic control system.
Master electrical cable (not provided, the user-owned)
In accordance with the provisions of the country, air source heat pump
hot water supply leakage breaker should be 50A
Fault circuit protection (user provided)
Home use units:
Cable cross-sectional area 3X2.5mm2 220 ~ 230V (50Hz)
Note: The acceptable error of 10% of short-term voltage; cable to be fixed.

3
7
Heat exchanger
Water outlet
Heat exchanger
Water inlet
Drain
Water outlet
Water inlet
Drain
Re-water inlet valve
water
valve
Cycle water return valve
Water switch
Water piper system diagram for Water-cycle heater
AIR SOURCE HEAT PUMP WATER HEATER
3 Pipe connection

3
8
Constant temperature water pump
Low water level
High water level
Water tank
Water
circulating
pump
Stainless steel waterpipehose
Drain
LegendName
Squence
Water meter
Check valve
Water pump
Y-shape filter
Stop valve
Solenoid valve
Solenoid valves forwater replenishing
connection diagram for regular supply water system
3.1
3.3 Project example
Fitting notice
Water system installation
●Drain pipe, overflow pipe of water tank should fit near by drainage channel to facilitate
drain, drain pipe should install drain valve.
●Service valve should be installed before installing electropneumatic valve on the system
pipe to facilitate troubleshooting later.
●User water pressure should lower than 0.6Mpa.
●User should choose metal pipe( such as stainless steel, plastic-lined, stainless steel lined
steel pipe or thin wall copper pipe), in case take plastic pipe( such as PP-R pipe, ABS
pipe etc), user should consider pipe flexibility between unit and water tank.
●Drain valve and disconnecting valve of system maybe need to stillst and in winter(as per
local winter temperature) to avoid frost shake.
3.2
●System should match pipe according manual, and according to related national standard
to construction.
●Pipe installation should horizontal or upright, pipe decorate reasonably, reduce bend
as much as possible, reduce resistance loss of water system.
●there couldn't find leakage phenomenon in pipe and the joint.
●leak proofness water pressure test should be done after finished the fitting of supplying
water pipe, cycle pipe between unit and water tank, meantime blow down to sure system
clean.
●After test permition no leakage, take steps to stillst and hot water pipe.
There are varied forms for engineering system of heat pump water heater systems, Here
introduce one split types water heater systems for reference only.
AIR SOURCE HEAT PUMP WATER HEATER

Water pipe
unit
Check Valves
Water inlet
Sewage discharge
Running water
Hot water outlet
Pressure
water
tank
insulation
4. Fitting instruction
4.1 Unit installing
4.1.1 Fitting place choice
4.1.1.1 Mainframe
●Should fitted in bigger space and well-ventilated place.
●Fitting place ensure inlet opening and air outlet well-ventilated.(please see belowed diagram).
●Nearby filling place should set gutter to facilitate drain.
●Installing base or bracket should firm enough to sure unit running steady.
●Ensure installed unit is straight, don't lean.
●Please don't install mainframe in place gathering pollution, aggressive gas, dust, falling leaves.
●Installing places don't near to flammable and explosive and bright fire.
●To ensure the distance between mainframe and barrier as per belowed diagram.
AIR SOURCE HEAT PUMP WATER HEATER
3
9

3
10
ABOVE
ABOVE
ABOVE
THE TOP IS
FAR FROM
ABOVE
AIR INLET
AIR INLET
AIR INLET
4.1.1.2 Water tank
4.1.2 Unit installing
●Water tank should be placed where ambient temperature is more than 0.C .
●Water tank should be installed in outside or roof of room( which as per measurement of tank and
bearing force of building).
●Please don't install water tank in place with polluted, aggressive gas.
●The installation base for Unit could be concrete, or steel bracket, put shockproof rubber pading,
surface of base should be even and neat.
●Unit's design as per it's running quality.(Please see technical data parameter sheet)
●Use bolt to fix unit's bottom.
●There should have drainage channel on ground.
●The place for installing water tank should set concrete bottom.
AIR SOURCE HEAT PUMP WATER HEATER

3
11
5. Debugging and preoperation
5.1 Preparation before debugging.
a) Heat pump water heater unit inspection
●Check overview and inside pipe system of unit, whether it is damaged during transportation.
●Check whether there is air in pipe of unit, if there is , should use manual vent valve on the water
pipe inside the unit and vent valve of water pump to drain out of the air.
●Check if fan blade is interfered by fixed board and protecting wire net of fan.
b) Check Power Distribution System
●Check whether the supplied power is matched with required supplying power in the manual or
Nameplate of unit.
●Check whether all of the supplying power and controlling lines are connect properly, whether
wiring correctly, if grouding is reliable, whether all of wire connecting terminal are firm.
c) Check pipe system
●Check system pipes, re-water system, returm pipe, presure gauge, thermograph, valve, switch
of water level, wether they are correct installation.
●Check whether valves in system should open have opened and should shut off have shut off.
●Check whether heat insulation measurement are good.
AIR SOURCE HEAT PUMP WATER HEATER
5.2 Preoperation
5.3 Normal running
Preoperation must be handled by professional technical.
●The whole preoperation could be done after checked whole system and confirm they meet
requirements.
●Turn on the power, open the unit, mainframe delay 3 minutes to start. To three phase power
unit, check whether fan, water pump turn correctly at first, if not correct, should shut off
power at once, adjust the phase sequence. Measure compressor running current, to check
whether there is any abnormal sound.
●Check whether unit meet requirement after running for some days(usually for 3days),
once ok, it could be put into use normally.
●Heating operation process: power on---unit water pump running---water flow switch
detection---fan motor running---compressor running (When the low water level switch
disconnect , re-water solenoid valves open to rewater).
●Operation control

12
ON
OFF
water temp.
Set water temp.
(Set water temp. -5)
●Water level control: When low water level switch disconnected, open re-water solenoid
valves to rewater, meantime stop supplying water to water pump. Open suppling water pump
after high water level connected, shut off rewater solenoid valves after high water level
connected for 2 minutes(at least 2 minutes for rewater switch open and shut off ).
●When supplying water pump opens, don't rewater to water tank once it's temp. less than
(setted temp. -5 ) during disconneted high water level, rewater once water tank temp. more
than (setted temp. -2 ), shut off rewater solenoid valves after high water level conneted for
2 minutes. When supplying water pump stops, do need rewater timely whenever ( at least 2
minutes for rewater switch open and shut off).
●At the first time to turn on unit, Circulating pump/ compressor/ fan could run after low water
level conncted.
●When unit operates, Circulating pump opens. When unit shut off, Circulating pump will delay
30 minutes to stop running.
●When supplying water pump opens, re-water solenoid valves opens at same time, after 10
minutes to detect rewater temp., when rewater temp. is more than ( water tank temp. -5 ),
rewater solenoid valves stops. When rewater temp. is less than (water tank temp. -10 ),
open rewater solenoid valves again, make supplying water pipe keep hot water for long time.
When suppling water pump shut off, meantime rewater solenoid valves shut off.
●Four-way valves is on the disconnect status when normal running, only connect to work
during defrosting.
℃
℃
℃
℃
AIR SOURCE HEAT PUMP WATER HEATER

3
13
Maintenance
Heat pump water heater is a high automat ion equipment, regular check unit situation during uses, long term and
effective maintenance for unit could improve running reliability and using life obviously.
1. The water filter installed outside of unit should clean regularly, to guarantee wat er clean in side of system, to
avoid dirty water filter damage unit.
2. Users use and maintain the unit should attention that: All Safety protection devices in unit have setted in
factory, don’t adjust.
3. Regular check if unit power and electrical system’s connect wire strong, if electrical components have
abnormal action, if have should timely maintainance and replacement.
4. Regular check whether water system’s rewater, water tank’s safty valve, water level controller and air-release
devices work normal,
5. Check if water pump, water valve work normal, if water pipe and pipe connection leak or not.
6. Ambient of unit should clean and dry, good ventilation. Regular clean( 1-2 months) heat exchanger to keep
good heat exchange effects.
7. Regular check work situation of all parts of unit, if pipe connetion and air valve inside the unit have oil stain, to
guarantee unit refrigerant have no leakage.
8. Please don’t pile up aroung unit, to avoid jam inlet and outlet of wind.
9. In case the unit have no use for long time, should exhaust thewaterofunitwaterpipe,anddisconnectpower,
Wear a shield. When operate again, should check the whole system before turn on the unit.
10. When unit occur trouble, user can’t solve problem, pleaseadviseourlocalspecialmaintenancedepartment
to maintenance timely.
11. Clean unit condensor, we suggest to using 50℃-60℃,theconcentrationof15%ofthehotliquidacidcleaning
to clean it. Open cycling water pump clean for 3 hours, in the end rinse wit h tap water for 3 times. ( Suggest
preserve 3-ways connector when installing pipe, use filament to jam a connector), to facilitate connect pipe
when rinse. Prohibited to rinse condensor by corrosive washing liquid.
12. water tank should get rid of scale deposit after used for period ( usually for 2 months, which according to local
water quality).
13. Avoid the unit can’t start at the low flow or failure,Please installation a flow switch in the unit and check it
regularly.
AIR SOURCE HEAT PUMP WATER HEATER

6.Operation data setting table
Digit Meaning Range Default Adj u s t(ye s /no)
0Tank set tem perature hys teresis 0-30℃5℃yes
1Water tank temperature s etting 8-55℃55℃ye s
2Defrost Cycle 30-90Min 40Min yes
3
The tim e point to enter defrosting in
heating 0-30℃-5℃ye s
4Exit defrost temperature 2-30℃15℃ye s
5Exit condition of defrost time 1-12Min 8Min yes
6Water tank temperature s etting
range (55/65) 0-1 0 yes
7Reserved yes
8Compensation(yes/no) 0-1 1 yes
9Cyclic heating(yes/no) 0-1 1 no
AHeater / pump selection 0-1 1 yes
BTarget superheat / 10 -F--F 0 no
CStart temperature 10-55 47 no
DExhaust temperature -9--99℃ajdusted by technicians
EPipe temperature -9--99℃ajdusted by technicians
FReserved -9--99℃ajdusted by technicians
10 Am bie n t tem p e ra tu re -9--99℃ajdusted by technicians
11 The actual num ber of steps / 10 0-40 no
Running time 0-9999h ajdusted by technicians
Fault indication / alarm code
Protection / Failure Remote Controller
Water tank temp. sensor fault F0
Coil temp.sensor fault F1
Flow switch malfunction F2
Ambient temperature sensor fault F3
Protection of the exhaust temperature is too high F4
High voltage protection of the system F5
System voltage protection F6
Exhaust temperature sensor fault F7
The s ec ond t ime freez ing prot ec t ion in wint er F8
Wired remote communication failure F9
Defrost Defrost display
AIR SOURCE HEAT PUMP WATER HEATER
14

7.Trouble shooting guide
Malfunction Reason Resolution
Unit not
running
1.Power Failure
2.Unit power cable loose
3.Unit control power fuse is fusing
1. Disconnect the power switch, check the
power supply, power supply for the three-
phase, check the correct phase sequence
2.To connect the loose power cord
3.Identify the cause and replace the same
fus e
Heating
Capacity is low
1.Water filter is clogging
2.Insufficient refrigerant
3.water system insulation is not
well
4.Dry filter clogging
5. Bad air heat exchanger cooling
1.clean the filters
2.leak detection and fill the refrigerant
3.Strengthen the water system insulation
4.Replace the filter drier
5.Clean the air heat exchanger
Compressor
not running
1. Power Failure
2Compressor contactor damage
3.Connection loose
4.The compressor thermal
protection
5. The water outlet temperature is
too high
6.Compressor capacitor failure
1. Identify the cause and resolve faults
2. Replace the contactor
3To identify and repair the loose points
4.start the unit after identify the reasons
and solved
5.To re-set the water temperature
6. Replace the compressor capacitor
Water pum p
not running
1. Power Failure
2.Connection loose
3.Pump motor burned
1.Identify the cause and resolve faults
2.To identify and repair the loose points
3. Replace the water pump
Compressor
ruinning
noisily
1Liquid refrigerant entering the
compressor
2.Compressor internal parts is
damage
1.Check the expansion valve
2.Replace the compressor
Fan not
running
1.The Fan screws is loose
2. Fan motor burned
1.Tighten the screws
2.Replace the fan
Exhaust
Pressure is too
high
1.Refrigerant excessive
2.There is non-condensable gases
is the Fluoro system
1.Emit excess refrigerant
2. Discharge non-condensable gases
Compressor is
running,but the
unit is not
heating
1. All the refrigerant is leaks
2. Compressor failure
3.Four-way valve is leakage
1.leak detection and fill the refrigerant
2.Replace the compressor
3.Replace the four-way valve
Note: after-sales service and warranty must be appropriately qualified
professional and technical staff under the technical services provided
by the Division I manual operation, not to their own operations to avoid
unnecessary losses and damage.
AIR SOURCE HEAT PUMP WATER HEATER
15
15

3
16
(YASBP-25HL)
Wiring Diagram
AIR SOURCE HEAT PUMP WATER HEATER
AC-L 4
3
4
3
MCU
AC-N
Flow switch should
installation at this

3
17
AIR SOURCE HEAT PUMP WATER HEATER
(YASBP-38HL YASBP-56HL)
AC-N
MCU
3
4
3
4
AC-L

Thanks for Your Choice
