AHB marvel 8 mark III Series User manual

Sales and Service
Centers and
Warehouses:
Manufacturing
Facilities:
Oshkosh, WI
Direct Sales
Managers and
Technical Specialists
in Major Cities
Series 8 Mark III
Vertical Metal Cutting Band Saw
Safety
Installation
Operation
Maintenance
Parts Catalog
Part No. 8SD10871N, 04/08
For machines beginning with S/N 840258
Corporate Office and Service Center:
3501 Marvel Drive
Oshkosh, WI 54902
Phone [phone]
Fax [phone]
Toll Free 1-800-4-SAWING (1-800-472-9464)
www.sawing.com
Copyright © 2008 Marvel Manufacturing Company, INC.
Record your machine’s serial number here:
________________________________________

MARVEL 8 MARK III
ii © MARVEL MFG. CO., INC. MANUAL 8SDN10871N (04/08)
IMPORTANT MESSAGE
While Marvel Manufacturing Co. Inc.
machinery and equipment is engineered for
safety and efficiency, a high degree of
responsibility must be placed upon the
machine operator to follow safe practices,
based primarily on common sense, upon
which true safety depends. Any machine with
a potential safety hazard must be operated
according to the instructions in the
instruction manual, within the equipment’s
capacity, and in a careful and deliberate
manner. All guards must be in place, and
safety glasses and other applicable safety
clothing must always be used. The machine
must be inspected and maintained regularly.
Any questions regarding the safety,
condition, or operation of this equipment
must be immediately referred to supervisory
or engineering personnel.
The warning sign reproduced below is
attached to the machine in plain view of the
operator to constantly remind the operator
that only s/he can make this machine safe by
following safe operating procedures. This
sign must not be removed or disfigured. The
sign must be replaced if it becomes
unreadable. Replacement signs can be
obtained from Marvel Manufacturing Co.
Inc.

TABLE OF CONTENTS MARVEL 8 MARK III
© MARVEL MFG. CO., INC. MANUAL 8SDN10871N (04/08) iii
SAFETY..................................................................................................................................................S-1
WHO MAY USE THIS MACHINE?................................................................................................ S-2
FOLLOW THE INSTRUCTIONS ....................................................................................................S-2
RECOGNIZE SAFETY INFORMATION........................................................................................S-2
SAFETY SIGNAL WORDS ............................................................................................................. S-3
WEAR PROTECTIVE EQUIPMENT ..............................................................................................S-3
STAY CLEAR OF MOVING PARTS .............................................................................................. S-3
HANDLE CHEMICALS SAFELY...................................................................................................S-4
HANDLE BLADES SAFELY .......................................................................................................... S-4
SAFE MATERIAL HANDLING ...................................................................................................... S-5
KEEP THE MACHINE SAFE ..........................................................................................................S-5
KEEP THE WORK AREA SAFE.....................................................................................................S-5
HAZARDOUS MATERIALS...........................................................................................................S-6
HIGH PRESSURE FLUIDS..............................................................................................................S-6
HORIZONTAL MACHINES CAN CRUSH ....................................................................................S-6
OPERATE THE MACHINE SAFELY.............................................................................................S-7
PUNCHING AND SHEARING EQUIPMENT................................................................................ S-8
REMOVING SAW CHIPS................................................................................................................S-8
SERVICE THE MACHINE SAFELY ..............................................................................................S-9
ELECTRICAL HAZARDS .............................................................................................................S-10
ARC FLASH HAZARD .................................................................................................................. S-10
INSTALLATION.................................................................................................................................. A-1
HANDLING AND PLACEMENT................................................................................................... A-1
FOUNDATION ................................................................................................................................ A-1
LIGHTING ....................................................................................................................................... A-1
STOCK MOVEMENT ..................................................................................................................... A-1
MAINTENANCE ............................................................................................................................. A-1
CLEANING ...................................................................................................................................... A-2

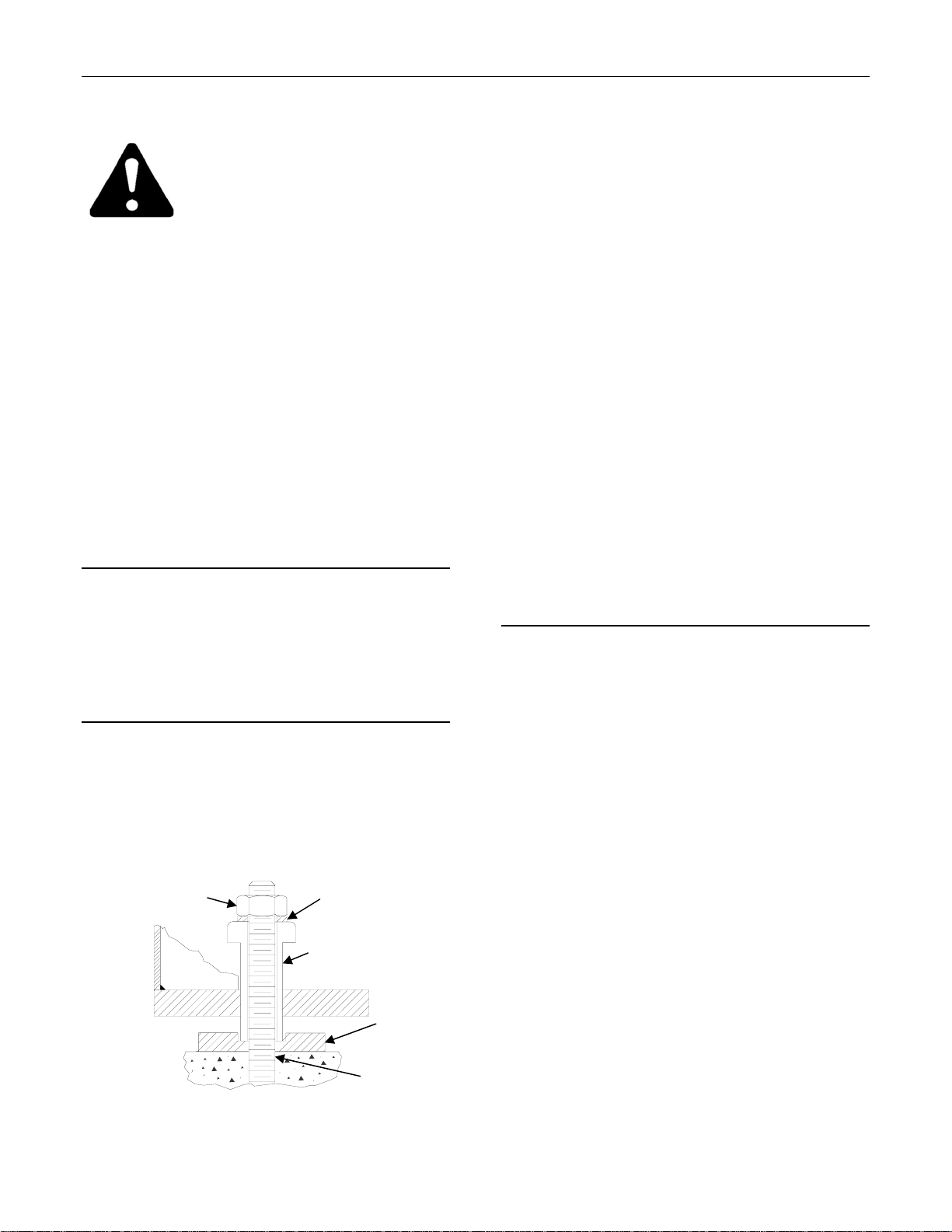

LEVELING AND ANCHORING .................................................................................................... A-2
ASSEMBLY ..................................................................................................................................... A-2

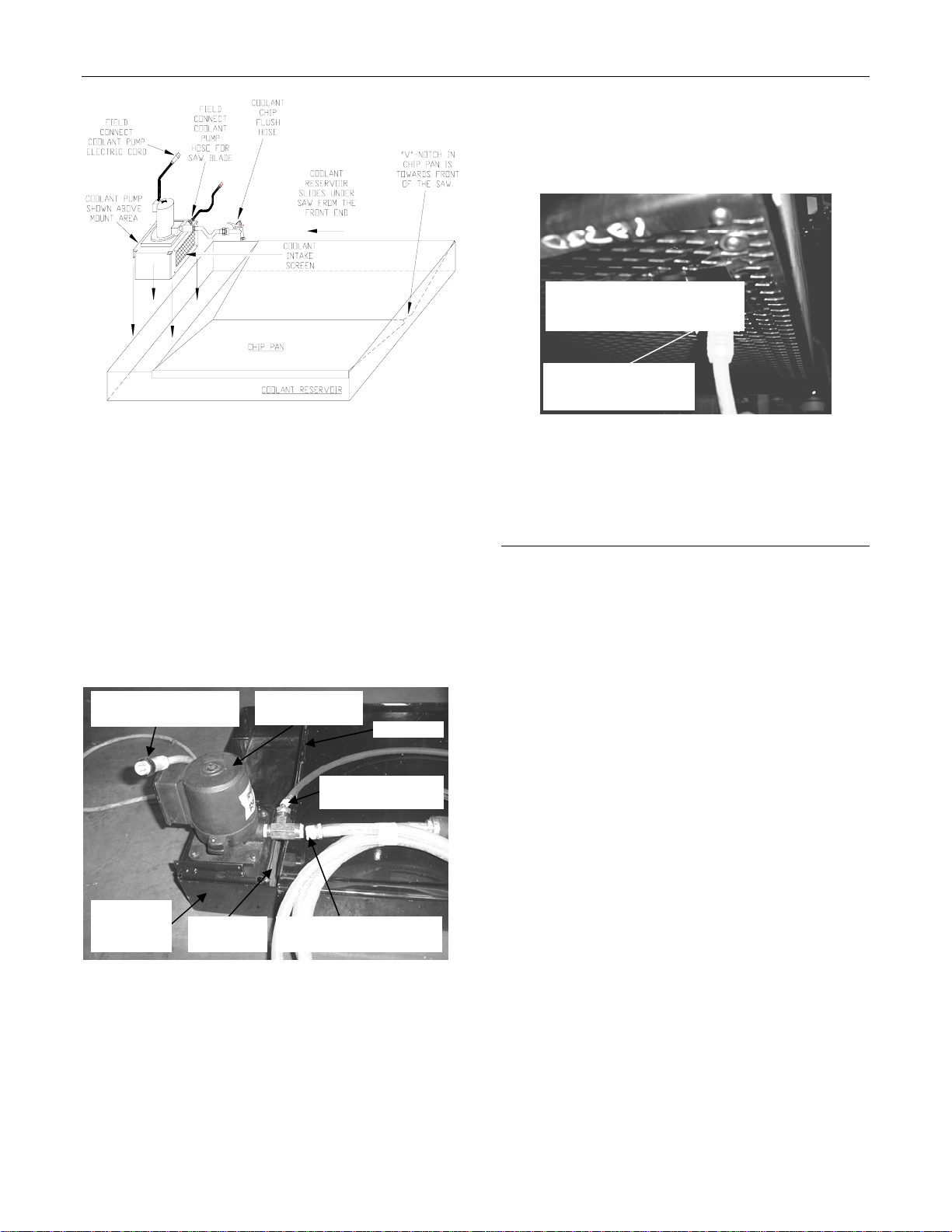

INSTALLING AND WIRING THE COOLANT PUMP ................................................................ A-2
OPTIONAL EQUIPMENT .............................................................................................................. A-3
CONNECTING POWER.................................................................................................................. A-4
LUBRICATION ............................................................................................................................... A-5
COOLANT SYSTEM....................................................................................................................... A-5
COOLANT PUMP ROTATION CHECK........................................................................................ A-5
FINAL INSPECTION ...................................................................................................................... A-5
SPECIFICATIONS................................................................................................................................B-1
COMPONENTS.................................................................................................................................... C-1
SERIAL NUMBER ...........................................................................................................................C-2

MARVEL 8 MARK III TABLE OF CONTENTS
iv © MARVEL MFG. CO., INC. MANUAL 8SDN10871N (04/08)
MACHINE DESCRIPTION................................................................................................................ D-1
OPERATOR’S CONTROL PANEL ................................................................................................ D-1
BLADE SPEED CONTROL KNOB................................................................................................ D-1
POWER PUSHBUTTON ................................................................................................................. D-1
STOP PUSHBUTTON ..................................................................................................................... D-1
START BLADE PUSHBUTTON .................................................................................................... D-2
BLADE MODE SELECTOR SWITCH........................................................................................... D-2
TILT SELECTOR SWITCH ............................................................................................................ D-2
COLUMN FORWARD PUSHBUTTON......................................................................................... D-2
CYCLE INTERRUPT/COLUMN RE-TRACT PUSHBUTTON .................................................... D-2
COLUMN AUTO RETRACT SELECTOR SWITCH .................................................................... D-3
COOLANT SELECTOR SWITCH.................................................................................................. D-3
COOLANT SYSTEM SELECTOR SWITCH ................................................................................. D-3
MESSAGE LIGHT........................................................................................................................... D-3
FEED FORCE DISPLAY GAUGE.................................................................................................. D-3
FEED FORCE ADJUSTMENT KNOB ........................................................................................... D-4
UPPER GUIDE ARM AND BLADE GUARD ............................................................................... D-4
WORK LIGHT ................................................................................................................................. D-4
COOLANT VALVE......................................................................................................................... D-4
MAIN ELECTRICAL DISCONNECT SWITCH............................................................................ D-5
COLUMN TILT LOCK HANDLE .................................................................................................. D-5
VISES ............................................................................................................................................... D-5
BLADE TRAVEL LIMITS AND NOTCHING TRAVEL LIMIT.................................................. D-6
FLUSHING HOSE ........................................................................................................................... D-7
CHIP PAN ........................................................................................................................................ D-7
COOLANT PAN .............................................................................................................................. D-7
DOOR SAFETY INTERLOCKS ..................................................................................................... D-7
BLADE BREAKAGE SENSOR INTER-LOCK ............................................................................. D-7
LOCKOUT VALVE......................................................................................................................... D-8
FILTER/REGULATOR.................................................................................................................... D-8
LUBRICATOR................................................................................................................................. D-8
OIL RESERVOIR............................................................................................................................. D-8
OPTIONAL EQUIPMENT .............................................................................................................. D-9
SECOND MACHINE VISE ............................................................................................................. D-9
HIGH JAW VISE - COMPLETE..................................................................................................... D-9
HIGH VISE JAWS - JAWS ONLY ................................................................................................. D-9
60º HIGH JAW VISE - COMPLETE............................................................................................... D-9
60º HIGH VISE JAWS – JAWS ONLY .......................................................................................... D-9
LENGTH GAUGE – SAW TABLE................................................................................................. D-9
AIR OPERATED VISE RATCHET ................................................................................................ D-9
HIGH SAW COLUMN .................................................................................................................... D-9
DEAD ROLLER TABLE ................................................................................................................. D-9
EXTENSION ROLLER TABLE...................................................................................................... D-9
ADDITIONAL ROLLERS............................................................................................................... D-9
ECCENTRIC LIFT ROLLER .......................................................................................................... D-9
LENGTH GAUGE............................................................................................................................ D-9
COOLANT PAN .............................................................................................................................. D-9
MIST LUBRICATION SYSTEM .................................................................................................. D-10
DIGITAL TILT READOUT........................................................................................................... D-10

TABLE OF CONTENTS MARVEL 8 MARK III
© MARVEL MFG. CO., INC. MANUAL 8SDN10871N (04/08) v
CUTTING EDGE...................................................................................................................................E-1
FEED PRESSURE.............................................................................................................................E-1
CUTTING RATE...............................................................................................................................E-1
BLADE SPEED.................................................................................................................................E-1
USER RECORD ................................................................................................................................E-2
OPERATION .........................................................................................................................................F-1
PRE-OPERATION CHECKLIST .....................................................................................................F-1
MACHINE SET-UP .......................................................................................................................... F-2
OPERATION.....................................................................................................................................F-2
SETTING SAW BLADE TO A 3º FORWARD CANT ...................................................................F-4
MAINTENANCE.................................................................................................................................. G-1
MARVEL SERVICE TECHNICIANS ...................................................................................... G-1
MAINTENANCE SCHEDULE ................................................................................................. G-1
DAILY ........................................................................................................................................ G-1
QUARTERLY (EVERY 3 MONTHS) ...................................................................................... G-1
CLEANING ................................................................................................................................ G-1
LUBRICATION ......................................................................................................................... G-2
COLUMN TRAVEL FEED CHAIN.......................................................................................... G-2
COLUMN TRAVEL GEAR BOX ............................................................................................. G-2
COMPRESSED AIR LUBRICATOR........................................................................................ G-2
OIL RESERVOIR....................................................................................................................... G-3
MIST LUBRICATION SYSTEM .............................................................................................. G-3
BLADE CHANGING PROCEDURE ........................................................................................ G-4
REPLACING THE WORK LAMP BULB ................................................................................ G-7
COOLANT CHANGING PROCEDURE .................................................................................. G-7
BLADE GUIDE ADJUSTMENT AND REPLACEMENT....................................................... G-8
BLADE PRESSURE BLOCK ADJUSTMENT AND REPLACEMENT................................. G-9
BLADE GUIDE CARRIER ALIGNMENT............................................................................. G-10
BLADE WIPER REPLACEMENT.......................................................................................... G-11
CHIP BRUSH REPLACEMENT............................................................................................. G-12
BLADE TRACKING ADJUSTMENT .................................................................................... G-12
RE-CALIBRATING THE BLADE TENSIONER................................................................... G-14
BLADE BREAK/SLIP SENSOR............................................................................................. G-15
POWER FEED SYSTEM......................................................................................................... G-15
INSPECTING AND REPLACING CORK INSERTS............................................................. G-15
ADJUSTING THE FEED CHAIN ........................................................................................... G-17
FEED CHAIN/SPROCKET REPLACEMENT ....................................................................... G-17
CARRIAGE FEED BRAKE ADJUSTMENT/REPLACEMENT ........................................... G-18
VARIABLE SPEED CARRIAGE DRIVE MOTOR BELT TENSION/ REPLACEMENT... G-19
HIGH SPEED CARRIAGE GUIDE BELT TENSION/REPLACEMENT ............................. G-20
MAIN MOTOR BELT TENSION/RE-PLACEMENT............................................................ G-20
FINAL DRIVE BELT TENSION/RE-PLACEMENT............................................................. G-21
TROUBLESHOOTING ....................................................................................................................... H-1
PARTS .....................................................................................................................................................I-1
IMPORTANT .....................................................................................................................................I-1
HARDWARE AND FITTINGS .........................................................................................................I-1
ELECTRICAL AND PNEUMATIC COMPONENTS ......................................................................I-1

This page intentionally left blank.

SAFETY
S-1
Industrial Machinery can be Dangerous.
Read the safety messages on the following pages as well as the instructions in
the operator's manual and those posted on the machine before attempting to install,
operate, or maintain this machine.
While Marvel Manufacturing Co., Inc. has made every effort to eliminate the
potential dangers in its equipment through careful design and guarding, this equipment, if
not operated and maintained properly, has the potential to cause serious injury or death.
A thorough knowledge of the operation of this machine and the hazards it presents
is your best protection against injury.
Attention Users of Older Marvel Equipment:
Marvel equipment is ruggedly built and many machines are still operating well
beyond their anticipated useful life. Older equipment may not meet current standards and
may have been modified outside the control of Marvel Manufacturing Co., Inc. While we
are happy to support your use of this equipment, we ask that you take whatever means
necessary to safeguard your operators. Please contact Marvel Manufacturing Co., Inc. for
the availability of safety retrofit kits for your particular machine.
3501 Marvel Drive • Oshkosh, WI 54902
Ph. [phone] • Fax [phone]
Toll Free: 1-800-4-sawing (1-800-472-9464)
www.sawing.com • email: [email protected]

SAFETY
S-2
WHO MAY USETHIS MACHINE?
Machinery sold by Marvel Manufacturing Co., Inc. is to
be installed, operated, and maintained by people
familiar with industrial machinery, the hazards
associated with industrial machinery and the
environment in which it is used, and the accepted
methods of safeguarding against those hazards.
FOLLOW THE INSTRUCTIONS
Read and follow all of the safety and operating
instructions supplied with your machine. This includes
the operator's manual, any safety signs on the machine,
all Material Safety Data Sheets (MSDS), vendor
literature, etc.
•Keep safety and operating instructions in good
condition and located where the machine operator
can refer to it. Replacement signs and literature are
available from Marvel Manufacturing Co., Inc.
•Do not allow anyone to operate or repair the
machine without proper instructions.
•If you need information not supplied in the
operator’s manual or accompanying literature,
contact Marvel Manufacturing Co. Inc. French,
German, and Spanish language manuals may also
be available for your machine.
RECOGNIZE SAFETY INFORMATION
•This safety-alert symbol signals important safety
information to prevent personal injury or death.
•Safety messages are highlighted with bold words.
•Always obey safety messages which accompany the
safety-alert symbol.
Note: The safety-alert symbol is a relatively new device
which does not appear in older Operator's Manuals.
Please review manuals which do not contain safety-
alert symbols carefully to identify safety information.

SAFETY
S-3
SAFETY SIGNAL WORDS
A safety signal word always accompanies the safety-
alert symbol. The safety signal words - DANGER,
WARNING, and CAUTION - identify the severity of
a hazard.
•DANGER indicates a situation which, if not
avoided, will result in serious injury or death.
•WARNING indicates a situation which, if not
avoided, could result in serious injury or death.
•CAUTION indicates a situation which, if not
avoided, can result in damage to the machine.
WEAR PROTECTIVE EQUIPMENT
•Wear safety glasses, safety shoes and hearing
protection.
•Do not wear gloves except when handling a blade.
Gloves can get caught in the machine's moving
parts and cause serious injury or death.
STAY CLEAR OF MOVING PARTS
•Contact with moving and rotating parts can cause
serious injury or death.
•Wear close fitting clothing, secure apron and
garment strings, and tie back long hair so they can
not get caught in moving parts.
•The machine may have automated movements
which can cause the blade, vises, shuttle, saw
column and other parts to go in motion
unexpectedly. Be familiar with the machine's
operation before operating the controls.
•Turn off the machine's power at its main electrical
disconnect switch and lock it in the "Off" position
before adjusting, servicing, or cleaning the saw.

SAFETY
S-4
HANDLE CHEMICALS SAFELY
•Direct exposure to hazardous chemicals can cause
serious injury. Potentially hazardous chemicals used
with this machinery include lubricants, hydraulic
fluid, and cutting fluid (coolant).
•The Material Safety Data Sheets (MSDS) provide
specific details on these chemical products
including the specific hazards, safety procedures,
and emergency responses.
•Consult the MSDS before operating the machine to
become familiar with the specific hazards and how
to avoid them.
•MSDS sheets for chemical products supplied with
your machine are available from Marvel
Manufacturing Co., Inc. These may be different
from the actual chemicals present in your machine.
Contact the chemical manufacturer for the MSDS of
the products you are using.
•Protect the environment. Dispose of used and
unwanted chemicals properly.
HANDLE BLADES SAFELY
•Coiled blades can spring open and cause serious
injury. Handle coiled blades with great care.
•Wear protective equipment including face shield,
safety shoes, protective clothing, and gloves when
handling a blade.
•Turn off the machine's power at its main electrical
disconnect switch before changing the blade.
•Remove gloves before turning the machine's power
on and operating the machine. Gloves can get
caught in moving parts and cause serious injury or
death.

SAFETY
S-5
SAFE MATERIAL HANDLING
Loading and unloading material from the machine
presents safety hazards of its own.
•Wear appropriate safety equipment including safety
shoes, hard hat, safety glasses, etc.
•Do not allow any part of your body to come
between the material and any other surface. Serious
or fatal crushing injuries can result.
•Never stand underneath the material while it is
being handled.
•Always use equipment, in good, serviceable
condition, capable of safely handling the material.
This includes cranes, hoists, chains, and straps with
a lifting capacity greater than the weight of the
material being lifted.
•Never lift the material higher than necessary.
KEEP THE MACHINE SAFE
•Do not alter the machine in any way.
•Do not remove protective guards, covers, or safety
signs.
•Perform regular maintenance to keep the machine
operating safely and efficiently.
•Immediately replace worn, missing, or damaged
parts, including safety signs attached to the
machine.
KEEP THE WORK AREA SAFE
•Keep the machine and the area around the machine
clean, well lighted, and free of debris and spills.
•Immediately clean up coolant (cutting fluid) and
hydraulic fluid from the floor. These create serious
slipping hazards.
•Keep air hoses, power cords, etc., off the floor.
These create serious tripping hazards.

SAFETY
S-6
HAZARDOUS METALS
Your machine was designed specifically for metal
cutting. However, some metals, such as beryllium,
magnesium, and lead, have characteristics which, if not
handled properly, will cause serious injury or death.
•Know the material you are cutting and the hazards it
presents.
•Do not cut materials which require specialized
equipment or a controlled atmosphere unless your
machine has been specifically designed and
installed for that purpose. Standard machines sold
by Marvel Manufacturing Co., Inc. do not meet
those special requirements.
HIGH PRESSURE FLUIDS
•Fluid escaping under pressure can penetrate skin
and cause serious injury and death.
•Avoid the hazard by relieving pressure before
disconnecting hydraulic lines.
•Look for leaks with a piece of cardboard. Protect
your hands and body from exposure to the fluid.
•If an accident occurs, see a doctor immediately and
inform them of the nature of the accident. Injected
fluids must be surgically removed within a few
hours or gangrene will result.
HORIZONTAL MACHINES CAN CRUSH
Horizontal machines have heavy saw frames which can
crush a person causing serious injury or death.
•Never place any part of your body under the saw
frame.
•Never disconnect hydraulic hoses when the saw
frame is raised. The loss of hydraulic pressure can
cause the saw frame to fall.
•If you must service the machine with the saw frame
raised, support the saw frame by blocking it open or
by securing it with safety chains and an overhead
crane capable of supporting the weight of the saw
frame.

SAFETY
S-7
OPERATE THE MACHINE SAFELY
•Use the machine only for its intended use – metal
cutting within its specified capacity.
•Do not operate the machine if it has been altered in
any way, is defective, or has worn, missing, or
broken parts.
•Operate the machine in a careful and deliberate
manner.
•Remove rings, watches, bracelets, necklaces and
other jewelry. These can get caught in the machine
and cause serious injury or death.
•Refer to the machine's data charts and operating
instructions for the proper blade type, feed rate,
blade speed, and feed pressure for the material you
are cutting.
•Stop the machine before reaching into the cutting
area or any area with moving parts.
•Position the blade guards as close to the stock as
possible.
•Clamp the stock securely.
•Report unsafe conditions to your employer.
•Never feed material into the blade by hand unless
the machine is specifically designed for manual
stock feed.
•Always use appropriate pushing devises when
feeding stock by hand or removing remnants from
the cutting area.

SAFETY
S-8
PUNCHING AND SHEARING
EQUIPMENT
•Always wear gloves when handling stock which has
been punched or sheared. The edges can be
extremely sharp.
•Never place your hands inside the safety guards.
•Keep fingers and hands away from the tooling.
•Always use the hold downs supplied with the
machine to clamp the material.
•Turn off the machine before changing the tooling.
REMOVING SAW CHIPS
•Never use compressed air to remove chips from the
machine. The flying chips can cause serious
personal injury. Remove chips with a brush or by
flushing with the coolant hose.
•Never reach into the chip conveyor. Serious injury
or death will result. Turn off the machine's power
and lock it out before cleaning the chip conveyor.

SAFETY
S-9
SERVICE THE MACHINE SAFELY
Review all safety information provided with your
machine before servicing the machine. Additionally,
important safety information which the service
technician should be aware of is located throughout
this safety section.
•Turn off the machine's power and lock it out before
adjusting, servicing, or cleaning the saw.
•Read and understand a service procedure before
performing the service.
•Never lubricate or service the machine while it is
running. Keep your body, clothing, and tools away
from power-driven parts.
•The machine may have automated movements
which can cause the blade, vises, shuttle, powered
rollers, ejectors, saw column and other parts to go in
motion without action by the operator. Become
familiar with the machine's operation before
operating the controls.
•Turning off the machine's main electrical
disconnect switch does not remove electrical power
from the input side of the machine's main fuses. To
eliminate all electrical power at the machine, turn
off the machine's electrical supply circuit at your
facility's circuit breaker and lock it out.
•Some parts, particularly malfunctioning hydraulic
parts and parts subject to high friction, can become
hot. Allow the machine to cool before servicing.
•Whenever possible, avoid climbing on any of the
machine's components. If it is necessary to climb on
the machine's components, such as the saw table,
use extreme care! Always turn the machine's
power off and lock it out before climbing on the
saw table. Cutting fluids and saw chips can make
the table's surface slippery. Always maintain a safe
footing, a firm hand hold, and never jump off the
machine.

SAFETY
S-10
ELECTRICAL HAZARDS
Contact with high voltage will cause death.
•Never perform any maintenance on or near
electrical components until the machine's power
source has been disconnected. Lock out power
before servicing.
•The only way to be sure the machine's electrical
circuits are safe is to turn off the machine's power
supply at your facility's circuit panel and lock it out.
•The "All Stop" pushbutton does not disconnect the
machine's power supply. Hazardous electricity is
still present in the machine's electrical circuits.
•The machine's main electrical disconnect switch
will remove electricity from the machine's circuits,
however, deadly voltage is still present inside the
main electrical panel at the in feed (line) side of the
main fuses. Keep hands and tools away from the
top of the electrical panel's main fuses.
•Never spray coolant directly at electrical
components or junction boxes.
ARC FLASH HAZARD
•Arc flash hazard.
•Appropriate personal protective equipment
required.
•Failure to comply can result in serious injury or
death.
•Refer to NFPA 70E for safe work practices.

INSTALLATION MARVEL 8 MARK III
© MARVEL MFG. CO., INC. MANUAL 8SDN10871N (04/08) A-1
IMPORTANT
Before completing any steps in this section, read
the entire safety section. The safety section
contains important information which will
safeguard both yourself and the machine during
installation.
It is extremely important to read through the
entire installation section to familiarize yourself
with the installation procedure before
performing any steps in this section.
NOTE: The term “saw column” is used
throughout this section. This term is used to
identify the portion of the machine that contains
the band wheels, blade, blade guides and other
related equipment.
HANDLING AND PLACEMENT
Never push, pull or lift the
shipping crate to move the
saw. Personal injury or
machine damage may occur.
Move the saw only by pushing
the skid with a forklift or by
lifting with the eyebolts
provided in the saw table.
IMPORTANT: When crated, the basic saw
weighs approximately 2870 lb (1300 kg).
Equipment capable of safely handling this
weight is required.
The saw is skidded and crated for shipment.
While the crate may be removed at anytime, the
saw should remain on the skid until positioned
for installation.
NOTE: One shipping brace secures the saw
column for shipment. Do not remove this brace
until the saw has been removed from the skid
and positioned for installation.
The following items should be considered when
positioning the saw:
FOUNDATION The foundation should be a
dry, level concrete floor in good condition. No
special machine foundation is required.
LIGHTING The entire machine should be well
lit, both for operator safety, convenience and for
machine maintenance.
STOCK MOVEMENT Allow sufficient space
around the machine for loading and unloading
work stock.
MAINTENANCE The saw should be placed to
allow easy access to all areas for maintenance
and repairs. Ensure that all doors and access
panels can be opened and the coolant pan
removed without interference.
ANCHORING The saw's leveling screws are
hollow to permit insertion of anchor screws. The
anchor holes need to be drilled in the floor prior
to placement of the machine. Anchor hole size
and spacing dimensions are found on the
technical drawing supplied with the machine.
After a suitable location has been prepared, the
machine can be removed from the skid and
placed in position.
1. Remove all loosely packed items from under
the saw, including the coolant pan. The
coolant pan slides out the side of the saw.
2. The saw is secured to the skid with four
bolts that extend up through the saw's
leveling screws. Remove the nut from each
of the four bolts to free the saw
Do not lift the saw any higher
than necessary to remove the
skid and position the saw.
Avoid serious personal injury
or damage to the saw. Lift the
saw only with the four
eyebolts installed in the saw
table.
3. Using the four (4) eyebolts supplied in the
saw table (see photo in Components section)
lift the saw off the skid with chains and an
overhead crane capable of safely lifting the
weight of the saw.
CAUTION
CAUTION
CAUTION

MARVEL 8 MARK III INSTALLATION
A-2 © MARVEL MFG. CO., INC. MANUAL 8SDN10871N (04/08)
Never place any part of your
body under the saw while the
saw is suspended.
4. Before lowering the machine to the floor,
make sure the leveling screws protrude
equally through the bottom of the table legs
and place a floor washer (supplied) under
each leveling screw. See Leveling and
Anchoring section below.
5. After the machine is in position, remove the
four eyebolts from the saw table and one (1)
red shipping brace which secures the saw
column. Save these items for future
movement of the machine.
CLEANING
All machined surfaces were coated with a rust
inhibitor prior to shipment and need to be
thoroughly cleaned. Remove the rust inhibitor
with an appropriate solvent.
LEVELING AND ANCHORING
After the machine has been placed in a suitable
location and its machine surfaces have been
cleaned, the saw should be leveled and anchored
as described below.
IMPORTANT: Leveling is extremely
important for consistent accurate cuts.
This is a drawing of a typical leveling screw and
anchor bolt installation.
LEVELING The saw is equipped with four
leveling screws - one on each leg. A floor
washer should have been placed under each
leveling screw when the machine was
positioned for installation. Level the saw by
placing a machinist's level at right angles on the
saw table and adjusting the leveling screws until
the machine is level both side to side and front
to back.
ANCHORING The leveling screws are hollow
to permit the installation of 5/8” or M16 anchor
bolts. To install anchor bolts, the floor must
have been pre-drilled as described in the
Handling and Placement section on page A-1.
Install the anchor bolts through the leveling
screws, into the floor and install a 5/8" or M16
washer and hex nut on each anchor bolt.
IMPORTANT: After installing the anchor
bolts, check the saw table to ensure it is still
level. Loosen the anchor bolts and re-level the
saw if necessary.
ASSEMBLY
After the machine is leveled and anchored, the
saw components can be assembled.
INSTALLING AND WIRING THE
COOLANT PUMP
1. Slide the coolant pan between the front legs
of the saw and push it until the pan is
centered between the legs. Make sure the
"V" shaped cut-out in the chip pan, which
installs on top of the coolant pan, is at the
front of the machine. Make sure chip pan is
tight against front end of reservoir. See
following illustration.
2. Adjust the angle iron door supports to rest
on the coolant pan cover.
3. Place the coolant pump in the coolant pan,
hooking the tabs on the pump housing over
the edges of the coolant pan.
WARNING
5/8” or M16 Hex Nut 5/8” or M16 Washe
r
1”-8 Leveling Screw
(provided)
Floor Washer
(provided)
5/8” or M16
Anchor Bolt

INSTALLATION MARVEL 8 MARK III
© MARVEL MFG. CO., INC. MANUAL 8SDN10871N (04/08) A-3
4. The coolant pump is shipped with one hose
attached with a spray nozzle on the end for
coolant flushing. The other end of this hose
is attached to a tee at the pump outlet. This
tee has an open 1/4” FNPT port. There is a
1/4” I.D. black hose attached to the table leg
closest to the pump with a 1/4” MNPT
swivel fitting on the end. This swivel fitting
must be attached to the open port at the
pump outlet as shown in the following
photo.
The coolant hose attaches to the pump outlet tee
on the pump assembly as shown above.
5. The coolant pump is shipped with one
electrical cable assembly connected to the
pump motor with a connection plug wired
onto the opposite end. This connection plug
must be connected to the plug receptacle on
the bottom of the terminal box located inside
of the motor enclosure. This plug receptacle
can be found on the underside of the motor
enclosure and can be connected without
gaining access to the motor enclosure.
The coolant pump electrical cord attaches to the
plug receptacle on the bottom of the terminal
box under the motor enclosure as shown.
OPTIONAL EQUIPMENT
The Marvel Series 8 can be equipped with a
wide range of optional equipment. Much of this
equipment, such as special vise jaws and length
gauges, is installed for use during a specific job
and then removed. The installation and use of
this type of equipment is described in the
"Machine Description" section.
Optional Roller Tables are available for both
the load and discharge sides of the machine. The
roller tables can be mounted on the basic
machine at anytime. Assembly instructions are
included with the optional roller table.
Digital Tilt Readout must be set to zero. To
calibrate the digital tilt readout:
1. Ensure that the saw blade is square (at a 90º
angle) to the level table.
2. Press and release the button on the back of
the digital tilt readout to set the tilt to 0º.
Chip Pan
Coolant Hose (loose for
field connection)
Coolant Pump (set
in chip pan)
Coolant Chip Flush Hose
(loose for field connection)
View of Bottom Side of Motor
Enclosure Expanded Metal
Opening for Coolant Pump Cord
Coolant Pump Cord
before Field Connecting
into Terminal Box
Coolant Pan
(shown with-
out coolant)
Brass Intake
Screen
Saw Column Hose
(loose for field conn)

MARVEL 8 MARK III INSTALLATION
A-4 © MARVEL MFG. CO., INC. MANUAL 8SDN10871N (04/08)
CONNECTING POWER
Hazardous voltage. Will cause
serious injury or death. Turn
off the supply electricity at
your facility's circuit breaker
before connecting the saw to
an electrical circuit.
All electrical wiring must be
done by a qualified electrician
in conformance with the
prevailing electrical standards
of your area.
This machine must be
grounded by a qualified
electrician, in conformance
with the NEC “National
Electrical Code” or the
prevailing national, state, and
local electrical codes. Failure
to do so will cause serious
injury or death.
Be sure the supply voltage and
phase matches the voltage the
machine has been wired for.
Refer to the data plate on the
electrical enclosure.
After the coolant pump has been plugged into
the terminal box (see Installing and Wiring the
Coolant Pump in the previous Assembly
section), supply power can be connected to the
saw.
1. Connect an appropriate grounding wire to
the main panel ground lug.
2. Remove the three main line fuses 1FU, 2FU
and 3FU to expose the screw terminals for
the main line connection.
3. Connect the three phase power to the top of
the disconnect and torque wires to the listed
torque shown on the panel above the
disconnect.
4. Reinsert the fuses into the disconnect
switch.
5. Close and secure the electrical panel’s door.
Leave the electrical disconnect switch in the
“Off” position.
DANGER
WARNING
WARNING
WARNING
Main Panel Ground Lug
Disconnect Switch
Screw Terminals
