MAKSIWA SF.250.C User manual

1
SF.250.C
___________________________________________________________________
INSTRUCTION MANUAL
___________________________________________________________________
_
ATTENTION: READ THIS MANUAL BEFORE USING THE PRODUCT.
BAND SAW
- 250 mm -

2
(Illustrative picture)

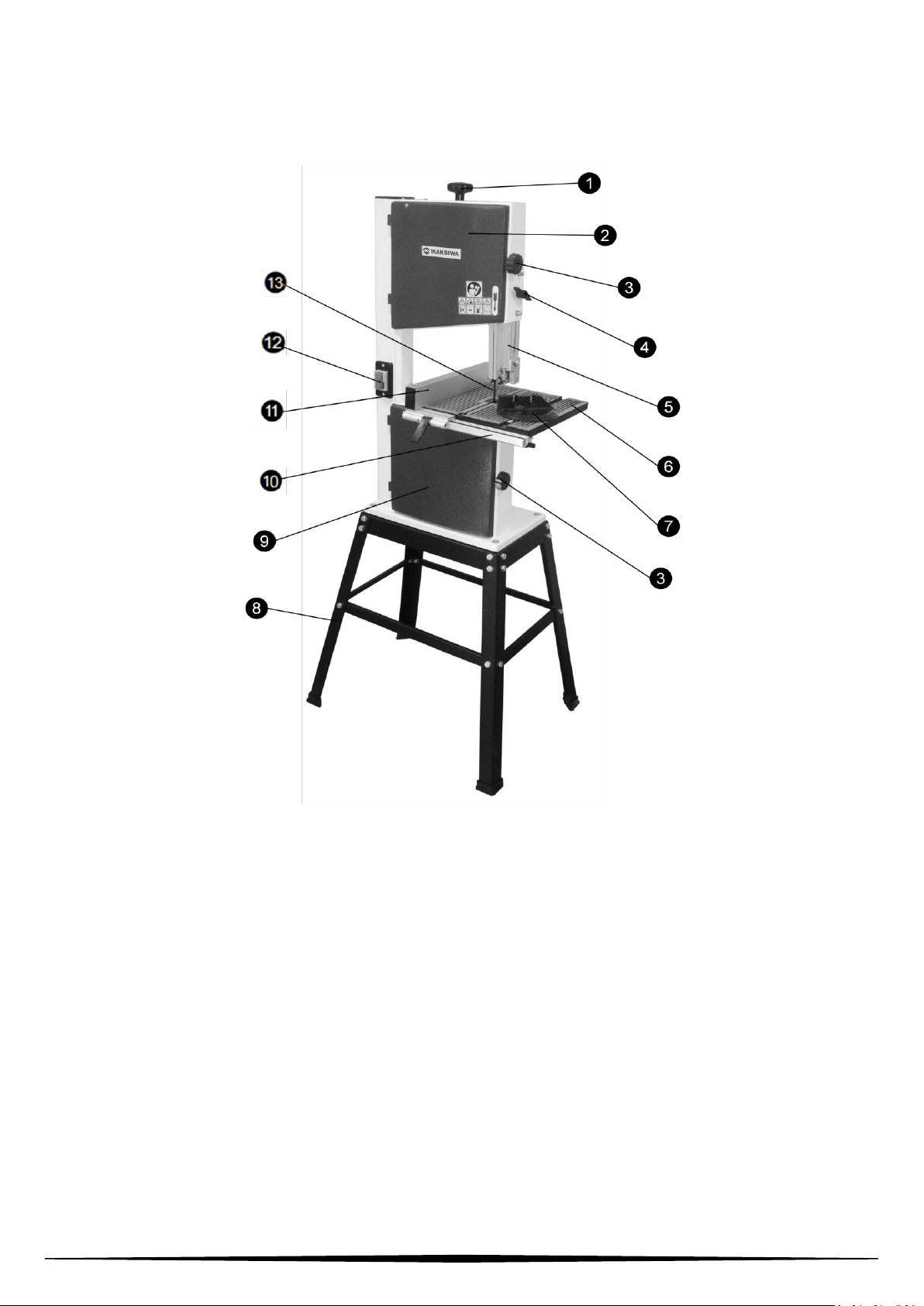

1. Tape tension adjustment knob
2. Upper Door
3. Door opening handle
4. Column Adjustment Knob
5. Column
6. Support Table
7. Half Moon Guide
8. Base
9. Lower Door
10. Graduated Scale
11. Side Guide
12. ON / OFF
13. Cutting Tape

3
PICTURE 2
(Illustrative picture)

4
INSTRUCTION MANUAL
Important information you should know:
Only work with sharp tools. Tools that are not sharp
do not cut properly and overload the engine.
ALWAYS USE PROPER PROTECTIVE
EQUIPMENT WHEN OPERATING THIS
EQUIPMENT.
Important Safety Instructions
ATTENTION: When using power tools,
always follow safety precautions to reduce the
risk of fire, electric shock and personal injury, including
the following:
READ ALL INSTRUCTIONS
CAUTION: WHEN MAKING MAINTENANCE,
REPLACE ONLY WITH INDENTICAL PARTS.
Repair or replace damaged wires.
SECURITY INSTRUCTIONS
FOR ALL TOOLS
Keep the work surface clean. Disorganized areas
and work surfaces invite accidents.
Do not use the band saw in hazardous
environments. Do not use power tools in damp or wet
locations or exposed to rain. Keep the work area well lit.
Keep children away. Visitors must be kept at a safe
distance from the work area.
Make the workplace childproof by using padlocks,
master keys or by removing the ignition key.
Do not force the tool. It will do the job better and safer
for the intended use. Use the correct tool.
Do not force the tool when doing work for which it
was not designed.
Use suitable equipment. Do not wear loose clothing,
gloves, chains, rings, bracelets or other accessories that
could get caught in moving parts.
Shoes with non-slip soles are recommended. Wear
hair protection to secure it.
Always wear safety glasses. Also wear a face
mask.
Secure the part to be worked. Ensure that the
workpiece is held firmly against the side guides. This
ensures better quality of work and prevents accidents.
Do not overreach. Keep your balance and your feet
in a comfortable position at all times.
Keep tools in order. Keep tools sharp and clean for
better and safer performance. Follow instructions on
lubricating and changing accessories.
Unplug the machine from the outlet before servicing
or changing accessories, such as blades, tips, cutters,
etc.
Reduce the risk of unintentional starting. Make
sure the switch is in the “OFF” position before
connecting the wire to the plug.
Use recommended accessories. Refer to the
instruction manual to check the recommended
accessories. Improper use of accessories can cause a
risk of accident for people.
Never step on the tool. A serious accident can
occur if the tool is tilted or if the tool is touched
accidentally.
Check for damaged parts. Before continuing to use
the tool, a guard or other part that is damaged must be
carefully examined to determine its proper functioning
and perform its function properly. Check the alignment
of moving parts, breakage of parts, assembly and any
other condition that may affect its operation. Any part
that is damaged must be repaired or replaced
immediately. Do not use the tool if the switch does not
turn it on or off.
Never leave a tool running unattended. Turn off
the ignition key. The engines of these tools can emit
sparks and explode flammable gases.
Extension cables. Make sure your extension is in
good condition. When to use

5
extension, ensure your ability to transmit the electrical
current used by your product. An undersized cable will
cause a voltage drop resulting in loss of power and
overheating. The following table shows the correct size
to be used depending on the cable diameter and the
amperage rating. If in doubt, use a cable with a higher
power level. IMPORTANT: Do no use extension cords
longer than 20 meters.
.
2-Way wire 3-Way wire
Ø (mm2)
Amperage
Ø (mm2)
Amperage
0,5
9
0,5
8
1,0
13
1,0
12
1,5
16,5
1,5
15
2,5
23
2,5
20
Additional Safety Rules for Band Saws:
CAUTION: FAILURE TO MEET THESE
WARNINGS MAY RESULT IN PERSONAL
ACCIDENT AND SERIOUS DAMAGE TO THE
MACHINE. Protect the power supply line with at least a
15 amp fuse or a circuit breaker.
Make sure the ribbon is spinning in the correct
direction (clockwise when viewed from the front).
Make sure that the handles and screws are properly
tightened and secured before starting any operation.
Use sharp tapes and no signs of oxidation.
Keep the engine vents free of chips or dirt.
Always use chip protection.
Keep your hands out of the tool path.
Turn the machine off, disconnect the cable from the
power outlet and wait until the tape has come to a
complete stop before performing maintenance or
adjustments to the tool. Support long pieces with a
wood fixing device.
Do not attempt to operate the machine at a voltage
other than the rated voltage.
Do not use tapes larger or smaller than
recommended.
Do not force anything against the fan to hold the motor
shaft.
Do not force the cut. Partial or total forced shutdown of
the engine can cause serious damage. Allow the engine to
reach full speed before starting to cut.
Do not cut ferrous metals or any masonry material.
Do not use abrasive cuts. Excessive heat and abrasive
particles generated by these will damage the machine.
Do not allow anyone to remain behind the machine.
Do not apply lubricant to the tool when in operation.
Do not put any hand on the tape area when the machine
is connected to the power outlet.
Do not work with small pieces without the aid of
fasteners. Keep your hands away from the tool.
Do not perform any hands-free operation.
Do not stretch around or behind the machine.
Do not put your hands within 15 centimeters of the tool.
Do not put your hands under the table unless it is turned
off and unplugged.
Do not perform any operation with the doors open.
Do not move your hands on the machine or workpiece or
raise your arms until the tool has stopped.
Do not use the machine without the side table.
Do not use lubricants or cleaning products (particularly
sprays and aerosols) in the vicinity of plastic components.
The polycarbonate material used is sensitive to certain
chemicals.
ATTENTION: Some dust created by sanding,
cutting, grinding, drilling and other construction-
related activities contains chemicals that can cause
cancer, birth defects and other reproductive harm.
Some examples of these

6
products are: lead-based inks; brick silica crystal,
cement and other masonry products; and arsenic and
chromium from chemically treated wood.
CAUTION: Do not connect the unit to an
electrical outlet until all instructions have been read and
understood.
Always tighten the adjustment clips before using the
machine. Keep your hands 15 cm away from the tape.
Never perform hands-free operations. Never cross your
arms in front of the tool. Think: "I can avoid accidents"
Do not operate the machine without the guards in place.
Always wear safety glasses. Turn off the machine and
wait for the tool to stop before restarting service, making
adjustments or moving your hands.
Electrical Connection
The Ribbon Saw SF.250.C MAKSIWA has a single-
phase motor with connection option 110 and 220V. To
avoid burning risks, the motor leaves the factory
connected to 220V. Check the electrical voltage of your
outlet before starting the machine. If necessary, change
the electrical connection of the motor with the help of a
specialized technician.
Make sure your power supply matches the designation
on the plate. A 10% decrease in voltage or more will
cause loss of power and overheating. All MAKSIWA
equipment is tested at the factory. If this tool does not
work, check the power supply.
Check the compatibility between your outlet and the
machine's plug. Avoid making patches and adaptations.
Familiarize yourself with the machine
Place the machine on a smooth, flat surface. Check the
figures and pay attention to the description of the parts to
familiarize yourself with its different components. The
next section will deal with the necessary adjustments for
a good functioning of the machine, and will refer to the
termination that accompanies the illustrations.
To do this, you must know these parts and you must
know where they are. The name of each component is
followed by a corresponding number in the illustration.
Specifications
Wattage ½ HP (370 W)
Motor Speed
1.720 RPM
Tape Speed
780 m/min
Tape Dimension
1.750 x 6 a 13 mm
Max Cutting Widht
245 mm
Max Cutting Height
100 mm
Table Dimension
350 x 330 mm
Table Tilt
0º a 45º
Net Weight
22,5 mm
Transport and Installation
For packaging reasons, the machine is not completely
assembled.
If you notice any damage caused by transportation while
opening the package, notify your supplier immediately.
Do not operate the machine.
Dispose the packaging in a sustainable
environmental way.The MAKSIWA Band Saw
SF.250.C is designed to operate indoors and must be
placed on a firm, stable and level surface. CAUTION: To
prevent the machine from moving and causing a lack of
precision, make sure that the base on which it is
supported is not uneven. If the machine moves on the
surface, place a support under the base until it settles
firmly on the surface. AS
UNPACKING AND ASSEMBLY
UNPACKING
Due to modern mass production techniques, the
SF.250.C MAKSIWA Band Saw is unlikely to be
defective or a part is missing. If you find something
wrong, do not use the tool until the parts are replaced,
or the fault is corrected.
By doing this you are avoiding serious bodily injury.
1. Remove all loose parts from the packaging.
2. Remove the packaging materials around the

7
parts.

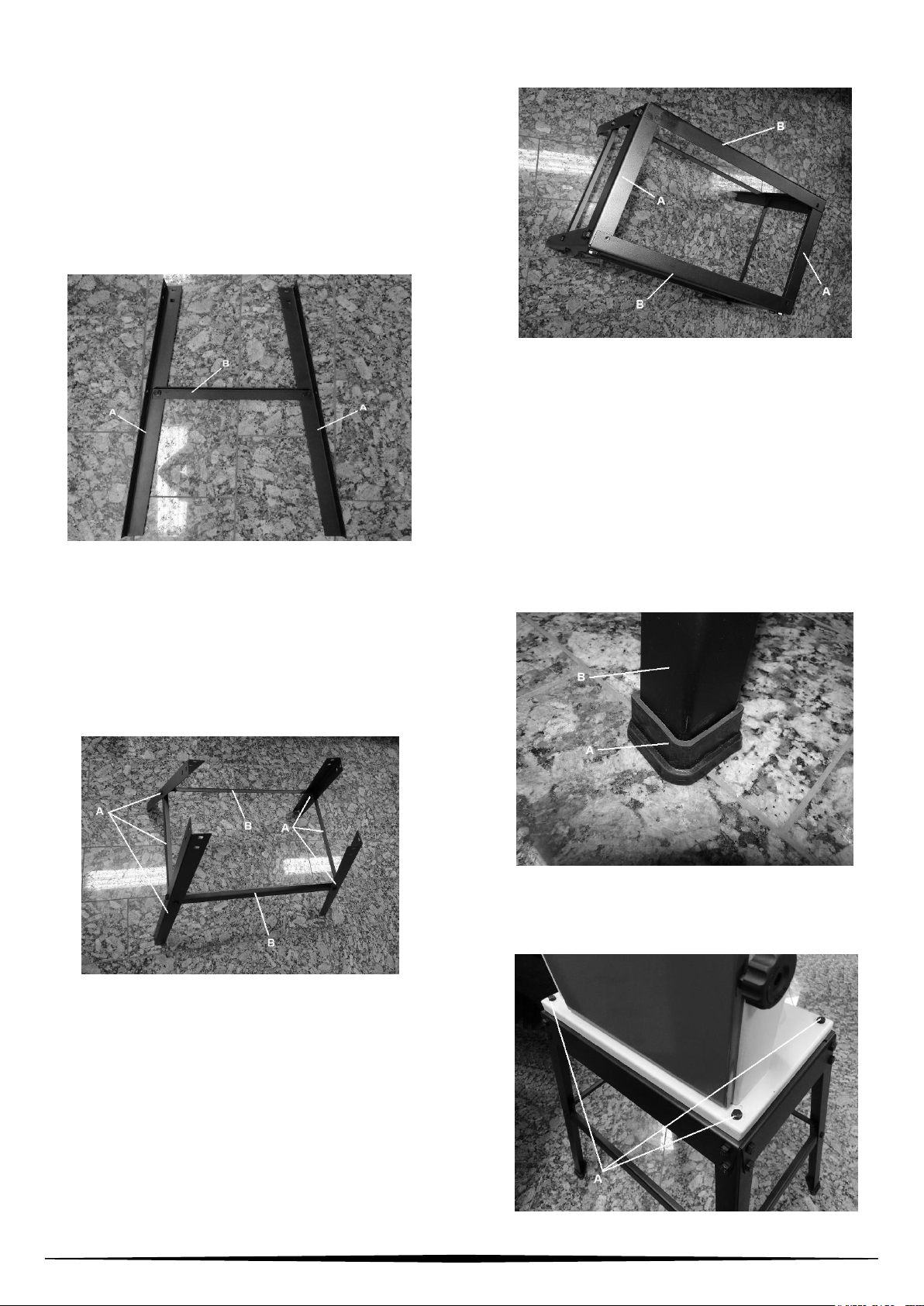

3. To assemble the base, start by attaching two legs
640 mm long (A) to a crossbar
335 mm (B), as shown in the figure below. To the
mounting the base use the 24 screws 5/16 ’’ x 16 mm,
24 5/16 ’’ nuts and 24 8.5 mm washers. Do not tighten the
nuts and bolts completely at this point.
4. Repeat the operation described above, in order to
obtain two sets with two legs and a 335 mm lower
crossbar.
5. Join the two assemblies already assembled (A)
through the lower cross bars of 495 mm (B), as shown in
the figure below. Do not tighten the nuts and bolts
completely at this point.
Note: At this point, the assembly will be a little
oscillating. Have an assistant to hold the assembly in
place while you fasten the nuts and bolts.
6. Attach the 245 mm top crossbars (A) to the assembly.
Then attach the 410 mm upper crossbars (B) to the
assembly in order to obtain the result on top of the page.
7. Check that there is enough space for the screws that
secure the machine to the base to pass through the holes
located in the upper crossbars.
NOTE: Steel materials occasionally "work"
after manufacture, making it difficult to align parts without a
little effort. Don't be surprised if the base
requires a little "effort" to fit in.
8. Tighten all screws and nuts on the base.
9. Insert the rubber feet (A) into the bottom of the
legs (B), as shown in the following figure.
10. Place the Main Unit on the base. Connect them using
the 4 3/16 ’’ x 33 mm screws, 4 3/16 ’’ nuts and 4 5.5 mm
washers, as shown in the following figure.

8
11. Assemble the side table according to the following
steps:
- Remove the Allen screw 1/4 '’x 28 mm (A) to insert the
table (B) in the correct position;
- At the rear of the machine, insert the screw
located on the part (A) in the hole of the support part (B) and
lock with the butterfly nut (C).
- Retighten the Allen screw, which was
previously removed, on the side table.
12. Install the Side Guide (A) on the table (B) and fix it
through the quick-release handle (C), turning it
down. Look the following picture
13. Install the Half Moon Guide (A) in the channel (B)
located
at the top of the table, to make straight cuts or
angled, as shown in the following figure.
14. Install the tape tension adjustment handle (A)
placing it in such a way as to involve the screw that is
located on the top of the machine. See figure as follow.
15 Install the special Slotted screw and washer
(A) on the left side of the machine, so that it serves
support for the push stick (B) that comes with
this equipment. This stick is indispensable for the
cutting small parts. Look the following picture.

9
TEST CONNECTION
Complete this process only after you are familiar with all
instructions in this manual. To test, follow these steps:
1. Read the entire instruction manual first, so that you are
familiar with all the controls and functions of the band
saw SF.250.C.
2. Connect the machine to the power source.
3. Turn the switch to the ON position. The band saw
must
run smoothly with little or no vibration.
Right after turning the machine off, if you suspect any
problem, correct these problems before turning it on
again.
OPERATIONS AND ADJUSTMENTS
This machine can perform many types of operations that
are outside the scope of this manual. Many of these
operations can be dangerous or lethal if performed
incorrectly.
The instructions in this section are written with the
understanding that the operator has the knowledge
and the skills needed to operate this machine.
If at any time you experience difficulties in
perform any operation, stop using the machine.
If you are an inexperienced operator, we recommend
that you read books, articles of commerce, or that you seek
training an experienced operator before
perform any unknown operation. Above all, your safety
comes first.

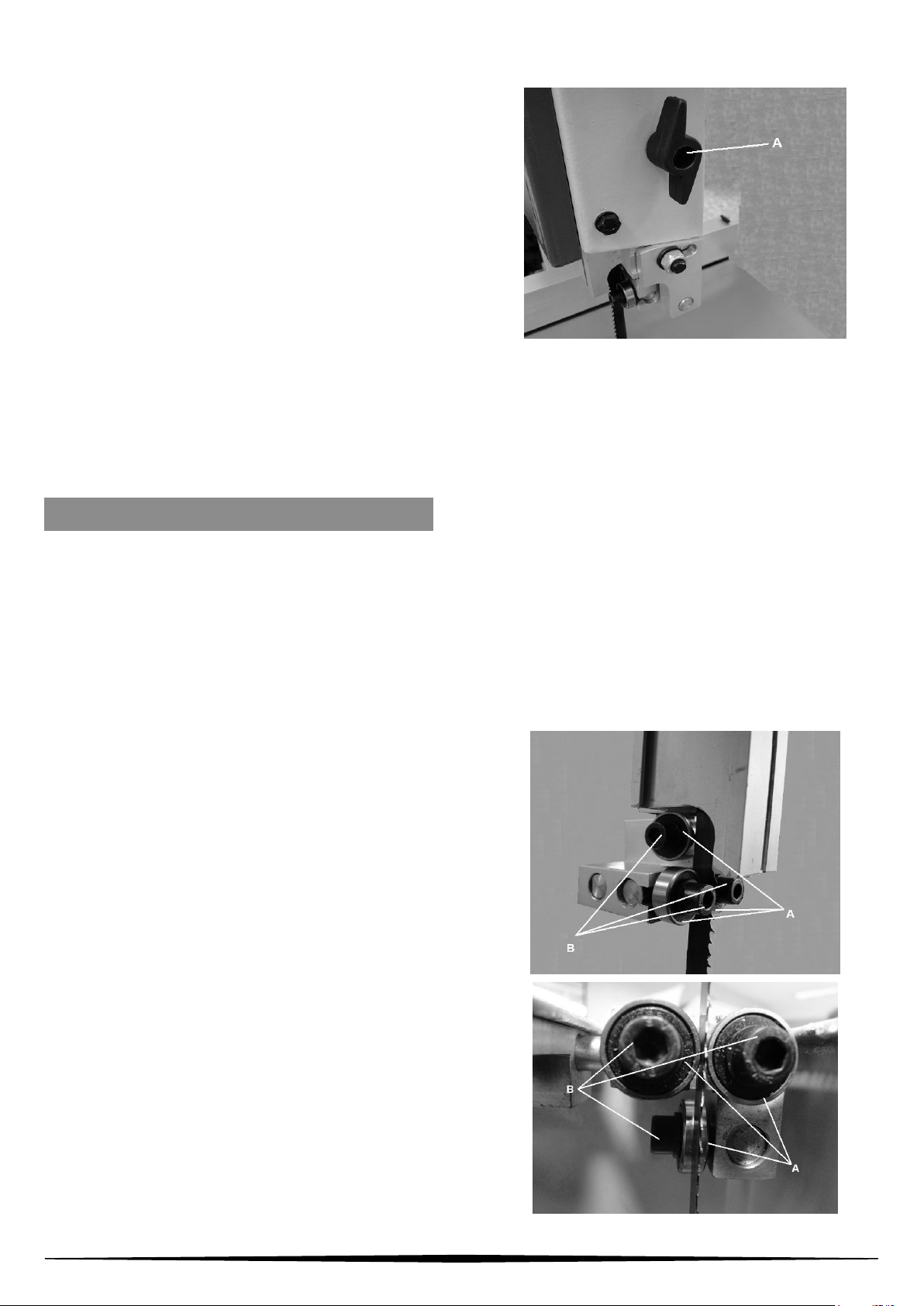

CUTTING HEIGHT
Correcting the height of the cut guide is crucial for most
band saw applications. Never leave the cutting tape
exposed, except the part that will make the cut. Your
MAKSIWA band saw SF.250.C is composed of an easy
and safe adjustment system. To adjust it, simply release
the handle (A) located on the right side of the machine,
adjust to the desired height according to the part to be
cut, and tighten the handle (A) again. Look the following
picture.
ADJUSTING TAPE GUIDES
Before carrying out any operation, check that the cutting
tape guides, that is, the bearings are correctly
positioned. They should be lightly in contact with the
tape, without pressing it or causing any deflection
anywhere.
The MAKSIWA SF.250.C band saw has two side
bearings and one rear at the top (next to the height
adjustment guide) and two more side bearings and a
rear at the bottom of the machine (inside the bottom
door). To adjust the bearings (A) just loosen the Allen
screws (B) slightly
that hold and move the bearings crosswise. Secure the
screws (B) again.

10

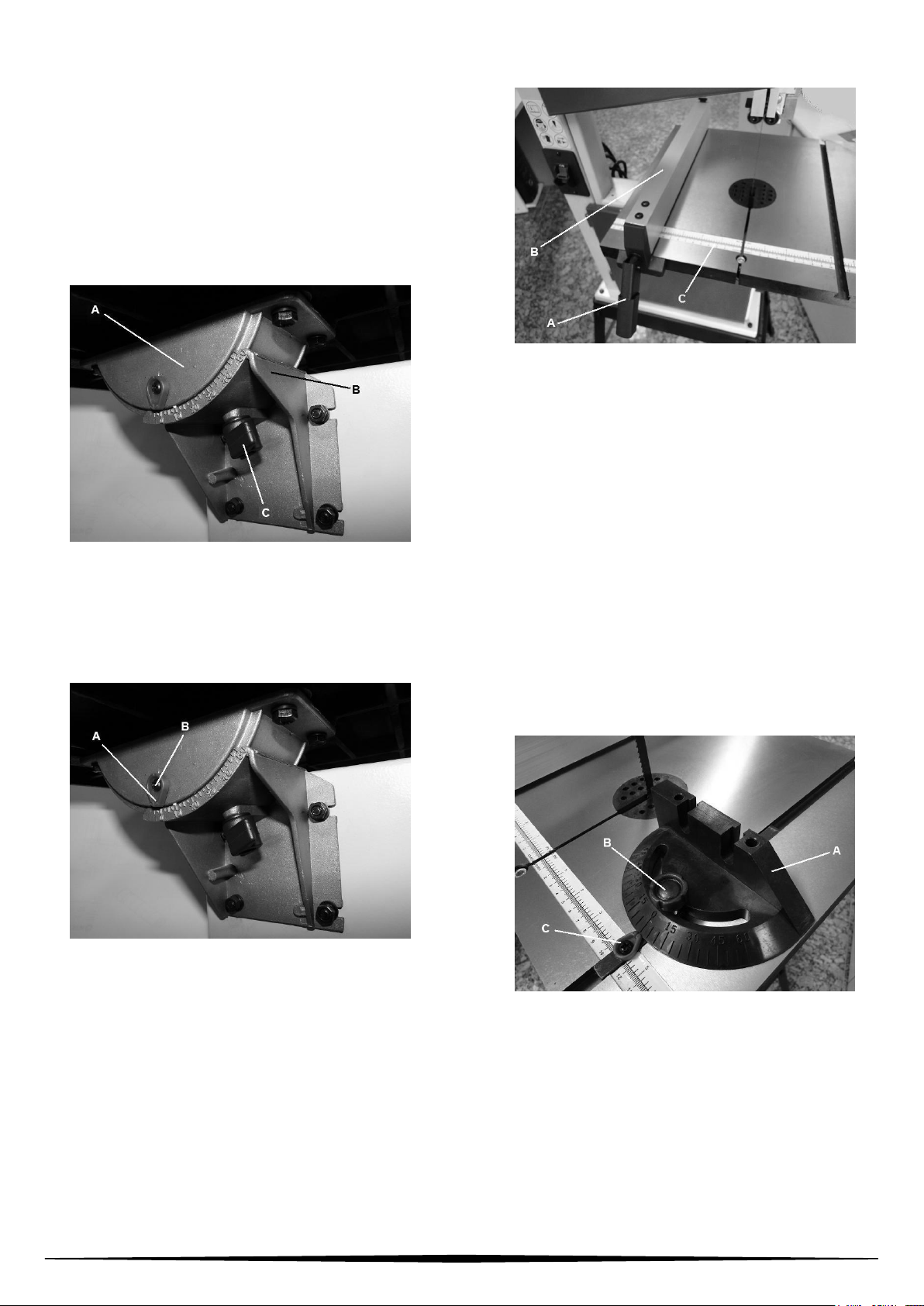

TILTING THE TABLE
To make slanted cuts the band saw SC.250.C
MAKSIWA has a table that can tilt from 0º to 45º. To do
this, simply release the handle (C) located at the rear of
the machine, below the table, and rotate the table (A)
according to the desired degree, checking the scale of
the part (B).
If necessary, use a template or square to check the
angle of the band saw table. If necessary, adjust the
pointer (A) by loosening the screw (B) and adjust the
pointer to the correct mark. Check the angle again and
lock the screw.
SIDE GUIDE ADJUSTMENT
For better support and more accurate straight cuts,
make use of the side guide that comes with your band saw
SF.250.C MAKSIWA.
To do this, simply release the handle (A), lifting it
upwards, and adjust the side guide (B) according to the
desired distance. Make use of the graduated scale (C).
After adjusting the guide, lock it once again
positioning the handle downwards.
If necessary, the side guide has an adjustment of
tightening tension. To increase this tension, simply turn
o the knob (A) clockwise. If you want to decrease
tension, turn the handle counterclockwise.
SETTING THE HALF MOON GUIDE
The Half Moon Guide (A) is used to hold and support the
workpiece at the desired angle during
operation. To adjust the guide angle, simply
release the handle (B) and position it at the desired angle.
After that, retighten the knob (B) to lock the angle.
Make sure the angle is correct by using a template if
necessary. Pointer (C) of the Half Moon scale.
ADJUSTING THE STEERING WHEELS
The steering wheels located inside the doors are
adjustable in their alignment. These parts leave the
factory already regulated and should only be adjusted if
you notice any problem of decentralization of the same
or the tape comes loose alone from a reel during the
movement.

11
To adjust the upper handwheel, loosen the butterfly nut
(A) located at the rear of the machine and turn the
handle (B) to find the alignment of this handwheel. After
correcting the problem, fix the nut (A) again to lock.
Check the figure below.
To adjust the lower hand wheel, loosen the nuts (A)
located at the rear of the machine and tighten or loosen
the screws (B) in order to find the alignment of this
handwheel. After correcting the problem, secure the nuts
(A) again to lock. Check the figure below.
DUST COLLECTOR
When the band saw is used indoors, it is recommended
to use a dust collector for a cleaner and healthier
working environment for the worker.
The MAKSIWA SC.250.C band saw has a 60 mm
diameter powder outlet located at the bottom rear of the
machine. Simply connect a dust collector hose directly
to this outlet. Consult the MAKSIWA Catalog to find
products that fulfill this function.
SECURITY LOCK
The band saw SC.250.C MAKSIWA has in its key
starting device a safety device that allows the
machine to be turned off and not to be turned on again,
thus avoiding unwanted accidents.
To lock the starter, simply remove the locking pin.
lock (A) from the center of the starter key (B),
according to the figure below.
Take care not to lose this device when taking it off.
TEMPLATES
The use of templates allows identical parts to be cut with
speed and precision. Modeling with a pattern starts by
attaching a prefabricated model to the part.
Tips for Building a Model:
•Make sure that the screws or clamps are not going to
contact the cutting tape.
•Design the assembly for the cut to occur
under the piece.
•Make handles for security and control.
•Use materials that will move easily across the
table surface.
MAINTENANCE
GENERAL
Periodic maintenance on your SF.250.C band saw will
guarantee optimum performance. Make it a habit to
inspect your band saw every time you use it. This
section covers the most common service adjustments or
procedures that may need to be made during the life of
your machine.

12
Check whether the following repair or replacement
conditions are necessary:
• Loose or loose screws.
•Switch worn.
•Worn or damaged cables, plugs or sockets.
•Damaged transmission belt.
•Any other condition that could harm the
funcionamento seguro deste equipamento.
TABLE AND BASE
Cleaning the SF.250.C band saw is relatively easy with a
vacuum cleaner to remove excess wood chips and
sawdust, and dust with a dry cloth. If there is any resin,
use a resin remover and a clean cloth to remove it.
Protect unpainted cast iron surfaces by cleaning after
each use, which ensures moisture from wood dust does
not remain in contact with untreated metal surfaces.
Make regular applications of anti-rust or a quality metal
protector.
LUBRICATION
Since all bearings are shielded and permanently
lubricated, just leave them in this way until they need to
be replaced. Do not lubricate them. For the other items
on this machine, an occasional application of electric
machine oil is all you need.
Before applying the lubricant, clean the sawdust. Its
objective is to achieve adequate lubrication. Too much
lubrication will attract dirt and sawdust. Various parts of
your machine can lose their freedom of movement with
excess dirt caused by excessive lubrication.
MAINTENANCE SCHEDULE
Daily:
•Vacuum all the dust from above and around the
machine.
•Clean the table and all unpainted cast iron with a metal
protector
Monthly:
•Check the motor belt tension by checking
damage or wear.
•Clean the accumulation of dust inside and outside
the engine.
BELT ADJUSTMENT AND REPLACEMENT
Your band saw uses a belt that can be adjusted as
follows
1. Disconnect the machine from the power source.
2. Loosen the screws (A) that secure the motor (B) to
the machine as shown in the figure below.
3. Slide the motor position to increase or decrease the
belt tension, so that the belt is tight, with about 1/4
deflection when pressed lightly with your fingers.
4. Tighten the engine adjustment screws again.
When the belt shows signs of wear or breaks, replace it
following the steps described above.
CUTTING TAPE ADJUSTMENT AND REPLACEMENT
The band saw SC.250.C uses a cutting tape that can be
adjusted using the tension regulator handle (A) located
on the top of the equipment. To increase the tension of
the tape, tighten the knob clockwise (when viewed from
above) and if you want to reduce the tension of the tape,
release the knob counterclockwise.

13
When the cutting tape shows any signs of rust, wear or
when it loses its sharpness or even breaks, replace it by
following these steps described above.
CUT QUALITY
The smoothness of any cut depends on a number of
variables. Factors such as the type of material being cut,
type of cutting tape, tool sharpening and cutting rate
contribute to the quality of the cut. Make sure that the
material does not vibrate when cutting.
SUPPORT FOR LONG PARTS
ALWAYS USE A SUPPORT FOR LONG PARTS.
Support long pieces using any convenient shape such
as easels or similar structures to prevent the ends from
falling.
CHECK THE MAKSIWA CATALOG AND FIND
PRODUCTS FOR THIS FUNCTION.
TECHNICAL ASSISTANCE
For your greater safety, entrust repairs, maintenance
and adjustments (including inspection and replacement)
to the technical assistance recommended by MAKSIWA,
which will always use genuine spare parts and
accessories, reassembling your router in the same way
as the original.
Before using an extension cord, check for loose or
exposed wires, damaged insulation and defective
fittings. Repair or replace the extension if necessary.
Imported by Maksiwa USA Inc.
4100 N Powerline Rd, Suite D3 Pompano Beach, FL 33073
www.maksiwa.com7
754-205-6717
