Aimmer technology AMI-I845GV-ISA User manual

http://www.aimmertech.com
AMI-I845GV-ISA
Mainboard
User’s Manual
Rev：1.1
2007.1

http://www.aimmertech.com
CONTENTS
Chapter 1 Package Contents..................................................................................................3
Chapter 2 Introduction..............................................................................................................4
Chapter 3 Mainboard Locations..............................................................................................6
Chapter 4 Installation................................................................................................................7
4.1 Jumper Setting and Slot ................................................................................................7
4.2 CPU Installation............................................................................................................8
4.3 Memory installation....................................................................................................10
4.4 IDE Devices Installation.............................................................................................10
4.5 Other Device Installation ............................................................................................10
Chapter 5 Driver Installation..................................................................................................13
5.1 Installation Directory ..................................................................................................13
5.2 Intel Chipset Software Setup.......................................................................................13

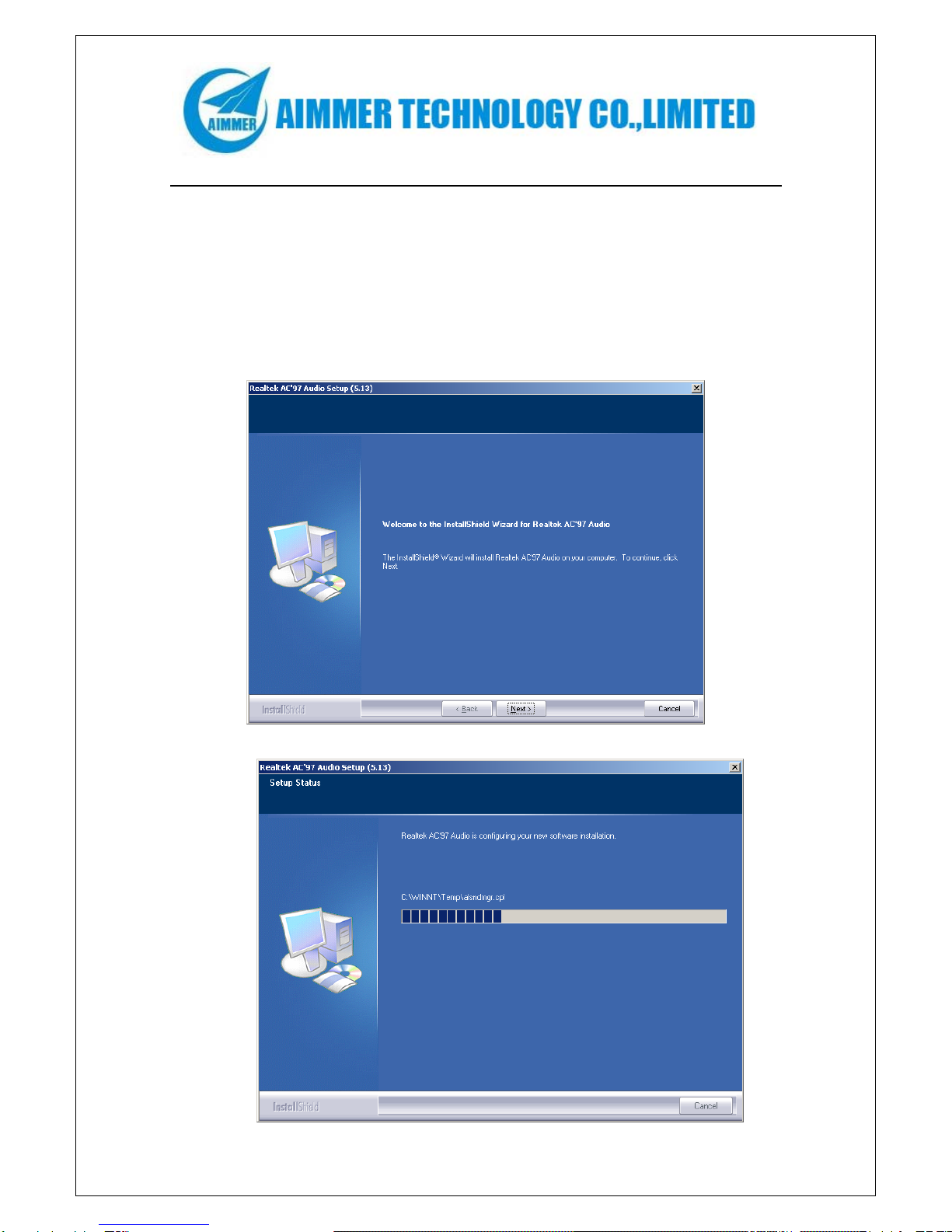

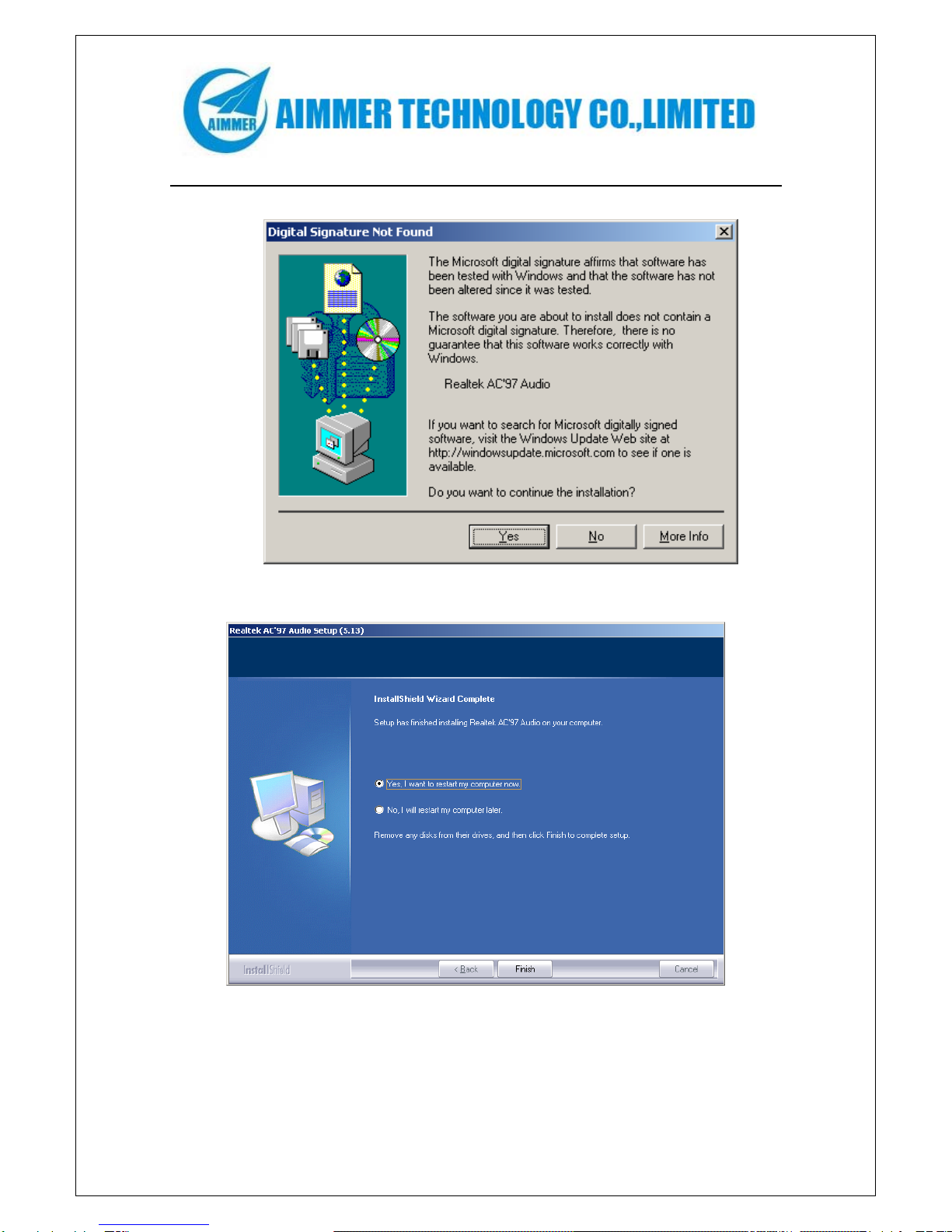

5.3 Sound Driver Setup.....................................................................................................16
5.4 USB 2.0 driver Setup .....................................................................................................18

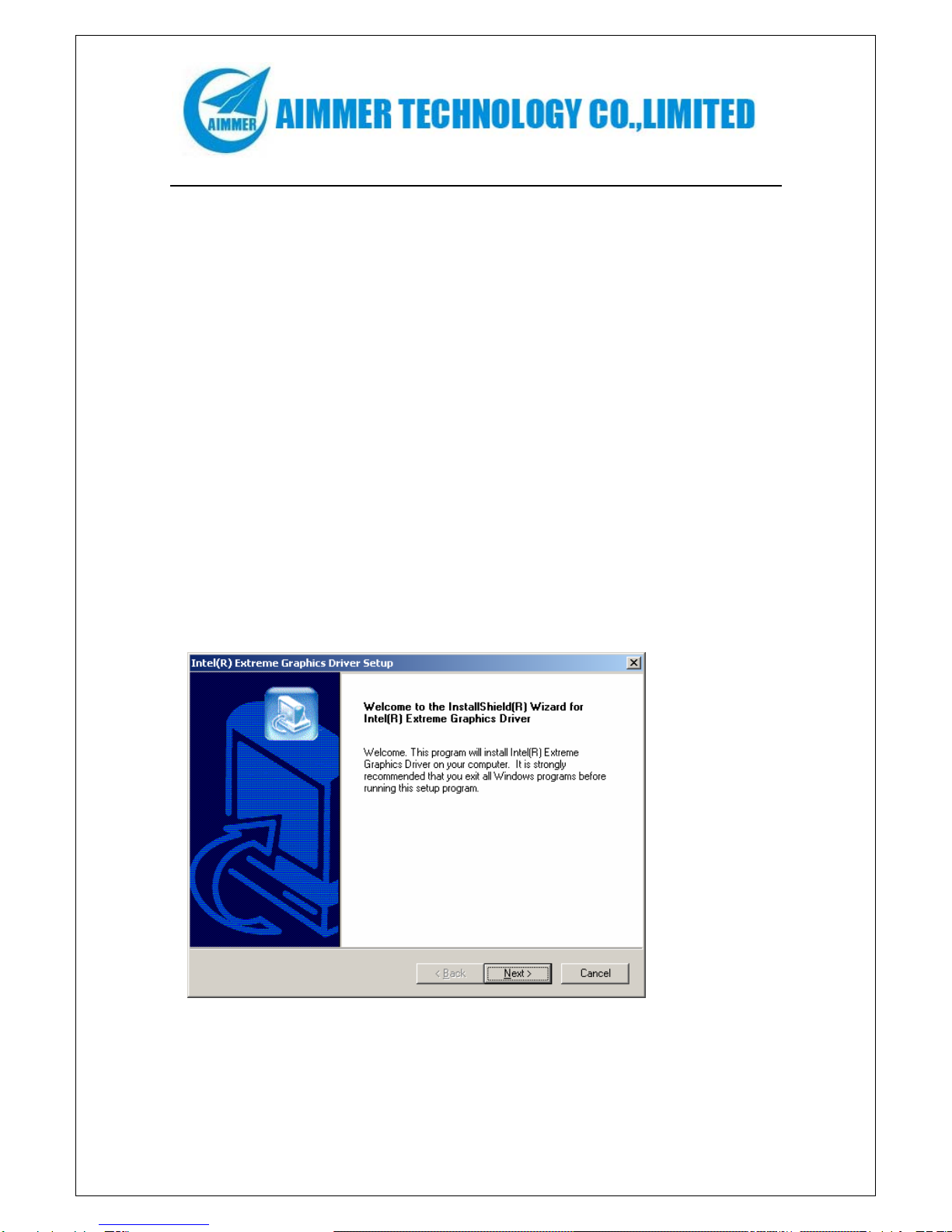

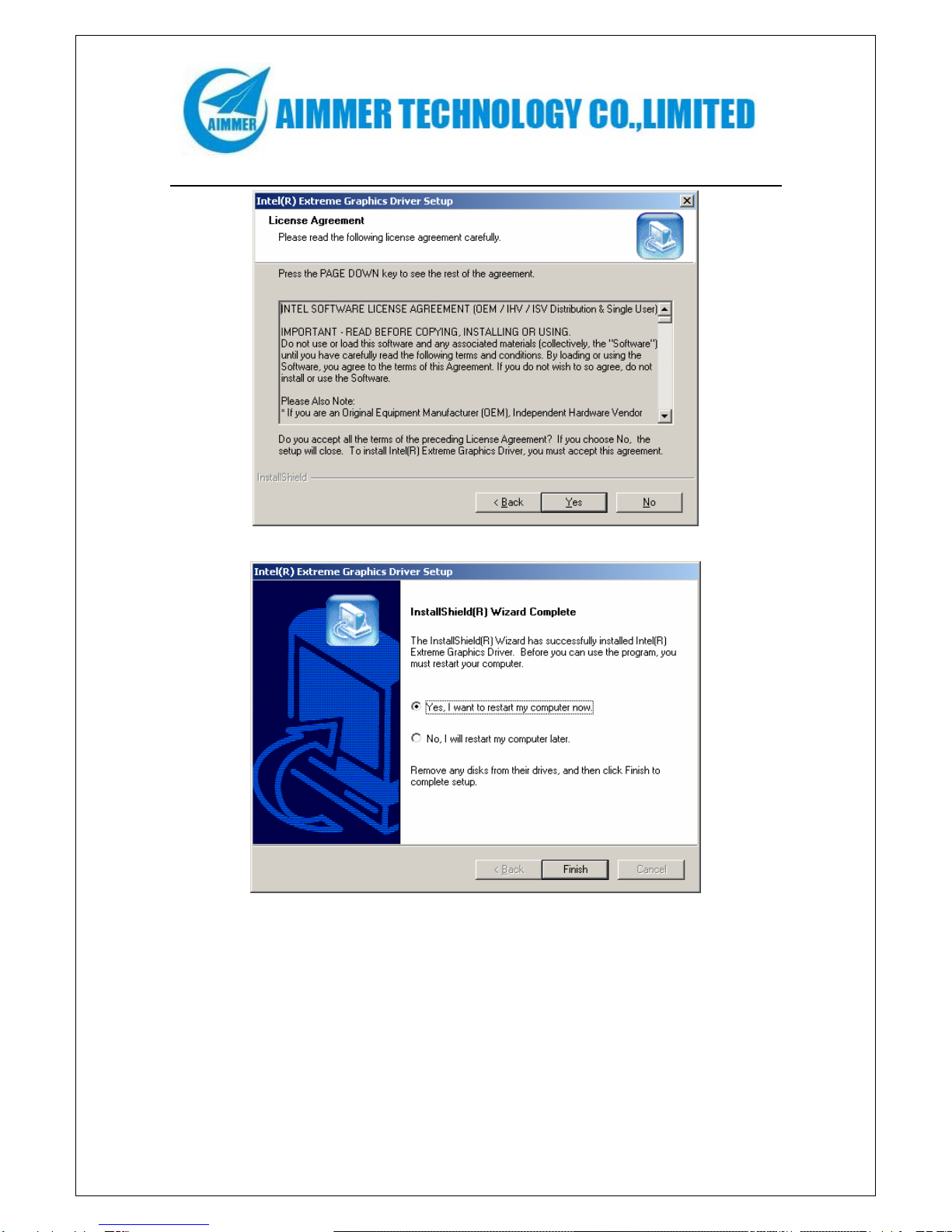

5.5 VGA driver setup ........................................................................................................18
Chapter 6 BIOS Setup............................................................................................................20

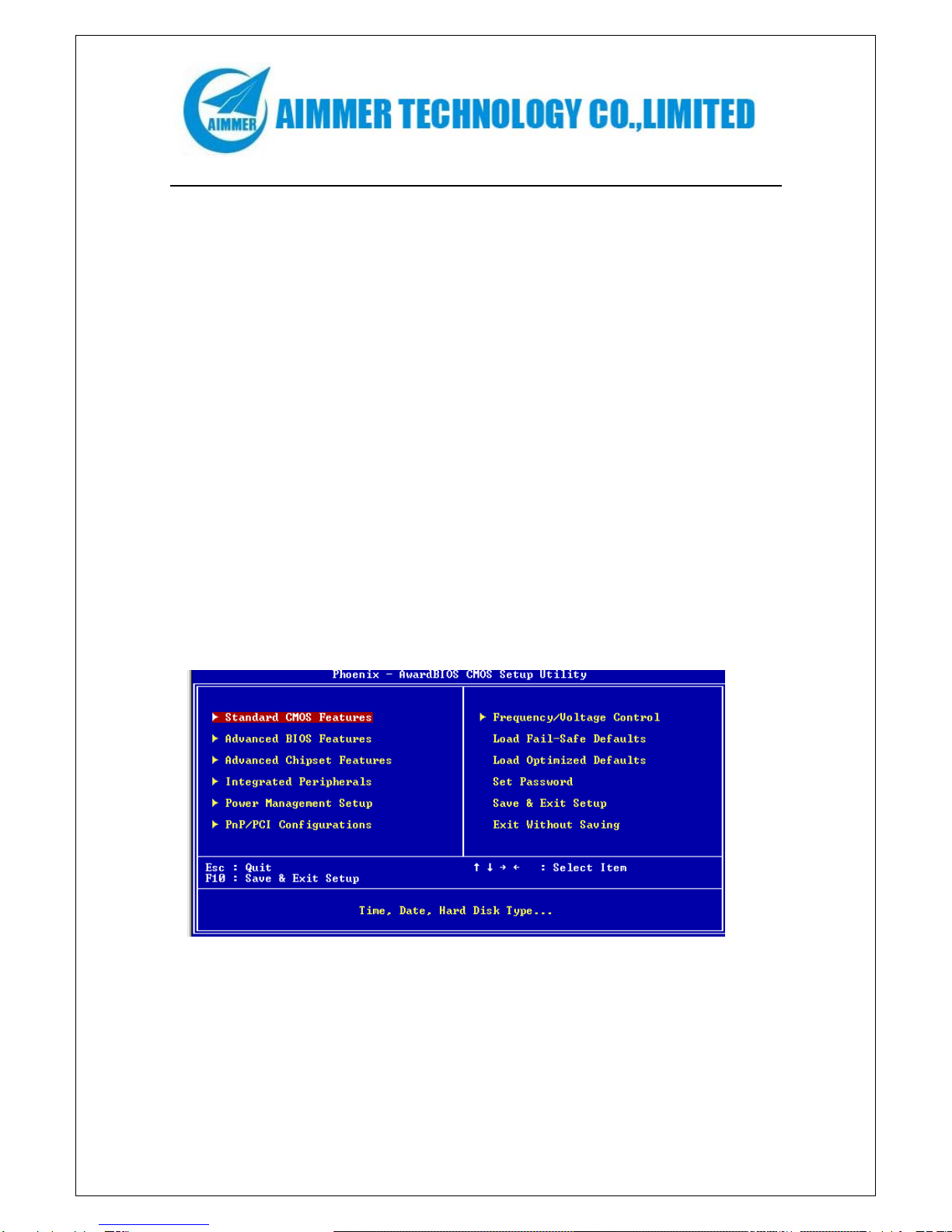

6.1 Main menu .....................................................................................................................20
6.2 Standard CMOS Features............................................................................................21
6.3 Advanced BIOS Features............................................................................................22
6.4 Advanced Chipset Features.........................................................................................24
6.5 Integrated Peripherals..................................................................................................25
6.6 Power Management Setup...........................................................................................26
6.7 PnP/PCI Configurations..............................................................................................27
6.8 Load Fail-Safe Defaults ..............................................................................................27
6.9 Load Optimized Defaults............................................................................................28
6.10 Change Password.......................................................................................................29
6.11 Save Exit & Without Save Exit Setup.............................................................................29

http://www.aimmertech.com
Chapter 1 Package Contents
Your mainboard package contains the following items:
1One mainboard
2One 80-Pin Ultra DMA 66/100 IDE drive ribbon cable
3Software install CD
4One I/O Backboard

http://www.aimmertech.com
Chapter 2 Introduction
This mainboard has the Intel 845 chipset that contains Intel 82845GV Memory
Controller Hub and Intel 82801DB I/O Controller Hub. This mainboard has a Socket-478
support for Intel Pentium4 processors with front-side bus(FSB)speeds up to
400/533,supports DDR200/DDR266 memory bus, supports AC97 audio
codec ,integrated AC97 audio that supports full surround sound with up to Two
channels, front panel audio output function, provides Ultra DMA66/100 function, the
integrated display function technologies without extend display card ,provides Two PCI
slots. The mainboard integrated mainboard、VGA card、sound card .
Key Features：
-Chipset：
Intel 845GV chipset GMCH：Intel 82845GV；ICH4：Intel 82801DB
-Processor：
Supports Intel Celeron CPU Socket 478 CPU
Supports Intel Pentium4（Northwood）Socket 478 CPU
Supports Intel Pentium4（Willamette）Socket 478 CPU
Supports Intel Pentium4（Prescott）Socket 478 CPU
Supports Intel Celeron D (Prescott) Socket 478 CPU
-Supports 400/533MHz HOST BUS Frequency
-Memory Support：
Supports DDR200/DDR266 Memory；
Two 184-pin DIMM slots for DDR SDRAM memory modules
-Integrated display function technologies without extend VGA card
Integrated 2D/3D Graphics Controller
-USB Ports
SixUSBports
Supports compliant with Universal Serial Bus Specification Revision 2.0
-IDE Port
Provides two channel connecting four IDE drives
Supports Ultra ATA66/100 synchronous DMA modes
-I/O Ports

http://www.aimmertech.com
One floppy port support format 360K/720K/1.2M/1.44M/2.88M disk driver
One serial ports
One parallel port
maximum four extra ports)
One PS/2 Keyboard port
One PS/2 Mouse
One MIDI port
One IrDA port support 115.2KB/S transfers data.
-Onboard AC’97 2.0 specification compliant
Support 16bit stereo codec
Multiple stereo input mixer
Provides onboard Line-in jack, Line-out jack, Microphone-in jack
-Expansion Slot
Two PCI slots 2.2 specification compliant
One AGP 4X
One ISA
-Dimension
Micro ATX form factor

http://www.aimmertech.com
Chapter 3 Mainboard Locations

http://www.aimmertech.com
Chapter 4 Installation
4.1 Jumper Setting and Slot
FSB CPU Frequency Jumper Setting
JUPER AUTO
（Default）400 533
JP1 1-2 2-3 OPEN
JP3：Clear CMOS Jumper Setting
1-2（Default）Normal
2-3 Clear CMOS
Audio：Front panel Jumper setting
PI
N Function PIN Function
1 MIC+ 2 Ground
3 Vbias 4 AuD_Vcc(AVCC)
5 AuD_R_Out 6 AuD_R_Out Back
7 N.C. 8 Key
9 AuD_L_Out 10 AuD_L_Out Back
USB: Expansion Connector
PI
N Function PI NFunction
1 VCC：Power 2VCC：Power
3 D-：Data - Signal 4D-：Data - Signal
5 D+：Data + Signal 6D+：Data + Signal
7 GND：Ground 8GND：Ground
9 KEY 1
0NC
Expansion Slots
DDR1/DDR2 184 Pin DDR Memory Slots

http://www.aimmertech.com
PCI1/PCI2 32 bit PCI BUS Expansion Slots
AGP AGP Expansion Slots
ISA ISA Expansion Slots
Connectors
PS/2（Bottom）PS/2 Keyboard(Down Purple)
PS/2（Top）PS/2 Mouse Header(Up Green)
USB1/2 USB1/2 Connector Port
USB3 USB3 Connector Port
LPT Printer Connector Port
VGA VGA Display Connector Port
COM1 Serial Ports COM1 Connector Port
MIDI MIDI Port
LINE OUT/LINE
IN/MIC Audio Output/Audio Input/Microphone
CD_IN CD-ROM Audio Input Port
IDE1/IDE2 Primary IDE/Secondary IDE Port
FDD Floppy Disk Drive Connector Port
PW1 ATX_20 Power Supply Connector
Port
PW2 ATX_4 Power Supply Connector
Port
FAN 1/2 CPU System Fan Port
IrDA IrDA Infrared Port
Function Port Panel
Power Supply LED Pin 1:Power Supply Anode；Pin 3、5：
Ground
HDD LED Pin 2:Power Supply Anode; Pin 4：
LED Signal
ATX Power Supply
Switch Pin 10:Switch Signal; Pin 8：Power
Supply Anode
Reset Switch Pin 14:Ground;Pin 16:Reset Signal
Speaker Input Pin 9:Speaker Audio Input; Pin 15：
Power Supply Anode
4.2 CPU Installation
This mainboard has a socket478 processor socket. Follow these instructions to install
the CPU:

http://www.aimmertech.com
Unhook the CPU socket’s locking lever by pulling it away from socket and raising it to
the upright position.
Match the pin 1 corner of CPU socket to the one of processor, and insert the processor
into the socket. Do not use force.
Push the locking lever down and hook it under the latch on the edge of socket.
Apply thermal grease to the top of the CPU.
Lower the CPU fan/ heatsink unit onto the CPU and CPU socket, and then use the
retention module clamps to snap the fan/heatsink into place.
Plug the CPU fan power cable into the CPU cooling fan power supply connector on the
mainboard.

http://www.aimmertech.com
4.3 Memory installation
This mainboard supports DDR200/DDR266 DDR memory ，you may install
64/128/256/512MB 184 pin DDR memory。DDR SDRAM uses additional power and
ground lines and requires 184-pin 2.5V unbuffered DIMM module rather than the
168-pin 3.3V unbuffered DIMM used by SDRAM.
Follow these instructions to install the Memory:
1.Push the latches on each side of the DIMM slot down.
2.Align the memory module with the slot. The DIMM slots are keyed with notches and
the DIMMs are keyed with cutouts so that they can only be installed correctly.
3.Check that the cutouts on the DIMM module edge connector match the notches in the
DIMM slot.
4.Install the DIMM module into the slot and press it firmly down until it seats correctly.
The slot latches are levered upwards and latch on to the edges of the DIMM.
5.Install any remaining DIMM modules.
4.4 IDE Devices Installation
IDE devices include hard disk drives, high-density diskette drives, and CD-ROM or
DVD-ROM drives, among othes.
The mainboard ships with and IDE cable that can support one or two IDE devices. If you
connect two devices to a single cable, you must configure one of the drives as Master
and one of the drives as Slave. The documentation of the IDE device will tell you how to
configure the device as a Master or Slave device. The Master device connects to the
end of the cable.
4.5 Other Device Installation
4.5.1 Floppy Disk Drive Installation

http://www.aimmertech.com
The mainboard ships with a floppy disk drive cable that can support one or two drives.
Drives can be 3.5” or 5.25” wide, with capacities of 360K, 720K, 1.2MB, 1.44MB, or
2.88MB.
Install your drives and connect power from the system power supply. Use the cable
provided to connect the drives to the floppy disk drive connector floppy.
4.5.2 Sound Connector Port Installation
This mainboard has three audio ports connect audio device.
The left side jack(green) is for a stereo line-out signal. The middle jack (blue)is for a
stereo line-in signal. The right side jack (red)is for a microphone.
4.5.3 Clear CMOS (JP3)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can
clear the CMOS memory of date, time, and system setup parameters by erasing the
CMOS RTC RAM data. The RAM data in CMOS, that include system setup information
such as system passwords, is powered by the onboard button cell battery.
1、Turn OFF the computer and unplug the power cord.
2、Move the jumper cap from pin 1-2(default) to pin 2-3.Keep the cap on pin 2-3 for
about 5-10 seconds, then move the cap back to pins1-2.
3、Plug the power cord and turn ON the computer.
4、Hold down the<DEL> key during the boot process and enter BIOS setup to
re-enter data.
Note1: Except when clearing RTC RAM, never remove the cap on CLRTC1 jumper
default position. Removing the cap will cause system boot failure!
Note2: You do not need to clear the RTC when the system hangs due to
overclocking. For system failure due to overclocking, use the C.P.R. (CPU
Parameter Recall) feature. Shut down and reboot the system so BIOS can
automatically reset parameter settings to default values.
4.5.4 ATX Power connectors (20-pin ATXPWR1,4-pin ATX 12V1)
These connectors connect to an ATX 12V power supply. The plugs from the power
supply are designed to fit these connectors in only one orientation. Find the proper
orientation and push down firmly until the connectors completely fit. In addition to the
20-pin ATXPWR1 connector, connect the 4-pin ATX +12V power plug to provide
sufficient power to the CPU.
Note1: Make sure that you ATX 12V power supply can provide at least 15A on the
+12V lead and at least 2A on the +5-volt standby lead (+5VSB).The minimum
recommended wattage is 300W or above for a fully configured system. The

http://www.aimmertech.com
system may become unstable and may experience difficulty powering up if the
power supply is inadequate.
Note2: Do not forget to connect the 20-pin ATXPWR1 and 4-pin ATX12V1 power
plugs. Failure to do so may cause severe damage to the CPU or motherboard!

http://www.aimmertech.com
Chapter 5 Driver Installation
5.1 Installation Directory
The utility CD is supplied with that mainboard the connects contained in it are showed
as below: Directory Driver OS
INTEL\INF\XXX Intel chipset software
Windows 9x
Windows 2000/XP
Windows NT4.0
SOUND\REALT
EK\XXX Realtek AC’97 Audio driver
Windows 9x
Windows 2000/XP
Windows NT4.0
INTEL\USB2.0\8
45 USB 2.0 driver setup Windows 9x
Windows 2000/XP
Windows NT4.0
INTEL\VGA\845 VGA driver setup Windows 9x
Windows 2000/XP
Windows NT4.0
Before installing audio driver, you must identify the mode of AC’97 codec.
Fox example: If you use Realtek serial codec, you need to enter into the Realtek
directory installing.
5.2 Intel Chipset Software Setup
Insert the driver CD, running driver software CD, choose the directory :\
CD-ROM:\INTEL\INF\XXX

http://www.aimmertech.com
Click“NEXT”to continue
Select“YES” to continue

http://www.aimmertech.com
Select“NEXT” to continue
Select“FINISH” to complete the installation.

http://www.aimmertech.com
Select“Finish”to complete the installation
5.3 Sound Driver Setup
5.3.1 Sound driver setup
Insert the driver CD, running driver software CD, choose the
directory:\CD-ROM:\SOUND\REALTEK\Setup.exe
Select“Next”to continue

http://www.aimmertech.com
Continue
Select“YES” to continue
Select“Finish”to complete the installation
-Channel Sound Output Support peration（optional）： 7 Audio
6
Please follow the steps below for o
1.After install sound driver，click “Sound effect”，“AC9
configuration”options；

http://www.aimmertech.com
2.Click “Sound configuration”，select “6 Channel mode for 5.1 speakers output”
und effect” menu “Environment”，you must choose one Sound effect
.3.2 Uninstalltion Sound Driver (For Realtek of WIN98 operation system) menu
.4 USB 2.0 driver Setup
USB（Universal Serial Bus）,the mainboard implements the new Universal Serial
.5 VGA driver setup g driver software CD, choose the
options。
3.Click “So
realization 6-Channel sound output。
5
Startup to WINDOWS desktop，select“Setup”/“Control Panel”，select“Add/Delete”
select“Avance AC’97 Audio Driver and Applications” ，click“Add/Delete” ，select
“language”，“confirm”“GO”，select“Complete”，restart system and program auto delete。
5
Bus(USB)2.0 specification, extending the connection speed from 12Mbps on USB1.1 to
a fast 480Mbps on USB2.0.
5
Insert the driver CD, runnin
directory:\CD-ROM:\VGA\845 Setup.exe
Select“NEXT”to continue

http://www.aimmertech.com
Select“YES” to continue
Select“Finish”to complete the installation

http://www.aimmertech.com
Chapter 6 BIOS Setup
The BIOS Setup Utility record settings and information of your computer, such as date
and time, the type of hardware installed, and various configuration settings. Your
computer applies those information to initialize all the components when booting up and
basic function of coordination between system components.
If the Setup Utility configuration is incorrect, it may cause the system to malfunction. It
can even stop you computer booting properly. If it happens, you can use the clear
CMOS jumper to clear the CMOS memory which has stored the configuration
information; or you can hold down the Page Up key while rebooting your computer.
Holding down the Page Up key also clears the setup information.
6.1 Main menu
You can use cursor arrow keys to highlight anyone of options on the
main menu page. Press Enter to select the highlighted option.
Press the Escape key to leave the setup utility. Press the F9 key to
go back to menu in BIOS.
Some options on the main menu page lead to tables of items with installed
value that you can use cursor arrow keys to highlight on item, and
press PgUp and PgDn keys to cycle through alternative values of that
item. The other options on the main menu page lead to dialog boxes that
