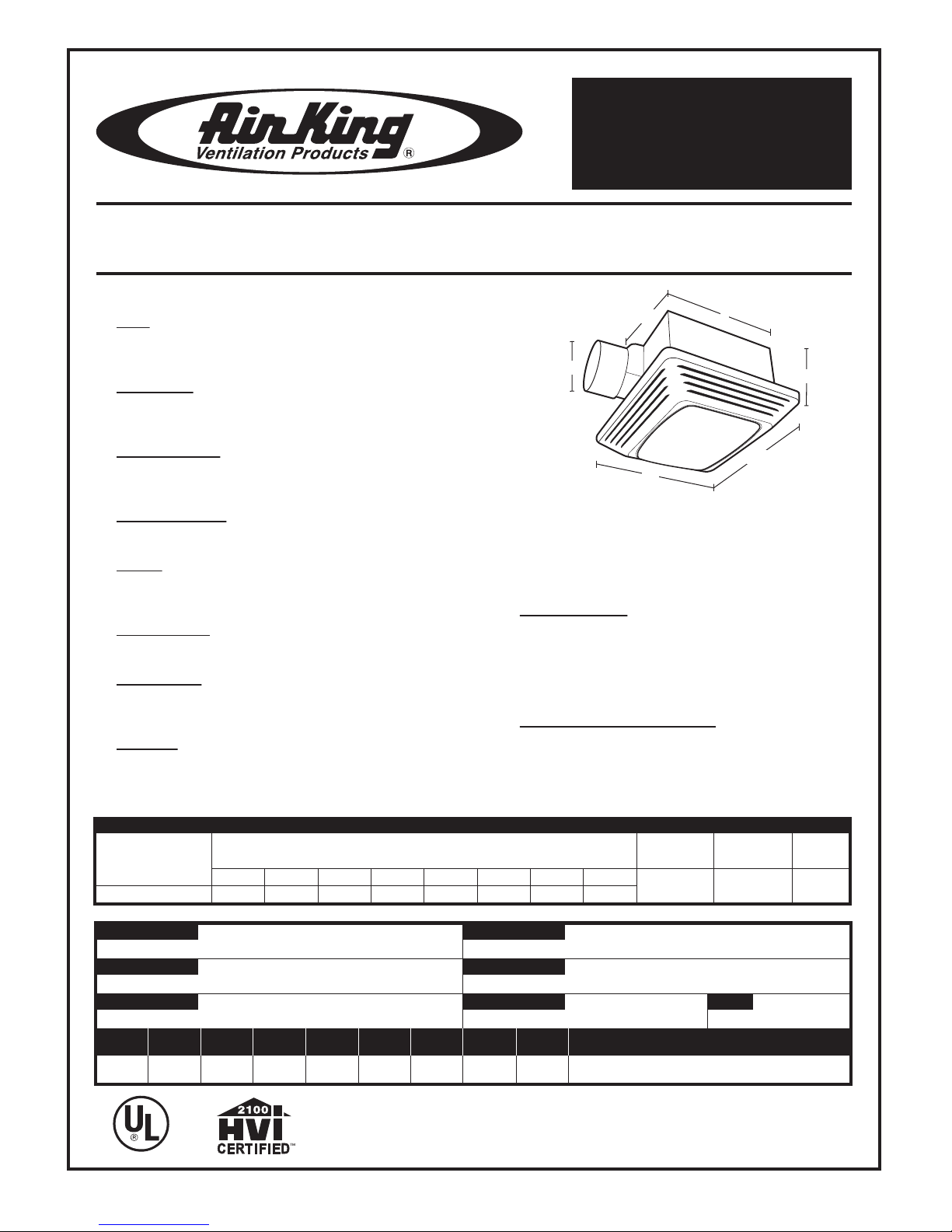

SPECIFICATIONS
EXHAUST FAN WITH LIGHT
ASLC120
Updated 7-08Specifications subject to change without notice.
CUS
• Grill
White, polymeric grill secured in place via screw mounting
through the light housing, dimensions - 11" x 101/2".
• Light Lens
High impact polycarbonate lens, secured in position using
integral tabs: easily removed if necessary.
• Light Housing
Heavy gauge cold rolled steel c/w baked enamel finish; locks in
place on the grill via two integral tabs.
• Blower Wheel
One piece polymeric wheel, 41/2" diameter, 1" wide, with 10 fins.
• Motor
PSC, plug-in, 4 pole motor, life time lubrication, thermally
protected. Rated 120 volts, 60 hz., 1.6 amps.
• Fan Housing
23 ga. Galvanized metal housing, dimensions 91/8" x 9" x 57/8"
• Duct Collar
Plastic collar for 4" duct connection, comes complete with built
in non-metallic back draft damper for quiet operation.
• Lighting
Type A-19 medium base incandescent 100 watt maximum bulb.
• Unit Mounting
Rated Type IC for ceilings insulated to R-40. Designed to
mount in ceilings with at least 6" of clearance. The unit will
mount using the supplied mounting bars with a rough in
opening of 91/4" x 93/8". The housing will mount through
drywall thickness up to 3/4".
• Single Pack Shipping Info
Box Dim: 111/2" x 131/4" x 91/2"
UPC: 0-8316221271-8
Shipping Weight: 6 lbs.
120 CFM/4.0 SONES @ 0.10" WG.
HVI CERTIFIED 120 Volts, 1.6 amps, 60 hz.
PERFORMANCE
HVI Sones Fan Speed Power
Static Pressure (inches of w.g.) @ .1 SP RPM Watts
0 0.05 0.1 0.125 0.25 0.375 0.5 0.625
Air Flow - CFM 126 123 120 118 110 101 92 81 4.0 1800 97
CUL/HVI
Acceptable for use over tub or shower when
installed in a GFCI protected branch circuit.
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: [phone] • 877-304-3785
Fax: [phone]
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: [phone]
Fax: [phone]
PROJECT
LOCATION
CONTRACTOR
ARCHITECT
ENGINEER
SUBMITTED BY DATE
FAN MODEL CFM IN RPM WATTS AMPS SONES QTY OPTIONAL EQUIPMENT
NUMBER NUMBER W.G. & REMARKS
57/8"
4"
9"
91/8"
11"
101/2"
