Aironet CHOPIN Installation and operation manual

INSTRUCTIONS FOR USING, MAINTAINING AND INSTALLING THE HOOD
EN
CHOPIN

INSTRUCTIONS FOR USING, MAINTAINING AND INSTALLING THE HOOD
ATTENTION: The hood must only be installed by a qualified technician.
The company accepts no liability if it is installed by an unauthorised person.
Please read these instructions carefully before beginning the installation. Conserve this handbook together with the hood
WARNINGS
Before cleaning or performing any periodic or urgent maintenance to the hood, ensure the power is turned off by removing the
plug from the socket and turning the main switch to 0 (off).
Do not connect the hood to any piping used for combustion appliances, such as burners, boilers or fireplaces.
Check that the main power supply corresponds to the voltage required by the hood, which is given on the silver label stuck inside
the hood.
Ensure that the electric system is correctly earthed and that the earth discharge works correctly.
When cooking do not use any materials that could form high or unusual flames.
Oil that has been used twice and fats are very dangerous and could easily catch fire.
Do not prepare flambè dishes.
Do not place any object on top of the appliance as this affect its functionally. Keep liquids and small objects away from the appli-
ance. Never use the extractor without the grease filter.
The appliance is not suitable to be operated by individuals (including children ) with diminished physical , sensory or mental capac-
ities or lacking the requisite experience or knowledge –unless they are supervised by a responsible guardian or receive instruc-
tions from a guardian on how to operate the appliance. Children should always be supervised to ensure that they do not play with
the appliance.
Respect local legislation and regulations issued by the relative authorities regarding the exhaust air when the suction is operating.
Failure to respect and perform all the maintenance operations described in this handbook could cause a fire hazard.
Text, images and specifications correspond to the status of the appliance at the date of print. The appliance is subject to changes
und further development.
INSTALLATION
The hood can be used for both filtering and suction.
When the filtering function is operating, i.e. with air recycle, carbon filters must be used (refer to the paragraph on CARBON
FILTERS).
When the suction function is operating, i.e. exhausting the filtered air on the outside, a suitable compensation system must be used
according to current standards in force. The diameter of the fume exhaust pipe must be the same or greater than the diameter of
the hood pipe union.
There must be sufficient ventilation in the room where the hood is installed, to allow the simultaneous use of other appliances that
use gas or other fuel.
ASSEMBLY INSTRUCTIONS
Attention: Before proceeding with the installation, make sure that the screws and the anchors already supplied, are
suitable for the type of wall the hood must be fixed to.

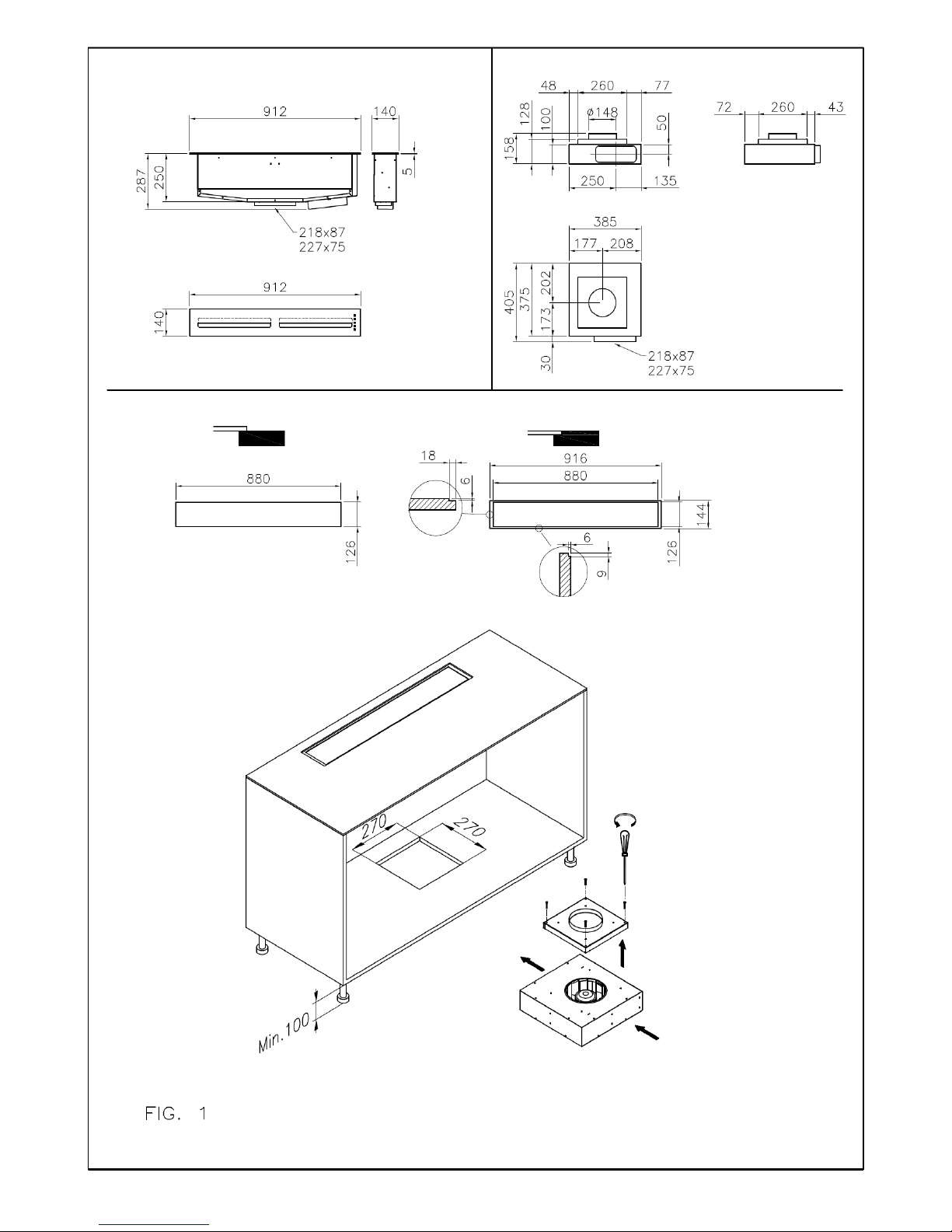

To assemble the hood use the accessories that are supplied and follow the instructions given in the enclosed handbook. (Fig. 1-2-3)
ELECTRIC WIRING
The electric wiring must be performed by a specialised electrician fully respecting current standards and legislation in force.
Check that the power supply corresponds to the voltage requested by the hood, which is given on the silver label stuck
inside the hood.

Connect the hood to the power supply using a bipolar switch with a minimum opening of 3 mm. The switch must be easy to reach
when the hood has been completely installed.
Ensure that the wiring system conforms to current standards and the earth discharge works efficiently.
Pay special attention to the hood power cable, ensure that it does not pass through any holes without a cable clamp.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to
avoid a hazard.
The manufacturer declines all responsibility if the current accident prevention standards in force are not respected,
which are needed for the wiring system to operate correctly
CONTROL
DIGITAL CONTROLS (Fig. 5)
In this version there are four soft touch buttons and a display
> One button for turning on at 2nd speed and for turning the motor off.
> Two buttons + and - for increasing and decreasing the motor speed.
> A TIMER button for turning the motor off after 10 minutes.
When the timer is activated, the number on the display flashes.
Special functions:
After 100 hours use, a 0 or a letter A will start flashing on the DISPLAY to remind the user to clean the metal filters.
After washing the metal filters, reset the hour meter by pressing the TIMER button for more than three seconds with the hood
turned off.
When the hour meter has been reset a dash appears on the display, with the hood turned off.
USE AND MAINTENANCE
Before beginning any sort of cleaning or maintenance work, turn power off to the hood by turning the main switch to 0
(OFF).
Cleaning the metal filters:
The metal filters fitted in the hood should be washed every month, depending on how much the hood is used, using hot water and a
liquid detergent that is not too aggressive.
The metal filters can be removed by the special handle,(Fig. 4)
Carbon filters
If the hood is used with an internal recycle filtering system, then active carbon filters must be used. (Fig. 6)
The active carbon in the filters traps the cooking smells.
Cleaning the hood
Regular cleaning of the surface areas saves the hassle of removing tougher stains later.
For the painted or copper plated hoods just use a soft cloth with warm water and a neutral detergent. Do not pour the detergent
directly onto the hood or use powdery or abrasive products
For the stainless steel hood, use special products and cloths for satin finish stainless steel (not abrasive, corrosive detergents or
detergents containing chloride), ensuring to clean in the same direction as the satin finish.
Do not use aggressive products, chemical solvents or derivatives of oil distillates that could leave oily traces which could cause
oxidation and polymerisation.
The manufacturer accepts no responsibility for damage to the surface of the hood due to failure to respect these in-
structions.

KT11 OPTIONAL
KIT SILENZIATORE OPTIONAL
KT12 OPTIONAL
KT1 OPTIONAL
KT1 OPTIONAL
KT6 OPTIONAL

OPTION 2
OPTION 1
OPTION 1

NOTE:
