AirTools Voice Processor 2x User manual

Voice Processor 2x
Quick Start Guide

6408 216th Street SW |Mountlake Terrace, WA 98043 USA
T+1.425.778.7728 F+1.425.778.7727 |www.SymetrixAudio.com 2
Quick Start Guide

3
Voice Processor 2x
GThe lightning flash with arrowhead
symbol within an equilateral triangle
is intended to alert the user of the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude
to constitute a risk of electric shock
to persons. The exclamation point
within an equilateral triangle is intended
to alert the user of the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product (i.e. this
Quick Start Guide).
GCAUTION: To prevent electric shock,
do not use the polarized plug supplied
with the unit with any extension cord,
receptacle, or other outlet unless the
prongs can be fully inserted.
GPower Source: This Symetrix
hardware uses a switching power
supply that automatically adjusts to the
applied voltage. Ensure that your AC
mains voltage is somewhere between
100-240 VAC, 50-60 Hz. Use only the
power cord and connector specified
for the product and your operating
locale. A protective ground connection,
by way of the grounding conductor in
the power cord, is essential for safe
operation. The appliance inlet and
coupler shall remain readily operable
once the apparatus has been installed.
GUser Serviceable Parts: There are
no user serviceable parts inside this
Symetrix product. In case of failure,
customers inside the U.S. should refer
all servicing to the Symetrix factory.
Customers outside the U.S. should
refer all servicing to an authorized
Symetrix distributor. Distributor contact
information is available online at:
http://www.SymetrixAudio.com.
AVIS:
NE PAS OUVRIR
Il ne se trouve a l’interieur aucune piece pourvant entre reparée l’usager.
SEE OWNERS MANUAL. VOIR CAHIER D’INSTRUCTIONS.
S’adresser a un reparateur compétent.
RISQUE DE CHOC ELECTRIQUE
No user serviceable parts inside. Refer servicing to qualified service personnel.
CAUTION
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
DO NOT OPEN
RISK OF ELECTRIC SHOCK
Important Safety
Instructions
!Read these instructions.
@Keep these instructions.
#Heed all warnings.
$Follow all instructions.
%Do not use this apparatus near water.
This apparatus shall not be exposed to
dripping or splashing and no objects
filled with liquids, such as vases, shall
be placed on the apparatus.
^Clean only with dry cloth.
&Do not block any ventilation openings.
Install only in accordance with the
manufacturer’s instructions.
*Do not install near any heat sources
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
(This apparatus shall be connected to
a mains socket outlet with a protective
earthing connection. Do not defeat
the safety purpose of the polarized or
grounding-type plug. A polarized plug
has two blades with one wider than the
other. A grounding type plug has two
blades and a third grounding prong.
The wide blade or the third prong are
provided for your safety. If the provided
plug does not fit into your outlet,
consult an electrician for replacement
of the obsolete outlet.
BL Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
BM Only use attachments/accessories
specified by the manufacturer.
BN Use only with the cart, stand,
tripod, bracket, or table
specified by the manufacturer,
or sold with the apparatus.
When a cart is used, use
caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
BO Unplug this apparatus during lightning
storms or when unused for long
periods of time.
BP Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in
any way, such as power-supply cord
or plug cord is damaged, liquid has
been spilled or objects have fallen into
the apparatus, the apparatus has been
exposed to rain or moisture, does not
operate normally, or has been dropped.
Safety
What Ships in the Box
• AVoiceProcessor2xhardwaredevice.
• AVoiceProcessor2xCD-ROM
(Windows).
• Adetachablepowercord.
• ThisQuickStartGuide.
What You Need to Provide
• AWindowsPCwith1GHzorhigher
processor and:
• WindowsXPorVista.
• 250MBfreestoragespace.
• 1024x768graphicscapability.
• 16-bitorhighercolors.
• CD-ROMdriveorInternetconnection.
• 512MBormoreofRAMasrequiredby
your operating system.
• Network(Ethernet)interface.
• CAT5cableoranexistingEthernet
network.
Getting Help
Voice Processor 2x, the Windows
application that controls the hardware,
includes a help module which acts as a
complete User’s Guide for both hardware
and software.
If you have questions beyond the scope
of this Quick Start Guide or the help
module, contact our Customer Support
Group in the following ways:
Tel: [phone]
8:00 am to 4:30 pm
Monday through Friday,
Pacific Time
Web: http://www.SymetrixAudio.com
This device complies with part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
ThisClassBDigitalapparatusmeets
all requirements of the Canadian
Interference-Causing Equipment
Regulations
Cet appariel numerique de la classe
BrespectetouteslesExigencesdu
Reglement sur le materiel brouilleur
du Canada.

6408 216th Street SW |Mountlake Terrace, WA 98043 USA
T+1.425.778.7728 F+1.425.778.7727 |www.SymetrixAudio.com 4
Quick Start Guide
Remote Warning
The RJ45 connectors labeled “REMOTE” are only for use with AirTools Multiband Processor 2m remotes.
DO NOT plug the REMOTE connectors on this product into any RJ45
connector labeled “ETHERNET”,“SYMLINK” or “COBRANET”. The “REMOTE”
RJ45 connectors on this product contain 24 VDC which can damage Ethernet, SymLink, CobraNet or
other circuitry utilizing an RJ45 connector.

5
Voice Processor 2x Introduction
Introduction
VoiceProcessor2x:Nextgenerationtwochannel
programmable Voice Processor for today’s broadcast
professional.
The microphone is a crucial link to the audience. Proper
management of that link is essential. Enter the AirTools Voice
Processor 2x, an outstanding programmable microphone
processor that is flexible, powerful, and easy to use.
Chief Engineers treasure its programmability and rich DSP
feature set. On-air talent enjoy its simplicity of operation.
Studio managers appreciate how it independently processes
two microphone channels in one rack space. And, most
importantly, everyone loves the sound – including the
listening audience.
The 2x offers a comprehensive set of voice enhancement
tools for any situation. The 2x’s Windows® software
application enables total control of all essential parameters.
Once a desired sound is dialed in, all settings are saved as
named presets for later recall from the front panel or remotely.
Any mic can be optimized for a diverse air staff with either
male or female voices.
Our Voice Processor legacy began with the original model
528,andhascontinuedthroughthe601,528E,628and
6200.Nowyoucanmaintainqualityassurancethroughout
your voice talent signal chains with the AirTools Voice
Processor 2x, Engineered by Symetrix. Our name has
become synonymous with high quality audio processing for
over 30 years.
Features
• Two(2)independentlyprogrammablechannelsofultra-low
latency digital microphone processing in one rack space.
• Two(2)Mic/Lineinputs,two(2)Mic/Lineoutputs,two(2)
AES3 outputs, Word Clock input.
• ProcessingmodulesincludeCompression,Equalization,
De-Essing,DownwardExpansion,HighpassandLowpass
filters, and Voice Symmetry.
• Congurenamedpresetsforeachon-airpersonality–
up to 50, including factory presets – using the included
Windows® software over Ethernet.
• Recallpresetswithconvenientfrontpanelcontrols,
optional hardware remote(s), or third-party control
protocol.

6408 216th Street SW |Mountlake Terrace, WA 98043 USA
T+1.425.778.7728 F+1.425.778.7727 |www.SymetrixAudio.com 6
Quick Start Guide
MechanicalandPerformanceData
Mechanical Data
ITEM DESCRIPTION DETAILS
Space Required 1U(WDH:48.02cmx23.11cmx4.37cm/18.91inx9.1
inx1.72in),depthisspecifiedfromfrontpaneltobackof
connectors.
Allow at least 3 inches additional clearance for rear panel con-
nections. Additional depth may be required depending upon your
specific wiring and connections.
Electrical 100-240 VAC, 50/60 Hz, 25 Watts maximum. Nolinevoltageswitchingrequired.
Ventilation
Maximumrecommendedambientoperatingtemperatureis
30C/86F.
Ensure that the left and right equipment sides are unobstructed
(5.08cm,2inminimumclearance).Theventilationshouldnotbe
impeded by covering the ventilation openings with items such as
newspapers, tablecloths, curtains, etc.
Weight 8lbs.(3.60kg)
Performance Data
ITEM DESCRIPTION DETAILS
INPUTS:
Nominal Input Level +4dBuor-10dBVlinelevel,to-50dBumiclevel
(softwareselectable)with20dBofheadroom
NOTE: For unbalanced analog input, either reference the minus input
terminal to the signal source ground (preferred) or ground the minus input
to the adjacent ground terminal (tie low to ground). Using the second
method deprives you of the common mode rejection inherent in a bal-
anced input, even when coming from an unbalanced source.
Maximum Input Level +23dBu
Input Impedance 6.67kΩbalanced,>3.3kΩunbalanced
CMRR >75dB@1kHz,unitygain
Mic Pre-amp EIN >-127dBu,22Hz-22kHz,100Ωsourceimpedance
Phantom Power +48VDC
A/D Conversion 24-bit delta/sigma
A/D Dynamic Range 116dB(A-Weighted)
A/D THD+Noise -102dB(un-weighted);1kHz@-2dBFSwith0dB
gain
A/D Latency 0.25 mS
OUTPUTS:
Nominal Output Level Analog:+4dBulinelevelwith20dBofheadroom
Digital:-20dBFS
NOTE: For unbalanced analog output, float (do not connect) the minus
outputterminal.Unbalancedusageresultsin6dBloweroutputlevel.
Maximum Output Level Analog:+24dBu
Digital:0dBFS
Output Impedance Analog:200Ωbalanced,100Ωunbalanced
Digital:110Ω
D/A Conversion 24-bit delta/sigma
D/A Dynamic Range 114dB(A-Weighted)
D/A THD+N -98dB(un-weighted);1kHz@-2dBFS
D/A Latency 0.2 mS
Mic Level Output Pad (Inter-
nal)
-42dB
SYSTEM
Nominal Sampling Rate 48kHz
Word Clock Input Range 22-192KHz
A/D/A Frequency Response 20Hz-20kHz,+/-0.25dB
A/D/A Dynamic Range 113dB(A-Weighted)
A/D/A Latency <0.7mS;withallDSPactive
Interchannel Crosstalk >-90dB@1kHz,typical

7
Voice Processor 2x Front and Rear Panel
FRONT PANEL
ITEM DESCRIPTION DETAILS
MENU / UP / DOWN Momentarypushbuttons Preset Recall
1. Press MENU while on the home screen to select a channel for preset recall. Use the
UP and DOWN buttons to choose CHANNEL 1 or CHANNEL 2 for preset recall.
2. Press MENU while on CHANNEL 1 or CHANNEL 2 to select that channel for preset
recall.
3. After selecting a channel for preset recall, use the UP and DOWN buttons to scroll
through presets available for recall onto that channel.
4. Press the MENU button to recall the selected preset.
5. Press MENU again to confirm recall, or use the UP/DOWNbuttonstochoose“No”
then press MENU to cancel the recall.
System Information
• PressandHoldMENUtoenterorexittheSystemInformationMenus.
Input / Output Meters Eight(8)segmentLEDladderme-
ters, one meter of eight segments
for each input and output
Illuminatesgreenuptoandincluding0dBu,amberbetween>0andupto+23dBu,and
redtoindicateclipping(>+23dBu)oneachinputandoutput.
Power GreenLED Illuminatestoindicatethedeviceispoweredon.Note:ThepowerLEDwillflashwhilethe
device is booting.
Network Bi-colorLED Illuminates green to indicate network (Ethernet) activity, amber to indicate acquisition of a
network address in DHCP mode.
REMOTE (LED) GreenLED Illuminates to indicate REMOTE port connection (front or rear REMOTE port).
REMOTE (Connector) RJ45 connector Distributes power and control data to a 2x Remote Control. Uses standard straight-
through UTP CAT5 cabling.
1
!
Warning! Refer to the Remote Warning for compatibility information.
REAR PANEL
ITEM DESCRIPTION DETAILS
Power Input IEC 3 prong jack Accepts power from detachable IEC power cable (100-240 VAC, 50-60 Hz, 25 Watts
max). Connect only to a grounded power outlet.
Remote RJ45 connector Distributes power and control data to a 2x Remote Control. Uses standard straight-
through UTP CAT5 cabling.
1
!
Warning! Refer to the Remote Warning for compatibility information.
RS-485 One (1) 3-pin Euroblock connector Reserved for factory use only.
Ethernet RJ45 connector Communications interface for the 2x application running on the host PC as well as 3rd
party control automation or scheduling systems. Uses standard straight-through UTP
CAT5 cabling. Features auto-crossover sensing for direct device-to-device connections.
AES3 Outputs Two(2)MaleXLRconnectors Each software selectable to carry Channel 1/2, 1/1, 2/1 or 2/2 information. Sample rate
softwareselectablebetween44.1or48kHz,orrateofWordClockInput.
Lock GreenLED Lightssolidtoindicateavalidwordclockconnectionbetween22and192kHz.
Term GreenLED Lightssolidtoindicatesoftware-selectablewordclockinputtermination.
Word Clock Input FemaleBNCconnector AcceptsTTLorCMOS-levelwordclocksignalsfrom22to192kHz.
Analog Outputs Two(2)MaleXLRconnectors Two (2) balanced analog line level audio outputs, individually software-selectable levels of
-10dBVor+4dBu.Micleveloutputmaybesetviainternaljumpers(lineleveldefault).
Analog Inputs Two(2)FemaleXLRconnectors Two (2) balanced analog audio inputs with individually software-selectable phantom power
andlevelof-50dBu,-40dBu,-20dBu,-10dBVor+4dBu.

6408 216th Street SW |Mountlake Terrace, WA 98043 USA
T+1.425.778.7728 F+1.425.778.7727 |www.SymetrixAudio.com 8
Quick Start Guide
Hardware Connections
POWER
Connect the IEC connector end of the supplied AC cord to the receptacle on the rear of the
2x. Connect the AC connector end of the supplied AC cord to an AC power source that is of
the correct voltage and frequency (100-240 VAC, 50-60 Hz). Use only the power cord and
connector specified for the product and your operating locale.
When the 2x is powered up correctly, the POWER LED on the front of the unit will be lit solid
green.
REMOTE
Using a standard straight-through CAT5 cable terminated with RJ45 connectors, connect
your 2x remote control to either the front panel or rear panel REMOTE port according to the
guidelines in your remote’s documentation.
When a remote is connected to the 2x, the REMOTE LED on the front of the unit will be lit
solid green.
CAUTION: DO NOT plug the REMOTE connectors on this product into any RJ45
connector labeled “ETHERNET”, “COBRALINK” or “SYMLINK”. Refer to the Remote Warning for compatibility
information.
RS-485
Reserved for factory use only.
Ethernet
Using a standard straight-through CAT5 cable terminated with RJ45 connectors, connect
the2x’sETHERNETporttoeitheryourcomputer’sEthernetportortoanexistingEthernet
network.YoumaywishtoreviewtheNetworkCongurationsectionformoreinformation.
Whenthe2xhasaphysicalnetworkconnection,theamber“link”LEDontheETHERNET
connector will be lit solid.
Whenthereisnetworkcommunication,thegreen“activity”LEDontheETHERNET connector and the NETWORK LED on
the front of the unit will flash accordingly.
NOTE: The 2x’s Ethernet port will automatically sense a device-to-device connection so that a standard straight-through
Ethernet cable may always be used. A cross-over cable is not required.
WORD CLOCK INPUT
Ifavailableanddesired,connectahouseWordClockfeedhereusing75ΩRG59orbetter
coaxialcableterminatedwithBNCconnectors.
Remember to set the Sync Source to Word in the System area of the application.

9
Voice Processor 2x Hardware Connections
AES3 OUTPUTS
Connect the AES OUTjackofyourchoicetoyourdownstreamequipment’sAESIN
jackusingastandard110ΩAEScableterminatedwiththeappropriateXLRjacks.
Each AES output can transmit a combination of channel 1 or channel 2’s content or
each channel’s content exclusively. Configure the AES Outputs’ Sources in the System
area of the application.
ANALOG OUTPUTS
Usingstandardmic/linecablesterminatedononeendwithfemaleXLRconnectorsand
appropriate connectors for your mic/line destination devices on the other end, connect
thefemaleXLRendsintotheANGLOG OUTPUTS of the 2x and the opposite ends into
yourdestinationdevice’sinputs.Theseoutputsare+4dBubalancedlineleveloutputs
by default. If you need an unbalanced output, see the analog audio wiring diagrams in
theAudioWiringReference.TheseoutputsmayalsobeswitchedtoMicLeveloutput.
FormoreinformationseeMicLevelOutputConversion.
NOTE: Wiring the outputs to an unbalanced cable will typically result in an output level
thatis6dBlowerthantheoutputlevelachievedusingabalancedcable.Ifwiringtoanunbalanceddestination,youmay
needtochangethe2x’soutputlevel.RefertotheAnalogLevelsettingwithintheOutputmoduleofthe2xsoftware.
ANALOG INPUTS
Usingstandardmic/linecablesterminatedononeendwithmaleXLRconnectorsand
appropriate connectors for your mic/line sources on the other end, connect the male
XLRendsintotheANGLOG INPUTS of the 2x and the opposite ends into your source
devices’ outputs. Refer to the Audio Wiring Reference for more information.
NOTE: Wiring the inputs to an unbalanced cable will typically result in an input level
thatis6dBlowerthantheinputlevelachievedusingabalancedcable.Ifwiringtoan
unbalancedsource,youmayneedtoadjustthe2x’sinputlevel.ToswitchbetweenMic
andLinelevelinput,refertotheInputmoduleofthe2xsoftware.

6408 216th Street SW |Mountlake Terrace, WA 98043 USA
T+1.425.778.7728 F+1.425.778.7727 |www.SymetrixAudio.com 10
Quick Start Guide
Signal Flow
Digi Trim
MIC/LINE 1
Digi Trim
Channel 1
Digi Trim
Ch.2
Ch.1
Mute
Mute
48v
MIC/LINE 2
48v
HPF/LPF
Bypass
Active
HPF/LPF
Noise
Generator
Bypass
Active
Bypass
Active
DeEsser/
Expander
Bypass
Active
DeEsser/
Expander
Bypass
Active
Channel 1
DSP Bypass
Bypass
Active
Bypass
Active
Noise
Generator
-40 dBu -50 dBu
-10 dBV
-20 dBu
+4 dBu
Inv.
Gain Set /
Inverter
-40 dBu -50 dBu
-10 dBV
-20 dBu
+4 dBu
Inv.
Gain Set /
Inverter
Channel 2
DSP Bypass
Compressor
Bypass
Active
Compressor
Bypass
Active
Equalizer
Bypass
Active
Equalizer
Bypass
Active
Bypass
Active
Equalizer Pre/Post Compressor Swap
Voice
Symmetry
Bypass
Active
Bypass
Active
Channel 1 DSP Channel 2 DSP
+4
-10
Analog Level
Channel 2
Digi Trim Analog
Output 2
+4
-10
Analog Level
Analog
Output 1
AES
Output 1
AES
Output 2
AES Output
Routing
Ch.2
Ch.1
Equalizer Pre/Post Compressor Swap
HOST PROCESSOR
EthernetWord ClockRemote
(Front Panel)
Remote
(Rear Panel)
DSP PROCESSOR
MIC/LINE 1
MIC/LINE 2 Analog
Output2
Analog
Output1
AES
Output1
AES
Output2
Left Channel
Right Channel
Voice
Symmetry

11
Voice Processor 2x MicOutputLevels
Mic Level Output
If you find it necessary to connect the 2x’s line level output(s)
to a microphone level input, you will need to sufficiently
attenuate the 2x’s outputs using internal jumpers.
WARNING!Lethalvoltagesarepresentinside
the chassis. Perform all service work with the unit
disconnected from all AC power.
CAUTION: These servicing instructions are for use by
qualified personnel only. To avoid electric shock, do not
perform any servicing other than that contained in the
operating instructions portion of this manual unless you
are qualified to do so. Refer all servicing to qualified service
personnel.
Tools Required
1. #2 Phillips-head screwdriver
Top Cover Removal
1. Ensure that the 2x is disconnected from the AC power
source.
2. Remove the 6-32 x 1/2 inch screw from the top panel.
3. Slide the top cover rearward and lift free of the chassis.
Changing the Output Level Jumpers
The 2x ships with the outputs configured for a line level
output. If you must have a microphone level output, the
following steps lead you through the process of switching
one or both line level outputs to microphone level (or back to
line level).
1. Remove the top cover according to the steps
outlined above.
2.LocatetheoutputleveljumpersdirectlybehindtheAnalog
Out jacks by referencing the diagram provided below.
3. To convert an output to mic level output, move the two
MICLEVELjumperstotheirrightmostpositionsandthe
two+4dBujumperstotheirleftmostpositions.
4. Replace the top cover.
5. Reinstall the 2x to your setup.

6408 216th Street SW |Mountlake Terrace, WA 98043 USA
T+1.425.778.7728 F+1.425.778.7727 |www.SymetrixAudio.com 12
Quick Start Guide
Wiring Reference
XLR Male Plug [balanced]
Pin 2
Pin 3
Pin 1
Pin 2 = (+) Plus
Pin 3 = (–) Minus
Pin 1 = Ground
XLR Female Plug [balanced]
Pin 2 = (+) Plus
Pin 3 = (–) Minus
Pin 1 = Ground
Pin 2
Pin 3
Pin 1
Terminal Strip [balanced] TRS 1/4" Plug [balanced]
Tip = (+) Plus
Ring = (–) Minus
Sleeve = Ground
Euroblock [balanced]
NOTE: Detachable Euroblock
and Terminal Strip connectors
are designed for use with bare
wire. Do not tin stranded wires
before inserting them into the
connectors.
Special Case: Female XLR
connectors will
ALWAYS be used coming
from the OUTPUT of a
device.
Male connecters plug into
the INPUT of a device.
Balanced Connections
Any of these connectors can appear on either side of
a balanced connection.
NOTE:InthecaseofanXLRconnector,theFemaleattaches
toanoutput,whiletheMaleattachestoaninput.
Unbalanced Connections
The RCA connector and the 1/4” TS connector are unbalanced connectors, wired with a single strand shielded wire and can
be placed on either end of an unbalanced connection
TS 1/4" Plug [unbalanced]
Tip = (+) Plus
Sleeve = (-) Minus and Ground
RCA Plug [unbalanced]
Sleeve = (-) Minus and Ground
Tip = (+) Plus
1
!
IMPORTANT NOTICE 1
!
The wiring diagrams on these pages are included for
information purposes only.
Symetrix can not anticipate every connector type on
non-Symetrix products. It is the user’s responsibility
to determine what connection is needed.
In addition, Symetrix accepts no responsibility for
injury or damage caused by user created wiring.

13
Voice Processor 2x Wiring Reference
Unbalanced Connections:
Unbalanced out to balanced in
The RCA connector and the 1/4” TS connector are
unbalanced connectors. However, the wiring differs
depending on if they are sending to, or receiving from a
balanced connector.
In this example, the unbalanced connector is sending signal
to a balanced connector. When wiring this connection,
use a shielded twisted pair cable. The balanced side wires
the same as a standard, balanced connection. On the
unbalanced side, you wire the white (minus) wire together
with the ground. This provides some common mode rejection
at the balanced input.
Unbalanced Connections:
Balanced out to unbalanced in
When your output requires a balanced connector, but you
are sending signal to an unbalanced input, the rules change.
Use a single strand shielded wire. Wire only to the plus and
ground terminals of what would the typically be the balanced
connector.
XLR Male Plug [balanced]
TS 1/4" Plug [unbalanced out to balanced in]
TRS 1/4" Plug [balanced]
Euroblock [balanced]
Tip = (+) Plus
Sleeve = (-) Minus and Ground
RCA Plug [unbalanced out to balanced in]
Sleeve = (-) Minus and Ground
Tip = (+) Plus
Terminal Strip [balanced]
TS 1/4" Plug [balanced out to unbalanced in]
Tip = (+) Plus
Sleeve = Ground
RCA Plug [balanced out to unbalanced in]
Sleeve = Ground
Tip = (+) Plus
Euroblock [unbalanced] Terminal Strip [unbalanced]
XLR Female Plug [unbalanced]
Pin 2 = (+) Plus
Pin 3 = Unused
Pin 1 = Ground
Pin 2
Pin 3
Pin 1
TRS 1/4" Plug [balanced] Tip = (+) Plus
Ring = Unused
Sleeve = Ground

6408 216th Street SW |Mountlake Terrace, WA 98043 USA
T+1.425.778.7728 F+1.425.778.7727 |www.SymetrixAudio.com 14
Quick Start Guide
2xNetworking
Network Configuration

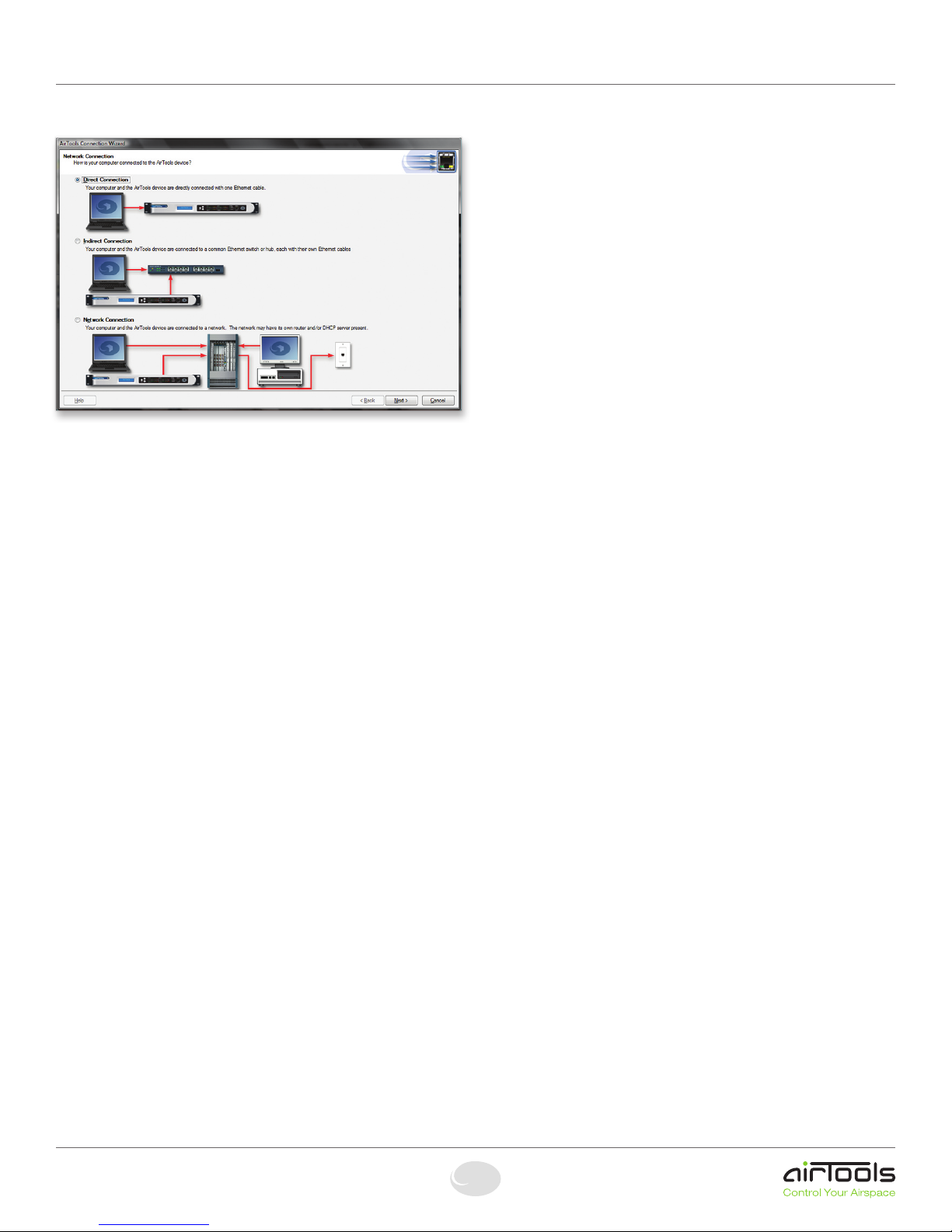

The 2x is setup and controlled by a host computer via
Ethernet. This requires the host computer to be connected
to the 2x directly via a standard CAT5 Ethernet cable,
indirectly via an Ethernet switch, or via an existing Ethernet
network.
The primary difference between the three methods of
connection is that in the first two, the 2x software application
assumes there is no DHCP server or other network
infrastructure in place. It assumes the 2x is using a self-
generated IP address and adjusts its connection steps
appropriately. In the third method, it is assumed that a
DHCP server and/or router with DHCP server are already
present on the existing network so the 2x may already have
obtained an IP address. Consult your network administrator
if in doubt.
General Notes
1. The 2x boots up with DHCP enabled by default. This
means that as soon as you connect it to a network, it will
look for a DHCP server in order to obtain an IP address.
If a DHCP server is present, the 2x will get its IP address
from it. This process may take several minutes. With your
PC attached to the same network and thus getting its IP
address from the same DHCP server, all will be ready to
go.
2. If your network does not have a DHCP server, the 2x
will not be able to obtain an IP address. While waiting,
the 2x will default to a private IP address in the range
of169.254.x.xwherex.xisthelastfouralphanumeric
charactersofthe2x’sMACaddress(MACaddresshex
value is converted to decimal for IP address). The 2x’s
MACaddresscanbefoundonastickeronthebottom
of the 2x or within the front panel System menu. When
there is no DHCP server present to assign IP addresses
to either the 2x or your PC, you may need to configure
yourPCwithastaticIPintherangeof169.254.x.xwith
aSubnetMaskof255.255.0.0inordertocommunicate
with the 2x in a direct connect mode. However, if your PC
is using the default network settings, it should also have
automatically self-assigned a similar private IP address
intherangeof169.254.x.x,andifthisisthecase,you
should be able to connect to the 2x directly. Even if the
PC’s default settings have been changed, the 2x will try
to establish communications by setting up appropriate
routingtableentriestoreachdeviceswith169.254.x.x
addresses.
3. In the case of the first two methods (direct connection
and indirect connection), the 2x software will attempt to
set-up appropriate routing table entries for a seamless
connection regardless of the IP addresses of your PC
and 2x. However, under Windows® Vista, administrative
privileges are required to allow the 2x software to modify
the routing table. For best results, launch the 2x software
while logged in as an administrator, or choose to run the
software as an administrator. Note: To run a program as
the Administrator under Vista, right click on the program’s
icon or shortcut and choose “Run as administrator”.
4. The 2x will display its current IP address, subnet
mask, and gateway as well as other useful information
onthefrontpaneldisplaywheninSystemMode.To
enterSystemMode,holddowntheMenubuttonfor5
seconds. Then the up and down arrow keys can be used
to move between various displays. This information may
be useful for troubleshooting.
Network configuration of the 2x:
Connecting to the 2x from a host computer on the
same LAN
Boththe2xandthehostcomputerrequirethefollowing
3 items:
1. IP Address - The unique address of a node on a network.
2.SubnetMask-CongurationthatdeneswhichIP
Addresses are included in a particular subnet.
3. Default Gateway (optional) - The IP address of a device
that routes traffic from one subnet to another. (This is only
needed when the PC and 2x are on different subnets).
If you are putting the 2x on an existing network, a network
administrator will be able to provide the above information or
it may have been provided automatically by a DHCP server.
For security reasons, it is not recommended to put the 2x
directly on the Internet. If you do, a network administrator
or your Internet Service Provider can provide the above
information.

15
Voice Processor 2x 2xNetworking
If you are on your own private network, directly or indirectly
connected to the 2x, you may allow the 2x to choose an
automatic IP address or you may choose to assign it a static
IP address. If you are building your own separate network
with static assigned addresses, you may consider using an
IP Address from one of the ”Private-Use” networks noted in
RFC-1918:
1.172.16.0.0/12=IPAddresses172.16.0.1through
172.31.254.254andaSubnetMaskof255.240.0.0
2.192.168.0.0/16=IPAddresses192.168.0.1through
192.168.254.254andaSubnetMaskof255.255.0.0
3.10.0.0.0/8=IPAddresses10.0.0.1through
10.254.254.254andaSubnetMaskof255.255.0.0
Connecting to the 2x through a Firewall/VPN
We have successfully tested control of a 2x through a firewall
andVPN,butareunabletoguaranteeperformanceofthese
types of connections at this time. Configuration instructions
arespecictoeachrewallandVPN,sospecicsarenot
available. Additionally, wireless communications are also not
guaranteed, though have also been successfully tested.
Configuring your computer for a network
connection: Windows®XP
1.Select“Start->ControlPanel”.
2.Openthe“NetworkConnections”ControlPanel.
3.Rightclickonyour“LocalAreaConnection”andselect
””Properties”.
4. Under “This connection uses the following items”, select
“Internet Protocol (TCP/IP)” and press “Properties”.
Router/Firewall
IP: 10.0.0.1
Switch
Host Computer & PC LAN
IP: 10.0.0.3
SM: 255.255.0.0
GW: 10.0.0.1
Voice Processor 2x
IP: 10.0.0.2
SM: 255.255.0.0
GW: 10.0.0.1
Ethernet
Ethernet
to Internet

6408 216th Street SW |Mountlake Terrace, WA 98043 USA
T+1.425.778.7728 F+1.425.778.7727 |www.SymetrixAudio.com 16
Quick Start Guide
5. On the “General” tab, you may select “Use the following
IP address” to enter in the appropriate information if using
staticassignedaddresses.(DNSserverisnotrequiredfor
connection to a 2x). Otherwise, leave set to “Obtain an IP
address automatically” if using DHCP.
6.PressOKtosaveand“Close”toexitoutofthe“Local
Area Connection Properties”.
Configuring your computer for a network
connection: Windows®Vista
1.Select“Start->ControlPanel”.
2.Select“NetworkandInternet”.
3.Openthe“NetworkandSharingCenter”.
4.Choose“Managenetworkconnections”ontheleft.
5. Right-click the desired connection and choose
“Properties”.
2xNetworking

17
Voice Processor 2x
6. Under “This connection uses the following items”, select
“Internet Protocol Version 4 (TCP/IPv4)” and press
“Properties”.
7.Onthe“General”tab,youmayselect“Usethefollowing
IPv4 address” to enter in the appropriate information
ifusingstaticassignedaddresses.(DNSserverisnot
required for connection to a 2x). Otherwise, leave set to
“Obtain an IPv4 address automatically” if using DHCP.
Press OK to close.
8.Repeatsteps6and7for“InternetProtocolVersion6
(TCP/IPv6)” if on an IPv6 network. Consult your IT staff if
you are unsure.
9.PressOKtosaveand“Close”toexitoutofthe“Local
Area Connection Properties”.
For more information about configuring the host computer,
visit http://www.microsoft.com.
Note: Typically, only Admins or users belonging to the
NetworkCongurationOperatorsgroupcanalternetworking
configurations in Windows Vista.
Once you have completed the setup of your network and
any network hardware/interfaces, you may install the 2x
software or launch the software if you have already installed
it, then run the Connection Wizard.
2xNetworking

6408 216th Street SW |Mountlake Terrace, WA 98043 USA
T+1.425.778.7728 F+1.425.778.7727 |www.SymetrixAudio.com 18
Quick Start Guide
Voice Processor 2x Software
Installation
The Voice Processor 2x software provides real-time set-up
and control from a Windows PC environment.
Use one of the following procedures to install the Voice
Processor 2x software on your computer.
FromtheCD-ROM:
1.InserttheCDintoyourcomputer’sCD-ROMdrive.
2.Open“MyComputer”.The“MyComputer”iconis
typically on your desktop or in the “Start” menu.
3.DoubleclickonyourCD-ROMdrive.Thisistypicallydrive
“D:\”.IfyourCD-ROMdriveisn’t“D:\”,thensubstituteits
drive letter.
4. Double-click “Setup.exe”.
From the Symetrix web site (http://www.SymetrixAudio.com):
1. Download the Voice Processor 2x software installer from
the Symetrix web site.
2. Double-click on the file you just downloaded and follow
the on screen directions to install.
The software always starts up in offline mode. Regardless,
you can explore the software, experiment to your heart’s
content, and perhaps even get useful work done. You can
save any device files that you create to your hard drive and
transfer them to hardware later.
After installing the software, browse the rest of the Help File,
or move on to the Connection Wizard to get connected to
your 2x.
Launch the software
You can launch the Voice Processor 2x software via either
theStartMenuortheDesktopicon.Oncelaunched,the
Voice Processor 2x software presents the following options:
YoumaychoosetocreateaNewFileusingthefactory
default settings.
If you choose to open an Existing File on Computer, a list
ofrecentlyusedlesispresented.ABrowsebuttonisalso
available to manually locate the file of your choosing from a
local drive or network share.
If you choose to open an Existing File on Device, a list of
recently connected-to devices is presented. An “Open
Connection Wizard” choice is also available in the event that
you are unsure of which device to connect to or your device
is not listed among the recently connected to devices.
After installing and launching the software and choosing your
operating mode above, you may browse the rest of the Help
File, or move on to the Connection Wizard to get connected
to your 2x.
Connection Wizard
Once you have completed the Hardware Connections and
connectedyournetwork(refertoNetworkConguration),
you may open the 2x Application and run the Connection
Wizard.
The Connection Wizard can be run by clicking on its icon in
the toolbar...
...or from the Tools menu:
SoftwareInstallation•ConnectionWizard

19
Voice Processor 2x
The Connection Wizard opens with the following screen:
Select the option that best represents your network
topologyandthenclicktheNextbutton.(RefertoNetwork
Configuration for further help.)
IntheeventthatyourcomputerhasmultipleNetwork
InterfacesCards(NICs),thefollowingscreenwillallowyouto
selectthenetworkyouwishtosearchfor2xdevices.Note
thatonlyvalidNICswillbeselectable(thosewithanetwork
connection and valid IP address).
SelecttheNICyouwishtouseandthenclicktheNext
button.
The following screen displays a list of 2x devices found on
your network. At the very least, you can select the device
youwishtoconnecttoandclicktheNextbutton.However,
there are a few more functions on this screen worth
mentioning...
Properties:
The (device) Properties dialog allows you to give a device a
unique name to help identify it. It also allows you to switch
the unit between dynamic (DHCP) IP addressing and static
IP addressing.
Flash Device:
ClickingtheFlashDevicebuttonwillcauseallLEDsonthe
front of the device to flash for a short time. This can be
helpful to distinguish units which have the same or similar
names.
Upgrade Firmware:
The 2x Firmware must be matched with the version of the
Room Combine Application you are using. The correct
firmware for the Application is always distributed with
the Application and installed on your hard drive by the
Application’s installer. If there is ever any doubt, follow the
instructions in the Upgrade Firmware topic to check your
firmware version or to upgrade the firmware.
Connection Wizard

6408 216th Street SW |Mountlake Terrace, WA 98043 USA
T+1.425.778.7728 F+1.425.778.7727 |www.SymetrixAudio.com 20
Quick Start Guide
Connection Wizard
Refresh List:
ClickingtheRefreshListbuttonwillre-scanthenetworkfor
devices and refresh the list of devices. If at first your device
is not located, double-check network connections and that
thedevice(s)is/arepoweredon.ThenclicktheRefreshList
button.
Advanced:
The Advanced dialog will allow you to broaden your network
search for devices allowing you to manually designate a
Search IP address base and Search subnet mask. These
options can be used to search a network for devices
(through a router) other than the one your computer is
currently on.
General Notes:
1. The 2x boots up with DHCP enabled by default. This
means that as soon as you connect it to a network, it will
look for a DHCP server in order to obtain an IP address.
If a DHCP server is present, the 2x will get its IP address
from it. This process may take several minutes. With your
PC attached to the same network and thus getting its IP
address from the same DHCP server, all will be ready to
go.
2. If your network does not have a DHCP server, the 2x
will not be able to obtain an IP address. While waiting,
the 2x will default to a private IP address in the range
of169.254.x.xwherex.xisthelastfouralphanumeric
charactersofthe2x’sMACaddress(MACaddresshex
value is converted to decimal for IP address). The 2x’s
MACaddresscanbefoundonastickeronthebottom
of the 2x. When there is no DHCP server present to
assign IP addresses to either the 2x or your PC, you may
need to configure your PC with a static IP in the range
of169.254.x.xwithaSubnetMaskof255.255.0.0in
order to communicate with the 2x in a direct connect
mode. However, if your PC is using the default network
settings, it should also have automatically self-assigned
asimilarprivateIPaddressintherangeof169.254.x.x,
and if this is the case, you should be able to connect to
the 2x directly. Even if the PC’s default settings have been
changed, the 2x will try to establish communications
by setting up appropriate routing table entries to reach
deviceswith169.254.x.xaddresses.
3. In the case of the first two methods (direct connection
and indirect connection), the 2x software will attempt to
set-up appropriate routing table entries for a seamless
connection regardless of the IP addresses of your PC
and 2x. However, under Windows® Vista, administrative
privileges are required to allow the 2x software to modify
the routing table. For best results, launch the 2x software
while logged in as an administrator, or run choose to
run the software as an administrator. Note: To run a
program as the Administrator under Vista, right click
on the program’s icon or shortcut and choose “Run as
administrator”.
4. The 2x will display its current IP address, subnet mask,
and gateway as well as other useful information on the
front panel display when in Status mode. To enter Status
mode,holddowntheMenubuttonfor5seconds.Then
the up and down arrow keys can be used to move
between various displays. This information may be useful
for troubleshooting.
UponclickingtheNextbutton,youarenishedwiththe
Connection Wizard. A summary of your actions appears on
the following screen.
Click the Finish button to exit the Connection Wizard. You
are now ready to Go Online.
