AIS Aloft 120 User manual

Aloft 120 - 2019
www.ais-inc.com P-INSALOFT120V2 Revision 03.07.2019 1
***READ ALL INSTRUCTIONS BEFORE USING***
•For commercial use only.
•Warning: Risk of Injury –Maximum load 275 lbs. 2 leg, 325 lbs. 3 leg
•Electrical rating: 120V, 60Hz, 16 AMP
•No more than 12 furnishings can be connected on one branch circuit.
IMPORTANT SAFETY INSTRUCTIONS
DANGER –To reduce risk of electric shock:
•Always unplug furnishing from the electrical out let before cleaning.
WARNING –To reduce the risk of burns, fire, electric shock, or injury to persons:
•Unplug from outlet before putting on or taking off parts.
•Close supervision is necessary when this furnishing is used by, or near children, invalids
or disabled persons.
•Use this furnishing only for its intended use as described in these instructions. Do not
use attachments not recommended by the manufacturer.
•Never operate this furnishing if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water.
•Keep the cord away from heated surfaces.
•Never operate the furnishing with the air openings blocked. Keep the air openings free of
lint, hair and the like.
•Do not use outdoors.
•To disconnect, turn all controls to the off position, then remove plug from outlet.
•Connect to a properly grounded outlet only. See grounding instructions.
•For loading always put heavier items at the bottom and not near the top in order to help
prevent the possibility of the furnishing tipping over.

Aloft 120 - 2019
www.ais-inc.com 2
P-INSALOFT120V2 Revision 03.07.2019

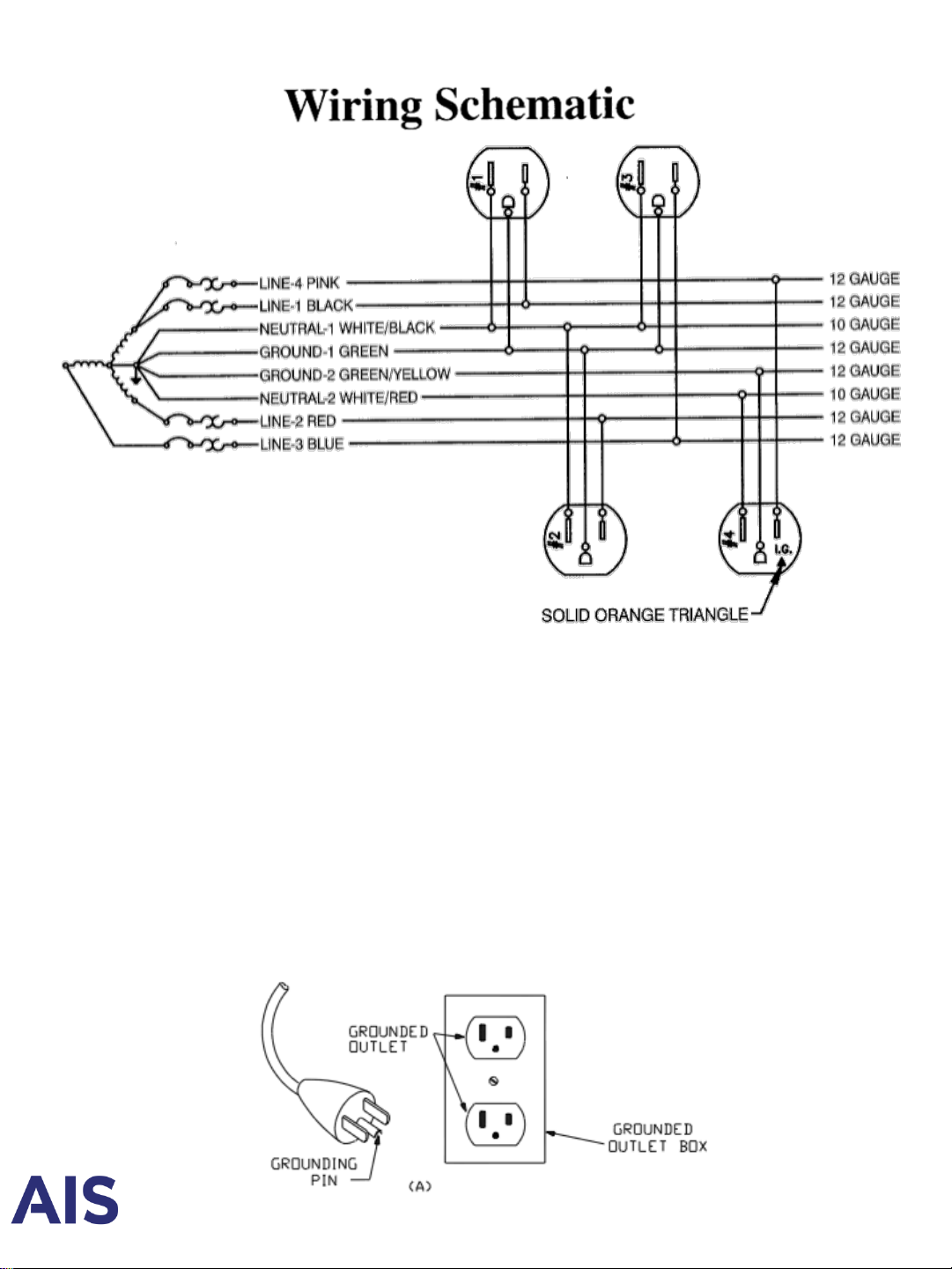

GROUNDING INSTRUCTIONS
This product is for use on a circuit having a nominal rating more than 120 volts and is
factory-equipped with specific electric plug to permit connection to a proper electric circuit.
Make sure that the product is connected to an outlet having the same configuration as the
plug. No adapter should be used with this product
2

Aloft 120 - 2019
www.ais-inc.com
Hardware List
Flat head wood screw #9 x 7/8 long with #2 Phillips drive, silver
Used to attach surfaces and end panels
Hex cap machine screw ¼-20 x 5/16” long with 3/16” hex drive, black
Used on leg assembly and rail assemblies
Hex cap machine screw ¼-20 x 5/8” long with 3/16” hex drive, black
Used on spine beam mounts and cable tray
Hex set screw 3/8-16 x 1/2” long with 3/16” hex drive, black
Used on rail mount and spine beam mounts
Hex set screw ¼-28 x 1/4” long with 1/8” hex drive, silver
Used on spine screens
Pan head machine screw 10-24 x 5/8” long thread cutting tip with #2 Phillips
drive, silver. Used to attach outlets.
Pan head machine screw 8-32 x 3/8” long thread rolling tip with #2 Phillips
drive, silver. Used to assemble electrical covers.
Pan head machine screw 10-32 x 1/2” long with #2 Phillips drive, silver.
Used on spine screens to attach base support brackets.
Flat head machine screw 10-32 x 1/2” long with #2 Phillips drive, silver.
Used on territory screens to attach base support brackets.
Pan head machine screw 8-32 x 1/4” long with #2 Phillips drive, silver.
Used with acorn nuts to attach powerpole.
Acorn nut 8-32 x 5/16” long, silver.
Used with 8-32 x ¼” long screws to attach powerpole.
Pan head drill point sheet metal screw #8 x 3/8ths” long with #2 Phillips
drive, silver. Used to attach Side Mount screens to hanging brackets
and endcap worksurface cantilevers to legs.
Flat head sheet metal screw #8 x 2” long with #2 Phillips
drive, silver. Used to mount Endcap Hutch to base.
Flat head sheet metal screw #10 x 3/4” long with #2 Phillips
drive, silver. Used to mount items to laminate storage cabinets.
P-INSALOFT120V2 Revision 03.07.2019 3

Aloft 120 - 2019
www.ais-inc.com
Revision Log
Date
Page
No.
Description of change
Name
2/11/19
1
-49
Released
S. Powers
3/7/19
49
-54
Added modesty and end panel instructions
S. Powers
P-INSALOFT120V2 Revision 03.07.2019 4

Aloft 120 - 2019
www.ais-inc.com
Fixed Height Assembly
P-INSALOFT120V2 Revision 03.07.2019 5
Note:
Installation instructions for Fixed Height Leg and
Motorized Leg are the same. Images on the
following pages are showing installation of a
Motorized Leg.
Fixed Height Leg
Motorized Leg

Aloft 120 - 2019
www.ais-inc.com
Single Bench Base Assembly
Partially insert 3/8-16 x ½
inch long set screws into
tapped holes on
Compression Collar
Make sure set screw tips
DO NOT protrude past
inside wall of collars.
Set screws face in
for end legs.
Motorized, Crank or Fixed
Height Leg
(right leg shown)
Set screws face out for
center leg
Motor housing
cords face up
Slide compression collar
over base column to top,
set screws facing as
shown. Be careful not to
scratch base columns.
P-INSALOFT120V2 Revision 03.07.2019 6
Right leg
Left leg

Aloft 120 - 2019
www.ais-inc.com
Insert Elevator Bolt 3/8-
16 x 1.5 zinc plated, 2
places
Bolt single foot to columns
using 4 button head hex
socket
M6X1X 14mm
End Leg
(left shown)
Center Leg End Foot
Center Foot
Single Bench Base Assembly
P-INSALOFT120V2 Revision 03.07.2019 7
Right Leg
Center Leg
Left Leg
Assemble feet to columns so that set screws in the collar are facing as shown

Aloft 120 - 2019
www.ais-inc.com P-INSALOFT120V2 Revision 03.07.2019 8

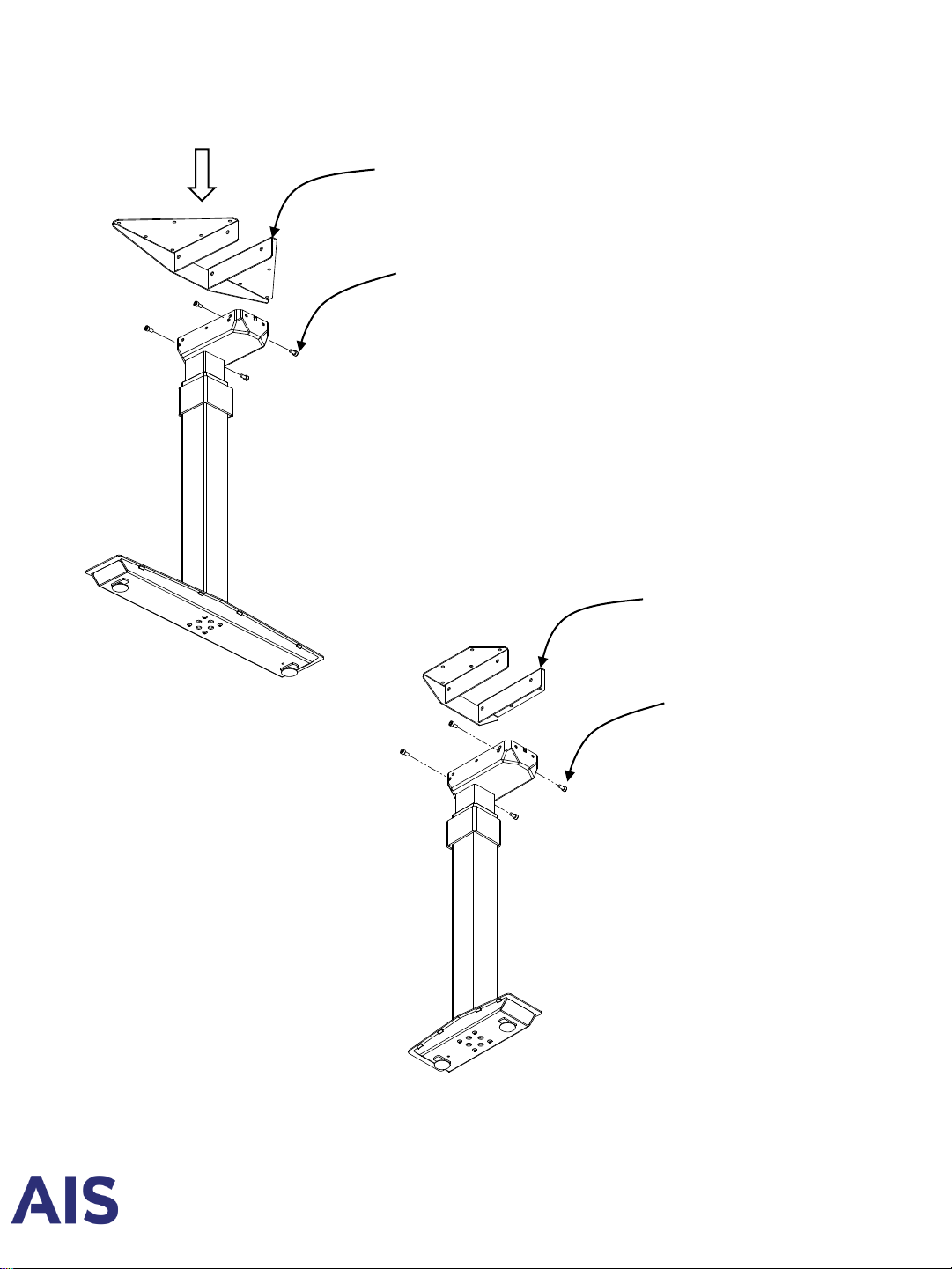

METRIC
M6 X 1 X 14mm
Black for dark colors,
Silver for light colors,
4 places, Tighten fully
End Cantilever
Single Bench Base Assembly
METRIC
M6 X 1 X 14mm
Black for dark colors,
Silver for light colors,
4 places, Tighten fully
Center Cantilever

Aloft 120 - 2019
www.ais-inc.com

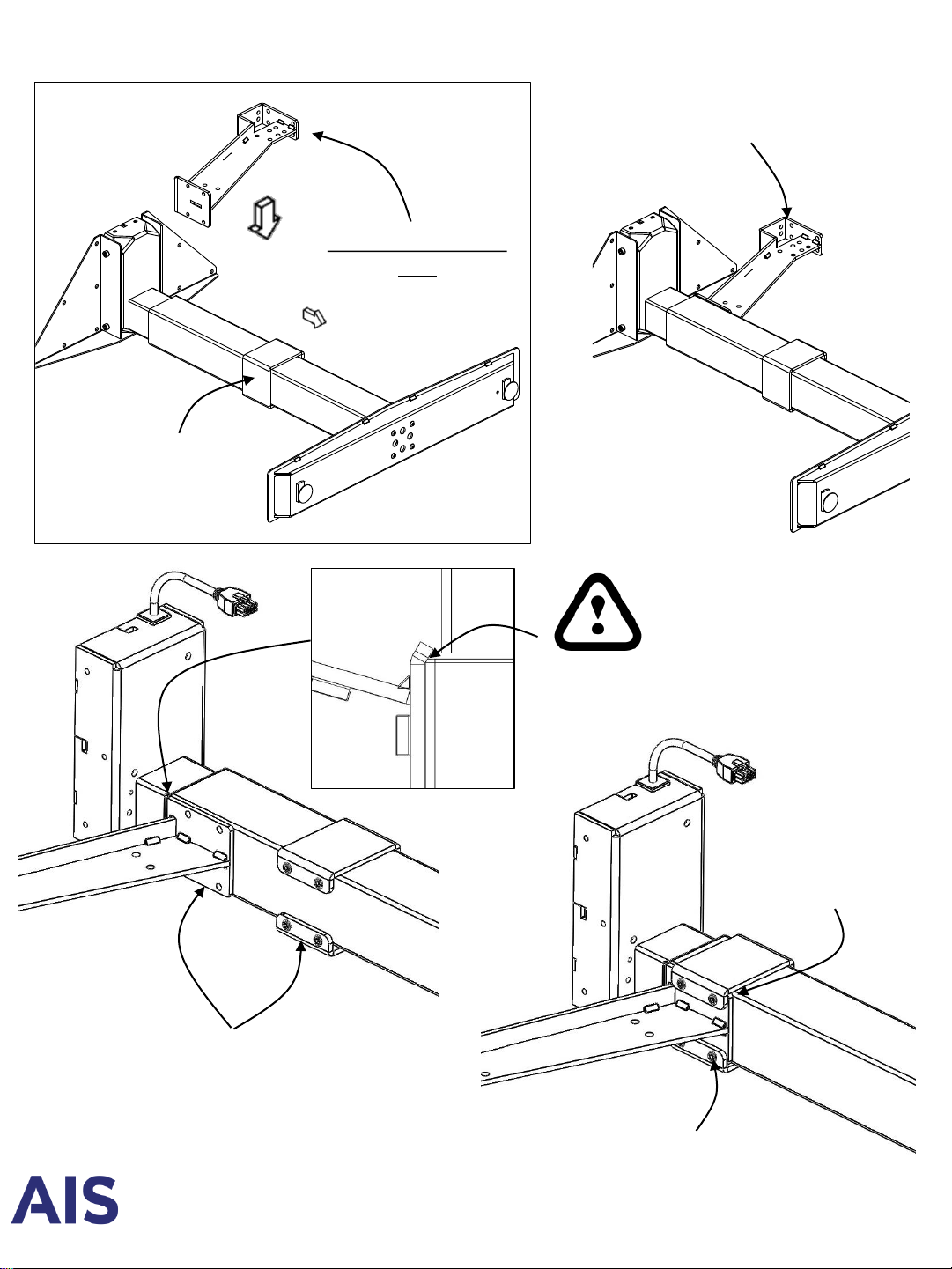

Single Bench Base - End Legs
Tighten set screws on
both columns clamping
arm to columns.
Be sure angled lip on spine
beam arm assembly rests
on outer column top
Slide collar over arm
plate and align set
screws in collar with
alignment holes in
plate.
Bottom of collar
should be flush
with bottom of
arm plate
P-INSALOFT120V2 Revision 03.07.2019 9
Slide collar down
Single Spine Beam
Arm
Position arm assembly
down onto column.

Aloft 120 - 2019
www.ais-inc.com
Single/Double/Triple Bench
Center Leg
Slide collar down
Center Spine Beam
Arm
Position arm assembly
down onto column.
Be sure angled lip on spine
beam arm assembly rests
on outer column top
Slide collar over arm
plate and align set
screws in collar with
alignment holes in
plate.
Tighten set screws,
clamping arm to
columns.
Bottom of collar
should be flush
with bottom of
arm plate
P-INSALOFT120V2 Revision 03.07.2019 10

Aloft 120 - 2019
www.ais-inc.com

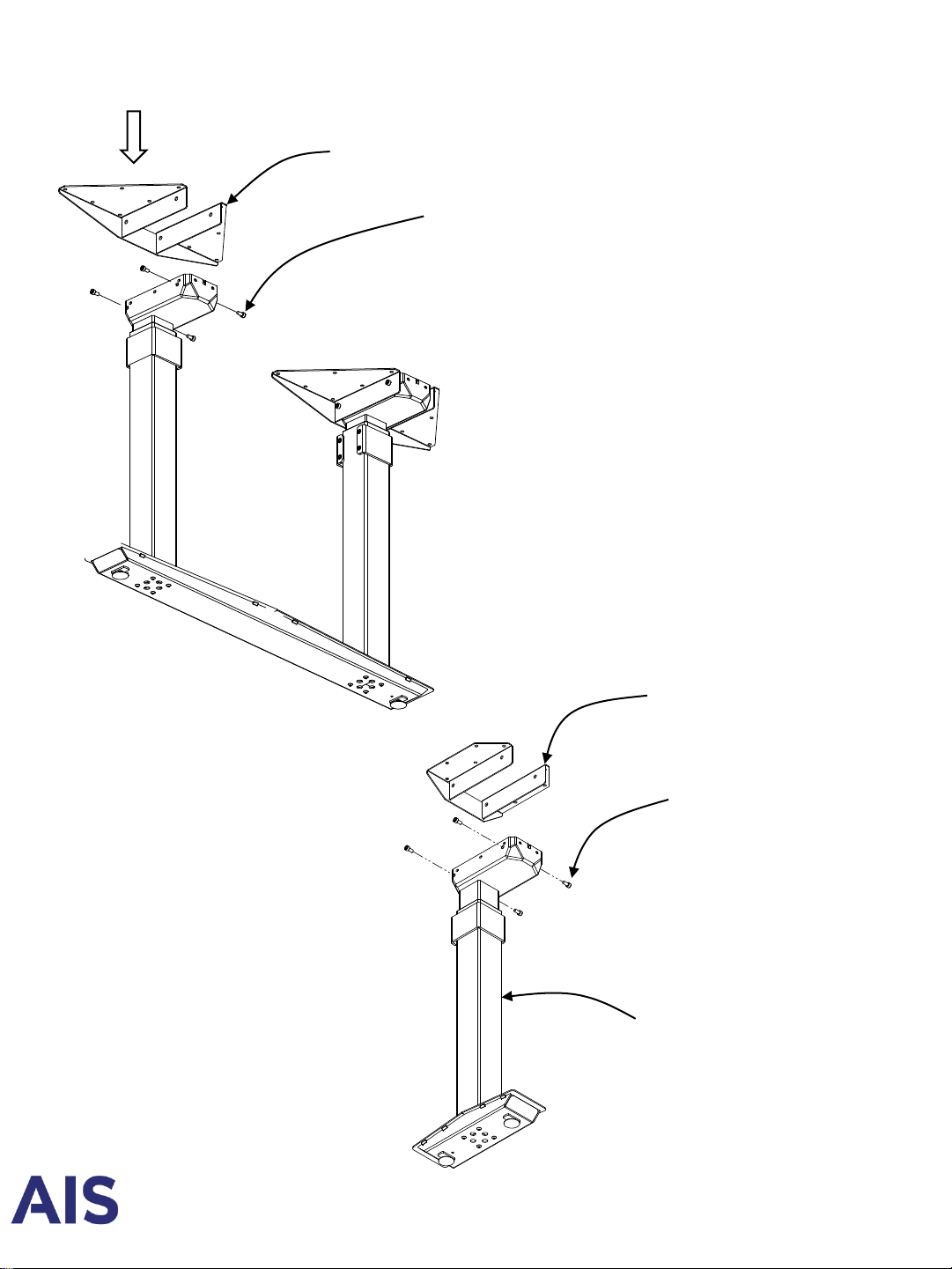

Double/Triple Bench
Base Assembly
Partially insert 3/8-16 x ½
inch long set screws into
tapped holes on
Compression Collar
Make sure set screw tips
DO NOT protrude past
inside wall of collars.
Slide compression collars
over base columns to top,
set screws facing as
shown. Be careful not to
scratch base columns.
Set
screws
face in
Motor
housing
cords
face up
Motorized, Crank or Fixed
Height Leg
P-INSALOFT120V2 Revision 03.07.2019 11

Aloft 120 - 2019
www.ais-inc.com
Double/Triple Bench
Base Assembly
P-INSALOFT120V2 Revision 03.07.2019 12
Insert Elevator Bolt 3/8-
16 x 1.5 zinc plated, 2
places
Bolt double foot to
base columns using
M6 X 1 X 10mm
4 places
Set screws
face in

Aloft 120 - 2019
www.ais-inc.com P-INSALOFT120V2 Revision 03.07.2019 13
Double/Triple Bench
Base Assembly
End Cantilever
METRIC
M6 X 1 X 14mm
Black for dark colors,
Silver for light colors,
4 places, Tighten fully
Center Cantilever
METRIC
M6 X 1 X 14mm
Black for dark colors,
Silver for light colors,
4 places, Tighten fully
Note:
Center leg assembly
same as single bench

Aloft 120 - 2019
www.ais-inc.com
Double/Triple Bench Base Assembly
Be sure angled lip on spine
beam arm assembly rests
on outer column top on
both columns
Slide collar over arm
plate and align set
screws in collar with
alignment holes in
plate.
Bottom of collar
should be flush
with bottom of
arm plate
P-INSALOFT120V2 Revision 03.07.2019 14
Slide collars down
Slide arm assembly
down in between columns.
Double Bench Arm

Aloft 120 - 2019
www.ais-inc.com
Outlet & Powerway Cover
Installation
36w –96w Powered Spine Beam Assembly
(Shown on floor upside down)
10-24 x 5/8” Pan Head
Machine Screw with thread
cutting tip, 1 per outlet in
bottom hole
Outlet port locations
Outlet port locations
Insert numbered outlets
per plan, engaging left or
right as shown. Then
screw outlets to powerway
to secure.
Note: Overlap flanges
such that small holes
are “behind” big holes.
Pan head machine screw
8-32 x 3/8” long thread
rolling tip
8 places
15
P-INSALOFT120V2 Revision 03.07.2019

Aloft 120 - 2019
www.ais-inc.com
Wire Basket Installation
¼-20 x 5/8”L hex cap
screw
4 places. Tighten fully.
Center wire basket left to
right on spine beam.
Twist plate
36w - 96w spine
beam assembly
16
P-INSALOFT120V2 Revision 03.07.2019

Aloft 120 - 2019
www.ais-inc.com
Single Bench Spine Beam Assembly
Twist plate
P-INSALOFT120V2 Revision 03.07.2019 17
Hex cap screw
¼-20 x 5/8” long
3/16” hex drive
black, x4
1 1/2”
Center Leg
Left Leg
Spine Beam

Aloft 120 - 2019
www.ais-inc.com P-INSALOFT120V2 Revision 03.07.2019 18
Bracket Hex cap machine screw
¼-20 x 5/8” long with
3/16” hex drive, black
2 places
DO NOT FULLY TIGHTEN
Twist plate
Single Bench Spine Beam Assembly

Aloft 120 - 2019
www.ais-inc.com P-INSALOFT120V2 Revision 03.07.2019 19
Hex cap screw
¼-20 x 5/8” long
3/16” hex drive
black, x2
DO NOT FULLY
TIGHTEN
Right Leg
Spine Beam
1 1/2”
Twist plate
Hex cap screw
¼-20 x 5/8” long
3/16” hex drive
black, x2
Single Bench Spine Beam Assembly
5/16” Gap

Aloft 120 - 2019
www.ais-inc.com

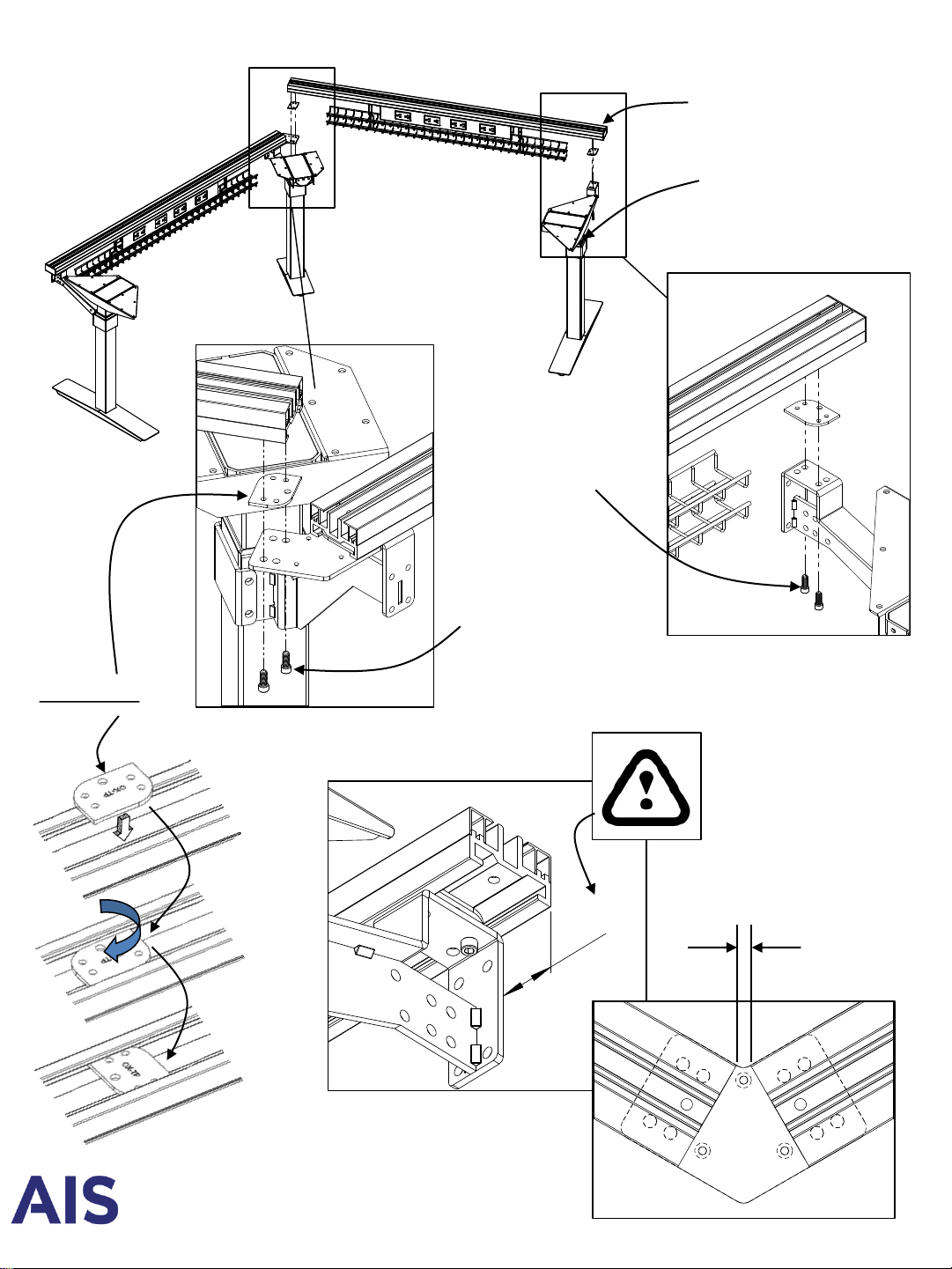

Spine Beam
Double Bench - Spine Beam Assembly
Twist plate
P-INSALOFT120V2 Revision 03.07.2019 20
Hex cap screw
¼-20 x 5/8” long
3/16” hex drive
black, x8
1 1/2”
Center Leg
Left Leg Double Leg
