Aiwa Azg-3 User manual

CD DVD VCD MECHANISM

AZG-3

S/M Code No. 09-99C-337-7N2

English

SERVICE MANUAL

TYPE

S2RD

S2RDJ

BASIC MECHANISM:KSM-210AAA

TABLE OF CONTENTS

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING/

Precaution to replace Optical block......................................................................................................... 3

How to Adjust the Rotating Phase of the Gear, Main Cam..................................................................... 4

TRANSISTOR ILLUSTRATION .............................................................................................................. 4

ELECTRICAL MAIN PARTS LIST ....................................................................................................... 5-8

BLOCK DIAGRAM-1 (DVD VIDEO AMP/MECHA CONTROL) ........................................................ 9, 10

BLOCK DIAGRAM-2 (RF AMP/CS DSP/DVD DSP)....................................................................... 11, 12

BLOCK DIAGRAM-3 (CS DSP/A/D CONVERTER)........................................................................ 13, 14

WIRING-1 (DVD REAR/T-T/EXTENSION) ..................................................................................... 15, 16

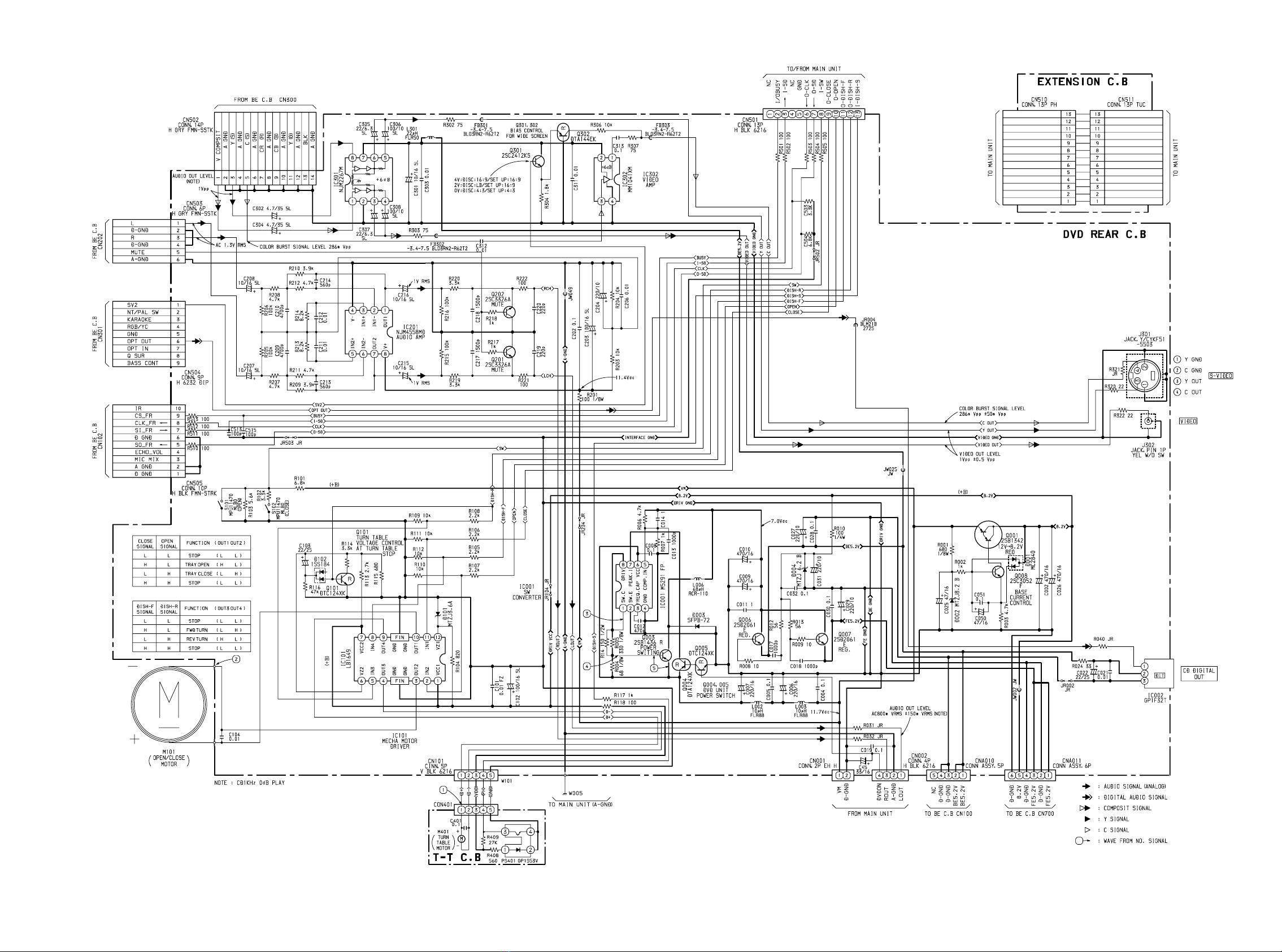

SCHEMATIC DIAGRAM-1 (DVD REAR/T-T/EXTENSION)............................................................ 17, 18

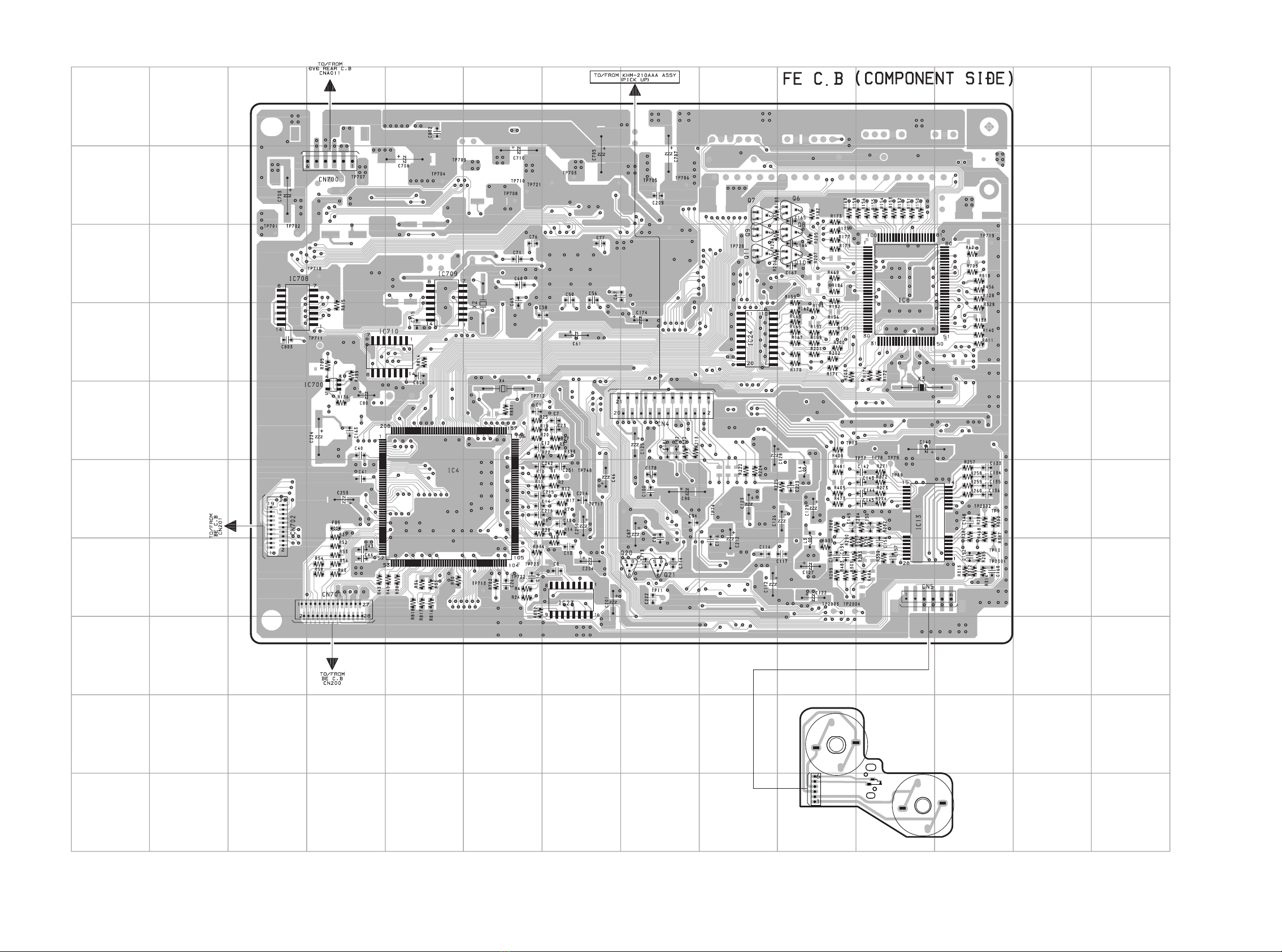

WIRING-2 (FE: COMPONENT SIDE)............................................................................................. 19, 20

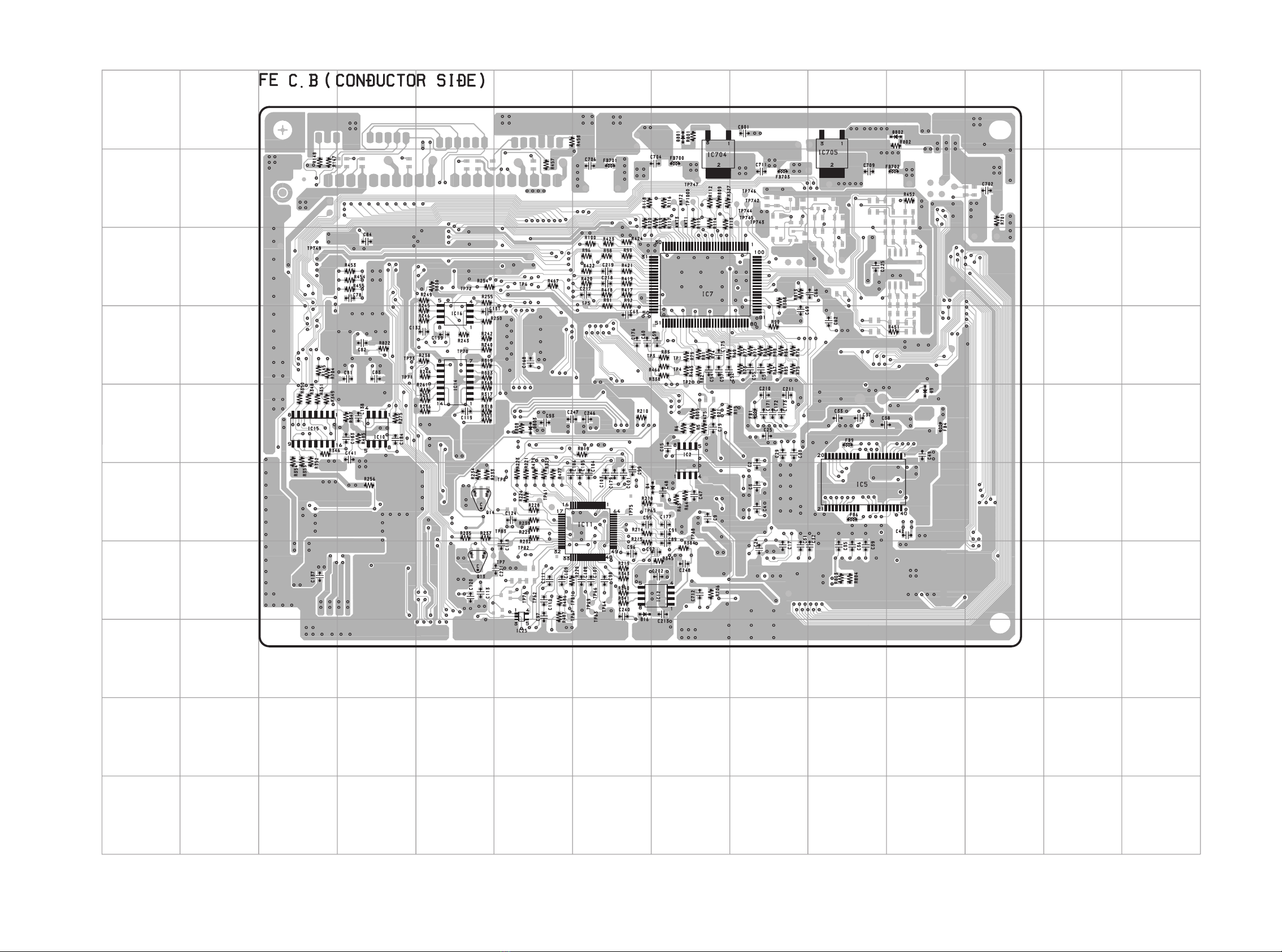

WIRING-3 (FE: CONDUCTOR SIDE)............................................................................................. 21, 22

SCHEMATIC DIAGRAM-2 (FE 1/4)................................................................................................ 23, 24

SCHEMATIC DIAGRAM-3 (FE 2/4)................................................................................................ 25, 26

SCHEMATIC DIAGRAM-4 (FE 3/4)................................................................................................ 27, 28

SCHEMATIC DIAGRAM-5 (FE 4/4)................................................................................................ 29, 30

WIRING-4 (BE: COMPONENT SIDE)............................................................................................. 31, 32

WIRING-5 (BE: CONDUCTOR SIDE)............................................................................................. 33, 34

SCHEMATIC DIAGRAM-6 (BE 1/3)................................................................................................ 35, 36

SCHEMATIC DIAGRAM-7 (BE 2/3)................................................................................................ 37, 38

SCHEMATIC DIAGRAM-8 (BE 3/3)................................................................................................ 39, 40

WAVE FORM ................................................................................................................................... 41-44

TEST MODE ......................................................................................................................................... 45

IC DESCRIPTION............................................................................................................................ 46-67

IC BLOCK DIAGRAM....................................................................................................................... 68-71

MECHANICAL PARTS LIST 1/1 ........................................................................................................... 72

MECHANICAL EXPLODED VIEW 1/1............................................................................................ 73, 74

CD MECHANISM EXPLODED VIEW 1/1 (KHM-210AAA) ................................................................... 75

CD MECHANISM PARTS LIST 1/1 (KHM-210AAA)............................................................................. 75

PICK-UP Assy P.C.B

Solder

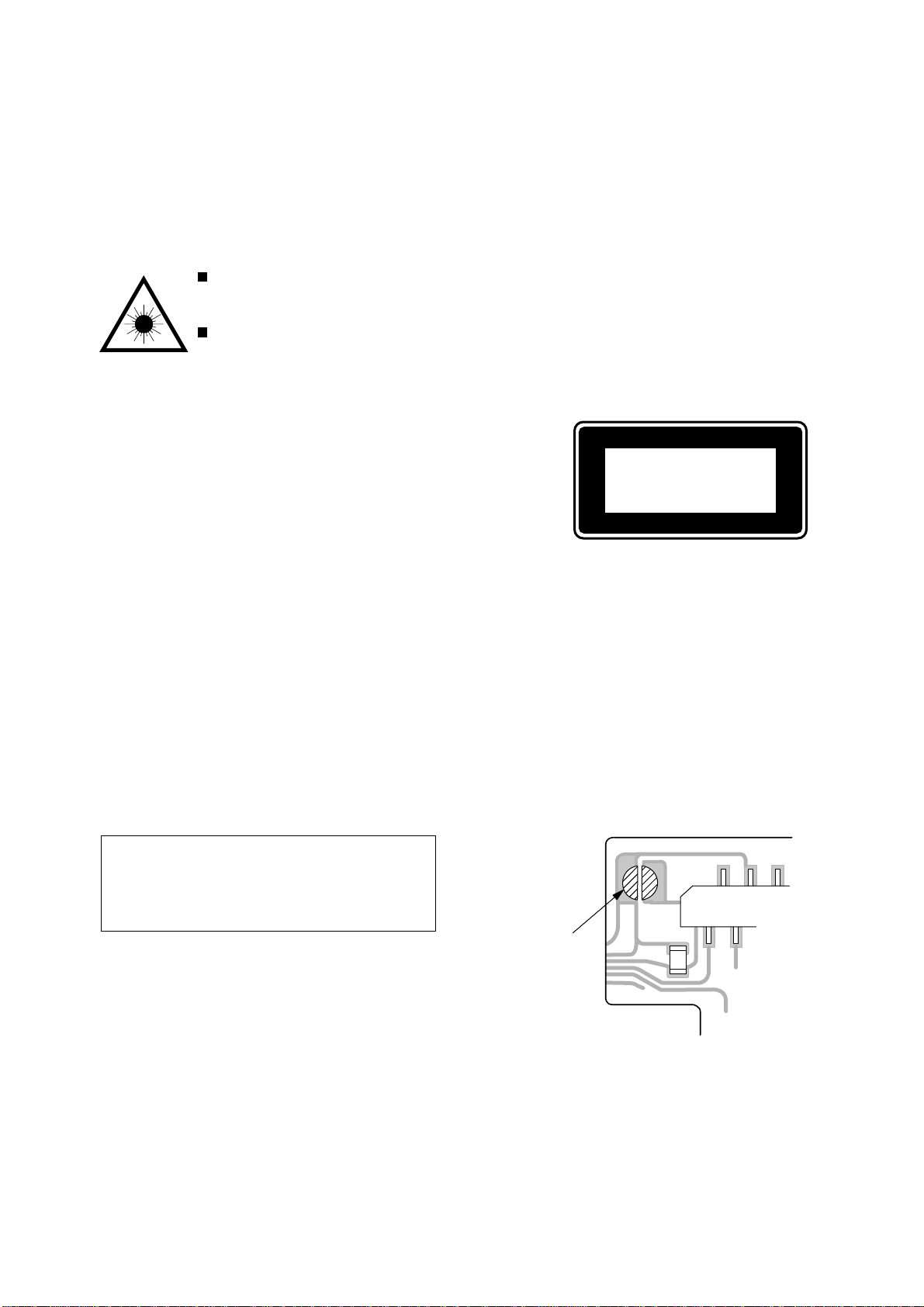

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

VAROITUS!

Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-

ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-

tävälle näkymättömälle lasersäteilylle.

VARNING!

Om apparaten används på annat sätt än vad som specificeras i

denna bruksanvising, kan användaren utsättas för osynling

laserstrålning, som överskrider gränsen för laserklass 1.

Caution: Invisible laser radiation when

open and interlocks defeated avoid expo-

sure to beam.

Advarsel:Usynling laserståling ved åbning,

når sikkerhedsafbrydere er ude af funktion.

Undgå udsættelse for stråling.

CAUTION

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous

radiation exposure.

ATTENTION

L'utilisation de commandes, réglages ou procédures autres que

ceux spécifiés peut entraîner une dangereuse exposition aux

radiations.

ADVARSEL!

Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude

af funktion. Undgå udsættelse for stråling.

This Compact Disc player is classified as a CLASS 1 LASER

product.

The CLASS 1 LASER PRODUCT label is located on the rear

exterior.

This set employs laser. Therefore, be sure to follow carefully the

instructions below when servicing.

WARNING!

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT

WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO

CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE

FROM A DISTANCE OF MORE THAN 30cm FROM THE

SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL

PICK-UP BLOCK.

CLASS 1

KLASSE 1

LUOKAN 1

KLASS 1

LASER PRODUCT

LASER PRODUKT

LASER LAITE

LASER APPARAT

Precaution to replace Optical block

(KHM-210AAA)

1) After the connection, remove solder shown in

the right figure.

Body or clothes electrostatic potential could ruin

laser diode in the optical block. Be sure ground

body and workbench, and use care the clothes

do not touch the diode.

How to Adjust the Rotating Phase of the

Gear, Main Cam

1) Push down the hooking catch of the CHAS. MECH, and

remove the TRAY.

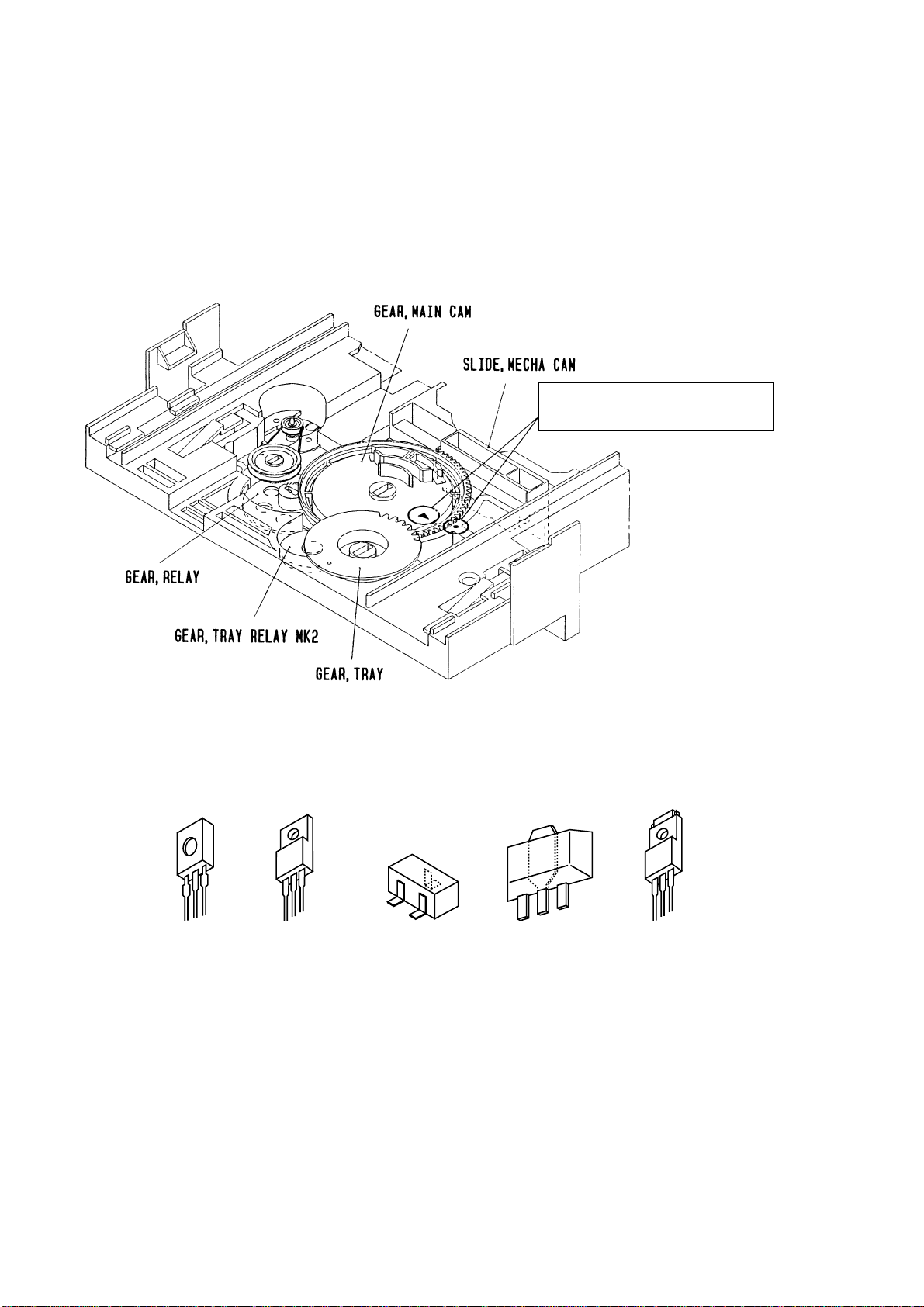

2) Align the arrow mark of the Gear, Main Cam with the black

round mark of the CHAS, MECHA as shown below.

3) Confirm that the Slide, Mech Cam is located in the right

position, then insert the TRAY gently.

Caution: If the rotating phase of the Gear, Main Cam is

incorrectly adjusted, the chucking operation and

tray movement will have malfunction.

Align the arrow 2mark with the black

round • mark.

TRANSISTOR ILLUSTRATION

2SA1037

2SC2412K

2SC3052F

2SC3326A

2SK3019

DTA114EK

DTA124XK

DTA144EK

DTA144EU

DTC124XK

DTC144EK

DTC144EU

GDS

2SB1342 2SB1132 B C E

B C E 2SD2061

2SB1436

REF. NO PART NO. KANRI DESCRIPTION

NO.

REF. NO PART NO. KANRI DESCRIPTION

NO.

ELECTRICAL MAIN PARTS LIST

87-A20-602-040 C-IC,M5291FP

87-A21-428-040 C-IC,NJM2115M

87-017-825-010 IC,GP1F32T

8Z-ZJG-801-010 C-IC,CXD1866R

87-A21-315-040 C-IC,GLT440L16-40TC

8Z-ZJG-802-010 C-IC,CXD2598Q

8Z-ZJG-803-010 C-IC,CXP912032-121Q

8Z-ZJG-800-010 C-IC,CXD1889R

87-A21-429-040 C-IC,NJM2137M

87-A21-435-040 C-IC,BA5983FP

87-002-929-080 IC,NJM2901M

87-002-955-080 IC,NJU4053B

87-A21-440-040 C-IC,SN74LS245NS

87-017-859-080 IC,TC7S00FU

8Z-AV2-648-040 C-IC,HN58X2416FPSRZ

87-A21-304-010 IC,LB1649

8Z-AV2-628-010 C-IC,HD6412350F20

87-A20-905-040 C-IC,BA033FP

87-A20-185-040 C-IC,PST600DMT

87-001-551-080 IC,TC7S08F

8Z-ZJH-600-010 C-IC,M27C802CZ-H0

8Z-AV2-629-010 C-IC,W24512AT-15

8Z-AV2-630-010 C-IC,L64021D

8Z-AV2-633-010 C-IC,MB81F161622B

87-017-888-080 IC,NJM4558MD

87-A20-689-080 C-IC,PCM1723

87-A21-330-040 C-IC,SN74AHC1G04DBV

87-A21-251-010 C-IC,MC44724A

87-017-453-080 IC,NJM2267M

87-017-750-080 IC,MM1041XM

87-A21-447-080 C-IC,BU4S81

87-001-795-040 C-IC,TC74HC74AF

87-001-604-080 IC,TC74HCU04F

87-070-224-080 IC,TC74HCT00AF

TRANSISTOR

87-A30-255-010 TR,2SB1342

87-A30-217-010 TR,2SB1436(R)

87-026-231-080 CHIP-TRANSISTER,DTA124XK

87-026-237-080 CHIP-TR,DTC124XK

87-A30-359-040 C-TR,DTA144EUA

89-420-612-010 TR,2SD2061 (2W)

87-A30-360-040 C-TR,DTC144EUA

87-A30-076-080 C-TR,2SC3052F

89-211-323-080 C-TR,2SB1132R

87-A30-362-040 C-TR,2SK3019

87-026-210-080 CHIP-TR,DTC144EK

87-026-227-080 CHIP-TR,DTA114EK

89-333-265-080 TR,2SC3326A

89-110-372-080 TR,2SA1037(140MHZ 200MW)

89-324-123-080 C-TR,2SC2412K S

87-026-211-080 TR,DTA144EK

DIODE

87-A40-313-080 C-DIODE,MC 2840

87-070-335-080 ZENER,MTZJ8.2B

87-A40-614-040 C-DIODE,SFPB-72

87-017-779-080 C-DIODE,1SS355

87-017-932-080 ZENER,MTJ6.2B

87-A40-464-080 ZENER,MTZJ3.6A

87-020-027-080 CHIP-DIODE 1SS184

EXTENSION C.B

CN510 87-009-754-010 CONN,13P PH H

CN511 87-099-570-010 CONN,13P TUC-P13P-B1

T-T C.B

C401 87-018-214-080 CAP TC U 0.1-50F

CON401 86-NFZ-675-010 CONN,5P H 6216-11H

DVD REAR C.B

C2 87-010-235-080 CAP,E 470-16 SME

C4 87-010-196-080 CHIP CAPACITOR,0.1-25

C5 87-010-196-080 CHIP CAPACITOR,0.1-25

C6 87-010-101-080 CAP, ELECT 220-16

C7 87-010-101-080 CAP, ELECT 220-16

C8 87-010-196-080 CHIP CAPACITOR,0.1-25

C9 87-010-235-080 CAP,E 470-16 SME

C10 87-010-235-080 CAP,E 470-16 SME

C11 87-010-805-080 CAP, S 1-16

C12 87-012-140-080 CAP 470P

C13 87-010-178-080 CHIP CAP 1000P

C14 87-010-805-080 CAP, S 1-16

C17 87-010-178-080 CHIP CAP 1000P

C18 87-010-178-080 CHIP CAP 1000P

C19 87-010-196-080 CHIP CAPACITOR,0.1-25

C21 87-010-197-080 CAP, CHIP 0.01 DM

C22 87-010-382-080 CAP, ELECT 22-25V

C25 87-010-380-080 CAP, ELECT 47-16V

C26 87-010-235-080 CAP,E 470-16 SME

C27 87-010-248-080 CAP, ELECT 220-10V

C28 87-010-196-080 CHIP CAPACITOR,0.1-25

C29 87-010-248-080 CAP, ELECT 220-10V

C30 87-010-196-080 CHIP CAPACITOR,0.1-25

C31 87-010-248-080 CAP, ELECT 220-10V

C32 87-010-196-080 CHIP CAPACITOR,0.1-25

C45 87-010-265-080 CAP,E 33-16 11L

C50 87-010-380-080 CAP, ELECT 47-16V

C51 87-010-196-080 CHIP CAPACITOR,0.1-25

C101 87-010-190-080 S CHIP F 0.01

C102 87-016-044-080 CAP,E 100-16 5L GAS

C103 87-010-382-080 CAP, ELECT 22-25V

C104 87-010-190-080 S CHIP F 0.01

C202 87-010-196-080 CHIP CAPACITOR,0.1-25

C203 87-016-044-080 CAP,E 100-16 5L GAS

C204 87-010-248-080 CAP,E 220-10 SME

C206 87-010-197-080 CAP, CHIP 0.01 DM

C207 87-010-498-080 CAP,E 10-16 GAS

C208 87-010-498-080 CAP,E 10-16 GAS

C209 87-010-186-080 CAP,CHIP 4700P

C210 87-010-186-080 CAP,CHIP 4700P

C211 87-010-197-080 CAP, CHIP 0.01 DM

C212 87-010-197-080 CAP, CHIP 0.01 DM

C213 87-010-175-080 C-CAP,S 560P-50 SL

C214 87-010-175-080 C-CAP,S 560P-50 SL

C215 87-010-498-080 CAP,E 10-16 GAS

C216 87-010-498-080 CAP,E 10-16 GAS

C217 87-010-180-080 C-CER 1500P

C218 87-010-180-080 C-CER 1500P

C219 87-012-156-080 C-CAP,S 220P-50 CH

C220 87-012-156-080 C-CAP,S 220P-50 CH

C301 87-010-498-080 CAP,E 10-16 GAS

C302 87-010-497-080 CAP,E 4.7-35 5L

C303 87-010-197-080 CAP, CHIP 0.01 DM

C304 87-010-497-080 CAP,E 4.7-35 5L

C305 87-010-499-080 CAP,E 22-6.3 SRE

C306 87-010-555-080 CAP,E 100-10 GAS

C307 87-010-499-080 CAP,E 22-6.3 SRE

C308 87-010-555-080 CAP,E 100-10 GAS

C311 87-010-197-080 CAP, CHIP 0.01 DM

C312 87-010-197-080 CAP, CHIP 0.01 DM

C313 87-010-196-080 CHIP CAPACITOR,0.1-25

C316 87-010-322-080 C-CAP,S 100P-50 CH

C513 87-010-322-080 C-CAP,S 100P-50 CH

REF. NO PART NO. KANRI DESCRIPTION

NO.

REF. NO PART NO. KANRI DESCRIPTION

NO.

C515 87-010-322-080 C-CAP,S 100P-50 CH

CN1 84-722-632-010 CONN,2P H

CN2 87-099-209-010 CONN,4P 6216H

CN101 87-099-212-010 CONN,5P 6216 V

CN501 87-099-030-010 CONN,13P 6216H

CN502 87-A61-089-010 CONN,14P H GRY FMN-SSTK

CN503 87-A61-088-010 CONN,6P H GRY FMN-SSTK

CN504 87-A61-091-010 CONN,9P H 6232 DIP

CN505 87-A60-904-010 CONN,10P H BLK FMN-STRK

CNA10 88-805-052-620 CONN ASSY,5P

CNA11 88-805-061-020 CONN ASSY,6P

FB301 87-005-786-080 F-BEAD,BL03RN2

FB302 87-005-786-080 F-BEAD,BL03RN2

FB303 87-005-786-080 F-BEAD,BL03RN2

J301 87-A60-127-010 JACK,Y/CYKF51.5503

J302 87-009-502-010 JACK,PIN 1P Y EARTH

JR4 87-A50-189-080 C-COIL,S BLM21B272S

JR302 87-A50-189-080 C-COIL,S BLM21B272S

L2 87-A50-517-080 COIL,10UHK FLR88

L3 87-A50-517-080 COIL,10UHK FLR88

L6 87-A50-549-010 COIL,68UH RCH110

L301 87-005-436-080 COIL,22UH FLR50,K

PS401 87-026-573-010 IC,GP1S53V

S101 87-A91-500-010 SW,MICRO MPU11470MLB0

S102 87-A91-500-010 SW,MICRO MPU11470MLB0

BE CB

BPF301 8Z-AV2-634-080 FLTR,LPF RZV-2XCN

BPF302 8Z-AV2-634-080 FLTR,LPF RZV-2XCN

BPF303 8Z-AV2-634-080 FLTR,LPF RZV-2XCN

C101 87-012-286-080 CAP, U 0.01-25

C102 87-012-286-080 CAP, U 0.01-25

C104 87-012-286-080 CAP, U 0.01-25

C105 87-012-286-080 CAP, U 0.01-25

C108 87-016-428-080 C-CAP,E 47-16 5.5N

C109 87-012-286-080 CAP, U 0.01-25

C112 87-012-286-080 CAP, U 0.01-25

C113 87-012-286-080 CAP, U 0.01-25

C114 87-012-172-080 CAPACITOR CHIP U 10P CH

C115 87-016-428-080 C-CAP,E 47-16 5.5N

C117 87-012-172-080 CAPACITOR CHIP U 10P CH

C119 87-012-286-080 CAP, U 0.01-25

C120 87-012-286-080 CAP, U 0.01-25

C121 87-012-286-080 CAP, U 0.01-25

C122 87-016-428-080 C-CAP,E 47-16 5.5N

C123 87-012-286-080 CAP, U 0.01-25

C124 87-012-286-080 CAP, U 0.01-25

C125 87-010-848-080 C-CAP,10-16V

C126 87-012-286-080 CAP, U 0.01-25

C127 87-012-286-080 CAP, U 0.01-25

C128 87-012-286-080 CAP, U 0.01-25

C129 87-012-286-080 CAP, U 0.01-25

C130 87-010-848-080 C-CAP,10-16V

C131 87-012-286-080 CAP, U 0.01-25

C132 87-010-848-080 C-CAP,10-16V

C134 87-012-286-080 CAP, U 0.01-25

C200 87-012-286-080 CAP, U 0.01-25

C201 87-012-286-080 CAP, U 0.01-25

C202 87-016-428-080 C-CAP,E 47-16 5.5N

C203 87-010-848-080 C-CAP,10-16V

C204 87-012-286-080 CAP, U 0.01-25

C205 87-012-286-080 CAP, U 0.01-25

C206 87-012-286-080 CAP, U 0.01-25

C207 87-012-278-080 C-CAP,U 2200P-50 B

C208 87-012-286-080 CAP, U 0.01-25

C209 87-012-286-080 CAP, U 0.01-25

C210 87-016-428-080 C-CAP,E 47-16 5.5N

C211 87-012-286-080 CAP, U 0.01-25

C212 87-012-286-080 CAP, U 0.01-25

C213 87-012-286-080 CAP, U 0.01-25

C214 87-012-286-080 CAP, U 0.01-25

C215 87-012-286-080 CAP, U 0.01-25

C216 87-012-286-080 CAP, U 0.01-25

C217 87-012-286-080 CAP, U 0.01-25

C218 87-012-286-080 CAP, U 0.01-25

C219 87-012-286-080 CAP, U 0.01-25

C220 87-012-286-080 CAP, U 0.01-25

C221 87-012-286-080 CAP, U 0.01-25

C222 87-012-286-080 CAP, U 0.01-25

C223 87-012-286-080 CAP, U 0.01-25

C224 87-012-286-080 CAP, U 0.01-25

C225 87-012-171-080 C-CAP,U 9P-50 CH

C226 87-012-196-080 C-CAP,U 120P-50 CH

C230 87-012-286-080 CAP, U 0.01-25

C232 87-012-286-080 CAP, U 0.01-25

C233 87-012-286-080 CAP, U 0.01-25

C234 87-012-171-080 C-CAP,U 9P-50 CH

C235 87-012-286-080 CAP, U 0.01-25

C236 87-010-235-080 CAP, E 470-16

C237 87-010-248-080 CAP, E 220-10

C238 87-012-196-080 C-CAP,U 120P-50 CH

C239 87-010-831-080 C-CAP,U,0.1-16F

C241 87-010-831-080 C-CAP,U,0.1-16F

C243 87-012-176-080 CAP 15P

C244 87-010-831-080 C-CAP,U,0.1-16F

C245 87-010-831-080 C-CAP,U,0.1-16F

C248 87-012-174-080 CAP CHIP CERA SS 12P CHJ

C249 87-A11-144-080 CAP, U 0.1-50

C300 87-012-286-080 CAP, U 0.01-25

C301 87-016-428-080 C-CAP,E 47-16 5.5N

C302 87-012-286-080 CAP, U 0.01-25

C303 87-010-831-080 C-CAP,U,0.1-16F

C304 87-010-831-080 C-CAP,U,0.1-16F

C305 87-010-831-080 C-CAP,U,0.1-16F

C306 87-010-831-080 C-CAP,U,0.1-16F

C307 87-012-286-080 CAP, U 0.01-25

C308 87-010-831-080 C-CAP,U,0.1-16F

C310 87-012-286-080 CAP, U 0.01-25

C311 87-016-428-080 C-CAP,E 47-16 5.5N

C312 87-012-286-080 CAP, U 0.01-25

C313 87-010-831-080 C-CAP,U,0.1-16F

C315 87-010-831-080 C-CAP,U,0.1-16F

C316 87-010-831-080 C-CAP,U,0.1-16F

C317 87-010-848-080 C-CAP,10-16V

C318 87-012-286-080 CAP, U 0.01-25

C319 87-012-182-080 C-CAP,U 27P-50 CH

C320 87-012-182-080 C-CAP,U 27P-50 CH

C324 87-012-182-080 C-CAP,U 27P-50 CH

C325 87-012-182-080 C-CAP,U 27P-50 CH

C329 87-012-182-080 C-CAP,U 27P-50 CH

C330 87-012-182-080 C-CAP,U 27P-50 CH

CN100 87-A60-942-080 C-CONN,5P V PH-SM3-TB

CN102 87-A60-889-080 C-CONN,10P V FMN-BMTTN-TF

CN200 87-A60-790-080 C-CONN,28P V 28FLT-SM1TB

CN201 87-A60-892-080 C-CONN,20P V FLT-SM1-TB

CN202 87-A60-852-080 C-CONN,6P V FMN-BMTTNTF

CN300 87-A60-891-080 C-CONN,14P V FMN-BMTTN-TF

CN301 87-A60-888-080 C-CONN,9P V FMN-BMTTN-TF

J106 87-A61-145-010 C-SOCKET,IC 2-44P IC179-44600

L100 87-005-799-080 C-COIL, 1UH FLC32

L101 87-005-799-080 C-COIL, 1UH FLC32

L102 87-005-799-080 C-COIL, 1UH FLC32

L200 87-005-799-080 C-COIL, 1UH FLC32

L201 87-005-799-080 C-COIL, 1UH FLC32

L202 87-005-803-080 C-COIL,2.2UH JFLC32

L204 87-005-803-080 C-COIL,2.2UH JFLC32

L205 87-005-815-080 C-COIL, 22UH J FLC32

L300 87-005-803-080 C-COIL,2.2UH JFLC32

REF. NO PART NO. KANRI DESCRIPTION

NO.

REF. NO PART NO. KANRI DESCRIPTION

NO.

L301 87-005-815-080 C-COIL, 22UH J FLC32

L302 87-005-811-080 C-COIL,10UH J FLC32

L303 87-005-817-080 C-COIL, 33UH J FLC32

L307 87-005-817-080 C-COIL, 33UH J FLC32

L308 87-005-817-080 C-COIL, 33UH J FLC32

R233 87-A91-502-080 C-F-BEAD, BLM11B750SA

R237 87-A91-480-080 C-F-BEAD, BK1608 HS121

R238 87-A91-649-080 C-F-BEAD, BK1608HM471

R239 87-A91-480-080 C-F-BEAD, BK1608 HS121

R241 87-A91-480-080 C-F-BEAD, BK1608 HS121

FE C.B

C1 87-010-805-080 CAP, S 1-16

C2 87-010-805-080 CAP, S 1-16

C3 87-016-081-080 C-CAP,S 0.1-16 RK

C4 87-010-805-080 CAP, S 1-16

C7 87-010-992-080 C-CAP,S 0.047-25 B

C8 87-012-358-080 C-CAP,S 0.47-10 F Z

C9 87-010-805-080 CAP, S 1-16

C12 87-012-358-080 C-CAP,S 0.47-10 F Z

C13 87-010-186-080 CAP,CHIP 4700P

C14 87-016-081-080 C-CAP,S 0.1-16 RK

C15 87-010-805-080 CAP, S 1-16

C16 87-010-197-080 CAP, CHIP 0.01 DM

C17 87-010-805-080 CAP, S 1-16

C18 87-012-156-080 C-CAP,S 220P-50 CH

C19 87-016-081-080 C-CAP,S 0.1-16 RK

C23 87-012-140-080 CAP 470P

C24 87-010-805-080 CAP, S 1-16

C25 87-010-805-080 CAP, S 1-16

C26 87-010-805-080 CAP, S 1-16

C29 87-010-805-080 CAP, S 1-16

C30 87-010-805-080 CAP, S 1-16

C31 87-010-805-080 CAP, S 1-16

C32 87-010-805-080 CAP, S 1-16

C33 87-010-805-080 CAP, S 1-16

C35 87-010-805-080 CAP, S 1-16

C36 87-010-805-080 CAP, S 1-16

C37 87-010-805-080 CAP, S 1-16

C38 87-010-805-080 CAP, S 1-16

C39 87-010-805-080 CAP, S 1-16

C40 87-016-081-080 C-CAP,S 0.1-16 RK

C41 87-010-805-080 CAP, S 1-16

C42 87-010-805-080 CAP, S 1-16

C43 87-010-805-080 CAP, S 1-16

C44 87-010-805-080 CAP, S 1-16

C46 87-A11-978-080 C-CAP,E 10-35 M 5.5L MV

C47 87-010-805-080 CAP, S 1-16

C48 87-010-197-080 CAP, CHIP 0.01 DM

C49 87-016-081-080 C-CAP,S 0.1-16 RK

C50 87-010-805-080 CAP, S 1-16

C51 87-016-081-080 C-CAP,S 0.1-16 RK

C52 87-010-956-080 CHIP-CAP,S 0.068-25B

C54 87-010-197-080 CAP, CHIP 0.01 DM

C55 87-010-322-080 C-CAP,S 100P-50 CH

C56 87-010-805-080 CAP, S 1-16

C57 87-010-180-080 C-CER 1500P

C58 87-010-805-080 CAP, S 1-16

C59 87-010-320-080 CHIP CAP 68P

C60 87-010-992-080 C-CAP,S 0.047-25 B

C61 87-A11-975-080 C-CAP,E 47-16 M 5.5L MV

C62 87-010-805-080 CAP, S 1-16

C63 87-012-145-080 CAP, CHIP S 270P CH

C65 87-010-805-080 CAP, S 1-16

C66 87-010-152-080 C-CAP,S 8P-50 CH

C67 87-010-805-080 CAP, S 1-16

C68 87-010-805-080 CAP, S 1-16

C69 87-010-152-080 C-CAP,S 8P-50 CH

C71 87-010-805-080 CAP, S 1-16

C76 87-010-805-080 CAP, S 1-16

C77 87-010-805-080 CAP, S 1-16

C78 87-010-805-080 CAP, S 1-16

C80 87-010-843-080 C-CAP,E 1-50 M 5.5L MV

C81 87-010-154-080 CAP CHIP 10P

C82 87-010-805-080 CAP, S 1-16

C83 87-010-154-080 CAP CHIP 10P

C84 87-010-805-080 CAP, S 1-16

C87 87-A11-975-080 C-CAP,E 47-16 M 5.5L MV

C88 87-010-805-080 CAP, S 1-16

C89 87-010-197-080 CAP, CHIP 0.01 DM

C90 87-A11-973-080 C-CAP,E 1000-6.3 M 10.5L MV

C91 87-010-184-080 CHIP CAPACITOR 3300P(K)

C92 87-010-180-080 C-CER 1500P

C93 87-010-805-080 CAP, S 1-16

C94 87-010-805-080 CAP, S 1-16

C95 87-010-184-080 CHIP CAPACITOR 3300P(K)

C96 87-010-180-080 C-CER 1500P

C97 87-016-081-080 C-CAP,S 0.1-16 RK

C98 87-010-197-080 CAP, CHIP 0.01 DM

C99 87-010-992-080 C-CAP,S 0.047-25 B

C100 87-010-992-080 C-CAP,S 0.047-25 B

C101 87-010-182-080 C-CAP,S 2200P-50 B

C103 87-010-182-080 C-CAP,S 2200P-50 B

C104 87-010-182-080 C-CAP,S 2200P-50 B

C105 87-010-182-080 C-CAP,S 2200P-50 B

C106 87-012-157-080 C-CAP,S 330P-50 CH

C107 87-010-197-080 CAP, CHIP 0.01 DM

C108 87-016-081-080 C-CAP,S 0.1-16 RK

C109 87-010-992-080 C-CAP,S 0.047-25 B

C110 87-012-154-080 C-CAP,S 150P-50 CH

C111 87-012-140-080 CAP 470P

C112 87-A11-975-080 C-CAP,E 47-16 M 5.5L MV

C113 87-016-081-080 C-CAP,S 0.1-16 RK

C114 87-016-369-080 C-CAP,S 0.033-25 B K

C116 87-016-081-080 C-CAP,S 0.1-16 RK

C117 87-016-081-080 C-CAP,S 0.1-16 RK

C118 87-010-197-080 CAP, CHIP 0.01 DM

C119 87-016-081-080 C-CAP,S 0.1-16 RK

C120 87-010-805-080 CAP, S 1-16

C122 87-A11-975-080 C-CAP,E 47-16 M 5.5L MV

C123 87-A12-049-080 C-CAP,E 33-10 M 5.5 MV

C124 87-012-349-080 C-CAP,S 1000P-50 CH

C125 87-A11-975-080 C-CAP,E 47-16 M 5.5L MV

C126 87-A11-978-080 C-CAP,E 10-35 M 5.5L MV

C127 87-A11-978-080 C-CAP,E 10-35 M 5.5L MV

C128 87-A11-978-080 C-CAP,E 10-35 M 5.5L MV

C129 87-A11-978-080 C-CAP,E 10-35 M 5.5L MV

C131 87-016-081-080 C-CAP,S 0.1-16 RK

C132 87-012-154-080 C-CAP,S 150P-50 CH

C133 87-016-081-080 C-CAP,S 0.1-16 RK

C134 87-016-081-080 C-CAP,S 0.1-16 RK

C135 87-016-081-080 C-CAP,S 0.1-16 RK

C136 87-016-081-080 C-CAP,S 0.1-16 RK

C137 87-010-805-080 CAP, S 1-16

C138 87-012-157-080 C-CAP,S 330P-50 CH

C140 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV

C141 87-016-081-080 C-CAP,S 0.1-16 RK

C142 87-016-081-080 C-CAP,S 0.1-16 RK

C143 87-016-081-080 C-CAP,S 0.1-16 RK

C144 87-016-081-080 C-CAP,S 0.1-16 RK

C145 87-016-081-080 C-CAP,S 0.1-16 RK

C148 87-010-182-080 C-CAP,S 2200P-50 B

C149 87-010-319-080 C-CAP,S 56P-50 CH

C150 87-010-992-080 C-CAP,S 0.047-25 B

C151 87-012-157-080 C-CAP,S 330P-50 CH

C152 87-010-956-080 CHIP-CAP,S 0.068-25B

C154 87-010-992-080 C-CAP,S 0.047-25 B

C156 87-010-319-080 C-CAP,S 56P-50 CH

C157 87-012-157-080 C-CAP,S 330P-50 CH

REF. NO PART NO. KANRI DESCRIPTION

NO.

REF. NO PART NO. KANRI DESCRIPTION

NO.

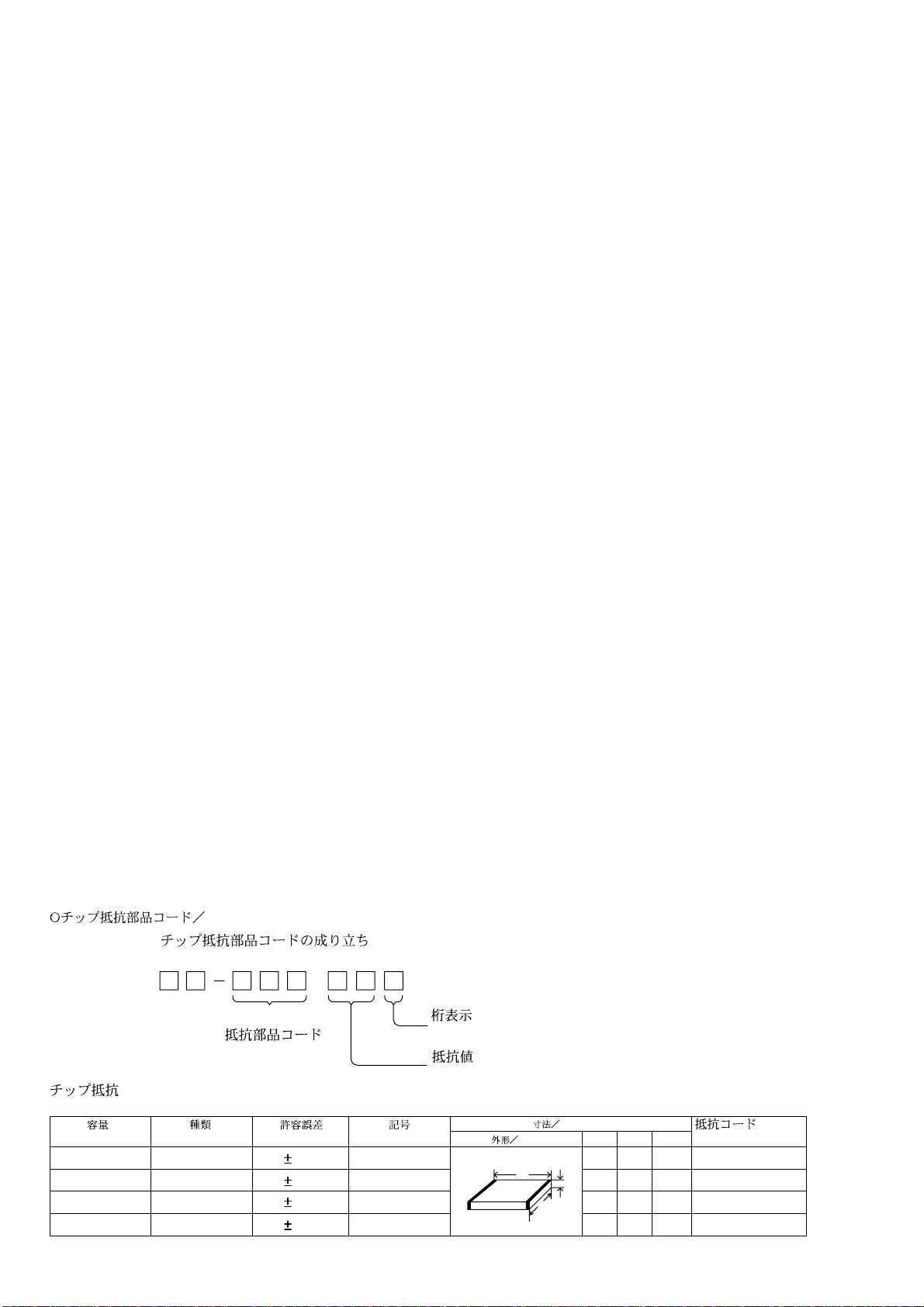

Resistor Code

Chip Resistor Part Coding

Figure

Value of resistor

Chip resistor

Wattage Type Tolerance

1/16W

1/10W

1/8W

1608

2125

3216

Form LW t

1.6 0.8 0.45

2 1.25 0.45

3.2 1.6

108

118

128

: A

CHIP RESISTOR PART CODE

0.55

Resistor Code

Dimensions (mm)

Symbol

1/16W 1005 5% CJ 1.0 0.5 0.35 104

• Regarding connectors, they are not stocked as they are not the initial order items.

The connectors are available after they are supplied from connector manufacturers upon the order is received.

C160 87-010-956-080 CHIP-CAP,S 0.068-25B

C163 87-010-805-080 CAP, S 1-16

C165 87-010-805-080 CAP, S 1-16

C166 87-010-805-080 CAP, S 1-16

C167 87-010-805-080 CAP, S 1-16

C168 87-010-805-080 CAP, S 1-16

C174 87-A11-977-080 C-CAP,E 2.2-35 M 5.5L MV

C175 87-010-184-080 CHIP CAPACITOR 3300P(K)

C176 87-010-321-080 CHIP CAPACITOR,82P(J)

C177 87-016-081-080 C-CAP,S 0.1-16 RK

C178 87-010-314-080 C-CAP,S 22P-50V

C179 87-010-314-080 C-CAP,S 22P-50V

C181 87-010-314-080 C-CAP,S 22P-50V

C182 87-010-314-080 C-CAP,S 22P-50V

C183 87-010-805-080 CAP, S 1-16

C184 87-010-805-080 CAP, S 1-16

C199 87-010-805-080 CAP, S 1-16

C201 87-A11-975-080 C-CAP,E 47-16 M 5.5L MV

C202 87-010-805-080 CAP, S 1-16

C204 87-A11-978-080 C-CAP,E 10-35 M 5.5L MV

C209 87-010-805-080 CAP, S 1-16

C210 87-010-149-080 C-CAP,S 5P-50 CH

C211 87-010-149-080 C-CAP,S 5P-50 CH

C212 87-A11-978-080 C-CAP,E 10-35 M 5.5L MV

C213 87-016-081-080 C-CAP,S 0.1-16 RK

C214 87-010-805-080 CAP, S 1-16

C215 87-010-805-080 CAP, S 1-16

C216 87-010-805-080 CAP, S 1-16

C217 87-010-182-080 C-CAP,S 2200P-50 B

C218 87-010-182-080 C-CAP,S 2200P-50 B

C219 87-010-182-080 C-CAP,S 2200P-50 B

C221 87-016-081-080 C-CAP,S 0.1-16 RK

C222 87-016-081-080 C-CAP,S 0.1-16 RK

C223 87-016-081-080 C-CAP,S 0.1-16 RK

C224 87-A11-973-080 C-CAP,E 1000-6.3 M 10.5L MV

C225 87-016-081-080 C-CAP,S 0.1-16 RK

C240 87-010-145-080 C-CAP,S 1P-50 CH

C242 87-010-805-080 CAP, S 1-16

C246 87-010-805-080 CAP, S 1-16

C247 87-010-805-080 CAP, S 1-16

C248 87-016-081-080 C-CAP,S 0.1-16 RK

C250 87-A11-978-080 C-CAP,E 10-35 M 5.5L MV

C251 87-016-081-080 C-CAP,S 0.1-16 RK

C253 87-A11-978-080 C-CAP,E 10-35 M 5.5L MV

C702 87-016-081-080 C-CAP,S 0.1-16 RK

C703 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV

C704 87-016-081-080 C-CAP,S 0.1-16 RK

C705 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV

C706 87-016-081-080 C-CAP,S 0.1-16 RK

C707 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV

C708 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV

C709 87-016-081-080 C-CAP,S 0.1-16 RK

C710 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV

C711 87-016-081-080 C-CAP,S 0.1-16 RK

C712 87-016-369-080 C-CAP,S 0.033-25 B K

C713 87-016-081-080 C-CAP,S 0.1-16 RK

C714 87-016-081-080 C-CAP,S 0.1-16 RK

C715 87-010-805-080 CAP, S 1-16

C801 87-010-805-080 CAP, S 1-16

C802 87-010-805-080 CAP, S 1-16

C803 87-010-805-080 CAP, S 1-16

C804 87-010-805-080 CAP, S 1-16

CN4 87-A61-135-080 C-CONN,21P V 6232-121-006-800

CN5 87-A61-062-080 C-CONN,6P V PH-SM3-TB

CN700 87-A61-144-080 C-CONN,6P H PH-SM3-TB

CN701 87-A60-790-080 C-CONN,28P V 28FLT-SM1TB

CN702 87-A60-892-080 C-CONN,20P V FLT-SM1-TB

FB4 87-A50-192-080 C-COIL,S BLM21P300S

FB700 87-A50-192-080 C-COIL,S BLM21P300S

FB701 87-A50-192-080 C-COIL,S BLM21P300S

FB702 87-A50-192-080 C-COIL,S BLM21P300S

FB703 87-A50-192-080 C-COIL,S BLM21P300S

L3 87-005-781-080 C-COIL,47UH FLC32C

L4 87-005-781-080 C-COIL,47UH FLC32C

R75 87-A91-648-080 C-F-BEAD, BK2125HS241

R76 87-A91-648-080 C-F-BEAD, BK2125HS241

R90 87-A91-648-080 C-F-BEAD, BK2125HS241

R118 87-A91-648-080 C-F-BEAD, BK2125HS241

X2 87-A70-231-080 C-VIB,XTAL 33.8688MHZ HC-49/U0

X3 87-A70-194-080 C-VIB,XTAL 20MHZ HC-49/U03C

MOTOR C.B

M2 9A-491-223-3A0 SL MOTOR ASSY

PIN1 91-564-722-110 CONN,PIN 6P

SW1 91-572-085-120 SW,LEEF

109

BLOCK DIAGRAM-1 (DVD VIDEO AMP/MECHA CONTROL)

1211

BLOCK DIAGRAM-2 (RF AMP/CS DSP/DVD DSP)

1413

BLOCK DIAGRAM-3 (CS DSP/A/D CONVERTER)

12345678910 11 12 13 14

1615

WIRING-1 (DVD REAR/T-T/EXTENSION)

1817

SCHEMATIC DIAGRAM-1 (DVD REAR/T-T/EXTENSION)

2019

WIRING-2 (FE: COMPONENT SIDE)

14 13 12 11 10 9 8 765432

SW1

(SPINDLE MOTOR)

SW1

(INSIDE LIMIT SW)

(SLED MOTOR)

PIN1

MOTOR C.B

2221

WIRING-3 (FE: CONDUCTOR SIDE)

12345678910 11 12 13 14

Table of contents

Popular DVD Drive manuals by other brands

Lenovo

Lenovo GP20N user guide

Teac

Teac DV-W28SS-V Product information

BTC

BTC BCO5232UI user manual

Freecom

Freecom MOBILE DVD RW RECORDER LS PRO datasheet

Panasonic

Panasonic LF-M621U operating instructions

HP 742n - Pavilion - 512 MB RAM manual

Dynex

Dynex DVD+/-R 8X user manual

Pioneer

Pioneer DVR-112D Specifications

Ovation Systems

Ovation Systems MultiBurner user guide

Panasonic

Panasonic CF-VDM302AT operating instructions

Philips

Philips SPD6000FO/00 Specifications

LG GH22NP21 owner's manual

Panasonic

Panasonic CF-VDR282 operating instructions

LG GSA-5163D Specifications

Gembird

Gembird DVD-USB-04 user manual

LG GSA-H10N Quick setup guide

Amacom Technologies

Amacom Technologies BABY user manual

Addonics Technologies

Addonics Technologies Mobile DVDR/RW user guide

Aiwa AZG-3 User manual

Popular DVD Drive manuals by other brands
