Akai ADR-5800DI User manual

CONTENTS
SPECIFICATIONS .............................................. 2
DISASSEMBLY....................................................6
PRINCIPAL PARTS LOCATION..........................7
TROUBLESHOOTING........................................ 8
ELECTRICAL PARTS LIST............................... 11
IC INTERNAL DIAGRAMS................................ 58
IC AND TRANSISTOR VOLTAGE CHART........86
EXPLODED VIEW..............................................91
BLOCK DIAGRAM ............................................ 95
WIRING DIAGRAM........................................... 97
SCHEMATIC DIAGRAMS................................. 99
PRINTED CIRCUIT BOARDS......................... 119
SERVICE MANUAL
DVD RECORDER PLAYER

- 2 -
NOTE: Design and specifications are subject to change and improvement without notice
100㎛
0.6mm(p-p)
1mm
±140㎛
0.6mm(p-p)
0.7mm
1V(p-p)
1V(p-p)
286mV(p-p)
700mV(p-p)
700mV(p-p)
700mV(p-p)
1V(p-p)
700mV(p-p)
700mV(p-p)
100.25MHz 525mV
100.25MHz 0.3%
100.25MHz 1V(p-p)
1V(p-p)
1V(p-p)
286mV(p-p)
700mV(p-p)
700mV(p-p)
700mV(p-p)
1V(p-p)
700mV(p-p)
700mV(p-p)
Scratch TDV-PW 521CW
DVD -RW Playability Section
TV TUNER Section
Pb Level
Pr Level
Eccentric TDV-MW 512CW
Vertical Deviation(skew)TDV-MW 532CW
Scratch TDV-MW 521CW
DVD +RW/-RW Recording Playability Section
Composite CVBS Level
S-Video
B Level
Component Y Level
R LevelRGB
G Level
S-Video
CVBS Level
Y Level
C Level
Composite Output Level
DVD VIDEO Section (MDVD-111)
Composite
Y Level
C Level
RGB R Level
G Level
Component
B Level
Y Level
Audio Output Level (Mono)
SPECIFICATIONS
T.H.D (Mono)
2V
0.006%
105dB
AUDIO Section
S/N
Audio Output Level
T.H.D
DVD +RW Playability Section
Eccentric TDV-PW 512CW
Vertical Deviation(skew)TDV-PW 532CW
Pb Level
Pr Level
Power Supply
Power Consumption
Operating Temperature
Operating Humidity
Dimensions(W/H/D)
Net Weight
230V, 50Hz
30W
+5℃to +40℃
5% to 80% RH
430 x 83 x 367 mm
4 kg
GENERAL

- 3 -
SAFETY PRECAUTIONS
The following check should be performed for the continued
protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
between the earth ground and all exposed metal parts of the
appliance (input/output terminals, screwheads, metal over-
lays, control shaft, etc.). Plug the AC line cord of the appli-
ance directly into a 120V AC 60Hz outlet and turn the AC
power switch on. Any current measured must not exceed
0.5mA.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A POTEN-
TIAL SHOCK HAZARD AND MUST BE CORRECTED
BEFORE RETURNING THE APPLIANCE TO THE CUS-
TOMER.
Device
under
test
Test all
exposed metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)

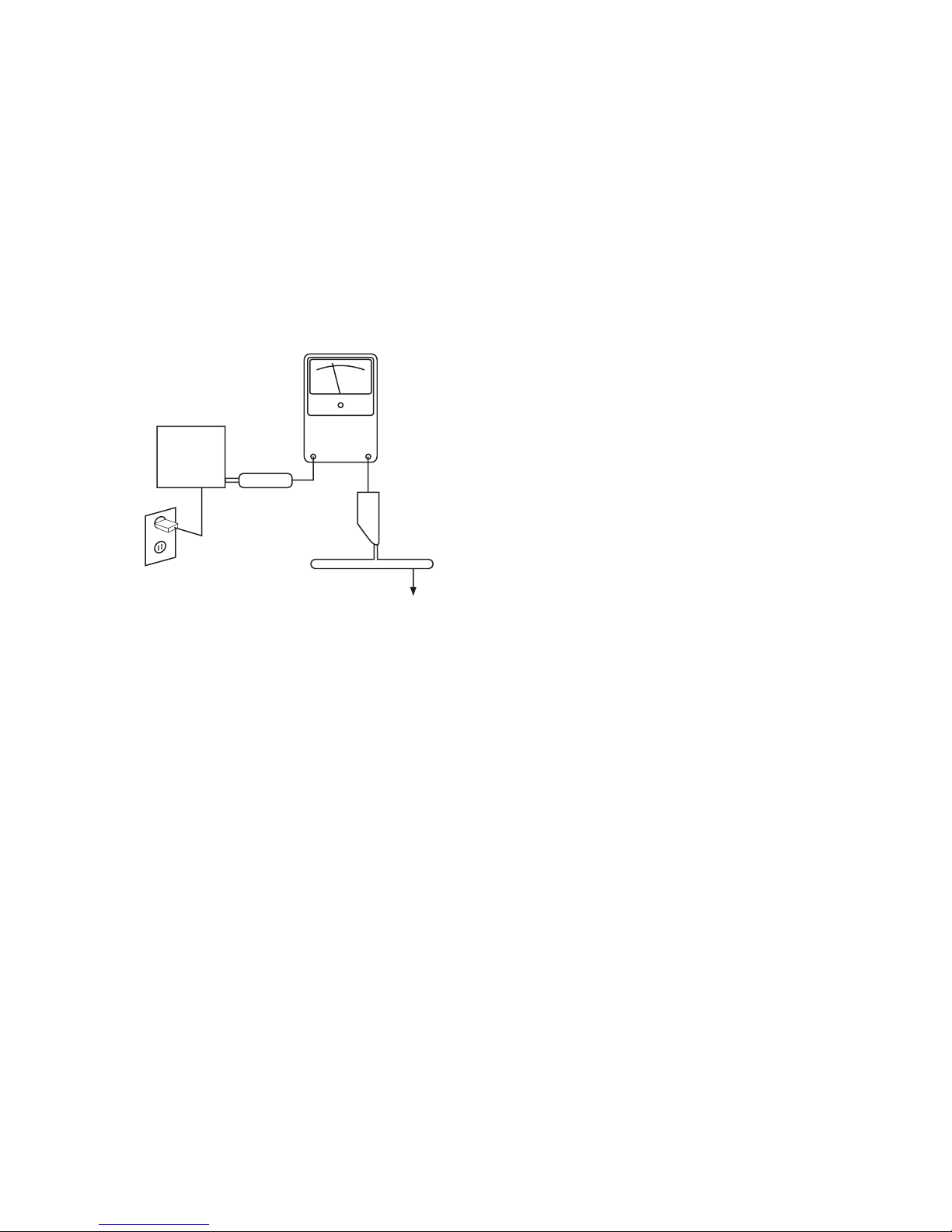

AC Leakage Test
Leakage
current
tester
Reading should
not be above
0.5mA
Earth
ground

- 4 -
LASER BEAM SAFETY PRECAUTIONS
CLASS 1 LASER PRODUCT
DANGER
INVISIBLE LASER RADIATION
AVOID DIRECT EXPOSURE TO BEAM
This Receiver uses a pickup that emits a laser beam.

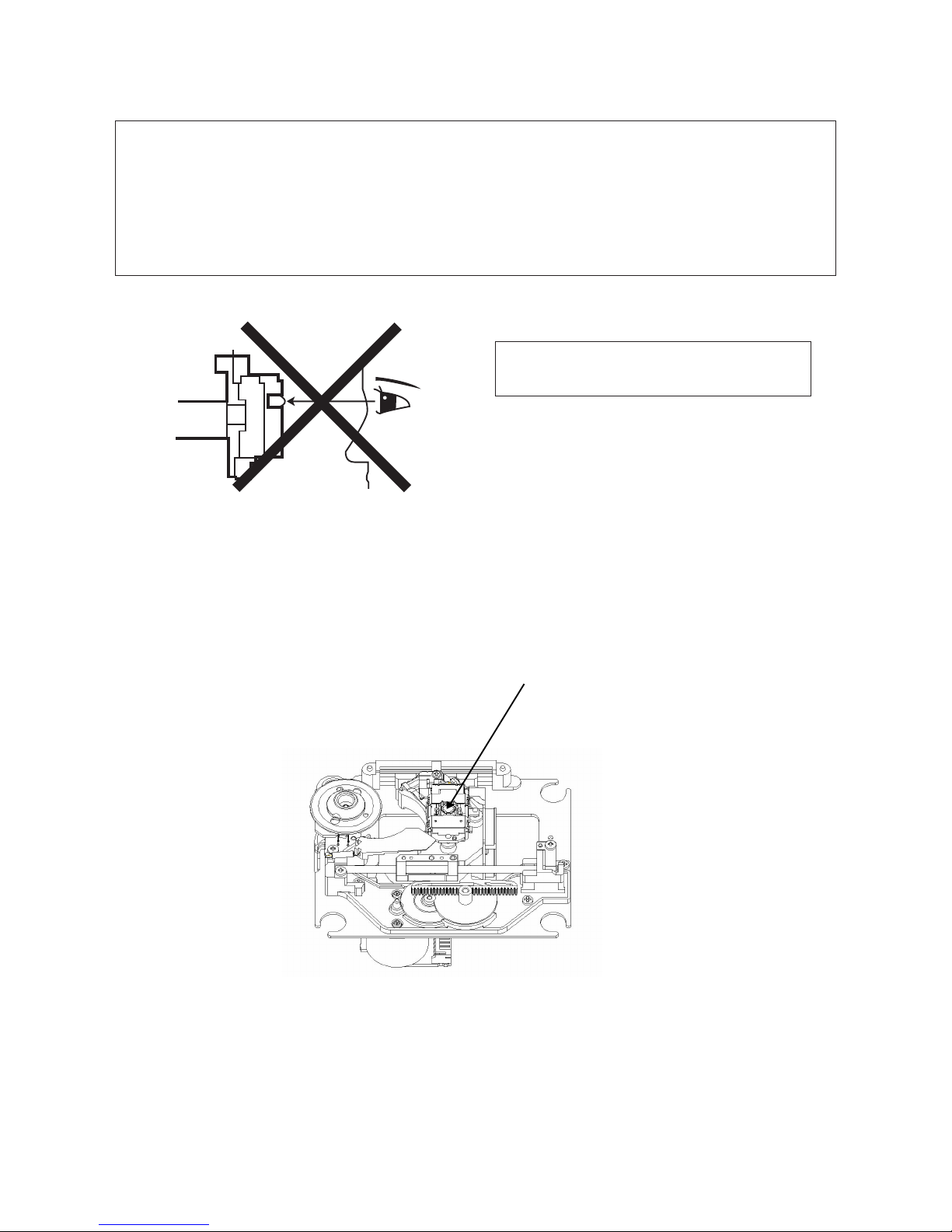

The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes
at least 1 foot away from the pickup lens when the diode is turned on. Do not look directly at the laser beam.
Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in hazardous
radiation exposure.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
Laser Beam Radiation

- 5 -
HANDLING LASER PICKUP
The laser diode in the optical system of this receiver can be damaged by electrostatic discharge from clothes,
body, etc. Proper electrostatic grounding for service personnel is required during servicing.
BEFORE REPAIRING THE DVD MECHANISM
a. Human Body Grounding:
Many of the components used in this compact disc player, including the laser pickup, are sensitive to electrostatic dis-
charge.
Service personnel should be grounded with an electrostatic armband (1M ohm).
Caution: Static charge on clothing does not escape through a body grounding wristband. Be careful not to contact the
pickup or electrical components with your clothing.
b. Workbench and Tool Grounding:
A properly-grounded electroconductive plate (1 M ohm) or metal sheet should be fitted to the workbench surface.
Tools and instruments (soldering irons, scopes, etc.) should be grounded to prevent AC leakage.
c. Make two standard ESD solder bridges on the Laser optic PC Board
Before disassembly of mechanism or disconnect any cables in it, make two standard ESD solder bridges on the laser
optic PC Board.
Ground conductive wristband

for body
INCORRECT CORRECT

SCREW
SCREWSCREW
DISASSEMBLY
2) REMOVAL OF FRONT PANEL
DVD RW
MECHANISM
SCREW
BOARD
AV BOARD
BOTTOM
BOARD
SCART
BOARD
SMPS
SCREW
SCREW
1) REMOVAL OF TOP COVER
- 6-

MECHANISM
DVD RW
AV BOARD
BOARD
BOTTOM
BOARD
SMPS
SCART
BOARD

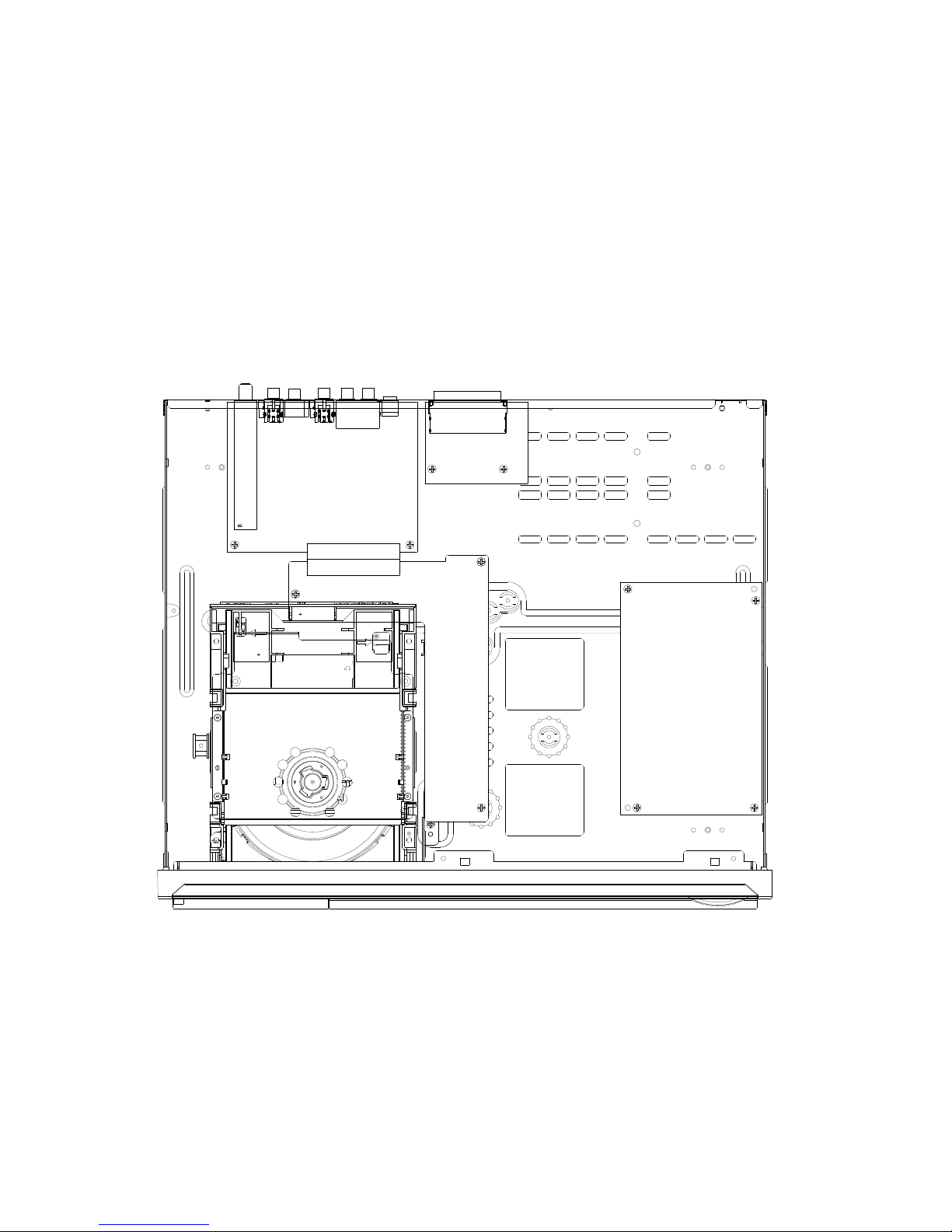

PRINCIPAL PARTS LOCATION
-7-

- 8 -
TROUBLE SHOOTING
:
D
Incorrect operation is often mistaken for trouble and malfunctions. If you think that there is something wrong
with this component, check the points below. Sometimes the trouble may lie in another component. Invetigate
the other components and electrical appliances being used.
Symptom Cause Remedy
No power. The power cord is diconnected. Plug the powr cord into the wall outlet securely.
The power is on, but No disc is inserted. Insert a disc. (Check that the DVD or audio CD indicator in
the DVD player does the DVD display is lit.)
not work.
No picture. The TV is not set to receive DVD signal Select the appropriate video input mode on the TV so the
output. picture from the DVD player appears on the TV screen.
The video cable is not connected securely. Connect the video cable into the jacks securely.
The connected TV power is turned off. Turn on the TV
There is ghosting when P.SCAN output is on Reset the machine to the default factory settings.
This can occur because your TV does not
support P.SCAN.
Those channels were not deleted. Use "Execution APS" in the menu to AUTO SEARCH.
The antenna didn't connect with COAXIAL Check the antenna connecting with COAXIAL CABLE.
CABLE.
The playback picture is The disc is dirty. Clean the disc.
poor. Your TV set is not properly adjusted. Properly adjusted it.
The DVD player does No disc is inserted. Insert a disc. (Check that the DVD or CD indicator in the
not start playback. display panel is lit.)
The DVD player cannot read the disc Check the disc type, color system and regional code. Check
because it is damaged or an incorrect type for any scratches or smudge on the disc. Insert a readable
(for example, a CD-i ). disc.
The disc is placed upside down. Place the disc with the playback side down.
The disc is not placed within the guide. Placed the disc on the disc tray correctly inside the guide.
The disc is dirty. Clean the disc.
A menu is on the TV screen. Press SETUP to turn off the menu screen.
The rating level is set. Cancel the rating function or change the rating level.
You have selected the wrong program On the TV, select the correct program number for the DVD
number of the DVD Recorder on the TV. Recorder.
The cable connecting the TV set and the DV Check the cable.
Recorder has com loose.
The remote control The remote control is not pointed at the Point the remote control at remote sensor of the unit.
does not work remote sensor of the unit.
properly. The remote control is too far from the unit. Operate the remote control within about 23 feet (7m).
There is an obstacle in the path of the Remove the obstacle.
remote control and the DVD player.
The remote's batteries are exhausted. Replace the batteries with new ones.
Other function is selected. Press the function key what you want to operate.

- 9 -
Symptom Cause Remedy
Recording does not The disc is not writable DVD DISC. Remove the disc and insert a proper writable DVD DISC.
work properly. The disc is CD-R / RW. Only DVD+R/+RW/-R/-RW DISC can be recorded. Remove
the disc and insert a proper writable DVD DISC.
The disc is full. Remove the disc and insert a blank writable DVD DISC.
The disc is dirty. Clean the disc and then try again.
The disc is a suitable Disc to record. Use the recommended DISC for better operations.
The disc is finalized. Unfinalized the DISC and then record in the disc.
TV channel you want to record is not stored Check TV channels stored.
or selected the wrong program number.
The disc is write-protected. Remove write-protection or change the disc.
(recording protected).
Scheduled recording You have programmed the wrong time or Check time and date.
does not work. date.
You have not set the TIMER properly. Check the scheduled recordings.
Locked disc inserted. Remove disc lock.
Dim picture. The brightness and contrast of picture are Adjust them properly.
not adjusted properly.
No sound is output Improper connections. Make sure the component is connected correctly.
when a function is Sound is muted. Press the remote's MUTE (TV).
selected. The volume is turned down. Adjust VOLUME (TV).
The connected component is not operated Check the operation of the connected component.
properly.
The audio output is not set properly. Check the audio output setting.
The sound is muted during pause, slow Press the PLAY button to resume normal playback.
motion , fast forward / reverse, and
stepping playback.
No image is output Improper connections. Make sure the component is connected correctly.
when a function is The input source is not properly selected. Press the correct function button.
selected.
Broadcast stations The signal are weak. Connect an outdoor antenna.
cannot be selected
automatically.
The display is dark. The dimmer or sleep timer are on. Press DIMMER again.

- 10 -
TEST Mode shows the infomation as follows.
I. Back End Version (It is to express each Buyer, each model, and version number.)
II. Front End Version (It is to display the Mecha Fimware version number.)
III. Back End Build time (It can be used to seperate each B/E firmware version by the day.)
IV. Region No.(It is only to display region code.)
[operation]
To enter the first state of test mode, first insert a any DVD DISC and load the DISC.
Then press "STOP" key and the front panel displays "STOP".
then, press key on the remote unit as follows.
[CLEAR] - [2] - [5] - [8] -[0] - [CLEAR]
If you press key correctly, you will see the message below.
Loader FW ver: X.CA05- (I : F/E version)
Client ver: 0911PS-MODEL_NO.
-(II : B/E version)
Current Region: < X > - (III : Region Number)
<B/E Firmware update>
The update is done with CD-R. (When the firmware is changed, the updated firmware will be provided by Anam on CD-R)
Put the DISC in TRAY and load the CD-R disc, and Dialogue message to confirm B/E firmware update will be diplayed on the TV screen.
Updating will begin.
You’ll see the update progress
50%
on the TV screen.
When the TV screen’s display goes off, turn the POWER OFF.
Turn the POWER ON and then DO EEPROM CLEAR.
<F/E Firmware update>
The update is done with CD-R. (When the firmware is changed, the updated firmware will be provided by Anam on CD-R)
- Put the disc on TRAY at normal operation mode.
- Load the DISC and Dialogue message to confirm F/E firmware update will be diplayed on the TV screen .
- After about several seconds, DVD door will be open.
- Remove the Disc in the tray and then turn the POWER off.
- Turn the power on
- Remove the disc.
TEST MODE

- 11 -
RESISTORS AND CAPACITORS
IMPORTANT SAFETY NOTICE
Numbering System of Resistor
Example
Numbering System of Capacitor
Example
RESISTORS AND CAPACITORS
Notes.
* Circuit No's first character indicates kinds of part type.
C : Capacitors
R : Resistors
D : Diode
J : Jumper
L : Coil
Q : Transistors
S : Switch
BK : Bracket
JK : Jack
IC : Integrated Circuit
X : Crystal
BD : Bead
RESISTORS AND CAPACITORS
* Components identified by ! Mark have special characteristicsimportant for safety.
* When replacing any of these components, use only manufacture's specified parts.
* The unit of resistance is OHM ( )
K=1000( ), M=1000(K )
* The unit of capacitance is MICROFARAD (uF )
P=10 -6 uF
RESISTORS AND CAPACITORS
CRD 25 F J 101 HCKR 1H 101 K B
Type Wattage Shape Tolerance Value Type Voltage ValueTolerance Pecularity
Resistor Type Wattage Tolerance Tolerance
K(C/H)RD : Carbon 20 : 1/5W F : 1% HCEA Type Other
K(C/H)RG : Metal Oxide 25 : 1/4W J : 5% HCB : Ceramic 0J : 6.3V 1H :50V DC C : 0.25pF
50 : 1/2W K : 10% CCC : Ceramic 1A : 10V 1 : 125V DC G : 2%
1 : 1W CCK : Ceramic 1C: 16V KC : 400V AC J : 5%
K(C/H)RG : Metal Cement 2 : 2W HCQI : Polyester 1E : 25V K : 10%
3 : 3W HCQP : Polypropyene 1H : 50V Z : +80%, -20%
K(H)RJ : Carbon. CHIP 10 : 1/10W HCQS : Polystyrol 1V : 35V
14 : 1/4W HCUS : Ceramic
HCEA : ELECT
HCEA : ELECT.CHIP
Voltage
Capacitor Type

SEQ. PART NO. DESCRIPTION SPECIFICATION REMARKS
COP11740B FRONT PCB ASS'Y
CIP11740B FRONT PCB AUTO ASS'Y
CUP11740 PCB , RW FRONT
C801 HCBS1H104ZFT CAP , CERAMIC 0.1UF
C802 HCBS1H220JT CAP , CERAMIC 22PF
C804 CCEA1CKS100T CAP , ELECT 10UF/16V
C805 CCEA1HKS100T CAP , ELECT 10UF/50V
C806 HCBS1H104ZFT CAP , CERAMIC 0.1UF
C807 HCBS1H330JT CAP , CERAMIC 33PF
C808 HCBS1H330JT CAP , CERAMIC 33PF
C811 HCBS1H104ZFT CAP , CERAMIC 0.1UF
C812 HCBS1H120JCT CAP , CERAMIC 12PF
C813 HCBS1H120JCT CAP , CERAMIC 12PF
C820 HCBS1H104ZFT CAP , CERAMIC 0.1UF
C821 CCEA1HKS1R0T CAP, ELE 1UF/50V/5MM HEIGHT 1UF/50V
C822 HCBS1H103ZFT CAP , CERAMIC 0.01UF
C823 CCEA1CKS100T CAP , ELECT 10UF/16V
C824 HCBS1H103ZFT CAP , CERAMIC 0.01UF
C825 HCBS1H104ZFT CAP , CERAMIC 0.1UF
C826 HCBS1H470JT CAP , CERAMIC 47PF
C828 HCBS1H102KBT CAP , CERAMIC 1000PF
C829 HCBS1H104ZFT CAP , CERAMIC 0.1UF
C830 CCEA1CKS470T CAP, ELECT 47UF/16V/5MM HEIGHT 47UF/16V
C831 HCBS1H104ZFT CAP , CERAMIC 0.1UF
C832 CCEA1CKS470T CAP, ELECT 47UF/16V/5MM HEIGHT 47UF/16V
C833 HCBS1H104ZFT CAP , CERAMIC 0.1UF
C834 HCBS1H104ZFT CAP , CERAMIC 0.1UF
C835 HCBS1H104ZFT CAP , CERAMIC 0.1UF
C836 CCEA1HKS1R0T CAP, ELE 1UF/50V/5MM HEIGHT 1UF/50V
C837 CCEA1CKS101T CAP , ELECT 100UF/16V
C838 HCBS1H104ZFT CAP , CERAMIC 0.1UF
C839 HCBS1H104ZFT CAP , CERAMIC 0.1UF
D801 HVD342YCTB7T089 L.E.D , YELLOW SLR342YCTB7
D802 HVD1SS133MT DIODE 1SS133T-77
L801 HLQ02C100KT COIL , AXAIL 10UH
L802 C3A206 WIRE , COPPER SN95/PB5 , 0.6
Q801 HVTKRC107MT T.R KRC107M
R801 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R802 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R803 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J
R804 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J
R805 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J
R806 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J
R807 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J
R808 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R809 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R810 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J
R811 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R816 CRD20TJ331T RES , CARBON 330 OHM 1/5W J
R818 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R819 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R820 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R821 CRD20TJ330T RES , CARBON 33 OHM 1/5W J
R823 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R824 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
- 12-
ELECTRICAL PARTS LIST

SEQ. PART NO. DESCRIPTION SPECIFICATION REMARKS
R825 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R826 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R832 CRD20TJ391T RES , CARBON 390 OHM 1/5W
R833 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J
R834 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J
R835 CRD20TJ820T RES , CARBON 82 OHM 1/5W J
R836 CRD20TJ391T RES , CARBON 390 OHM 1/5W
R837 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R838 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R839 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J
R840 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J
S801 CST1A012ZT SW , TACT 00802-0005
S802 CST1A012ZT SW , TACT 00802-0005
S803 CST1A012ZT SW , TACT 00802-0005
S804 CST1A012ZT SW , TACT 00802-0005
S805 CST1A012ZT SW , TACT 00802-0005
S806 CST1A012ZT SW , TACT 00802-0005
S807 CST1A012ZT SW , TACT 00802-0005
S808 CST1A012ZT SW , TACT 00802-0005
S809 CST1A012ZT SW , TACT 00802-0005
S810 CST1A012ZT SW , TACT 00802-0005
S811 CST1A012ZT SW , TACT 00802-0005
S812 CST1A012ZT SW , TACT 00802-0005
S813 CST1A012ZT SW , TACT 00802-0005
S814 CST1A012ZT SW , TACT 00802-0005
S815 CST1A012ZT SW , TACT 00802-0005
S816 CST1A012ZT SW , TACT 00802-0005
BN12 CWB1B913460EN WIRE ASS'Y
BN14 CWZADR5800BN14 WIRE ASS'Y
BN71 CWB1B909480EN WIRE ASS'Y
BN73 CWB1B905200EN WIRE ASS'Y
BN82 CWB1B907180EN WIRE ASS'Y
BN84 CWZADR5800BN84 WIRE ASS'Y
BT81 HGP15BNH3A3H BATTERY , RECHARGEABLE GP15BNH3A3H
CN84 CJP03GA19ZY WAFER, STRAIGHT, 3PIN
FL81 HFL11BT229GNK FIP
IC81 HVIST92F124V1T6 I.C , MCU (FLASH 128K,TQFP100) ST92F124V1T6
IC82 HVIDS1307Z I.C , REAL TIME CLOCK DS1307Z
IC83 HVIRH5VT45C I.C , RESET RICOH 4.5V
IC84 HVIRH5VT30C I.C , RESET RICOH 3.0V
IC85 HVILC75725E IC , VFL DRIVER
JK81 KJJ9L002Z IEEE-1394 CONNECTOR 54516-0461
JK82 CJJ9M004Z JACK , S-VHS
JK83 CJJ4S028Z JACK , BOARD (3P) ADVR-7100
RC81 HRVKSM603TH2 REMOCON SENSER CN KSM-603TH2
US04 CMC1A111 PLATE , EARTH
US05 CMC1A111 PLATE , EARTH
X801 HOX04000E150C CRYSTAL , 4MHZ
X802 HOX00032K120I CRYSTAL , 32.768KHZ TUNING FORK
- 13-

SEQ. PART NO. DESCRIPTION SPECIFICATION REMARKS
COP11757B MAIN PCB ASS'Y
CIP11757BSMD MAIN PCB ASS'Y
CIP11757BBSMD MAIN PCB BOTTOM SMD ASS'Y
CUP11791 PCB , MAIN
C016 HCUS1H103KC CAP , CHIP 0.01UF
C023 HCUS1E104ZF CAP , CHIP 0.1UF
C027 HCUS1E104ZF CAP , CHIP 0.1UF
C029 HCUS1E104ZF CAP , CHIP 0.1UF
C032 HCUS1E104ZF CAP , CHIP 0.1UF
C033 HCUS1E104ZF CAP , CHIP 0.1UF
C037 HCUS1H103KC CAP , CHIP 0.01UF
C051 HCUS1E104ZF CAP , CHIP 0.1UF
C053 HCUS1E104ZF CAP , CHIP 0.1UF
C054 HCUS1H680JA CAP , CHIP 68PF
C055 HCUS1H680JA CAP , CHIP 68PF
C056 HCUS1E104ZF CAP , CHIP 0.1UF
C057 HCUS1H221JA CAP , CHIP 220PF
C058 HCUS1H680JA CAP , CHIP 68PF
C059 HCUS1H221JA CAP , CHIP 220PF
C060 HCUS1H221JA CAP , CHIP 220PF
C061 HCUS1E104ZF CAP , CHIP 0.1UF
C062 HCUS1H680JA CAP , CHIP 68PF
C063 HCUS1H680JA CAP , CHIP 68PF
C064 HCUS1E104ZF CAP , CHIP 0.1UF
C065 HCUS1H103KC CAP , CHIP 0.01UF
C066 HCUS1E104ZF CAP , CHIP 0.1UF
C067 HCUS1H680JA CAP , CHIP 68PF
C068 HCUS1C224ZF CAP , CHIP 0.22UF
C069 HCUS1C224ZF CAP , CHIP 0.22UF
C070 HCUS1E104ZF CAP , CHIP 0.1UF
C071 HCUS1C224ZF CAP , CHIP 0.22UF
C072 HCUS1H470JA CAP , CHIP 47PF
C073 HCUS1H103KC CAP , CHIP 0.01UF
C074 HCUS1E104ZF CAP , CHIP 0.1UF
C075 HCUS1E104ZF CAP , CHIP 0.1UF
C076 HCUS1H102KC CAP , CHIP 0.001UF
C077 HCUS1E104ZF CAP , CHIP 0.1UF
C078 HCUS1H102KC CAP , CHIP 0.001UF
C079 HCUS1E104ZF CAP , CHIP 0.1UF
C080 HCUS1E104ZF CAP , CHIP 0.1UF
C081 HCUS1H103KC CAP , CHIP 0.01UF
C082 HCUS1E104ZF CAP , CHIP 0.1UF
C083 HCUS1H470JA CAP , CHIP 47PF
C084 HCUS1E104ZF CAP , CHIP 0.1UF
C085 HCUS1E104ZF CAP , CHIP 0.1UF
C086 HCUS1H103KC CAP , CHIP 0.01UF
C087 HCUS1E104ZF CAP , CHIP 0.1UF
C088 HCUS1E104ZF CAP , CHIP 0.1UF
C089 HCUS1H103KC CAP , CHIP 0.01UF
C090 HCUS1H103KC CAP , CHIP 0.01UF
C091 HCUS1H102KC CAP , CHIP 0.001UF
C092 HCUS1H102KC CAP , CHIP 0.001UF
C093 HCUS1E104ZF CAP , CHIP 0.1UF
C094 HCUS1H470JA CAP , CHIP 47PF
- 14-

SEQ. PART NO. DESCRIPTION SPECIFICATION REMARKS
C095 HCUS1E104ZF CAP , CHIP 0.1UF
C096 HCUS1E104ZF CAP , CHIP 0.1UF
C097 HCUS1E104ZF CAP , CHIP 0.1UF
C098 HCUS1E104ZF CAP , CHIP 0.1UF
C099 HCUS1E104ZF CAP , CHIP 0.1UF
C100 HCUS1H103KC CAP , CHIP 0.01UF
C101 HCUS1E104ZF CAP , CHIP 0.1UF
C102 HCUS1E104ZF CAP , CHIP 0.1UF
C103 HCUS1H103KC CAP , CHIP 0.01UF
C104 HCUS1H103KC CAP , CHIP 0.01UF
C105 HCUS1E104ZF CAP , CHIP 0.1UF
C106 HCUS1H102KC CAP , CHIP 0.001UF
C107 HCUS1E104ZF CAP , CHIP 0.1UF
C108 HCUS1E104ZF CAP , CHIP 0.1UF
C109 HCUS1E104ZF CAP , CHIP 0.1UF
C110 HCUS1E104ZF CAP , CHIP 0.1UF
C111 HCUS1H103KC CAP , CHIP 0.01UF
C112 HCUS1E104ZF CAP , CHIP 0.1UF
C113 HCUS1E104ZF CAP , CHIP 0.1UF
C114 HCUS1E104ZF CAP , CHIP 0.1UF
C115 HCUS1H102KC CAP , CHIP 0.001UF
C116 HCUS1E104ZF CAP , CHIP 0.1UF
C117 HCUS1H102KC CAP , CHIP 0.001UF
C118 HCUS1E104ZF CAP , CHIP 0.1UF
C119 HCUS1H103KC CAP , CHIP 0.01UF
C120 HCUS1H103KC CAP , CHIP 0.01UF
C121 HCUS1E104ZF CAP , CHIP 0.1UF
C122 HCUS1E104ZF CAP , CHIP 0.1UF
C123 HCUS1E104ZF CAP , CHIP 0.1UF
C124 HCUS1E104ZF CAP , CHIP 0.1UF
C125 HCUS1H102KC CAP , CHIP 0.001UF
C126 HCUS1H103KC CAP , CHIP 0.01UF
C127 HCUS1E104ZF CAP , CHIP 0.1UF
C128 HCUS1H102KC CAP , CHIP 0.001UF
C129 HCUS1E104ZF CAP , CHIP 0.1UF
C130 HCUS1E104ZF CAP , CHIP 0.1UF
C131 HCUS1H103KC CAP , CHIP 0.01UF
C132 HCUS1E104ZF CAP , CHIP 0.1UF
C133 HCUS1H103KC CAP , CHIP 0.01UF
C134 HCUS1E104ZF CAP , CHIP 0.1UF
C135 HCUS1E104ZF CAP , CHIP 0.1UF
C136 HCUS1E104ZF CAP , CHIP 0.1UF
C137 HCUS1H102KC CAP , CHIP 0.001UF
C138 HCUS1H102KC CAP , CHIP 0.001UF
C139 HCUS1E104ZF CAP , CHIP 0.1UF
C140 HCUS1E104ZF CAP , CHIP 0.1UF
C141 HCUS1H103KC CAP , CHIP 0.01UF
C142 HCUS1E104ZF CAP , CHIP 0.1UF
C143 HCUS1E104ZF CAP , CHIP 0.1UF
C144 HCUS1E104ZF CAP , CHIP 0.1UF
C145 HCUS1E104ZF CAP , CHIP 0.1UF
C146 HCUS1E104ZF CAP , CHIP 0.1UF
C147 HCUS1H102KC CAP , CHIP 0.001UF
C148 HCUS1E104ZF CAP , CHIP 0.1UF
C149 HCUS1E104ZF CAP , CHIP 0.1UF
- 15-

SEQ. PART NO. DESCRIPTION SPECIFICATION REMARKS
C150 HCUS1H102KC CAP , CHIP 0.001UF
C151 HCUS1E104ZF CAP , CHIP 0.1UF
C152 HCUS1E104ZF CAP , CHIP 0.1UF
C153 HCUS1E104ZF CAP , CHIP 0.1UF
C154 HCUS1E104ZF CAP , CHIP 0.1UF
C155 HCUS1E104ZF CAP , CHIP 0.1UF
C156 HCUS1E104ZF CAP , CHIP 0.1UF
C157 HCUS1H102KC CAP , CHIP 0.001UF
C158 HCUS1H103KC CAP , CHIP 0.01UF
C159 HCUS1H103KC CAP , CHIP 0.01UF
C160 HCUS1E104ZF CAP , CHIP 0.1UF
C161 HCUS1H102KC CAP , CHIP 0.001UF
C162 HCUS1E104ZF CAP , CHIP 0.1UF
C163 HCUS1H102KC CAP , CHIP 0.001UF
C164 HCUS1E104ZF CAP , CHIP 0.1UF
C165 HCUS1H102KC CAP , CHIP 0.001UF
C166 HCUS1E104ZF CAP , CHIP 0.1UF
C167 HCUS1H102KC CAP , CHIP 0.001UF
C168 HCUS1E104ZF CAP , CHIP 0.1UF
C169 HCUS1E104ZF CAP , CHIP 0.1UF
C170 HCUS1E104ZF CAP , CHIP 0.1UF
C171 HCUS1H103KC CAP , CHIP 0.01UF
C172 HCUS1H103KC CAP , CHIP 0.01UF
C173 HCUS1E104ZF CAP , CHIP 0.1UF
C174 HCUS1E104ZF CAP , CHIP 0.1UF
C175 HCUS1E104ZF CAP , CHIP 0.1UF
C176 HCUS1H102KC CAP , CHIP 0.001UF
C177 HCUS1E104ZF CAP , CHIP 0.1UF
C178 HCUS1E104ZF CAP , CHIP 0.1UF
C179 HCUS1H103KC CAP , CHIP 0.01UF
C180 HCUS1E104ZF CAP , CHIP 0.1UF
C181 HCUS1E104ZF CAP , CHIP 0.1UF
C182 HCUS1E104ZF CAP , CHIP 0.1UF
C183 HCUS1H102KC CAP , CHIP 0.001UF
C184 HCUS1H103KC CAP , CHIP 0.01UF
C185 HCUS1E104ZF CAP , CHIP 0.1UF
C186 HCUS1E104ZF CAP , CHIP 0.1UF
C187 HCUS1H332KC CAP , CHIP 0.1UF
C188 HCUS1H103KC CAP , CHIP 0.01UF
C189 HCUS1H102KC CAP , CHIP 0.001UF
C190 HCUS1E104ZF CAP , CHIP 0.1UF
C191 HCUS1E104ZF CAP , CHIP 0.1UF
C192 HCUS1H102KC CAP , CHIP 0.001UF
C193 HCUS1E104ZF CAP , CHIP 0.1UF
C194 HCUS1H102KC CAP , CHIP 0.001UF
C195 HCUS1E104ZF CAP , CHIP 0.1UF
C196 HCUS1H103KC CAP , CHIP 0.01UF
C197 HCUS1H103KC CAP , CHIP 0.01UF
C198 HCUS1E104ZF CAP , CHIP 0.1UF
C199 HCUS1H103KC CAP , CHIP 0.01UF
C200 HCUS1E104ZF CAP , CHIP 0.1UF
C201 HCUS1H221JA CAP , CHIP 220PF
C202 HCUS1H220JA CAP , CHIP 22PF
C203 HCUS1H220JA CAP , CHIP 22PF
C204 CRJ10DJ0R0T RES , CHIP 0 Ω
- 16-

SEQ. PART NO. DESCRIPTION SPECIFICATION REMARKS
C205 CRJ10DJ0R0T RES , CHIP 0 Ω
C206 HCUS1H220JA CAP , CHIP 22PF
FB03 HLZ91002Z CHIP FERRITE BEAD HU-1H3216-121
FB04 HLZ91002Z CHIP FERRITE BEAD HU-1H3216-121
FB05 HLZ91002Z CHIP FERRITE BEAD HU-1H3216-121
FB06 HLZ91002Z CHIP FERRITE BEAD HU-1H3216-121
FB07 HLZ91002Z CHIP FERRITE BEAD HU-1H3216-121
FB08 HLZ91002Z CHIP FERRITE BEAD HU-1H3216-121
FB09 HLZ91002Z CHIP FERRITE BEAD HU-1H3216-121
FB11 HLZ91002Z CHIP FERRITE BEAD HU-1H3216-121
FB12 HLZ91002Z CHIP FERRITE BEAD HU-1H3216-121
L001 HLQ09E8R2KRZ CHIP , COIL 8.2UH
L002 HLQ09E8R2KRZ CHIP , COIL 8.2UH
L003 HLQ09E8R2KRZ CHIP , COIL 8.2UH
L004 HLQ09E8R2KRZ CHIP , COIL 8.2UH
L005 HLQ09E8R2KRZ CHIP , COIL 8.2UH
L006 HLQ09E8R2KRZ CHIP , COIL 8.2UH
RP18 CRJ104DJ471T RES , 4 ARRAY 470Ω X 4
RP21 CRJ104DJ472T RES , 4 ARRAY 4.7KΩ X 4
R003 CRJ10DJ0R0T RES , CHIP 0 Ω
R006 CRJ10DJ0R0T RES , CHIP 0 Ω
R051 CRJ10DJ0R0T RES , CHIP 0 Ω
R054 CRJ10DJ0R0T RES , CHIP 0 Ω
R056 CRJ10DJ220T RES , CHIP 22 Ω
R057 CRJ10DJ560T RES , CHIP 56 Ω
R058 CRJ10DJ220T RES , CHIP 22 Ω
R059 CRJ10DJ221T RES , CHIP 220 Ω
R060 CRJ10DJ560T RES , CHIP 56 Ω
R061 CRJ10DJ472T RES , CHIP 4.7KΩ
R062 CRJ10DJ472T RES , CHIP 4.7KΩ
R064 CRJ10DJ0R0T RES , CHIP 0 Ω
R065 CRJ10DJ330T RES , CHIP 33 Ω
R066 CRJ10DJ102T RES , CHIP 1 KΩ
R067 CRJ10DJ472T RES , CHIP 4.7KΩ
R068 CRJ10DF2490T RES , CHIP 249 Ω
R069 CRJ10DF2490T RES , CHIP 249 Ω
R070 CRJ10DJ102T RES , CHIP 1 KΩ
R071 CRJ10DJ330T RES , CHIP 33 Ω
R072 CRJ10DJ330T RES , CHIP 33 Ω
R073 CRJ10DJ330T RES , CHIP 33 Ω
R074 CRJ10DF2490T RES , CHIP 249 Ω
R075 CRJ10DF49R9T RES , CHIP 49.9 Ω
R076 CRJ10DF49R9T RES , CHIP 49.9 Ω
R077 CRJ10DF49R9T RES , CHIP 49.9 Ω
R078 CRJ10DJ0R0T RES , CHIP 0 Ω
R079 CRJ10DF3920T RES , CHIP 392 Ω
R080 CRJ10DJ0R0T RES , CHIP 0 Ω
R081 CRJ10DJ472T RES , CHIP 4.7KΩ
R082 CRJ10DJ0R0T RES , CHIP 0 Ω
R083 CRJ10DJ472T RES , CHIP 4.7KΩ
R084 CRJ10DJ472T RES , CHIP 4.7KΩ
R085 CRJ10DJ0R0T RES , CHIP 0 Ω
R086 CRJ10DJ472T RES , CHIP 4.7KΩ
R087 CRJ10DJ0R0T RES , CHIP 0 Ω
R088 CRJ10DJ102T RES , CHIP 1 KΩ
- 17-

SEQ. PART NO. DESCRIPTION SPECIFICATION REMARKS
R089 CRJ10DF1210T RES , CHIP 120 Ω
R090 CRJ10DF53R6T RES , CHIP 53.6 Ω
R091 CRJ10DJ510T RES , CHIP 51 Ω
R092 CRJ10DJ102T RES , CHIP 1 KΩ
R094 CRJ10DJ510T RES , CHIP 51 Ω
R095 CRJ10DJ510T RES , CHIP 51 Ω
R096 CRJ10DJ510T RES , CHIP 51 Ω
R098 CRJ10DJ510T RES , CHIP 51 Ω
R099 CRJ10DJ510T RES , CHIP 51 Ω
R100 CRJ10DJ510T RES , CHIP 51 Ω
R103 CRJ10DJ0R0T RES , CHIP 0 Ω
R105 CRJ10DJ510T RES , CHIP 51 Ω
R106 CRJ10DJ0R0T RES , CHIP 0 Ω
R108 CRJ10DJ510T RES , CHIP 51 Ω
R109 CRJ10DJ472T RES , CHIP 4.7KΩ
R110 CRJ10DJ103T RES , CHIP 10 KΩ
R111 CRJ10DJ103T RES , CHIP 10 KΩ
R112 CRJ10DJ103T RES , CHIP 10 KΩ
R113 CRJ10DJ102T RES , CHIP 1 KΩ
R114 CRJ10DJ0R0T RES , CHIP 0 Ω
R115 CRJ10DJ0R0T RES , CHIP 0 Ω
R116 CRJ10DJ510T RES , CHIP 51 Ω
R118 CRJ10DJ103T RES , CHIP 10 KΩ
R119 CRJ10DJ103T RES , CHIP 10 KΩ
R120 CRJ10DJ103T RES , CHIP 10 KΩ
R121 CRJ10DJ102T RES , CHIP 1 KΩ
R122 CRJ10DJ103T RES , CHIP 10 KΩ
R123 CRJ10DF6341T RES , CHIP 6.34 KΩ
R126 CRJ10DJ103T RES , CHIP 10 KΩ
R127 CRJ10DJ103T RES , CHIP 10 KΩ
R128 CRJ10DJ103T RES , CHIP 10 KΩ
R129 CRJ10DJ103T RES , CHIP 10 KΩ
R130 CRJ10DJ512T RES , CHIP 5.1 KΩ
R131 CRJ10DJ103T RES , CHIP 10 KΩ
R132 CRJ10DJ330T RES , CHIP 33 Ω
R133 CRJ10DJ330T RES , CHIP 33 Ω
R134 CRJ10DJ330T RES , CHIP 33 Ω
R135 CRJ10DJ330T RES , CHIP 33 Ω
R136 CRJ10DJ330T RES , CHIP 33 Ω
R137 CRJ10DJ330T RES , CHIP 33 Ω
R138 CRJ10DJ105T RES , CHIP 1 MΩ
R139 CRJ10DJ0R0T RES , CHIP 0 Ω
R140 CRJ10DJ103T RES , CHIP 10 KΩ
R142 CRJ10DJ0R0T RES , CHIP 0 Ω
R360 CRJ10DJ330T RES , CHIP 33 Ω
U011 HOX27000ISZ CRYSTAL , OSC SMD SEALED TYPE
- 18-

SEQ. PART NO. DESCRIPTION SPECIFICATION REMARKS
CIP11757BTSMD MAIN PCB TOP SMD ASS'Y
C001 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C002 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C003 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C004 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C005 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C007 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C008 HCUS1E104ZF CAP , CHIP 0.1UF
C009 HCUS1H332KC CAP , CHIP 3300PF
C010 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C011 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C012 HCUS1E104ZF CAP , CHIP 0.1UF
C013 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C014 HCUS1H103KC CAP , CHIP 0.01UF
C015 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C017 HCUS1E104ZF CAP , CHIP 0.1UF
C018 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C019 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C020 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C021 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C022 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C024 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C025 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C026 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C028 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C030 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C031 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C034 HCUS1H103KC CAP , CHIP 0.01UF
C035 HCUS1H102KC CAP , CHIP 0.001UF
C036 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C038 HCUS1E104ZF CAP , CHIP 0.1UF
C039 HCUS1E104ZF CAP , CHIP 0.1UF
C040 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C041 HCUS1H103KC CAP , CHIP 0.01UF
C042 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C043 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C044 HCUS1H102KC CAP , CHIP 0.001UF
C045 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C046 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C047 HCUS1H103KC CAP , CHIP 0.01UF
C048 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C049 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C050 HCEC0JRV2470T CAP , CHIP ELECT 47UF/6.3V
C052 HCEC1HRV21R0T CAP , CHIP ELECT 1UF/50V
FB01 HLZ91002Z CHIP FERRITE BEAD HU-1H3216-121
FB02 HLZ91002Z CHIP FERRITE BEAD HU-1H3216-121
RP01 CRJ104DJ220T RES , 4 ARRAY 22Ω X 4
RP02 CRJ104DJ472T RES , 4 ARRAY 4.7KΩ X 4
RP03 CRJ104DJ471T RES , 4 ARRAY 470Ω X 4
RP04 CRJ104DJ220T RES , 4 ARRAY 22Ω X 4
RP05 CRJ104DJ220T RES , 4 ARRAY 22Ω X 4
RP06 CRJ104DJ220T RES , 4 ARRAY 22Ω X 4
RP07 CRJ104DJ470T RES , 4 ARRAY 47Ω X 4
RP08 CRJ104DJ470T RES , 4 ARRAY 47Ω X 4
RP09 CRJ104DJ470T RES , 4 ARRAY 47Ω X 4
- 19-

SEQ. PART NO. DESCRIPTION SPECIFICATION REMARKS
RP10 CRJ104DJ470T RES , 4 ARRAY 47Ω X 4
RP11 CRJ104DJ470T RES , 4 ARRAY 47Ω X 4
RP12 CRJ104DJ470T RES , 4 ARRAY 47Ω X 4
RP13 CRJ104DJ470T RES , 4 ARRAY 47Ω X 4
RP14 CRJ104DJ470T RES , 4 ARRAY 47Ω X 4
RP15 CRJ104DJ472T RES , 4 ARRAY 4.7KΩ X 4
RP16 CRJ104DJ472T RES , 4 ARRAY 4.7KΩ X 4
RP17 CRJ104DJ472T RES , 4 ARRAY 4.7KΩ X 4
RP19 CRJ104DJ220T RES , 4 ARRAY 22Ω X 4
RP20 CRJ104DJ220T RES , 4 ARRAY 22Ω X 4
R001 CRJ10DJ101T RES , CHIP 100 Ω
R002 CRJ10DJ102T RES , CHIP 1 KΩ
R004 CRJ10DJ102T RES , CHIP 1 KΩ
R005 CRJ10DJ330T RES , CHIP 33 Ω
R007 CRJ10DJ220T RES , CHIP 22 Ω
R008 CRJ10DJ330T RES , CHIP 33 Ω
R009 CRJ10DJ0R0T RES , CHIP 0 Ω
R010 CRJ10DJ0R0T RES , CHIP 0 Ω
R011 CRJ10DJ562T RES , CHIP 5.6 KΩ
R012 CRJ10DJ330T RES , CHIP 33 Ω
R013 CRJ10DJ0R0T RES , CHIP 0 Ω
R014 CRJ10DJ102T RES , CHIP 1 KΩ
R015 CRJ10DJ0R0T RES , CHIP 0 Ω
R016 CRJ10DJ472T RES , CHIP 4.7KΩ
R017 CRJ10DJ472T RES , CHIP 4.7KΩ
R018 CRJ10DJ472T RES , CHIP 4.7KΩ
R019 CRJ10DJ472T RES , CHIP 4.7KΩ
R020 CRJ10DJ472T RES , CHIP 4.7KΩ
R021 CRJ10DJ472T RES , CHIP 4.7KΩ
R022 CRJ10DJ472T RES , CHIP 4.7KΩ
R023 CRJ10DJ330T RES , CHIP 33 Ω
R024 CRJ10DJ472T RES , CHIP 4.7KΩ
R025 CRJ10DJ220T RES , CHIP 22 Ω
R026 CRJ10DJ472T RES , CHIP 4.7KΩ
R027 CRJ10DJ103T RES , CHIP 10 KΩ
R028 CRJ10DJ103T RES , CHIP 10 KΩ
R029 CRJ10DJ103T RES , CHIP 10 KΩ
R030 CRJ10DJ102T RES , CHIP 1 KΩ
R031 CRJ10DJ103T RES , CHIP 10 KΩ
R032 CRJ10DJ0R0T RES , CHIP 0 Ω
R033 CRJ10DF56R2T RES , CHIP 56.2 Ω
R034 CRJ10DF56R2T RES , CHIP 56.2 Ω
R035 CRJ10DJ472T RES , CHIP 4.7KΩ
R036 CRJ10DJ103T RES , CHIP 10 KΩ
R037 CRJ10DJ103T RES , CHIP 10 KΩ
R038 CRJ10DJ103T RES , CHIP 10 KΩ
R039 CRJ10DJ103T RES , CHIP 10 KΩ
R040 CRJ10DJ103T RES , CHIP 10 KΩ
R041 CRJ10DF56R2T RES , CHIP 56.2 Ω
R042 CRJ10DF56R2T RES , CHIP 56.2 Ω
R043 CRJ10DJ330T RES , CHIP 33 Ω
U003 HVIHY57V281620H I.C , SDRAM
U004 HVITSB41AB1-PHP I.C , IEEE-1394 TSB41AB1-PHP
U005 HVITSB42AB4PDT I.C , IEEE-1394 TSB42AB4PDT
U006 HVIZR35100PQC I.C , ACTIVA 100
- 20 -
