WLS 6060 MAX
Wireless PA System
Description

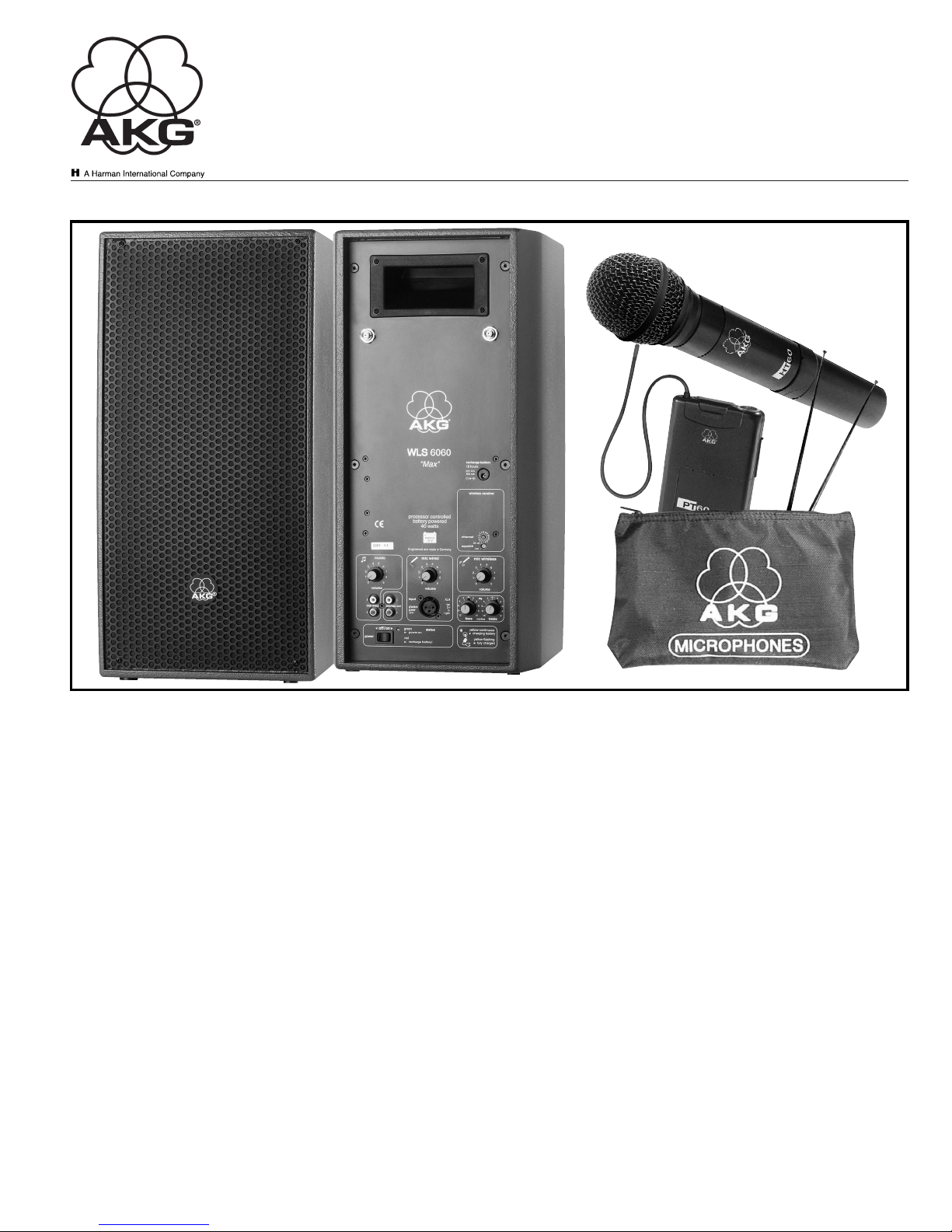

The AKG Acoustics Model WLS 6060 MAX wireless PA system is
built around an integrated wireless receiver, preamplifier/amplifier and
loudspeaker combination, all housed in a moderate size enclosure that
weighs only 26.5 lbs. (12 kg). The amplifier section has a peak power
rating of 60 watts, and the two-way loudspeaker system can produce
peak output levels of 114 dB at a reference distance of 1 meter. When
fully charged, the system will operate for 10 to 14 hours, depending on
the duty cycle. The system can be charged from the ac power line
while it is in full operational mode. It can be left in the charge mode
indefinitely with no adverse effects.
The wireless input can be either by way of a handheld microphone
(choice of D 3800 WL/1, C 5900 WL/1, or C 535 WL/1 head units) or by
way of a bodypack, which can accommodate a variety of microphone
accessories as listed in the specifications section. The integral WMS60
wireless microphone system can accommodate up to 15 channels,
operating over the carrier frequency range from 182 to 205.7 MHz.
The built-in mixer independently accommodates three inputs:
microphone (wired, 12-volt phantom powering), microphone (wireless)
and music. There is a channel selector for wireless operation, a two-
band equalizer for matching the system’s loudspeaker to a specific
operating environment, and an automatic speech filter limiter with
subsonic filter for maintaining a consistent output level. A status LED
indicates when the WLS6060 is on a ready to operate. When the LED
turns red, the battery is low and the system must be plugged into the
ac power source for recharging. A constant yellow LED indicates the
battery is being charged, and as soon as the charging cycle is
completed the yellow LED will flash.
Additional WLS 6060 modules can be fed by the host module for
added output capability and extended coverage.
Features
• Self-contained microphone,
preamp, and battery powered
public address system
• Works for 10 to 14 hours on
battery power
• Wireless microphone capability
for maximum mobility
• “Smart” signal processing for
controlled, distortionless, and
highly intelligible speech quality
• Multiple speaker units may be
stacked for greater coverage
• Ideal for seminars, exhibition
booth activity, as well as on-
stage solo instruments

The wireless public address (PA) system shall consist of a
compact module containing a two-way loudspeaker system,
integral power amplifier and preamplifier. The weight of the system
shall not exceed 27 lbs. (12 kg), and the power
amplifier/loudspeaker section shall be capable of producing a peak
output level of 114 dB SPL measured at a distance of one meter.
The input section of the system shall accommodate simultaneously
a wired microphone, with 12 V phantom powering, a line input for
external music source (cassette or DAT), and the capability of
handling at least 15 individual wireless microphone channels. The
preamplifier section shall contain an equalizer section with at least
two controls, bass and treble, and there shall be a limiter with an
automatic subsonic filter. The system shall provide at least two line
level output jacks for external recording and feeding additional PA
modules. The system shall be the AKG Acoustics Model WLS 6060
MAX Wireless PA System.
Architects and Engineers Specifications
Microphones · Headphones · Wireless Microphones · Wireless Headphones · Headsets · Electroacoustical Components
Limited Warranty
Valid only in the United States. AKG Acoustics warrants AKG products against defects in material
or workmanship for a period of two years from the date of original purchase for use, and agrees to
repair or, at our option, replace any defective unit without charge for either parts or labor. Important:
This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable
care, the affixing of any attachment not provided with the product, loss of parts or connecting the
product to any but the specified receptacles. This warranty is void unless service or repairs are
performed by an authorized service center. No responsibility is assumed for any special, incidental
or consequential damages. However, the limitation of any right or remedy shall not be effective
where such is prohibited or restricted by law. Simply take or ship your AKG product prepaid to our
service department. Be sure to include your sales slip as proof of purchase date. (We will not repair
transit damage under the no-charge terms of this warranty.) Note: No other warranty, written or oral
is authorized by AKG Acoustics, Inc. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. Some states do not allow the exclusion or
limitation of incidental or consequential damages or limitation on how long an implied warranty
lasts, so the above exclusions and limitation may not apply to you.
Specifications subject to change without notice.
AKG Acoustics GmbH
Lemböckgasse 21–25, P.O.B. 158, A-1230
Vienna/AUSTRIA
Tel: [phone]*, Fax: [phone]
Internet: http://www.akg.com
AKG Acoustics; A Division of Harman Pro Germany
Bodenseestraße 228, D-81243 München/GERMANY
Tel: [phone], Fax: [phone]
Arbiter Pro Audio
Wilberforce Road, London NW9 6AX/ENGLAND
Tel: [phone], Fax: [phone]
AKG ACOUSTICS, U.S.
914 Airpark Center Drive
Nashville, TN 37217, U.S.A.
Tel: [phone], Fax: [phone]
Studer Japan Ltd.
2-43-7, Uehara, Shibuya-ku, Tokyo 151-0064/JAPAN
Tel: [phone], Fax: [phone]
Erikson Pro Audio
620 McCaffrey, St-Laurent, Quebec, H4T 1N1, CANADA
Tel: [phone], Fax: [phone]
Internet: www.jam-ind.com/eriksonpro
DS-WLS 6060 MAX
WLS 6060:
Amplifier power (continuous/peak):
40 W/60 W
Loudspeaker system: 2-way ported
Sensitivity (1 W @ 1 m): 96 dB
Peak SPL output (1 m): 114 dB
Nominal coverage angles: 80°horizontal and vertical
Mixer inputs: 1 x wireless (internal)
1 x balanced external mic (1 kohm)
2 x line inputs (10 kohm)
Phantom powering: 12 V (balance mic input)
Outputs: 2 line out jacks (+12 dB/600 ohms)
Connectors: balance mic input: XLR line in for
CD, cassette (stereo summed to
mono) 2 x RCA jacks
MIX/REC out: RCA jacks
antenna in: 2 x BNC
Equalizer: separate bass and treble
Processor: automatic speech filter/
limiter with autosubsonic filter
Size (W x D x H): 10.6 x 9.4 x 19.7 inches
(270 x 239 x 500 mm)
Weight: 26.5 lbs. (12 kg),
including battery and receiver
AC adapter: 120 V ac/24 V dc @ 1.0 A
Rechargeable battery: 12 V, approx. 7.2 Ah
Battery live (speech/music):10 - 14 hours
WMS 60 Wireless System:
HT60: PT60:
Carrier frequency: 182 - 205.7 MHz
Modulation: FM
Audio bandwidth: 50 - 20 kHz
Polar pattern: supercardioid -
Frequency stability: 14°to 122°F (-10°to 50°C) ± 10 ppm
Rated deviation: 30 kHz
THD @ 1 kHz: <0.8% <0.5%
Compander: yes
Signal/noise ratio: typ. 50 dBA
Limiter: yes
RF output: 10 mW
Current consumption: typ. 120 mA typ. 150 mA
Power requirement: 2 x 1.5 V AA size batteries
Battery life: >12 hours >10 hours
Input sensitivity: typ. -95 dBm -
Input impedance: 220 kohms
Microphone powering: - 6 V at pin 3
Size (W x D x H): 9.4 x 1.4 in. dia 3.5 x 2.5 x 0.8 in.
(240 x 36 mm) (92 x 65 x 20 mm)
Net weight: 8.7 oz. (245 g) 2.7 oz. (76 g)
Accessories:
Carrying bag: CB 6060
Rain cover: RP 6060
Microphone bag MB 6060
Optional:
C 417/L Instrument microphone
CK 77/L Instrument microphone
C 419/L Instrument microphone
MK/GL Guitar cable
C 420/L Head worn microphone
