Albatron PX845GEV Series User manual

PX845PEV/GEV Series
Copyright
All rights are reserved. No part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system or translated into any language or computer language,
in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of the company. Brands and product names
are trademarks or registered trademarks of their respective companies.
The vendor makes no representations or warranties with respect to the contents herein and
especially disclaim any implied warranties of merchantability or fitness for any purpose.
Further the vendor reserves the right to revise this publication and to make changes to the
contents herein without obligation to notify any party beforehand. Duplication of this
publication, in part or in whole, is not allowed without first obtaining the vendor’s approval
in writing.
Disclaimer
We make no warranty of any kind with regard to the content of this user’s manual. The
content is subject to change without notice and we will not be responsible for any mistakes
found in this user’s manual. All the brand and product names are trademarks of their
respective companies.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits of a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his
own expense. However, there is no guarantee that interference will not occur in a particular
installation.
120410009M1N

PX845PEV/GEV Series
Socket 478 Intel® 82845PE/GE & 82801DB
Supports Intel®Pentium®4 Processor
USER’S Maunal
2002/08/20

Contents
CHAPTER 1. GETTING STARTED .................................................................................... 1
INTRODUCTION....................................................................................................................... 1
SPECIFICATION ....................................................................................................................... 2
QUICK CONTENT TABLE......................................................................................................... 6
CONFIGURATION .................................................................................................................... 7
HARDWARE INSTALLATION .................................................................................................. 11
CHAPTER 2. BIOS SETUP ................................................................................................. 27
INTRODUCTION..................................................................................................................... 27
MAIN MENU ......................................................................................................................... 29
ADVANCED BIOS FEATURES ............................................................................................... 31
INTEGRATED PERIPHERALS .................................................................................................. 38
POWER MANAGEMENT ......................................................................................................... 43
HARDWARE MONITOR.......................................................................................................... 46
LOAD DEFAULTS .................................................................................................................. 47
EXIT MENU .......................................................................................................................... 48
CHAPTER 3: SOFTWARE SETUP.................................................................................... 49
SOFTWARE LIST ................................................................................................................... 49
SOFTWARE INSTALLATION ................................................................................................... 49
SUPER 5.1 CHANNEL SETUP ................................................................................................. 52
SPEAKER TEST...................................................................................................................... 53
CHAPTER 4: TROUBLESHOOTING ............................................................................... 54

PX845PEV/ GEV Series
1
Chapter 1. Getting Started
Introduction
Congratulations on choosing the PX845PEV/GEV series mainboard! The PX845PEV series
includes the PX845PEV 、PX845PEV PRO and the PX845GEV series includes the
PX845GEV、PX845GEV PRO. It is based on Intel®82845PE (PX845PEV series) or
82845GE (PX845GEV series) / 82801DB chipsets. It also supports Intel®Pentium®4
Processors with a FSB (Front Side Bus) frequency of 400/533 MHz.
The PX845PEV/GEV series provides 3 sockets using 184 pin DDR SDRAM with a total
capacity of up to 2GB. You can install DDR 333/266/200 (PC2700/2100/1600) SDRAM
with the option of using the BIOS Setup to over-clock to DDR400.
The PX845PEV/GEV series provides one AGP Slot for 4X (1.5V only) AGP cards.
The PX845PEV/GEV series includes built in IDE facilities that support Ultra DMA
33/66/100 BMIDE and PIO Modes. The PX845PEV/GEV series also comes with an AC’97
Sound Codec (ALC650) which supports high quality 6 channel audio (Super 5.1 Channel
Audio Effect).
The PX845PEV/GEV series also comes with six USB 2.0 ports.
The PX845PEV/GEV series also come with AGP protection with ensures that you only
install 1.5V AGP cards.
PX845PEV PRO/PX845GEV PRO also comes with a LAN Chip which supports a back
panel LAN port.

PX845PEV/ GEV Series
2
Specification
CPU:
 Socket-478
 Supports Pentium®4 processor
Speed:
 400/533 MHz Front Side Bus frequency
 Supports core speeds up to 2.8 GHz CPU
 33MHz, 32 bit PCI interface (PCI 2.2 compliant)
 66MHz AGP 2.0 compliant interface that supports 4x data transfer modes (1.5V
only)
Chipset:
 Northbridge Chip– Intel 82845PE (for PX845PEV series) / Intel 82845GE (for
PX845GEV series)
 Southbridge Chip– Intel 82801DB
 I/O Controller – Winbond IO W83627HF
 AC’97 Codec – Relteck ALC650
DRAM Memory:
 Supports 333 (PC2700) / 266(PC2100) / 200(PC1600) DDR (Double Data Rate)
SDRAM
 Supports 64MB/128MB/256MB/512MB/1GB unbuffere non-ECC DIMM
modules
 Supports up to three single-sided or two double-sided memory modules with a
total capacity of 2GB (see memory installation section for more details)
 Does not support double-sided *16 DDR DIMMs
Green Functionality:
 Supports Phoenix-Award BIOS ™ power management functionality
 Wakes from power saving sleep mode with any keyboard or mouse activity

PX845PEV/ GEV Series
3
Shadow RAM:
 This mainboard is equipped with a memory controller providing shadow RAM
and support for ROM BIOS
Graphics Controller: (only for PX845GEV series)
 Integrated 2D/3D graphics accelerator
 256-bit graphics core
 Texture mapped 3D with point sampled, Billnear, Trilinear, and Anisotropic
filtering
 Hardware setup with support for strips and fans
 Hardware motion compensation assistance for software MPEG/DVD decode
 Intel Digital Video (DVO) ports support digital displays and TV-out
 Integrated 350MHz RAMDAC
 Support ADD card
BUS Slots:
 1 AGP slot (1.5V only)
 Five 32-bit PCI bus slots
Flash Memory:
 Supports flash memory functionality
 Supports ESCD functionality
Hardware Monitor Function:
 Monitors CPU Fan Speed
 Monitors Chasis Fan Speed
 Monitors System Voltage
 Monitors Peripheral Fan Speed
Infrared:
 Supports IrDA Version 1.0 SIR Protocol with a maximum baud rate of up to
115.2K bps
 Supports SHARP ASK-IR Protocol with maximum baud rate of up to 57600 bps
 Supports Consumer IR with Wake-Up function

PX845PEV/ GEV Series
4
AC’97 Sound Codec Onboard:
 High performance CODEC with high S/N ratio (>90dB)
 Compliant with AC’97 2.2 specification
 6-channel playback capability (Super 5.1 Channel Audio Effect)
 3D Stereo enhancement
 Digital S/PDIF
I/O facilities:
 One multi-mode Parallel Port capable of supporting the following specifications:
1. Standard & Bi-direction Parallel Port
2. Enhanced Parallel Port (EPP)
3. Extended Capabilities Port (ECP)
 Supports two serial ports (the PX845GEV series only supports one serial port),
16550 UART
 Supports Infrared Data Transmission using IrDA
 Supports PS/2 mouse and PS/2 keyboard
 Supports 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB floppy disk drives
 MIDI compatible
 Game port compatible
IDE Facilities:
 Supports Ultra ATA 33, Ultra ATA 66, Ultra ATA 100, BMIDE and PIO modes
 Supports IDE interface with CD-ROM
 Supports high capacity hard disk drives
 Supports installaton of up to 4 drives, with separate IDE connections for Primary
and Secondary cables
Universal Serial Bus:
 Supports six USB 2.0 ports for USB interface devices
AGP protection:
 This mainboard provides an AGP slot only for 1.5V AGP cards. The AGP
protection function is to protect the mainboard and AGP cards if a non 1.5V card
is installed.

PX845PEV/ GEV Series
5
BIOS:
 Phoenix-Award™ BIOS
 Supports APM1.2
 Supports USB Legacy function
 Supports ACPI power management
LAN: (only for PX845PEV PRO/PX845GEV PRO)
 Provides Full-duplex operation on both 100Mbps and 10 Mbps modes
 Provides Auto-negotiation (NWAY) function of full/half duplex operation for
both 10 and 100 Mbps
 Supports PC99 wake on LAN
 10/100 Mbit/sec Ethernet support
Watch Dog Timer:
 This mainboard contains a special feature called the “Watch Dog Timer” which is
used to detect when the system is unable to handle over-clocking configurations
during POST stage. Once detected the system will reset the configurations and
reboot the system after five seconds.
Operating System:
 Supports mostpopular operating systems: Windows®2000/ 9X/ ME/ XP,
etc.
Dimensions (ATX form-factor):
 200mm x 294mm (WxL)
Package Contents:
 IDE Cable
 FDC Cable
 USB Bracket (Optional)
 Installation and Setup Driver CD
 User’s Manual

PX845PEV/ GEV Series
6
Quick Content Table
Function Content Location Page
CPU Socket 478 U6 10
DDR DIMM Sockets DDR DIMM 1、2、3 13
ATX Power Connector AT X _ P W R 、ATX_12V 24
IDE Connectors IDE1/IDE2 18
FDC Connector FDC 18
AGP Slot AGP 23
PCI Slots PCI 1、2、3、4、5 23
CPU FAN、System FAN、
Peripheral expend FAN CPUFAN、CHASFAN、AUXFAN 11
Front Panel Indicator SW/LED 16
Speaker Connector SPEAKER 17
Infrared Connector IrDA 17
Front USB Headers USB 2、USB3 19
Clear CMOS Jumper JP1 20
Case Open Warning Function CASE OPEN 19
Sony/Philips Digital Interface
Connector SPDIF 21
CD-ROM Audio IN Header CD-IN 21
Front Panel Audio Header FRONT AUDIO 22

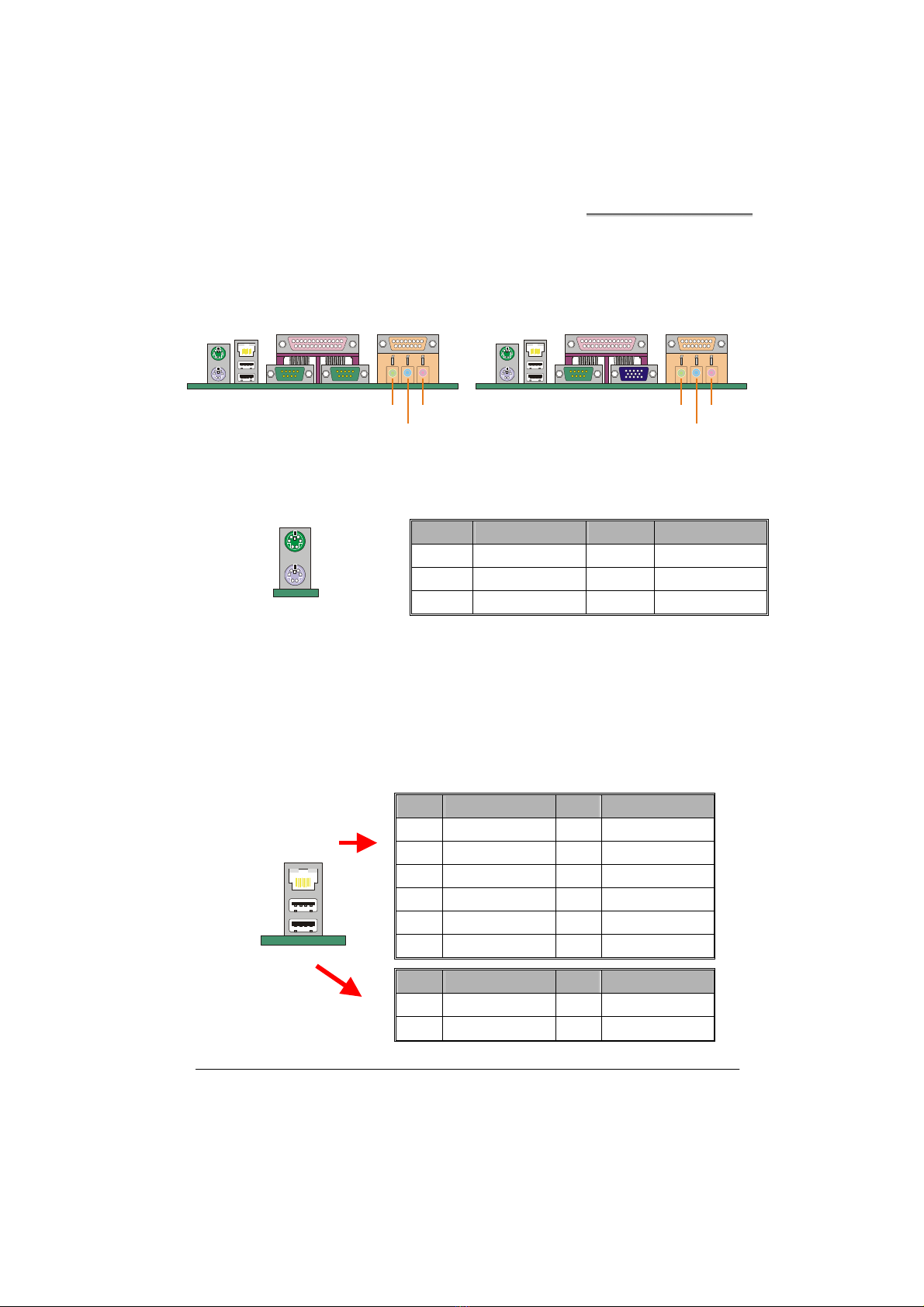

PC99 Color Codec Back Panel Back Panel Connector 14

PX845PEV/ GEV Series
7
Configuration
Layout of PX845PEV PRO
Socket 478
Intel
82801DB
U6
U17
BAT1
JP1
CASE OPEN
SPDIF
SPEAKER
SW/LED
USB2 USB3
CHASFAN
Phoenix
Bios
KB/MS
USB/LAN
PRT/COM
FRONT AUDIO
CD-IN IrDA
CPUFAN
PCI3
PCI5
LAN
CHIP
PCI4
Intel
82845PE
U10
ALC
650
AGP
AUXFAN
PCI1
PCI2
DIMM1
ATX_ PWR
DIMM2 DIMM3
FDC
IDE1IDE2
Winbond
W83627HF
SOUND
ATX_12V

PX845PEV/ GEV Series
8
Layout of PX845PEV
Socket 478
Intel
82801DB
U6
U17
BAT1
JP1
CASE OPEN
SPDIF
SPEAKER
SW/LED
USB2 USB3
CHASFAN
Phoenix
Bios
KB/MS
USB
PRT/COM
FRONT AUDIO
CD-IN IrDA
CPUFAN
PCI3
PCI5
PCI4
Intel
82845PE
U10
ALC
650
AGP
AUXFAN
PCI1
PCI2
DIMM1
ATX_ PWR
DIMM2 DIMM3
FDC
IDE1IDE2
Winbond
W83627HF
SOUND
ATX_12V

PX845PEV/ GEV Series
9
Layout of PX845GEV PRO
Socket 478
Intel
82801DB
U6
U17
BAT1
JP1
CASE OPEN
SPDIF
SPEAKER
SW/LED
USB2 USB3
CHASFAN
Phoenix
Bios
KB/MS
USB/LAN
PRT/COM/VGA
FRONT AUDIO CD-IN IrDA
CPUFAN
PCI3
PCI5
LAN
CHIP
PCI4
Intel
82845GE
U10
ALC
650
AGP
AUXFAN
PCI1
PCI2
DIMM1
ATX_ PWR
DIMM2 DIMM3
FDC
IDE1IDE2
Winbond
W83627HF
SOUND
ATX_12V

PX845PEV/ GEV Series
10
Layout of PX845GEV
Socket 478
Intel
82801DB
U6
U17
BAT1
JP1
CASE OPEN
SPDIF
SPEAKER
SW/LED
USB2 USB3
CHASFAN
Phoenix
Bios
KB/MS
USB
PRT/COM/VGA
FRONT AUDIO CD-IN IrDA
CPUFAN
PCI3
PCI5
PCI4
Intel
82845GE
U10
ALC
650
AGP
AUXFAN
PCI1
PCI2
DIMM1
ATX_ PWR
DIMM2 DIMM3
FDC
IDE1IDE2
Winbond
W83627HF
SOUND
ATX_12V

PX845PEV/ GEV Series
11
Hardware Installation
This section will assist you in quickly installing your system hardware. Wear a wrist ground
strap before handling components. Electrostatic discharge may damage your system
components.
S
ub
j
ect:
 CPU Processor Installation
 Memory Installation
 Back Panel Configuration
 Connector Configuration
 Header Configuration
 Jumper Settings
 Power Supply Attachments

PX845PEV/ GEV Series
12

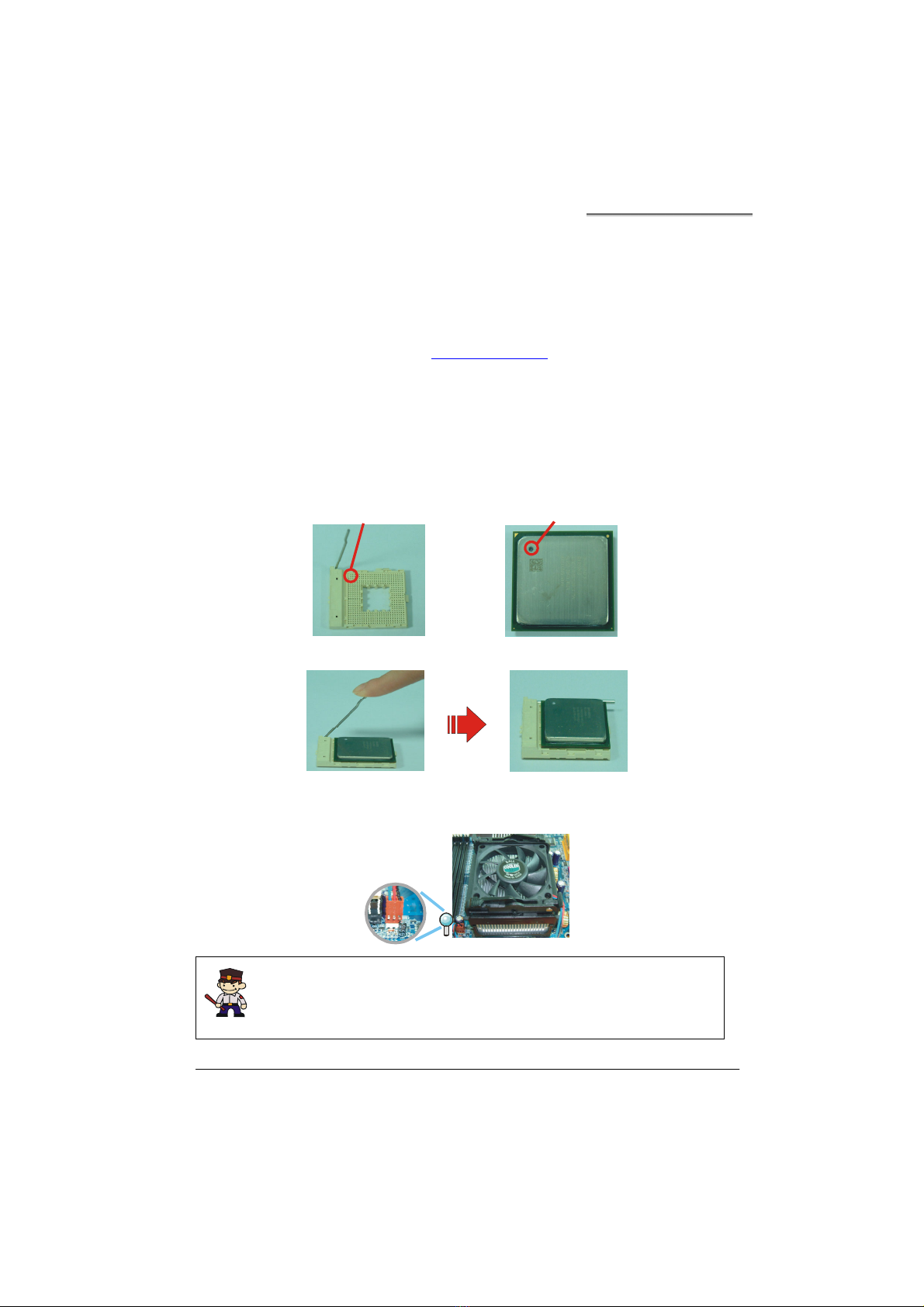

CPU Processor Installation
This mainboard supports Intel®Pentium®4 processors using a Socket 478.
Before building your system, we suggest you visit the INTEL website and review the
processor installation procedures. http://www.intel.com
CPU Socket 478 Configuration Steps:
1. Locate the CPU socket on your mainboard and nudge the lever away from the socket.
Then lift the lever to a 90-degree angle.
2.On the socket, locate the corner that has the pin-1 receptor. This corner will have a
cut-corner (as shown).
Match the dot on the CPU with the pin-1 receptor on the socket and lower the CPU onto
the socket. The bottom of the CPU should be flush with the face of the socket.
3. Lower the lever until it snaps back into position. This will lock down the CPU.
4. Smear thermal grease on top of the CPU. Lower the CPU fan onto the CPU and use the
clasps on the fan to attach it to the socket. Finally, extend the power cable from the fan
and insert it onto the CPUFAN adapter.
Before starting the system
Please check the installation completely before starting the system.
Verify that the heatsink is properly installed and make sure the CPU fan is
wor
k
in
g
. Overheatin
g
can dama
g
e the CPU and other sensitive com
p
onents.
Pin1 Receptor Dot

PX845PEV/ GEV Series
13
CPU Headers
Three power headers are available for cooling fans, which play an important role in
maintaining the ambient temperature in your system.
The layout is PX845PEV PRO
We strongly recommend you attach the
CPU fan to the CPUFAN Header.
Socket 478
Intel
82801DB
U6
U17
BAT1
JP1
CASE OPEN
SPDIF
SPEAKER
SW/LED
USB2 USB3
CHASFAN
Phoenix
Bios
KB/MS
USB/LAN
PRT/COM
FRONT AUDI O CD-IN IrDA
CPUFAN
PCI3
PCI5
LAN
CHIP
PCI4
Intel
82845PE
U10
AGP
AUXFAN
PCI2
DIMM1
ATX_PWR
DIMM2 DIMM3
FDC
IDE1IDE2
ALC
650
PCI1
ATX_12V
Winbond
W83627HF
SOUND
Ground
Ground
Ground
+12V
+12V
+12V
Sense
Sense
Sense
CPUFAN
AUXFAN
CHASFAN

PX845PEV/ GEV Series
14
Frequency / Voltage Control
This Mainboard automatically detects and recognizes the CPU ratio. You can otherwise
override these values using the BIOS setup utility.
Configuring the CPU Host Frequency by using the
BIOS Setup Utility
To access the BIOS Setup Utility, reboot your system. During the reboot process you will be
given an opportunity to press the “DEL” key to enter the BIOS Setup Utility.
BIOS SETUP>>Advanced BIOS>>Frequency/Voltage Control>>……
CPU Speed = CPU Clock Ratio * CPU Host Frequency
DDR Speed = DDR: CPU Ratio *CPU Host Frequency
For more details, please refer to Frequency / Voltage Control in Chapter 2 BIOS Setup.
Watch Dog Timer
This mainboard comes with a special feature called “Watch Dog Timer” which is used to
detect when the system is unable to perform using the manual over-clocking configurations.
After you power on the system, BIOS will check the last system POST status. If it was
successful, BIOS will enable the “Watch Dog Timer” feature and set the CPU frequency
values to the user configured values stored in the BIOS. If unsuccessful the “Watch Dog
Timer” will reboot the system.
On most systems you would need to remove the cover of your system and re-jumper the
clear CMOS switches on the mainboard when your system encounters over-clocking
problems. With the “Watch Dog Timer”, overclocking settings will be automatically cleared
and reset.
Before Overclocking
Please make sure your system components are capable of overclocking.
If you are not familiar with the Overclocking function, we strongly recommen
d
that you to set the clock to the default settings.

PX845PEV/ GEV Series
15

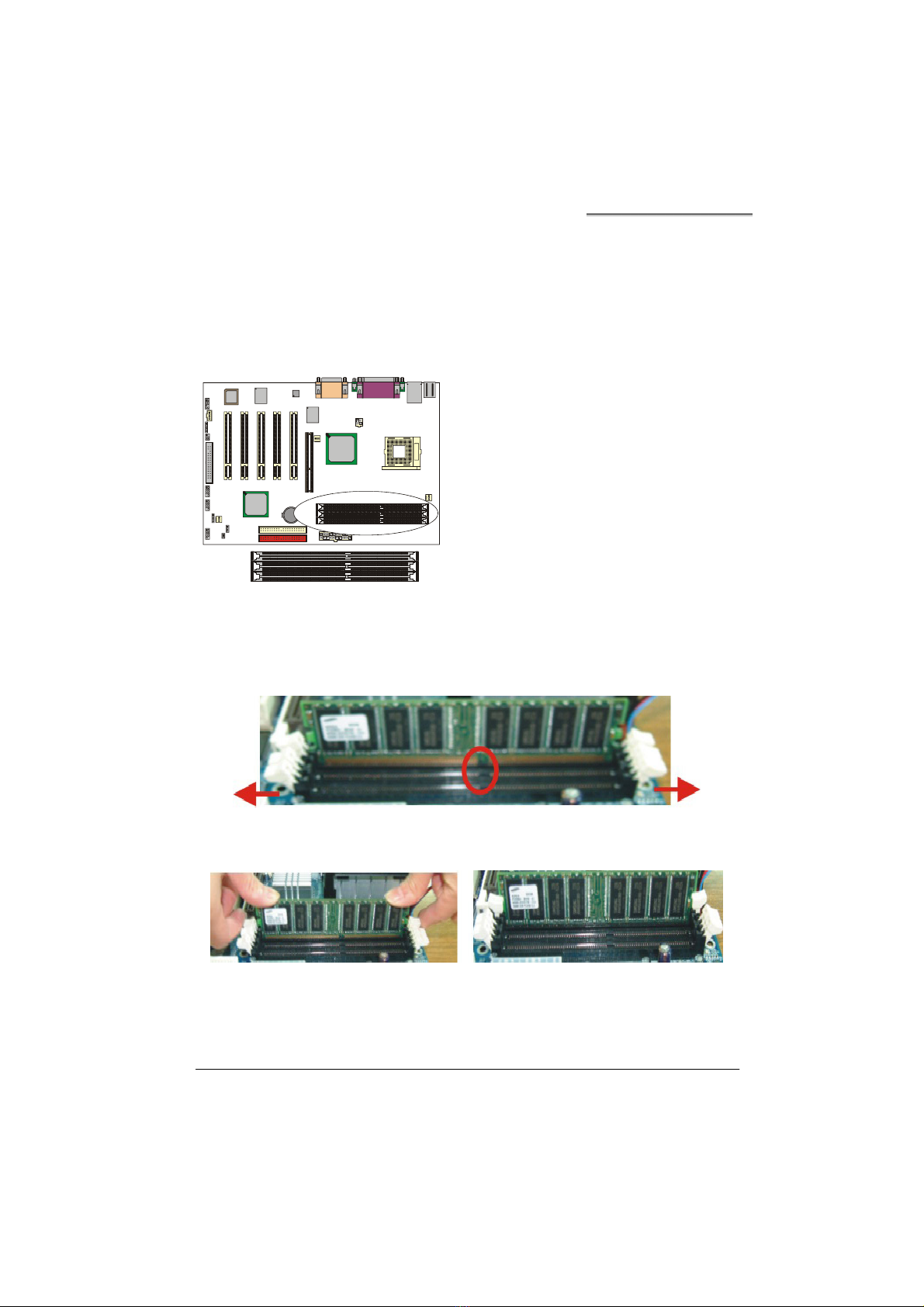

Memory Installation
The PX845PEV/GEV series contains 3 sockets, which use 184 pin DDR SDRAM with a
total memory capacity of up to 2GB. You can install the unbuffered non-ECC DDR333/
DDR266/ DDR200 (PC/2700/ PC2100/ PC1600) SDRAM.
Each DIMM socket is capable of using a memory
module of up to 1GB. However, if you use DIMM2
and DIMM3 at the same time, you must be install the
single-sided memory module and the total memory
used by these two sockets cannot exceed 1GB.
The layout is PX845PEV PRO
RAM Module Installation:
1. Match the notch on the button of the RAM module with the corresponding
pattern in the DIMM slot. This ensures that the module is inserted properly.
2. Lower the RAM module into the DIMM Slot and press firmly using both
thumbs until the module snaps into place.
3. Repeat steps 1 & 2 for the remaining RAM modules.
Socket 478
Intel
82801DB
U6
U17
BAT1
JP1
CASE OPEN
SPDIF
SPEAKER
SW/LED
USB2 USB 3
Phoenix
Bios
KB/MS
USB/LAN
PRT/COM
FRONTAUDIO CD-IN IrDA
PCI3 PCI5
LAN
CHIP
PCI4
Intel
82845PE
U10
AGP
ATX_ PW R
FDC
IDE1IDE2
Winbo nd
W83627HF
SOUND
AT X _ 12 V
ALC
650
PCI1 PCI2
CPUFAN
AUXFAN
CHASFAN
DIMM1
DIMM1
DIMM2
DIMM2
DIMM3
DIMM3

PX845PEV/ GEV Series
16
Back Panel Configuration
PS/2 Mouse & PS/2 Keyboard Connectors: KB/MS
This mainboard provides a standard PS/2 mouse connector and PS/2 Keyboard connector.
The pin assignments are described below:
USB & LAN (only for PX845PEV/GEV PRO) Conn.:
USB/LAN
There are two USB connectors on the back panel. These OHCI (Open Host Controller
Interface) Universal Serial Bus are used to attach to USB devices such as: keyboards, mice
and other USB devices. You can plug the USB devices directly into this connector. The
PX845PEV/GEV series also provides USB headers on the board allowing for 4 more USB
ports. These attach to USB connectors embedded into the computer case or connected to a
USB connector bracket. The PX845PEV/GEV PRO also provides a LAN port. You can plug
LAN devices directly into this connector.
Pin Assignment Pin Assignment
1 Data 4 +5 V (fused)
2 No connect 5 Clock
3 Ground 6 No connect
Pin Assignment Pin Assignment
1 TDP 7 NC
2 TDN 8 NC
3 RDP 9 VCC3 SBY
4 NC 10 ACT LED
5 NC 11 VCC3 SBY
6 RDN 12 Speed LED
Pin Assignment Pin Assignment
1/5 +5 V (fused) 3/7 USBP0+/P1+
2/6 USBP0-/P1- 4/8 Ground
PS/2 Mouse
PS/2 Keyboard
LAN
(o
p
tional)
USB
Speaker
Out
Game Port
Printer Port
PS/2
Mouse
PS/2
Keyboard
COM1COM1
USB
(PX845PEV Series)
(optional)
LAN
COM2
Mic In
Line In
Speaker
Out
Game Port
Printer Port
PS/2
Mouse
PS/2
Keyboard
COM1 VGA
(PX845GEV Series)
USB
(optional)
LAN
Mic In
Line In

PX845PEV/ GEV Series
17

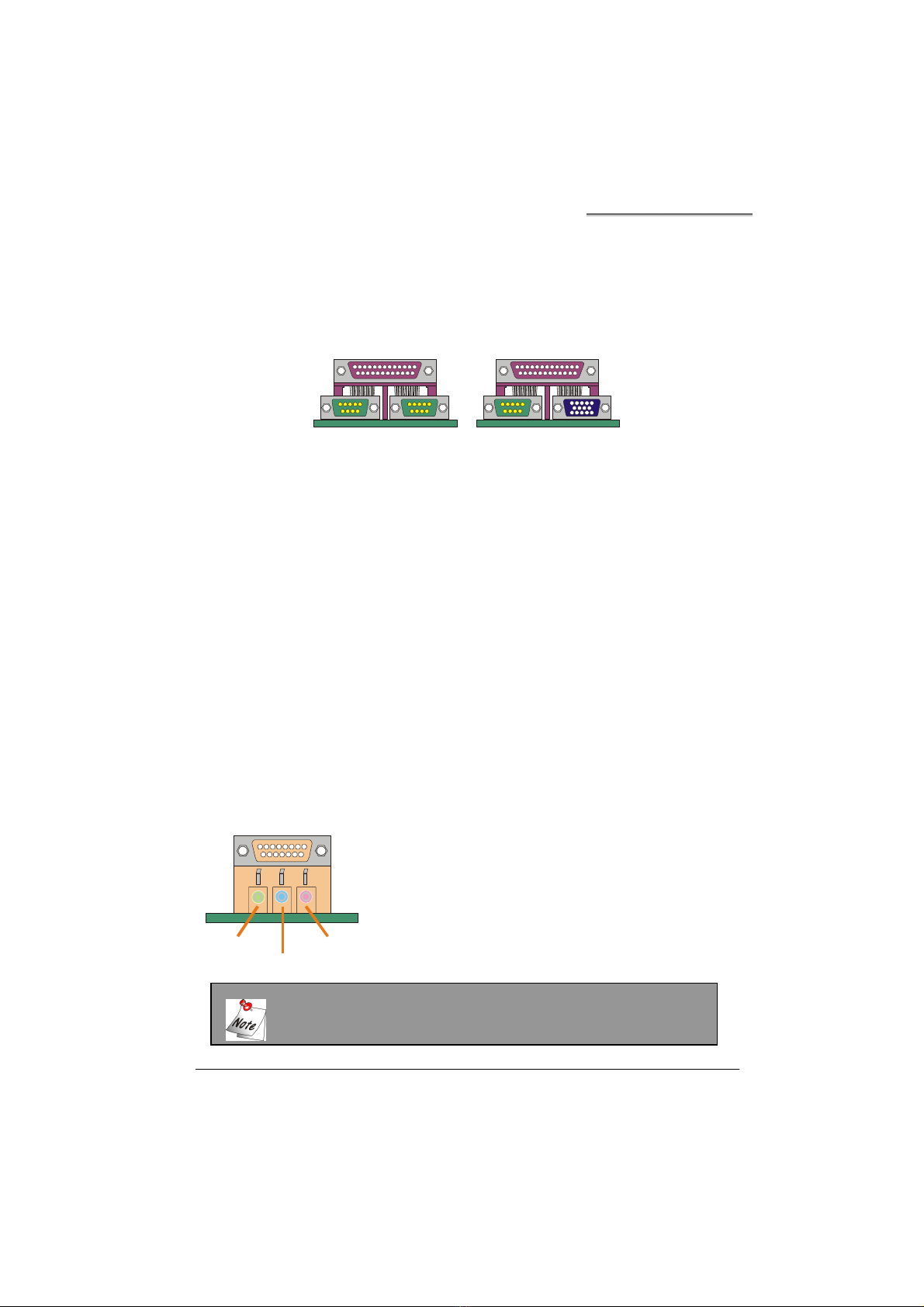

Serial and Parallel Interface Ports
The PX845PEV series comes equipped with two serial ports and one parallel port, and the
PX845GEV series comes equipped with one serial port, one parallel and one VGA port.
These types of interface ports will be explained below.
The Serial Interface: COM1/ (COM2 for PX845PEV
series)
The serial interface port is sometimes referred to as an RS-232 port or an asynchronous
communication port. Mice, printers, modems and other peripheral devices can be connected
to a serial port.
Parallel Interface Port: PRT
The parallel port on your system has a 25-pin, DB25 connector and is used to interface with
parallel printers and other devices using a parallel interface.
Video Graphics Array Conn.: VGA (for PX845GEV
series)
The PX845GEV series has built in video facilities. Your monitor attaches directly to the
VGA connector on this mainboard.
Game Port Connector: SOUND
This connector allows you to connect a joystick or game pad for playing computer games.
This port can also be used to edit music by using MIDI devices.
Audio Port Connectors
1. Speaker Out is used to connect to speakers or
headphones. If the Super 5.1 driver is installed
the Speaker Out becomes the Front Speaker.
2. Line In can be connected to an external CD
player, Tape player or other audio devices for
audio input. If the Super 5.1 driver is installed
Line In becomes the Rear Speaker.
3. Mic In is used to connect to a microphone. If the
Super 5.1 driver is installed the Mic In becomes
the Subwoofer/ Center out.
Speaker
Out
Game Port
Mic In
Line In
This mainboard supports super 5.1 channel audio effects which turns
your standard Speaker Out, Lin In, Mic In audio connectors into a 6
channel audio s
y
stem. See Cha
p
ter 3 for more information.
Print Port Print Port
COM1 COM1
(PX845PEV Series) (PX845GEV Series)
COM2 VGA
