albatros 100 Silencio FS User manual

AXIAL FAN
User’s manual
EN
Albatros 100 Silencio FS
Albatros 100 Alba FS
AXIALVENTILATOR
Betriebsanleitung
DE
VENTILATEUR AXIAL
Manuel d’utilisateur
FR

2
EN
CONTENTS
Delivery set.............................................................................................................................................................................................................................................9
Brief description .................................................................................................................................................................................................................................. 9
Operation guidelines ......................................................................................................................................................................................................................9
Mounting and set-up....................................................................................................................................................................................................................... 10
Electronics operation algorithm .............................................................................................................................................................................................. 13
Troubleshooting..................................................................................................................................................................................................................................16
Storage and transportation regulations...............................................................................................................................................................................16
Manufacturer’s warranty................................................................................................................................................................................................................ 17
Maintenance ........................................................................................................................................................................................................................................19
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.

3
EN
PLEASE READ THE USER’S MANUAL CAREFULLY PRIOR TO INSTALLING, CONNECTION TO POWER
MAINS AND OPERATING THE UNIT.
THE MANUFACTURING COMPANY SHALL NOT BE RESPONSIBLE FOR DAMAGE TO HEALTH AND
PROPERTY OF THE CUSTOMER CAUSED BY THE CUSTOMER’S VIOLATING THE USER’S MANUAL.
FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE OPERATION OF THE UNIT, ITS
MECHANICAL AND ELECTRICAL RELIABILITY.
KEEP THIS USER’S MANUAL.
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the
Albatros 100 Alba FS, Albatros 100 Silencio FS unit and all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should
be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the
territory of the country.

4
EN
All user’s manual requirements as well as the provisions of all the
applicable local and national construction, electrical, and technical
norms and standards must be observed when installing and operating
the unit.
Disconnect the unit from the power supply prior to any connection,
servicing, maintenance, and repair operations.
Only qualied electricians with a work permit for electrical
units up to 1000 V are allowed for installation. The present user’s
manual should be carefully read before beginning works.
Check the unit for any visible damage of the impeller, the casing, and
the grille before starting installation. The casing internals must be free
of any foreign objects that can damage the impeller blades.
While mounting the unit, avoid compression of the casing! Deformation
of the casing may result in motor jam and excessive noise.
FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE AND
TROUBLE-FREE OPERATION OF THE UNIT

5
EN
Misuse of the unit and any unauthorised modifications are not allowed.
Do not expose the unit to adverse atmospheric agents (rain, sun, etc.).
Transported air must not contain any dust or other solid impurities,
sticky substances, or fibrous materials.
Do not use the unit in a hazardous or explosive environment containing
spirits, gasoline, insecticides, etc.
Do not close or block the intake or extract vents in order to ensure the
efficient air flow.
Do not sit on the unit and do not put objects on it.
The information in this user’s manual was correct at the time of the
document’s preparation.
The Company reserves the right to modify the technical characteristics,
design, or configuration of its products at any time in order to
incorporate the latest technological developments.
Never touch the unit with wet or damp hands.
Never touch the unit when barefoot.

6
EN
This unit is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the unit by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
unit.
The maximum altitude of use is 3500.
This appliance incorporates an earth connection for functional
purposes.

7
EN
Connectiontothemainsmustbemadethroughadisconnectingdevice,
which is integrated into the fixed wiring system in accordance with the
wiring rules for design of electrical units, and has a contact separation in
all poles that allows for full disconnection under overvoltage category
III conditions.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent, or similarly qualified persons in order to avoid a safety
hazard.

8
EN
CAUTION! The unit must be installed at a distance of at least 2.3 m from
the floor.
Ensure that the unit is switched off from the supply mains before
removing the guard.
WARNING: If there are any unusual oscillating movements, immediately
stop using the unit and contact the manufacturer, its service agent or
suitably qualified persons.
The replacement of parts of the safety suspension system device
shall be performed by the manufacturer, its service agent or suitably
qualified persons.

9
EN
BRIEF DESCRIPTION
The product is an axial fan for exhaust ventilation of small and medium-sized premises.
The fan is rated for continuous operation.
The fan design is regularly improved, so some models may slightly differ from those ones described herein.
OPERATION GUIDELINES
The fan is connected to 220...240 V/50 Hz or 12 V/50 Hz single-phase AC mains depending on the model and is designed for
continuous operation without disconnection from power mains.
Hazardous parts access and water ingress protection rating IP34.
The fan is rated for operation at ambient temperatures ranging from +1 °C to +40 °C.
The unit is rated as a Class II (220-240 V/50 Hz) electrical appliance.
DELIVERY SET
Fan – 1 pc.
Plastic screwdriver – 1 pc. (only for models with a timer)
User’s manual – 1 pc.
Packing box – 1 pc.

10
EN
MOUNTING AND SET-UP

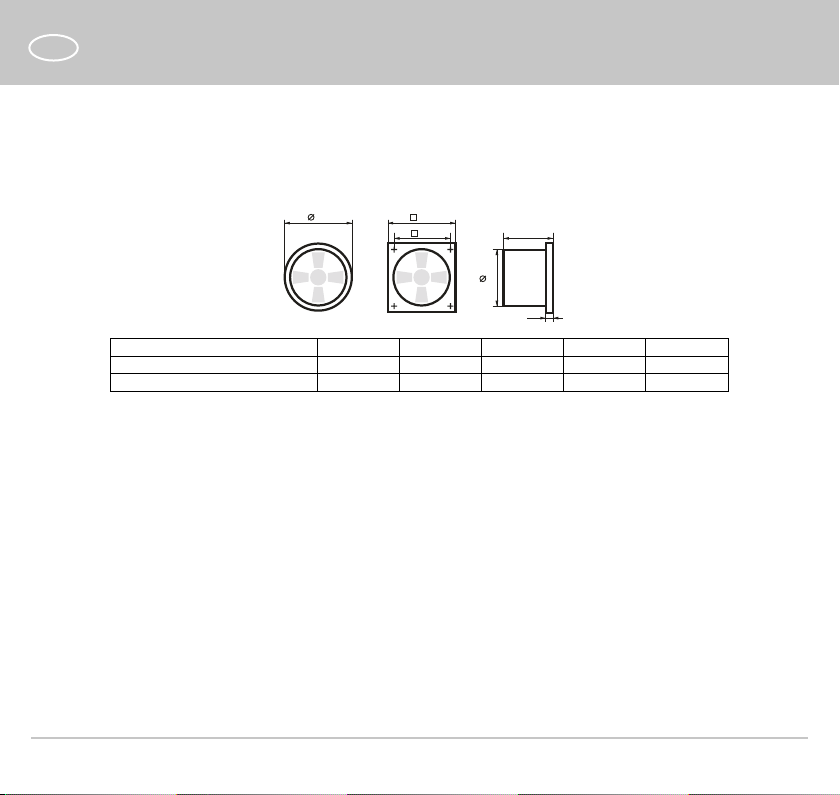

The designation of the fan, schematic representation of its appearance, overall and mounting dimensions, as well as design
features are given below.
A
B C
D
E
A
Model А B C D E
Albatros 100 Alba FS 152 120 126 100 30
Albatros 100 Silencio FS 150 120 108 100 12
The fan shown in the figures may slightly differ from your model, while the installation sequence is maintained.
The fan is designed for wall or ceiling mounting with direct air exhaust to the ventilation shaft or into the round air duct of
matching diameter.

11
EN
The fan mounting sequence is shown in figures.

12
EN
QF
L N
1. 2. 3. 4.
5.
6.
7. 8.
9.
10.
11.

13
EN
ELECTRONICS OPERATION ALGORITHM
The fan with the T timer activates upon control voltage application to input LT (ST, SL) by an external switch (e.g. indoor
light switch). After the control voltage is off, the fan continues to operate within the set time period adjustable from 2 to 30
minutes by the timer.
The fan with the T1 timer – when the control voltage is applied to the LT terminal by an external switch (for example,
switching on the room light), the turn-on delay timer is activated, and the fan does not start.
After the turn-on delay time runs out, the fan starts to run. Turn-on delay time value Tz is adjustable in two ranges – from 10
seconds to 90 seconds and from 2 minutes to 30 minutes.
Select the adjustment range using the jumper on the timer board.
After the control voltage is off, the fan continues to operate within the set time period adjustable from 2 to 30 minutes by
the timer.
The fan with the timer and the humidity sensor TH – the fan starts after the control voltage is supplied to the input LT
(ST, SL) or if indoor humidity level H exceeds the set point adjustable from ~60 % to ~90 %.
After the control voltage is off or the humidity level has decreased, the fan will keep running within the time set by the timer
ranging from 2 to 30 minutes.
THE TIMER CIRCUIT IS LIVE.
MAKE SURE THE FAN IS DISCONNECTED FROM POWER SUPPLY.
DO NOT USE A METAL SCREWDRIVER, KNIFE, ETC. FOR ADJUSTMENT
OPERATIONS NOT TO DAMAGE THE CIRCUIT BOARD.

14
EN

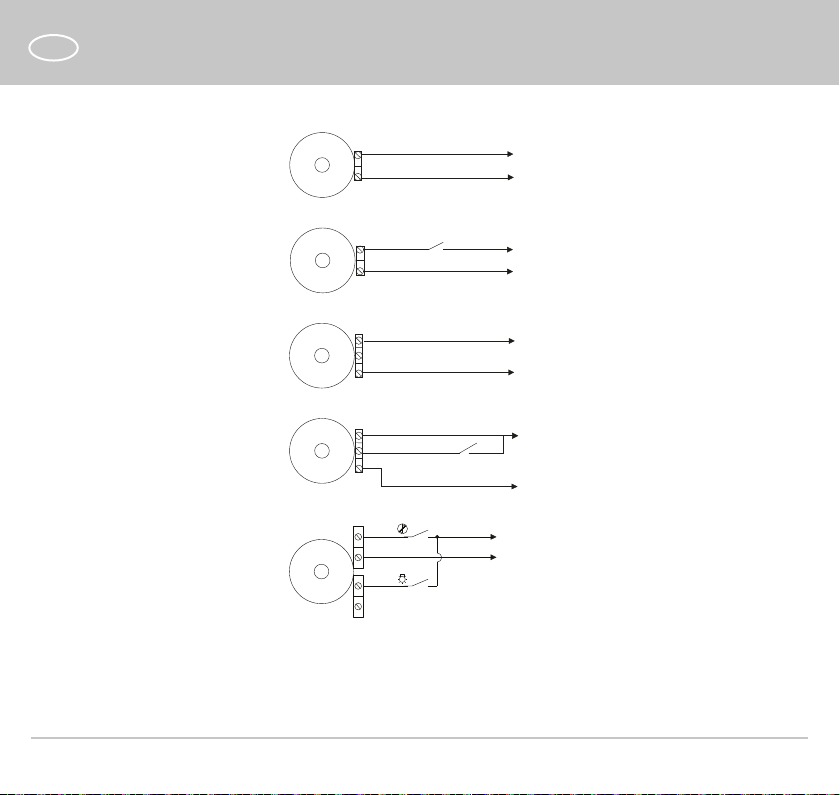

Wiring diagram for a fan with a built-in switch and a fan with a motion sensor.
220-240 V (12 V)
Wiring diagram for a fan without a built-in switch.
S
220-240 V (12 V)
Wiring diagram for a fan equipped with a timer/timer and a humidity sensor, with a built-in switch.
L (~)
LT (ST)
N (~)
220-240 V (12 V)
Wiring diagram for a fan equipped with a timer/timer and a humidity sensor, without a built-in switch.
LT (ST)
L(~)
SN (~)
220-240 V (12 V)
Wiring diagram of a fan with separate switching on of the fan and the built-in lamp.
S1
N(~)
S2
L(~)
L(~)
220-240 V (12 V)

15
EN
Wiring diagram of a fan with the simultaneous switching on of the fan and the integrated lamp.
S
N(~)
L(~)
L(~)
220-240 V (12 V)
Wiring diagram of a fan equipped with a timer/timer and a humidity sensor.
S (ST)L
L(~)
S
N(~)
220-240 V (12 V)
Terminal designations on wiring diagrams:
L– line S1 – external fan switch
N– neutral S2 – external lamp switch
S– external switch

16
EN
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range
from +5 ˚С to +40 ˚С and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and
sealing deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against
precipitation and mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating
temperature for at least 3-4 hours.
TROUBLESHOOTING
Problem Possible reasons Troubleshooting
When the unit is connected to power
mains, the fan does not rotate and
does not respond to any controls.
No power supply.
Make sure the power supply line
is connected correctly, otherwise
troubleshoot the connection error.
Internal connection fault. Contact the Seller.
Low air flow. The ventilation system is clogged. Clean the ventilation system.
Increased noise, vibration.
The impeller is clogged. Clean the impeller.
The fan is not secured well or is not
mounted properly. Troubleshoot the installation error.
The ventilation system is clogged. Clean the ventilation system.

17
EN
MANUFACTURER’S WARRANTY
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility.
We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/
EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and
of the Council and CE-marking Council Directive 93/68/EEC. This certificate is issued following test carried out on samples
of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 60 months after the retail sale date provided the user's
observance of the transportation, storage, installation, and operation regulations. Should any malfunctions occur in the
course of the unit operation through the Manufacturer's fault during the guaranteed period of operation, the user is entitled
to get all the faults eliminated by the manufacturer by means of warranty repair at the factory free of charge. The warranty
repair includes work specific to elimination of faults in the unit operation to ensure its intended use by the user within the
guaranteed period of operation. The faults are eliminated by means of replacement or repair of the unit components or a
specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the
payment paperwork certifying the purchase. The unit model must comply with the one stated in the user’s manual. Contact
the Seller for warranty service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission
with missing component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's
manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal
components caused by the user.
• Redesign or engineering changes to the unit.

18
EN
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind,
blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND TROUBLE-FREE
OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON PRESENTATION OF THE
UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL WITH THE PURCHASE DATE STAMP.

19
EN
MAINTENANCE
Disconnect the fan from power supply prior to maintenance and servicing operations. The fan surfaces must be regularly cleaned
from dirt and dust. To clean the fan, use a soft cloth or a brush wetted in a mild detergent solution. Do not allow water or liquid
come into contact with electric components. Wipe the surfaces dry after cleaning.

Albatros01EN_16-01
Certificate of acceptance
The fan is recognized as serviceable.
Quality Inspector’s Stamp
Manufacture Date
Sold by
(name and stamp of the seller)
Purchase Date
