Albion AG40DFX Guide

OPERATING MANUAL AND USER GUIDE
!"#$%&'((()(((!"*$%&'
www.albionamps.com
AG40DFX & AG80DFX User manual.in1 1 2011-5-11 14:22:40

AG40DFX & AG80DFX User manual.in2 2 2011-5-11 14:22:40

Contents
Important Safety Instructions ...................................................................................... 1
Important Warnings ....................................................................................................... 2
Designer's Introduction................................................................................................. 3
2XWOLQH6SHFL¿FDWLRQ ..................................................................................................... 3
AG40DFX Features and Controls ................................................................................. 4
AG80DFX Features and Controls ................................................................................. 6
AG40DFX & AG80DFX User manual.in3 3 2011-5-11 14:22:40

OPERATING MANUAL AND USER GUIDE
1
AG40DFX AG80DFX
Important Safety Instructions
1. Read these instructions – All the safety and operating
instructions should be read before this product is
operated.
2. Keep these instructions – The safety and operating
instructions should be retained for future reference.
3. Heed all warnings – All warnings on the appliance
and in the operating instructions should be adhered
to.
4. Follow all instructions – All operating and use
instructions should be followed.
5. Do not use this apparatus near water – The appliance
should not be used near water or moisture – for
example, in a wet basement or near a swimming pool
etc.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the instructions.
8. Do not install near any heat sourc es such as
radiators, heat registers, stoves, or other apparatus
LQFOXGLQJDPSOL¿HUVWKDWSURGXFHKHDW
9. Do not defeat the safety purpose of the polarized or
grounding plug. A polarized plug has two blades with
one wider than the other. A grounding plug has two
blades and a third grounding prong. The wide blade
or the third prong is provided for your safety. If the
SURYLGHGSOXJGRHVQRW¿WLQWR\RXURXWOHWFRQVXOWDQ
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particular ly at the plugs, convenience
receptacles, and at the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the
manufacturer.

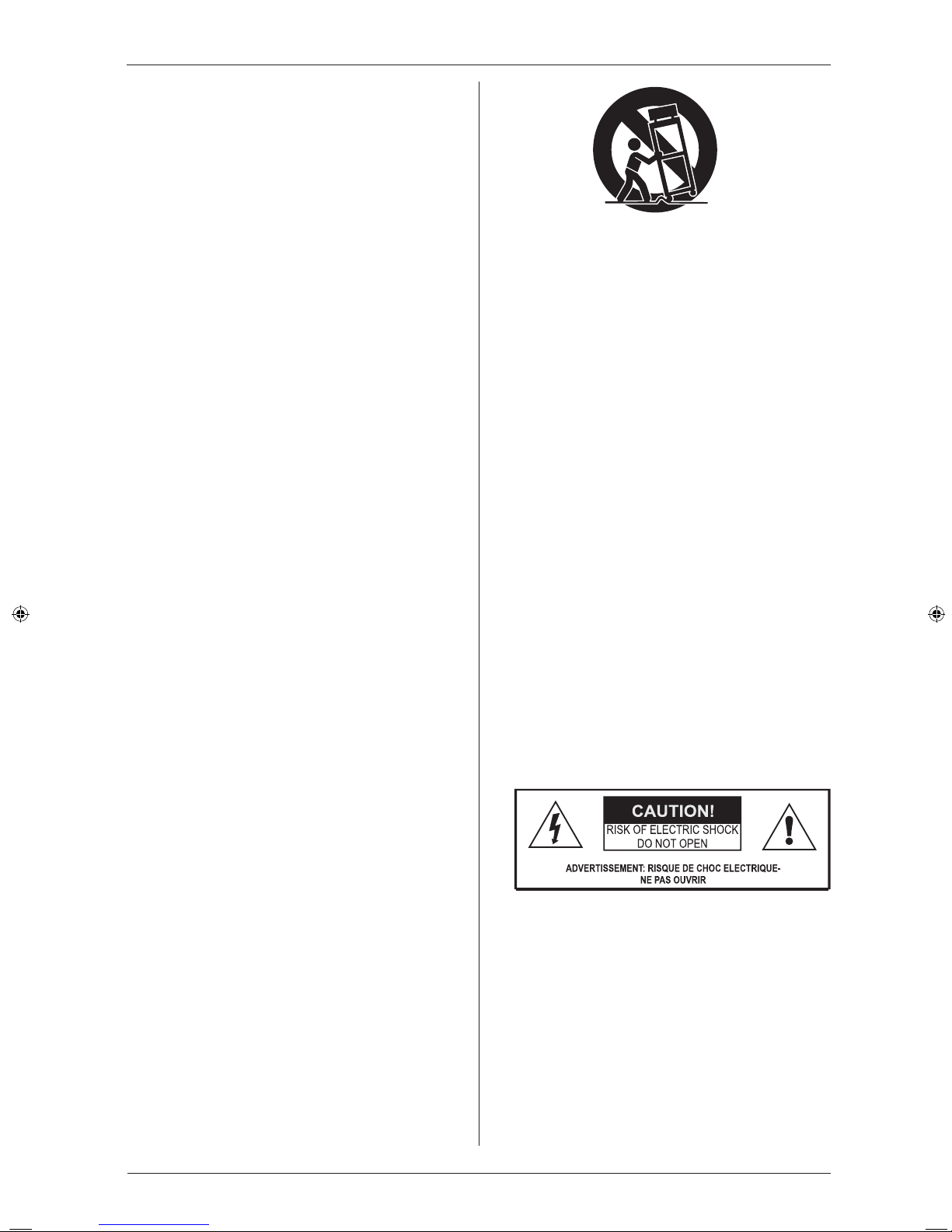

12. Use only with the cart, stand, tripod, bracket or
WDEOHVSHFL¿HG E\WKHPDQXIDFWXUHURU VROGZLWK WKH
apparatus. When a cart or rack is used, use caution
when moving the cart/ apparatus combination to
avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when
unused for long periods of time.
 5HIHUDOOVHUYLFLQJWRTXDOL¿HGSHUVRQQHO6HUYLFLQJLV
required when the apparatus has been damaged in
any way including: power supply cord or plug damage,
liquid spillages, objects falling into the unit, exposure
to rain/moisture or impact damage.
15. Please keep the unit in a well ventilated environment.
16. CAUTION: These servicing instructions are for use
by qualified service personnel only. To reduce the
risk of electric shock, do not perform any servicing
other than that contained in the operating instructions
XQOHVV\RXDUHTXDOL¿HGWRGRVR
 :$51,1*7RUHGXFHWKHULVNRI¿UHRUHOHFWULFVKRFN
do not expose this apparatus to rain, moisture and
dripping or splashing of liquids. Containers filled
with liquids such as vases or drinks should never be
placed on top of or near the unit.
18. WARNING: The mains plug/appliance coupler is used
as disconnect device, the disconnect device shall
remain readily operable.
 7KHOLJKWQLQJÀDVK ZLWKDUURZKHDGV\PEROLVWRDOHUW
the user to the presence of non-insulated "dangerous
voltage" within the product's enclosure that may be
RIVXI¿FLHQWPDJQLWXGHWRFRQVWLWXWH DULVNRIHOHFWULF
shock.
- Warning: To reduce the risk of electric shock, do
QRWUHPRYHFRYHURUEDFNDVWKHUHDUHQRXVHU
VHUYLFHDEOH SDUWV LQVLGH 5HIHUVHUYLFLQJWRTXDOL¿HG
personnel.
AG40DFX & AG80DFX User manual.in1 1 2011-5-11 14:22:40

series
2AG40DFX AG80DFX

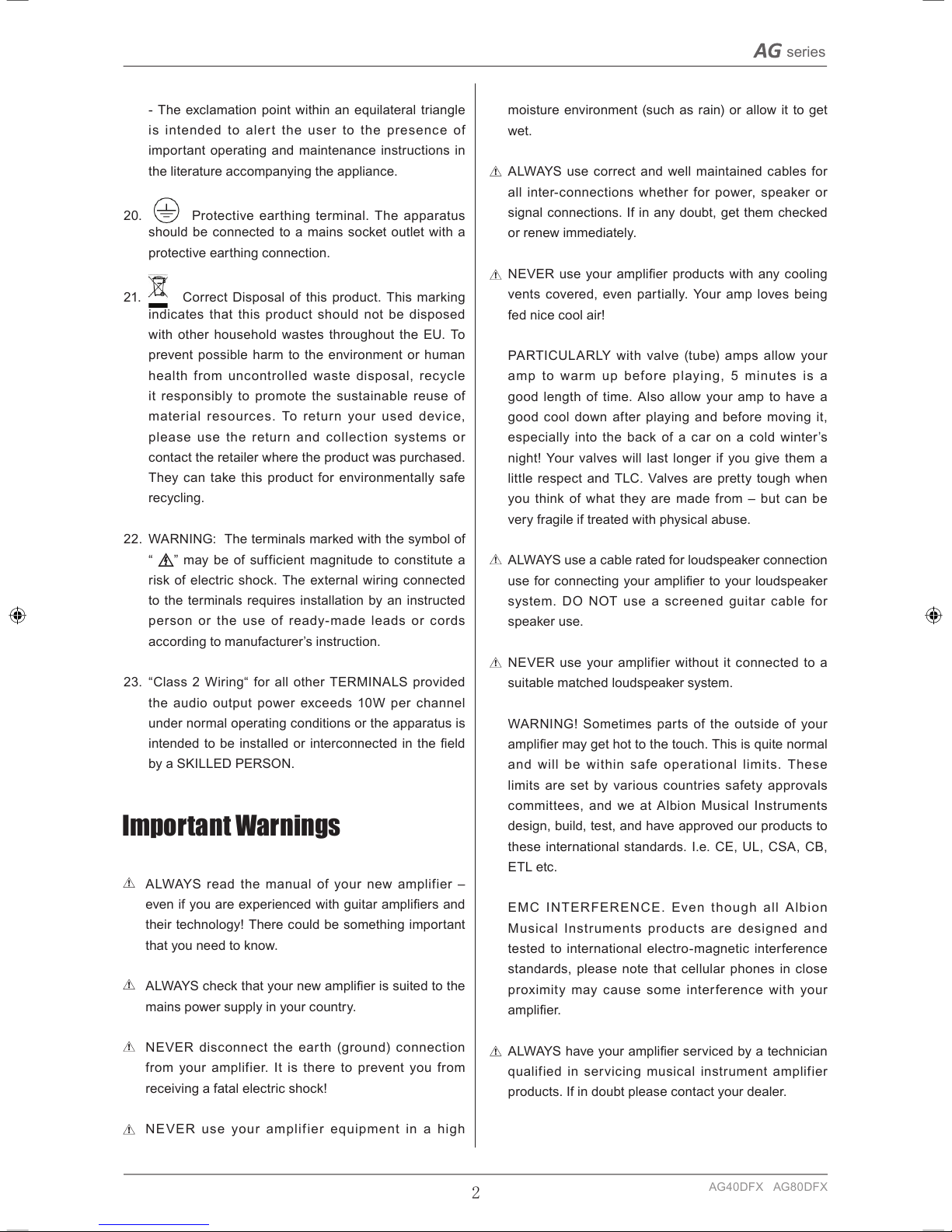

- The exclamation point within an equilateral triangle
is intended to aler t the user to the presence of
important operating and maintenance instructions in
the literature accompanying the appliance.
20. Protective earthing terminal. The apparatus
should be connected to a mains socket outlet with a
protective earthing connection.
21. Correct Disposal of this product. This marking
indicates that this product should not be disposed
with other household wastes throughout the EU. To
prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of
material resources. To return your used device,
please use the return and collection systems or
contact the retailer where the product was purchased.
They can take this product for environmentally safe
recycling.
22. WARNING: The terminals marked with the symbol of
“ ” may be of sufficient magnitude to constitute a
risk of electric shock. The external wiring connected
to the terminals requires installation by an instructed
person or the use of ready-made leads or cords
according to manufacturer’s instruction.
 ³&ODVV :LULQJ³IRUDOO RWKHU 7(50,1$/6 SURYLGHG
the audio output power exceeds 10W per channel
under normal operating conditions or the apparatus is
LQWHQGHG WREHLQVWDOOHGRULQWHUFRQQHFWHGLQWKH¿HOG
E\D6.,//('3(5621
Important Warnings
$/:$<6 UHDG WKH PDQXDO RI \RXU QHZ DPSOLILHU ±
HYHQLI\RXDUHH[SHULHQFHGZLWKJXLWDUDPSOL¿HUVDQG
their technology! There could be something important
that you need to know.
$/:$<6FKHFNWKDW\RXUQHZDPSOL¿HULVVXLWHGWRWKH
mains power supply in your country.
1(9(5 GLVFRQQHFW WKH HDUWK JURXQG FRQQHFWLRQ
from your amplifier. It is there to prevent you from
receiving a fatal electric shock!
NEVER use your amplifier equipment in a high
PRLVWXUHHQYLURQPHQWVXFKDVUDLQRU DOORZLWWRJHW
wet.
$/:$<6XVH FRUUHFW DQG ZHOO PDLQWDLQHGFDEOHV IRU
all inter-connections whether for power, speaker or
signal connections. If in any doubt, get them checked
or renew immediately.
1(9(5 XVH\RXUDPSOL¿HUSURGXFWVZLWK DQ\ FRROLQJ
vents covered, even partially. Your amp loves being
fed nice cool air!
3$57,&8/$5/< ZLWK YDOYH WXEH DPSV DOORZ \RXU
amp to warm up before playing, 5 minutes is a
good length of time. Also allow your amp to have a
good cool down after playing and before moving it,
especially into the back of a car on a cold winter’s
night! Your valves will last longer if you give them a
little respect and TLC. Valves are pretty tough when
you think of what they are made from – but can be
very fragile if treated with physical abuse.
$/:$<6XVHDFDEOHUDWHGIRUORXGVSHDNHUFRQQHFWLRQ
XVHIRUFRQQHFWLQJ\RXUDPSOL¿HUWR\RXUORXGVSHDNHU
system. DO NOT use a screened guitar cable for
speaker use.
NEVER use your amplifier without it connected to a
suitable matched loudspeaker system.
:$51,1* 6RPHWLPHV SDUWV RI WKH RXWVLGH RI\RXU
DPSOL¿HUPD\JHWKRWWRWKHWRXFK7KLVLVTXLWHQRUPDO
and will be within safe operational limits. These
limits are set by various countries safety approvals
committees, and we at Albion Musical Instruments
design, build, test, and have approved our products to
WKHVH LQWHUQDWLRQDOVWDQGDUGV,H&(8/&6$ &%
ETL etc.
EMC INTERFERENCE. Even though all Albion
Musical Instruments products are designed and
tested to international electro-magnetic interference
standards, please note that cellular phones in close
proximity may cause some interference with your
DPSOL¿HU
$/:$<6KDYH\RXUDPSOL¿HUVHUYLFHGE\DWHFKQLFLDQ
qualified in servicing musical instrument amplifier
products. If in doubt please contact your dealer.
AG40DFX & AG80DFX User manual.in2 2 2011-5-11 14:22:40

OPERATING MANUAL AND USER GUIDE
3
AG40DFX AG80DFX
Designer's Introduction
Welcome to the Albion Musical Instruments AG40DFX
and AG80DFX combo amps. The basic topology of these
amps follow that of the other amps in the AG range –
i.e. unique high-voltage FET and Valve based preamp
circuitry and sweet sounding solid-state power amps.
What these two amps have over their AG brothers is the
in-built 16 program digital effects system giving these
amps a whole new sonic dimension. I hope that you enjoy
WKHVRQLFÀH[LELOLW\RI\RXUQHZAlbion amp and get many
years of playing from it.
Thank you
2XWOLQH6SHFLÀFDWLRQ
The AG40DFX and the AG80DFX combo amps feature a
YHU\XQLTXH³K\EULG´SUHDPSOL¿HUVHFWLRQFRPELQLQJKLJK
YROWDJH)(7V¿HOGHIIHFWWUDQVLVWRUVDQGD$;(&&
YDOYH RU WXEH DV LV NQRZQ LQ WKH 86$ 7KLV VSHFLDO
circuit is supplied with a high voltage DC supply, again
SUHWW\ XQLTXHLQVPDOO JXLWDUDPSOL¿HUV7KLVFRPELQDWLRQ
of circuit gives great valve tone, as it should because it
is pretty much a valve circuit. The special high voltage
FET that we use is the closest electronic device to an
actual valve, but without some of the drawbacks of using
DQDFWXDO YDOYHFRVWKHDW DQGKLJK SDUW FRXQWDQGZLOO
give reliable performance without worry to you, but giving
very much a valve like tone in its performance. The power
DPSOL¿HUFLUFXLWV XVHDVROLGVWDWH SRZHUDPSFLUFXLWWKDW
also has some “tweaks” that lead to a very convincing
valve-like tone.
The AG40DFX uses a 12 inch loudspeaker designed
to provide a very full and satisfying tone from its mono
ZDWW506SRZHUDPSLQDQLFHO\SURSRUWLRQHGFRPSDFW
cabinet. The AG80DFX uses two 12 inch speakers each
IHGIURPDZDWW506SRZHUDPSUXQQLQJLQVWHUHRIRUD
full 80 watts output. Again the cabinet design leads to an
easily transportable package that doesn’t look or sound
out of place at home, in the studio or on the stage.

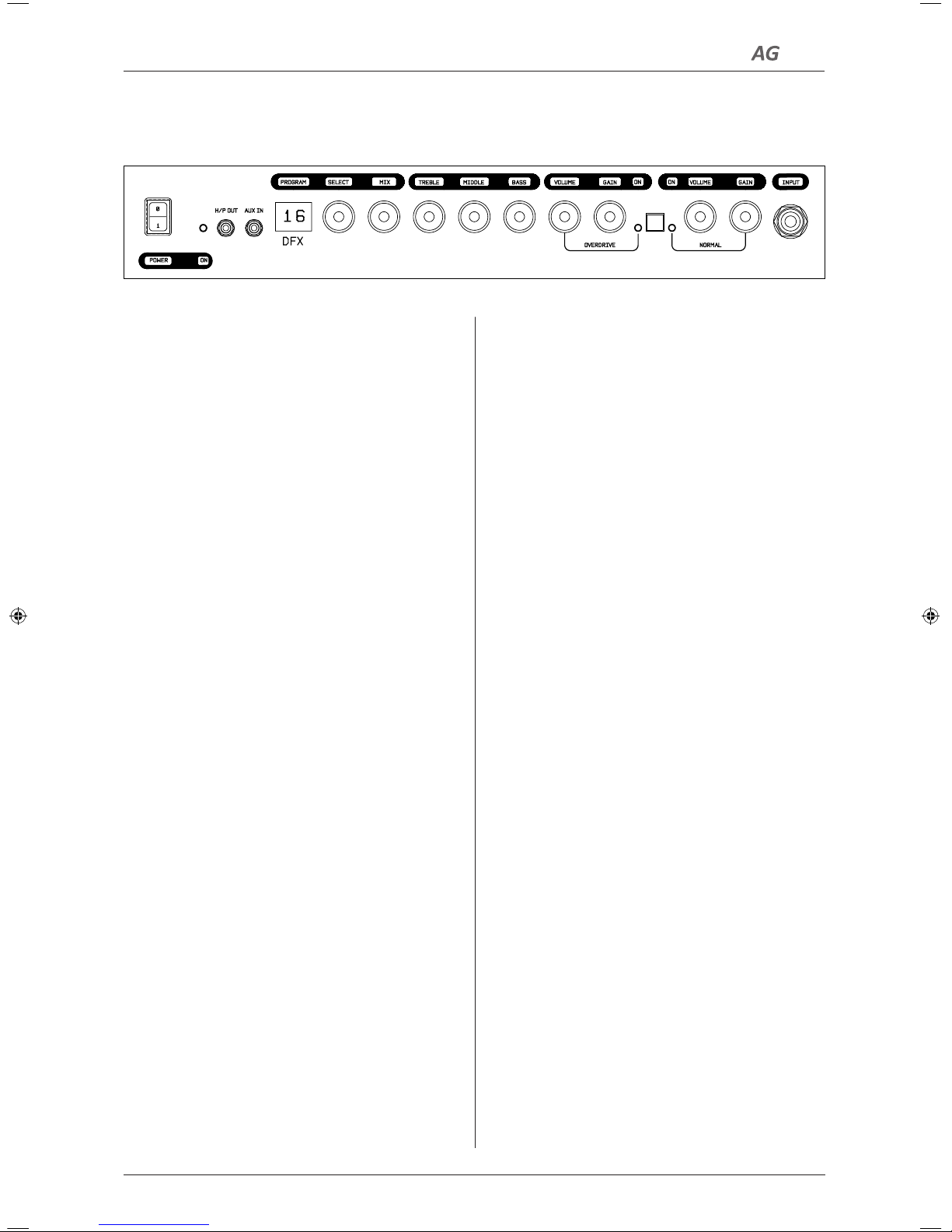

The AG40DFX has a two channel control line-up of
QRUPDO FKDQQHO *$,1 DQG 92/80( DQG RYHUGULYH
FKDQQHO*$,1DQG92/80(FRQWUROV7KH'5,9(VZLWFK
IRRWVZLWFKDEOHDOORZV \RXWR VHW XS WKH SUHDPS FLUFXLW
IRU FOHDQ DQG RYHUGULYH IXQFWLRQV %$66 0,''/(DQG
75(%/(FRQWUROV IRUWRQH VKDSLQJ DSSOLFDWLRQVDQGWKH
');FRQWUROVRI 6(/(&7 DQG0,;IRUWKH LQEXLOW GLJLWDO
())(&76 FLUFXLWDOVRIRRWVZLWFKDEOH7KH');V\VWHP
also has a LED display indicating the exact program
selection.
7KHDPSLVDOVR¿WWHGZLWKDPP,QSXW-DFNWREHDEOH
to connect your MP3 or CD player (or any other auxiliary
GHYLFHVXFKDVDGUXPPDFKLQH7KLVLVDVWHUHRVRFNHW
and uses a standard stereo 3.5mm lead, mixing the signal
into mono mode suitable for the amplifier circuit, giving
you the facility to play along to recorded tracks for practise
purpose.
Another 3.5mm socket allows the use of standard stereo
headphones for private use.
The output of the AG40DFX can also be plugged into
another loudspeaker cabinet, bypassing the internal
loudspeaker. Plugging into a bigger cabinet widens the
tone available to something rather special.
The AG80DFX has a full two channel control line-up
of consisting of NORMAL channel and OVERDRIVE
channel giving you a very wide range of tones from Clean
to Crunch to very serious Overdrive.
Each channel has a full complement of GAIN, VOLUME,
75(%/(0,''/(DQG%$66FRQWUROV7KHWZRFKDQQHOV
are footswitchable for full access to these sounds. This
is complemented by the in-built digital reverb circuit (also
IRRWVZLWFKDEOH
7KHDPSLVDOVR¿WWHGZLWKDPP,QSXW-DFNWREHDEOH
to connect your MP3 or CD player (or any other auxiliary
GHYLFHVXFKDVDGUXPPDFKLQH7KLVLVDVWHUHRVRFNHW
and uses a standard stereo 3.5mm lead, mixing the signal
into mono mode suitable for the amplifier circuit, giving
you the facility to play along to recorded tracks for practise
purpose.
Another 3.5mm socket allows the use of standard stereo
Headphones for private use.
The speaker MUTE switch allows the headphone output
socket to double as a speaker emulated DI output with or
without the full loudspeaker sound.
AG40DFX & AG80DFX User manual.in3 3 2011-5-11 14:22:42

AG40DFX Features and Controls
INPUT±0RQRó´-DFNVRFNHWIRULQVWUXPHQWLQSXW8VHD
properly screened “guitar” cable for interconnection. There
are many different makes of guitar cable available, ranging
from fairly inexpensive to very expensive. Each have
different characteristics, and depending on your particular
guitar will give different results, all very confusing for
the inexperienced! For instance, a “cheap” cable with
high capacitance (which would normally be termed as a
³QRW YHU\ JRRGFDEOH´ FDQDFWXDOO\ EHRIEHQHILW IRU DQ
overly bright single coil guitar by taming the very high end
frequencies. Alternatively, a very low capacitance cable
can help brighten up a muddy sounding hum-bucker type
JXLWDU,ISRVVLEOHH[SHULPHQWWRWU\DQG¿QGZKDWVXLWV\RX
and your guitar best. Hopefully your dealer can help you
choose the right cable. If using an FX pedal system then
the best advice is to use a high quality, low noise, and low
capacitance cable from pedal to amp.
GAIN (normal) – This controls the level of the Normal
channel. At lower settings the sound will be clean and will
have a bit of treble lift that will compensate the sound to
enable your ear to hear a good spectrum of tone without
it sounding flat. At higher control settings the sound will
thicken up and get louder. As it reaches maximum volume
the sound will “crunch” up as the amplifier circuit will
start to be overdriven. A word of note! Different types of
guitars and pick-ups have very different tonal characters
and the voltage level from the pick-ups can vary by quite
a large amount, thus the control positioning will vary
depending on your guitar and what sound you want. As
DUXOHRIWKXPE6LQJOHFRLO W\SH JXLWDUVKDYHOHVVRXWSXW
and a brighter sound. Guitars with Hum-buckers will have
a thicker louder sound. Also pick-up height has a great
influence on tone and volume. Further away from the
strings will be cleaner and quieter, closer to the strings will
be fatter and louder.
VOLUME (normal) – This quite simply controls the
output of the sound generated by the normal preamp,
giving you the required sound level and balance that you
require.
DRIVE SWITCH & LED INDICATOR – The DRIVE
pushswitch changes the amplifier channel from Normal
$WR2YHUGULYH%:KHQ2YHUGULYHLVVHOHFWHGWKH/('
next to the switch is illuminated and the Overdrive channel
GAIN and VOLUME controls become effective. The
ZD\IRRWVZLWFK$0,)6FDQEHFRQQHFWHGWRUHPRWHO\
change channels and mute the amp’s reverb section.
3OHDVHUHPHPEHUWKDWWRXVHWKHIRRWVZLWFKWKHQWKH$%
'ULYHVZLWFK0867EHSXVKHGLQ
GAIN (overdrive) – This control determines the amount
of signal that the preamp circuit has to produce the
overdrive sound. Low settings will produce an almost
clean slightly crunchy tone, whilst higher to maximum
settings will produce intense overdriven distortion tones.
VOLUME (overdrive) – This quite simply controls the
output of the sound generated by the overdrive preamp,
giving you the required sound level and balance that you
require.
TREBLE, MIDDLE, BASS EQ – The EQ circuit
works on both the Normal and Overdrive channels. The
AG40DFX EQ system is of the time-honoured passive
guitar amp system as used by virtually all guitar amps
even the very greatest pro amps, but with an added bass
boost circuit that gives the AG range of amps added
warmth especially at low volumes. This type of tone
shaping is very wide ranging and very versatile, although
please remember it is also very interactive so that each
control also has an influence on the other controls.
Experimentation is the key – please start with these
controls set to mid position.
DFX MIX – This controls the amount of DFX signal from
the on-board digital reverb circuit that is mixed with the
direct preamp signal. This is footswitchable on or off when
using the above mentioned footswitch.
DFX SELECT – This rotary encoder selects which one
4
series
AG40DFX AG80DFX
AG40DFX & AG80DFX User manual.in4 4 2011-5-11 14:22:42

OPERATING MANUAL AND USER GUIDE
5
AG40DFX AG80DFX
of utmost importance to use the correct earthed and rated
SRZHUFRUGDVLVVXSSOLHGZLWK\RXUDPSOL¿HU
In the case of the mains fuse blowing, this can be changed
E\UHPRYLQJWKHSRZHUFRUGFRQQHFWRU IURPWKHDPSOL¿HU
receptacle and with the aid of a small screwdriver the
small drawer in the receptacle can be withdrawn allowing
access to the mains power Fuse.
A WORD OF ADVICE About fuses – if a fuse blows it is
usually for a very good reason, it could be anything from a
voltage spike on the mains power, to a serious malfunction
of your amplifier. Fuses are there for your protection –
treat them with respect, and never replace with the wrong
value!
of the 16 programs of digital effects that you want to use.
Each program illuminates the associated number on the
/('GLVSOD\JLYLQJ\RXLQVWDQW SURJUDPUHFRJQLWLRQ 6HH
list below for available programs.
AUX IN – This socket accepts the stereo output of a
MP3/CD player, or any other auxiliary input device such
as a rhythm drum machine. Please use a standard 3.5mm
6WHUHRVFUHHQHGLQWHUFRQQHFWFDEOH
HP OUT – This 3.5mm socket is the output to feed into
headphones for silent practise. Any standard 16 ohm
stereo headphones can be used, although as with all
things, the better the headphone the better the sound.
POWER SWITCH AND INDICATOR – The power
switch and its associated “ON” indicator controls the
mains electricity supply into your amplifier. It is “best
practise” to turn your amplifier OFF when not using it, if
for no better reason than not using the power and helping
to protect the environment! The markings of “0” and “1”
comply with international standards – 0=off, 1=on.
Rear Panel
SWITCH ± &RQQHFW WKH $0, )6 IRRWVZLWFK LQWR WKLV
socket.
LOUDSPEAKER OUTPUT – The output jack socket
mounted on the rear panel of the AG40DFX allows the
amplifier to be connected into an external loudspeaker
unit. When doing this the internal 12 inch loudspeaker
is disconnected. The amplifier will feed into a load of
between 8 ohms and 16 ohms only
Great sounds can be achieved using other guitar speaker
cabinets, especially running into a 4x12” cabinet. Using
a good speaker system brings out the very impressive
sound capabilities of the AG40, making it into an even
more impressive amp.
MAINS INPUT – The mains input receptacle allows for
the connection of the mains power cord, and also houses
WKHPDLQVSRZHUIXVH7RFRPSO\ZLWK,QWHUQDWLRQDO6DIHW\
5HJXODWLRQVIRU\RXUVDIHW\DQGSURWHFWLRQ\RXUDPSOL¿HU
is supplied to work with the mains supply in your country.
Please check the white rating label fitted to the back
panel. If in any doubt, please check with your supplier. It is
6SHFL¿FDWLRQ
ZDWWV506RXWSXWLQWRLQWHUQDOLQFKRKPLPSHGDQFH
loudspeaker. The amplifier will also feed an external
speaker cabinet of 8 to 16 ohms impedance with a power
UDWLQJRIDWOHDVWZDWWV506
RII$;(&&GRXEOHWULRGHVPDOOVLJQDOYDOYHWXEH
0DLQV)XVH 9+]VXSSO\ 7$WLPHODJ
250V rated 20mm glass fuse
0DLQV)XVH 9+]VXSSO\ 7$WLPHODJ9
rated 20mm glass fuse
0DLQV)XVH 9+]VXSSO\ 7P$WLPHODJ
250V rated 20mm glass fuse
0DLQV)XVH 9+]VXSSO\ 7P$WLPHODJ
250V rated 20mm glass fuse
6L]HV±!"#$%&'[´FRPER'LPHQVLRQ PP:[
PP+[PP'±:HLJKW .J
CAUTION!
There are no user serviceable parts mounted
LQVLGH\RXUDPSOL¿HU5HIHUVHUYLFLQJWRVXLWDEO\
TXDOL¿HGSHUVRQQHO
This means that for your own safety and the
correct performance of your amplifier, do not
open the chassis unless you really do know what
you are doing!
WARNING! DO NOT USE WITHOUT CONNECTING
THE EARTH (GROUND) WIRE.
DO NOT USE ANY OTHER LOAD IMPEDANCE!
:$51,1* 86( 7+( &255(&7 5(3/$&(0(17
VALUE ONLY!
:$51,1* '2 12786( $1< 27+(5 63($.(5
LOAD IMPEDANCE.
AG40DFX & AG80DFX User manual.in5 5 2011-5-11 14:22:42

AG80DFX Features and Controls
INPUT±0RQRó´-DFNVRFNHWIRULQVWUXPHQWLQSXW8VHD
properly screened “guitar” cable for interconnection. There
are many different makes of guitar cable available, ranging
from fairly inexpensive to very expensive. Each have
different characteristics, and depending on your particular
guitar will give different results, all very confusing for
the inexperienced! For instance, a “cheap” cable with
high capacitance (which would normally be termed as a
³QRW YHU\JRRG FDEOH´ FDQ DFWXDOO\ EHRIEHQHILW IRU DQ
overly bright single coil guitar by taming the very high end
frequencies. Alternatively, a very low capacitance cable
can help brighten up a muddy sounding hum-bucker type
JXLWDU,ISRVVLEOHH[SHULPHQWWRWU\DQG¿QGZKDWVXLWV\RX
and your guitar best. Hopefully your dealer can help you
choose the right cable. If using an FX pedal system then
the best advice is to use a high quality, low noise, and low
capacitance cable from pedal to amp.
A-B SWITCH & LED INDICATORS ± 7KH $%
pushswitch changes the amplifier channel from Normal
$WR2YHUGULYH%:KHQ1250$/LVVHOHFWHGWKH/('
next to the switch is illuminated and the Normal channel
controls become effective. When Overdrive is selected
the LED next to the switch is illuminated and the Overdrive
channel controls become effective. The 2-way footswitch
$0,)6FDQEHFRQQHFWHGWRUHPRWHO\FKDQJHFKDQQHOV
and mute the amp’s reverb section. Please remember that
WRXVHWKHIRRWVZLWFKWKHQWKH$%'ULYHVZLWFK0867EH
pushed in.
The differences between the Normal and Overdrive
channels are worth understanding. The Normal channel
is designed to give predominantly great clean to slightly
overdriven crunch sounds. To achieve this the EQ circuit is
placed before the channels gain circuits, thus the EQ sort
of works like 3 frequency dependant gain controls. When
the Normal gain control is set close to, or at, maximum
then the post EQ gain circuits get overdriven and can be
¿QHWXQHGZLWKWKH(4±WU\WXUQLQJXSWKH0,''/(FRQWURO
for a very “singing” tone.
The Overdrive channel works slightly differently. For a
start the circuit is designed for much more distortion
and overdrive, and is voiced to focus in on the best
frequencies that overdrive works at. Alternatively to the
Normal channel, the EQ on the Overdrive channel is
placed after the gain and distortion circuitry – thus the EQ
tailors the tone of the distortion.
GAIN – This control determines the amount of signal that
the preamp circuit has to produce the overdrive sound.
Low settings will produce clean tones; whilst higher to
maximum settings will produce overdriven tones. The
intensity and voice of these will change from normal to
overdrive channels.
VOLUME – This quite simply controls the output of the
sound generated by the preamp, giving you the required
sound level and balance that you require.
TREBLE, MIDDLE, BASS EQ – The EQ circuit
works on both the Normal and Overdrive channels. The
AG80DFX EQ system is of the time-honoured passive
guitar amp system as used by virtually all guitar amps
even the very greatest pro amps, but with an added bass
boost circuit that gives the AG range of amps added
warmth especially at low volumes. This type of tone
shaping is very wide ranging and very versatile, although
please remember it is also very interactive so that each
control also has an influence on the other controls.
Experimentation is the key – please start with these
controls set to mid position.
DFX MIX – This controls the amount of DFX signal from
the on-board digital reverb circuit that is mixed with the
direct preamp signal. This is footswitchable on or off when
using the above mentioned footswitch.
DFX SELECT – This rotary encoder selects which one
of the 16 programs of digital effects that you want to use.
Each program illuminates the associated number on the
/('GLVSOD\JLYLQJ\RXLQVWDQW SURJUDPUHFRJQLWLRQ 6HH
list below for available programs.
6
series
AG40DFX AG80DFX
AG40DFX & AG80DFX User manual.in6 6 2011-5-11 14:22:42

OPERATING MANUAL AND USER GUIDE
7
AG40DFX AG80DFX
:LWKWKLVDPSOL¿HU\RXFDQDVVLJQDQ\RIWKHSURJUDPV
to each of the two channels and also the mixing of the
dry/effect signals, i.e. chorus on “normal” and delay on
“overdrive” etc. Another thing to remember is that the DFX
system outputs the signals in stereo which when fed into
the twin power amps and speakers gives a very wonderful
VWXGLRTXDOLW\WRWKHVRXQGRIWKH$*');DPSOL¿HU
AUX IN – This socket accepts the stereo output of a
MP3/CD player, or any other auxiliary input device such
as a rhythm drum machine. Please use a standard 3.5mm
6WHUHRVFUHHQHGLQWHUFRQQHFWFDEOH
HP OUT – This 3.5mm socket is the output to feed into
headphones for silent practise. Any standard 16 ohm
stereo headphones can be used, although as with all
things, the better the headphone the better the sound.
On the AG80DFX the headphone output is fed from
an intricate active speaker emulating filter network to
produce a more accurate “guitar speaker” sound through
headphones. This circuit is placed before the power
DPSOLILHU VHFWLRQ DQG WKHUHIRUH FDQ $/62 EH XVHG DV
an emulated DI Line Out for connecting into a PA or
Recording system.
LS MUTE/ACTIVE SWITCH – This switch mutes the
input of the AG80DFX power amplifier. This has two
SXUSRVHV$LWFDQEHXVHGDVD6WDQGE\VZLWFKWRPXWH
your stage signal without turning off the amplifier during
EUHDNV DW JLJV HWF ± % ZKHQ XVLQJ WKH +HDGSKRQH
out socket for headphone only, or for silent DI output,
switching to Mute gives you silent performance.
POWER SWITCH AND INDICATOR – The power
switch and its associated “ON” indicator controls the
mains electricity supply into your amplifier. It is “best
practise” to turn your amplifier OFF when not using it, if
for no better reason than not using the power and helping
to protect the environment! The markings of “0” and “1”
comply with international standards – 0=off, 1=on.
Rear Panel
FX LOOP SEND & RETURN ± $ QRPLQDOO\ G%
VHULHV HIIHFWV ORRS 6HQG FRQQHFWV WR WKH LQSXW RI \RXU
effects system. Return connects to the output of your
effects system. Generally it is quite unwise to use “stomp
box” type pedals in an effect loop, they are not designed
for such use, and are best suited to be connected between
JXLWDUDQGWKHDPSOL¿HULQSXW);ORRSVDUHEHVWVXLWHGIRU
delay, modulation and EQ processors. Use good quality
screened cables!
SWITCH ± &RQQHFW WKH $0, )6 IRRWVZLWFK LQWR WKLV
socket.
MAINS INPUT – The mains input receptacle allows for
the connection of the mains power cord, and also houses
WKHPDLQVSRZHUIXVH7RFRPSO\ZLWK,QWHUQDWLRQDO6DIHW\
5HJXODWLRQVIRU\RXUVDIHW\DQGSURWHFWLRQ\RXUDPSOL¿HU
is supplied to work with the mains supply in your country.
Please check the white rating label fitted to the back
panel. If in any doubt, please check with your supplier. It is
of utmost importance to use the correct earthed and rated
SRZHUFRUGDVLVVXSSOLHGZLWK\RXUDPSOL¿HU
In the case of the mains fuse blowing, this can be changed
E\UHPRYLQJWKHSRZHUFRUGFRQQHFWRU IURPWKHDPSOL¿HU
receptacle and with the aid of a small screwdriver the
small drawer in the receptacle can be withdrawn allowing
access to the mains power Fuse.
A WORD OF ADVICE about fuses – if a fuse blows it is
usually for a very good reason, it could be anything from a
voltage spike on the mains power, to a serious malfunction
of your amplifier. Fuses are there for your protection –
treat them with respect, and never replace with the wrong
value.
6SHFL¿FDWLRQ
ZDWWV506[:RXWSXWLQWRLQWHUQDO[LQFK
ohm impedance loudspeakers.
RII$;(&&GRXEOHWULRGHVPDOOVLJQDOYDOYHWXEH
0DLQV)XVH  9 +]VXSSO\ 7$WLPHODJ
250V rated 20mm glass fuse
0DLQV)XVH 9+]VXSSO\ 7$WLPHODJ9
rated 20mm glass fuse
0DLQV)XVH 9+]VXSSO\ 7$WLPHODJ9
rated 20mm glass fuse
0DLQV)XVH  9 +] VXSSO\ 7$ WLPHODJ
250V rated 20mm glass fuse
6L]HV±!"*$%&'[´ FRPER 'LPHQVLRQ   :[
+['±:HLJKW .J
WARNING! DO NOT USE WITHOUT CONNECTING
THE EARTH (GROUND) WIRE.
WARNING! USE THE CORRECT REPLACEMENT
VALUE ONLY!
WARNING! DO NOT USE ANY OTHER SPEAKER
LOAD IMPEDANCE.
AG40DFX & AG80DFX User manual.in7 7 2011-5-11 14:22:43

series
8AG40DFX AG80DFX
CAUTION!
There are no user serviceable parts mounted
in side your a mpli f i er! Refer se r vi cing t o
VXLWDEO\TXDOL¿HGSHUVRQQHO
This means that for your own safety and the
correct performance of your amplifier, do not
open the chassis unless you really do know
what you are doing!
AMI FS2 FOOT-PEDAL – The 2-way foot-pedal
supplied with your !"#$%&' or !"*$%&' amplifier has a
couple of features that you may want to be made aware
of. Firstly the supplied stereo jack cable can be replaced if
UHTXLUHGE\DQ\ó´6WHUHR-DFNOHDG±HLWKHUVFUHHQHGRU
XQVFUHHQHG6HFRQGO\WRKHOSWKHIRRWSHGDO¿W EHWWHU LQ
with your normal stage set-up, the cable connection can
EHPDGH5LJKW+DQGDVVXSSOLHGRUFDQEHFRQYHUWHGWR
Left Hand connection. Please see the diagram below:
DIGITAL EFFECTS SYSTEM PROGRAM LIST
6/$3'(/$<
2 - DIGITAL DELAY
$0%,(1&(
4 - EARLY REFLECT
&+2586
6 - ECHO
7 - FLANGE
3+$6(5
635,1*5(9(5%
±52205(9(5%
*$7('5(9(5%
5(9(56(5(9(5%
&+$0%(55(9(5%
±52205(9(5%
%,*+$//
60$//+$//
