Alesis Vortex Wireless 2 User manual

Editor
User Guide
English
Manual Version 1.0

2
Table of Contents
Introduction .............................................3
Support.................................................3
Installation ...........................................3
Getting Started ....................................3
Operation.................................................4
Software Menus ..................................4
File .....................................................4
Help ...................................................4
Managing Your Presets ......................5
About Presets ....................................5
Loading Presets.................................5
Saving Presets...................................5
Sending Presets ................................5
Editing the Controls ............................6
Pads .................................................. 6
Faders ...............................................8
Touch Ribbon .................................... 9
Tilt....................................................10
Pitch Wheel / Volume / Sustain .......11
Program Change / Keybed..............12
Appendix................................................ 14
Velocity Curves..................................14
Trademarks & Licenses.................... 14

3
Introduction
Thank you for purchasing the Vortex Wireless 2. At Alesis, we know how serious music is to you. That’s why we
design our equipment with only one thing in mind—to make your performance the best it can be.
Support
For the latest information about this product (documentation, technical specifications, system requirements, compatibility
information, etc.) and product registration, visit alesis.com.
For additional product support, visit alesis.com/support.
Installation
Windows®:
1. Double-click the .exe installer file you downloaded.
2. Follow the on-screen instructions.
macOS®:
1. Double-click the .dmg installer file you downloaded.
2. Click and drag the Alesis Vortex Wireless 2 Preset Editor icon into your Applications folder.
Getting Started
To open the Vortex Wireless 2 Editor:
1. Optional: Connect your Vortex
Wireless 2 keyboard to your computer
using a standard USB cable. (If you
are connecting your keyboard to a
USB hub, make sure it is a powered
hub.) You can still use the editor
without connecting a Vortex Wireless
2, but you will not be able to send
presets to it or load (get) presets from
it.
2. Open the Vortex Wireless 2 Editor.
The window will show a graphical
representation of your Vortex Wireless
2 with all of its editable controls at the
bottom of the window in tabs.
To name your preset, type in the Preset Name text box.
To edit the parameters for a type of control on your Vortex Wireless 2, click the tab with the name of the desired
control.
Click one of the types of controls on
the right to jump to that section of
this User Guide.
Pads
Faders
Touch Ribbon
Tilt
Pitch Wheel/Volume/Sustain
Program Change/Keybed

4
Operation
Software Menus
File
New Preset: Select this to open a new Vortex Wireless 2 Preset. Alternatively, press Ctrl+N (Windows) or +N
(macOS).
Send Preset: Select this to export the current settings from the Preset Editor to your connected Vortex Wireless 2
keyboard. Alternatively, press Ctrl+Shift+S (Windows) or +Shift+S (macOS).
Retrieve Preset: Select this to import the current settings from your connected Vortex Wireless 2 keyboard into the
Preset Editor. Alternatively, press Ctrl+Shift+R (Windows) or +Shift+R (macOS)
Load Preset: Select this to locate and load a Preset file (.vw2) on your computer to the Preset Editor. Alternatively,
press Ctrl+O (Windows) or +O (macOS).
Save Preset: Select this to save the Preset Editor's current settings to your computer as a Preset file (.vw2).
Alternatively, press Ctrl+S (Windows) or +S (macOS).
Update USB Receiver Pairing: Select this if you need to pair your Vortex Wireless 2 with another USB receiver.
Locate the serial number on your USB receiver and enter the last 6 digits in the window that appears. Click the
Program button to pair your Vortex Wireless 2 to the new USB receiver, or click Close to cancel the operation.
Exit: Select this to close the Vortex Wireless 2 Preset Editor.
macOS users: This option is in the Vortex Wireless 2 Preset Editor menu.
Help
Open User Guide: Select this to open this User Guide.
About: Select this to view information about this version of the Vortex Wireless 2 Preset Editor.
macOS users: This option is in the Vortex Wireless 2 Preset Editor menu.

5
Managing Your Presets
About Presets
A preset is a preset file (.vw2) containing all of the MIDI assignments you make in the editor. Using presets lets you
maintain several different control configurations to use in different situations. For instance, you may use different
presets with different kinds of software, or you may some presets for production and others for performance.
Your Vortex Wireless 2 keyboard can store 25 presets at a time. You can store additional presets on your computer
to load onto your Vortex Wireless 2 keyboard with this editor.
This chapter explains how to load presets into the editor (Loading Presets), save presets onto your computer
(Saving Presets), and send presets to your connected Vortex Wireless 2 keyboard (Sending Presets).
Loading Presets
To edit a preset, you first have to load it into the Vortex Wireless 2 Editor.
To load a preset from your connected Vortex Wireless 2:
1. Go to File > Retrieve Preset.
2. In the window that appears, click the Preset Slot drop-down menu to select the desired preset number.
3. Click Get to confirm or Cancel to cancel the operation.
Editing this preset will not affect the preset stored on your Vortex Wireless 2. See Sending Presets below to
learn how to send the edited preset to your Vortex Wireless 2.
To load a preset from your computer, do one of the following:
•Go to File >Load Preset.
•Press Ctrl+O(Windows) or +O(macOS).
After that, locate the desired preset file (.vw2), and click Open.
Saving Presets
Saving a preset on your computer lets you edit it or send it to your Vortex Wireless 2 in the future. All MIDI
assignments that you see in the editor will be saved in the preset.
To save the preset, do one of the following:
•Go to File >Save Preset.
•Press Ctrl+S(Windows) or +S(macOS).
After that, select the desired location, enter a file name, and click Save. The preset will be saved as a .vw2 file.
Sending Presets
Sending a preset to your connected Vortex Wireless 2 lets you transfer the preset from the editor to your Vortex
Wireless 2 keyboard's internal memory. All MIDI assignments that you see in the editor will be sent to your Vortex
Wireless 2.
To send a preset to your connected Vortex Wireless 2:
1. Go to File >Send Preset.
2. In the window that appears, click the Preset Slot drop-down menu to select the desired preset number.
3. Click Send to confirm or Cancel to cancel the operation. (Sending the preset will overwrite that preset number
on your Vortex Wireless 2.)

6
Editing the Controls

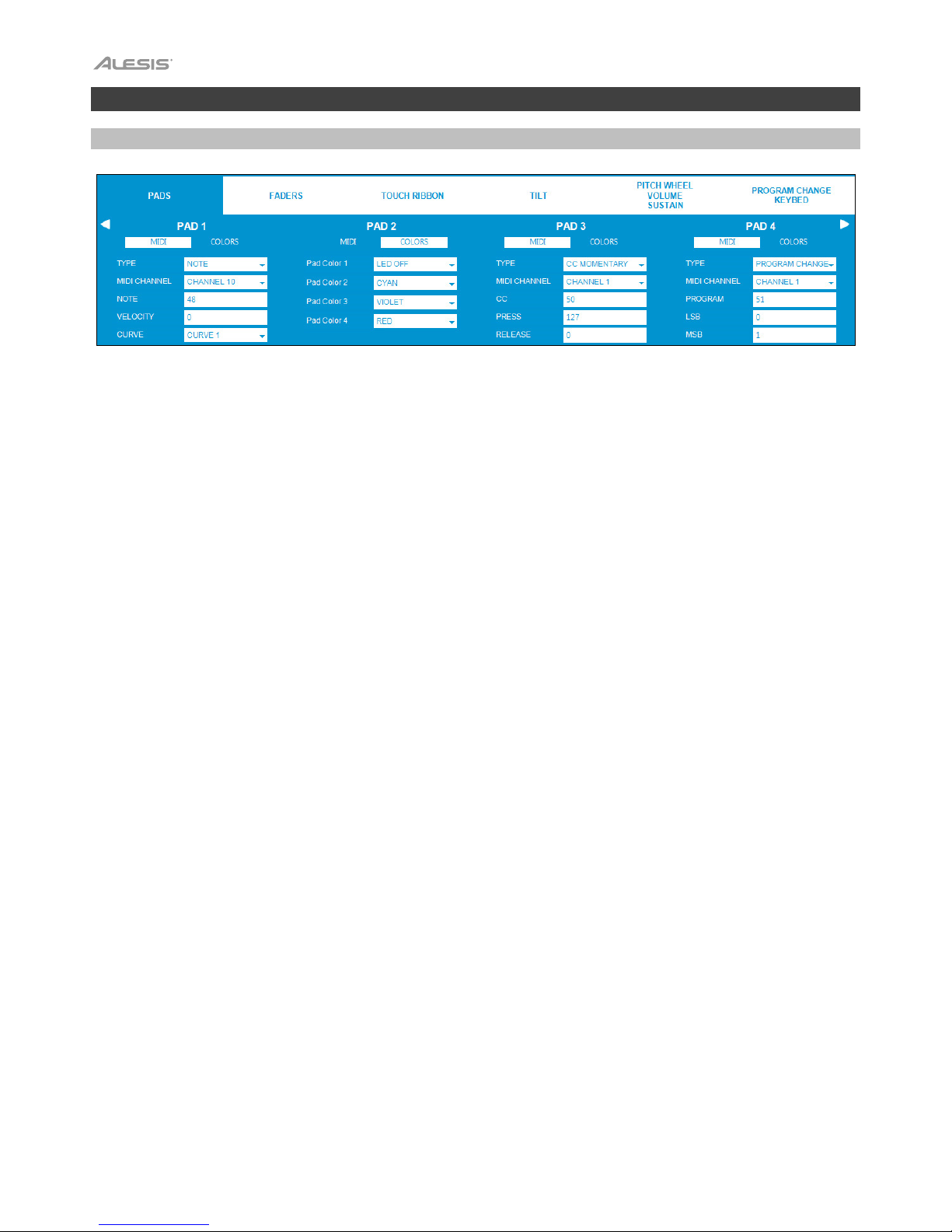

Pads
Click the Pads tab to set the MIDI assignments and Colors for Vortex Wireless 2's Pads. Click MIDI or Colors below
the Pad number to toggle between the editing options. Click the left or right arrows on the sides of the window to
toggle between viewing Pad 1–4and Pad 5–8.
MIDI
Type: Click this menu and select one of the following options. The parameters below will depend on your selection.
•Note: The pad will send a MIDI Note On message when you press it and hold it and a MIDI Note Off message
when you release it.
•CC Toggle: The pad will send a CC message with one value when you press it to turn it on and another value
when you press it to turn it off. The values will alternate with each press.
•CC Momentary: The pad will send a CC message with one value when you press and hold it and another value
when you release it.
•Program Change: The pad will send Program Change messages.
•Panic: The pad will send a MIDI Panic (all notes off) message.
MIDI Channel: The pad will send its MIDI messages over this channel. Click this menu and select Channel 1 –
Channel 16.
Note (when Type is set to Note):The pad will send this MIDI note number when you press it. Click it and enter a
number (0–127).
Velocity (when Type is set to Note):When this is set to a number from 1to 127, the pad will send its MIDI Note On
message with this velocity regardless of how hard you press it. When this is set to 0, the pad will send its MIDI Note
On message with a velocity based on how hard you hit it and the Curve setting. Click it and enter a number (0–127).
Curve (when Type is set to Note):The pad will use this velocity curve number to determine what velocity to use
depending on how hard you press it. Click this menu and select Curve 1 – Curve 8. See Appendix >Velocity
Curves for an illustration of the curves.
CC (when Type is set to CC Toggle or CC Momentary):The pad will send its MIDI messages using this CC number.
Click it and enter a number (0–127).

7
On (when Type is set to CC Toggle):The pad will send this value when you press it to turn it on. Click it and enter a
number (0–127).
Off (when Type is set to CC Toggle):The pad will send this value when you press it to turn it off. Click it and enter a
number (0–127).
Press (when Type is set to CC Momentary):The pad will send this value when you press and hold it. Click it and
enter a number (0–127).
Release (when Type is set to CC Momentary):The pad will send this value when you release it. Click it and enter a
number (0–127).
Program (when Type is set to Program Change):The pad will send this Program Change number when you press
it. Click it and enter a number (0–127).
LSB (when Type is set to Program Change):The pad will send this Bank LSB (Least Significant Byte) number when
you press it. Click it and enter a number (0–127).
MSB (when Type is set to Program Change):The pad will send this Bank MSB (Most Significant Byte) number when
you press it. Click it and enter a number (0–127).
Colors
You can assign up to 4 colors to each pad. Click each Pad Color menu and select a color: LED Off, Chartreuse,
Green, Aquamarine, Cyan, Azure, Blue, Violet, Magenta, Rose, Red, Orange, Yellow, or White.
When Type is set to Note, the Colors are assigned according to the following:
•Color 1: The color of the pad when it is inactive.
•Color 2: The color of the pad when it is triggered with a velocity from 1–63.
•Color 3: The color of the pad when it is triggered with a velocity from 64–95.
•Color 4: The color of the pad when it is triggered with a velocity from 96–127.
When the Type is set to CC Toggle, CC Momentary, Program Change, or Panic, only Color 1 and Color 2 are
assigned according to the following:
•Color 1: The color of the pad when it is off, released, or inactive.
•Color 2: The color of the pad when it is on, pressed, or active.

8

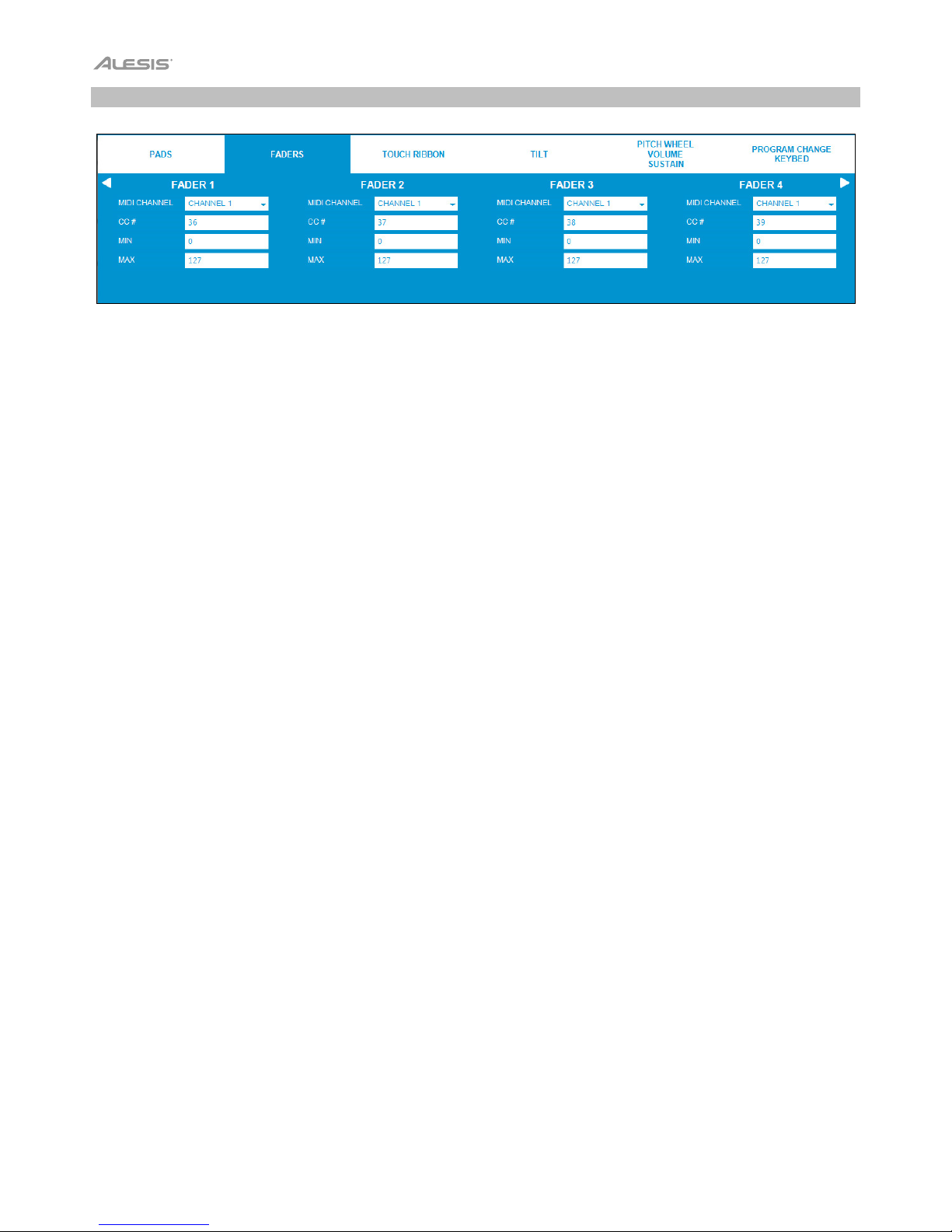

Faders
Click the Faders tab to set the MIDI assignments for Vortex Wireless 2's Faders. Click the left or right arrows on the
sides of the window to switch between viewing Fader 1–4and Fader 5–8.
MIDI Channel: The fader will send its MIDI messages over this channel. Click this menu and select Channel 1 –
Channel 16.
CC #: The fader will send its MIDI messages using this CC number. Click it and enter a number (0–127).
Min: This will be the lowest value that the fader can send. Click it and enter a number (0–127).
Max: This will be the highest value that the fader can send. Click it and enter a number (0–127).

9

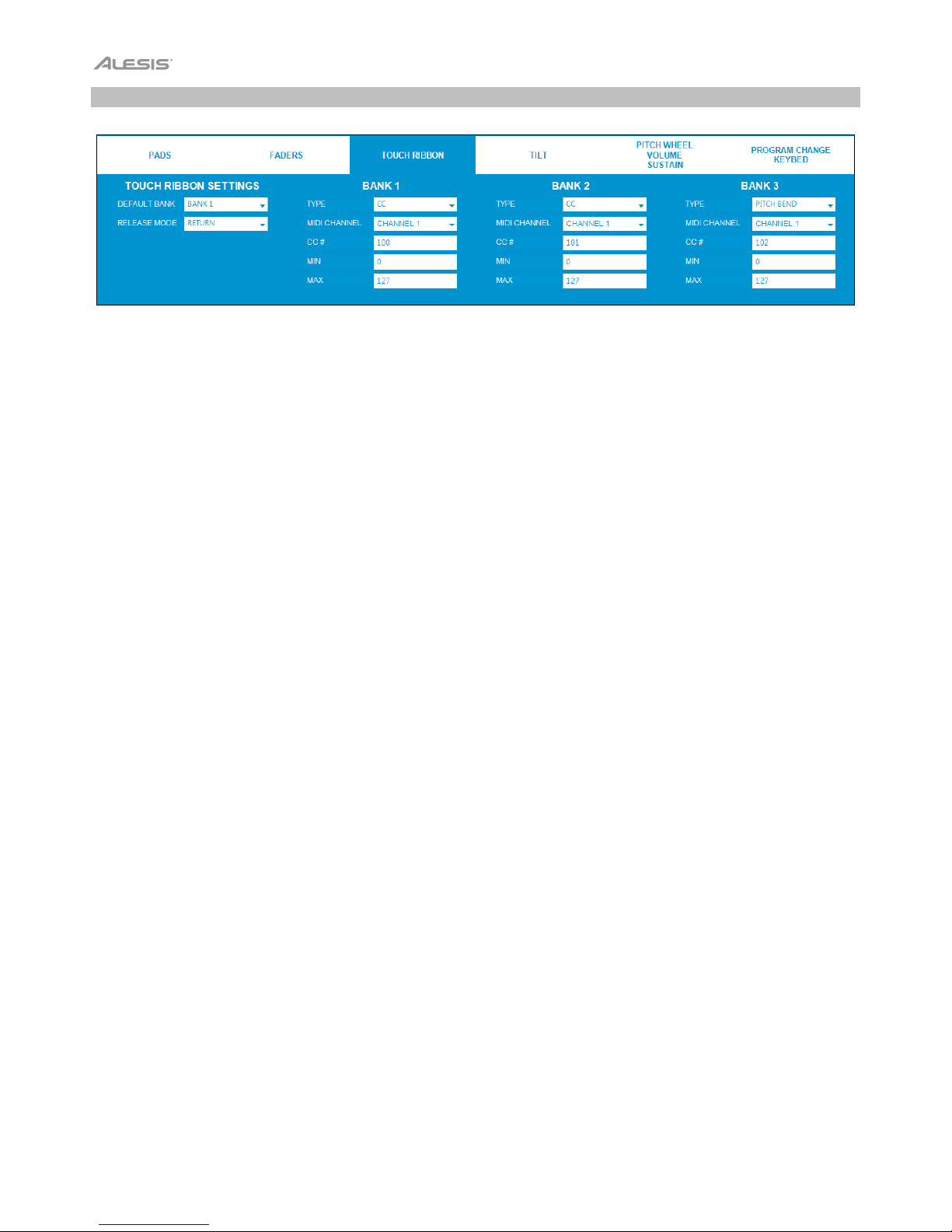

Touch Ribbon
Click the Touch Ribbon tab to set the MIDI assignments for Vortex Wireless 2's ribbon controller.
Touch Ribbon Settings
Default Bank: Click this menu to set the Default Bank when the preset is selected. Select Bank 1, Bank 2, or Bank
3.
Release Mode: Click this menu to select one of the following options.
•Latch: The ribbon controller will not send additional MIDI messages when you release it, which is useful for
changing modulation parameters.
•Return: The ribbon controller will send the default MIDI message for the controller when you release it, which is
useful for changing parameters like pitch bend.
Bank 1/2/3
Type: Click this menu and select one of the following options.
•CC: The ribbon controller will send Control Change MIDI messages.
•Pitch Bend: The ribbon controller will send Pitch Bend MIDI messages.
MIDI Channel: The ribbon controller will send its MIDI messages over this channel. Click this menu and select
Channel 1 – Channel 16.
CC #: When Type is set to CC,the ribbon controller will send its MIDI messages using this CC number. Click it and
enter a number (0–127).
Min: This will be the lowest value that the ribbon controller can send. Click it and enter a number (0–127).
Max: This will be the highest value that the ribbon controller can send. Click it and enter a number (0–127).

10

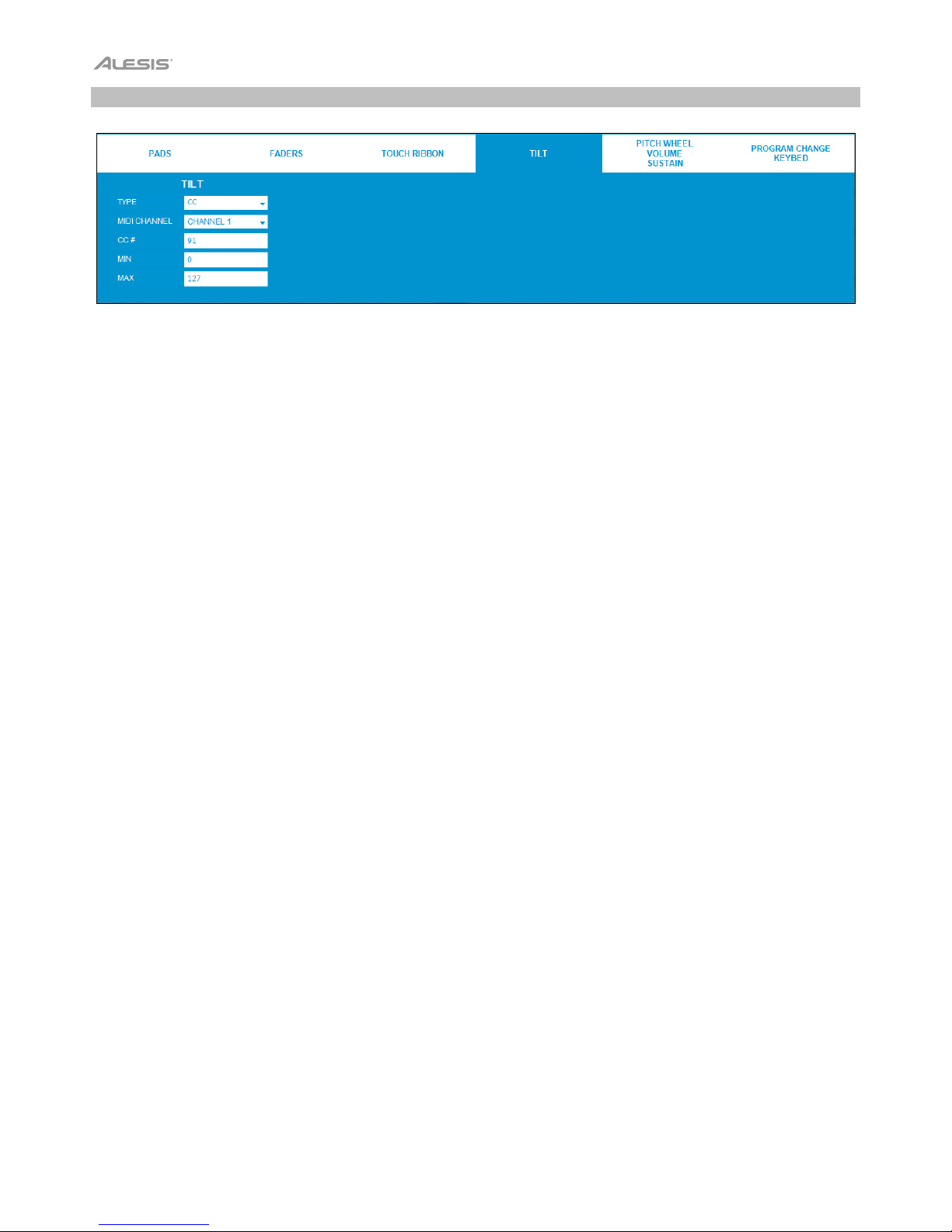

Tilt
Click the Tilt tab to set the MIDI assignments for Vortex Wireless 2's accelerometer.
Type: Click this menu and select one of the following options.
•CC: The accelerometer will send Control Change MIDI messages.
•Pitch Bend: The accelerometer will send Pitch Bend MIDI messages.
MIDI Channel: The accelerometer will send MIDI messages over this channel. Click this menu and select Channel 1
– Channel 16.
CC #: When Type is set to CC, the accelerometer will send its MIDI messages using this CC number. Click it and
enter a number (0–127).
Min: This will be the lowest value that the accelerometer can send. Click it and enter a number (0–127).
Max: This will be the highest value that the accelerometer can send. Click it and enter a number (0–127).
