ALFAtron ALF-12X-SDIC User manual

www.alfatronelectronics.com
ALFATRON ELECTRONICS GmbH GERMANY
ALF-12X-SDIC
ALF-20X-SDIC
ALF-30X-SDIC
Full HD PTZ Camera User Manual

Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC
•Attention
Improper operations may damage the product structure and result in mechanical
failure. Please note the following tips:
Do not move the camera by
grabbing the head.
Move the camera by holding
the bottom with one or both hands.
Please do not rotate the lens and holder manually
regardless if the camera is powered on or off; this
may damage the camera structure and cause the
camera self-check to fail and be unable to start the
camera

Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC
This manual introduces functions, installations, and operations for this PTZ camera in detail. Please read
this manual carefully before installation and use.
1. Cautions
1.1 Avoid damage to the product caused by heavy pressure, strong vibration, or immersion during transportation,
storage, and installation.
1.2 Housing of this product is made of organic materials. Do not expose it to any liquid, gas, or solids that may
corrode the shell.
1.3 Do not expose the product to liquid or moisture.
1.4 To prevent the risk of electric shock, do not open the housing. Installation and maintenance should only be
carried out by qualified technicians.
1.5 Do not use the product beyond the specified temperature, humidity, or power supply specifications.
1.6 Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent if needed. Do
not use strong or corrosive detergents to avoid scratching the lens and affecting the image.
1.7 This product contains no parts which can be maintained by users themselves. Any damage caused by
dismantling the product by the user without permission voids the warranty.
2. Electrical Safety
Installation and use of this product must strictly comply with local electrical safety standards.
The power supply of the product is ±12V, the max electrical current is 2A.
3. Installation
3.1 Do not rotate the camera head forcefully, it may cause mechanical failure.
3.2 This product should be placed on a stable desktop or another horizontal surface. Do not install the product
obliquely, otherwise, it may display an inclined image.
3.3 Ensure there are no obstacles within the rotation range of the holder.
3.4 Do not power on before completing the installation.
4. Magnetic Interference
Electromagnetic fields at specific frequencies may affect the video image. This product is Class A. It may cause
radio interference in the household application. The appropriate measure is required.

Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC
1
Content
1. Camera Installation.................................................................................................................................................. 2
1.1 Camera Introduction ...................................................................................................................................... 2
1.2 General Operation at Boot up ........................................................................................................................ 3
1.3 Mounting Brackets......................................................................................................................................... 3
2. Product Overview .................................................................................................................................................... 6
2.1 Dimension...................................................................................................................................................... 5
2.2 Accessory....................................................................................................................................................... 7
2.3 RS-232 Interface............................................................................................................................................ 7
2.4 Rotary DIP Switch ......................................................................................................................................... 8
2.5 Main Features ................................................................................................................................................ 9
2.6 Technical Parameter....................................................................................................................................... 9
3. Remote Control.......................................................................................................................................................11
3.1 Match Code for Wireless Remote Control....................................................................................................11
3.2 Keys Introduction for IR Remote Control ....................................................................................................11
3.3 Menu Introduction ....................................................................................................................................... 14
4. Network Configuration.......................................................................................................................................... 16
4.1 Network Connection.................................................................................................................................... 16
4.2 IE Login....................................................................................................................................................... 17
4.3 Streaming..................................................................................................................................................... 18
4.4 Software Upgrading..................................................................................................................................... 19
5. Serial port communication and control.................................................................................................................. 20
5.1 VISCA Protocol Return Command.............................................................................................................. 20
5.2 VISCA Protocol Control Command ............................................................................................................ 20
5.3 VISCA Protocol Inquiry Command............................................................................................................. 23
5.4 Pelco-D protocol command list ................................................................................................................... 25
5.5 Pelco-P protocol command list .................................................................................................................... 25
6. Maintenance and Troubleshooting......................................................................................................................... 26
6.1 Maintenance................................................................................................................................................. 26
6.2 Troubleshooting ........................................................................................................................................... 26
7. Warranty ................................................................................................................................................................ 27

Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC
2
1. Camera Installation
1.1 Camera Introduction
Figure 1.1 Interface of the SDIC models (All models)
1. Camera Lens
2. Camera Base
3. Remote Control Receiving Indicator
4. Infrared Receiver
5. Tripod Screw Hole
6. Screw Hole for Tripod
7. HDMI Output
8. USB3.0 Output
9. SDI Output
10. Audio Input Interface (Line-in)
11. Rotary DIP Switch
12. RS232 Control Interface (input)
13. RS232 Control Interface (output)
14. RS422 Interface (Compatible with RS485)
15. Network Interface (LAN)
16. DC12V Input Power Supply Socket
17. Power Switch

Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC
3
1.2 General Operation at Boot up
1) After powering on and self-checking, the camera will automatically return to the preset 0 position if it’s pre-set.
2) The default address for the IR remote control is 1#.
If the unit is restored to factory defaults, the remote control default address will restore to 1#.
1.3 Mounting Brackets
Notes:
Ceiling or wall mounting brackets can only be mounted on template and concrete wall.
For safety reasons, plasterboard is not recommended.

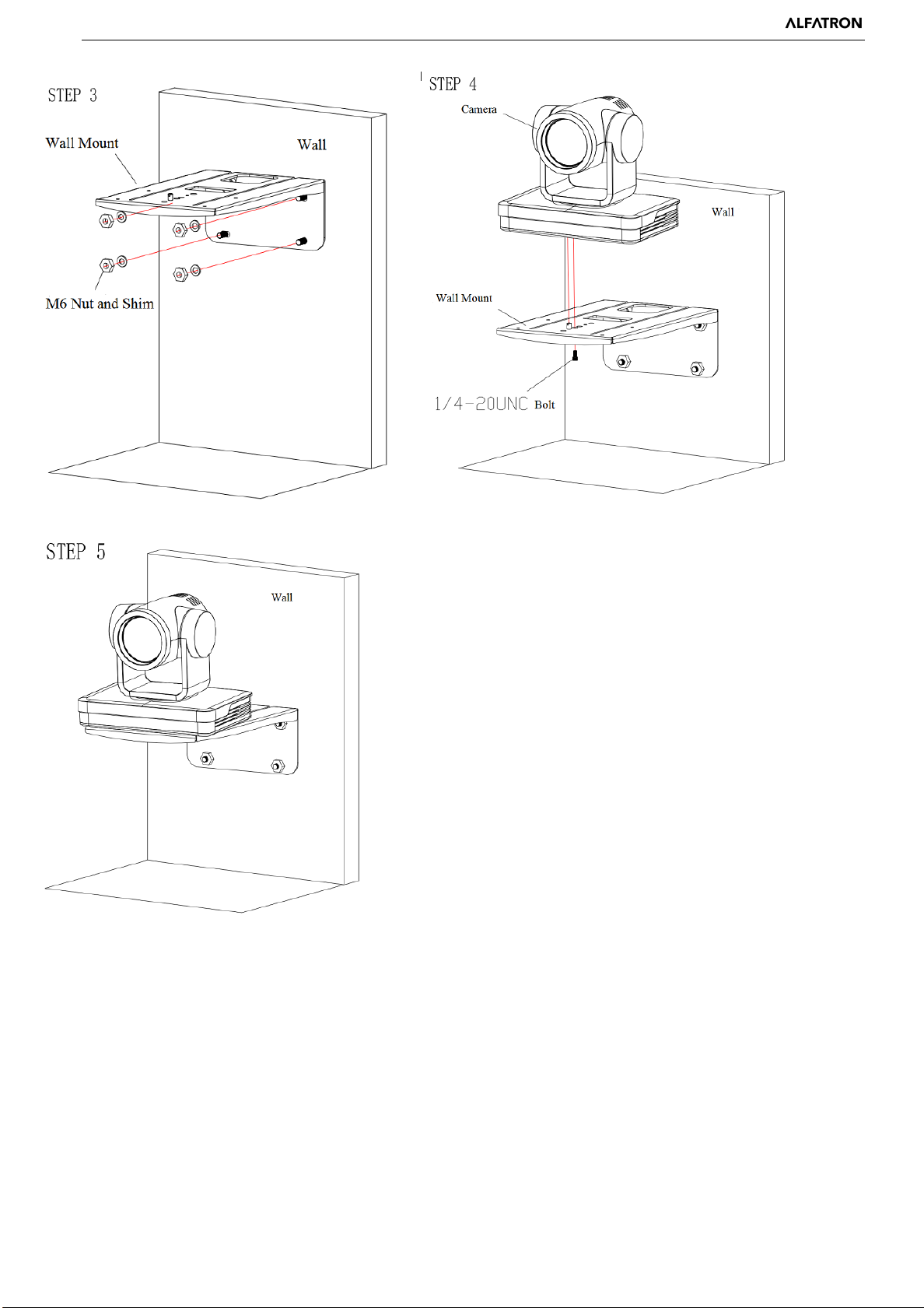

1) Wall Mounting:

Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC
4

Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC
5
2) Ceiling Mounting

Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC
6
2. Product Overview
2.1 Dimension

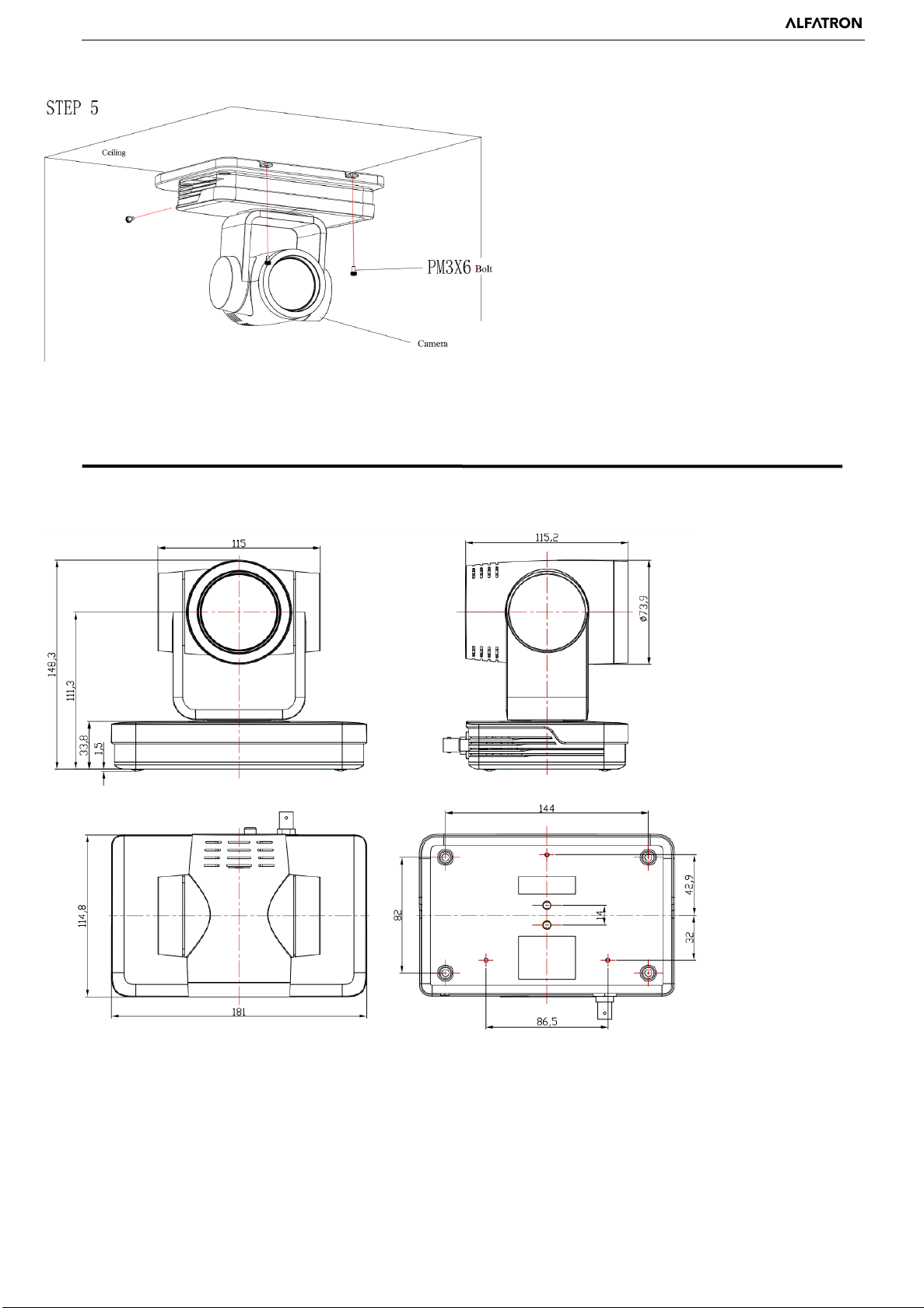

Figure 2.2 Product Dimension
