ALFAtron ALF-5X-Cam User manual

ALFATRON ALF-5/10/12/20X-CAM
1
ALFATRON ALF-5X/10X/12X/20X-CAM
HD Color Video Camera
ALFATRON ELECTRONICS GmbH GERMANY
User Manual

ALFATRON ALF-5/10/12/20X-CAM
2
Attention
Electrical Safety
Installation and operation must comply with electrical safety standards
Caution while in transportation
Avoid stress, vibration, and soakage in transportation, storage, and installation.
The polarity of power supply
The power supply of the product is ±12V, the max electrical current is 2A. The polarity of the power supply
drawing.
Precautions to take when installing the camera
Never move the camera by pulling on the camera head. Do not rotate the camera head by hand as it will
damage the mechanism.
This series item must be installed on a flat smooth desk or platform, and it cannot be installed slantways;
If the camera is installed on a TV or a computer, the base can be fixed by four double-sided adhesive trays.
Do not apply any corrosive liquid, on the cover which is made up of organic material.
Please make sure there are no obstacles in the way of the rotation of the camera.
Only power on the unit after installation has been completed.
Don not disassemble the unit.
We are not responsible for any unauthorized modification or dismantling.
Attention
Electromagnetic field under a certain rate may affect camera image!

ALFATRON ALF-5/10/12/20X-CAM
3
Content
1. Fast Installation.........................................................................................................................................................5
1.1 Camera Interface Explanation.........................................................................................................................5
1.2 Power-on Initial Configuration........................................................................................................................5
1.3 Video Output .............................................................................................................................................. 5-6
2. Product Overview
2.1 Product Introduction.......................................................................................................................................9
2.1.1 Product Model .....................................................................................................................................9
2.1.2 Dimension……………………………….........................................................................................................10
2.1.3 Accessory ...........................................................................................................................................10
2.2 Main Features ...............................................................................................................................................11
2.2.1 Camera Performance .........................................................................................................................11
2.2.2 Network Performance........................................................................................................................11
2.3 Technical Specification............................................................................................................................ 11-12
2.4 Interface Instruction .....................................................................................................................................13
2.4.1 External Interface...............................................................................................................................13
2.4.2 Bottom Dial Switch.............................................................................................................................13

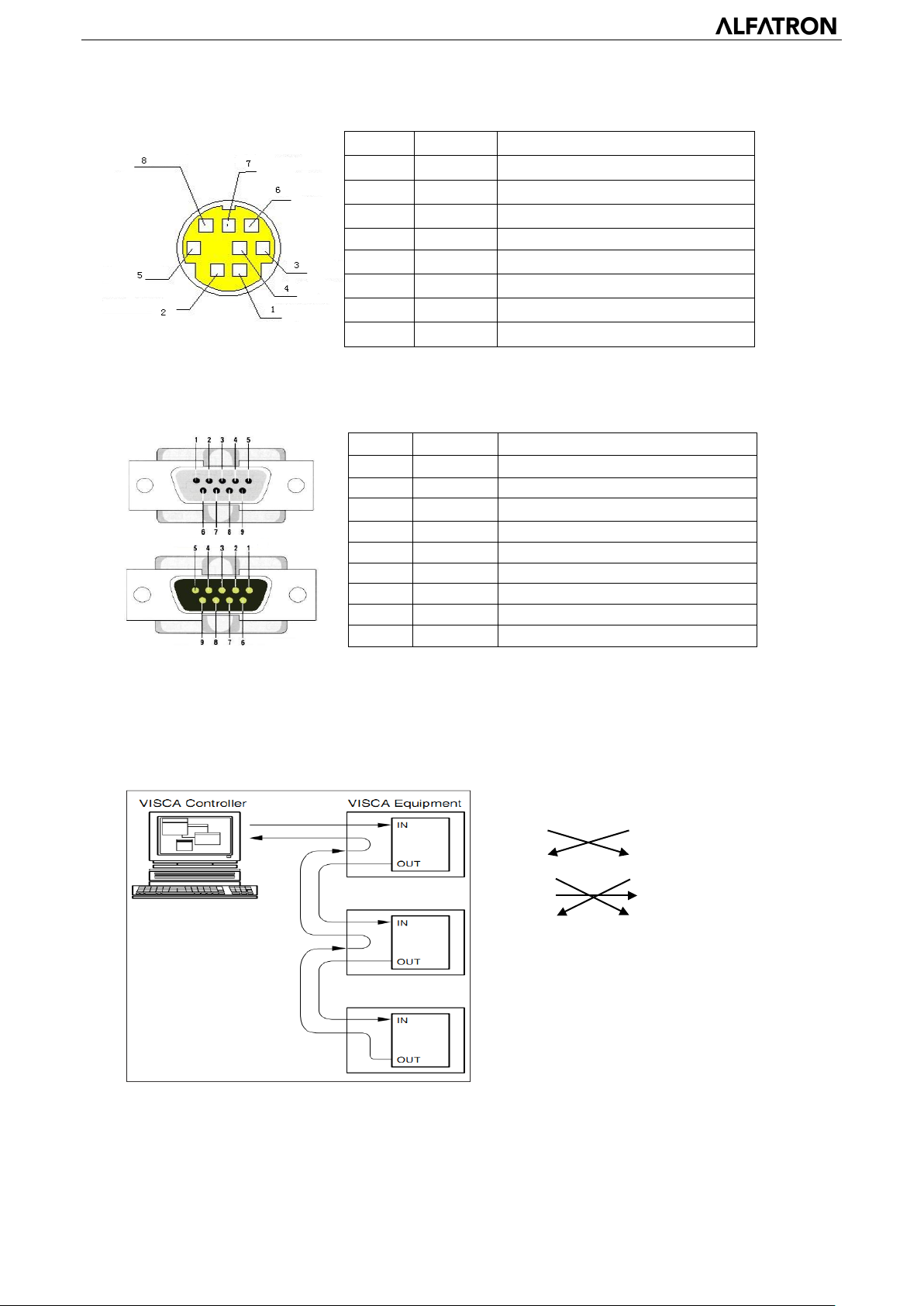

2.4.3 RS-232 interface.................................................................................................................................14
3. Application Instruction ...........................................................................................................................................15
3.1 Video Output ........................................................................................................................................15
3.1.1 Power-On Initial Configuration ..........................................................................................................15
3.1.2 Video Output .....................................................................................................................................15
3.2 Remote Controller .................................................................................................................................. 16-18
3.2.1 Keys Introduction
3.3 Menu Setting ................................................................................................................................................18
4. Network Connection...............................................................................................................................................24
4.1 Connecting Mode ................................................................................................................................... 24-26
4.2 IE Log In.........................................................................................................................................................27
5. Serial Communication Control................................................................................................................................32
5.1 VISCA Protocol List........................................................................................................................................32
5.2 Pelco-D Protocol Command List....................................................................................................................37
5.3 Pelco-P Protocol Command List ....................................................................................................................38
6. Camera Maintenance and Troubleshooting ...........................................................................................................38
6.1 Camera Maintenance....................................................................................................................................38
6.2 Troubleshooting.........................................................................................................................................…38
7. Warranty .................................................................................................................................................................40

ALFATRON ALF-5/10/12/20X-CAM
4

ALFATRON ALF-5/10/12/20X-CAM
5
1. Fast Installation
1.1 Camera Interface Explanation
(USB2.0, USB3.0, HDMI Output)
1Lens 5 Tripod Screw Hole 9 HDMI Output
2. Base 6 RS232 (IN) 10 LAN
3Remote Controller Receiver Light 7 USB2.0 11 Power Supply
4Button Dial Switch 8 USB3.0
1.2 Power on initial configuration
1) Power on: Connect DC12V power supply adapter with power supply socket.
2)Initial configuration: Power on with power indicator light on and remote-control receiver light blinking, camera head moves from
the bottom left to the bottom, and then goes to the HOME position (intermediate position of both horizontal and vertical), while the
camera module stretches. When remote control receiver light stops blinking, the self-checking is finished
Note: If you set preset 0, when the Power-on self-test is completed, the camera automatically moves to the preset 0 positions.
1.3 Video Output
1) Video Output from LAN
a. Network Cable Connection Port:
b. Webpage Login: Open your browser and enter 192.168.5.163 in the address bar (factory default); press Enter to enter the login
page; click on the “player is not installed, please download and install!" and follow the installation steps for installation. Then
enter the username admin and password admin (factory default); press Enter to enter the preview page, users can carry out PTZ
control, video recording, playback, configuration, and other operations.
2) HDMI Video Output
a. HDMI Video Cable Connection
b. Connect the camera and the monitor via HDMII video cable; video output is available after the camera self-test.
3 USB3.0 video output
a. USB3.0 video cable connection
b. Connect the camera and the monitor via USB3.0 video cable, open video display software, select image device, and then video
output will be available.

ALFATRON ALF-5/10/12/20X-CAM
6
5) USB3.0 compatible with USB2.0 output
a. USB3.0 video cable connection
b. Connect the camera and the monitor via USB3.0 video cable, open video display software, select image device, and then video
output will be available.
6) USB2.0 video output
a. USB2.0 video cable connection:
b. Connect the camera and the monitor via USB2.0 video cable, open video display software, select image device, and then video
output will be available.
Note: USB2.0 output and USB3.0 output is the same interface.
1.4 Bracket mount
Note: Bracket can only be wall-mounted or upside-down mounted on template and concrete wall but cannot be installed on the
plasterboard.
1) Wall mount step

ALFATRON ALF-5/10/12/20X-CAM
7
2. Upside down mount step

ALFATRON ALF-5/10/12/20X-CAM
8

ALFATRON ALF-5/10/12/20X-CAM
9
2. Product overview
2.1 Product Introduction
2.1.1 Product Model
Model NO.X—XXX—XXX—XX
IR ---IR Remote Controller
WR---Wireless Remote Controller
U2U3 - USB3.0, USB2.0, HDMI
05---05x Optical Zoom Lens
10---10 x Optical Zoom Lens
12---12x Optical Zoom Lens
20---20x Optical Zoom Lens
S---1080P60 Downward Compatibility
M---1080P30Downward Compatibility
Please refer to the corresponding features in this manual.
Note: 5Gwifi is optional for ST (standard) series only.

ALFATRON ALF-5/10/12/20X-CAM
10
2.1.2 Dimension
Figure 2.2 Camera dimension
2.1.3 Accessory
When you unpack, check that all the supplied accessories are included:
Model
NO.
Configur
ation
5X-10X-12X-20X
Accessory
Standard
Power adapter 1 piece
USB3.0 and USB2.0 cables
User manual 1
Double-side glue shim 4pcs
Warranty card 1 piece
Optional
IR Remote controller or wireless controller 1 piece
Wireless controller 1 piece
Wall mounting bracket(optional)
Upside-down mounting bracket(optional)
USB2.0 Video cable: If need USB2.0 cable to provide power but not a power adapter, USB2.0 Video cable with two ports is needed,
among which red port is for power supply and black port for transmitting USB video signals. If using a power adapter, the general
USB2.0 video cable without the power supply function is ok.

ALFATRON ALF-5/10/12/20X-CAM
11
2.2 Main Features
2.2.1 Camera Performance
The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and
fantastic color rendition. It supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal
bandwidth conditions.
1.Superb High-definition Image: It employs 1/2.8-inch-high quality CMOS sensor. Resolution is up to 1920x1080 with a frame rate of
up to 60 fps.
2.Various Optical Zoom Lens: It has a 5X/10X/12X/20X optical zoom lens for options. The 5X zoom lens is with an 80.9 ° wide view
angle without distortion.
3. Leading Auto Focus Technology: Leading autofocus algorithm makes the lens a fast, accurate, and stable auto-focusing.
4. Low Noise and High SNR: Low Noise CMOS effectively ensure high SNR of camera video.
Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
5.Quiet PTZ: By adopting a high accuracy step driving motor mechanism, it works extremely quiet and moves smoothly and very
quickly to the designated position.
6.Multi-Format Video Outputs: support HDMI, USB, wired LAN
7.Multiple Remote Controls: There is IR remoter and 2.4G wireless remote for options. The 2.4G wireless remote controller will not
be affected by angle, distance, or IR interference. Support transparent transmission function.
8.Low-power Sleep Function: Support low-power sleep/wake up, the consumption is lower than 500mW under sleep mode
9.Support Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols which can also be automatically recognized.
Support VISCA control protocol through the IP port.
10.RS-232 Cascade Function: ST series support RS-232 cascade function which is convenient for installing.
11.255 Presets Positions: Up to 255 presets (10 presets by remoter).
12.Wide Application: Tel e-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation,
and Emergency command systems.
2.2.2 Network performance
1. Audio Input Interface: Support 16000,32000,44100,48000 sampling frequency and AAC, MP3, PCM audio coding.
2. Multiple Audio/Video Compression: Support H.264/H.265 video compression; AAC, MP3, and PCM audio compression;
Support compression of resolution up to 1920x1080 with frame up to 60 fps and 2 channel 1920x1080p with 30 fps
compression.
3. Multiple network protocol: Support O NVI F, RTSP, RTMP protocols and RTMP push mode, easy to link streaming media server
(Wowza, FMS)
4. 5G WIFI function: If the product contains a 5G WIFI module, you can set up a wireless WIFI connection on a webpage, the
specific configuration described in detail on the page of web configuration.
2.3 Technical Specification
Model
5X
10X
12X
20X
30X
Camera Parameter
Sensor
1/2.8-inch-high quality HD CMOS sensor
Effective Pixels
16: 9 2.07 megapixel

ALFATRON ALF-5/10/12/20X-CAM
12
Video Format
HDMI/ video format
1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97
interface video format
1)1920X1080P60/50/30/25;1280X720P60/50/30/25;960X540P30;640X360P30;640X480P30;352X
288P30;960X540P30;
Optical Zoom
5X
f＝3.6～18mm
10X
f＝4.7～47mm
12X
f＝3.9 ～
46.1mm
20X
f＝5.2～98mm
View Angle
16.43°
（
tele
）
80.9°
（
wide
）
6.43°
（
tele
）
60.9°
（
wide
）
6.3°
（
tele
）
72.5°
（
wide
）
3.2°
（
tele
）
55.8°
（
wide
）
AV
F1.8 – F2.8
F1.6 – F3.0
F1.8 – F2.4
F1.5 – F3.0
Digital Zoom
10X
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus
Auto/Manual
Aperture
Auto/Manual
Electronic Shutter
Auto/Manual
BLC
ON/OFF
WDR
OFF/ Dynamic level adjustment
Video adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR
>55dB
Input/output Interface
Video Interfaces
ALF-5/10/12/20/30X-CAM USB2.0, USB3.0, HDMI, LAN, RS232（input）
Image code stream
Double streams output simultaneously
Video Compression
format
H.264, H.265
Control Signal Interface
RS-232 Ring through RS232 output, RS-485
Control Protocol
VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio Input Interface
Double track 3.5mm linear input;
Audio Compression
Format
AAC/MP3/PMC Audio compression
HD IP Interface
100M IP port(100BASE-TX); 5G WiFi (optional), support IP Visca control protocol
Network Protocol
RTSP/RTMP,ONVIF
Power Interface
HEC3800 outlet (DC12V)
PTZ Parameter
Pan Rotation
±170°
Tilt Rotation
-30°
～
+90°
Pan Control Speed
0.1 -180°/sec
Tilt Control Speed
0.1-80°/sec
Preset Speed
Pan: 60°/sec, Tilt: 30°/sec
Preset Number
255 presets (10 presets by the remote controller)
Other Parameter
Supply Adapter
AC110V-AC220V to DC12V/2A
Input Voltage
DC12V±10%
Input Current
1A(Max)
Consumption
12W (Max)
Store Temperature
-10℃to +60℃
Store Humidity
20% - 95%
Working Temperature
-10℃to +50℃
Working Humidity
20%--80%
Dimension
150mmX150mmX167.5mm
Weight
1.4KG
Working Environment
Indoor
Remote Operation (IP)
Remote Upgrade, Reboot, and Reset
Accessory
Power Supply
、
RS232 Control Cable
、
USB3.0 Cable
、
USB2.0 Cable
、
Remoter
、
Manual
、
Warranty
card

ALFATRON ALF-5/10/12/20X-CAM
13
Optional Accessory
Bracket
2.4 Interface Instruction
2.4.1 External Interface
The external interface of the ALF-5/10/12/20/30X-CAM model: RS232 input, USB3.0, USB2.0, HDMI, LAN,
DC12V power interface.
2.4.2 Bottom Dial Switch
ALF-5/10/12/20X-CAM: two DIP switches are set to ON or OFF to select different modes of operation as shown in Table 2.3
Table 2.3 Dial Switch setting
Note: Working mode can be applicable for web upgrades.
2.4.3 RS-232 Interface
1) RS-232C interface specification as shown below
Computer or keyboard and camera connection method
Camera
WindowsDB-9
1.DTR
1.DCD
2.DSR
2.RXD
3.TXD
3.TXD
4.GND
4.DTR
5.RXD
5.GND
6.GND
6.DSR
7.IR OUT
7.RTS
8.NC
8.CTS
9.RI
No. SW2 SW1 Explanation
1 ON OFF Working Mode
2 ON ON USB3.0 Software Upgrade Mode
3 OFF ON ARM Software Upgrade Mode

ALFATRON ALF-5/10/12/20X-CAM
14
2) RS-232 Mini-DIN 8-pin Port Definition
3) RS232 (DB9) Port Definition
1) VISCA networking as shown below:
Camera cascade connection method
Camera 1
Camera 2
1.DTR
1.DTR
2.DSR
2.DSR
3.TXD
3.TXD
4.GND
4.GND
5.RXD
5.RXD
6.GND
6.GND
7.IR OUT
7.OPEN
8. NC
8.OPEN
NO.
Port Definition
1
DTR Data Terminal Ready
2
DSR Data Set Ready
3
TXD Transmit Data
4
GND
System Ground
5
RDX Receive Data
6
GND System Ground
7
IR OUT
IR Commander Signal
8
NC
No Connection
NO.
Port
Definition
1
DCD
Data Carrier Detect
2
RDX
Receive Data
3
TXD
Transmit Data
4
DTR
Data Terminal Ready
5
GND
System Ground
6
DSR
Data Set Ready
7
RTS
Request to Send
8
CTS
Clear to Send
9
RI
Ring Indicator

ALFATRON ALF-5/10/12/20X-CAM
15
3. Application Instruction
3.1 Video Output
3.1.1 Power-On Initial Configuration
Connecting the power, the camera will have initial configuration, R indicator light will be flashing. When the camera return to the
HOME position (middle position for P/T), and lens finish zoom in/out, the auto-testing is finished. IR led will also stop flashing. If the
preset 0 is set, the camera will rotate to the 0 preset positions after the initial configuration.
3.1.2 Video Output
Connect to the video output cable: the user select the output mode according to the machine model.
Figure 1.4.1 is for your reference (output interface introduction for each product)
1) network output: connect this product and your computer through a network cable, then open the browser, enter the camera IP
address (factory default 192.168.5.163) in the address bar, then to the login page and input a user name and password
(factory default are “admin”), Finally enter the preview page, and the image comes out.
(Note: If you forget your user name, password, IP address, you can manually restore the default by the remote control key
combination * #)
2)3G-SDI output or DVI (HDMI) output: Connect the monitor with the corresponding video output interface, then the monitor
output image.
3)USB3.0 output: Connect this product with the computer USB3.0 interface (blue), open the Device Manager to see whether
there is an imaging device and whether the Universal Serial Bus controllers recognize the USB3.0 device. After properly identified,
open the software, choose the imaging device, and then it will output the image.
4)USB3.0 compatible with USB2.0 output: Connect this product with a computer USB2.0 interface (black), open the Device
Manager to see whether there is an imaging device and whether the Universal Serial Bus controllers recognize USB3.0 device. After
properly identified, open the software, choose the imaging device, and then it will output the image.

ALFATRON ALF-5/10/12/20X-CAM
16
3.2 Remote Controller
3.2.1 Keys Instruction
1. Standby Key
After a 3S long press, the camera will step into standby mode. Long press 3S again, the camera will
self-test again and back to the HOME position. (Note: If power-on mode is turned on and Preset 0 is
set, and there is no operation within 12s, it will automatically point to the specified preset position.
2. Camera Address Selection
Select the camera address which wants to be controlled
3. Number Key
Set or run 0-9 presets
4,*,# Key
Key combination use
5. Focus Control Key
Auto Focus: Enter into autofocus mode.
Manual Focus: The camera focus mode is manual
Switch the camera focus mode to manual focus by pressing [focus +] or [focus -] to adjust.
6. Zoom Control Key
Zoom＋: Lens near
Zoom－: Lens far
7. Set or Clear Preset key:
Set Preset: Set preset key + 0-9 number key:
Clear Preset key: Clear preset key + 0-9 number key
8. Pan/Tilt Control Key
Press Key: Up
Press Key: Down
Press Key: Left
Press Key: Right
“HOME” Key: Return to the middle position or enter into the next level menu
9. BLC Control Key
Back Light ON / OFF: Turn on or off the backlight
10. Menu Setting
Open or close the OSD menu
Enter/exit the OSD menu or return to the previous menu.
11. Camera IR Remote Control Address Setting
【*】+【＃】+【F1】: Camera Address No.1
【*】+【＃】+【F2】: Camera Address No. 2
【*】+【＃】+【F3】: Camera Address No. 3
【*】+【＃】+【F4】: Camera Address No. 4
12. Key Combination Functions
1)
【
#
】
+
【
#
】
+
【
#
】
: Clear all presets
2)
【
*
】
+
【
#
】
+
【
6
】
: Restore factory defaults
3)
【
*
】
+
【
#
】
+
【
9
】
: Flip switch
4)
【
*
】
+
【
#
】
+Auto: Enter into the aging mode
5)
【
*
】
+
【
#
】
+
【
3
】
: Menu set to Chinese
6)
【
*
】
+
【
#
】
+
【
4
】
: Menu set to English
7)
【
*
】
+
【
#
】
+Manual: Restore the default user name, password,
and IP address
8)
【
#
】
+
【
#
】
+
【
0
】
: Switch the video format to 1080P60
9)
【
#
】
+
【
#
】
+
【
1
】
: Switch the video format to 1080P50
10)
【
#
】
+
【
#
】
+
【
2
】
: Switch the video format to 1080I60
11)
【
#
】
+
【
#
】
+
【
3
】
: Switch the video format to 1080I50
12)
【
#
】
+
【
#
】
+
【
4
】
: Switch the video format to 720P60
13)
【
#
】
+
【
#
】
+
【
5
】
: Switch the video format to 720P50
14)
【
#
】
+
【
#
】
+
【
6
】
: Switch the video format to 1080P30
15)
【
#
】
+
【
#
】
+
【
7
】
: Switch the video format to 1080P25
16)
【
#
】
+
【
#
】
+
【
8
】
: Switch the video format to 720P30
17)
【
#
】
+
【
#
】
+
【
9
】
: Switch the video format to 720P25

ALFATRON ALF-5/10/12/20X-CAM
17
3.2.2 Applications
Finishing initialization, it can receive and execute the IR commands. Press the remote controller button, the indicator light is
flashing; release the button, the indicator light stops flashing. Users can control the pan/tilt/zoom, setting and running preset
positions via the IR remote controller.
Key Instruction:
1. In this instruction, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for
more than one second is required.
2. When a key-combination is required, do it in sequence. For example,“ 【*】+【#】+【F1】” means press“【*】” first and then
press“【#】” and last press“【F1】”.
1) Camera Selection
Select the camera address to control.
2) Pan/Tilt Control
Up: press Down press
Left: press Right: press
Back to middle position: press“【HOME】”
Press and hold the up/down/left/right key, the pan/tilt will keep
running, from slow to fast, until it runs to the endpoint; the
pan/tilt running stops as soon as the key is released.
3) Zoom Control
ZOOM IN: press “ZOOM “ key
ZOOM OUT: press “ZOOM ” key
Press and hold the key, the camera will keep zooming in or
zooming out and stops as soon as the key is released.
4) Focus Control
Focus (near): Press “【focus+】” key (Valid only in manual focus
mode)
Focus (far): Press “【focus-】” key (Valid only in manual focus
mode)
Auto Focus: Support
Manual Focus: Support
Press and hold the key, the action of focus will keep continue and
stops as soon as the key is released.
5) BLC Setting

ALFATRON ALF-5/10/12/20X-CAM
18
BLC ON / OFF: support
6) Presets Setting, Running, Clearing
1. Preset setting: to set a preset position, the users should press
the “【SET PRESET】” key first and then press the number key 0-9
to set a relative preset,
Note: 10 preset positions in total are available by remote
controller.
2. Preset Running: Press a number key 0-9 directly to run a
relative preset.
Note Action in vain if a relative preset position does not exist.
3. Preset clearing: to clear a preset position, the user can press
the “【CLEAR PRESET】” key first and then press the number key
0-9 to clear the relative preset;
Note: press the“
【
#
】
” key three times continually to cancel all
the presets.
7) Camera Remote Controller Address Setting
【*】+【＃】+【F1】: Camera Address No.1
【*】+【＃】+【F2】: Camera Address No. 2
【*】+【＃】+【F3】: Camera Address No. 3
【*】+【＃】+【F4】: Camera Address No. 4
3.3 MENU SETTING
3.3.1 Main Menu
In normal working mode, press 【MENU】key to display the menu, using a scroll arrow to point at or highlight the selected items.
LANGUAGE: Language setting, Chinese / English
MENU
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
Language English
(Setup)
(Camera)
(P/T/Z)
(Video Format)
(Version)
(Restore Default)
[
↑↓
]Select [
←
→
]Change
Value

ALFATRON ALF-5/10/12/20X-CAM
19
SETUP:System setting
CAMERA OPTION:Camera setting
PTZ OPTION:Pan tilt setting
VERSION:camera version setting
Restore Default:Reset setting
[↑↓] Select:for selecting the menu
[← →] Change Value:for modifying parameters
[MENU] Back:Press [MENU] to return
[Home] OK:Press [Home] to confirm
3.3.2 System Setting
Move the pointer to the (Setup) in the Main Menu, click the【HOME】key and enter into the (System Setting) as shown below,
PROTOCOL: VISCA/Pelco-P/Pelco-D/Auto
Visca ADDR: VISCA=1~7 Pelco-P=1~255 Pelco-D = 1~255
Baud rate: 2400/4800/9600/115200
Visca Address Fix: On/Off
3.3.3 Camera Setting
Move the pointer to the (CAMERA) in the Main Menu, click the【HOME】key and enter the (CAMERA) as follow,
EXPOSURE: Enter into Exposure setting
COLOR: Enter into color setting
Image: Enter into image setting
CAMERA
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
(Exposure)
(Color)
(Image)
(Focus)
(Noise Reduction)
[
↑↓
]Select [
←
→
]Change
Value
SETUP
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
Protocol
Auto
Visca Address
1
Visca Address Fix OFF
PELCO-P Address
1
PELCO-D Address 0
Baudrate
9600
[
↑↓
]Select [
←
→
]Change
Value

ALFATRON ALF-5/10/12/20X-CAM
20
Focus: Enter into focus setting
Noise Reduction: Enter into noise reduction
1) EXPOSURE SETTING
Move the pointer to the (EXPOSURE) in the Main Menu, click the【HOME】and enter the (EXPOSURE SET) as follow,
Mode : Auto, Manual, Shutter priority, Iris priority and Brightness priority.
EV : On/Off (only available in auto mode)
Compensation Level: -7~7 (only available in auto mode when EV is ON)
BLC: ON/OFF for options (only available in auto mode)
Anti-Flicker:OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness priority modes)
Gain Limit: 0~15(only available in Auto/ Iris priority /Brightness priority mode)
WDR: Off,1~8
Shutter
Priority:1/25,1/30,1/50,1/60,1/90,1/100,1/120,1/180,1/250,1/350,1/500,1/1000,1/2000,1/3000,1/4000,1/6000,1/10000(only
available in Manual and Shutter priority mode)
IRIS Priority:OFF,F11.0,F9.6,F8.0,F6.8,F5.6,F4.8,F4.0,F3.4,F2.8,F2.4,F2.0,F1.8(only available in Manual and Iris priority mode)
Brightness: 0~23 (only available in Brightness priority mode)
2) COLOR SETTING
Move the pointer to the (COLOR) in the Main Menu, click the【HOME】and enter the (COLOR SET) as follow,
COLOR
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
WB Mode
Auto
Saturation 80%
Hue 7
AWB Sensitivity
High
Color style Default
Color temp Low
[
↑↓
]Select [
←
→
]Change
Value
EXPOSURE
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
Mode
Auto
EV
OFF
BLC
OFF
Anti-Flicker 50Hz
Gain Limit 3
WDR 5
[
↑↓
]Select [
←
→
]Change
Value
