AlfrescoKing BBQ-AK600EB User manual

USERMANUALAND
INSTALLATIONINSTRUCTIONS
Model: BBQ-AK600EB
‐FOROUTDOORUSEONLY.
‐PLEASEREADTHEINSTUCTIONSCAREFULLYANDBESUREYOURBARBECUEISCORRECTLY
INSTALLEDANDASSEMBLED.FAILURETOFOLLOWTHESEINSTRUCTIONSMAYRESULT
INSERIOUSINJURYORDAMAGE!
‐PLEASERETAINTHEMANUALFORFUTUREREFERENCE.
‐CONVERSIONTONATURALGASSHOULDONLYBECARRIEDOUTBYAUTHORIZEDPERSONS.
‐PLEASEENSURETHATYOUREMOVEALLPACKAGINGANDTRANSITPACKINGPRIORTOUSE.
‐DONOTSPRAYAERSOLSINTHEVICINITYOFTHEAPPLIANCEWHILEITISINOPERATION

USE  OUTDOORS  ONLY 
Thisapplianceshallonlybeusedinanabovegroundopen‐airsituationwithnaturalventilation,withoutstagnantareas,
wheregasleakageandproductsofcombustionarerapidlydispersedbywindandnaturalconvection.
Anyoutdoorenclosureinwhichtheapplianceisusedshallcomplywithoneofthefollowing:
l  Anenclosurewithwallsonallsides,butatleastonepermanentopeningatgroundlevelandnooverheadcover.See
Figure1.
l  Withinapartialenclosurethatincludesanoverheadcoverandnomorethantwowalls.SeeFigure2&3.
l  Withinapartialenclosurethatincludesanoverheadcoverandmorethantwowalls,thefollowingshallapply:
‐Atleast25%ofthetotalwallareaiscompletelyopen;and
‐Atleast30%oftheremainingwallareaisopenandunrestricted.SeeFigure4&5.
l  Inthecaseofbalconies,atleast20%ofthetotaloftheside,backandfrontwallareasshallbeandremainopenand
unrestricted.
Thefollowingdiagramsprovideadiagrammaticrepresentationofoutdoorareas.Rectangularareashavebeenusedinthese
figures‐thesameprinciplesapplytoanyothershapedarea
Figure1‐Enclosurewithwallsonallsidesbut Figure2‐PartialEnclosurewithoverheadcoverand
nooverheadcover nomorethantwowalls
Figure3‐PartialEnclosurewithoverheadcoverand Figure4‐Opensideatleast25%oftotalwallarea.
nomorethantwowalls 30%ormoreintotaloftheremainingwallareais
openandunrestricted.
Figure5‐Opensideatleast25%oftotalwallarea.30percentor
moreintotaloftheremainingwallareais
openandunrestricted

GASCYLINDERINFORMATION
•Thisapplianceisdesignedtobeusedwithagascylindernotexceeding(Australia9KG)
•Thegascylindersupplyvalvemustbeturnedoffwhentheapplianceisnotinuse.
•Gascylindersmustbestoredoutdoors,outofreachofchildrenandmustnotbestoredinabuilding,garageor
anyotherenclosedarea.
•Thegascylinderusedmustincorporateasafetycollartoprotectthevalveassembly.
*Neverstoreasparecylinderunderthebarbecueshelvesorinsidethetrolleyhousing.Any
LPGcylindernotattachedtotheBBQforuseshouldbestoredoutdoorsandwellawayfromthisappliance.
IMPORTANT:
•Whendisconnectingandremovingthegascylinderforthepurposeofrefilling,alwaysobservethefollowing
procedure.
•Ensurethatallgascontrolvalvesontheapplianceandthegascylinderareturnedoffbeforedisconnectingthe
regulatorfromthecylinder.
•Donotsmokeoruseanakedflameneartheapplianceorgascylinderwhiledisconnectingthegaslinebetweenthe
applianceandgascylinder.
•Removethegascylinderfromtheenclosurebeforedisconnectingtheregulatorfromtheappliance.
•Tightenallconnectionsbeforeplacingthegascylinderbackinitsenclosure.
•Thegasleaktestingprocedureshouldbeconductedeverytimethegascylinderisrefilledandreconnectedtothe
appliancebeforeusingtheappliance.
RegulatorConnection
1. Checkthatallcontrolknobsareinthe‘Off’position.
2. Makesurethecylindervalveisoff.
3. Removetheprotectivecapfromthecylinderifpresent.
4. Leaktesttheconnectionwithasoapywatersolution.
GasLeakTestProcedure
Neveruseanakedflametocheckforgasleaks.
Alwaysusethefollowingproceduretocheckforgasleaks.
1. Inasmallcontainer,mixupasolutionofwaterand
detergentorsoap.Mixthesolutionwell.
2. Makesurethatthegassupplyvalveonthegascylinder
isturnedon.
3. Makesurethatthegascontrolvalvesontheappliance
areallturnedoff.
4. Usingabrushorspraybottleapplythesolutiontothe
gaslineandeachjoininthegasline.
5. Bubblingofthesolutionwillindicatethatthereisaleak
present.
6. Re‐tightenorre‐sealanyjointsthatareleaking.
7. Ifaleakpersiststhencontactyourdistributororthe
manufacturerforassistance.

LIGHTINGYOURBARBECUE
Thisbarbecueisdesignedforuseoutdoors,awayfromanyflammablematerials.
Itisimportantthattherearenooverheadobstructionsandthatthereisaminimumdistanceof1000mmfromthe
sideorrearoftheappliance.
Itisimportantthattheventilationopeningsofthecylindercompartmentarenotobstructed.
Thebarbecuemustbeusedonalevel,stable,non‐flammablesurface.
Theapplianceshouldbeprotectedfromdirectdraughtsandshallbepositionedorprotectedagainstdirect
penetrationbyanytricklingwater(e.g.rain).
Partssealedbythemanufacturerorhisagentmustnotbealteredbytheuser.
Nomodificationsshouldbemadetoanypartofthisbarbecueandrepairsandmaintenanceshouldonlybecarriedout
byaregisteredserviceengineer
DONOTletchildrenoperateorplayneargrill.
DONOTusecharcoalorceramicbriquettesinagasgrill
DONOTlightorusethesideburnerwiththelidintheclosedposition.
DONOTattempttolightburnerwithlidclosed.Abuildupofnon‐ignitedgasinsideaclosedgrillishazardous
Thesideburnerisdesignedforpot/panwithdiameter60‐260mm.Sideburnerlidcannotbe
usedasworktable,donotputanythingonthesideburnerlidwhileitisnotworking
‐LightingtheAppliance
1. OpenthelidandmakesurealltheknobsareintheOFFposition.
2. PushdowntheknobandturntheknobanticlockwisetoHIGHposition,thenkeeppressingtheigniterfor2‐3
seconds(asoundcanbeheard),thustheburnerwillignite.Iftheburnerdoesnotlight,turnofftheknob
andwaitfor5minutesthenrepeatthisprocess.
3. AdjusttheheatbyturningtheknobtotheHigh/Lowposition.
4. Tolightotherburners,repeatthesameprocessfortheadjacentburnerandcontinueinsequenceuntilall
theburnersarelit.
5. ToturnthebarbecueOFF,turnthecylindervalveorregulatorswitchtothe“OFF”positionandthenturnallofthe
controlknobsonthebarbecueclockwisetothe“OFF”position.
ForMatch‐Lighting:
1. Followaboveinstructionstep1‐3.
2. Placethematchintomatchholderchainandfirethematch,thenputthematchintotheburners
3. PushdownandturntheknobanticlockwisetoHIGHposition,thentheburnercanbelit.Iftheburnerdoes
notlight,turnoffthegastapandwaitfor5minutesthenrepeatthisstep2‐3.
Beforecookingforthefirsttime,turnonallthemainburnersandkeepburningfor10minuteswiththelidclosed
andknobsatLOWposition.Thiswill“heatclean”theinternalpartsanddissipateodourfromanypaintedfinish.

Thecolorofthecookingareamaychangealittle.Thisisnormalforstainlesssteelwhensubjecttohighheat.
Whileignitingmainburnersandinfraredrearburner,pleasemakesurethelidformainburnersisinopen
position.
Whileignitingsideburner,pleasemakesurethelidforsideburnerisinopenposition.
Whilecookingwiththehoodclosedandwithalltheburnerson,pleasemakesureallburnersaresettoLOW
position.
CLEANINGANDCARE
AllcleaningandmaintenanceshouldbecarriedoutwhenthebarbecueiscoolandwiththefuelsupplyturnedOFFat
thegascylinderaftereachuse.
DONOTmistakebrownorblackaccumulationofgreaseandsmokeforpaint.Interiorsofgasgrillsarenotpaintedat
thefactory(andshouldNEVERbepainted).Applyastrongsolutionofdetergentandwateroruseagrill
cleanerwithbrushoninsidesofgrilllidandbottom.Rinseandallowtocompletelyairdry.
DONOTapplyacausticgrill/ovencleanertopaintedsurfaces.
DONOTuseabrasiveorflammablecleanersasitwilldamagepartsoftheproductandmaystartafire.
Stainlesssteelsurfaces:Stainlesssteelwillcorrodeifnotmaintained.Tomaintainyourgrill’shighqualityappearance,
washwithmilddetergentandwarmsoapywaterandwipedrywithasoftnonabrasiveclothaftereachuse.For
furtherinformation,pleaserefertoourwebsite.
Cookinggrid:Useamildsoapywatersolution.Non‐abrasivescouringpowdercanbeusedonstubbornstains
thenrinsewithwater.

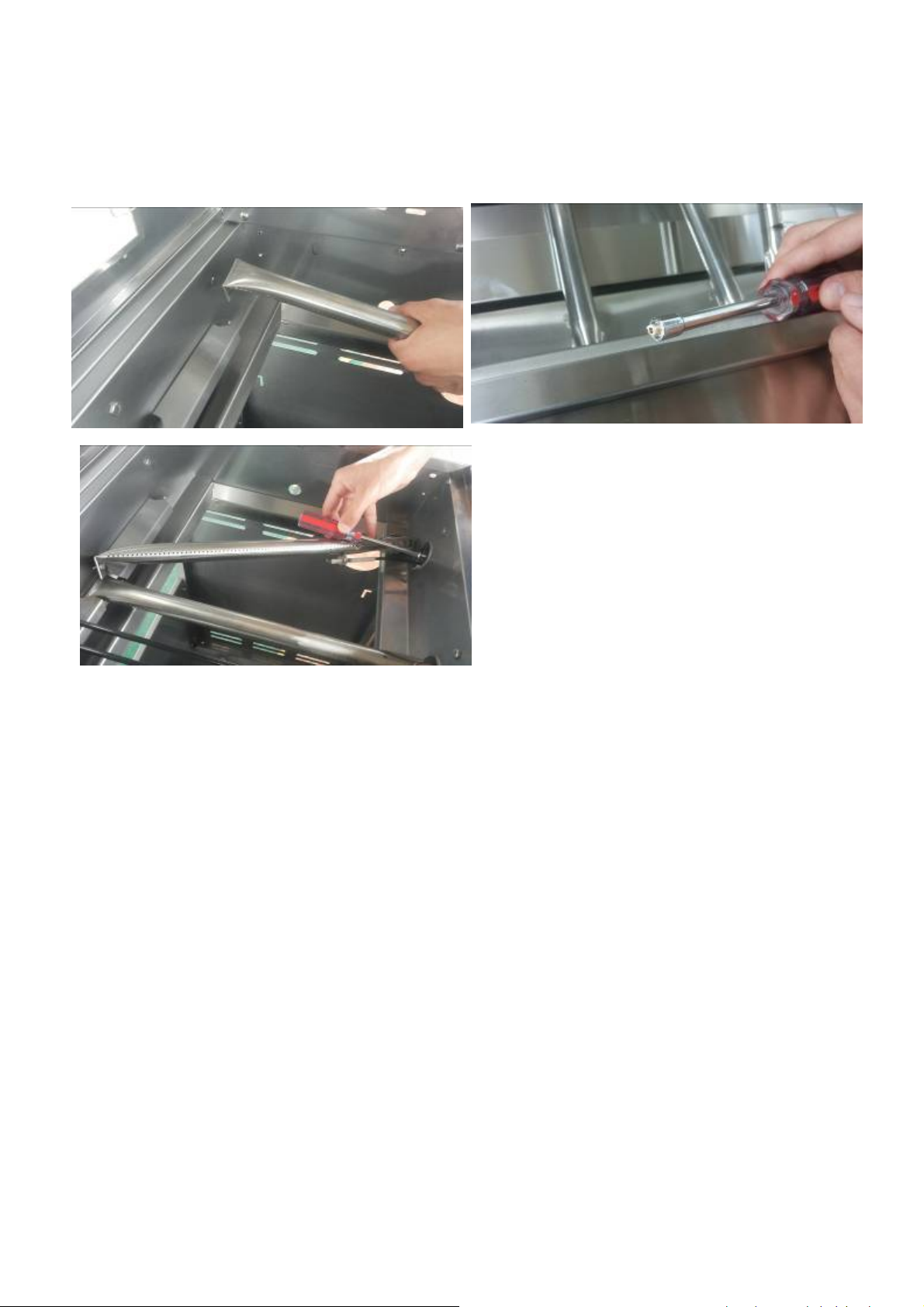

Cleaningtheburnerassembly
Followtheseinstructionstocleanpartsofburner
assemblyorifyouhavetroubleignitinggrill.
1. TurngasoffatcontrolknobsandLPTank.
2. Removecookinggrates,greasetrayandgreasecup.
3. Removescrewatendofburnerusingascrewdriver.
4. Carefullylifteachburnerupandawayfromvalveopenings.
5. Wirebrushentireoutersurfaceofburnertoremovefood
residueanddirt.
6. Cleananyblockedportswithastiffwiresuchasanopenpaperclip.
7. Checkburnerfordamage,duetonormalwearandcorrosionsome
holesmaybecomeenlarged.Ifanylargecracksorholesarefound
replaceburner.
8. Carefullyrefitburners.
9. Replacescrewattheendofburner.
10. Replacegreasetrayandcookinggrates.

Inspectburnerforanydamage(cracksorholes).Ifdamageisfound,replacewithanewburner.Reinstallthe
burner,checktoensurethatthegasvalveorificesarecorrectlypositionedandsecuredinsidetheburnerinlet.
Wesuggestthefollowingwaystocleantheburnertubes.
(A) Bendastiffwireintoasmallhook.Runthehookthrough
eachburnertubeandburner,severaltimes.
(B) Useanarrowbottlebrushwithaflexiblehandle(DONOTuseabrasswirebrush),runthebrushthrougheach
burnertubeandburner,severaltimes.
(C) Weareyeprotection:useanairhosetoforceairintotheburnertubeandouttheairports.Checkeachportto
makesureaircomesouteachhole.
NATURALHAZARDSPIDERS
FACT:sometimesspidersandotherinsectsclimbinto
thegrilltubesattachedtotheburners.Thespidersspinwebs,
buildnestsandlayeggs.Thewebsornestscanbeverysmall,
buttheyareverystrongandcanblocktheflowofgas.
Cleanburnerspriortouseafterstoring,atthebeginningofgrilling
seasonorafteraperiodofonemonthnotbeingused.
Spiderguardsareontheairintakesinanefforttoreducethisproblem,
butitwillnoteliminateit!Anobstructioncanresultina“flashback”
(afireintheburnertubes).Thegrillmaystilllight,buttheobstruction
doesnotallowfullgasflowtotheburners.
AbnormalOperation:
Anyofthefollowingareconsideredtobeabnormaloperationandmayrequireservice
zYellowtippingoftheyellowflame
zShootingupofgrillplates
zBurnersnotignitingproperly
zBurnersfailingtoremainalight
zBurnerextinguishedbytrolleydoors
zGasvalves,whicharedifficulttoturn

TechnicalInformation
AGAApprovalNo:AGA8138G
Note:
‐ForUseoutdoorsonly
‐Conversiontonaturalgasonlytobedonebyauthorizedperson
‐Themaximumcylindersizeforusewiththisapplianceis9kgs
‐ThethreadtypeofthisapplianceisG1/4B‐19.
GasTypeUniversalLPGas&NaturalGas
UniversalLPGasNaturalGas
TestPointPressure2.75KPA1.0KPA
MainBurner(injectorsize)0.98mm1.50mm
ModelNoBBQ‐AK600EB
UniversalLPGasNaturalGas
TotalNominalGas
Consumption(MJ/h)
7866
MainBurnerNominal
GasConsumption(MJ/h)
13x611x6

ASSEMBLYINSTRUCTIONS
Toolsrequired:
1. PhilipsScrewdriver
2. Gloves(ifnecessary)

1. FootAssembly

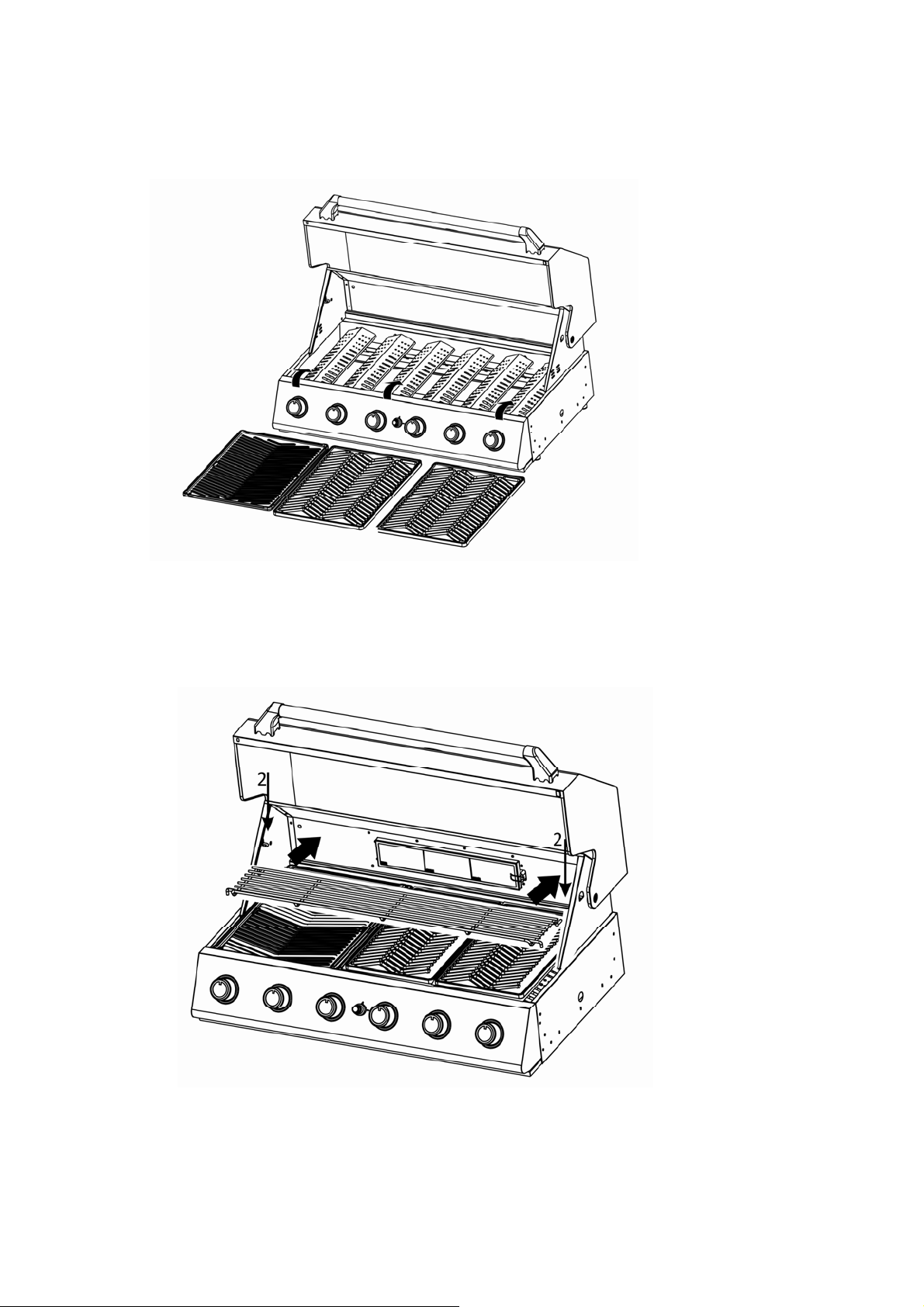

2．Flametamerassembly

3. Cookinggrid/plateassembly
4. Warmingrackassembly

5. ForBattery(Batteryisnotincluded)

BUILTININSTALLATION
1. Pleasefollowtheseinstructionsforinstallation.
2. TheminimumclearanceofthesidesoftheBBQtowallsneedstobe50mm.
3. DONOTblockanyventilationslotsoftheBBQ.
4. Theenclosurematerialforthecutoutshouldnotbecombustible.
5. DoNotplacegascylinderunderneaththebarbecue,keeprequiredclearance.
6. Ensurefloorclearanceandthecavityunderneaththebarbecuearekept.
PRODUCTDIMENSION
WARNING:Minimumclearancetocombustiblematerialunderfattrayis150mm

LPGGasConversion
CONVERSIONONLYTOBEDONEBYAUTHORIZEDPERSON
GasPiping
1. Apipewithminimumdiameterof15mmisrequiredforinletpiping.Aleveroperatedshut‐offvalveshouldbe
installedwithin1meteroftheapplianceforservingtheappliance.
2. WhereitisnotpracticaltoinstallasolidpipeAGAcertifiedtoAS/NZS1869classA,stainlesssteelbrainedhosemay
beinstalled.ThishoseassemblymustcomplywithAS5601Gasinstallations,pipesizingtablesandshallnotexceed3
metersinlength.Theinternaldiameterofthehosemustnotbelessthan10mm.
3. Allgaspipeconnectionsmustbesealedwithagaspipecompoundresistanttonaturalgas.
NOTETOINSTALLERS
1. TheU‐LPGinjectoris0.98mm,
2. TheNGinjectorformainburnersis1.50mm,
3. TheBBQissetforNGbythemanufacturer.
4. Pleasereadthefollowinginstructionstoconvertfrom
NGtoLPG
*Instructionsforconvertingthemainburners
1. Unscrewandremovetherearpanelpictured.

2. Unscrewthemainburnersecuringscrewsandremovetheburnersittingittooneside.

3. Withtheburnerremoved,youwillseethebrassgasjetwhichisscrewedintotheendof
thevalve.PutthejetforLPGonthesocketdriverandscrewitinsidethegasjetforNG.
MakesuretheLPGjetisfixedbyglue.
12
3 4
4. Re‐assembletheburner.
Note:Pleasemakesurethegasvalveislocatedwellinsidethemainburnertubewhenre‐installingtheburners.
Warranty Information
Limited 5 Year Warranty: The stainless steel body housing, burners, cooking grates and plates are warranted to be free
from defects in material and workmanship when subjected to normal domestic use and service for five years from the
original purchaser. This warranty is limited to the replacement of defective parts, with the owner paying all other costs
including labor.
Limited 2 Year Warranty: The gas valves, ignitions and burner covers are warranted to be free from defects in material
and workmanship when subjected to normal domestic use and service for a period of two years from the date of purchase.
This warranty is limited to the replacement of defective parts, with the owner paying all other costs including labor.
Contact Information
Phone: [phone]
Email: [e-mail]
Web: www.alfrescoking.com.au
Address: 48-58 Cyber Loop, Dandenong South, Vic 3175
