ALi Confidential M5661 User manual

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
M5661 EV-Board User Manual
www.ali.com.tw ALi Confidential 1

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
Revision History
Version Date
1.12 Mar. 4, 2005
This document contains confidential proprietary information that is solely for authorized personnel. It is not to be disclosed to
any unauthorized person without prior written consent of ALi Corporation.
ALi Corporation
ALi Corporation makes no representations or warranties with respect to the accuracy or completeness of the contents of this
document. No license, whether express, implied, arising by estoppel or otherwise, to any intellectual property right is granted
by this document.
ALi Corporation also reserves the right to make changes to these specifications and product description at any time without
notice. Contact your local sales office to obtain the latest specifications before placing your order.
Third-party brands and name mentioned in this publication are for identification purpose only and may be the property of their
respective owners.
Copyright © ALi Corporation, 2004. All rights reserved
History
Date Version Description Who
9/15/2004 0.9 First release David Chiu
12/15/2004 1.0 Update features David Chiu
2/24/2005 1.1 Update features Vicky Hsu
2/24/2005 1.11 Modify David Chiu
3/04/2005 1.12 Add appendix John JR Fang
www.ali.com.tw ALi Confidential 2

Contents
Contents ............................................................................................................................................. 3
1 Features...................................................................................................................................... 4
2 Overview.................................................................................................................................... 7
3 USB Flash Disk.......................................................................................................................... 8
4 Digital Audio Device................................................................................................................. 9
4.1 Power On/Off ……………………………………………………………………………...9
4.2 Change mode ....................................................................................................................... 9
5 Music Mode............................................................................................................................. 10
5.1 Playback............................................................................................................................. 11
5.2 Pause.................................................................................................................................. 11
5.3 Stop.................................................................................................................................... 11
5.4 Select folder/file................................................................................................................. 11
5.5 Select file ........................................................................................................................... 11
5.6 Fast backward/forward....................................................................................................... 11
5.7 Playback Sub Menu ........................................................................................................... 11
5.8 A-B Repeat......................................................................................................................... 12
5.9 Adjust Volume.................................................................................................................... 12

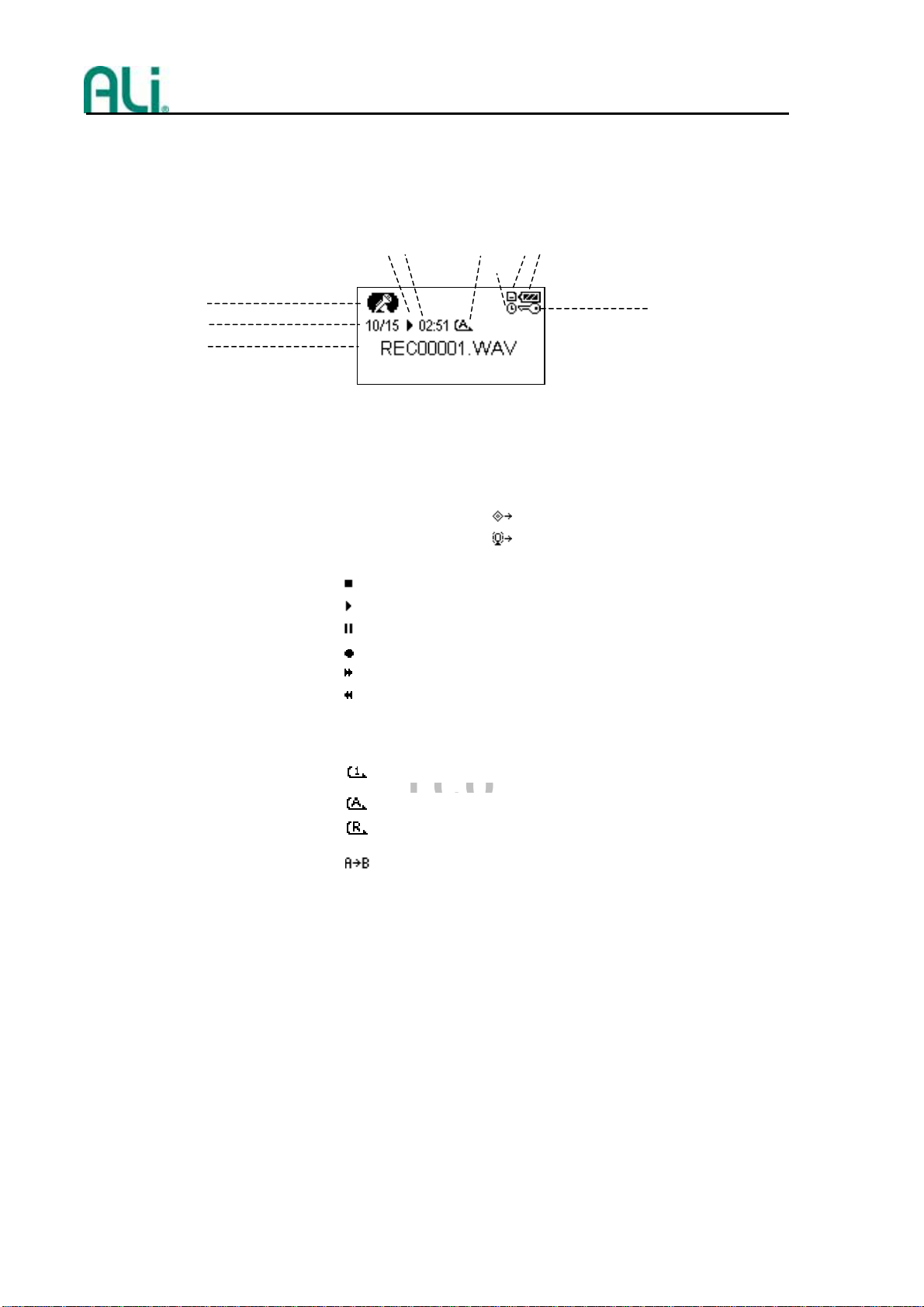

6 Voice Recording Mode............................................................................................................ 13
6.1 Record to a File.................................................................................................................. 14
6.2 Recording Sub-Menu......................................................................................................... 14
6.3 Play the recorded file......................................................................................................... 14
7 FM Mode ................................................................................................................................. 16
7.1 Adjust Frequency............................................................................................................... 16
7.2 Automatic Search............................................................................................................... 16
7.3 Edit Preset Frequency........................................................................................................ 16
7.4 Select Preset Frequency..................................................................................................... 16
7.5 Adjust Volume.................................................................................................................... 16
8 Setup Mode.............................................................................................................................. 17
8.1 Usb Mode........................................................................................................................... 18
8.2 Time ................................................................................................................................... 18
8.3 Power ................................................................................................................................. 18
8.4 Language............................................................................................................................ 19
8.5 Display............................................................................................................................... 19
8.6 Recording........................................................................................................................... 19
8.7 Sys tools............................................................................................................................. 20
8.8 Custom EQ......................................................................................................................... 20
8.9 Storage ............................................................................................................................... 20
9 Firmware Upgrade................................................................................................................... 21
Appendix I:................................................................................................................................ 23
Appendix II:............................................................................................................................. 24

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCL UREOS
Released Version for
Customer_X
1 Features
 Support internal memory (NAND flash) and external memory card
 NAND flash type:
Brand Part Number Capacity
K9F1208U0A 064 MB
K9F1G08U0M 128 MB
K9K1G08U0M 128 MB
Samsung K9F2G08U0M 256 MB
K9K2G08U0M 256 MB
K9K4G08U0M 512 MB
K9G4G08U0M 512 MB
TC58512FT 064 MB
TH58100FT 128 MB
Toshiba TC58NVG0S3AFT00 128 MB
TH58NVG1S3AFT00 256 MB
TC58NVG1D4BTG00 256 MB
TC58NVG2D4BTG00 512 MB
SDTNGCHE0-512 064 MB
SanDisk SDTNGEHE0-1024 128 MB
SDTNGEHE0-2048 256 MB
HY27US08121M 064 MB
Hynix HY27UA081G1M 128 MB
HY27UF081G2M 128 MB
ST NAND512W3A 064 MB
NAND01GW3A 128 MB
 External memory card type: SD, MMC,
 Player:
 Playback source: internal memory or external memory card
 Support MP3 decoding:
 Bit rate: 8K bps ~ 320K bps
 Sampling rate: 8K ~48K
 Channel: Stereo
 Support WMA decoding:
 Bit rate: 5K bps ~ 320K bps
 Sampling rate: 8K ~48K
 Channel: Stereo
www.ali.com.tw ALi Confidential 4

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
 Support IMA-ADPCM decoding:
 Bit rate: 32K bps
 Sampling rate: 8K
 Channel: Mono
 Support Lyrics display from
 LRC text file format
 Support artist/ title/ album display from
 MP3 tag: V1.0, V2.2, V2.3, V2.4
 WMA content description object
 Support A-B repeat.
 Support adjustable playback rate.
 Support fast forward / backward playback.
 Support long file-name file/folder listing and browsing.
 Selectable repeat mode: no repeat, single repeat, repeat all, and random all.
 Selectable equalizer mode: Normal / Pop / Rock / Classic / Jazz / Bass / User EQ.
 Selectable virtual surround mode: enable or disable.
 Voice Recorder
 Record source: Line-In, or MIC, or FM
 Record target: internal memory or external memory card
 Selectable record mode: high quality, normal quality, or long-time mode
 Support four type of MP3 encoding:
(1) 128K bps, 44.1K, stereo
(2) 64K bps, 22.05K, stereo
(3) 32K bps, 16K, mono
(4) 16K bps, 12K, mono
 Support one IMA-ADPCM encoding mode:
(1) 32K bps, 8K, mono
 The summary of file format with different source and quality mode
Line In/ FM MIC
High MP3, 128K bps, 44.1K, stereo MP3, 32K bps, 16K, mono
Normal MP3, 64K bps, 22.05K, stereo MP3, 16K bps, 12K, mono
Long time MP3, 32K bps, 16K, mono ADPCM, 32K bps, 8K, mono
 Support VAD in MP3 encoding mode.
 FM Tuner
 Frequency: 87.5 ~108 MHz
 Tuner can adjust step by step or automatically search
 User can set 10 preset bands
 Clock
 Time
 Alarm
 LCD
 Selectable contrast
 Selectable backlight time
www.ali.com.tw ALi Confidential 5

____________________________________________________________________
M56
61 EV
-
Board User Manual
 Automatic power off
 Selectable power off time
 Enable or disable power off function in playback is selectable
 Multi-language
 Support Unicode
 User interface can select Traditional Chinese, Simplified Chinese, or English.
 Return to the environment last time automatically when power on
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
www.ali.com.tw ALi Confidential 6

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
2 Overview
M5661 can operate in two types: USB flash disk or digital audio device.
If plugged to PC, it will become an USB flash disk. When it is stand-alone, it will become a
portable digital audio device.
1 2 3
4 5 6
7
LCD
USB Port
Line In Phone Out
MIC
Function
Play
Volume Up
Volume Down
Previous
Record
Next
8Mode
www.ali.com.tw ALi Confidential 7

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
3 USB Flash Disk
Plug the device to PC’s USB port, the LCD panel will display the following icon:
And the removable disk(s) icons will show up on “My Computer”:
( If External Flash Disk enabled ( MMC/SD), there will be two disk icons )
www.ali.com.tw ALi Confidential 8

____________________________________________________________________
M56
61 EV
-
Board User Manual
4 Digital Audio Device
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
4.1 Power On/Off
Press the play button (key2) can turn on the device, and press and hold this button will turn off
the device.
When power on, the LCD panel will display the following animation:
↓
↓
↓
↓
Then it will go to the mode directly (Music, Voice, FM, or Setup) when user powered off the
device last time.
Note:
1. The device can memorize the last mode. If it was turned off from FM mode, it will return to
FM mode when turning on.
2. The default mode is Music mode.
4.2 Change mode
Released Version for
Press the mode button (key 8) can change the mode, and the change sequence is as followed:
Customer_X
www.ali.com.tw ALi Confidential 9

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X

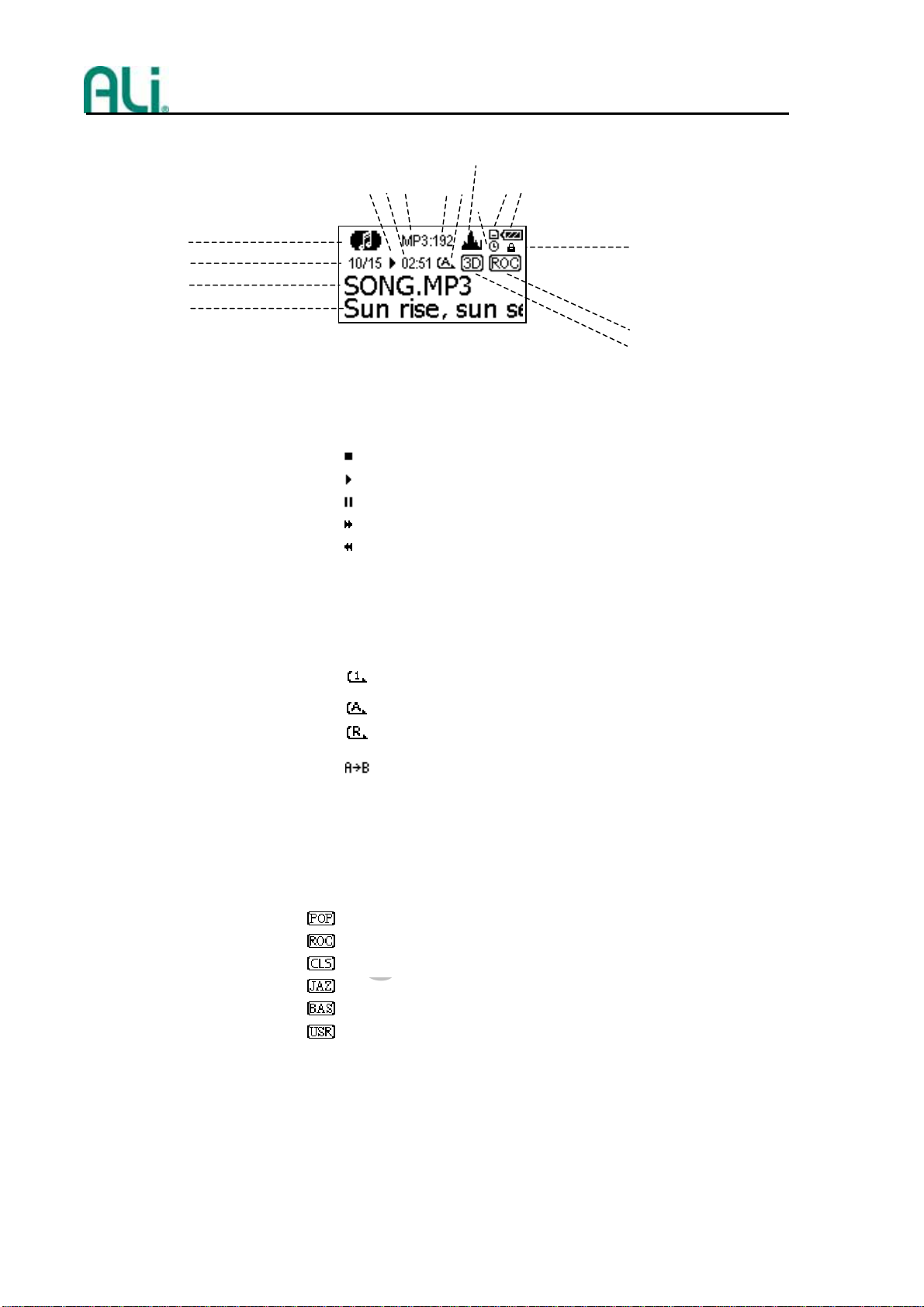

5 Music Mode
(1) Music mode icon
(2) Current file number/Number of total files
(3) Title/Artist/Album or filename
(4) Lyrics
(5) Status: Stop
Playback
Pause
Fast Forward
Fast Backward
(6) Time
(7) File format
(8) Bit rate
(9) Repeat: No repeat
Single repeat
All Repeat
Random repeat
(13)
(14)
(15)
(5)(6)(7) (8)(9) (11)(12)
(10)
(16)
(1)
(2)
(3)
(4)
A-B repeat
(10) Alarm
(11) External memory card
(12) Battery
(13) Key hold
(14) Equalizer: Normal
Pop
Rock
Classic
Jazz
Bass
User EQ
(15) Virtual surround
(16) Volume indicator
www.ali.com.tw ALi Confidential 10

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
5.1 Playback
When the device status is stop or pause, press the play button (key 2) to playback.
5.2 Pause
When the device status is playback, press the play button (key 2) will pause it.
5.3 Stop
When the device status is playback or pause, long press the function button (key 5) to stop it.
5.4 Select folder/file
Long press the function button (key 5) will enter folder/file browsing. User can browse all files
in the current folder. Using the previous button (key 4) and the next button (key 6) to move the
cursor up/down to the target object, then press the play button (key 2) to select the file. Then,
the device will go to playback mode and play audio from the selected file.(i.e. play from the
folder which has the selected file.). Press the function button (key 5) can abort browsing
folder/file, and go back to the playback mode.
5.5 Select file
Press the previous button (key 4) to select previous file, and press the next button (key 6) to
select next file. User can select previous or next file in any status.
5.6 Fast backward/forward
When the device status is playback, long press the previous button (key 4) or the next button
(key 6) will fast play backward/forward the current file.
5.7 Playback Sub Menu
When the device status is playback, press the function key (key 5) will go to playback
sub-menu. Then, press previous button (key 4) or next button (key 6) to select an item, and
press play button (key5) to select it. The items of sub-menu include: repeat, equalizer, 3D
surround and play rate.
(1) Change Repeat Mode
Go to the playback sub-menu and select Repeat mode, there are four repeat modes on the list:
No Repeat: Just play the current file. Stop playback when done.
All: Repeatedly play all files, (starting from current file)
Single: Repeatedly play current file.
Random all: Repeatedly play a random file (randomly selected from all).
(2) Change Equalizer Mode
Go to the playback sub-menu and select Equalizer mode, there are seven Equalizer modes on
the list: Normal, Pop, Rock, Classic, Jazz, Bass, and User define.
(3) Virtual Surround
Go to the playback sub-menu and select Virtual Surround mode, user can enable or disable
the Virtual Surround function.
www.ali.com.tw ALi Confidential 11

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
(4) Change Play Rate
Go to the playback sub-menu and select Play Rate item, user can adjust the play rate. The
range of play rate is 0.67x ~ 1.33x.
The topology of playback sub-menu function
Repeat No Repeat
Single
All
RandomAll
Equalizer Normal
Pop
Rock
Classic
Jazz
Base
CustomEQ
3D Off
On
Play Rate 1.00x
1.14x
1.33x
0.67x
0.80x
MUSIC
5.8 A-B Repeat
During playback, press the record button (key 7) to set the start point of the repeat section, and
press this button again can set the end point of the repeat section. The device will play the
section repeatedly. After that, press the same button again will cancel the A-B repeat mode.
5.9 Adjust Volume
In any state, press the volume down button (key 1) to decrease the volume, or press the volume
up button (key 3) to increase volume.
www.ali.com.tw ALi Confidential 12

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
6 Voice Recording Mode
In Voice Recording mode, user can record sound from Line In or MIC to digital files, and play
these files.
(1) Voice mode icon
(2) Current file number/Number of total files
or source indicator during recording: Line In
Mic
(3) Filename
(4) Status: Stop
Playback
Pause
Record (blinking)
Fast Forward
Fast Backward
(5) Time
(6) Repeat: No repeat
Single repeat
All Repeat
Random repeat
A-B repeat
(7) Alarm
(8) External memory card
(9) Battery
(10) Key hold
(10)
(4)(5) (6) (8)(9)
(7)
(1)
(2)
(3)
www.ali.com.tw ALi Confidential 13

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
6.1 Record to a File
(1) General Recording Function
When the device status is stop or pause, press record button (key 7) will start recording.
During recording, press record button (key 7) can pause it, and press the same button (key
7) again will continue recording. Finally, press function button (key 5) to stop recording
and save the recording file.
(2) The Recording Folder and Filename format
The recording file will be saved in different folders, according to the recording quality and
voice source.
For example, the FM recording files will be saved in “FMIN” folder.
And, the recording filename contains the following information, voice source, serial
number, and file type.
It has the unified filename format: "MIC" / "LINE" + series number + ".MP3" / ".WAV”,
such as “MIC00001.WAV”, “MIC00002.MP3”, “LINE0003.WAV”, “FM000001.MP3” …
(3) Auto Inset Recording Serial Number Name.
The serial number of recording filename increases every time. When filename already exits,
it will search for next available serial number to make up its filename.
(4) VAD Recording Function
When the recording voice is quieter than background sound, the device automatically
pauses recording and the icon will disappear. Then, if the recording voice is louder than
background sound, it will automatically record and Blink the item again. The
background sound means that the first sound after pressing the record button (key 7).
6.2 Recording Sub-Menu
When the device status is stop, long press the function button (key 7) will go into the
recording sub-menu. Then press previous button (key 4) or next button (key 6) to move item,
and press play button (key2) to select it or press function button (key 5) to abort it. The items
of sub-menu are: Source, Quality and VAD.
(1) Change the Source
Go to the recording sub-menu and select source item. Under this item, user can select “Line
In” or “Mic” as the source.
(2) Change the Quality
Go to the recording sub-menu and select quality item. Under this item, user can select three
degree of quality: Long-time, Normal quality, and High quality.
(3) VAD Function Selection
Go to the recording sub-menu and select VAD item. Under this item, user can select
whether using VAD(voice active detection) function.
6.3 Play the recorded file
The operation of playback is as music mode.
www.ali.com.tw ALi Confidential 14

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
www.ali.com.tw ALi Confidential 15

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
7 FM Mode
(1) FM mode icon
(2) Current frequency
(3) Stereo indictor
(4) Battery
7.1 Adjust Frequency
Press previous button (key 4) to decrease the frequency, and press next button (key 5) to
increase the frequency. Each step is 0.1 MHz.
7.2 Automatic Search
Long press previous button (key 4) will decrease the frequency and search a radio station
automatically. Long press next button (key 6) will search band will increase the frequency to
search a radio station.
7.3 Edit Preset Frequency
Long press function key (key 5) and the LCD panel will display preset number and frequency.
(3) (4)
(1)
(2)
As the operation of “Adjust Frequency” or “Automatic Search”, to select a frequency, and
press the record button (key 7) to save the frequency to current preset number. After that, the
preset number will go to the next automatically, and let user to save next preset frequency. If
user want to edit specific preset number, press play button (key 2) to change the preset number.
Finally, press the function button (key5) to close the edit mode.
7.4 Select Preset Frequency
After edit preset frequency, user can change the frequency directly by select the preset number.
Just press the play button (key 2) to select the preset number.
7.5 Adjust Volume
In any state, press the volume down button (key 1) to decrease the volume, or press the
volume up button (key 3) to increase volume.
www.ali.com.tw ALi Confidential 16

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
8 Setup Mode
In setup mode, user can change the system settings. The common operation of this mode is to
press the play button (key 2) to select, press the function button (key 5) to cancel, and press
the previous button (key 4) or the next button (key 6) to move item.
The topology of System Setup menu
USBMode PenDrivemode
DRMDownlaodmode
Time Adjust
Alarm Adjust
On/Off On
Off
Power
Language English
Chinese(Trad)
Chinese(Simp)
Display Contrast
Backlight
Record Source LineIn
MIC
Quality Long Time
Normal Quality
HighQuality
VAD On
Off
Sys Tools Del File
Format Quick Yes
No
Complete Yes
No
Reset
SystemInfo
Storage Internal
SD/MMCCard
www.ali.com.tw ALi Confidential 17

____________________________________________________________________
M56
61 EV
-
Board User Manual
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
8.1 Usb Mode
(1) Pen Drive
Select “USB ModePen Drive”, the device will act as a USB pen drive when plugging
into USB port.
(2) DRM Download
Select “USB ModeDRM Download”, the device will act as a MTP device when
plugging into USB port. It is used to download the Janus-DRM-protected (Digital Right
Management) media files and license through WMP 10(Windows Media Player 10), and it
only support Windows XP SP1 above.
8.2 Time
(1) Adjust
Select “TimeAdjust”, and the LCD panel will display current time.
Press the previous button (key 4) or next button (key 6) to move cursor, and then press the
volume down (key 1) or the volume up (key 3) to change the value. The time is set while
adjusting. In the end, press the play button (key 2) or the function button (key 5) to return
to Setup menu.
(2) Alarm
Select “TimeAlarmAdjust”, and the LCD panel will display current alarm time.
Press the previous button (key 4) or next button (key 6) to move cursor, and then press the
volume down (key 1) or the volume up (key 3) to change the value. The alarm time is set
while adjusting. In the end, press the play button (key 2) or the function button (key 5) to
return to Setup menu.
Select “TimeAlarmOn/OffOn” to enable the alarm function; or
select ”TimeAlarmOn/OffOff” to disable the alarm function.
When the alarm function is turned on, the LCD panel will display alarm icon to indicate it.
8.3 Power
Select the power item, and the LCD panel will display as follows:
www.ali.com.tw ALi Confidential 18

____________________________________________________________________
M56
61 EV
-
Board User Manual
Auto-Off: Auto Power Off setting
Press the previous button (key 4) or next button (key 6) to move cursor, and then press the
volume down (key 1) or the volume up (key 3) to change the value. If user adjust the number
to “020”, it means the device will power off automatically if the user doesn’t press any key in
twenty minutes. When the Auto-Off timer expires, system will check the item ”Always on in
playback”. If this item is checked and the device is playing songs, system won’t power off the
device. This setting is useful for sleeping mode.
When user wants to enjoy music while sleeping, and automatically power off the device when
all songs are played out. He can set "Auto Off" timer, and checked the flag "Always on in
playback"
.
8.4 Language
User can select language to change the system menu and information display. It supports three
kinds of languages including English, Chinese (Trad.), Chinese (Simp.).
8.5 Display
(1) Contrast
揚智機密不得洩漏
Select “DisplayContrast”; press the previous button (key 4) or next button (key 6) to
change contrast, and then press the play button (key 2) or the function button (key 5) to
return to Setup menu.
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
(2) Backlight
Select “DisplayBacklight”; press the previous button (key 4) or next button (key 6) to
change the backlight time, and then press the play button (key 2) or the function button
(key 5) to return to menu.
8.6 Recording
(1) Recording Source
Select “RecordSourceLine In” to set recording from “Line In” input;
Or select “RecordSourceMIC” to set recording from device’s built-in microphone.
(2) Record Quality
Select “RecordQualityLong Time” for voice quality and smaller file size.
Select “RecordQualityNormal Quality” for radio quality and normal file size.
Select “RecordQualityHigh Quality” for CD quality and bigger file size.
www.ali.com.tw ALi Confidential 19

____________________________________________________________________
M56
61 EV
-
Board User Manual
(3) VAD functional selection
Select “RecordVAD” to turn on/off VAD function.
8.7 Sys tools
(1) Del File
Select “Sys ToolsDel File” to delete the files in player.
(2) Format
Select “Sys ToolsFormatQuick” to quickly format;
Select “Sys ToolsFormatComplete” to completely format as the FAT16 file system.
(3) Reset
Select “Sys ToolsReset” to reset player system to the default setting.
(4) System Info
Select “Sys ToolsSystem Info” to check the system information: Firmware version, Chip
version, and free space of the internal memory .
8.8 Custom EQ
Select the “Custom EQ” item to adjust the custom EQ. Press the previous button (key 4) or
next button (key 6) to move cursor, and then press the volume down (key 1) or the volume up
(key 3) to change the value.
8.9 Storage
揚智機密不得洩漏
ALI CONFIDENTIAL
NO DISCLOSURE
Released Version for
Customer_X
Select “StorageInternal” to playback from or record to device’s internal memory. Select
“StorageSD/MMC Card” to playback from or record to device’s external SD/MMC card.
When the device is selected to use the external memory card to playback or recording, the
LCD panel will show a disk icon to indicate that system is using external memory
card.
www.ali.com.tw ALi Confidential 20
