Alienware Area-51 m5750 User manual

Alienware Area-51 m5750 Technical Reference
1
Notice
The information in this user’s manual is subject to change without notice.
THE MANUFACTURER OR RESELLER SHALL NOT BE LIABLE FOR ERRORS OR OMISSIONS
CONTAINED IN THIS MANUAL AND SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL
DAMAGES, WHICH MAY RESULT FROM THE PERFORMANCE OR USE OF THIS MANUAL.
The information in this user’s manual is protected by copyright laws. No part of this
manual may be photocopied or reproduced in any form without prior written authorization
from the copyright owners.
Copyright 4/2006
All rights reserved.
Microsoft and Windows are registered trademarks of Microsoft Corporation. DOS,
Windows 95/98/ME/2000/NT/XP are trademarks of Microsoft Corporation.
Product names mentioned herein may be trademarks and/or registered trademarks of
their respective owners/companies.
The software described in this manual is delivered under a license agreement. The
software may be used or copied only in accordance with the terms of the agreement.
This product incorporates copyright protection technology that is protected by U.S.
patents and other intellectual property rights. Use of this copyright protection technology
must be authorized by Macrovision, and is intended for home and other limited
viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
Rev 1.0

Alienware Area-51 m5750 Technical Reference
2
TABLE OF CONTENTS
PREFACE
Symbols and Conventions
Protecting Your Computer - Avoid Abusive Handling and Adverse
Environments
Chapter Summaries
1. GETTING TO KNOW THE BASICS
Performance Features (1-2,3)
System at a Glance (1-4)
Top View (1-4,5,6)
Front and Rear Views (1-7,8)
Side Views (1-9,10,11)
Bottom View (1-12,13)
AC Adapter (1-14)
LED Status Indicators (1-15)
Keyboard Features (1-16)
Function (Quick) Keys (1-16)
Windows Keys (1-17)
Numeric Keypad (1-17)
IR Remote Control (1-18)
18-key Remote Control (1-18,19)
26-key MCE Remote Control (Optional) (1-20,21)
Touch Pad (1-22)
Graphic Subsystem (1-23)
Adjusting the Display Brightness (1-23)
Extending the Life of the TFT Display Panel (1-23)
Opening and Closing the Display Panel (1-24)
Audio Subsystem (1-25)
Adjusting the Volume Manually (1-25)
Adjusting the Volume in Windows (1-25)
Voice Recording (1-25)
Modem and Modem Setting (1-26,17)
Ethernet Adapter (1-28)

Alienware Area-51 m5750 Technical Reference
3
2. BIOS SETUP AND SECURITY
Entering the BIOS Setup Screen (2-3)
Leaving the BIOS Setup Screen (2-3)
BIOS Action Keys (2-3)
Modifying the BIOS Settings (2-4)
Main Setup (2-4)
Advanced Setup (2-4)
Security Setup (2-5)
Power Setup (2-6)
Boot Setup (2-7)
Exit Setup (2-8)
3. BATTERY POWER & POWER MANAGEMENT
The Battery Pack (3-2)
Lithium-Ion Battery Technology (3-2)
Battery Low-Power Warning (3-3)
Installing and Removing the Battery Pack (3-4,5)
Charging the Battery and Charging Time (3-5)
Checking the Battery Level (3-6)
Prolonging the Battery’s Life and Usage Cycles (3-6)
Using Windows Power Options (3-7)
Windows’ Power Schemes (3-7,8)
Suspend Modes (3-9,10)
Power Button Action (3-11)
Low Battery Warning (3-12)
Power Manual Quick Access (3-13)
4. UPGRADING YOUR COMPUTER
Upgrading the Hard Disk Drive (4-2,3,4,5)
Upgrading the System Memory (4-6,7,8,9)
Installing the Wireless Mini-Card to the System (4-10,11,12)

Alienware Area-51 m5750 Technical Reference
4
5. TROUBLESHOOTING
First Step (5-2,3)
Audio Problems (5-4)
Hard Disk Problems (5-5,6)
Optical Drive Problems (5-7)
Display Problems (5-8)
Keyboard and Mouse Problems (5-9)
CMOS Battery Problems (5-10)
Memory Problems (5-11)
Modem Problems (5-12)
Network Adapter / Ethernet Problems (5-13)
Performance Problems (5-14)
Firewire (IEEE1394) and USB2.0 Problems (5-15)
APPENDIX A Product Specification
APPENDIX B Agency Regulatory Notices

Alienware Area-51 m5750 Technical Reference
5
Preface
Using This Manual
This User’s Manual contains general information about the hardware and software setup,
troubleshooting, and technical specifications of your notebook computer.
Symbols and Conventions
The following conventions and symbols are used in this manual:
When keys are to be pressed at the same time, a plus (+) symbol is used. For instance,
Fn+F7 means holding Fn and F7 keys at the same time.
When a series of clicking actions is needed in Windows O/S, [ ] and > symbols are used.
For instance, [Start > Settings > Control Panel > Display] means clicking the Start icon first,
then the Settings, then the Control Panel, then the Display icon.
When you need to make a selection with the touch pad (or mouse), you will be asked to
’select’, ‘click’, ‘double-click’, or ‘right-click’ the item.
Note: Text in this format and symbol means specific instructions, commentary, sidelights,
or any additional information or notes that you should be aware of.
Warning: Text in this format and symbol means that failure to comply with the given
instructions or information could result in damage to your computer or could cause bodily
harm or loss of life.

Alienware Area-51 m5750 Technical Reference
6
Protecting Your Computer - Avoid Abusive Handling and Adverse
Environment
Following the advice below will help ensure that you get the most out of your
investment.
Your computer will serve you well if you take good care of it.
• Do not expose your computer to direct sunlight or place it near sources of heat.
• Do not subject it to temperatures below 0oC (32oF) or above 35oC (95oF).
• Do not expose your computer to magnetic fields.
• Do not expose your computer to moisture or rain.
• Do not spill water or liquid on your computer.
• Do not subject your computer to adverse shock and vibration.
• Do not expose your computer to dust and dirt.
• Do not place objects on top of your computer.
• Do not place your computer on rocky surfaces.
Here are some ways of taking care of your AC adapter.
• Do not connect the adapter to any devices other than your computer.
• Do not let water get into the adapter.
• Do not block the ventilation airway of the adapter.
• Keep the adapter in a cool and ventilated place.
• Do not step on the power cord or place heavy objects on top of it.
• Carefully tuck away the power cord and any cables away from pedestrian traffic.
• When unplugging the power cord, do not pull on the cord itself but pull on
the plug.
• Keep the adapter away from children.
• If using an extension cord, the total ampere ratings of the equipment plugged
in should not exceed the ampere rating of the cord if you are using.
• The total current rating of all equipment plugged into a single wall outlet
should not exceed the fuse rating.
• Do not connect an AC adapter that did not come with your notebook. This
notebook uses the following AC adapter exclusively: Liteon PA-1121-22
(120W) or Li-shin 0227A20120 (120W)
When cleaning the computer, observe these steps:
1. Power off the computer and remove the battery pack.
2. Disconnect the AC adapter.
3. Use a soft cloth dampened with water. Do not use liquid or aerosol cleaners.

Alienware Area-51 m5750 Technical Reference
7
Contact your dealer or see your service technician if any of the following occurs:
• The computer has been dropped or the body has been damaged.
• Liquid has been spilled into the product.
• The computer does not operate normally.
Cleaning the Ventilation Grills
It is suggested that you clean the ventilation grills regularly to maintain optimal thermal
regulation of the notebook. To do this, you may use a soft brush or a vacuum cleaner
(with appropriate head adapter) to remove the dust buildup on the ventilation grills.

Alienware Area-51 m5750 Technical Reference
8
Chapter Summaries
The following is a summary of the available chapters and appendices in this manual.
Chapter 1: Getting to Know the Basics
In this chapter, you will learn the basic operations and features of your computer. It
gives you a general understanding of the components of your notebook.
Chapter 2: BIOS Setup / Security
In this chapter, you will learn how to change various firmware settings and what the
settings mean. Also, you will learn how to take advantage of the built-in security
feature provided by the BIOS.
Chapter 3: Battery Power & Power Management
In this chapter, you will learn the fundamentals of power management and how to use
them to achieve longer battery life.
Chapter 4: Upgrading Your Computer
In this chapter, you will learn how to upgrade your system memory and the hard disk
drive, and how to to install the wireless mini-card.
Chapter 5: Troubleshooting
In this chapter, you will learn how to solve common hardware and software problems.
Appendix A: Product Specification
In this section, you will find a list of your computer’s system specifications.
Appendix B: Agency Regulatory Notices
In this section, you will find the general electro-magnetic and safety regulatory information.

Alienware Area-51 m5750 Technical Reference
9
CHAPTER ONE
GETTING TO KNOW THE BASICS
This chapter introduces the features and components of the computer.

Alienware Area-51 m5750 Technical Reference
10
Performance Features
High Performance Processor with Napa Chipset
Your notebook PC is equipped with a powerful Mobile Intel Pentium M dual-core
(Core Duo) or Mobile Intel Pentium M single-core (Core Solo) processor. Together
with the latest Napa chipset and technologies, the system offers very advanced PC
performance.
Advanced Graphic Engine
The PCI-Express high-end graphic engine offers excellent graphic performance for
the most demanding professionals or gamers. The advanced graphic chip also
incorporates a hardware-based motion-compensation engine, which gives you smooth
MPEG video playback. DirectX 9 graphics capability also adds realism to PC games.
Wide-Screen LCD Display
Your computer is equipped with a wide-screen 17-inch TFT high-resolution display
panel providing you with the best cinematic viewing experience.
RAID Storage System (Optional)
Previously only available on a high-end server system, RAID now comes as an optional
performance feature on your notebook PC. The system supports two SATA hard drives
for RAID Level 0/1. The RAID system safeguards your data from a catastrophic hard
disk failure.
(Please refer to VIA VT6420 S-ATA RAID User Manual in the Factory CD for proper setup
and configuration.)
Bluetooth Communication
Your system has a built-in Bluetooth module that allows you to connect to a Bluetooth
headset, mobile phone, or other Bluetooth radio devices.

Alienware Area-51 m5750 Technical Reference
11
ExpressCard Technology
ExpressCard is the next generation of the PC Card standard. The bus interface is based
on the two standards: PCI Express for high-performance I/O and USB2.0 for a variety of
devices.
Standalone Numeric Keypad
Your system features a dedicated numeric keypad section that allows the user to enter
numeric data easily and quickly.
Expandability
Your system offers an upgradeable hard disk drive and 2 DDRII SDRAM sockets for
expansion, allowing you to easily increase the storage and system capacities as your
needs evolve.
Built-in Multiple Card Reader
There is a built-in 4-in-1 card reader to access a wide range of portable media formats (SD
Card, MS Card, MMC Card, and MS-Pro Card).
Gigabit Ethernet Port
Your system provides built-in 10/100/1000Mbps Ethernet network adapter for high
bandwidth network connection.
Firewire (IEEE1394 / 1394a) and USB2.0 ports
In addition to a full array of built-in I/O ports, your computer offers IEEE1394 for ultra
high-speed connection to high bandwidth digital video devices and USB2.0 ports to
connect to any USB-based peripheral devices.
Wireless LAN
The internal Wireless LAN module allows your notebook to connect wirelessly to other
802.11-enabled systems, devices, or network.

Alienware Area-51 m5750 Technical Reference
12

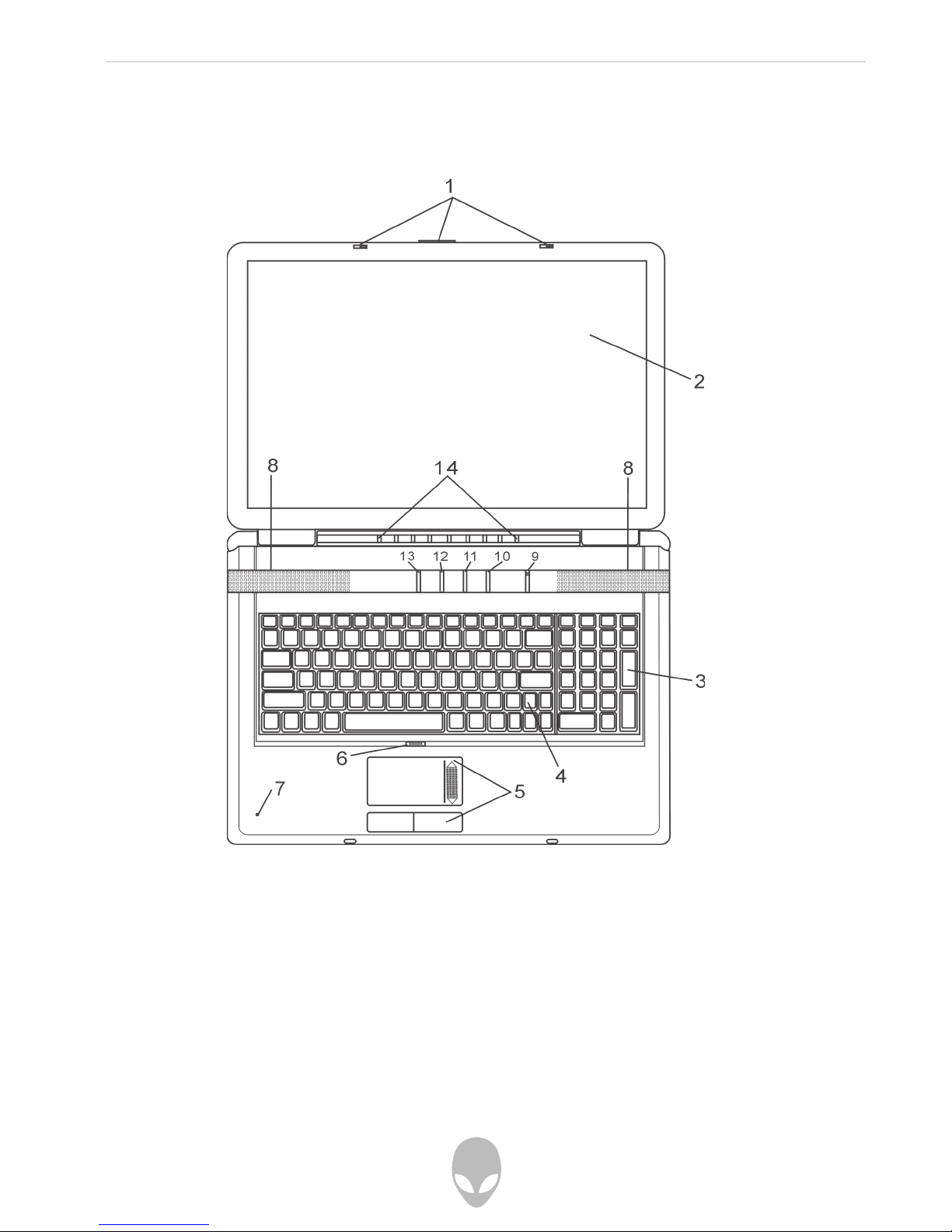

Your System At A Glance
Top View
1. LCD Latch
The LCD latches lock / unlock the LCD panel.
2. LCD Display
The panel is where the system content is displayed.

Alienware Area-51 m5750 Technical Reference
13
3. Numeric Keypad
The dedicated numeric keypad section allows you to enter numeric data easily and
quickly. (See Keyboard Section for details.)
4. Keyboard
The keyboard is used to enter data. (See Keyboard Section for details.)
5. Touch Pad
The touch pad is a built-in pointing device with functions similar to a mouse.
6. Touch Pad Disable / Enable Button
The button enables or disables Touch Pad function.
7. Built-in Microphone
The built-in microphone records sound.
8. Built-in Stereo Speakers
The built-in speakers output the sound in stereo.
9. Power / Suspend Button
The power/suspend button turns your notebook on and off and it also acts as a system
suspend key. Press momentarily to turn on the system. Press and hold for at least 4
seconds to turn off the system. How this key behaves can be defined in the [Start >
Settings > Control Panel > Power Options > Advanced] menu. Press the power / suspend
button again to return from the suspend mode. (See Chapter 3 for more details on the
system suspend function.)

Alienware Area-51 m5750 Technical Reference
14
10. Silent Mode Button
Pressing the key enables the system to lower its power usage; therefore the fan speed
is reduced to achieve the lowest operating noise.
You may need to go to BIOS Setup to enable Silent Mode for this button. See Chapter 2
for details.
11. Outlook Express Quick Key
Pressing the button launches Outlook Express in Windows.
12. Internet Explorer Quick Key
Pressing the button launches Internet Explorer in Windows.
13. Power Cinema Multimedia Player Launch Key
When the system is powered off, pressing the key launches a Linux-based multimedia
application called Power Cinema that allows you to watch movies files, listen to
music, or view photos in the optical drive or hard disk drive without having to boot to
Windows.
When the system is in Windows, pressing the key launches the Power DVD or Power
Cinema multimedia application.
14. LED Status Indicator
The LED Status indicators reveal the status of these functions: Numeric keypad, cap
lock, scroll lock, WLAN module enabling and disabling and also the ODD and HDD
activities. (See the LED Status Indicator Section for details.)
The LED Status indicators also reveal the status of the system power state and battery-
charging state. See the LED Status Indicator Section for details.

Alienware Area-51 m5750 Technical Reference
15
Front and Rear Views
Warning: Do not place any heavy objects on the top of the notebook. This may damage
the display
1. Wireless On/Off Switch
Use the Switch to disable or enable the Wireless function.
2. Consumer IR Receiver
This is where the input from the 18-key Remote Control is received.
3. Modem Port
This is where you plug the phone jack (RJ-11) for fax/modem functions.
4. Battery Pack
The battery pack is a built-in power source for the notebook.

Alienware Area-51 m5750 Technical Reference
16
5. Ventilation Grill
The fan grill is where air is exchanged to dissipate the internal heat. Do not block this
airway completely.
6. DVI-I Port
The DVI-I video output port is for connecting the external LCD monitor or projector.
7. TV (S-Video) Port
The S-Video port permits you to redirect the screen output to a television set or any
analog video playback device. This TV Port is copyright protected; when DVD movie is
played, the output is scrambled to prevent analog recording.

Alienware Area-51 m5750 Technical Reference
17
Side Views
Warning: Do not place any heavy objects on the top of the notebook. This may damage
the display
1. Audio Volume Dial
Use the volume dial to control the loudness of the speakers.
2. Microphone Jack
The microphone jack (3.5-mm diameter) is where you connect a microphone.
3. Stereo Headphone / SPDIF-out Jack
The stereo headphone jack (3.5-mm diameter) is where you connect the headphones or
external speakers. Alternatively, you may connect the SPDIF output to an external DTS,
AC3, or PCM sound processor / decoder in your home stereo system.

Alienware Area-51 m5750 Technical Reference
18
4. Audio Line-in Jack
The Audio Line-in jack (3.5-mm diameter) is where you connect an external audio
input source such as a CD Player.
5. Optical Drive and Disk Eject Button and Manual Eject Key Hole
If your computer comes with the Combo drive, DVD-RW, DVD+RW, or DVD-Dual drive,
you may save data onto a CD-R / CD-RW or DVD RW disc. Press the eject button to eject
the disk tray. The manual eject keyhole allows you to manually eject a jammed disk.
6. USB2.0 Port (x1)
The Universal Serial Bus (USB2.0-compliant) port allows you to connect a wide variety
of devices to your computer at a rate of up to 480 Mbps. This port conforms to the
latest USB2.0 plug-and-play standards.
7. Power Jack (DC-in)
The DC-out jack of the AC Adapter connects here and powers the computer.
8. Kensington Lock Key Hole
A Kensington-type security lock latches to this keyhole for anti-theft purpose.
9. Ethernet / LAN Port
The port connects to a network hub via the RJ-45 cable and also conforms to
10/100Base-TX transmission protocol.
10. 4-in-1 Card Reader
The 4-in-1 Card Reader supports SD Card, MS Card, MMC Card, and MS-Pro Card.

Alienware Area-51 m5750 Technical Reference
19
11. Firewire / IEEE1394 / 1394a Port
This is a high-speed serial data port. You may connect any Firewire-ready device to this
port.
12. USB2.0 Port (x3)
The Universal Serial Bus (USB2.0-compliant) port allows you to connect a wide variety
of devices to your computer at a rate of up to 480 Mbps. This port conforms to the latest
USB2.0 plug-and-play standards.
13. ExpressCard Slot
The slot is where ExpressCard (Type 54) is inserted. ExpressCard Type 54 allows insertion
of either 54mm or 34mm cards. ExpressCard integrates both the PCI-Express bus
technology and USB2.0 interface.
If your notebook comes with the IR remote control, the ExpressCard Slot is where the
remote control is kept when not in use.

Alienware Area-51 m5750 Technical Reference
20

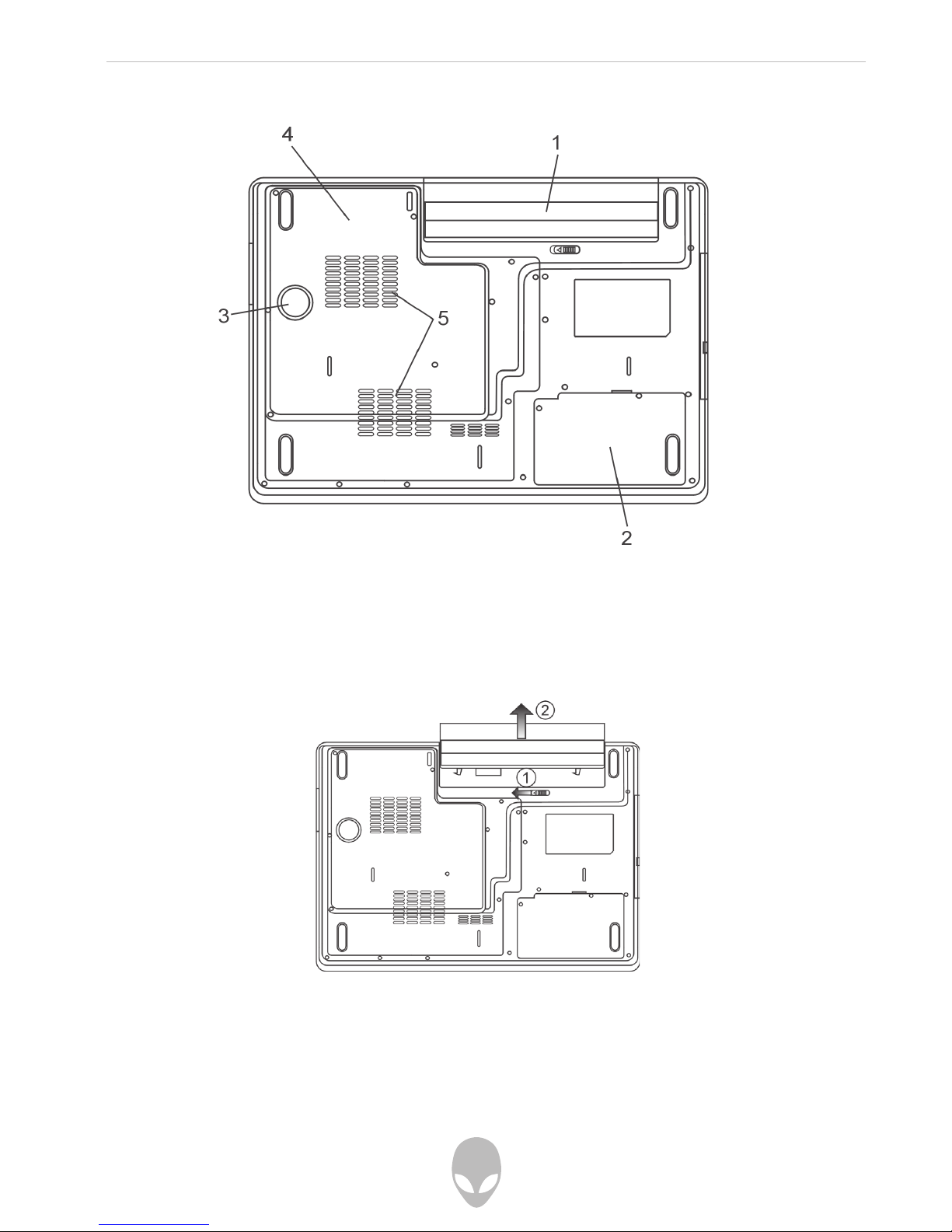

Bottom View
1. Battery Pack and Battery Latch
The battery pack is a built-in power source for the notebook. Slide the battery latch to
release the battery pack.
2. Hard Disk Drive Cover
The system’s hard disk drive is located under the cover. The HDD can be upgraded to a
larger capacity. (See Chapter 4 for instructions on a HDD upgrade.)
