Allen + Roth SONNING LP8143LAZ User manual

SONNING CEILING FAN
ITEM #0357003
MODEL #LP8143LAZ
Español p. 22
Serial Number Purchase Date
ATTACH YOUR RECEIPT HERE
welcoming • sophisticated • inspiring
allen + roth® is a registered trademark
of LF, LLC. All Rights Reserved.
XXXXXX Lowes.com/allenandroth
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 6 p.m., EST, Monday - Thursday and 8 a.m. - 5 p.m., EST,
Friday.
1

Lowes.com/allenandroth
TABLE OF CONTENTS
Package Contents .........................................................................................................................
Hardware Contents .......................................................................................................................
Safety Information .........................................................................................................................
Preparation ...................................................................................................................................
Assembly Instructions ...................................................................................................................
Wiring Instructions ........................................................................................................................
Final Assembly Instructions ..........................................................................................................
Operating Instructions ..................................................................................................................
Blade Balancing Instructions ........................................................................................................
Care and Maintenance .................................................................................................................
Troubleshooting ............................................................................................................................
Warranty .......................................................................................................................................
Replacement Parts List ................................................................................................................
3
4
4
5
6
10
11
15
17
18
18
20
21
2

PACKAGE CONTENTS
Lowes.com/allenandroth
A
B
C
F
I
G
H
J
K
D
E
PART DESCRIPTION QUANTITY
Motor Assembly
Hanger Bracket
Downrod
Ceiling Canopy
Canopy Screw Cover
Housing Assembly
Blade Holder Mount
Switch Housing Assembly
Blade Holder Arm
Blade
Bulb
A
B
C
D
E
F
G
H
I
J
K
1
1
1
1
1
1
1
1
5
5
4
3

SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, or the National Electrical
code. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar
with installing electrical wiring.
•Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades
to the floor and at least 30 in. from the ends of the blades to any obstruction.
•If you are mounting the fan to a ceiling outlet box, use a METAL octagonal outlet box.
Secure the box directly to the building structure. The outlet box and its support must be able to
support the moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• For supply connections, if the conductor of a fan is identified as a grounded conductor, then it
should be connected to a grounded conductor power supply. If the conductor of a fan is identified
as an ungrounded conductor, then it should be connected to an ungrounded conductor power
supply. If the conductor of a fan is identified for equipment grounding, then it should be connected
to an equipment-grounding conductor.
•The net weight of this fan is: 34.83 lbs.
HARDWARE CONTENTS (shown actual size)
Lowes.com/allenandroth
Fiber
Washers
Qty. 21
DD
Screws
Qty. 11
BB
Wire
Connectors
Qty. 4
EE
CC
Washer-Head
Screws
Qty. 21 Balance
Kit
(not shown
to size)
Qty. 1
HHFF
Fan Chain
Coupler
Qty. 1
GG
Light Kit Chain
Coupler
Qty. 1
Screws
Qty. 11
AA
4

SAFETY INFORMATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included): Phillips screwdriver, 1/4 in. flathead screwdriver,
wire stripper and step ladder.
Helpful Tools (not included): AC tester light, do-it-yourself wiring handbook and wire cutters.
PREPARATION
WARNING
• Do not install or use fan if any part is damaged or missing.
• To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use. Before
cutting, drilling or hammering, verify their location. If needed, contact your electrician, plumber
or service person.
• To reduce the risk of fire, electric shock, or personal injury, do not bend the blade arms when
installing them, balancing the blades, or cleaning the fan. Do not insert foreign objects between
the rotating fan blades. Mount to outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and
use mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
• This fan is to be used in dry locations only.
• Read all instructions and safety information before installing the new fan. Review accompanying
assembly diagrams.
CAUTION
Lowes.com/allenandroth
5

ASSEMBLY INSTRUCTIONS
1. Remove the hanger ball portion from the
downrod (C) by loosening the preassembled
set screw in the hanger ball until the ball falls
freely down the downrod (C). Remove the
preassembled pin from the downrod (C), then
remove the hanger ball. Retain the pin and
hanger ball for later.
2. Remove the preassembled hairpin clip and
clevis pin from the bottom of downrod (C).
Retain the pin and clip for later.
3. Loosen the two preassembled set screws in
the downrod support of the motor assembly
(A). Route the black, white and blue wires
through the the downrod (C).
Lowes.com/allenandroth
1
C
2
C
3
C
A
6

5
D
E
ASSEMBLY INSTRUCTIONS
6
4. Thread the downrod (C) into downrodsupport
of the motor assembly (A). Align the holes in
the downrod support of the motor assembly (A)
with the holes in the downrod (C) and install the
previously removed clevis pin. Secure clevis
pinwith previously removed hairpin clip.
Tighten the two set screws in the downrod
support of the motor assembly (A).
5. Route wires through canopy screw cover (E)
and ceiling canopy (D).
4
6. Reinstall the hanger ball on the downrod (C)
by routing the three 54 in. wires from the motor
assembly (A) through the hanger ball. Position
the pin removed in step 1 through the two
holes in the downrod (C) and align the hanger
ball so the pin is captured in the groove in the
top of the hanger ball. Pull the hanger ball up
tight against the pin. Securely tighten the
preassembled set screw in the hanger ball.
A loose set screw could result in a wobbly fan.
CAUTION
WARNING
It is critical the clevis pinin the downrod support
is properly installed and the set screws are
securelytightened. Failure to do socouldresult
in the fan falling.
Lowes.com/allenandroth
C
A
C
7

ASSEMBLY INSTRUCTIONS
7
7. Cut off excess lead wire approximately 6 to 9
in. above top of the top of the downrod (C).
Strip insulation off 1/2 in. from the end of each
lead wire.
NOTE: If you are not sure if the outlet box is
grounded, contact a licensed electrician for
advice, as it must be grounded for safe operation.
WARNING
To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before
hanging.
WARNING
The fan must hang with at least 7 ft. of clearance
from the floor to blades.
B
8
8. Securely attach the hanger bracket (B) to the
outlet box (not included) using the outlet box
screws and washers supplied with the outlet
box.
WARNING
The outlet box must be securely anchored.
Hanger bracket must seat firmly against outlet
box. If the outlet box is recessed, remove
wallboard until bracket contacts box. If bracket
and/or outlet box are not securely attached, the
fan could wobble or fall.
Lowes.com/allenandroth
C
8

ASSEMBLY INSTRUCTIONS
B
C
9
9. Carefully lift the assembly and seat hanger
ball of the downrod (C) on the hanger bracket
(B). Be sure the groove in the ball is lined up
with tab on the hanger bracket (B).
WARNING
Failure to seat tab in groove could cause damage
to electrical wires and possible shock or fire
hazard.
To avoid possible shock, do not pinch wires
between the hanger ball assembly and the
hanger bracket.
Lowes.com/allenandroth
9

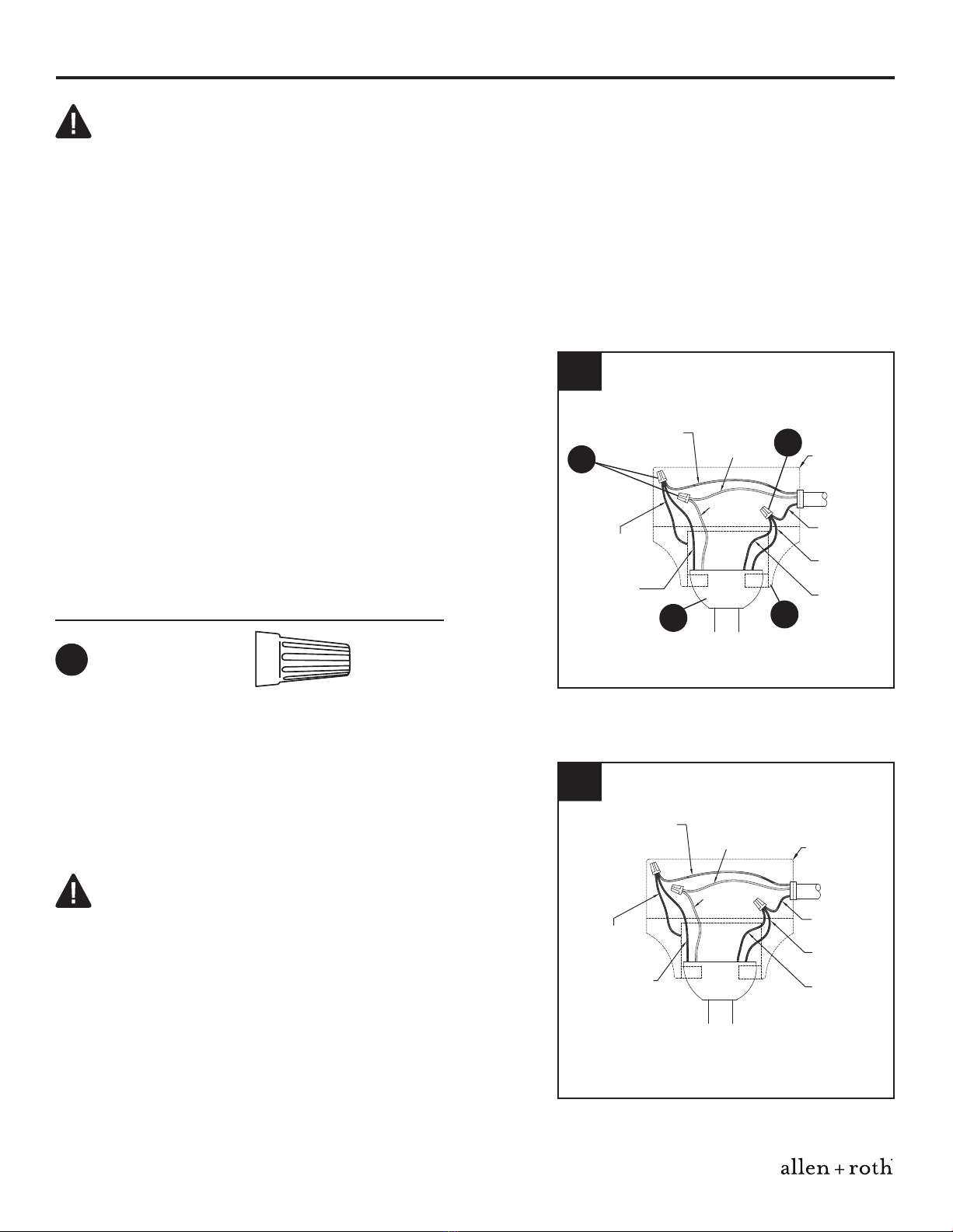

WIRING INSTRUCTIONS
NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as
it must be grounded for safe operation.
To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.
WARNING
1
2
EE
EE
CB
Green Wire
from Supply
(Ground)
White Wire
from Supply
White Wire
from Fan
Green Wire
from Hanger
Bracket (Ground)
Green Wire
from Hanger
Ball (Ground)
Listed
Outlet Box
Household
Supply
Black Wire
from Supply
Blue Wire
from Fan
Black Wire
from Fan
Green Wire
from Supply
(Ground)
White Wire
from Supply
White Wire
from Fan
Green Wire
from Hanger
Bracket (Ground)
Green Wire
from Hanger
Ball (Ground)
Listed
Outlet Box
Household
Supply
Black Wire
from Supply
Blue Wire
from Fan
Black Wire
from Fan
1. Connect the green grounding lead from the
downrod (C) and the green grounding lead from
the hanger bracket (B) to the supply grounding
conductor (this may be a bare wire or wire with
green colored insulation). Securely connect
wires with wire connector (EE). Securely
connect the white fan motor wire to the white
supply (neutral) wire using wire connector (EE).
Securely connect the black fan motor wire and
blue wire to the black supply wire using wire
connector (EE).
Hardware Used
EE x 3
Wire
Connectors
2. After connections have been made, turn leads
upward and carefully push leads into the outlet
box, with the white and green leads to one side
of the box and the black leads toward the
other side.
WARNING
Check to see all connections are tight, including
ground, and no bare wire is visible at the wire
connectors except for the ground wire. Do not
operate fan until the blades are in place. Noise
and motor damage could result.
Lowes.com/allenandroth
10

FINAL ASSEMBLY INSTRUCTIONS
1. Remove one of the two preassembled
shoulder screws in the hanger bracket (B).
Loosen the second shoulder screw without
fully removing it. Rotate ceiling canopy (D) so
second shoulder screw moves into the small
opening of the keyslot. Tighten shoulder
screw. Re-install the previously removed
shoulder screw to fully assembly ceiling
canopy (D) to hanger bracket (B).
2. Securely attach and tighten the canopy
screw cover (E) over the shoulder screws in
the hanger bracket (B), utilizing the keyslot
twist-lock feature.
3. Install bulbs (K).
WARNING
To avoid possible fire or shock, make sure the
electrical wires are completely inside the canopy
housing and not pinched between the housing
and the ceiling.
Lowes.com/allenandroth
2
1
3
E
A
K
11

G
AA
A
FINAL ASSEMBLY INSTRUCTIONS
4

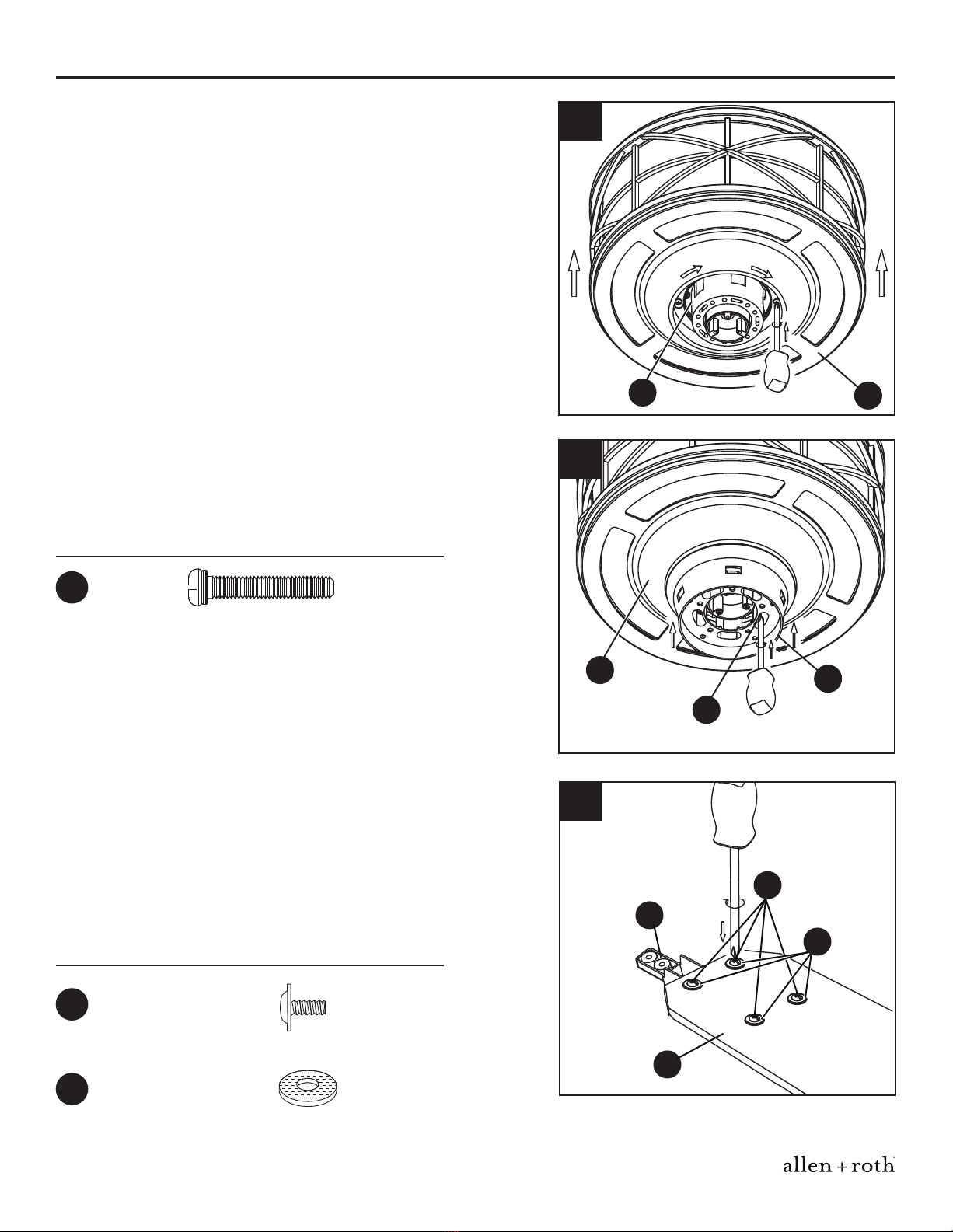

4. Remove one of the four preassembled screws
inside the motor assembly (A). Slightly loose
the remaining three screws. Assemble the
housing assembly (F) to the motor assembly
(A) using the three key slots in the housing
assembly (F). Replace the fourth screw and
securely tighten all four screws.
Lowes.com/allenandroth
5
F
A
6
J
I
CC
DD
5. Assemble the blade holder mount (G) to the
motor assembly (A), and securely tighten all
ten screws (AA).
AA
Hardware Used
x 10Screws
Hardware Used
CC Washer-Head
Screws
DD Fiber
Washers
x 20
x 20
6. Position the blade (J) over the blade holder
arm (I) with threaded posts showing. Make
sure the bottom edge of the blade (J) is fully
seated against the blade holder arm (I).
Tighten washer-head screws (CC) with fiber
washers (DD) to secure the blade (J) to the
blade holder arm (I).
12

H
A
FINAL ASSEMBLY INSTRUCTIONS
Lowes.com/allenandroth
WARNING
To reduce the risk of personal injury, do not
bend the blade holders when installing,
balancing the blades or cleaning the fan. Do not
insert foreign objects in between the rotating
blades.
NOTE: Periodically check blade holder hardware
and resecure if necessary.

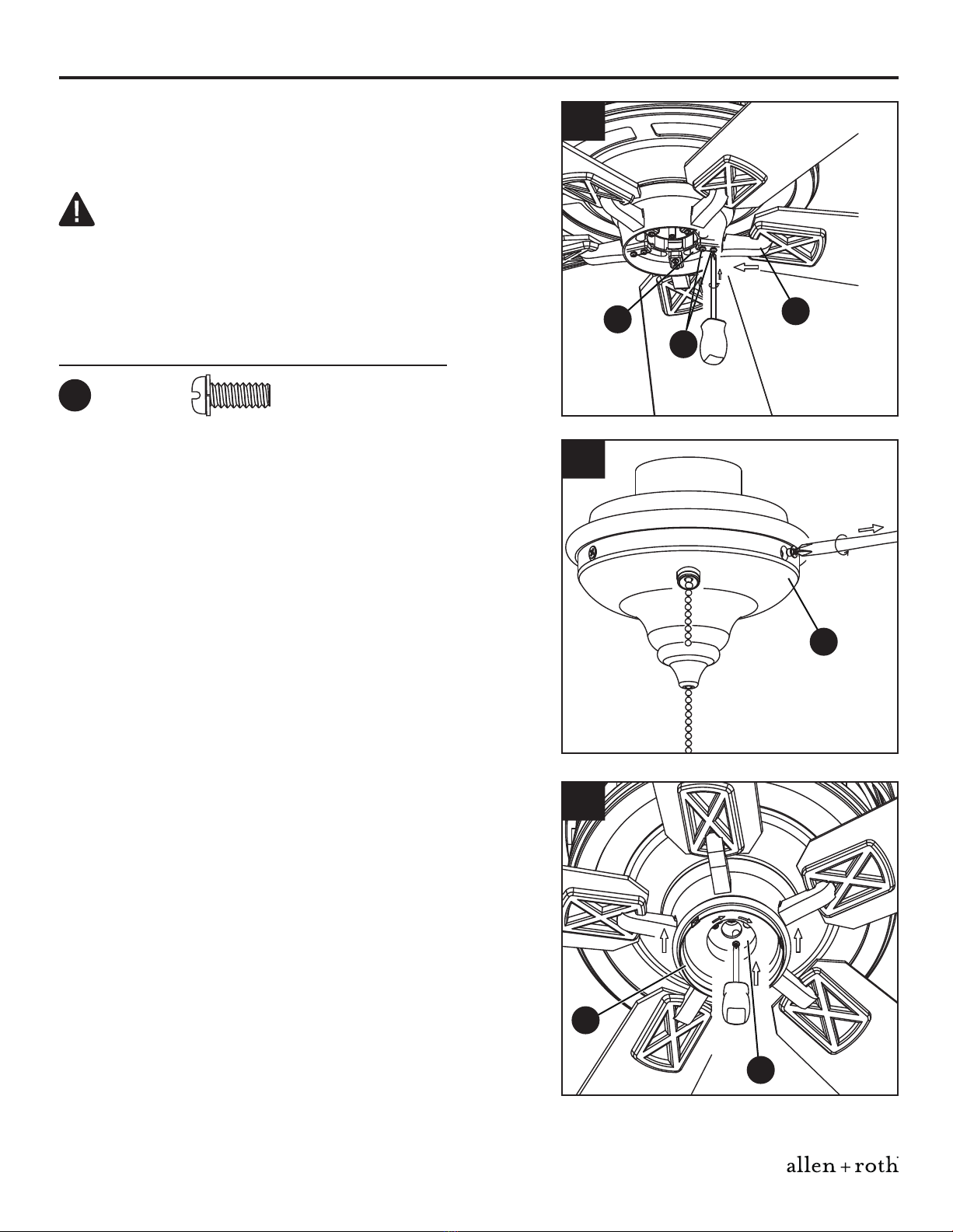

7. Attach blade holder arms (I) to the blade holder
mount (G) using screws (BB).
BB
Hardware Used
x 10
Screws
8. Disassemble the switch housing assembly (H)
by removing three screws.
9
9. Remove one of the three preassembled
screws inside the support bracket. Slightly
loosen the remaining two screws. Assemble
the switch housing assembly (H) to the motor
assembly (A) using the two key slots in the
adaptor assembly. Replace the third screw
and securely tighten all three screws.
8
H
I
G
BB
7
13

FINAL ASSEMBLY INSTRUCTIONS
Lowes.com/allenandroth
11
10. Securely attach the 9-pin switch cup
connector from the switch housing assembly.
(H) to the wiring harness socket from motor
assembly (A).
11. Install the switch housing assembly (H) onto
the assembled adaptor with the three screws
removed in step 9 above.
10
A
H
H
14

FF
FF
GG
Lowes.com/allenandroth
OPERATING INSTRUCTIONS
1. Restore electrical power to the outlet box by
turning the electricity on at the main fuse box.
ON
ON
ON
ON
ON
ON
ON
ON
1
3
2
2. Install the fan chain coupler (FF) and light
kit chain coupler (GG).
Hardware Used
FF Fan Chain
Coupler
GG Light Kit Chain
Coupler
x 1
x 1
3. Check the operation of the fan by gently
pulling on the fan chain coupler (FF).
1st Pull
2nd Pull
3rd Pull
4th Pull
High
Off
Low
Medium
Fan Pull Chain Operating Sequence
15

OPERATING INSTRUCTIONS
5
Lowes.com/allenandroth
4. Check the operation of the light by gently
pulling on the light kit chain coupler (GG).
1st Pull
2nd Pull
On
Off
Light Kit Pull Chain Operating Sequence
5. If airflow is desired in the opposite direction, turn
the fan off and wait for the blades to stop
turning. Slide the reverse switch to the opposite
position and turn fan on again.
Season
Summer
Winter
Rotation Direction Switch Position
Clockwise
Counterclockwise Left
Right
Reverse Switch Information
4
GG
16

BLADE BALANCING INSTRUCTIONS
1
2
3
1. Interchanging positions of adjacent blades (J)
can redistribute the weight and result in
smoother operation. If wobble decreases,
leave blades (J) as they are. If wobble
increases, switch back to original position.
Attach the balancing clip from the balance kit
(HH) to the mid-point on the top edge of one
blade (J).
3. Peel the backing paper from one of the
weighted squares in the balance kit (HH).
Secure the weighted square in the balance kit
(HH) firmly to the top of the blade (J),
centered at the balancing clip location and
between the edges of the blade (J).
Remove the balancing clip (HH), start the fan
and observe. If the wobble still persists, repeat
steps 1 through 3 until the wobble disappears.
2. Run the fan at high speed (air downflow) and
observe wobble. Repeat steps 1 and 2 for
each blade (J). Note which blade (J) has the
least wobble. On that blade (J), install the
balancing clip to the top edge of the blade (J)
near the blade arm (I).
Start the fan and observe wobble. Stop the fan
and move the balancing clip in small steps
toward the end of the blade (J). At each
incremental step, turn on the fan and observe
the wobble. Determine the location of the
balancing clip that gives the least amount of
wobble.
WARNING
The balancing clip must always be firmly pushed
onto the blade until it touches the edge of the
blade. Failure to do so could allow clip to fly off
and cause personal injury.
If the fan wobbles when in use, turn off the fan and follow the below steps:
Lowes.com/allenandroth
J
HH
HH
HH
J
J
I
17

Lowes.com/allenandroth
• When cleaning, use only a soft brush or lint-free cloth to avoid scratching the finish.
• Abrasive cleaning agents are not required and should be avoided to prevent damage to finish.
RECOMMENDED: Periodically check that the fan motor unit screws, blade screws, support
housing and light kit screws are tight and secure.
• Periodic light dusting of the blades is recommended. A feather duster will work best.
• Avoid using water, cleansers, or harsh rags, which can warp and ruin the finish.
• Bulb Replacement: Use 60-watt E12 base bulbs.
CARE AND MAINTENANCE
WARNING
• Do not use water when cleaning the ceiling fan. It could damage the motor or the finish and
create the possibility of electrical shock.
• Re-lamp with the appropriate wattage bulb. Do not exceed the wattage indicated on the bulb
socket.
• Do not install or use fan if any part is damaged or missing.
TROUBLESHOOTING
4. Wire connectors inside housing are
rattling.
1. Blades not attached to fan.
2. Loose screws in motor housing.
3. Screws securing fan blade holders to
motor hub are loose.
1. Check main and branch circuit
fuses or circuit breakers.
WARNING
Make sure main power is turned
off!
4. Check to make sure wire
connectors in switch housing
are not rattling against each
other or against the interior wall
of the switch housing.
1. Attach blades to fan before
operating.
2. Check to make sure all screws
in motor housing are snug
(do not overtighten).
3. Check to make sure the screws
that attachthe fan blade
holders to the motor hub are tight.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan will not start. 1. Fuse or circuit breaker blown.
2. Loose power line connections to the
fan, or loose 9 pin connector inside
light kit.
Fan sounds noisy.
3. Reversing switch in neutral position.
2. Check line wire connections to
fan and 9 pin connection inside
light kit.
3. Make sure reversing switch
position is all the way to one
side.
18

TROUBLESHOOTING
5. Screws holding blades to blade
holders are loose.
5. Tighten screws securely.Fan sounds noisy.
Not enough air
movement.
6. Fan blades are out of balance.
1. Set screw in downrod support is loose.
2. Set screw in downrod/hanger ball
assembly is loose.
3. Screws securing fan blade holders to
motor hub are loose.
4. Blade holders are not seated properly.
5. Hanger bracket and/or ceiling outlet box
is notsecurelyfastened.
If possible, considerusinga longer
downrod (not included).
6. Interchanging position of fan
blades can redistribute the
weight and result in smoother
operation. For example,
exchange blades in positions 1
and 3 or 1 and 4. If this does
not improve wobble, exchange
2 and 4 or 2 and 5.
2. Tighten the set screw in the
downrod/hanger ball assembly.
3. Check to be sure screws that
attach the fan bladeholders to the
motor hubaretight.
4. Check to be sure the fan blade
holders seat firmly and
uniformly to the surface of the
motor housing. If holders are
seated incorrectly, loosen the
screws and retighten.
5. Tighten the hanger bracket
screws to the outlet box, and
secure outlet box.
1. Tighten set screws securely in
downrod support.
Downrod is too short.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan wobbles
excessively.
Lowes.com/allenandroth
19

WARRANTY
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the expressed responsibility of the purchaser. Any damage to the
ceiling fan by accident, misuse or improper installation, or by affixing accessories not produced by
this warranty, are at the purchaser’s own responsibility. The manufacturer assumes no responsibility
whatsoever for fan installation during the lifetime limited warranty. Any service performed by an
unauthorized person will render the warranty invalid.
Due to varying climate conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department at
1-866-439-9800 for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is the soleresponsibility of the purchaser.
There is no further expressed warranty. The manufacturer disclaims any and all implied warranties.
The duration of any implied warranty which can not be disclaimed is limited to the lifetime limited
period as specified in our warranty. The manufacturer shall not be liable for incidental, consequential
or special damages arising at or in connection with product use or performance except as may
otherwise be accorded by law. This warranty gives you specific legal rights and you also have other
rights which vary from state to state. This warranty supersedes all prior warranties.
Note: A small amount of “wobble” is normal and should not be considered a defect.
The manufacturer warrants this fan to be free from defects in workmanship and material present at
time of shipment from the factory. The warranty terms from the date of purchase. The motor has a
lifetime warranty, and a 2 year warranty for the light kit and all remaining components. This warranty
applies only to the original purchaser. The manufacturer agrees to correct such defect at no charge
or, at our option, replace the ceiling fan with a comparable or superior model.
Lowes.com/allenandroth
20
