Introduction
The GE1650 series of cameras are sensitive, 30 frames per second, 2 megapixel, Gigabit Ethernet
cameras based on the Kodak KAI-2020M CCD sensor.
Precautions
READ INSTALLATION GUIDE CAREFULLY.
This document contains specific information which is necessary for the correct operation and
treatment of this product.
DO NOT OPEN THE CAMERA. WARRANTY IS VOID IF CAMERA IS OPENED.
This camera contains sensitive components which can be damaged if handled incorrectly.
KEEP SHIPPING MATERIAL.
Poor packaging of this product can cause damage during shipping.
VERIFY ALL EXTERNAL CONNECTIONS.
Verify all external connections in terms of voltage levels, power requirements, voltage polarity,
and signal integrity prior to powering this device.
CLEANING.
This product can be damaged by some volatile cleaning agents. Avoid cleaning the image sensor
unless absolutely necessary. Please see instructions on sensor cleaning in this document.
DO NOT EXCEED ENVIRONMENTAL SPECIFICATIONS.
See environmental specifications limits in the Specifications section of this document.
Warranty
AVT provides a 2 year warranty which covers the replacement and repair of all AVT parts which are
found to be defective in the normal use of this product. AVT will not warranty parts which have
been damaged through the obvious misuse of this product.

GE1650 Technical Manual Page 6
Specifications
Sensor Type Kodak KAI-2020M (KAI-2020CM for color)
Sensor Shutter Type Progressive Interline
Image Resolution 1600 x 1200 pixels
Pixel Size 7.4μm x 7.4μm
Optical Forma
t
1 inch
Lens Moun
t
C-mount with adjustable back focus
Color Sensor Filter Pattern†Bayer
Full Resolution Frame Rate 32.1 fps
Frame Rate (640 x 480 ROI) 54.1 fps
I/O 1 isolated TTL compatible input, 3 isolated TTL compatible
outputs. 1 RS-232 input/output.
Power Requirements Less than 5.0W††. 12V nominal.
Digitization 12 Bits
Trigger latency* 5μs
Trigger Jitter* ±10ns
Tpd* 90ns
Operating Temperature 0 to 50 Celsius***
Operating Humidity 20 to 80% non-condensing
Size 39mm (height) x 51mm (width) x 80mm (length)
Weigh
t
169g
Hardware Interface Standard IEEE 802.3 1000BASE-T, 100BASE-TX
Software Interface Standard GigE Vision Standard 1.0
Regulator
y
Conforms to CE, FCC
† Applies to GE1650C only.
†† Power consumption will increase with reduced ROI imaging, vertical binning, and color formats.
* See Notes on Triggering in the Addendum.
***DUE TO THE SMALL PACKAGING AND HIGH SPEED OF THE GE CAMERAS, SPECIAL CARE IS REQUIRED
T
O
MAINTAIN A REASONABLE OPERATING TEMPERATURE. IF THE CAMERA IS TO BE OPERATED IN A WARM
ENVIRONMENT, IT IS SUGGESTED THAT THE CAMERA BE MOUNTED ON A HEAT SINK SUCH AS A METAL BRACKET
AND THAT THERE IS SUFFICIENT AIR FLOW.

GE1650 Technical Manual Page 7
Supported Features
Imaging Modes free-running, external trigger, fixed rate, software trigger
Fixed Rate Control 0.001 fps to maximum frame rate
External Trigger Delay 0 to 60 seconds in 1 microsecond increments
External Trigger Even
t
rising edge, falling edge, any edge, level high, level low
Exposure Time 50 microseconds to 60 seconds in 1 microsecond increments
Gain 0 to 23dB
Region of Interest (ROI) independent x and y control with 1 pixel resolution***
Horizontal Binning 1 to 8 pixels
Vertical Binning 1 to full resolution of sensor***
Pixel Formats Mono8, Mono16*, Bayer8, Bayer16, RGB24,
YUV411, YUV422, YUV444,
BGR24, RGBA24, BGRA24
Sync Out Modes trigger ready, trigger input, exposing, readout, imaging,
strobe, GPO
*On monochrome versions only.
***VERTICAL BINNING AND VERTICAL ROI CAN SIGNIFICANTLY INCREASE THE POWER CONSUMPTION OF THE
CAMERA AND SHOULD ONLY BE USED INTERMITTENTLY AND WITH CAREFUL ATTENTION TO THE OPERATING
TEMPERATURE OF THE CAMERA.

GE1650 Technical Manual Page 8
Mechanical
Figure 1. GE SERIES mechanical dimensions.

GE1650 Technical Manual Page 9
Connections
1
56
2
34
7
Figure 2. GE SERIES connection diagram.

GE1650 Technical Manual Page 10
Item 1: GIGABIT ETHERNET PORT
This port conforms to the IEEE 802.3 1000BASE-T standard for Gigabit Ethernet over copper. It is
recommended that CAT5E or CAT6 compatible cabling and connectors be used for best
performance. Cable lengths up to 100m are supported.
Item 2: General Purpose I/O PORT
1
2
3
4
5
6
7
89
10
11
12
PIN FUNCTION
1Trigger Inpu
t
2Sync Out 2
3Sync Out 3
4RS-232 RXD
5RS-232 TXD
6DNC
7DNC
8DNC
9DNC
10 Isolated Ground
11 Isolated Ground
Figure 3. General Purpose I/O Pin out. Camera rear view. 12 Isolated Ground
The General Purpose I/O port uses a Hirose HR10A-10R-12SB connector on the camera side. The
mating cable connector is Hirose HR10A-10P-12P. This connector can be purchased from AVT or
from http://www.digikey.com.
See Addendum for more detail.
DO NOT EXCEED 5.5V ON SIGNAL INPUTS.
All inputs and outputs are galvanically isolated from the internal camera circuitry.
TRIGGER INPUT
This input signal allows the camera to be synchronized to some external event. The camera can be
programmed to trigger on the rising or falling edge of this signal. The camera can also be
programmed to capture an image at some programmable delay time after the trigger event.

GE1650 Technical Manual Page 11
Sync Out 2 and Sync Out 3
These signals only function as outputs and can be configured as follows:
Exposing Corresponds to when camera is
integrating light.
Trigger Ready Indicates when the camera will accept a
trigger signal.
Trigger Inpu
t
A relay of the trigger input signal used to
“daisy chain” the trigger signal for
multiple cameras.
Readou
t
Valid when camera is reading out data.
Strobe Programmable pulse based on one of the
above events.
Imaging Valid when camera is exposing or
reading out.
GPO User programmable binary output.
Any of the above signals can be set for active high or active low.
RS-232 RXD and RS-232 TXD
These signals are RS-232 compatible. These signals allow communication from the host system via
the Ethernet port to a peripheral device connected to the camera.
ISOLATED GROUND
These signals are internally connected to isolated ground. At least one of these signals must be
connected to the users external circuit ground. However, it is good practice to provide a dedicated
ground return for each signal used. For example, a good cable design would connect the required
signal on one conductor of a twisted pair and the isolated ground on the second conductor of the
same twisted pair.
DNC
These signals are reserved for future use and should be left disconnected.
Item 3: Mini-SMB Trigger Input
The Mini-SMB port on the camera uses an Amphenol 903-406J-51R connector. A suitable mating
cable connector is Amp 413985-3 which can be used with RG174 coaxial cable. Contact AVT to
purchase cabling.
The Mini-SMB Trigger Input is internally connected to the Trigger Input (Pin 1) of the General
Purpose I/O Port (Item 2 above). Therefore see this section for more detail.

GE1650 Technical Manual Page 12
Item 4: Mini-SMB Sync Out 1
This Mini-SMB port on the camera uses an Amphenol 903-406J-51R connector. A suitable mating
cable connector is Amp 413985-3 which can be used with RG174 coaxial cable. Contact AVT to
purchase cabling.
This connector is particularly useful for triggering multiple cameras in a “daisy chain” fashion.
The Sync Out 1 signal can be configured as follows:
Exposing Corresponds to when camera is
integrating light.
Trigger Ready Indicates when the camera will accept a
trigger signal.
Trigger Inpu
t
A relay of the trigger input signal used to
“daisy chain” the trigger signal for
multiple cameras.
Readou
t
Valid when camera is reading out data.
Strobe Programmable pulse based on one of the
above events.
Imaging Valid when camera is exposing or
reading out.
GPO User programmable binary output.
Any of the above signals can be set for active high or active low.
Item 5: Status LED 1
LED COLOR STATUS
Solid Green Ethernet link established.
Flashing Green Ethernet activity.
Item 6: Status LED 2
LED COLOR STATUS
Solid Green Normal operation.
Solid Orange Firmware missing.
Flashing Orange Camera faul
t
.

GE1650 Technical Manual Page 13
Item 7: AUXILIARY POWER PORT
This port is required to provide power to the camera.
This port provides threaded captivation of the power cable if required. The captivated cable
mating connector is the Switchcraft 760K. This connector can be purchased from AVT or from
http://www.digikey.com.
Cameras designated as “A” or “B”, with serial numbers 02-2xxxA-xxxxx or 02-2xxxB-xxxxx can
accept an input voltage range of 5V to 17V DC.
Cameras designated as “C”, with serial numbers 02-2xxxC-xxxxx and later versions can accept an
input voltage range of 5V to 24V DC.
However the suggested nominal voltage is 12V and cameras are tested at 12V.
Cameras will normally include a power supply. However compatible power supplies can also be
ordered separately from AVT (AVT P/N 02-8000A for North America or AVT P/N 02-8001A for a
Universal supply). The inner conductor is positive power and the external conductor is ground.
THE CAMERA POWER SUPPLY OPERATES MOST EFFICIENTLY AT 12V.

GE1650 Technical Manual Page 14
Cleaning the Sensor
DO NOT CONTACT CLEAN SENSOR UNLESS ABSOLUTELY NECESSARY.
Identifying Debris
Debris on the image sensor or optical components will appear as a darkened area or smudge on the
image that does not move as the camera is moved. Do not confuse this with a pixel defect which
will appear as a distinct point.
Locating Debris
Before attempting to clean the image sensor, it is important to first determine that the problem is
due to debris on the sensor window. To do this you should be viewing a uniform image, such as a
piece of paper, with the camera. Debris will appear as a dark spot or dark region that does not
move as the camera is moved. To determine that the debris is not on the camera lens, rotate the
lens independent of the camera. If the spot moves as the lens moves, then the object is on the
lens -not on the image sensor- and therefore cleaning is not required. If the camera has an IR
filter, then rotate the IR filter. If the object moves then the particle is on the IR filter not the
sensor. If this is the case remove the IR filter carefully using a small flat head screw driver. Clean
both sides of the IR filter using the same techniques as explained below for the sensor window.
DO NOT TOUCH ANY OPTICS WITH FINGERS. OIL FROM FINGERS CAN DAMAGE FRAGILE
OPTICAL COATINGS.
Cleaning with Air
If it is determined that debris is on the sensor window, then remove the camera lens, and blow the
sensor window directly with clean compressed air. If canned air is used, do not shake or tilt the
can prior to blowing the sensor. View a live image with the camera after blowing. If the debris is
still there, repeat this process. Repeat the process a number of times with increased intensity until
it is determined that the particulate cannot be dislodged. If this is the case then proceed to the
contact cleaning technique.
Contact Cleaning
Only use this method as a last resort. Use 99% laboratory quality isopropyl alcohol and clean
cotton swabs. Dampen the swab in the alcohol and gently wipe the sensor in a single stroke. Do
not reuse the same swab. Do not wipe the sensor if the sensor and swab are both dry. You must
wipe the sensor quickly after immersion in the alcohol, or glue from the swab will contaminate the
sensor window. Repeat this process until the debris is gone. If this process fails to remove the
debris, then contact AVT.

GE1650 Technical Manual Page 15
Adjusting the C-mount
LOCKING RING
C MOUNT RING
Figure 4. Camera Front View.
THE C-MOUNT IS ADJUSTED AT THE FACTORY AND SHOULD NOT REQUIRE ADJUSTING.
If for some reason, the C-mount requires adjustment, use the following method.
Loosen Locking Ring
Use an adjustable wrench to loosen locking ring. Be careful not to scratch the camera. When the
locking ring is loose, unthread the ring a few turns from the camera face. A wrench suitable for this
procedure can be provided by AVT (P/N 11-0048A).
Image to Infinity
Use a c-mount compatible lens that allows an infinity focus. Set the lens to infinity and image a
distant object. The distance required will depend on the lens used but typically 30 to 50 feet
should suffice. Make sure the lens is firmly threaded onto the c-mount ring. Rotate the lens and c-
mount ring until the image is focused. Carefully tighten locking ring. Recheck focus.

GE1650 Technical Manual Page 16
Camera Installation
Computer Interface
The Prosilica GE Series cameras will work with any Gigabit Ethernet network card; however AVT
strongly recommends using Gigabit Ethernet components that support Jumbo Frames. A Jumbo
Frame is loosely defined as a frame size greater than 1500 bytes however typical Jumbo Frames are
around 9000 bytes. Frame size is the number of bytes per packet and the larger the frame size, the
less the computer CPU will be loaded due to the processing of incoming packets.
There are many Gigabit Ethernet cards available which will support Jumbo Frames. The following
examples have been verified to work well with the Prosilica GE cameras:
•Intel PRO/1000
•D-Link DGE-550T
•SMC EZ Card 1000
Gigabit Ethernet cards supporting this feature can also be purchased with the camera (AVT P/N 02-
3002A).

GE1650 Technical Manual Page 17
Gigabit Ethernet Setup for Windows
oInstall network card in computer.
oBoot the PC and cancel the “Found new Hardware Wizard” window that may appear when
Windows detects the new card.
oInstall the driver that came with the network card.
oOnce the driver is installed, open the Network Connections Dialog as follows: From the
Windows desktop select start, then select Control Panel, then double click on the Network
Connections icon. Double click the relevant network card listed or right-click the relevant
network card and select Properties. This will open the properties window for your network
card. See Figure 5.
Figure 5. Network card main properties window.
oSelect the Internet Protocol (TCP/IP) check box and then select Properties. See Figure 6.
Network card TCP/IP address.. Select the Use the following IP address and enter an IP address
of 169. 254. x. y, where xand ycan be any number. Press the TAB key after entering the IP
address and the subnet mask will automatically be entered. The subnet mask is 255. 255. 0. 0.
Click OK to save changes. Note that if Windows reports a conflict with the above IP address,
simply repeat the above steps and change the last digit of the IP address to a different value.

GE1650 Technical Manual Page 18

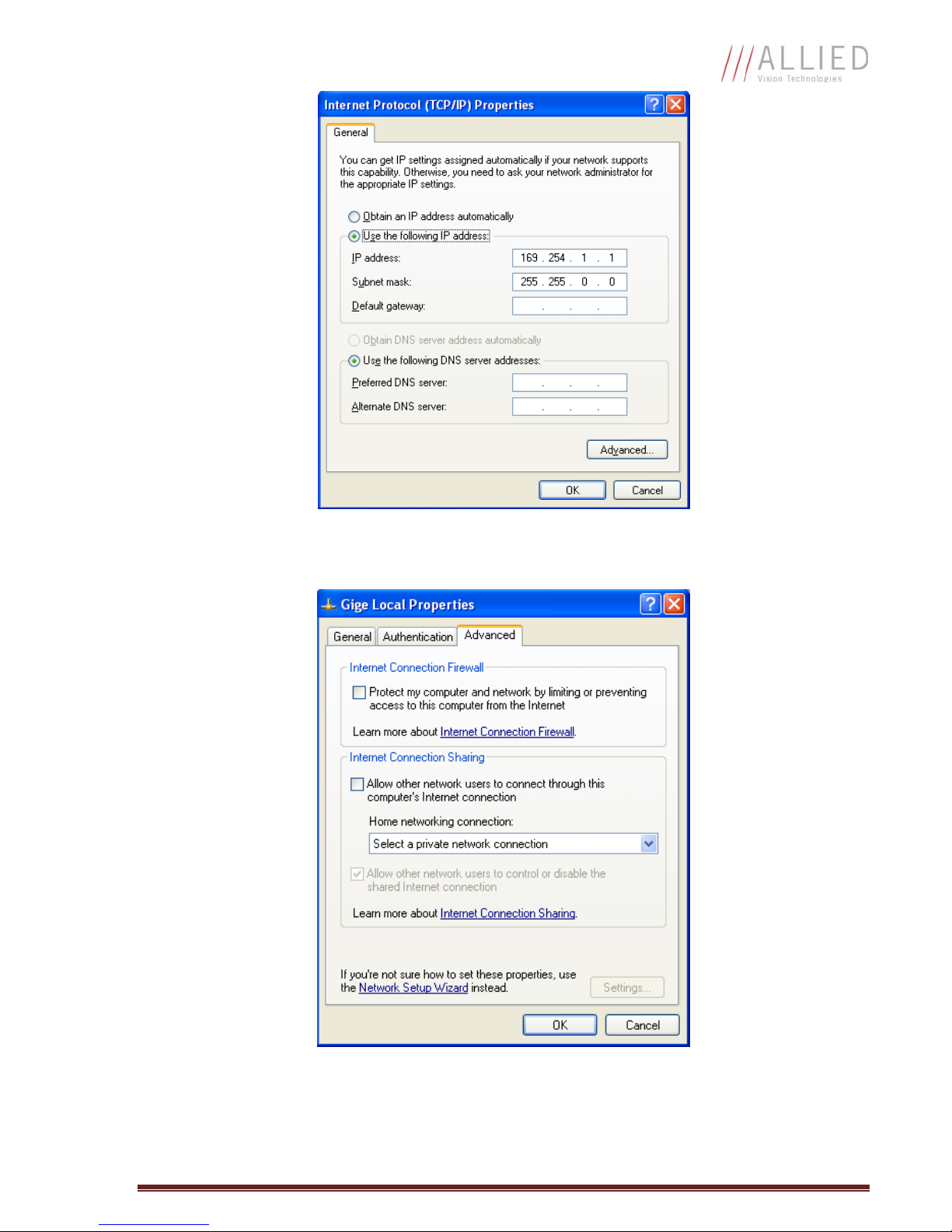

Figure 6. Network card TCP/IP address.
Figure 7. Turn off Firewall.
oReturn to the Gige Local Properties window as in Figure 5. Select the Advanced tab as in Figure
7 and disable the Firewall for this device. Click OK to save changes.

GE1650 Technical Manual Page 19
Gigabit Ethernet Cabling
All Gigabit Ethernet cabling and connectors should be CAT5E or CAT6 compatible. Cable lengths
must not exceed 100 meters.
Power Connection
The camera requires a 12V DC power supply that can source a minimum of 500 mA of current. See
the Connections section of this document for more information.
Other Cabling
The camera can be triggered either through the 12 pin general purpose connector or the mini-SMB
input. The compatible cable connectors are specified in the Connections section of this document
or contact AVT to purchase compatible cabling. AVT provides SMB-to-SMB or SMB-to-BNC cabling
of varying lengths.

GE1650 Technical Manual Page 20
Installing GigE Viewer for Testing
oThe latest Viewer software can be downloaded from
http://www.alliedvisiontec.com/us/support.html.
oRun the GigE Viewer Installer.exe. This will install the Prosilica GE Digital Camera drivers as
well as the AVT GigE Viewer application program.
oPlug in the Prosilica GE camera via the Gigabit Ethernet port. Plug in the power connection.
Verify that the Status LED 1 is a solid green. Run the AVT GigE Viewer Application. It will take a
few seconds for the camera to be recognized. If the camera does not appear in the Viewer list
after approximately 10 seconds then try disconnecting and reconnecting the power. If it still
does not appear restart the viewer. If it still does not appear, see the Trouble Shooting section
of this document.
oSee Figure 8. Select the wrench icon to change camera settings. Change the PacketSize to a
value of 1500. Select the eye icon to image. The camera should now be imaging. If the
camera is not imaging, see the Trouble Shooting section of this document. Note that the
PacketSize can be set to 8228 if the network card has been optimized to support jumbo frames.
oSee the System Optimization Section to maximize the performance of your system.

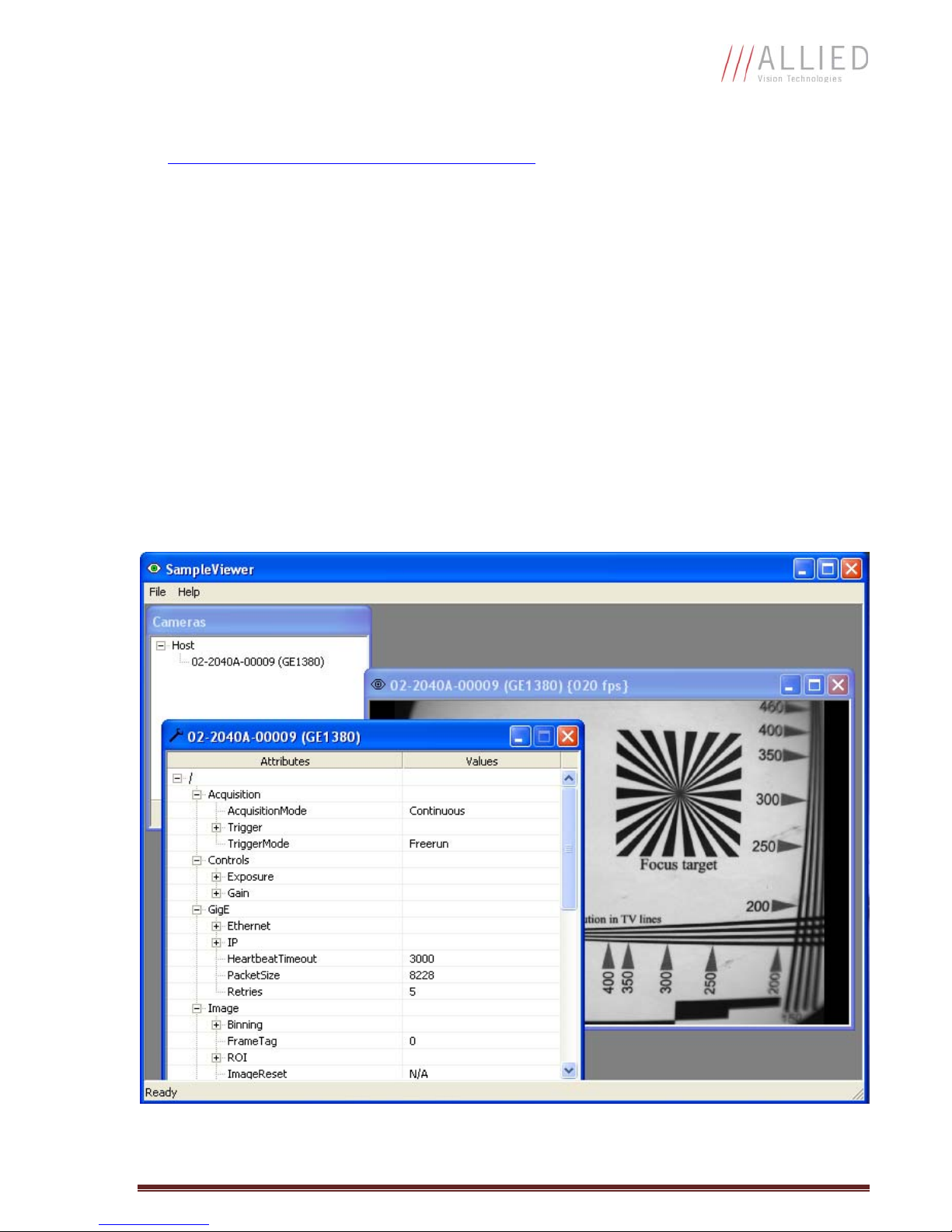

Figure 8. GigE Viewer application window.
