Allpro APS2730H Setup guide

309887B
Manufactured by
Repair Instructions and Parts List
Pressure Washers
INSTRUCTIONS
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
APS2730H
Model 246798, Series A
2700 psi (186 bar, 18.6 MPa) Operating Pressure
3000 psi (210 bar, 21.0 MPa) Maximum Working
Pressure
APS3030H
Model 246799, Series A
3000 psi (210 bar, 21.0 MPa) Operating Pressure
3300 psi (227.5 bar, 22.75 MPa) Maximum
Working Pressure
Table of Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Component Identification 3. . . . . . . . . . . . . . . . . . . . . . . .
Pressure Relief Procedure 4. . . . . . . . . . . . . . . . . . . . . . .
Pump Service 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Drawing 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASM Warranty 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
APS3030H Pressure Washer
Model 246799 Shown
ti1025
Related manuals
309886. . . . . . .

2309887
WARNING
FUEL HAZARD
The fuel used in this equipment is flammable. When spilled on a hot surface it can ignite and cause a
fire. Do not fill fuel tank while engine is running or hot.
INJECTION HAZARD
Spray from gun, leaks or ruptured components can inject fluid into your body and cause an extremely
serious injury, including the need for amputation. Splashing fluid in the eyes or on the skin can also
cause serious injury.
DFluid injected into the skin might look like just a cut, but it is a serious injury. Get immediate medi-
cal attention.
DDo not point gun at anyone or any part of the body.
DDo not put hand or fingers over the spray tip, and do not stop or deflect fluid leaks with your hand,
body, glove or rag.
DDo not “blow back” fluid; this is not an air spray system.
DAlways have tip guard and trigger guard on gun when spraying.
DEngage trigger safety whenever you stop spraying.
DFollow the Pressure Relief Procedure on page 4 when you are instructed to relieve pressure;
stop spraying; check, clean, or service any system equipment; or install or change spray tips.
DTighten all fluid connections before each use.
DCheck the hoses, tubes and couplings daily. Replace worn or damaged parts immediately. Perma-
nently coupled hoses cannot be repaired.
DHandle and route hoses and tubes carefully. Keep hoses and tubes away from moving parts and
hot surfaces. Do not use the hoses to pull equipment. Do not expose ASM hoses to temperatures
above 150_F (65_C) or below –40_F (–40_C).
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the
skin, inhaled, or swallowed.
To help prevent injury or death from toxic fluids
DKnow specific hazards of fluid you are using; store hazardous fluid in approved tub; dispose of
hazardous fluid according to all local, state, and national guidelines.
DAlways wear protective eyewear, gloves, clothing, and respirator as recommended by fluid and
solvent manufacturer.
FLUID SPLASHBACK HAZARD
To avoid splashback of fluid while spraying, make sure the spray gun is assembled with the correct
gasket for the fluid being sprayed.
EXHAUST HAZARD
The exhaust contains poisonous carbon monoxide which is colorless and odorless. Do not operate
this equipment in a closed building.

3309887
Component Identification
D
Gun and wand
High Pressure Hose Con-
nection and Garden Hose
Connection
Hose
On/Off Engine Switch (side)
Hydraulic Fluid Fill
Engine Oil Fill
Pressure Unloader
Adjustment Knob
Tip Storage
garden hose
connection
high pressure hose
connection
Oil Level Site Gage

4309887
Pressure Relief
Follow these instructions whenever you are instructed to relieve pressure,
stop spraying for more than 10 minutes, check or service the equipment,
or install or clean the spray nozzle.
1. Engage trigger safety latch.
2. Turn Pressure Washer off and remove ignition cable
from spark plug.
3. Shut off water supply. Disconnect from water.
4. Remove trigger safety latch and trigger gun to
relieve pressure. Then engage the safety latch.
Note: If you suspect the spray tip or hose is clogged or that pressure has not been fully relieved after
following this procedure, disengage trigger safety latch and trigger gun again.

5309887
Maintenance Chart
Relieve pressure, page 4.
Interval What to do
Daily Clean water inlet screen and filter. Check engine and pump oil levels. Fill as necessary. Check
gasoline level. Fill as necessary.
After first
5 hours of
operation
Change engine break-in oil. Drain oil when warm. Use SAE 30 or 10W–30 detergent oil.
After every
25 hours of
operation
Clean and remove air cleaner foam. Wash with water and detergent. Dry thoroughly. Rub with
oil, and squeeze to distribute oil.
After first
50 hours of
operation
Change pump break-in oil. Use approved SAE 20/30 pump oil.
After every
100 hours of
operation, or
every 3 months
Clean or replace paper air cleaner cartridge. Tap gently to remove dirt. Change engine oil. Use
SAE 30 or 10W–30 detergent oil.
After every
500 hours of
operation, or
every 6 months
Change pump oil. Use approved SAE 20/30 pump oil.

6309887
Troubleshooting
Relieve pressure, page 4.
Problem Cause Solution
Engine will not start or
is hard to start.
No gasoline in fuel tank or carburetor Fill tank with gasoline, open fuel shutoff valve.
Check fuel line and carburetor.
Low oil Add oil to proper level.
Start/Stop switch in STOP position Move switch to START position
Water in fuel or old fuel Drain fuel tank and carburetor. Use new fuel
and make sure spark plug is dry.
Engine flooded or improperly choked Open choke, pull engine starter rope several
times to clear out fuel. Make sure spark plug
is dry.
Dirty air cleaner filter Remove and clean.
Spark plug dirty, wrong gap, or wrong
type
Clean, adjust gap or replace.
Gun not triggered Trigger gun while starting engine.
6.5 hp Briggs & Stratton model may
experience “vapor lock” due to gas type
and temperature
Allow unit to cool approximately 15 minutes
and restart.
Engine misses or
lk
Partially plugged air cleaner filter Remove and clean.
lacks power Valve adjustment (lash) worn Adjust valve lash to manufacturer’s
specification.
Spark plug dirty, wrong gap, or wrong
type
Clean, adjust gap or replace.
Pressure is too low
d/
Worn or wrong size tip Replace with tip of proper size.
and/or pump runs
roughly
Inlet filter clogged Clean. Check more frequently.
roughly
Worn packings, abrasives in water, or
natural wear
Check filter. Replace packing.
Inadequate water supply Check water flow rate to pump.
Fouled or dirty inlet or discharge valves Clean inlet and discharge valve assemblies.
Check filter.
Restricted inlet Garden hose might be collapsed or kinked.
Worn inlet or discharge valves Replace worn valves.
Leaking high–pressure hose Replace high–pressure hose.
Water leaks from
under pump minifold
Worn packings Install new packings.
Water on oil side of
pump
Humid air condensing inside crankcase Change oil as specified in Maintenance Chart
(page 5).
pp
Worn packings Install new packings.
Oil seals leaking Install new oil seals.

7309887
Problem Cause Solution
Packings are failing
freq entl or
Scored, damaged, or worn plungers Install new plungers.
frequently or
p
r
e
m
atu
r
e
l
y
Abrasive material in fluid being pumped Install proper filtration on pump inlet plumbing.
prematurely
Inlet water temperature too high Check water temperature. It should not
exceed 160_F (70_C).
Overpressurizing pump Do not modify any factory–set adjustments.
Excessive pressure due to partially
plugged or damaged tip
Clean or replace tip. See Installing and
Changing Spray Tips, Operating Instruction
manual 309886.
Pump running too long without spraying Never run pump more than 10 minutes without
spraying.
Running pump dry Do not run pump without water.
Strong surging at inlet
and low pressure on
discharge side
Foreign particles in inlet or discharge
valve or worn inlet and/or discharge
valves
Clean or replace valves.

8309887
Pump Service: APS2730H
Repair kits are available. See the Parts Lists (page 12). For the best results, use all parts in the kits.
Relieve pressure, page 4.
NOTES:
DMetric wrenches needed: 5 mm, 13 mm, 22 mm.
DTool Kit 245618 contains tools for removing packing
retainers.
DDrain and refill pump after 50 hours of operation.
Valves
Order Valve Assembly Kit 245606.
1. Remove hex plug from manifold using a 22 mm
socket.
2. Examine o-ring seated under hex plug. Replace it if
cut or distorted.
3. Remove valve assembly from cavity; the assembly
might come apart.
4. Install new valve, o-ring and hex plug. Torque to 33
ft-lb (45 NSm).
NOTE: Retorque plug after 5 hours of operation.
Pumping Section
1. Remove 8 capscrews and lockwashers from
manifold using a 5 mm wrench.
2. Carefully separate manifold from crankcase.
NOTE: If stuck, tap manifold lightly with a soft mallet
to loosen it.
CAUTION
To avoid damaging plunger or seals, keep manifold
properly aligned with ceramic plungers when you
remove it.
3. Carefully examine each plunger for any scoring or
cracking, and replace as necessary.
Servicing Plungers
1. Turn plunger retaining nut 5 or 6 turns using a 13
mm wrench to loosen. Push plunger toward crank-
case to separate plunger and retaining screw.
2. Remove nut from plunger. Examine and clean
o-ring, backup ring, and copper bearing/gasket
washer.
3. Remove plunger and flinger from plunger shaft.
Clean parts as necessary.
4. Inspect plunger shaft for oil leakage from crank-
case. If leaking is obvious, replace oil seals. Other-
wise, DO NOT remove these seals, they cannot be
reused. Order Oil Seal Kit 245604 for replacing
seals.
5. Lightly grease flinger (and oil seal if it is being
replaced), and install on plunger shaft. Then
install plunger.
6. Lightly grease retaining screw and outer end of
plunger. Place washer, o-ring, and backup ring
around screw, and install nut through plunger.
Torque to 11 ft-lb (15 NSm).
NOTE: If replacing packings, see Servicing the V-
packings page 9.
7. Lubricate outside of each plunger. Slide manifold
onto crankcase, being careful not to damage
seals.
8. Install cap screws and washers finger tight. Torque
the screws to 8.8 ft-lb (12 NSm) following tighten-
ing pattern (Fig. 1). Uneven tightening could cause
manifold to bind or jam.

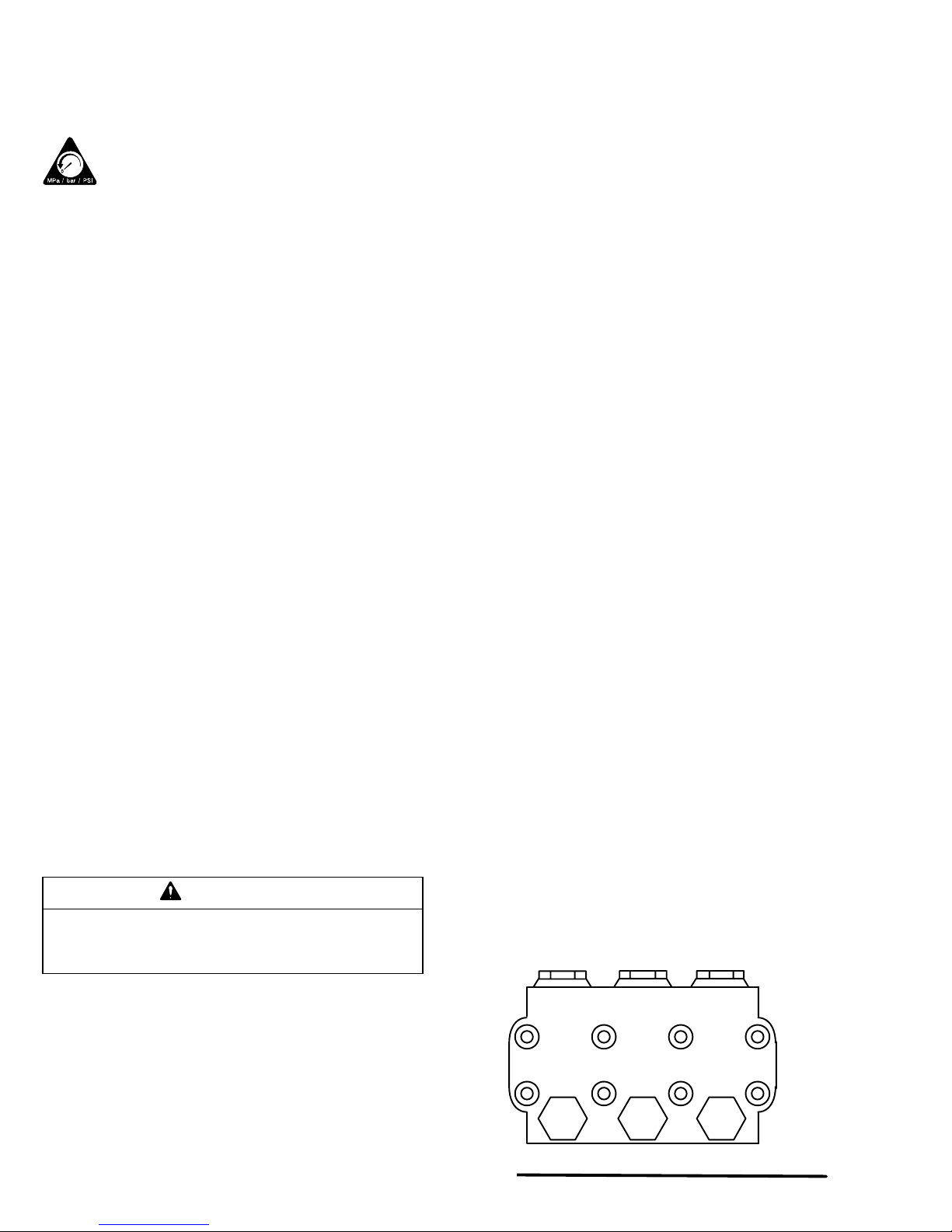

14
2
3
5
8
7
6
9278
Fig. 1

9309887
Servicing V-Packings
1. Remove manifold as outlined in Pumping Section
on page 8.
2. Carefully pull packing retainer from manifold.
Examine o-ring, and replace if cut or damaged.
3. Remove v-packing and head ring. Pull out interme-
diate retainer ring. Remove second v-packing and
second head ring.
4. Inspect all parts and replace as necessary.
5. Thoroughly clean packing cavities and examine for
debris or damage.
6. Lightly grease packing cavities and replace the
packings in the following order: head ring, v-pack-
ing, intermediate ring, head ring, v-packing, pack-
ing retainer. Install o-ring in retainer groove.
CAUTION
Install parts in proper order and facing proper direc-
tion. Improperly installed parts will cause a malfunc-
tion.
7. Reassemble manifold as instructed in Servicing
Plungers on page 8.

10 309887
Pump Service: APS3030H
Repair kits are available. See the Parts Lists (page 14). For the best results, use all parts in the kits.
Relieve pressure, page 4.
NOTES:
DMetric wrenches needed: 6 mm, 13 mm, 27 mm.
DTool Kit 245618 contains tools for removing packing
retainers .
DDrain and refill pump after 50 hours of operation.
Valves
Order Valve Assembly Kit 245606.
1. Remove hex plug from manifold using a 27 mm
socket.
2. Examine o-ring seated under hex plug. Replace if
cut or distorted.
3. Remove valve assembly from cavity; the assembly
might come apart.
4. Install new valve, o-ring and hex plug. Torque to 73
ft-lb (99 NSm).
NOTE: Retorque plug after 5 hours of operation.
Pumping Section
1. Remove 8 capscrews and lockwashers from mani-
fold using a 6 mm wrench.
2. Carefully separate manifold from crankcase.
NOTE: If stuck, tap manifold lightly with a soft mallet
to loosen it.
CAUTION
To avoid damaging plunger or seals, keep manifold
properly aligned with ceramic plungers when you
remove it.
3. Carefully examine each plunger for any scoring or
cracking, and replace as necessary.
Servicing Plungers
Order Plunger Repair Kit 245619. It includes replace-
ment retainers, o-rings, washers, and backup rings for
three cylinders.
1. Turn plunger retaining nut 5 or 6 turns using a 13
mm wrench to loosen. Push plunger toward crank-
case to separate plunger and retaining screw.
2. Remove nut from plunger and examine o-ring,
backup ring, and copper bearing/gasket washer.
Replace these parts if necessary.
3. Remove plunger and flinger from plunger shaft.
Clean and replace parts as necessary.
4. Inspect plunger shaft for oil leakage from crank-
case. If leaking is obvious, replace oil seals. Other-
wise, DO NOT remove these seals, because they
cannot be reused. Order Oil Seal Kits 245604 for
replacing the seals.
5. Lightly grease the flinger (and oil seal if it is being
replaced), and replace on plunger shaft. Then
install plunger.
6. Lightly grease retaining screw and outer end of
plunger. Place washer, o-ring, and backup ring
around screw, and install nut through plunger.
Torque to 14.4 ft-lb (19.5 NSm).
NOTE: If replacing packings, see Servicing V-pack-
ings, page 11.
7. Lubricate outside of each plunger. Slide the mani-
fold onto the crankcase, being careful not to dam-
age seals.
8. Install cap screws and washers finger tight. Torque
screws to 22 ft-lb (30 NSm) following tightening
pattern (Fig. 2). Uneven tightening could cause
manifold to bind or jam.
14
2
3
5
8
7
6
9278
Fig. 2

11309887
Servicing V-Packings
NOTE: There are two types of packing kits: One is
packings only. The other includes packings, o–rings
and retainers.
1. Remove the manifold as outlined in Pumping
Section on page 10.
2. Carefully pull packing retainer from manifold.
Examine o-ring and replace if cut or damaged.
3. Remove v-packing and head ring. Pull out interme-
diate retainer ring. Remove second v-packing and
second head ring.
4. Inspect all parts. Replace as necessary.
5. Thoroughly clean packing cavities. Examine for
debris or damage.
6. Lightly grease packing cavities. Replace packings
in the following order: head ring, v-packing, inter-
mediate ring, head ring, v-packing, packing retain-
er. Install o-ring in retainer groove.
CAUTION
Install parts in proper order and facing proper direc-
tion. Improperly installed parts will cause a malfunc-
tion.
7. Reassemble manifold as instructed in Servicing
Plungers on page 10.

12 309887
Parts: APS2730H
Model Nos. 246798 Series A, with Honda 6.5 HP Motor
ti1612a
7
19 26
1
14
13
31
28
32*
5
14
31
18
8–12 18
37
37
39, 27
29*
3
22
23
21
20
16
38, 15
25
17
4
35*
2
34*
30
33*
*internal replacement parts

13309887
Parts: APS2730H
Model Nos. 246798, Series A with Honda 6.5 HP Motor
Ref.
No.
Part No. Description Qty.
1 15A405 ENGINE, gasoline 6.5 HP
Honda
1
2 245585 PUMP, water 2700,
complete
1
3 245422 KIT, frame, includes
wheels, feet and tip grom-
mets
4 245582 GUN assembly 1
5 245587 HOSE 1
7 15A406 WHEEL, pneumatic 2
8 15A407 TIP, spray 1
9 15A408 TIP, spray 1
11 15A409 TIP, spray 1
245586 KIT, tip 4–pack 1
12 15A394 TIP, spray, chemical 1
13 15A395 STRAINER 1
14 15A396 TUBING, chemical, 1/4–in
ID X 8 ft
1
15 15A397 CAP, end 2
16 15A398 SCREW 4
17 15A399 NUT, nylock 4
18 15A400 COUPLING, quick release 1
Ref.
No.
Part No. Description Qty.
19 15A401 SPRING, compression 2
20 15A402 SCREW, cap 2
21 15A483 WASHER, flat 2
22 15A484 NUT, lock 2
23 15A495 FOOT, rubber 2
24 15A485 VALVE, thermal 3/8 NPT 1
25 15A492 KEY, square 1
26 15A487 WASHER, nylon 2
27 245601 KIT, unloader, preset, 2700 1
28 15A485 VALVE, thermal 1
29 245599 KIT, repair, chemical
injector
1
30 15A488 MANIFOLD, pump,
replacement
1
31 15A489 COUPLING, chemical
injector
1
32 245605 KIT, pump, packing
(3 cylinders)
1
33 245606 KIT, pump, valve
(3 cylinders)
1
34 15A494 KIT, pump, plunger
(set of 3)
1
35 245604 KIT, pump, oil seal 1
37 245600 FITTING, pump, inlet 1
38 15A491 NUT, push on (not shown) 2
39 245603 CHEMICAL injector com-
plete
1

14 309887
Parts: APS3030H
Model Nos. 246799, Series A with Honda 9 HP Motor
ti1613a
*internal replacement parts
20
21
23
7
3
22
16
19 26
39,15
25
17
1
14
13
30*
28
33 32
40, 27
31
18
14
18
31 37
37
29*
34*
235*
5
8–12
4

15309887
Parts: APS3030H
Model Nos. 246799, Series A with Honda 9 HP Motor
Ref.
No.
Part No. Description Qty.
1 15A389 ENGINE, GX270 1
2 245580 PUMP, water 3000 1
3 245422 KIT, frame, includes
wheels, feet, and tip
grommets
4 245582 GUN assembly 1
5 245587 HOSE, 3000 1
7 15A390 WHEEL, pneumatic 2
8 15A391 TIP, spray 1
9 15A392 TIP, spray 1
11 15A393 TIP, spray 1
245584 KIT, tip 4–pack 1
12 15A394 TIP, spray, chemical 1
13 15A395 STRAINER 1
14 15A396 TUBING, chemical, 1/4–in
ID X 8 ft
1
15 15A397 CAP, end 2
16 15A398 SCREW 4
17 15A399 NUT 4
18 15A400 COUPLING, quick release 1
19 15A401 SPRING, compression 2
20 15A402 SCREW, cap 2
Ref.
No.
Part No. Description Qty.
21 15A483 WASHER, flat 2
22 15A484 NUT, lock 2
23 15A495 FOOT, rubber 2
25 15A493 KEY, square 1
26 15A487 WASHER, nylon 2
27 245602 KIT, repair, unloader, preset
3000
1
28 15A486 VALVE, thermal 1
29 245599 KIT, repair, chemical
injector (internal parts only)
1
30 15A490 MANIFOLD, pump,
replacement
1
31 15A489 COUPLING, chemical
injector
1
32 245607 KIT, pump, packing
(3 cylinders)
1
33 245606 KIT, pump, valve
(3 cylinders)
1
34 245608 KIT, pump, plunger
(set of 3)
1
35 245604 KIT, pump, oil seal 1
37 245600 FITTING, pump, inlet 1
39 15A491 NUT, push on (not shown) 2
40 245603 CHEMICAL, injector com-
plete
1

16 309887
ASM Standard Warranty
ASM warrants all equipment referenced in this document which is manufactured by ASM and bearing its name to be free from defects
in material and workmanship on the date of sale by an authorized ASM distributor to the original purchaser for use. With the exception
of any special, extended, or limited warranty published by ASM, ASM will, for a period of twelve months from the date of sale, repair or
replace any part of the equipment determined by ASM to be defective. This warranty applies only when the equipment is installed,
operated and maintained in accordance with ASM’s written recommendations.
This warranty does not cover, and ASM shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or sub-
stitution of non–ASM component parts. Nor shall ASM be liable for malfunction, damage or wear caused by the incompatibility of ASM
equipment with structures, accessories, equipment or materials not supplied by ASM, or the improper design, manufacture, installa-
tion, operation or maintenance of structures, accessories, equipment or materials not supplied by ASM.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized ASM distributor for
verification of the claimed defect. If the claimed defect is verified, ASM will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
ASM’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
ASM MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT
NOT MANUFACTURED BY ASM. These items sold, but not manufactured by ASM (such as electric motors, switches, hose, etc.), are
subject to the warranty, if any, of their manufacturer. ASM will provide purchaser with reasonable assistance in making any claim for
breach of these warranties.
In no event will ASM be liable for indirect, incidental, special or consequential damages resulting from ASM supplying equipment here-
under, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of
warranty, the negligence of ASM, or otherwise.
FOR ASM BRAZILIAN/CANADIAN/COLUMBIAN CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English.
TO PLACE AN ORDER OR FOR SERVICE, contact your ASM distributor,
or call ASM 1–800–854–4025 to identify the nearest distributor.
All written and visual data contained in this document reflects the latest product information available at the time of publication. ASM reserves the
right to make changes at any time without notice.
ASM Company, 3500 North 1st Ave., Sioux Falls, SD 57104
www.asmcompany.com
PRINTED IN USA 309887 02/2006
