Alogic Clarity 27F34KCPD User manual

Schnellstartanleitung
Quick Start Guide
Guida Rapida
Guide de démarrage
rapide
Guía de inicio rápido
ク イッ クス タートガイド

Краткое руководство
пользователя

Schnellstartanleitung
Quick Start Guide
Guida Rapida
Guide de démarrage rapide
Guía de inicio rápido
クイッ クスタートガイド

Краткое руководство
пользователя

3
Content
English .................................................................................................................................................................................................................. 4
Deutsch .............................................................................................................................................................................................................. 12
Lenguas Españolas ........................................................................................................................................................................................ 20
Français ............................................................................................................................................................................................................ 28
Italiano ............................................................................................................................................................................................................... 36
日本語 ............................................................................................................................................................................................. 44

русский язык .................................................................................................................................................................................................. 60
Designed in Australia. Manufactured in China

4
Refresh Rate 60Hz
Viewing Angle 178°(H) / 178°(V)
Contrast Ratio 1000:1
VESA Mounting 75 x 75mm
Display Colors 1.07B
Interface 1x DP 1.4, 2x HDMI 2.0, 1x Type-C, 2x USB-A,
1x USB-B, 1x Audio Out
Power Input DC 19.5V 9.23A
Audio Speakers: 5Wx2
Audio Out: Yes
Low Blue Light Yes
Flicker Free Yes
USB PD Power Delivery Up to 90W (20V 4.5A) max. power to host computer
1
4
8
5
9
6
10
7
11 12
2 3
Package Contents
Clarity 27” UHD 4K Monitor
Stand Stem
Stand Base
1m USB-C to USB-C Cable (USB3.2 - Gen1)
1.5m Standard USB-A to USB-B Cable
1.5m Standard DisplayPort to DisplayPort Cable
1.5m HDMI to HDMI Cable
Screws x 4 (for Wall Mounting)
Power Cable (AC 100-240V, 50/60Hz)
Power Adapter
User Manual
Color Delta E Report
1
2
3
4
5
6
7
10
11
12
9
8
Model 27F34KCPD
Screen Size 27”
Dimensions 624mm x 220mm x 565mm (L x W x H)
Weight 7.6 kgs
Material ABS, Glass, Aluminium
Power Adapter Input: AC 100-240V~, 50/60Hz
Output: DC 19.5V 9.23A, 180W (Max)
Aspect Ratio 16:9
Backlight QD
Brightness 400cd/m2(Typ.), 350cd/m2(Min.)
Panel IPS
Resolution DP1.4: 3840*2160@60Hz
HDMI2.0: 3840*2160@60Hz
Specifications
Clarity
27” UHD 4K Monitor

5
EN
1 2 3 4 5 6
7 98 10 11 12 13
Menu: Press to display OSD menu and enter sub-menus
Down: Press to move down in menus
Up: Press to move up in menus
Exit: Press to exit OSD menu
Power: Press to turn monitor on/o
LED indicator: LED indicator and power button are integrated
1
2
3
Monitor Controls
USB-A Port
USB-B Port
HDMI Port
DisplayPort Port
USB-C Port
Audio Output For Headphones Or Powered Speakers
Power Input
Monitor Ports
7
8
9
10
11
12
13
Indicator Light
The indicator light shows steady white to indicate that the power is on and the
monitor is operating normally. The steady blue light indicates that there is no
video source, an invalid signal, or low voltage is detected. Please make sure that
your computer is turned on and all video cables are fully plugged in or connected.
White Operating Normally
No video source
Invalid signal
Low voltage is detected
Blue
4
5
6

6
Unpacking and Assembly
Disassembly and Storage
1. Open the lid of the monitor box, remove the upper Styrofoam tray containing
the stand and place it to one side.
1. Open the lid of the monitor box, remove the upper Styrofoam tray and place it
to one side.
2. Place the soft bag over the monitor and lay it in face down in the Styrofoam
tray in the box. Ensure that the bag sits flat against the screen of the monitor
and is not folded over itself or bunched up. Excessive bunching of the bag
under the monitor screen may damage the screen when it is laid in the box.
3. Carefully lift the monitor out of the Styrofoam tray and stand it on the desk ready for use.
Warning: Do not put pressure on the display area of the
monitor while assembling or moving the monitor. The display
screen is fragile - applying force to it will break the display.
Keep the monitor box and Styrofoam packaging for future
transportation and storage of the monitor.
Before unpacking the stand, ensure that the box is placed on a flat, clear surface.
Before disassembling the monitor, ensure that the box is placed on a flat, clear surface.
Self-tightening screw
Push latch toward
top edge of monitor
Push stand up
and lift away
from monitor
2. Open the soft bag that protects the monitor to reveal where the stand
attaches to the rear of the monitor. Leave the monitor laying in the Styrofoam
tray to avoid damaging it while installing the stand.
Insert the top of the monitor stand into the mount on the rear of the monitor
and press downwards on the stand until it clicks into place. Do not use
excessive force to ensure that the monitor is not damaged.
3. Open the bag to reveal where the monitor attaches to the stand. Push the
monitor stand latch toward the top edge of the monitor and lift the base of the
stand upwards to release the stand from the monitor.
4. Close the bag and fold neatly over the rear of the monitor. Place the upper
Styrofoam tray on top of the monitor in the box.
Mounting bracket position
Thumb screw
5. Undo the screw, separating the base from the stand and place both pieces in
the upper foam packaging tray.
Stand Base
Accessory bag
Stand Stem

7
1. Lay the monitor face down in its Styrofoam packaging tray.
2. Locate the mounting spacers in the accessory bag that comes with the
monitor. With the monitor laying in its Styrofoam tray, screw in the four
spacers into the holes in the recess where the stand attaches. Do not over
tighten - tightening the spacers too much may cause damage to the monitor.
3. Screw the VESA mounting accessory into the mounting spacers.
4. Carefully lift the monitor and mounting accessory out of the tray and place
into position.
Ensure there is 50mm clearance around all sides of the monitor when it is
installed to ensure that is does not overheat.
Do not apply pressure to the rear of the monitor while fitting the mounting
accessory - downwards pressure on the screen may crack or otherwise
damage it.
Do not attempt to lay the screen on any uneven surface including soft
surfaces such as carpet and seating while attaching the mounting
accessory - damage to the screen may occur.
Mounting Options
Adapter Power Cable
Studs M4* X 4
Connecting the Monitor
Connecting the Power Cable
Connect the included power cable to the power connector, and then plug the other end into a wall outlet.
EN
The monitor has 75 x 75mm spaced mounting holes to allow it to be mounted to any compatible 75mm VESA standard monitor arm or wall mount accessory (not included).
The mounting holes are recessed in the region on the back of the monitor where the stand attaches and are hidden by the stand when it is installed. VESA mounts
cannot be used with the monitor while the stand is attached.
M4 threaded mounting spacers are included with the monitor which must be used when mounting the monitor to a monitor arm or other mount. Mount the monitor to a
VESA mounting accessory as follows.

8
Connecting a Video Source
The monitor includes four video inputs which can be connected simultaneously.
To connect a computer or other source device, plug one of the included HDMI,
DisplayPort or USB-C cables into the computer and into a corresponding port on
the monitor.
Connecting USB Devices
The display includes two USB type A ports that can be used to attach USB peripherals such as a keyboard, mouse or web camera to the computer.
In order for the computer to see devices attached to these ports, the computer must be connected to either (or both) of the USB type C and/or USB type B ports.
Notes:
- If the computer is only connected to the USB-C port on the display the ports will operate at USB 2.0 speeds because video trac shares the USB-C cable with the USB
data. This speed is sucient for most peripherals such as keyboards, mice and web cameras.
- If the computer is connected to the USB-B port on the display, the ports will operate at USB 3.0 speeds. This is preferable if using high speed storage devices such as
external hard drives and USB flash drives.
Audio Output
The display features inbuilt speakers as well as an audio output jack to allow
headphones and external speakers to be connected. When an external audio
device is connected, the display’s on-board speakers will be disabled.
Notes:
- The USB-C connection will provide up to 90W of power to computers which
support USB Power Delivery (USB PD). This allows the computer to display
video on the monitor while being charged over a single cable. As a result, the
USB-C connection type is the best option if your computer has this capability.
- Depending on the capabilities of the computer it may not be able to provide 4K
at a full 60Hz refresh rate if connected to the monitor using HDMI. The USB-C
or DisplayPort connection should be used as a first preference if the computer
supports these connection types.
- Not all USB-C ports on computers support video output and/or charging using
USB PD. If your computer does not show video on the monitor or start charging
when connected to the monitor using USB-C, check that the USB-C port on
the computer supports DisplayPort Alternate Mode video output and USB PD
charging.
- Not all USB-C cables support video transfer or charging above 60W. It is
recommended that you use the USB-C cable supplied with the monitor to
avoid potential issues with cables that have been obtained separately.
The audio port on the display only supports output devices such as headphones and speakers. It is not possible to connect microphones or other input devices to this
port. Headphones with built in microphones can be connected to this port, however the microphone will not function.
To send audio from your computer to the display speakers or connected audio device, select “27F34KCPD” as the audio destination on your computer.
HDMI Connector
DP Connector
USB-B
USB-C
USB-C
Connecting the Monitor
Headphones (not included)
USB-A
Connecting Audio Devices

9

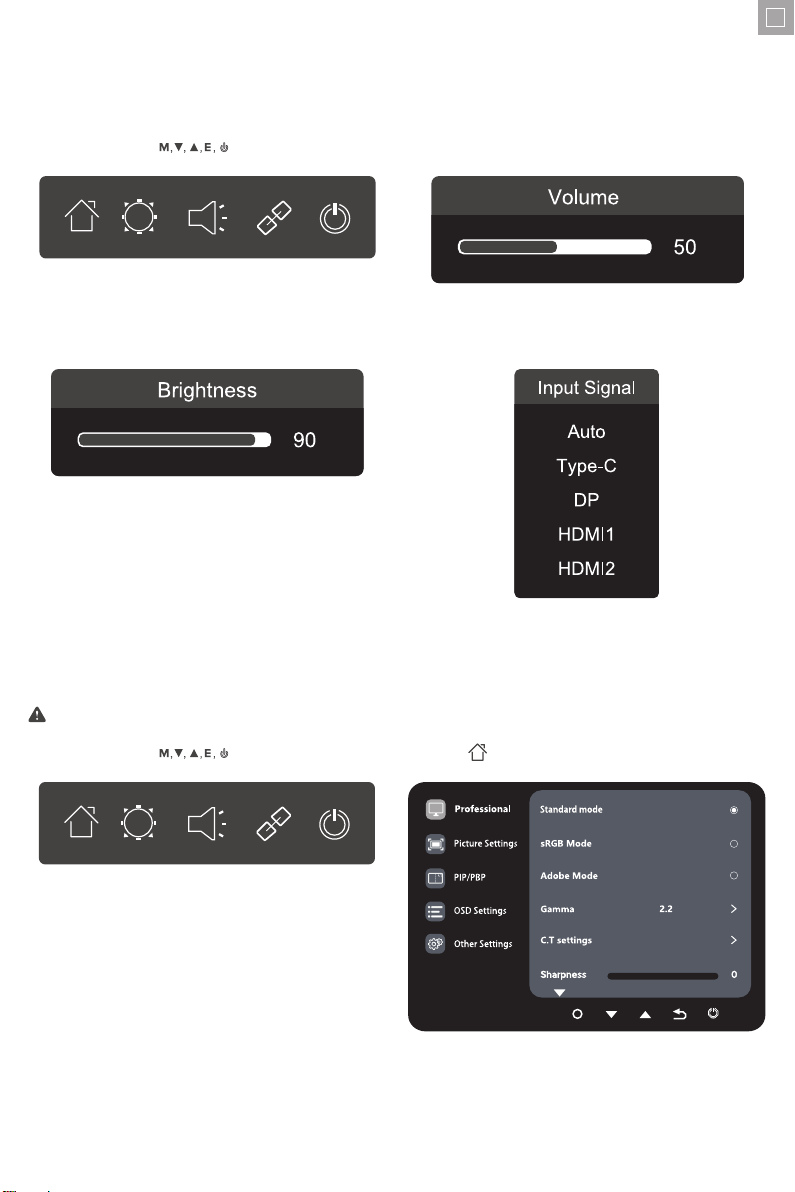

Using the On Screen Menu
3. Press ▲or ▼to navigate through the options.
• Select the desired function and press Mto enter the submenu.
• Press ▲or ▼to browse the submenu, and then press Mto confirm the selection of the desired function.
• Press ▲or ▼to select an option, then press Mto confirm the setting and enter the current menu.
4. Press Eto exit the menu interface.
The On-Screen Display ( OSD ) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button.
When using the monitor for the first time, settings will automatically adjust to optimal settings for the signal coming from your computer.
1. Press one of the buttons ( ) to activate the navigation window. 2. Press M( ) to enter the OSD screen.
EN
Key Operation
1. Press one of the buttons ( ) to activate the navigation window.
2. Press ▼button to adjust the brightness, you can adjust the brightness of the
display according to your needs using the ^ and v keys.
3. Press ▲button to adjust the volume, you can adjust the volume of the display
according to your needs using the ^ and v keys.
4. Press Ebutton to adjust the input source, you can switch display signal input
according to your needs using the ^ and v keys.
Warm
Warm

10
OSD Menu Functions
Main Menu Sub - Menu Options Description
Professional
Standard Mode N/A
sRGB Mode N/A
Adobe Mode N/A
Uniformity Mode N/A
Gamma 1.6, 1.8, 2.0, 2.2,
2.4, 2.6, 2.8, S.curve Set gamma add-in
C.T settings
Natural, Design,
Warm, Cool,
User C.T1,
User C.T2,
User C.T3
Sharpness 0-5 Adjust display sharpness
Shadow Balance 0-100 Adjust the Shadow Balance of the monitor
Low Blue Light 0-100 Set blue light filtering level
Hue R, G, B, C, M, Y Adjust hue levels
Saturation R, G, B, C, M, Y Adjust saturation levels
Dynamic Brightness O, Standard,
Expert, Elaboration Adjust display dynamic brightness
Picture Settings
Brightness 0-100 Adjust display brightness
Contrast 0-100 Adjust display contrast
DCR O, On Turn On/O DCR function
Contextual model O, Movie Mode, Reading Mode,
Night Mode, Care eyes Mode
Optimise display for dierent viewing
conditions
HDR O, HDR Standard, HDR Movie, HDR Design Adjust the HDR mode
Aspect ratio Wide Screen 4:3, 1:1, Auto Select on-screen aspect ratio
PIP/PBP
PIP/PBP Mode O, PIP Mode, PBP 2Win 1:1
PBP 2Win 2:1, PBP 2Win 1:2 Swap the PIP/PBP mode
Sub-Signal Source Type-C, DP, HDMI1, HDMI2 Select secondary signal input via
HDMI / DP or Type-C
Audio Source Auto, Type-C, DP, HDMI1, HDMI2 Select audio signal input via
HDMI / DP or Type-C
PIP Position Top Right, Top Left, Bottom Right, Bottom Left Adjust the sub-screen position
PIP Size Small, Medium, Large Adjust the size of the sub-screen
Window Swap N/A
OSD Settings
Language
English, 简体中文, 한국어, عربى,
Portugues do Brasilazil, Deutsch, Nederland,
Suomi, Français, Ελληνικά, Indonesia, Italiano,
日本語, Malaysia, Polskie, Português, Pусский,
Español, ไทย, Українська, Tiếng Việt,
繁體中文, Türkçe
Set OSD language
OSD Time Out 5-60 Set how long the OSD stays on
OSD H-Position 0-100 Adjust the OSD’s horizontal position
OSD V-Position 0-100 Adjust the OSD’s vertical position
OSD Transparency 0-5 Adjust OSD’s overall transparency
