alon SOLARIS User manual

SOLARIS GERMANIUM FUZZ 1
PROJECT NAME
SOLARIS
BASED ON
EFFECT TYPE
PROJECT SUMMARY
DOCUMENT VERSION
Dallas-Arbiter Fuzz Face
A hot-rodded adaptation of the classic fuzz pedal made famous by Jimi Hendrix.
Germanium fuzz 1.0.0 (2022-01-21)
BUILD DIFFICULTY
This documentation is for the kit version of the project. If you purchased the PCB by itself, please
use the PCB-only version of the documentation instead. The circuit is the same, but the instructions
are completely different due to the specialized parts and assembly methods used in the kit.
IMPORTANT NOTE
Intermediate
GERMANIUM FUZZ
9V
VOLUME
CONTOUR INPUT
FUZZBODY
SOLARIS
PICKUP
ON
SIMULATOR

SOLARIS GERMANIUM FUZZ 2
TABLE OF CONTENTS
1Project Overview
2Table of Contents
3Introduction
4Packing List
5Packing List (Cont.)
6Tools Needed
7Component Identification
8Hardware Identification
9PCB Assembly Overview
10 Resistors
11 Diodes
12 Socket & IC
13 Trimmers
14 JFET Transistor
15 Capacitors (Non-Polarized)
16 Wire Headers
17 Capacitors (Polarized)
18 Germanium Transistors: Introduction
19 Germanium Transistors
20 Transformer
21 Footswitch PCB
22 Input/Output PCB
23 Enclosure Layout: Panel Mounts
24 Enclosure Layout: Panel Mounts (Cont.)
25 Enclosure Layout: Main & Footswitch PCBs
26 Enclosure Layout: Input/Output PCB
27 Final Assembly & Biasing
28 Final Assembly (Cont.)
29 Schematic
30 Full Parts List
31 Troubleshooting Information
32 Support & Resale Terms
33 Legal Information & Document Revisions

SOLARIS GERMANIUM FUZZ 3
INTRODUCTION
If this is your first pedal, welcome to the hobby and thank you for choosing Aion FX. You’ve just joined
a community of over 40,000 people around the world with a passion for building homemade noise
machines using obsolete electronics technologies, and we’re glad to have you!
If you’ve done this before, it’s great to see you again and we’re confident you’ll find this build experience
an enjoyable one.
Aion FX kits are designed to empower anyone to build a high-quality pedal, no matter the skill level.
The pedalbuilding hobby has traditionally had a steep learning curve, but don’t be overwhelmed—we’ve
done all the hard work for you. All you need to do is follow these instructions and you’ll be on your way
to transforming your tone.
There are a few things to go over before you get started.
• You’re going to have to get your hands dirty—there’s no way around it. Nothing here comes
preassembled, and you’ll have to learn the skills to put it all together. This document will walk you
through everything you need, but be prepared to learn a few things along the way.
• This will take time. Plan on about two hours start to finish. It may take even longer if it’s your first
time building. Don’t rush it. If you find yourself getting frustrated or overwhelmed, take a break
and come back in a couple of hours or the next day.
• No direct technical support is offered. There are several DIY forums and Facebook groups with
thousands of members who enjoy troubleshooting and teaching. But please be sensitive to the
fact that the staff at Aion FX is minimal, and every minute spent helping individuals in private is
time that can’t be spent on new project development.
• There is no implied guarantee of a final product. Aion FX provides the ingredients and the recipe,
but you are responsible for putting everything together to make it work. We’ve tried to make the
process as clear and accessible as possible, but it must be expressly stated that purchasing the kit
is not a guarantee that you will end up with a working pedal.
It’s recommended to read through all of the instructions before you start, particularly if you’ve never
built a pedal before. If you familiarize yourself with the entire process ahead of time and you know what
the goal looks like, each step will make more sense.
Now, on to the fun stuff!

SOLARIS GERMANIUM FUZZ 4
PACKING LIST
This is a list of all the parts that are included with the kit, grouped by value. For a list of all the parts
based on their PCB part numbers, please see page 30.
If you find that any parts are missing or damaged, please fill out the Missing Parts form.
Film Capacitors
NAME QTY
1n (0.001) 1
10n (0.01) 2
100n (0.1) 1
1uF 1
Electrolytic Capacitors
NAME QTY
10uF 2
22uF 1
47uF 1
100uF 1
MLCC Capacitors
NAME QTY
100n (marked “104”) 2
Diodes
NAME QTY
1N5817 1
1N4742A 1
Resistors
NAME QTY
220R 1
1k 2
4k7 1
10k 2
100k 1
1M 2
2M2 1
ICs
NAME QTY
TC1044SCPA 1
8-pin socket 1
Transistors
NAME QTY
PN4303 or 2N5457 1
Transistors, germanium, matched for
Fuzz Face
2
Trimmers
NAME QTY
10k trimmer 1
100k trimmer 1

SOLARIS GERMANIUM FUZZ 5
PACKING LIST (CONT.)
Potentiometers
NAME QTY
1kB 1
1kC 1
100kB 1
250kB 1
500kA 1
Dust cover 5
Knob, 1/2” 5
Mounting nut, potentiometer, 0.44" 5
Lock washer, potentiometer, 0.5" 5
Outer washer, potentiometer, 0.475" 5
Other
NAME QTY
LED bezel 1
LED, blue 1
9V battery snap 1
DC jack 1
Input/output jack 2
Mounting nut, jack, 0.54" 4
Outer washer, jack, 0.6" 2
Lock washer, jack, 0.5" (thin) 2
Enclosure 1
Enclosure screws 4
PCB, main circuit 1
PCB, footswitch 1
PCB, input/output/DC 1
Switches
NAME QTY
Toggle switch, DPDT on-on 1
Mounting nut, toggle switch, 0.36" 1
Lock washer, toggle switch, 0.4" 1
Dress nut, toggle switch, 0.375" 1
Stomp switch, 3PDT 1
Mounting nut, stomp switch, 0.6" 2
Lock washer, stomp switch, 0.6" 1
Dress nut, stomp switch, 0.77" 1
Wiring
NAME QTY
3-strand wire assembly, 70mm 2
4-strand wire assembly, 108mm 1
3-pin wire assembly header 2
4-pin wire assembly header 1

SOLARIS GERMANIUM FUZZ 6
TOOLS NEEDED
SOLDERING IRON
Temperature-adjustable is
recommended. The optimum
soldering temperature is 700-725º
F (371-385º C) for leaded solder, or
750º F (400º C) for lead-free.
WIRE SNIPPERS
Also called nippers or wire cutters.
The Hakko CHP-170 is the best you
can get for less than $10.
SCREWDRIVER (PHILLIPS)
Used for the enclosure screws. Get a
powered driver if you’ll be building a
lot of pedals!
SOLDER
Preferably 63/37 or 60/40 leaded
solder. Lead-free is more difficult to
use, so if that’s the only type you can
get, it’s best to watch tutorials that
are specific to lead-free solder.
NEEDLE-NOSE PLIERS
These are used for bending leads on
components and other general uses.
Use the smaller type with a tip that’s
approximately 0.05” (1.25mm) wide.
FLAT SCREWDRIVER (SMALL)
This is used for tightening the set
screws on the knobs. The tip should
be no more than 0.1” (2.5mm) wide.
DIGITAL MULTIMETER (DMM)
Most cheap ones in the $10-30 range
are fine for what we’re doing. Make
sure it has audible continuity testing
(i.e. it beeps at the lowest resistance)
and transistor hFE measurement.
FLAT-NOSE PLIERS
Many general-purpose uses, but par-
ticularly tightening the nuts of pots,
switches and jacks. Quicker than
changing out sockets on a ratchet.
RUBBER BAND
Yes, a plain old rubber band. This is
used to tighten the dress nut to avoid
scratching or denting it (which can
happen with metal tools).

SOLARIS GERMANIUM FUZZ 7
COMPONENT IDENTIFICATION
If you’ve never built a pedal before, you’ll need to know what all the components are. These are shown
actual size. (Not all of these types of components may be part of this kit.)
RESISTOR TRIMMER POTENTIOMETER
FILM CAPACITOR
SILICON DIODE
ZENER DIODE
LED
DC JACKWIRE ASSEMBLY HEADER
LED BEZEL
WIRE ASSEMBLY
ELECTROLYTIC CAPACITOR
GERMANIUM DIODE
OP-AMP / IC
TANTALUM CAPACITOR
SCHOTTKY DIODE
IC SOCKET TRANSFORMER
MLCC
RECTIFIER DIODE
TRANSISTOR OR JFET
Not polarized. Color may
vary by brand and type.
Not polarized. MLCC stands for
“multi-layer ceramic capacitor.”
Some Schottky diodes
also look like this.
These are very fragile, so be
careful when handling them.
Polarized. The positive side
is marked.
Polarized. The negative side
is marked.
Charge pumps and delay chips
also look like this. They may
have more than 8 legs.

SOLARIS GERMANIUM FUZZ 8
HARDWARE IDENTIFICATION

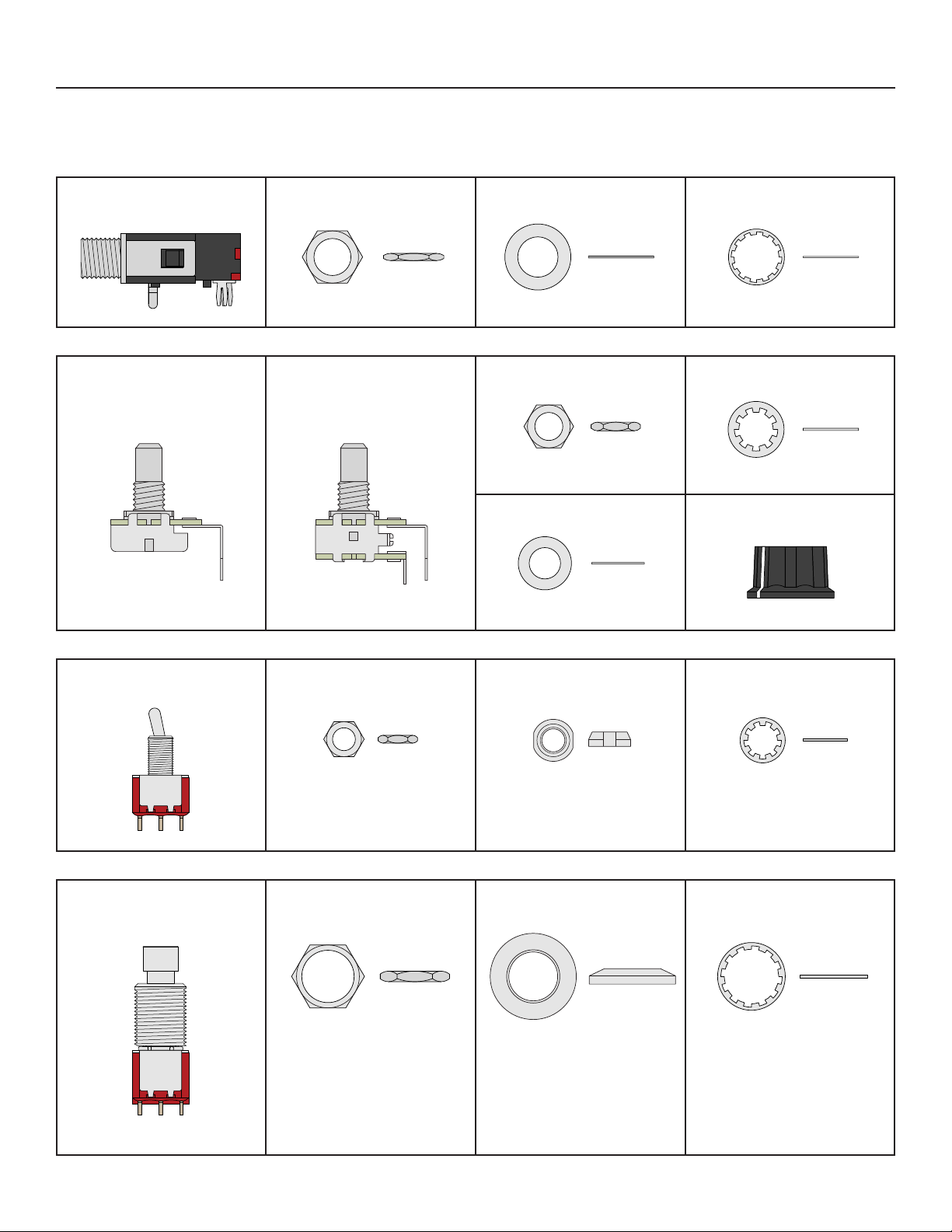

The hardware comes unassembled, so you’ll need to sort & identify each of the pieces. The diagrams
below are actual size, so you can set them against the printed page to identify them if needed.
I/O JACK
TOGGLE SWITCH
POTENTIOMETER
(SINGLE)
FOOTSWITCH
POTENTIOMETER
(DUAL)
MOUNTING NUT
MOUNTING NUT
MOUNTING NUT
MOUNTING NUT
DRESS NUT
OUTER WASHER
DRESS NUT
OUTER WASHER KNOB
LOCK WASHER
LOCK WASHER
LOCK WASHER
LOCK WASHER
DIAMETER: 0.54” / 13.7mm
DIAMETER: 0.36” / 9.1mm
DIAMETER: 0.44” / 11.2mm DIAMETER: 0.5” / 12.7mm
DIAMETER: 0.6” / 15.2mm
DIAMETER: 0.375” / 9.5mm
DIAMETER: 0.475” / 12mm
DIAMETER: 0.5” / 12.7mm
DIAMETER: 0.4” / 10.1mm
DIAMETER: 0.6” / 15.2mmDIAMETER: 0.77” / 19.6mmDIAMETER: 0.6” / 15.2mm

SOLARIS GERMANIUM FUZZ 9

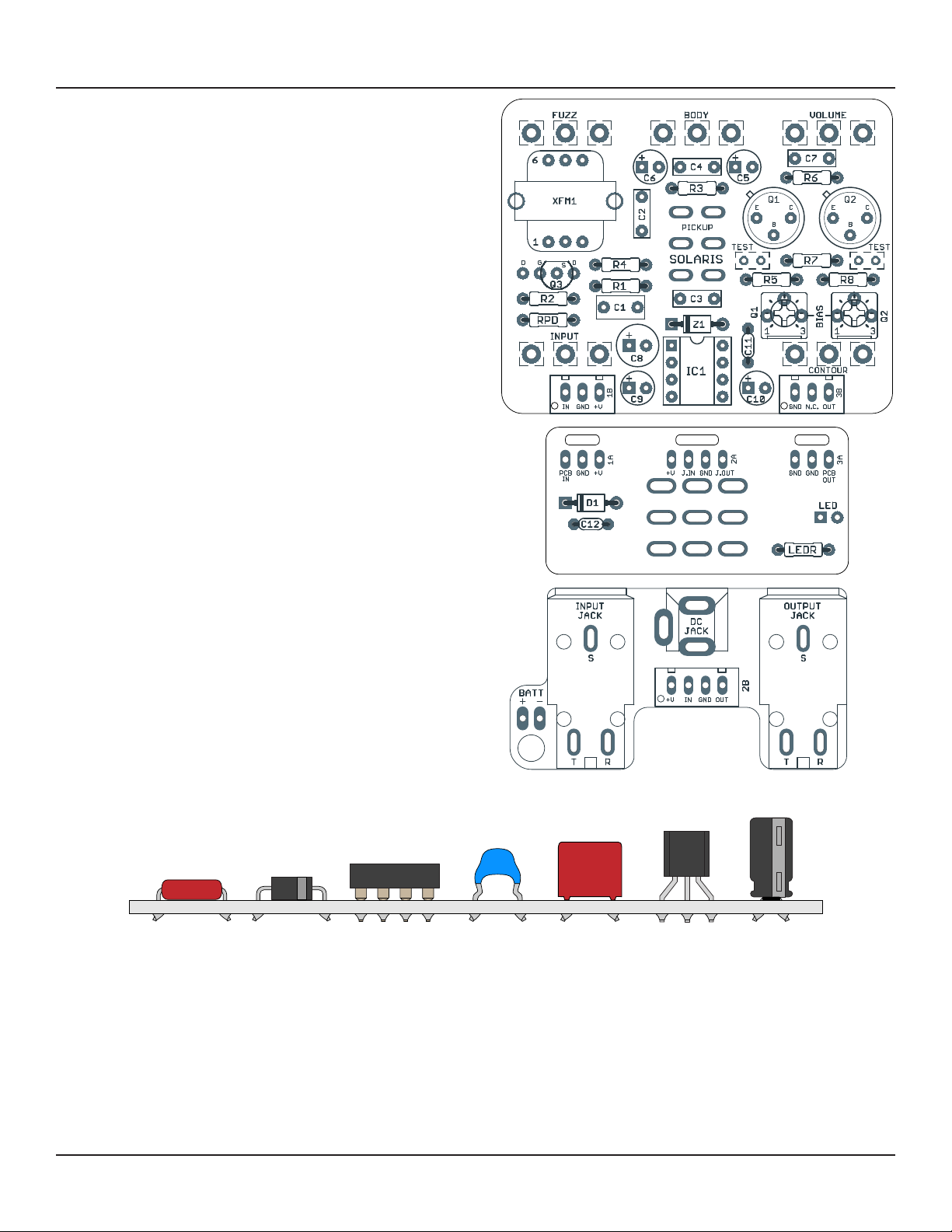

PCB ASSEMBLY OVERVIEW
Now it’s time to start building!
The first thing you need to do is snap apart the PCBs
into 3 separate boards (if needed) and break off the
tabs from each using needle-nose or flat-head pliers.
You should be left with the PCBs shown to the right.
The general principle for PCB population is that you
want to work in layers from shortest components
(i.e. lowest-profile) to tallest so that when the PCB is
upside-down, everything is making contact with the
work surface and is held in place.
Generally speaking, you should populate the
components in this order:
1. Resistors
2. Diodes
3. IC sockets
4. Trimmers
5. MLCC capacitors
6. Film capacitors
7. Transistors (silicon)
8. Electrolytic capacitors
9. Transistors (germanium)
10. Transformer

SOLARIS GERMANIUM FUZZ 10

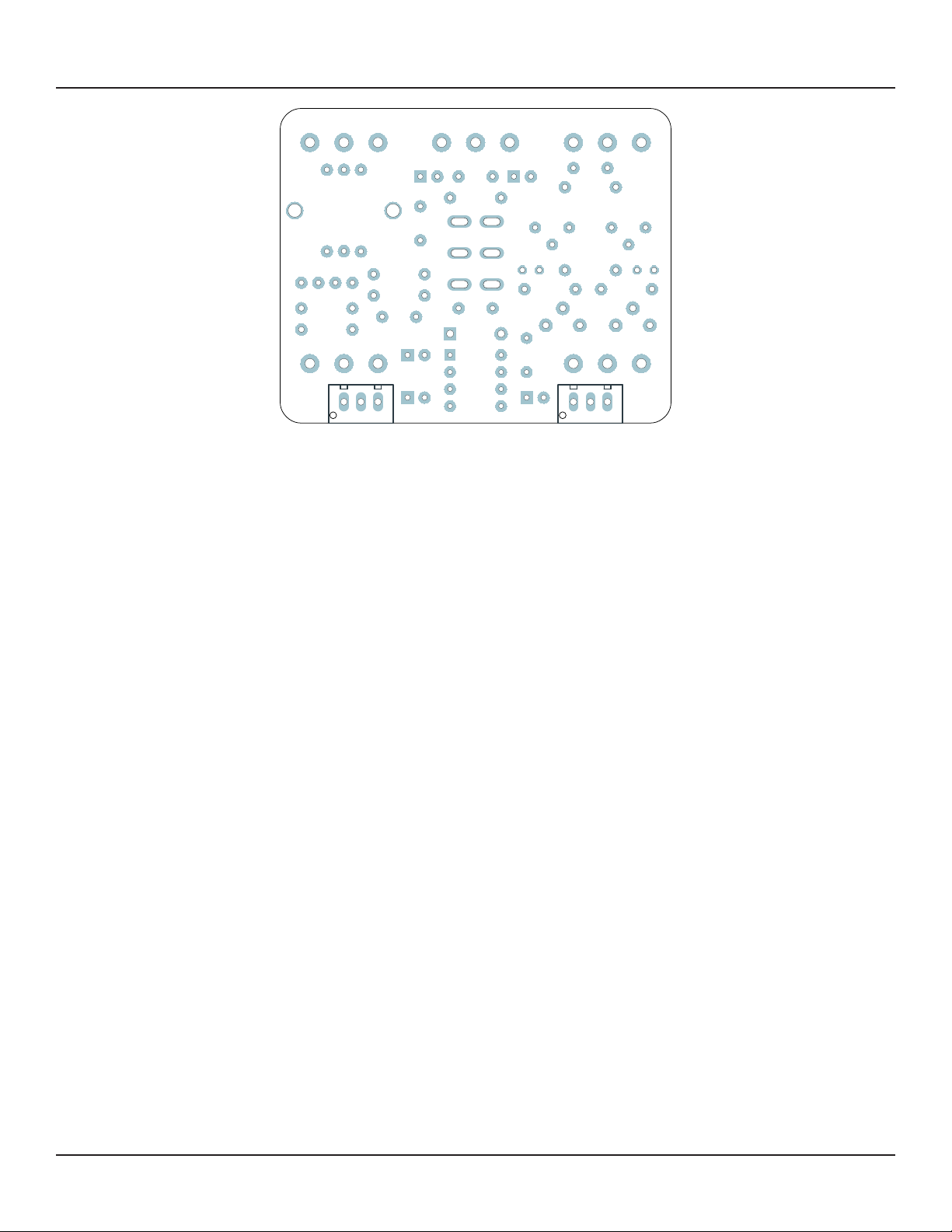

RESISTORS
PART VALUE
R1 1M
R2 1M
R3 10k
R4 1k
R5 10k
PART VALUE
R6 100k
R7 1k
R8 220R
RPD 2M2
LEDR 4k7

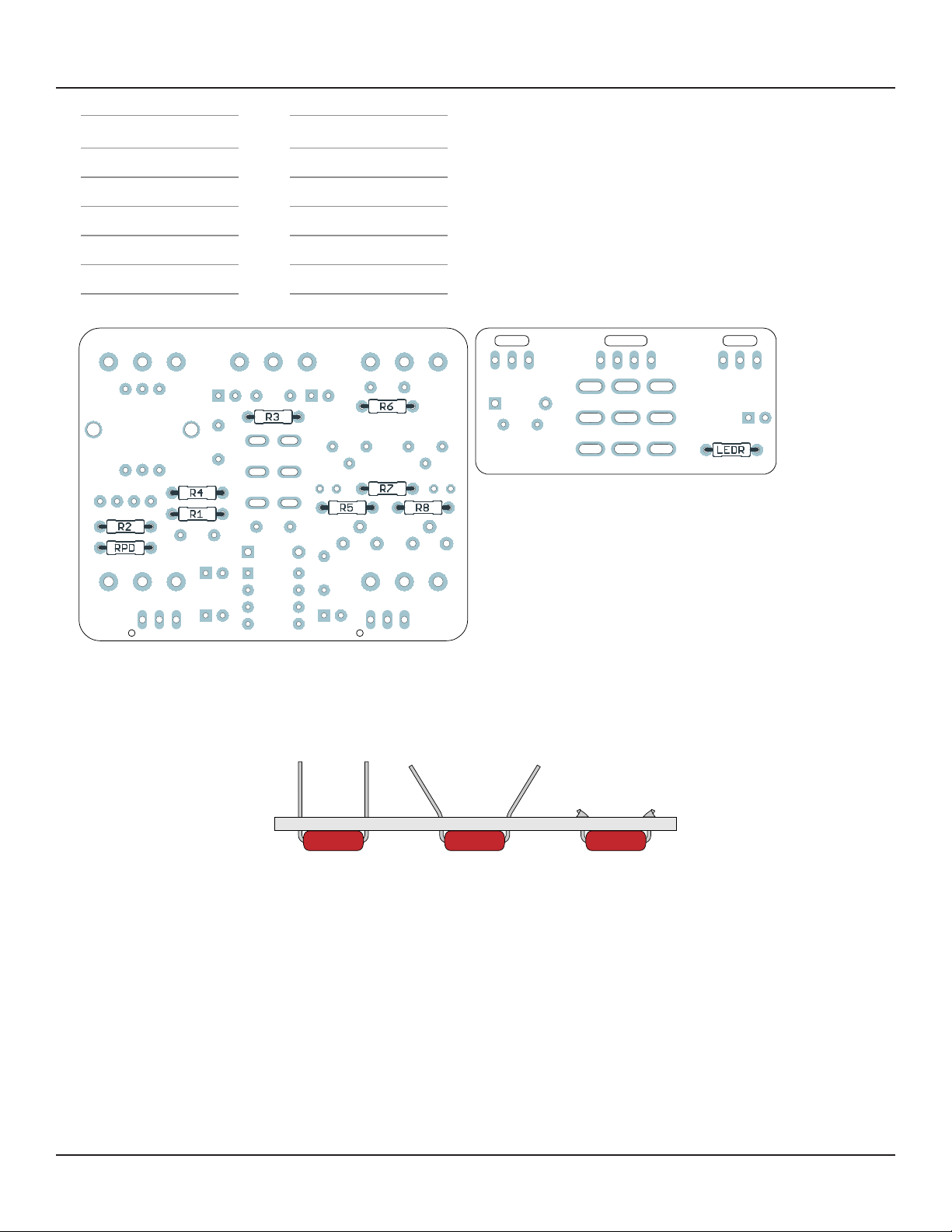

Using the parts list above, populate the resistors by pushing them through the holes and bending the
leads outward at an angle to hold them in place. Resistors are not polarized, so they will work in any
direction. Turn the board upside-down to keep the components held in place while you solder.
You’ll use this same technique for most of the other components as well.
If it gets too crowded, just flip the board and solder everything you’ve done so far, then cut the leads
using the wire snippers to make room for more.
If this is your first time soldering, watch tutorial videos on YouTube and make sure you get it down
before you begin. You don’t want to practice or experiment on this board!

SOLARIS GERMANIUM FUZZ 11
DIODES
PART VALUE
D1 1N5817
Z1 1N4742A
Next, you’ll populate the diodes—only one on each board, so this step is pretty simple. The 1N5817 is
black with a silver stripe, while the 1N4742A is orange with a black stripe.
Diodes are polarized, so make sure to identify the polarity band (which indicates the “cathode”, or
negative side) and match the band to the footprint on the PCB.

SOLARIS GERMANIUM FUZZ 12
SOCKET & IC
Next up is the IC socket. You can’t bend the leads of the sockets like you can with the other components,
so they won’t stay in on their own until they are soldered.
Again, it’s much easier to do this with gravity holding them in place for you, so you’ll want do them
before you do any of the taller components.

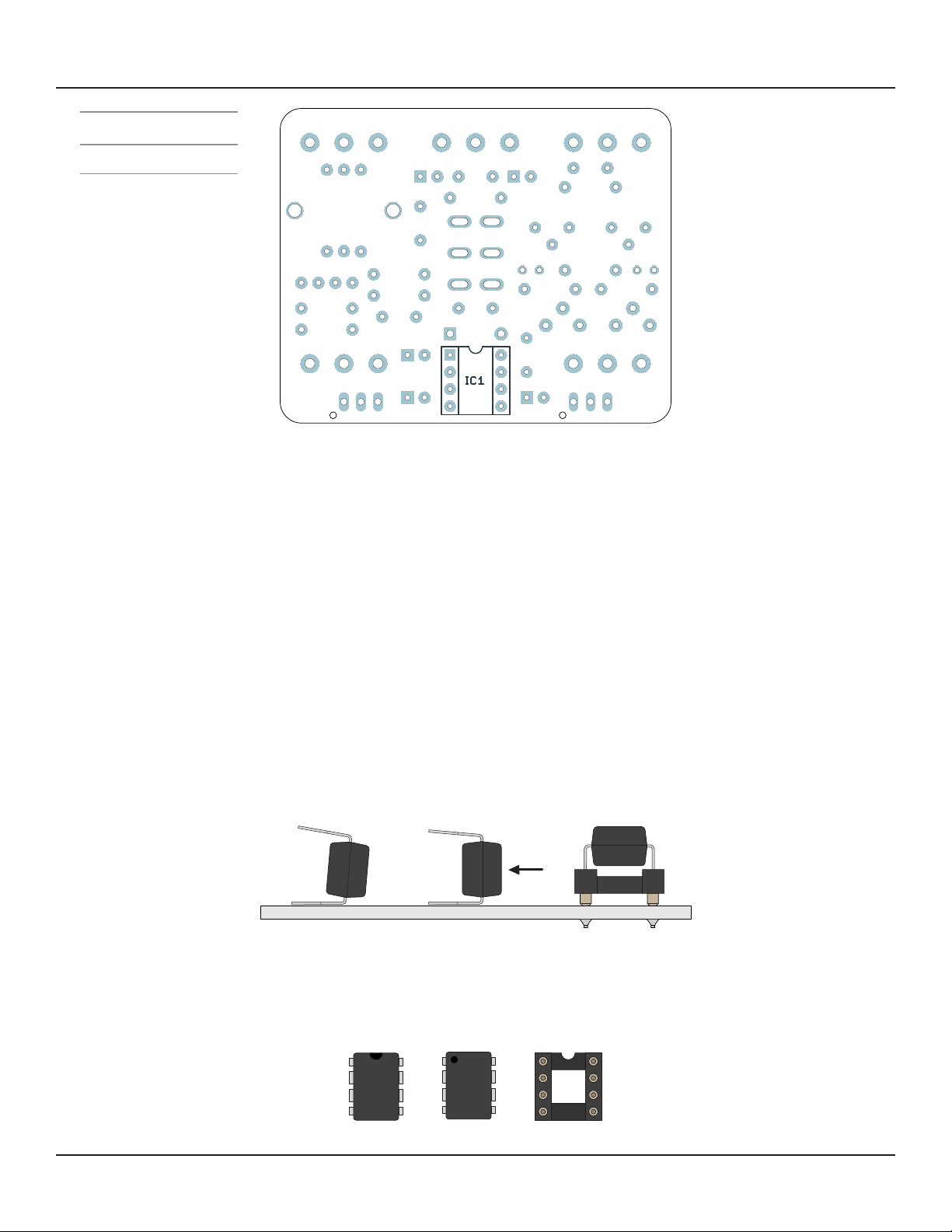

Installing the IC
Don’t insert the IC into the socket just yet. We will do this in a later step, after we’ve finished soldering
the tallest components (the polarized capacitors). This information is just listed here for reference.
The legs of the IC are bent outward slightly during manufacturing, so they’ll need to be bent back inward
before they can be inserted into the sockets.
It’s easiest to do this by laying the IC legs against the table and bending the body itself so all four legs on
the side are straightened out at once. Then, flip it and do the other side.
ICs may have two different orientation marks: either a dot in the upper-left or a half-circle notch in the
middle of the top side. Some ICs have both marks. This shows which way the IC should be rotated when
inserting it into a socket (the socket also has a half-circle notch).
PART VALUE
IC1 TC1044SCPA

SOLARIS GERMANIUM FUZZ 13

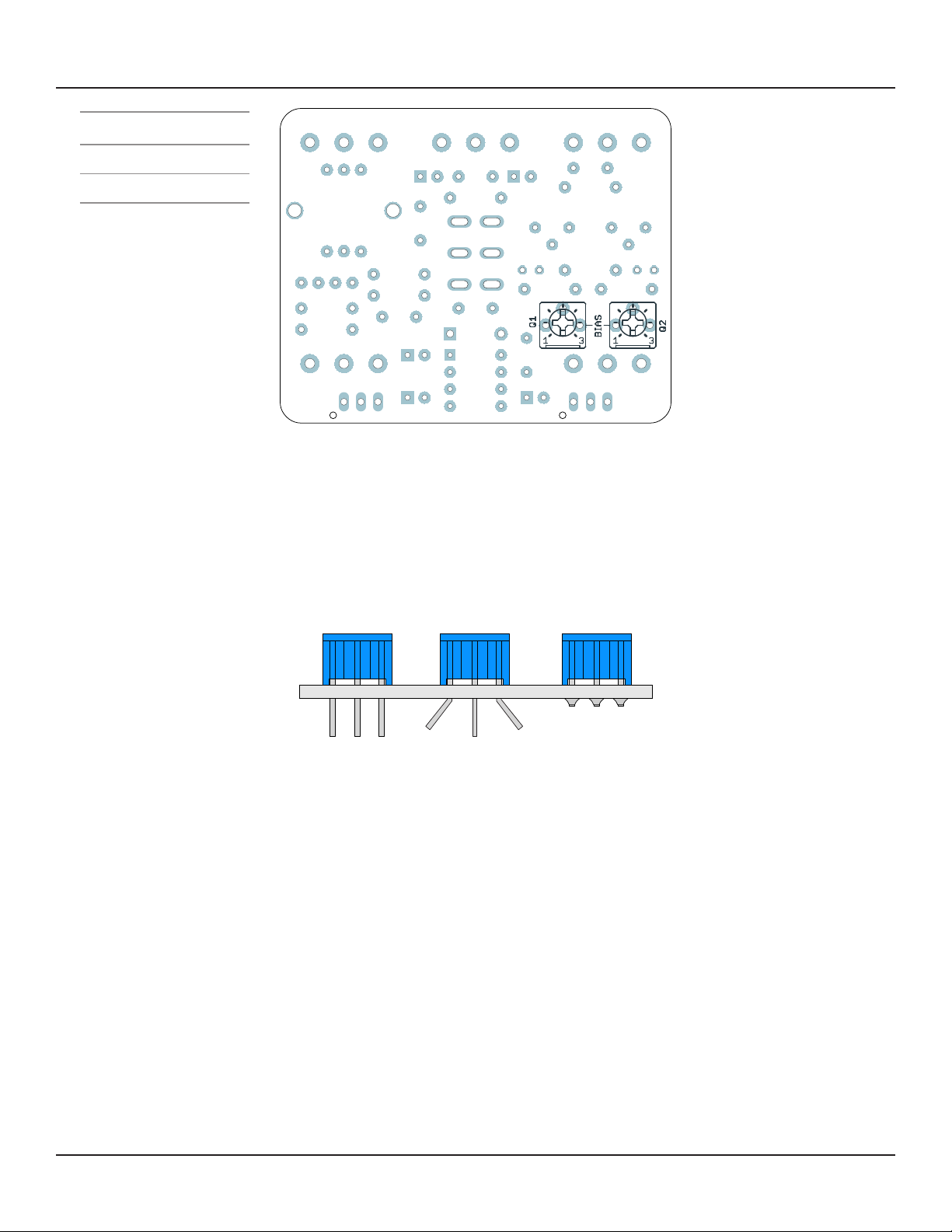

TRIMMERS
The bias trimmers come next. The two trimmers have different values, so you’ll first need to identify
them by the code on the side of the case. The text is laser-etched rather than printed, so if you have a
hard time making it out, you can hold it at an angle to a light source and it should be much easier to see.
The 100k trimmer for Q1 BIAS is marked P 104, while the 10k trimmer for Q2 BIAS is P 103.
The two trimmers can be soldered like normal components, by bending the legs outward as shown:
These trimmers are used to bias the germanium transistors. We will adjust them at the end once the
pedal is fully assembled.
PART VALUE
Q1 BIAS 100k (104)
Q2 BIAS 10k (103)

SOLARIS GERMANIUM FUZZ 14
JFET TRANSISTOR
PART VALUE
Q3 PN4303 or
2N5457
Now we’ll do the JFET transistor. For the JFET, if the legs are not already bent into 0.1” spacing, use your
needle-nose pliers to bend the outer two legs as shown.
Since this is just used as a simple buffer stage, it doesn’t need to be selected for any particular
characteristics, so sockets are not necessary. You can just solder it directly to the board.
Bend the outer leads of the JFET to hold it in place on the board. Then, solder it and clip the leads.

SOLARIS GERMANIUM FUZZ 15
CAPACITORS (NON-POLARIZED)
After the JFET come the box film and MLCC capacitors. These are all several different heights, but there
aren’t as many, so just do them all at once. Bend the leads at an angle to hold them in place.
MLCCs and box capacitors are not polarized and will work in any direction. To keep things neat, though,
it’s best to put them all facing the same way so the values can easily be read.
Note: The blue box film capacitors (C3 and sometimes C4 and C7) have the value printed on the top,
while the red capacitors have the value on the side. The text on the side of the blue capacitors is not
related to the value and can be ignored.
PART VALUE
C1 1uF
C2 100n (0.1)
C3 1n (0.001)
C4 10n (0.01)
PART VALUE
C7 10n (0.01)
C11 100n MLCC
C12 100n MLCC

SOLARIS GERMANIUM FUZZ 16
WIRE HEADERS
Install the two 3-pin headers (wire connectors) as shown above. These have a polarity pin, so as long
as they are pressed all the way down, there’s only one possible way to install them. They do fit pretty
tightly in the holes, though, so press firmly.
There’s also a 4-pin header on the I/O board that we will do in a later step.

SOLARIS GERMANIUM FUZZ 17
CAPACITORS (POLARIZED)
Populate the electrolytic capacitors. They are polarized (i.e. they will only work in one direction), so note
the vertical mark that indicates the negative side. The longer leg is positive and fits in the square pad.
PART VALUE
C5 10uF
C6 22uF
C8 100uF
C9 10uF
C10 47uF

SOLARIS GERMANIUM FUZZ 18

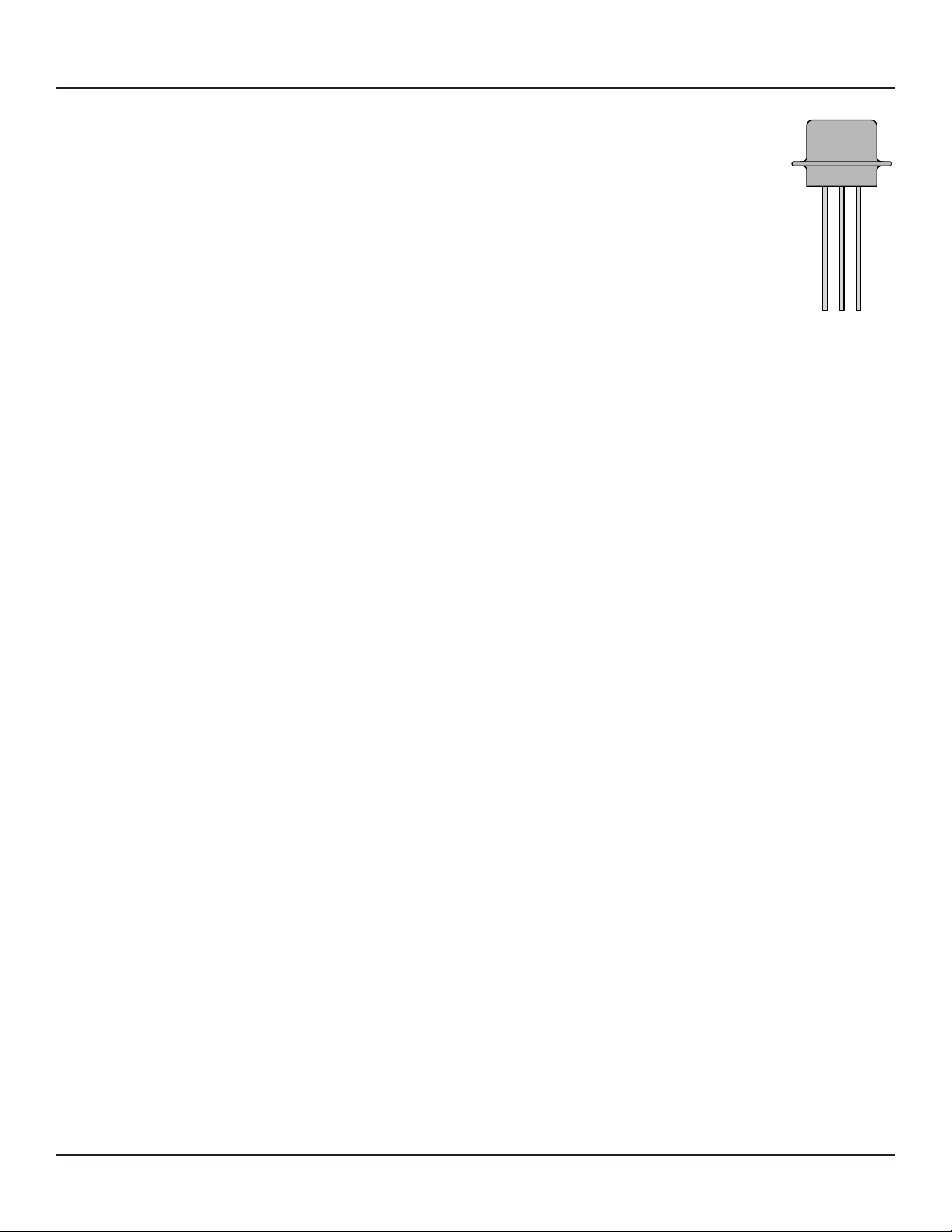

GERMANIUM TRANSISTORS: INTRODUCTION
Next are the germanium transistors. These are very different than modern electronic
components, so they need an introduction before we cover how to install them.
Silicon vs. germanium
Compared to silicon, germanium transistors are imprecise and inconsistent, even among
the same part number. As a result, when classic fuzz circuits use germanium transistors,
it’s not the part number that’s important, but the specifications of the individual device.
Two transistors of different part numbers with identical gain and leakage will sound
exactly the same. Conversely, not all transistors of the same part number will work in a
particular circuit.
Because of this, be aware that this kit may include any of several different part numbers. In this
document we will refer to them as Q1 and Q2, not by specific part numbers such as AC125 or MП16Б.
Matching
The transistors included in the Solaris kit have been measured and matched for best performance in
the Fuzz Face circuit. The transistors come in two bags stapled together, and each bag has two numbers
written on it that are used for the matching process.
It’s not necessary for you to understand what these numbers mean, but if you’re curious, the top number
is the gain (hFE) and the bottom number is the leakage current in microamps (μA). All you need to know
for a successful build is that the transistor in the front is Q1 and has a lower gain value. The second
transistor is Q2 and has a gain value approximately 40 to 60% higher than Q1.
It is extremely important that the transistors are not removed from the bags until it’s time to
install them, and only one at a time, to avoid inadvertently mixing them up. They are not visually
distinguishable from each other, and outside of the bags there is no way to tell which is which. The pedal
won’t sound right if the transistors are used in the wrong positions.
Temperature sensitivity
Germanium is a delicate semiconductor material and very sensitive to overheating. If the transistor is
overheated, it could be permanently damaged. It’s recommended to mount the transistors so they are
elevated above the PCB by about 3/8” (9.5mm) to allow some of the heat to dissipate before it reaches
the body of the transistor. If it takes longer than two seconds for the solder to form a good joint, move to
a different component and let the transistor cool a bit before trying again.
Old-stock precautions
Germanium transistors are not manufactured today except for some expensive industry-specific
applications, so nearly all of the germanium transistors used in guitar pedals are old-stock. The
transistors in this kit are at least 30 years old, and sometimes 50 or more.
While age has nothing to do with performance of the device itself, the leads may be corroded and solder
may not adhere well unless they are cleaned first. If you notice any corrosion on the leads, use medium-
grit sandpaper or a fine metal file to remove it, and ensure the leads are shiny before soldering.

SOLARIS GERMANIUM FUZZ 19
GERMANIUM TRANSISTORS
Now that we’ve covered the basics of germanium transistors, it’s time to install them. Remove Q1 (the
front transistor with a lower gain value) from the bag. As mentioned on the previous page, it’s important
to leave Q2 in its bag until Q1 has been soldered so they don’t get mixed up.

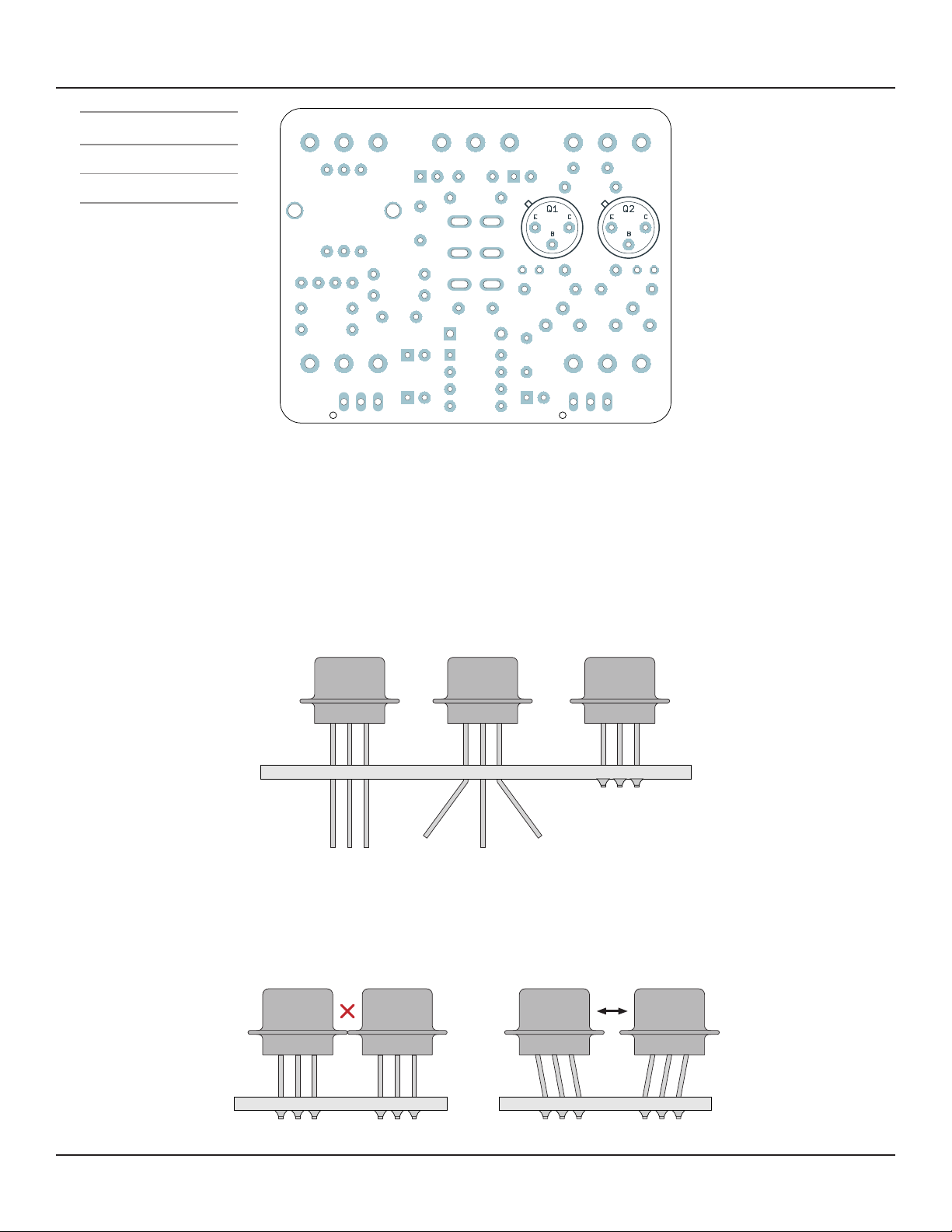

Insert it into the pads on the PCB, being mindful of the “V” pattern of the pins. Keep it raised about 3/8”
(9.5mm) above the PCB, then bend the legs on the bottom side to keep it attached. Turn the PCB over
and let it hang down while you solder it in place. Be quick and make sure the transistor casing doesn’t get
too hot or the transistor could be damaged.
Now, repeat the same step with Q2, the one labeled with the higher gain value. Once both have been
soldered, you’ll need to make sure the transistors aren’t making physical contact with each other. The
base pins are connected to the metal casing, so anything they touch will be shorted against the base.
Bend them slightly away from each other and they should remain that way.
PART VALUE
Q1 Germanium
Q2 Germanium

SOLARIS GERMANIUM FUZZ 20
TRANSFORMER
The transformer is the last of the on-board components. Before installing it to the PCB, scrape off any
wax on the leads. You don’t need to be terribly thorough since it will melt away with the heat of the
soldering iron, but we don’t want the wax getting in the way of a good solder joint.
The primary and secondary coils of the transformer have different properties, so the transformer must
be facing the right direction or it won’t work correctly. In this case, the primary is marked with a “P” and
the top of the nylon bobbin is colored black on that side. The primary side should line up with the pad
marked “1” (in other words, facing toward the bottom of the PCB).

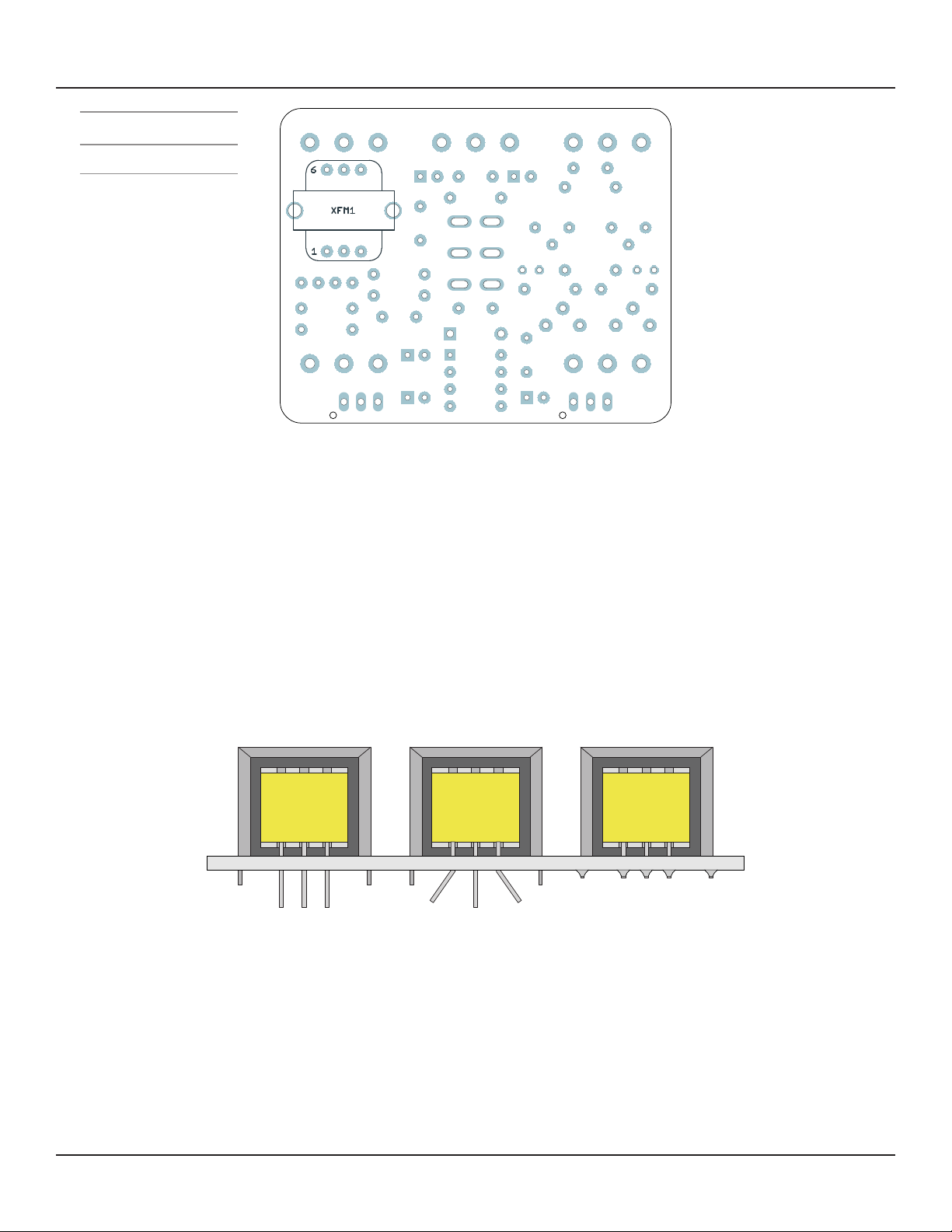

As with earlier components, first bend the six legs to hold it in place as shown in the diagram below.
Solder the legs and the two outer tabs and then clip them short.
Now that we’ve finished with the main PCB, go back to page 12 and insert the IC into the socket.
PART VALUE
XFM1 42TL019
