Alpha Group OutBack Power EnergyCell PLC Series User manual

EnergyCell PLC Series
Owner’s Manual

About OutBack Power Technologies
OutBack Power Technologies is a leader in advanced energy conversion technology. OutBack products
include true sine wave inverter/chargers, maximum power point tracking charge controllers, and system
communication components, as well as circuit breakers, batteries, accessories, and assembled systems.
Applicability
These instructions apply to OutBack EnergyCell PLC series batteries only.
Contact Information
Address: Corporate Headquarters
17825 – 59th Avenue N.E.
Suite B
Arlington, WA 98223 USA
European Office
Hansastrasse 8
D-91126
Schwabach, Germany
Website: http://www.outbackpower.com
Disclaimer
UNLESS SPECIFICALLY AGREED TO IN WRITING, OUTBACK POWER TECHNOLOGIES:
(a) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY
TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION.
(b) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSS OR DAMAGE, WHETHER DIRECT,
INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF SUCH
INFORMATION. THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USER’S RISK.
OutBack Power Technologies cannot be responsible for system failure, damages, or injury resulting from
improper installation of their products.
Information included in this manual is subject to change without notice.
Notice of Copyright
EnergyCel PLC Series Battery Owner’s Manual © 2018 by OutBack Power Technologies.
All Rights Reserved.
Trademarks
OutBack Power and the OutBack Power logo are trademarks owned and used by OutBack Power
Technologies, Inc. The ALPHA logo and the phrase “member of the Alpha Group” are trademarks
owned and used by Alpha Technologies Inc. These trademarks may be registered in the United States
and other countries.
Date and Revision
May 2018, Revision A
Part Number
900-0227-01-00 Rev A

900-0227-01-00 Rev A 3
Table of Contents
Important Safety Instructions ...............................................................4
Additional Resources ......................................................................................................................4
Introduction .....................................................................................5
Audience .........................................................................................................................................5
EnergyCell PLC ..............................................................................................................................5
Materials Required..........................................................................................................................6
Tools ............................................................................................................................................................6
Storage and Environment Requirements........................................................................................6
Temperatures...............................................................................................................................................6
Self-Discharge..............................................................................................................................................7
Storing EnergyCell PLC Batteries................................................................................................................7
Capacity ..........................................................................................................................................7
State of Charge...............................................................................................................................7
System Layout ................................................................................................................................8
Battery Configurations .................................................................................................................................8
DC Wiring......................................................................................................................................10
Commissioning .............................................................................................................................12
Charging .......................................................................................................................................12
Bulk Stage..................................................................................................................................................12
Absorption Stage .......................................................................................................................................13
Float Stage.................................................................................................................................................13
Freshening Charge ....................................................................................................................................14
Notes on EnergyCell PLC Charging ..........................................................................................................14
Temperature Compensation .........................................................................................................14
Remote Temperature Sensor ....................................................................................................................15
Improper Use ................................................................................................................................15
Troubleshooting and Maintenance ......................................................17
Periodic Evaluation .......................................................................................................................18
Specifications.................................................................................19

Safety Instructions
4 900-0227-01-00 Rev A
Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS!
This manual contains important safety instructions for the EnergyCell battery. These instructions
are in addition to the safety instructions published for use with all OutBack products. Read all
instructions and cautionary markings on the EnergyCell battery and on any accessories or
additional equipment included in the installation. Failure to follow these instructions could result in
severe shock or possible electrocution. Use extreme caution at all times to prevent accidents.
WARNING: Personal Injury
Some batteries can weigh in excess of 100 lb (45 kg). Use safe lifting techniques when
lifting this equipment as prescribed by the Occupational Safety and Health Association
(OSHA) or other local codes. Lifting machinery may be recommended as necessary.
Wear appropriate protective equipment when working with batteries, including eye or
face protection, acid-resistant gloves, an apron, and other items.
Wash hands after any contact with the lead terminals or battery electrolyte.
WARNING: Explosion, Electrocution, or Fire Hazard
Ensure clearance requirements are strictly enforced around the batteries.
Ensure the area around the batteries is well ventilated and clean of debris.
Never smoke, or allow a spark or flame near, the batteries.
Always use insulated tools. Avoid dropping tools onto batteries or other electrical parts.
Keep plenty of fresh water and soap nearby in case battery acid contacts skin, clothing,
or eyes.
Wear complete eye and clothing protection when working with batteries. Avoid touching
bare skin or eyes while working near batteries.
If battery acid contacts skin or clothing, wash immediately with soap and water. If acid
enters the eye, immediately flood it with running cold water for at least 20 minutes and
get medical attention as soon as possible.
Never charge a frozen battery.
Insulate batteries as appropriate against freezing temperatures. A discharged battery
will freeze more easily than a charged one.
If a battery must be removed, always remove the grounded terminal from the battery
first. Make sure all devices are de-energized or disconnected to avoid causing a spark.
Do not perform any servicing other than that specified in the installation instructions
unless qualified to do so and have been instructed to do so by OutBack Technical
Support personnel.
Additional Resources
These references may be used when installing this equipment. Depending on the nature of the
installation, it may be highly recommended to consult these resources.
Institute of Electrical and Electronics Engineers (IEEE) guidelines: IEEE 450, IEEE 484, IEEE
1184, IEEE 1187, IEEE 1188, IEEE 1189, IEEE 1491, IEEE 1578, IEEE 1635, and IEEE 1657
(various guidelines for design, installation, maintenance, monitoring, and safety of battery systems)

900-0227-01-00 Rev A 5
Introduction
Audience
This manual is intended for use by anyone required to install and operate this battery. Be sure
to review this manual carefully to identify any potential safety risks before proceeding. The
owner must be familiar with all the features and functions of this battery before proceeding.
Failure to install or use this battery as instructed in this manual can result in damage to the
battery that may not be covered under the limited warranty.
EnergyCell PLC
The EnergyCell PLC (pure-lead carbon) uses pure lead plate construction combined with
carbon additives to obtain maximum cycle life, float life, shelf life (18 months at 25°C), and
PSoC operation. The PLC is ideally suited for the three primary applications where OutBack
inverters are used: Off-Grid, Grid-Tied Battery Backup, and Grid-Tied Self Consumption.
o Low self-discharge
o Oxygen recombination efficiency: ≥97%
o 3D plate structure, optimal plate design provides better performance for high power output than
other EnergyCell models
o VRLA maintenance free battery type
o UL94-V0 flame-retardant jar container

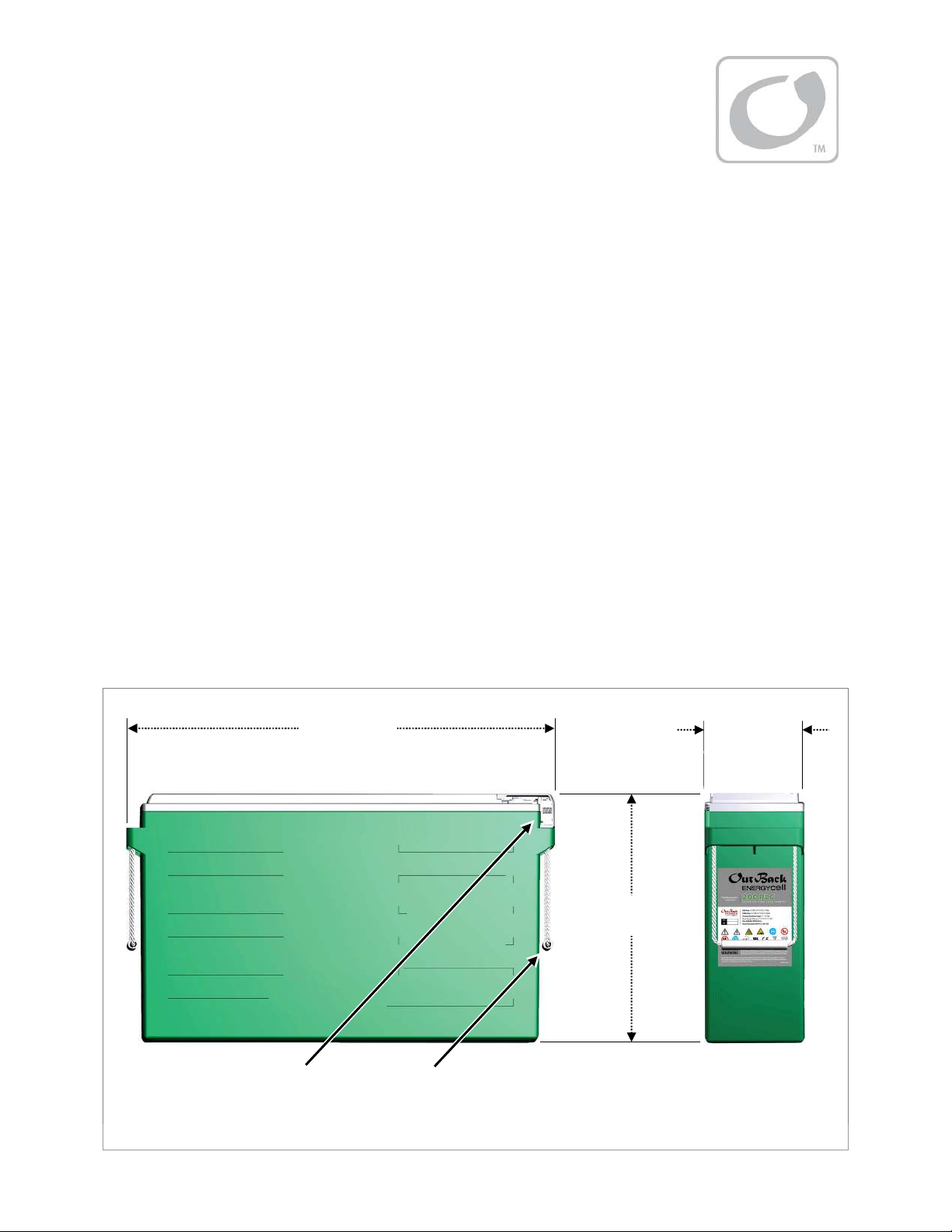

Figure 1 EnergyCell 200PLC
Terminal
Cover
Carrying
Handle
22.0” (55.9 cm)
12.6”
(32.0 cm)
4.9”
(12.6 cm)

Installation and Operation
6 900-0227-01-00 Rev A
Materials Required
Tools (use insulated tools only)
o Digital voltmeter
o Socket wrench
o Torque wrench calibrated in inch-pounds
o Box end wrench
o Battery lifting equipment (handles) and fork lift to lift pallets of batteries
o Rubber gloves
o Full face shield
o Plastic apron
o Portable eyewash
o Spill kit
o Fire extinguisher (class C)
Accessories
o Interconnect bar (included)
o Terminal cover (included)
o Hardware (included)
o Interconnect cables as needed
CAUTION: Fire Hazard
Install properly sized battery cabling and interconnect cables. The cable ampacity
must meet the needs of the system, including temperature, deratings, and any other
code concerns.
Storage and Environment Requirements
Temperatures
o To achieve maximum life of EnergyCell batteries, it is recommended not to operate them in
average ambient temperatures outside the range of 68°F to 86°F (20°C to 30°C). High operating
temperatures will shorten a battery’s life (see page 7).
o Do not allow batteries to freeze, as this will damage them and could result in leakage.
o Do not expose batteries to temperature variations of more than 5°F (3°C). This leads to voltage
imbalance between multiple batteries (or between battery cells if there is a temperature differential).
o Batteries should be stored in a cool, dry location. The best storage temperature is 77°F (25°C), but
a range of –4°F to 104°F (–20°C to 40°C) is acceptable.

EnergyCell Batteries
900-0227-01-00 Rev A 7

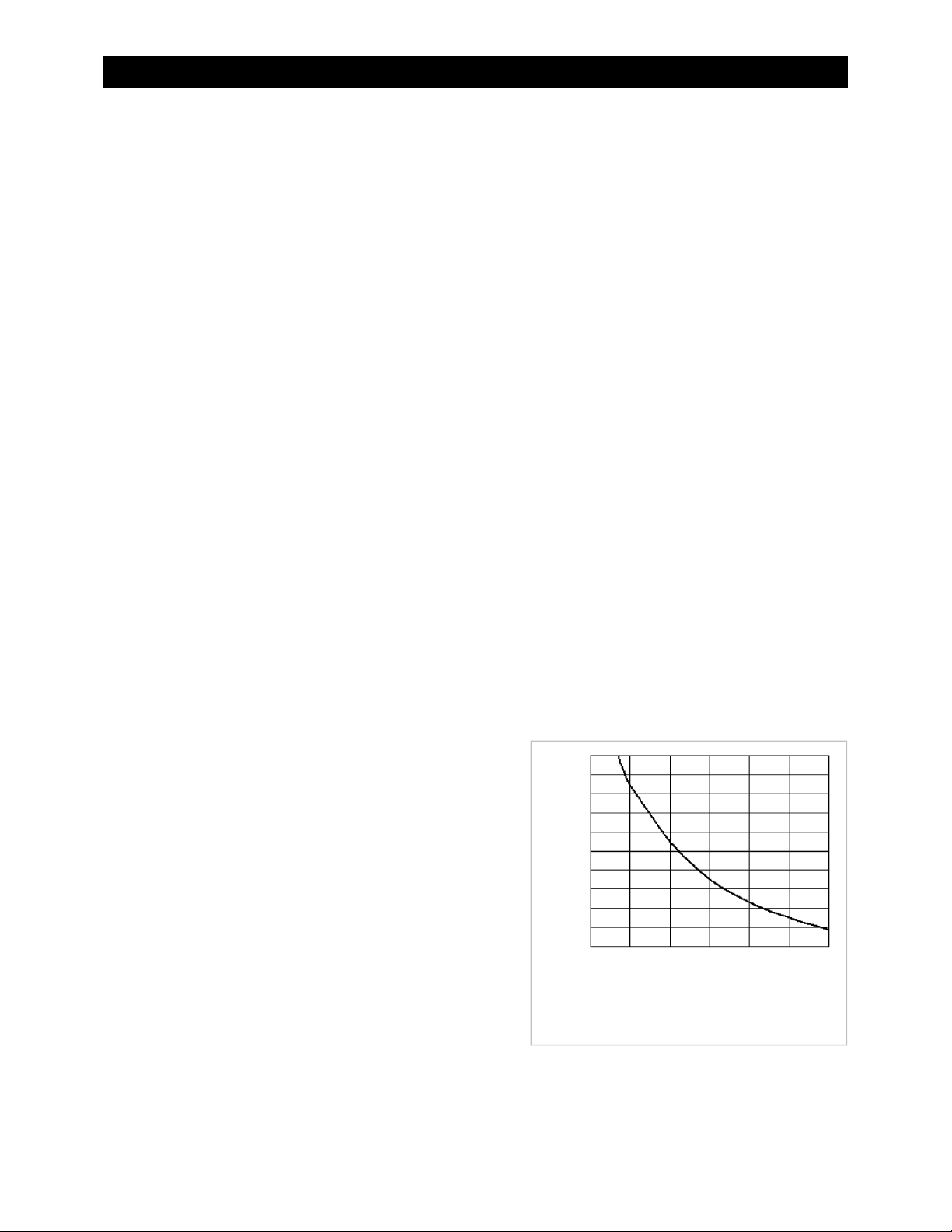

Figure 2 Battery Life
70°F 80°F 90°F 100°F 110°F 120°F 130°F
21°C 27°C 32°C 38°C 43°C 49°C 54°C
Temperature
100
90
80
70
60
50
40
30
20
10
% of Expected Life
Self-Discharge
All EnergyCell batteries will discharge over time once charged, even in storage. Higher storage
temperatures increase the rate of self-discharge. Fully charged, the natural (“rest”) voltage of all
EnergyCell batteries is approximately 13.0 Vdc. A battery should have a freshening charge
(see page 12) if its rest voltage is below 13.0 Vdc per battery (2.16 Vdc per cell). A battery
should not be used if its rest voltage is 12.0 Vdc or lower upon delivery. Contact the vendor
upon receiving a battery in this state.
Storing EnergyCell PLC Batteries
The EnergyCell PLC batteries must be given a freshening charge every 18 months when stored
at 77°F (25°C). If stored in higher temperatures, the charge should be more often.
Capacity
Battery capacity is given in ampere-hours or amp-hours (Ah). This is a current draw which is
multiplied by the duration of current flow. A draw of Xamperes for Yhours equals an
accumulation of XY amp-hours.
Because the battery’s chemical reaction constantly releases energy, its amp-hour capacity is
affected less by lighter loads. The battery has greater capacity under lighter loads.
For example, if the EnergyCell PLC is discharged at the 48-hour rate to a voltage of 1.75 Vpc
(a load expected to effectively drain 100% of its capacity in 48 hours), it will be measured to
have 191 amp-hours. However, at the 4-hour rate, a heavier load, only 140 amp-hours will be
measured. For all tested discharge rates and amp-hours, see Table 3 on page 19.
The EnergyCell 200 PLC is named after its capacity at the 100-hour rate when discharged to
1.75 Vpc.
State of Charge
The EnergyCell SoC can be determined by
two methods. One is to measure its voltage.
This is accurate only if the batteries are left
at rest (no charging or loads) for 24 hours
at room temperature (77°F or 25°C). If these
conditions are not met, then voltage checks
may not yield usable results. If they are met,
then on average, a battery at 13.0 Vdc will be
at 100% SoC. A rest voltage of 12.2 Vdc
represents roughly 50% SoC.
The more accurate method is to use a battery
monitor such as the OutBack FLEXnet DC.
Using a sensor known as a shunt, the monitor
observes the current through the battery.
It keeps a total of amp-hours lost or gained by
the battery and can give accurate SoC readings.

Installation and Operation
8 900-0227-01-00 Rev A
The EnergyCell can be discharged and recharged (cycled) regularly to a level as low as 50%
depth of discharge (DoD). This is common in a cycling application such as an off-grid system.
However, for optimal life, the best practice is to avoid ever discharging below 50%. Lower DoD
levels can shorten the battery life.
If operated in a range with consistent charge and discharge to no more than 50% DoD, the
EnergyCell PLC will typically have a life of 3,000 cycles. With consistently lighter discharge
(10 to 30% DoD with proper recharge), the battery may have significantly more cycles.
For the anticipated cycle life, see the OutBack data sheet for the EnergyCell 200 PLC. (The
cycle life can be affected by temperature. Figure 2 on the previous page shows the effect of
ambient temperature on typical battery life.)
System Layout
CAUTION: Fire Hazard
Failure to ventilate the battery compartment can result in the buildup of hydrogen
gas, which is explosive.
o The battery enclosure or room must be well-ventilated. This ventilation protects against accidental
gas buildup. All EnergyCell batteries are valve-regulated and do not normally emit noticeable
amounts of gas. However, in the event of accidental leakage, the enclosure must not allow the
leaked gas to become concentrated.
o The battery enclosure or room must have adequate lighting. This is necessary to read terminal
polarity, identify cable color, and view the physical state of the battery as required.
o The battery should be installed with a minimum 36” (91.4 cm) clearance in front. This allows access
for testing, maintenance, and any other reasons.
o Multiple batteries should have a minimum of ½” (12.7 mm) clearance on either side.
Battery Configurations
Figure 3 Series String Configurations
Series String (24 Vdc) Series String (48 Vdc)
Load +Load – Load +Load –
Batteries are placed in series (negative to positive) for additive voltages. Batteries in series are known
as a “string”. A string of two EnergyCell batteries has a nominal voltage of 24 Vdc and can be used
for 24-volt loads. A string of four has a nominal voltage of 48 Vdc. Other voltages are possible.
However, batteries in series do not have additive amp-hours. A single string of any voltage (as shown
above) has the same amp-hours as a single battery.
When replacing batteries, a new battery should not be placed in series with old batteries. This will
cause severe stress and shorten the life of all batteries. All batteries in a string should be replaced at
the same time.

EnergyCell Batteries
900-0227-01-00 Rev A 9
Figure 4 Parallel String Configuration
Figure 5 Series/Parallel String Configurations
Batteries are placed in parallel (positive to positive,
negative to negative) for additive amp-hour capacity.
Three batteries in parallel have three times the
amp-hours of a single battery. However, batteries in
parallel do not have additive voltages. A single set of
batteries in parallel (as shown in this figure) have the
same voltage as a single battery.
NOTE:Use caution when designing or building
systems with more than three EnergyCell batteries or
strings in parallel. The extra conductors and
connections used in larger paralleled systems can lead
to unexpected resistances and imbalances between
batteries. Without proper precautions, these factors will
reduce the system efficiency and shorten the life of all
batteries. For systems beyond three strings, contact an
OutBack re
p
resentative.
Parallel Load Bus +
Load Bus –
Load Bus – Load Bus + Load Bus –
Load Bus +
Batteries are placed in both series and parallel for both additive voltage and amp-hour capacity.
Series strings placed in parallel have the same nominal voltage as each string. They have the same
amp-hour capacity of each string added together. Two parallel strings of two EnergyCell batteries in
series have a nominal voltage of 24 Vdc, twice the nominal voltage. They also have double the
amp-hour capacity of a single battery. Two parallel strings of four batteries in series have a nominal
voltage of 48 Vdc at double the amp-hour capacity of a single battery.
In a series-parallel bank, it is not recommended to connect the load to the positive and negative
terminals of a single string. Due to cable resistance, this will tend to put more wear on that string.
Instead, it is recommended to use “reverse-return” or “cross-corner” wiring, where the positive cable is
connected to the first string and the negative is connected to the last. This will allow current to flow
evenly among all strings.

Installation and Operation
10 900-0227-01-00 Rev A
DC Wiring
CAUTION: Equipment Damage
Never reverse the polarity of the battery cables. Always ensure correct polarity.
CAUTION: Fire Hazard
Always install a circuit breaker or overcurrent device on the DC positive conductor
for each device connected to the batteries.
CAUTION: Fire Hazard
Never install extra washers or hardware between the mounting surface and the
battery cable lug or interconnect. The decreased surface area can build up heat.
Terminal Hardware
EnergyCell PLC battery terminals consist of a threaded stud which receives a nut. Terminal
hardware is assembled as shown in Figure 6.
NOTE: Install the cable lugs (or interconnects) and all other hardware in the order illustrated.
The lug or interconnect should be the first item installed. It should make solid contact with the
mounting surface. Do not install hardware in a different order than shown.
NOTE: To avoid corrosion, use plated lugs on cable terminations. When multiple cables are
terminated, use plated terminal bus bars.
Tighten the terminals to a torque value of 97.4 to 130.1 in-lb (11 to 14.7 Nm).
Figure 6 Terminal Assemblies
Cleaning Battery Terminals
To minimize contact resistance, it is important that the lead terminals of the batteries be cleaned
of any oxidation that may have occurred during transportation and storage. It is most
convenient to clean them prior to placing them on the rack.
Lightly brush the terminal contact surface areas with a brass bristle brush or the equivalent.
Next apply a light coating of special antioxidant grease such as NO-OX-ID or NCP-2 to the
surfaces. This will protect the lead terminal from further oxidation.
Lock
W
ashe
r
Battery
Terminal
Surface
Battery
Terminal
Stud
Cable Lug or
Interconnect
Flat
W
ashe
r
M6 Nut

EnergyCell Batteries
900-0227-01-00 Rev A 11
Figure 7 Connecting Batteries
IMPORTANT:
Before using the battery bank, commission the batteries as described on the next page.
To make the DC connections:
Make certain to clean all terminals and contact
surfaces according to the steps on page 10.
1. If installing batteries in a rack or cabinet,
always begin with the lowest shelf for
stability. Place all batteries with terminals
facing to the most accessible side of the
rack. If terminal protectors are present,
remove and save them.
2. In common configurations, the battery
on one end will be the positive (+) output
for that string. This battery should be
designated [1]. Proceeding to the other
end, adjacent batteries in that string
should be designated [2], [3], and so on.
3. If more than one string is present, designate the first string as A, the second as B, and so on.
This should be done regardless of whether the strings are on the same shelf or higher shelves.
Number the batteries in subsequent strings just as in step 2.
4. Install series connections. If an interconnecting bar was supplied, it should connect from
the negative (left) side of battery [1] to the positive (right) side of battery [2] as shown above
(see arrow). Top-terminal batteries require short interconnecting cables to be provided.
Tighten interconnect hardware “hand tight” only.
5. Repeat the process as appropriate for batteries [2], [3], and any others in the string. Connect
the proper number of batteries in series for the nominal voltage of the load.
6. If multiple series strings will be used, repeat this process for strings B, C, and so on.
7. Install parallel connections. Parallel connections are made from the positive terminal of
one battery or string to the positive of the next; negative connections are made similarly.
(See Figure 4 on page 9.) External cables or bus bars must be provided. Interconnecting
bars cannot make parallel connections.
8. Use a digital voltmeter (DVM) to confirm the nominal system voltage and polarity. Confirm that
no batteries or strings are installed in reverse polarity.
9. Install cables or bus bars for DC loads. Size all conductors as appropriate for the total loads.
See the manual for the battery rack or cabinet if necessary.
10. Before making the final battery connection, ensure the main DC disconnect is turned off.
If this is not possible, then do not make the final connection within the battery enclosure.
Instead, make it at the load or elsewhere in the cable system so that any resulting spark
does not occur in the battery enclosure.
11. Once hardware is installed and batteries are properly aligned, torque all connections to the
appropriate value for the battery model. (See the requirements on page 19.) Lightly coat the
surfaces with battery terminal grease. Reinstall the terminal covers if present.
Interconnecting Bar

Installation and Operation
12 900-0227-01-00 Rev A
Commissioning
The commissioning charge applies when the batteries have been in transit or in storage for 24
months or more. (This applies at a storage temperature of 25°C or 77°F. The interval is shorter
at higher temperatures.) It is also needed when the battery system is intended for use at the
minimum float charging voltage or when the number of cells in series is greater than 24. Under
any of these conditions, it is recommended the battery system be given a freshening charge at
2.35 volts average per cell for 24 hours. This will assure higher initial performance and will
reduce the time period required for the cells to achieve proper voltage balance between the
individual units.
To apply a freshening charge:
Confirm the freshening (equalization) voltage from the charger/rectifier is set to a value equal to the
Absorb Charging Voltage shown below.
Close the circuit from the charger to the battery and confirm that the battery accepts current.
Monitor the battery periodically and note that the operation is proceeding normally. Make certain that
the current acceptance is declining and that the batteries are not overheating (within ±5°F or ±2.8°C
of each other and the ambient temperature). Make certain that the individual battery voltages on
equalization charge are 14.1 ± 0.50 Vdc.
Terminate the freshening charge in the case of any extraordinary situation or after 24 hours.
Initial Float Charging
Following the freshening charge the battery system should be placed on float charge at a value
equal to the Float Charging Voltage shown in the following section. See page 13 for a
description of float charging.
Prior to placing on float charge, assure the charger is set to the proper output voltage. After the
battery system has been on float for approximately 24 hours, the float current acceptance
should be greater than zero, but no more than approximately 0.005 Adc per rated ampere-hour
capacity of the battery string.
Charging
EnergyCell PLC batteries are usually charged using a “three-stage” charging cycle: bulk stage,
absorption stage, and float stage. Most OutBack chargers follow this algorithm. However, not
all chargers are designed or programmed the same way. The settings should be checked and
changed to match the recommendations below if necessary.
Charging Voltages
o Absorb Charging Voltage: 14.1 Vdc
o Equalize Charging Voltage: 14.1 Vdc (same as Absorb voltage but used under different conditions)
o Float Charging Voltage: 13.5 Vdc
Bulk Stage
The bulk stage is a constant-current stage. The charge current is maintained at a constant high
level. The battery voltage will rise as long as the current flows. This battery has a
recommended maximum current limit of 50 Adc which should not be exceeded. At excessive

EnergyCell Batteries
900-0227-01-00 Rev A 13
current rates, the battery’s conversion efficiency becomes less and it may not become
completely charged. The battery may permanently lose capacity over the long term.
The purpose of the bulk stage is to raise the battery voltage to a relatively high level (usually
referred to as either bulk voltage or absorption voltage). This number is shown as the Absorb
Charging Voltage on page 12. If batteries are in series, this number is multiplied by the number
of batteries in the string. This stage typically restores the battery to 85% to 90% SoC, if the
charge rate does not exceed the 50 Adc maximum.
Absorption Stage
Absorption is a constant-voltage stage.
It is established upon reaching the
Absorb voltage setting. The charger
limits the current flow to only what is
necessary to maintain this voltage.
A high current is required to raise the
voltage to the absorption level, but less
is required to maintain it there. As long
as the absorption level is maintained,
the requirement tends to decrease,
causing a tapering current. The
amount of absorption current will vary
with conditions, but will typically
decrease to a very low number. This
“tops off the tank”, leaving the battery
at 100% SoC.
The battery is considered to be full
when the following conditions are met:
The charge current must taper down to
a level between 1% and 2% of the total
battery amp-hours (while maintaining
the absorption voltage). The charger
can then exit absorption to the next stage.
Not all chargers measure this in amperes. Many chargers hold the absorption for a timed period
(often two hours), assuming that the current will taper down by then. However, if the charge
ends before the current tapers to the desired level, the battery may not reach 100% SoC.
Repeated failure to charge the batteries to 100% will result in decreased battery life. If possible,
use a DC ammeter to observe and time the current as it tapers down. The absorption timer can
then be set accordingly.
Float Stage
The float stage is a maintenance stage which ensures the battery remains fully charged. Left
with no maintenance, the battery will tend to slowly lose its charge. The float stage provides
current to counter this self-discharge. As with the absorption stage, float is a constant-voltage
stage which supplies only enough current to maintain the designated voltage.
The voltage requirements for float stage are much lower than for bulk and absorption. This
number is shown as the Float Charging Voltage on page 12. The float stage should provide
enough current to maintain the appropriate voltage. If batteries are in series, this number
should be multiplied by the number of batteries in the string.
Hours (typical)
Amperes
(typical)
Hours (typical)
Bulk
Absorption
Float
Absorptio
Bulk
Float
DC Volts
Figure 8 Three-Stage Charging

Installation and Operation
14 900-0227-01-00 Rev A
Freshening Charge
A maintenance or “freshening” charge should be given to batteries that have been in storage.
The freshening charge must be appropriate to the battery model. All charging should be
temperature-compensated (see below). With a three-stage charger, the voltages for each stage
are set as noted on page 12.
Notes on EnergyCell PLC Charging
The current requirements for the absorption and float stages are usually minimal; however, this
will vary with conditions, with battery age, and with battery bank size. (Larger banks tend to
have higher exit current values for the absorption stage, but they also have higher float current.)
Any loads operated by the battery while charging will also impact the requirements for the
charger, as the charger must sustain everything.
Not all chargers exit directly to the float stage. Many will enter a quiescent or “silent” period
during which the charger is inactive. These chargers will turn on and off to provide periodic
maintenance at the float level, rather than continuous maintenance.
Constant-Float Charging
“Constant-float” charging may be used with the EnergyCell PLC in backup power applications
where the battery bank is rarely discharged. When a discharge occurs, it is critical to recharge
the bank as soon as possible afterward. When charged with a constant-float charger, the
charger should be set to maintain the batteries at 13.5 Vdc per battery in a string (2.25 Vpc) at
room temperature. The batteries are considered to be fully charged when the cell voltage is
maintained at this level and the charge current has dropped to a low level over a long period of
time. In constant-float charging, it is critical to compensate the settings for temperature.
Temperature Compensation
Battery performance will change when the temperature varies above or below room temperature
(77°F or 25°C). Temperature compensation adjusts the charging to correct for these changes.
When a battery is cooler than room temperature, its internal resistance goes up, the voltage
changes more quickly, and the charger reaches its voltage set points more easily. However, it
will not deliver all the required current and the battery will tend to be undercharged. Conversely,
when the battery is warmer than room temperature, its internal resistance goes down, the
voltage changes more slowly, and the charger does not reach its voltages as easily. It will
continue to deliver energy until the set points are reached, but this tends to be far more than
required. The battery will be overcharged. (See Improper Use.)
To compensate for these changes, a charger used with the EnergyCell battery must have its
voltages raised by a specified amount for every degree below room temperature. They must be
similarly lowered for every degree above room temperature. This factor is multiplied if additional
batteries are in series. Failure to compensate for significant temperature changes will result in
undercharging or overcharging which will shorten battery life.
EnergyCell PLC Required Compensation
The factor is 5 mV per cell (0.03 Vdc or 30 mV per battery) per degree C above or below room
temperature (77°F or 25°C) when the battery is regularly cycled. The factor is 3 mV per cell
(0.018 Vdc or 18 mV per battery) per degree C in constant-float applications.

EnergyCell Batteries
900-0227-01-00 Rev A 15
Remote Temperature Sensor
OutBack inverter/chargers and charge controllers are equipped with the Remote Temperature
Sensor (RTS) which attaches to the battery and automatically adjusts the charger settings.
When the RTS is used, it should be placed on the battery sidewall, as close to the center of the
battery (or to the center of the bank) as possible.
The charger determines the RTS compensation factor. Most OutBack chargers are preset to a
compensation of 5 mV per cell. If an RTS is not present, if a different charger is in use, or if a
different compensation factor is required, it may be necessary to adjust the charger settings
manually. The RTS should be checked periodically. Failure to compensate correctly may result
in wrong voltages.
Improper Use
CAUTION: Equipment Damage
Read all items below. Maintenance should be performed as noted on page 18.
Failure to follow these instructions can result in battery damage which is not covered
under the EnergyCell warranty.
CAUTION: Equipment Damage
Do not exceed the specified absorption voltage when charging any EnergyCell
battery. Excessive voltage could result in battery damage which is not covered
under the EnergyCell warranty.
For any EnergyCell battery, if the charger settings are too high, this will cause premature aging
of the battery, including loss of electrolyte due to gassing. The result will be permanent loss of
some battery capacity and decreased battery life. This is also true for battery charging that is
not compensated for high temperatures.
“Thermal runaway” can result from high ambient temperatures, charging at higher voltages over
extended time, incorrect temperature compensation, or shorted cells. When the buildup of
internal heat exceeds the rate of cooling, the battery’s chemical reaction accelerates. The
reaction releases even more heat, which in turn continues to speed up the reaction. Thermal
runaway causes severe heat, gassing, lost electrolyte, and cell damage. It usually requires
battery replacement. The process can be halted by turning off the charger. However, if cell
damage has occurred, shorted cells may continue to generate heat and gas for some time.
If an EnergyCell battery is not charged completely (or if the settings are too low), it will not reach
100% SoC. Its total capacity will not be available during the next discharge cycle. This capacity
will become progressively less and less over subsequent cycles. Long-term undercharging will
result in decreased battery life. This is also true for battery charging that is not compensated for
low temperatures.

Installation and Operation
16 900-0227-01-00 Rev A
NOTES:

900-0227-01-00 Rev A 17
Troubleshooting and Maintenance
Table 1 Troubleshooting
Category Symptom Possible Cause Remedy
Performance
Reduced operating time
Normal life cycle Replace battery bank when (or before) capacity
drops to unacceptable levels.
Defective cells Test and replace battery as necessary.
Excessive voltage drop upon
applying load
Excessively cold battery Carefully warm up the battery.
Undersized cabling Increase cable ampacity to match loads.
Loose or dirty cable
connections
Check and clean all connections. Physical
damage on terminals may require the battery to
be replaced. Replace hardware as necessary.
Undersized battery bank Add additional batteries to match loads.
Defective cells Test and replace battery as necessary.
External
Inspection
Swollen or deformed battery
casing; “rotten-egg” or
sulfurous odor; battery is hot
Thermal runaway
NOTE: A modest amount
of swelling (or concavity) on
the battery case is normal.
NOTE:Thermal runaway is a hazardous
condition. Treat the battery with caution. Allow
the battery to cool before approaching.
Disconnect and replace battery as necessary.
Address the conditions that may have led to
thermal runaway (see page 15).
Damaged battery casing Physical abuse Replace battery as necessary.
Heat damage or melted
grease at terminals
Loose or dirty cable
connections
Check and clean all connections. Physical
damage on terminals may require the battery to
be replaced. Replace hardware as necessary.
Voltage
testing
Fully-charged battery
displays low voltage
High temperature Carefully cool the battery. An overheated
battery may contribute to thermal runaway.
Fully-charged battery
displays high voltage
Low temperature Carefully warm up the battery.
Individual battery charging
voltage will not exceed
13.3 Vdc; high float current;
failure to support load
Shorted cell Test and replace battery as necessary.
A shorted cell may contribute to thermal
runaway.
Individual battery float
voltage exceeds 14.5 Vdc;
failure to support load
Open cell Test and replace battery as necessary.
Current
testing
Charging current to series
string is zero; failure to
support load
Open connection or open
battery cell in string
Check and clean all connections. If battery
appears to have an open cell, test and replace
as needed. Replace hardware as necessary.
Charging current to series
string remains high over time
Batteries require additional
time to charge
Normal behavior; no action necessary.
Charging current to series
string remains high with no
corresponding rise in voltage
Shorted cell Test and replace battery as necessary.
A shorted cell may contribute to thermal
runaway.

Maintenance
18 900-0227-01-00 Rev A
Periodic Evaluation
Upon replacement of a battery, all interconnect hardware should be replaced at the same time.
To keep track of performance and identify batteries that may be approaching the end of their
life, perform the following tests during on a quarterly basis following commissioning (see page
12). Tests must be made with a high-quality digital meter. Voltages must be measured directly
on battery terminals, not on other conductors. All connections must be cleaned, re-tightened,
and re-torqued before testing. If a battery fails any test, it may be defective. If this occurs under
the conditions of the warranty, the battery will be replaced according to the warranty terms.
Bring the batteries to a full state of charge before performing the following test.
Monthly Battery Inspection
o General appearance and cleanliness of battery, battery rack and battery area.
Inspect for contamination by dust.
Inspect for loose or corroded connections.
If necessary, isolate the string/battery and clean with a damp soft cloth. Do not use solvents or
scouring powders to clean the batteries.
o Cracks in cell containers or leakage of electrolyte.
o Any evidence of corrosion at cell terminals, connectors or racks.
o Ambient temperature and condition of ventilation equipment.
o Current and voltage during charge cycle. Measure individual battery voltages at the battery terminal.
The measurements should be within 5% of the average.
o Voltage at end of charge cycle. Measure individual battery voltages at the battery terminal.
The measurements should be within 5% of the average.
o End of discharge voltage measured at the battery. Measure individual battery voltages at the battery
terminal. The measurements should be within 5% of the average.
o Record findings clearly. List the dates for all entries.
Quarterly Battery Inspection
This should include the monthly observations, plus:
o End of charge voltage of every cell and battery terminal voltage measured at battery.
o End of discharge voltage of every cell and battery terminal voltage measured at battery.
o Electrolyte temperature in representative cell(s), typically one cell/tier distributed throughout battery.
o Record findings clearly. List the dates for all entries.
Annual battery inspection
This should include the monthly and quarterly observations, plus:
o Inter-cell / inter-unit connection integrity.
o Retighten terminals to specified torque values. See page 19 for specifications.
o Record findings clearly. List the dates for all entries.

900-0227-01-00 Rev A 19
Specifications
Table 2 Specifications
EnergyCell 200PLC
Cells Per Unit 6
Voltage Per Unit 12V
Optimal Operating
Temperature
68°F to 86°F
(20°C to 30°C)
Operating Temperature Range
(Storage)
–4° to 104° F
(–20° to 40° C)
Operating Temperature Range
(Discharging)
–40° to 149° F
(–40° to 65° C)
Operating Temperature Range
(Charging)
–5° to 140° F
(–15° to 60° C)
Float
Charge Voltage 13.5 Vdc
Absorb or Equalize
Charge Voltage 14.1 Vdc
Maximum Charge Current 50 Adc
Charging Temperature
Compensation Factor ±5 mV / °C / cell
Relative Humidity 0% to ~95%,
non-condensing
Terminal T11
Terminal Torque297.4 to 130.1 in-lb
(11 to 14.7 Nm)
Weight ~130 lb
(~59 kg)
Dimension L x W x H 22.0 × 4.92 × 12.6”
(559 × 125 × 320 mm)
Warranty 6 years (global),
full replacement
Table 3 Ampere-Hour Capacity to 1.75 Volts Per Cell at 25°C
Discharge in Hours: 1 2 3 4 5 8 12 20 24 48 100
EnergyCell 200PLC 104 120 132 140 145 160 168 178 182 191 200

Masters of the Off-Grid.™ First Choice for the New Grid.
Corporate Headquarters
17825 – 59th Avenue N.E.
Suite B
Arlington, WA 98223 USA
European Office
Hansastrasse 8
D-91126
Schwabach, Germany
