Alpha Technologies PE6500/50 User manual

Alpha Technologies SA – Boulevard de l’Europe 131 – B-1301 Wavre – Belgium – ℡[phone] – [phone]
www.alphatechnologies.eu
Ref 4804 872 50293
PE6500/50
-48V 7Ah/14Ah
User manual

Alpha Technologies SA – Boulevard de l’Europe 131 – B-1301 Wavre – Belgium – ℡[phone] – [phone]
www.alphatechnologies.eu
Ref 4804 872 50293
PE6500/50

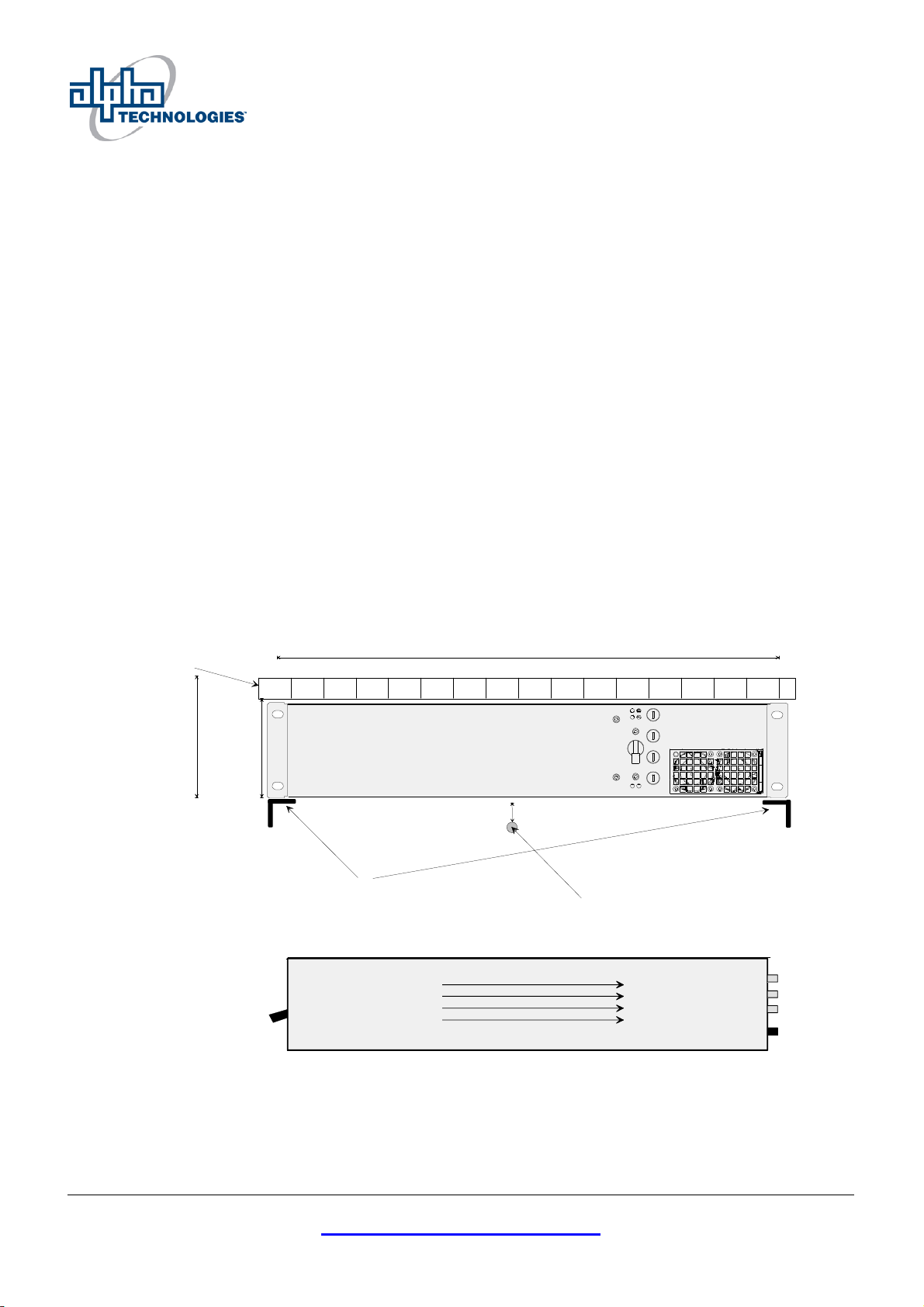

MOUNTING:
Fixings holes are provided on the two mounting brackets
Important : due to the weight ( max. 29 kg ) of the rack , two
cantilever chassis supports or a shelf must be provided.
Weight without batteries: 7.30 kg
Weight of one battery 12V 7Ah 2.64 kg
Max. weight ( - 48V configuration with 2 battery strings ): 28.4 kg
Max. weight ( - 48V configuration with 1 battery strings ): 17.9 kg
VENTILATION:
gas outlet: top of the rack; the air circulation may not be impeded and
a minimum distance of 10mm must be provided above the whole rack
cooling of the battery charger: the air flow is from front to back and the air circulation may not be
impeded. A minimum distance of 40 mm must be provided between the rear of the rack and any vertical
surface.
AMBIENT TEMPERATURE:
0 … +40°C
88.1 mm
or 2 U
19" (483 mm)
minimum free
distance
20 mm
Ambient temperature
measured 20mm under rack
100mm total
Chassis Support
F2
F3
F4
ON
OFF
F1
FRONT
AIR FLOW

Alpha Technologies SA – Boulevard de l’Europe 131 – B-1301 Wavre – Belgium – ℡[phone] – [phone]
www.alphatechnologies.eu
Ref 4804 872 50293
PE6500/50
BATTERIES : General :
Before use, read the instructions given by the battery manufacturer
WARNING High Energy Hazard
Each external battery string MUST be protected according to the system power and the
installed cross-section of the cables
The fuse or disconnecting device must be capable of interrupting the current in the event
of a short-circuit.
The short-circuit current of the batteries is specified by the manufacturer
Shock hazard : all metal parts of batteries are alive and so there is a danger of injury from
electric shock and of accidental short circuit. Touch the battery on the insulated part only.
Be careful with non-insulated tools, bracelets and rings.
Explosion hazard : regardless of service conditions, hydrogen gas can escape from the
press
ure relief valves. Installation in hermetically enclosure is therefore prohibited.
M4
Reference
mating connector
Molex Minifit
2-pole Socket
+ & - are FLOATING
1
-
+
1
-
+
1
-
+
1
-
+
A
RJ45
H
Out 1
Out 2
Out 3
Out 4
TO PE6500/60
Alarms
AC in Grounding PE
1
-
+
Reference
mating connector
Mate-N-Lok
3 - pole Socket
Housing : 350766-1
Contacts (2x) : 926882-1
FRONT
F2
F3
F4
ON
OFF
F1

Alpha Technologies SA – Boulevard de l’Europe 131 – B-1301 Wavre – Belgium – ℡[phone] – [phone]
www.alphatechnologies.eu
Ref 4804 872 50293
PE6500/50
CAUTION ATTENTION
•SEE INSTRUCTIONS BEFORE CONNECTING
BATTERIES •LIRE LES INSTRUCTIONS AVANT DE CONNECTER LES BATTERIES
•RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
•IL Y A RISQUE D’EXPLOSION SI LA BATTERIE
EST REMPLACEE PAR UNE BATTERIE DE TYPE
INCORRECT
METTRE AU REBUT LES BATTERIES USAGEES
CONFORMEMENT AUX INSTRUCTIONS
•DO NOT CHARGE OR DISCHARGE BATTERIES
AT A RATE EXCEEDING MANUFACTURER’S
RECOMMENDATIONS
•NE PAS CHARGER NI DECHARGER LES
BATTERIES HORS DES LIMITES SPECIFIEES
PAR LE FABRICANT
•RISK OF ENERGY •RISQUE D’ENERGIE
•ONLY FOR INDOOR USE •UTILISATION A L’INTERIEUR SEULEMENT
•DO NOT RESTRICT VENTILATION OPENINGS •NE PAS OBTURER LES OUIES D’AERATION
•BATTERIES TO BE REMOVED BEFORE
TRANSPORTATION •RETIRER LES BATTERIES AVANT TRANSPORT
PE6500/50
- 48V SYSTEM
LVD
7Ah
P F C
CAR0548
Control
Out 1
F 1
Out 2
F 2
Out 3
F 3
Out 4
F 4
²
7Ah
To PE6500/60
external Battery rack
4 x 4A
500W rectifier
AC in
100 - 250V

Alpha Technologies SA – Boulevard de l’Europe 131 – B-1301 Wavre – Belgium – ℡[phone] – [phone]
www.alphatechnologies.eu
Ref 4804 872 50293
PE6500/50
PLACE OF THE BATTERIES
CONFIGURATIONS -48V 7Ah and 14Ah
- 48V - 2 x 7Ah in parallel
NP7 - 12 12V , 7.0 Ah
NP7 - 12 12V , 7.0 Ah
NP7 - 12 12V , 7.0 Ah
NP7 - 12 12V , 7.0 Ah
NP7 - 12 12V , 7.0 Ah
NP7 - 12 12V , 7.0 Ah
NP7 - 12 12V , 7.0 Ah
NP7 - 12 12V , 7.0 Ah
- 48V - 1 x 7Ah
NP7 - 12 12V , 7.0 Ah
NP7 - 12 12V , 7.0 Ah
NP7 - 12 12V , 7.0 Ah
NP7 - 12 12V , 7.0 Ah
BATTERY CONNECTIONS
PE6500/50: delivered with the unit two complete -48V WCS
per set : two short yellow cables and one long yellow cable
* IF PRESENT: REMOVE THE MAINS CABLE FROM THE RACK
* IF PRESENT: open the battery breaker from the battery pack PE6500/60 and remove the link between the racks
* OPEN THE BREAKER (handle down)
* PLACE FIRST THE BATTERIES VERTICALLY IN THE RACK
* CONNECT THE YELLOW WIRES OF the -48V WCS (Wire Cord Set) FIRST
( series connection of each battery string )
* THE LONG WIRES MUST GO ALONG THE MIDDLE SEPARATION WALL
* MEASURE THE VOLTAGE OF EACH BATTERY STRING:
between non-connected + and – of each string
the string voltages must have the same voltage within +/- 1V ( typical 48 .. 50V )
* CONNECT THE + ( red ) and – ( black ) WIRES TO EACH STRING
* LAY DOWN THE BATTERIES
* PLACE AND FIX THE COVER ( 9 x Torx Combi M3x6 )
* DO NOT CONNECT THE EXTERNAL CABLES
* CLOSE THE BREAKER
* CHECK THE BATTERY VOLTAGE DIRECTLY ON THE REAR CONNECTOR
TYPICAL VALUE: 48 .. 50VDC ( with charged batteries )
* OPEN THE BREAKER AND CONNECT THE EXTERNAL CABLE
* CLOSE THE BREAKER

Alpha Technologies SA – Boulevard de l’Europe 131 – B-1301 Wavre – Belgium – ℡[phone] – [phone]
www.alphatechnologies.eu
Ref 4804 872 50293
PE6500/50

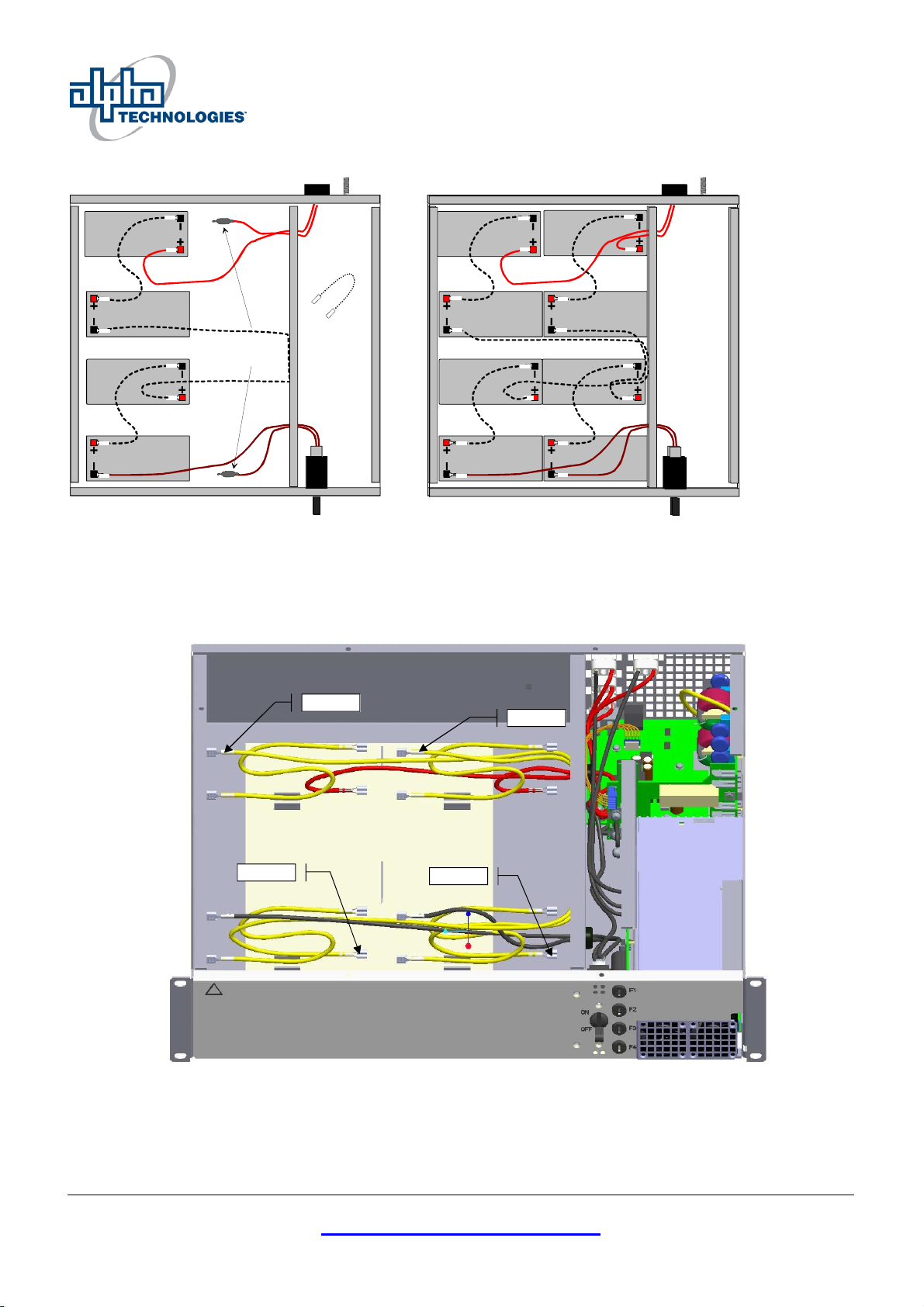

BLACK
RED
DO NOT
remove the insulation
for 2 battery strings
YELLOW
SHORT
BLACK
RED
- 48V - 2 x 7Ah
YELLOW
SHORT
YELLOW
LONG YELLOW
LONG
YELLOW
SHORT
YELLOW
SHORT
- 48V - 1 x 7Ah
Do not place
the 3 yellow
cables in the
battery pack
Long wire 1 Long wire 2
Long wire 2
Long wire 1

Alpha Technologies SA – Boulevard de l’Europe 131 – B-1301 Wavre – Belgium – ℡[phone] – [phone]
www.alphatechnologies.eu
Ref 4804 872 50293
PE6500/50
SAFETY
Hazardous voltage inside the unit, the unit shall be installed by qualified service personnel.
See instructions before connecting or disconnecting batteries
Risk of explosion if batteries are replaced by an incorrect type
Dispose of used batteries according to the instructions
Do not charge or discharge batteries at a rate exceeding manufacturer’s recommendations
Risk of Energy
Only for indoor use
Do not restrict ventilation openings
Batteries to be removed before transportation
WARNINGS
Multiple power source
This equipment is connected with batteries
In order to disconnect the DC outputs,
switch Off both power sources:
1. AC supply: remove the mains cable
and
2. Batteries: open the battery breaker(s)

Alpha Technologies SA – Boulevard de l’Europe 131 – B-1301 Wavre – Belgium – ℡[phone] – [phone]
www.alphatechnologies.eu
Ref 4804 872 50293
PE6500/50
Preparing before installation
CHARGING THE BATTERY
Charge the batteries during minimum one hour before using the equipment the first time.
MAINS CONNECTION
•Mains cable:
minimum requirements: 3 x 0.8mm² or AWG18 ( Line / Neutral / PE )
•Grounding:
for Safety, the battery box must be connected to the Protective Earth through the mains cable and a M4
grounding screw is also provided on the rear side.
•Leakage current:
maximum 3.5 mA
•Minimum value of the external fuse or breaker:
110V mains: 10A delayed action ( line current )
230V mains: 4A delayed action ( line current )
•The battery box has an internal fuse only in the Life line
The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located / installed
near the equipment and is easily accessible.
PROTECTIVE EARTH (PE) CONNECTION
The grounding wire (yellow / green – central terminal) of the mains input must be connected to the PE through the
mains cables.
The mains and grounding connections must be made in accordance with local Norms, Standards and rules.
CONNECTION OF THE APPLICATION
The four outputs are available on the MATE-N-LOK connectors on the rear
Each output is protected by a 4A (5x20mm Slow action) fuse present on the front of the rack (F1 … F4).
For safety compliance, ( risk of fire ) replace only with same type and rating of fuse:
type of fuse: ( 5 x 20 )mm 4A slow

Alpha Technologies SA – Boulevard de l’Europe 131 – B-1301 Wavre – Belgium – ℡[phone] – [phone]
www.alphatechnologies.eu
Ref 4804 872 50293
PE6500/50
CONNECTION OF THE ADDITIONAL BATTERY BOX (PE6500/60)
1. Ensure that the battery breaker of the optional external battery box is open (down)
2. Place the battery cable between the two racks
3. Close the battery breaker of the external battery box
STARTING THE SYSTEM
1. Mains cable removed from the IEC rear socket or ensure that the mains is not connected to the system
2. Check that the battery breaker of the optional external battery box is open (down)
3. Check that the battery breaker of the main rack is open (down)
4. Connect the loads to the MAT-N-LOK connectors
5. Connect the mains to the rack
6. Eventually check the DC output voltage ; typical value : 54V
7. Close the battery breaker of the main rack
8. Close the battery breaker of the optional external battery
SWITCHING OFF THE SYSTEM
1. Open first the battery breaker of the optional external battery ( if present )
2. Open battery breaker of the main rack
3. Remove the mains from the main rack
Note: the TWO battery breakers (main rack AND optional rack) MUST be open to remove
the batteries from the system.
